Product Description
When drone and WLAN equipment must stay connected across both 5.8GHz and 6-7.2GHz bands, this 7.2G & 5.8GHz 4W Dual-Band Signal Booster provides 80X the power to improve link quality and coverage of certified WLAN devices. It combines ultra-low noise, a wide 7-36V DC input, and plug-and-play operation with no software required. The compact aluminum housing and SMA-K / RP-SMA-K interfaces allow integration into airborne, ground-station, and industrial RF systems. When dual-band links suffer from range limits or signal dropouts, this booster restores balanced bidirectional amplification across both frequency ranges in a lightweight, field-ready form factor.
Typical Applications
- Drone Signal Booster: Improve dual-band drone links for extended operational range.
- WiFi 5/6/7 & 5.8GHz WLAN: Enhance coverage for certified IEEE 802.11a/b/g/n/ac devices.
- UAV Video & Telemetry: Support stable video and telemetry transmission on 5.8GHz and 7.2GHz.
- Wireless Camera Systems: Extend video links for certified wireless camera equipment.
- Point-to-Point Dual-Band Links: Increase signal margin in fixed wireless setups.
- Industrial Wireless & IoT: Improve data link stability in demanding RF environments.
Technical Specifications
|
Parameter |
5.8GHz |
7.2GHz |
|
Working Frequency |
5725-5850MHz |
6000-7200MHz |
|
Operating Voltage |
7-36V DC |
7-36V DC |
|
Receiving Gain |
15dB±1 |
14dB±1 |
|
Transmission Gain |
18dB±1 |
20dB±1 |
|
Max Output Power(P1dB) |
36dBm(4W) |
36dBm(4W) |
|
Input Trigger Power |
Min:3dBm Max:23dBm |
Min:3dBm Max:20dBm |
|
EVM |
3%@27dBm |
3%@28dBm |
|
Noise Figure |
<4.0dB |
<2.5dB |
|
Current Supply |
550mA@Pout 27dBm 12V |
485mA@Pout 28dBm 12V |
|
TX/RX Switch Time Delay |
<1us |
<1us |
|
LED Indicator |
Transmitter:Green; |
Transmitter:Green; Receiver: Red |
|
Operating Temperature |
-30℃~+70℃ |
-30℃~+70℃ |
|
Storage Temperature |
-40℃~+150℃ |
-40℃~+150℃ |
|
Operating Humidity |
Up to 95% rel. humidity |
Up to 95% rel. humidity |
|
RF Connector |
Input: SMA-K; Output: RP-SMA-K |
Input: SMA-K; Output: RP-SMA-K |
|
Power Socket |
2.5*0.7mm DC |
2.5*0.7mm DC |
|
Shell Size |
64.5*61*12mm |
64.5*61*12mm |
|
Shell Material |
Aluminum |
Aluminum |
|
Net Weight |
91g |
91g |
Key Advantages
Dual-Band 4W Bidirectional Amplification. This Signal Booster provides 36dBm(4W) output with 18dB±1 TX gain on 5.8GHz and 20dB±1 TX gain on 7.2GHz, improving both uplink and downlink performance for drone and certified WLAN links.
Ultra-Low Noise and Wide DC Input. A <4.0dB noise figure on 5.8GHz and <2.5dB on 7.2GHz supports stable signal quality, while the 7-36V DC input simplifies integration with varied power sources.

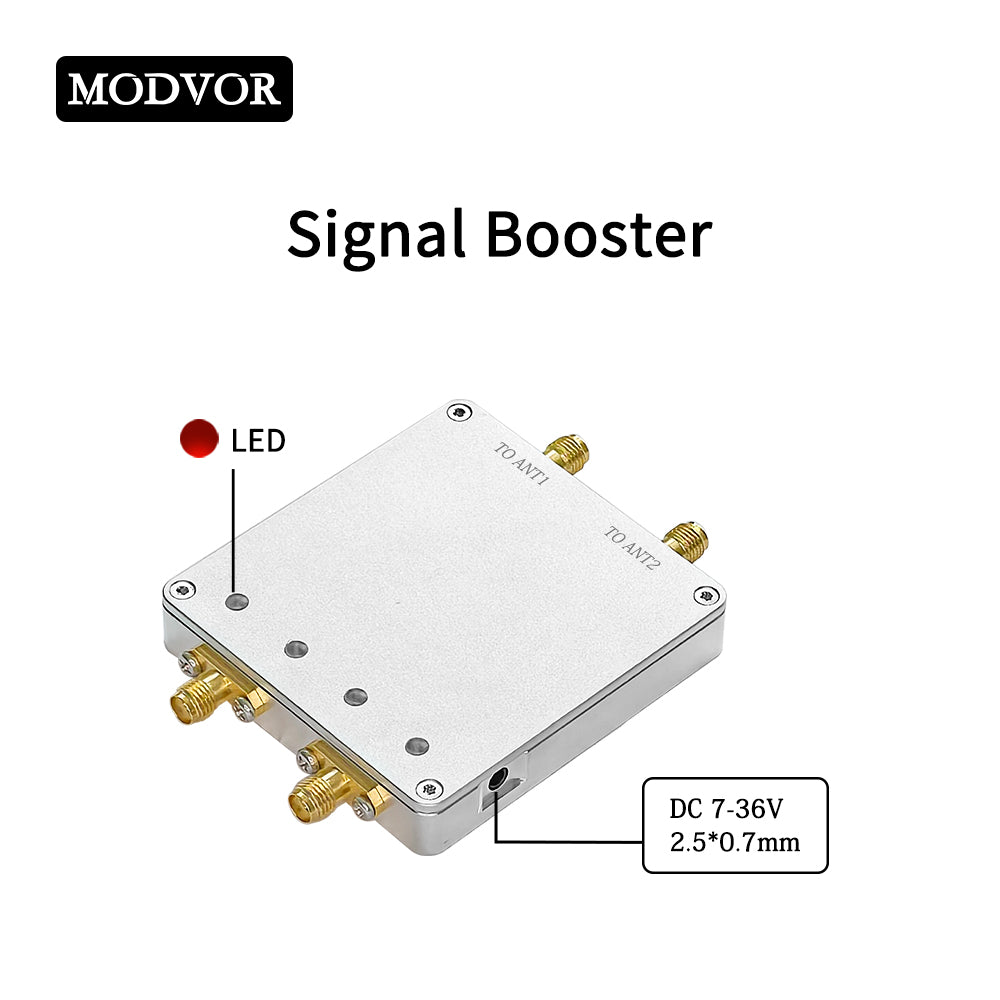

Compact Plug-and-Play Aluminum Housing. The 64.5*61*12mm enclosure weighs only 91g, providing passive cooling and mechanical protection. SMA-K / RP-SMA-K connectors and plug-and-play operation support rapid deployment.
What's in the Box
- 1 × 7.2G&5.8GHz 4W Dual-Band Signal Booster
- 1 × Set of Connection Cables
- 2 × 6dBi Omnidirectional Antenna
