Product Description

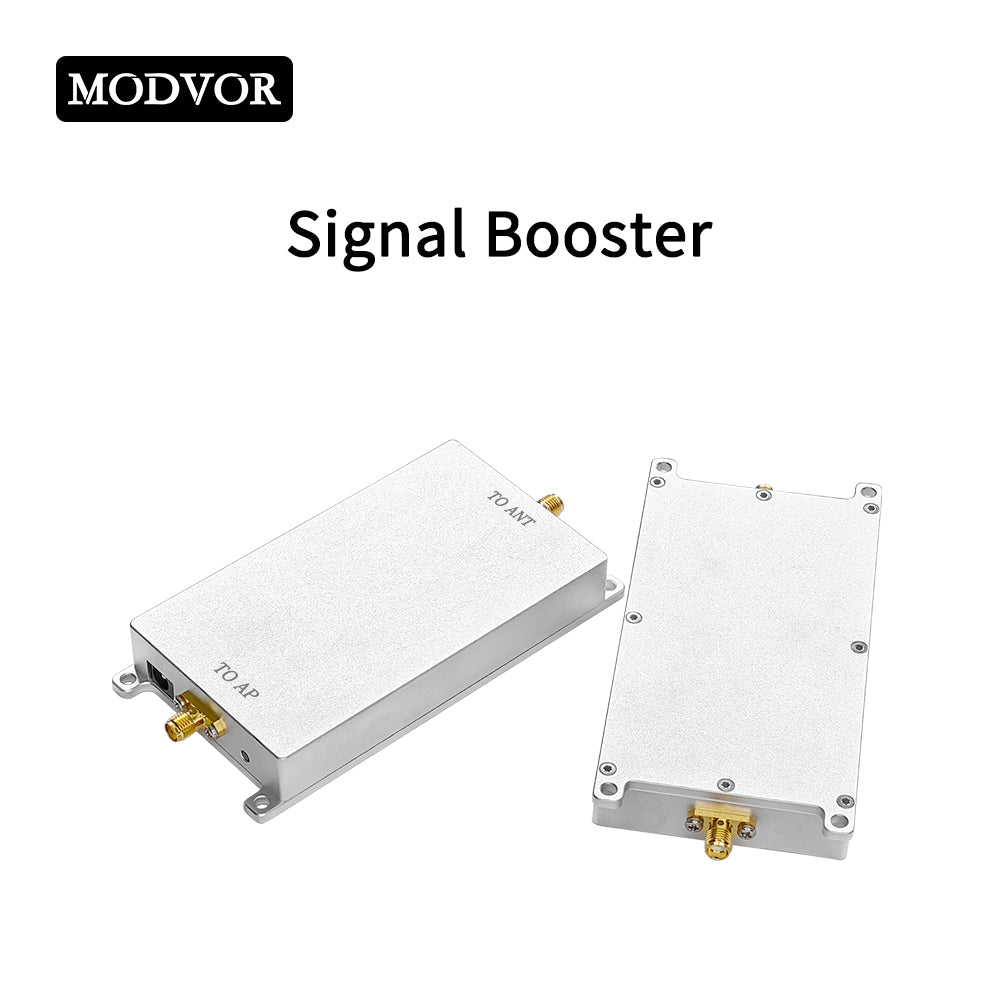

In the 863-870MHz ISM band, LoRaWAN gateways, smart utility meters, industrial telemetry, and remote monitoring systems rely on stable two-way links that can tolerate distance, obstacles, and changing RF conditions. This 868MHz 10W Signal Booster strengthens both the uplink and downlink paths, delivering balanced bidirectional amplification for critical low-power wireless networks. With SMA female connectors, a wide 12-24V DC input, and a compact aluminum housing, it integrates directly into gateways, meters, radio modems, and field equipment. The 5.5*2.1mm power socket matches common industrial and portable power supplies. When link budget becomes the limiting factor, this booster restores reliable RF headroom across 863-870MHz.
Typical Applications
- LoRaWAN Gateway & Node Extension: Improve bidirectional range for LoRaWAN infrastructure and endpoints.
- Smart Utility Metering (AMI): Enhance two-way communication for electricity, gas, and water meters.
- Industrial Telemetry & SCADA: Boost uplink and downlink signals for remote monitoring and control.
- Remote Sensor Networks: Extend coverage for low-power IoT sensors and industrial controllers.
- Wireless Alarm & Security Systems: Improve signal reliability for 868MHz security and access devices.
- Licensed 868MHz Field Testing: Support higher bidirectional output for RF experimentation and validation.
Technical Specifications
|
Parameter |
Value |
|
Working Frequency |
863-870MHz (center 868MHz) |
|
Output Power |
10W(40dBm) |
|
TX Gain (S21) |
20dB |
|
RX Gain (S21) |
18dB |
|
DC Supply |
12-24V |
|
Connector |
SMA female |
|
Size |
118*59*17.5mm |
|
Weight |
0.27Kg |
|
Power Socket |
5.5*2.1mm |
Key Advantages
Balanced Two-Way Amplification. This Signal Booster provides 10W(40dBm) output with 20dB TX gain and 18dB RX gain, improving both outbound commands and inbound data for LoRaWAN, metering, and telemetry links.
Wide DC Input and Standard RF Interface. The 12-24V DC supply, SMA female connector, and 5.5*2.1mm power socket simplify integration into gateways, meters, and industrial radio equipment without custom adapters.
Compact Aluminum Housing for Field Deployment. The 118*59*17.5mm enclosure weighs only 0.27Kg, offering passive cooling and mechanical protection for pole-mounted, portable, and industrial installations.
What's in the Box
- 1 × 868MHz 10W Signal Booster
