Product Description
This 60W 48dBm high-power UAV radio blockers adopts advanced Gallium Nitride semiconductor technology for efficient and stable anti-UAV jamming performance. It supports a wide frequency tuning range of 100MHz–7200MHz, covering mainstream drone control, navigation and transmission bands such as 1.2G, 2.4G and 5.8G. The device delivers full-spectrum signal blocking for most consumer, industrial and FPV drones.
Featuring professional GaN RF amplifier modules, this jammer outputs stable 60W high power with 48dBm gain, offering stronger signal penetration, higher efficiency and lower heat generation than traditional silicon-based jammers. It supports precise, adjustable frequency tuning for targeted signal suppression, which effectively blocks illegal drone signals while reducing unnecessary interference to legitimate nearby communications.
Designed for reliable long-term field use, the device performs stably in complex environments and can effectively cut off drone remote control, image transmission and satellite positioning signals to force rogue drones to hover, land or return home automatically. It is widely suitable for airports, power stations, government sites, scenic spots and military defense scenarios, serving as a high-reliability full-band anti-drone security device.
Product Features
- Advanced GaN Core Technology: Utilizes high-performance GaN RF chips to deliver higher power density, lower heat generation and better efficiency than traditional LDMOS solutions. It enables stable long-duration high-power jamming and enhances overall equipment reliability and service life.
- Full-band Coverage: Features a 100MHz–7200MHz wide tuning range, covering nearly all mainstream civilian and commercial UAV communication and positioning bands. It supports full-spectrum jamming to meet diverse drone countermeasure requirements for multiple scenarios.
- High-power: Delivers 60W output power and 48dBm high gain with powerful signal suppression capability. It effectively builds a reliable jamming barrier to block UAV remote control and positioning signals for accurate and fast anti-drone defense.
- Stable & Durable Operation: Integrated over-current, over-temperature and VSWR protection circuits prevent module damage from abnormal operating conditions. The robust structure adapts to complex outdoor and mobile environments, supporting stable long-term continuous operation
-
Easy Integration & Strong Compatibility: Adopts a standardized modular design for simple installation and debugging. It can be flexibly integrated into fixed and mobile anti-drone systems, enabling rapid deployment and customized defense solutions for various scenarios.
Product Specifications
| Frequency Range | Sub‑band: 2700-7200MHz, Bandwidth: 80‑200MHz |
| Operating Voltage | 28 V DC |
| Flatness | ±0.5 dB |
| Output Power | 60 W/48 dBm |
| Current Consumption | 4.2 A@28 V |
| Efficiency | 45%@48 dBm |

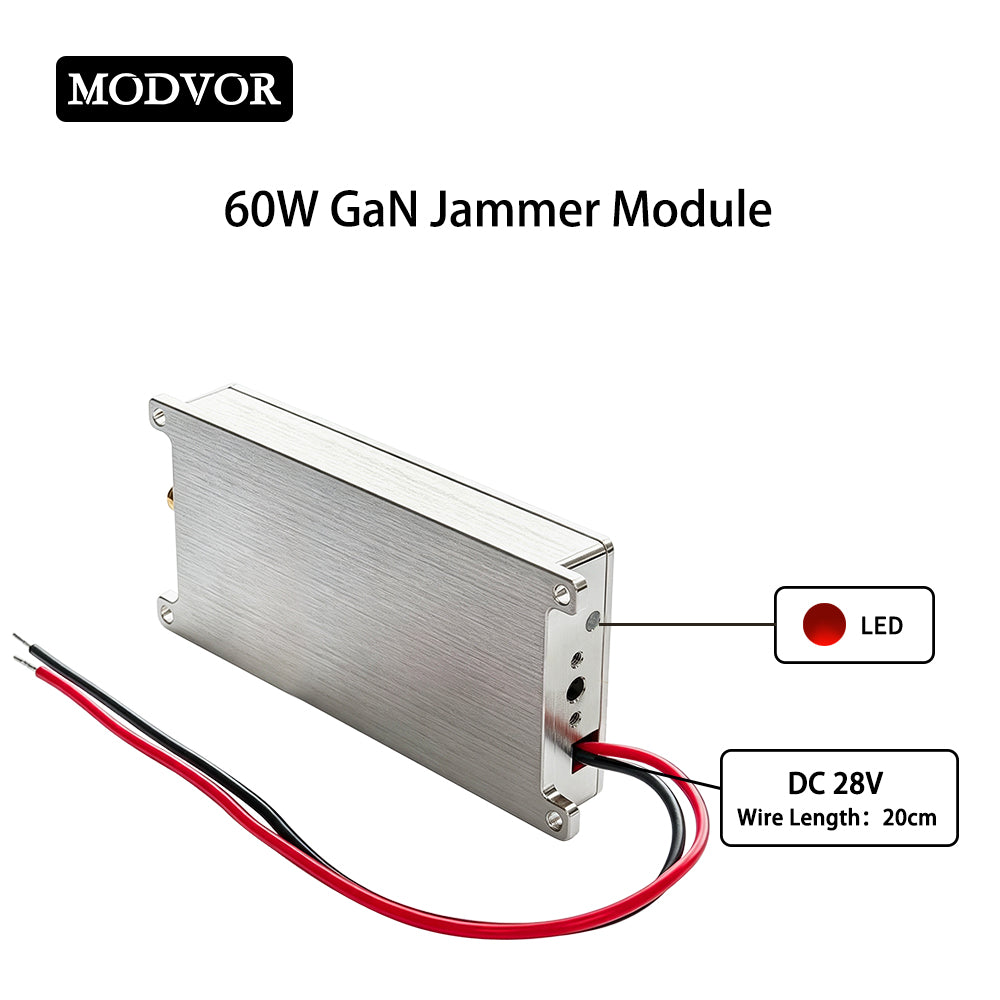

| LED State | Red |
| Operating Temperature | -30℃ ~ +85℃ |
| Storage Temperature | -40℃ ~ +150℃ |
| Operating Humidity | <95%RH |

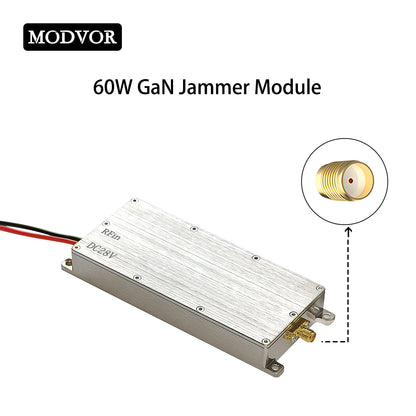

| RF Connector | Output: SMA-Female |
| Power Socket | 20 cm red/black wire |

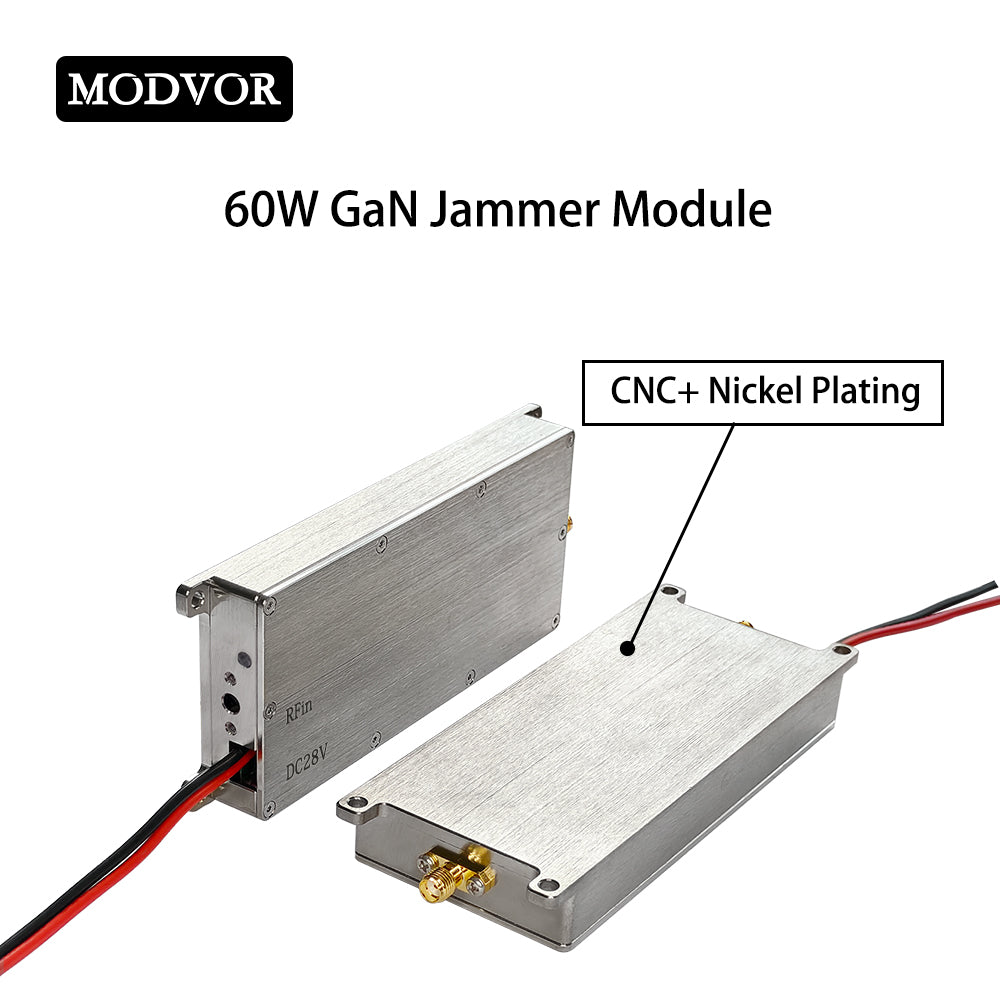

| Shell Material | Aluminum |

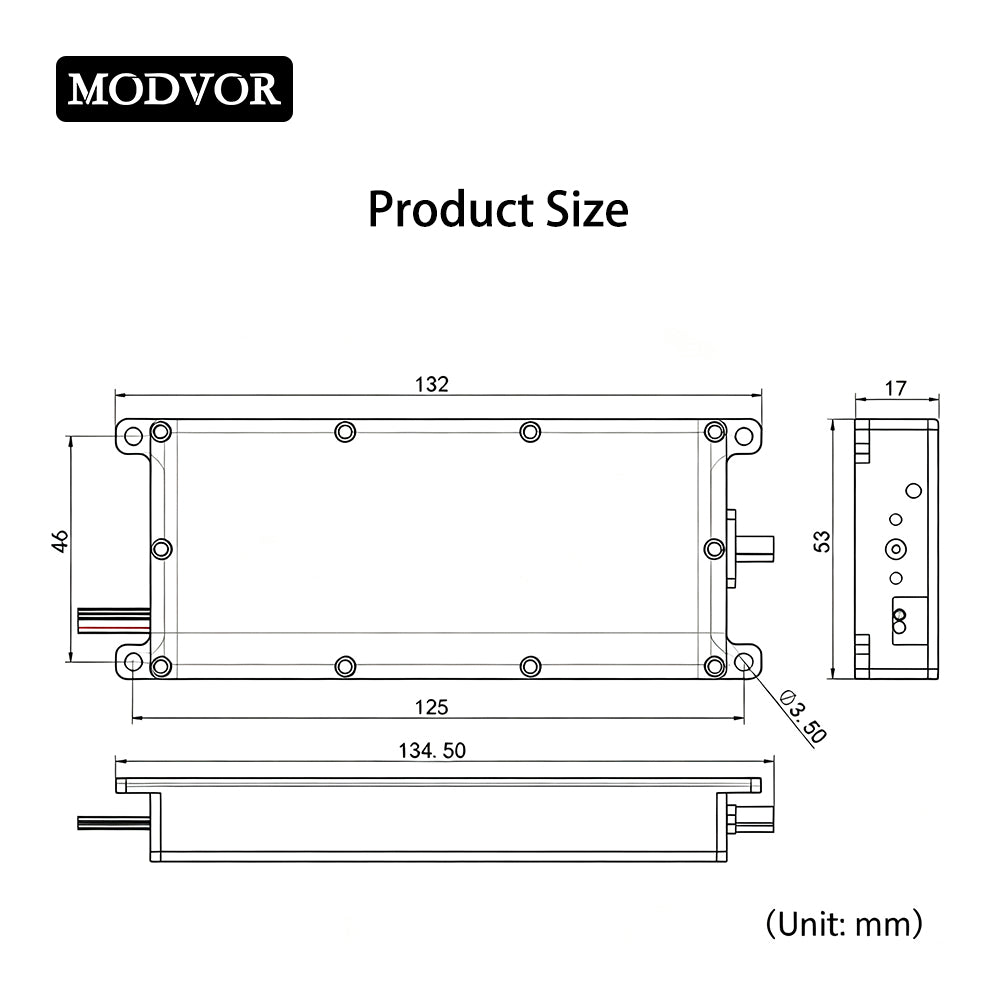

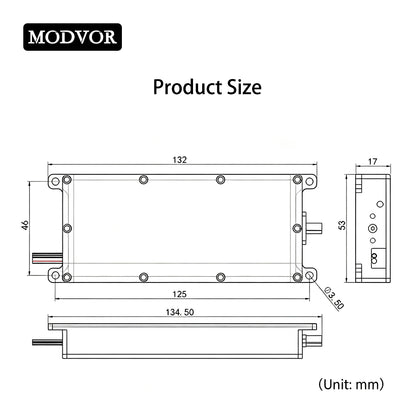

| Shell Size | 132*53*17 mm |
| Net Weight | 0.21 kg |
Important Note for Frequency Band Selection
Our GaN drone jammer module supports a total frequency tuning range of 100‑7200 MHz. Due to hardware structural differences, we have split this full‑range product into two separate listings for your better shopping experience.
- Frequency tuning range 100‑2700 MHz：dimension 96*53*17 mm
- Frequency tuning range 2700‑7200 MHz：dimension 132*53*17 mm
Please select the correct band according to your project requirements. If you need the frequency tuning range 100-2700 MHz GaN radio frequency blocker module, please click here. Thank you for your understanding.
Package List

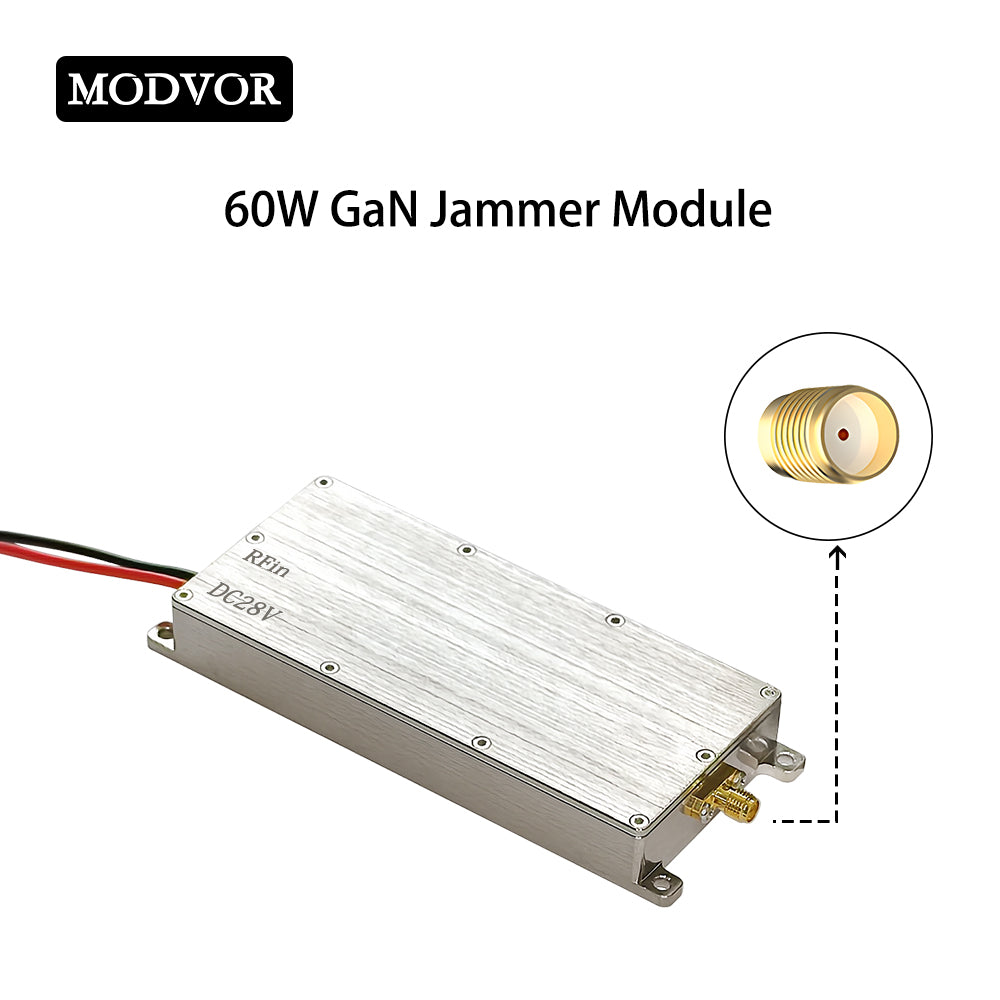

1 x 60W GaN Jammer Module
