Product Description

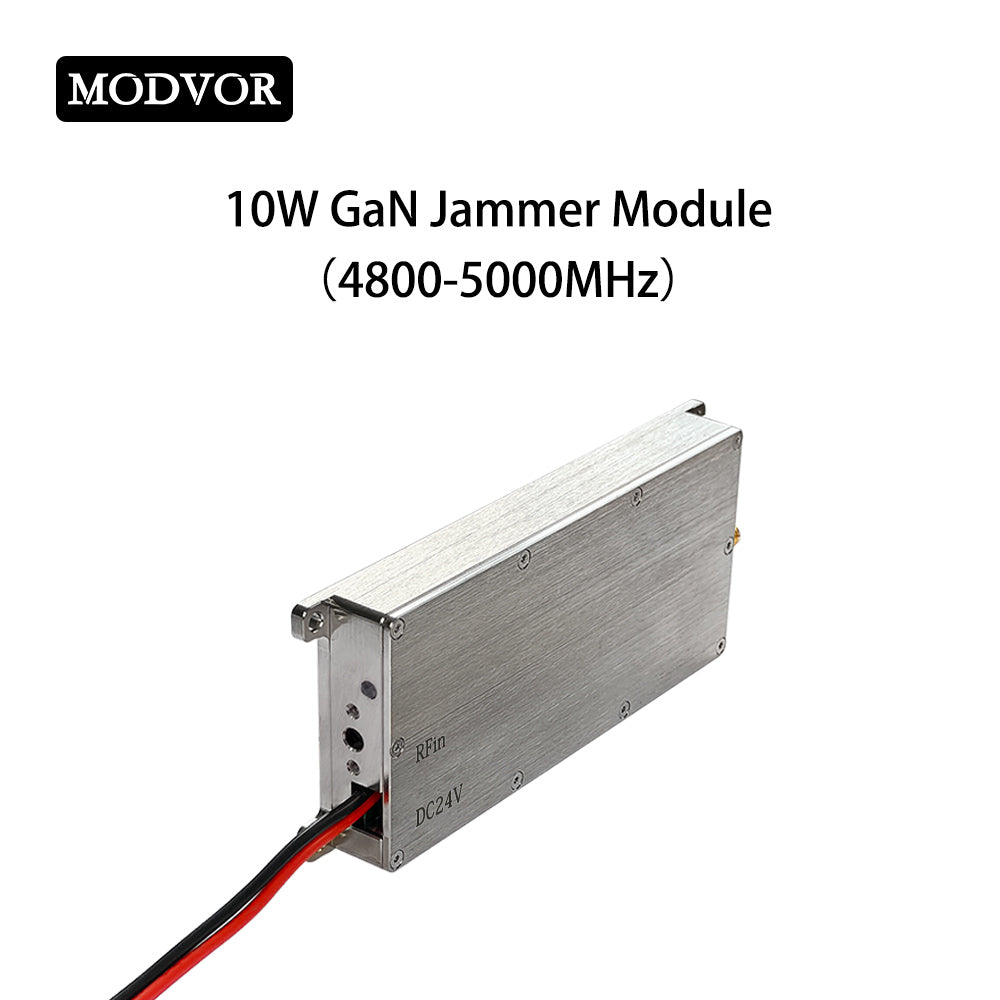

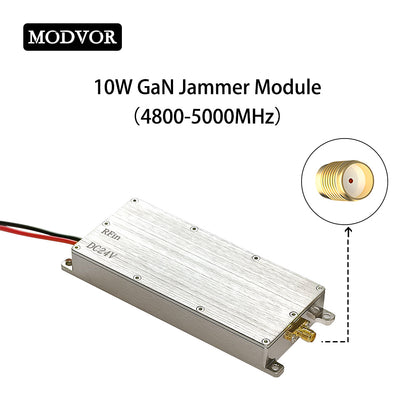

This 10W 4.9GHz GaN anti-drone jamming module is a high-efficiency, high-stability RF countermeasure core module specially developed for C-UAS (Counter-Unmanned Aerial System) and FPV drone defense scenarios.
Adopting advanced Gallium Nitride (GaN) semiconductor technology, it delivers stable 10W high-power RF output with higher power efficiency. Equipped with a standard SMA-female connector, this jamming module features simple installation, convenient signal matching and strong compatibility, supporting flexible integration into various customized anti-drone blockers, shield devices and portable C-UAS defense systems.
Featuring a precise working frequency range of 4800–5000MHz, the module accurately targets the common control and data transmission frequency bands of mainstream FPV and civil UAVs. It effectively suppresses and blocks the wireless communication link between drones and remote controllers, forcing unauthorized drones to lose signal, hover, return home or make emergency landings, achieving precise and effective low-altitude drone defense.
With a compact and integrated structural design, it balances powerful jamming performance and portability, widely applicable for personal security protection, factory perimeter defense, scenic spot safety management, military and civil low-altitude security monitoring, and other scenarios.
Product Features
1. GaN technology, stable 10W/40dBm RF output, high efficiency and reliability
2. Working band: 4800–5000MHz, targets FPV & civilian drone control/data links
3. Jams drone-remote communication, triggers signal loss, hover, return or emergency landing
4. SMA female connector, easy installation & signal matching, good system integration
5. Compact integrated design, balances jamming performance and portability
6. Widely used in factory perimeter, scenic spots, personal and military-civil low-altitude defense
Product Specifications
| Frequency Range | 4800-5000MHz |
| Operating Voltage | 24 V DC |
| Flatness | ±0.5 dB |
| Output Power | 10 W/40 dBm |
| Current Consumption | 1.5 A@24 V |
| Efficiency | 45%@40 dBm |

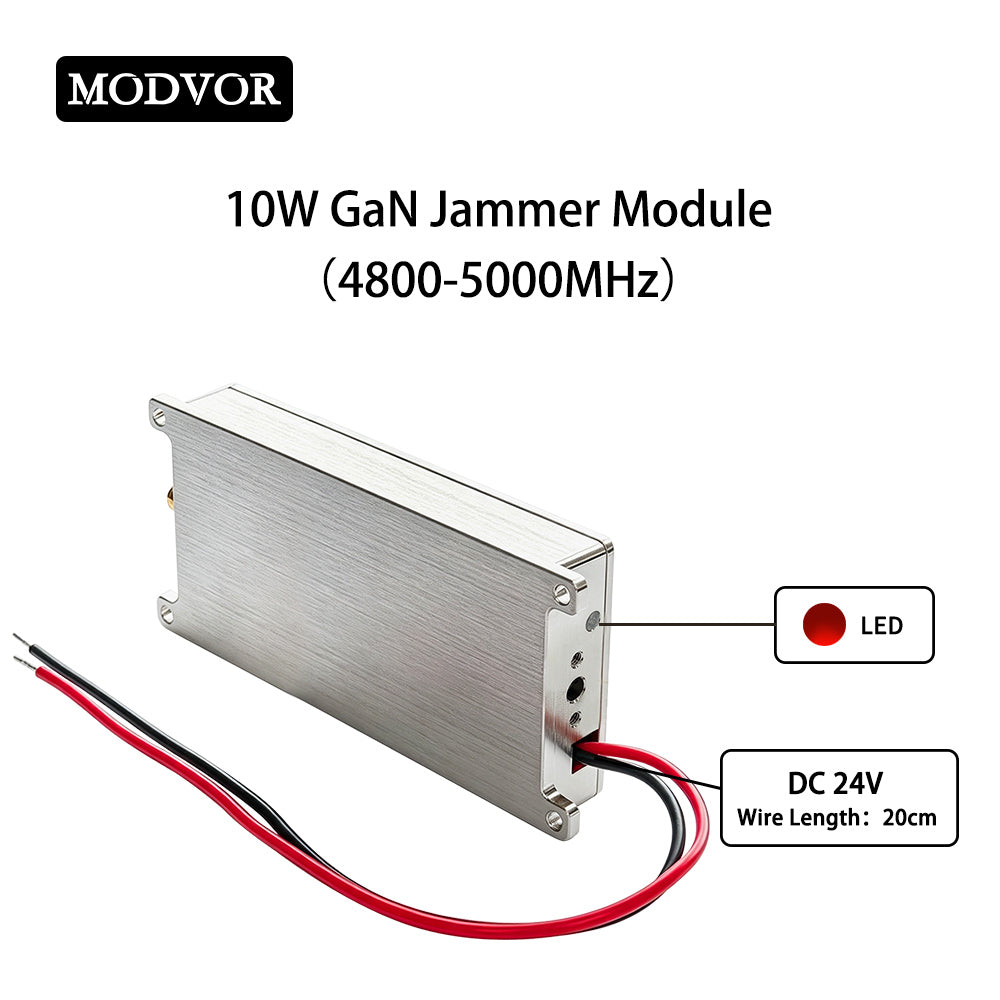

| LED State | Red |
| Operating Temperature | -30℃ ~ +85℃ |
| Storage Temperature | -40℃ ~ +150℃ |
| Operating Humidity | <95%RH |

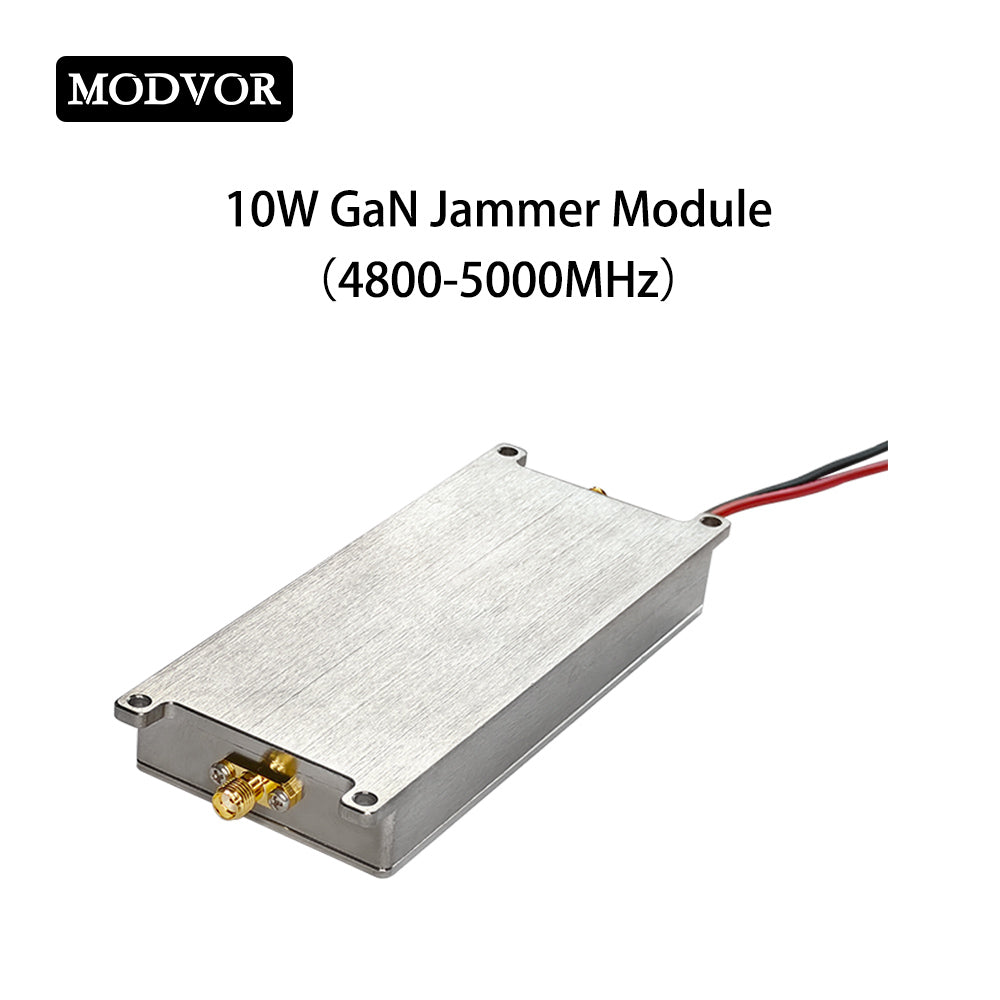

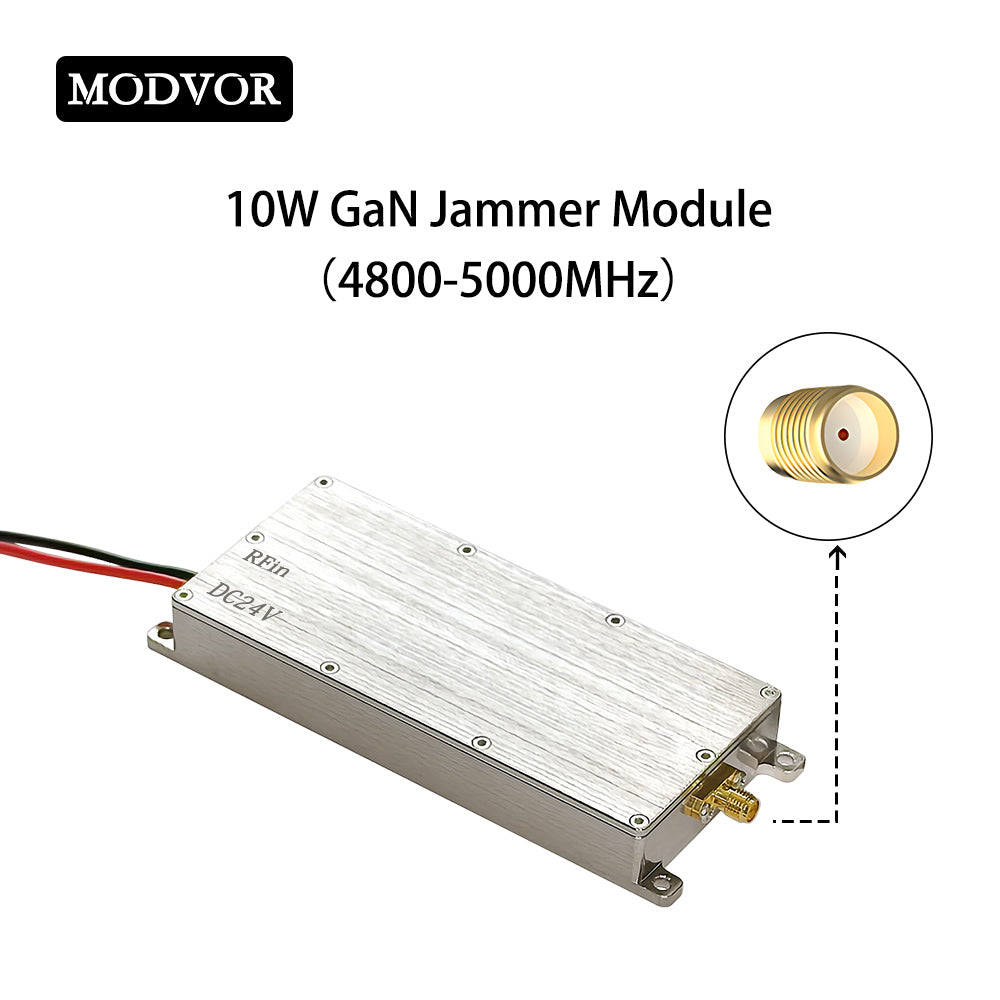

| RF Connector | Output: SMA-Female |
| Power Socket | 15 cm red/black wire |
| Shell Material | Aluminum |

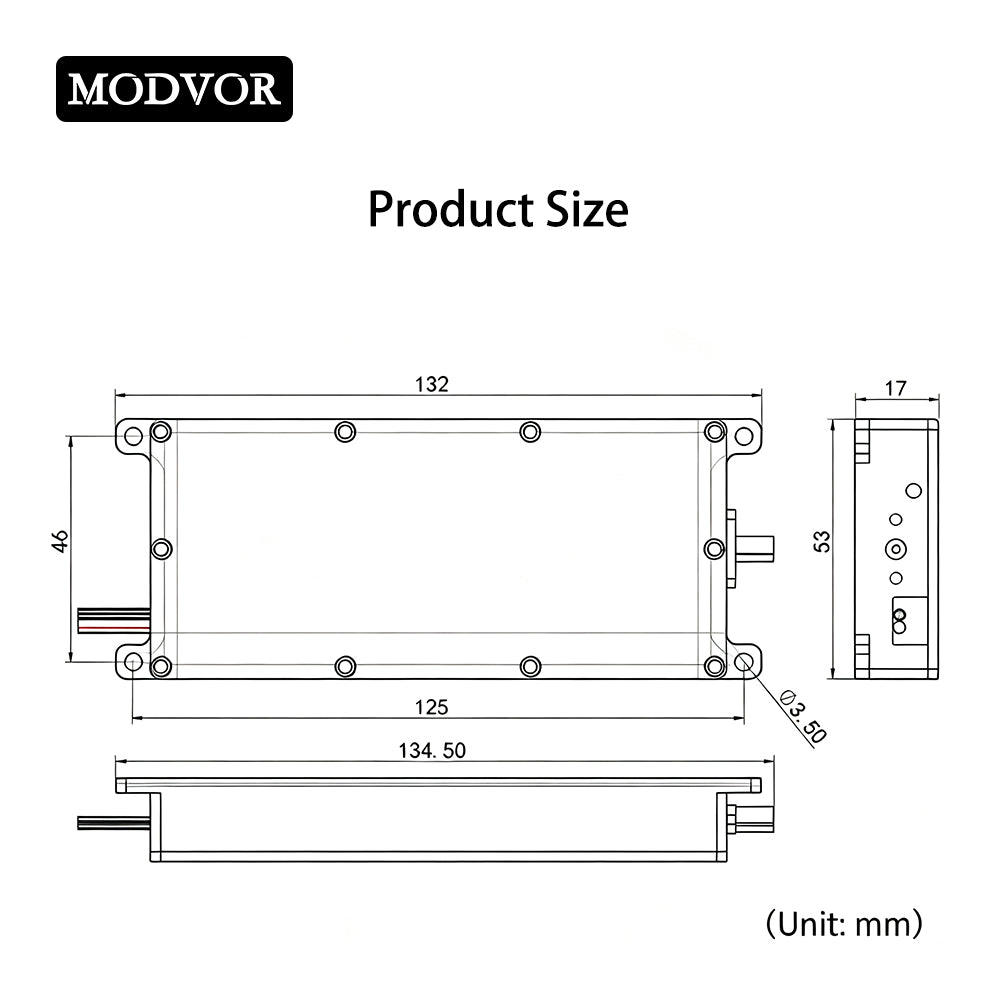

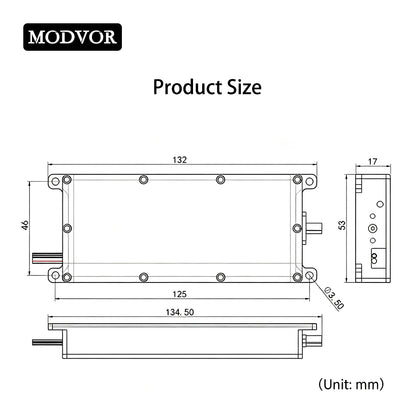

| Shell Size | 132*53*17 mm |
| Net Weight | 0.21 kg |
Package List
1 x GaN Signal Jammer Module
