Product Description
For professionals who demand a single amplifier solution across multiple frequency bands—from VHF/UHF communications and FPV video transmission to 5G infrastructure, satellite links, and radar systems—this 10W GaN Broadband Power Amplifier Series delivers 40dBm (10W) of clean output power with 38dB gain across a suite of wideband options covering 100MHz all the way to 7200MHz. Leveraging advanced GaN (Gallium Nitride) technology for superior efficiency, linearity, and thermal performance, these amplifiers operate on a 24-28V DC supply with just 0.8A current draw at full output. Housed in rugged aluminum enclosures with SMA-K connectors and built-in power control, they're engineered for professionals who need wideband flexibility without compromising on power or reliability—eliminating the need for multiple narrowband amplifiers across different frequency segments.
Typical Applications
- FPV VTX & UAV Downlinks: Broadband video transmission across VHF/UHF and microwave bands
- Satellite Communications (SATCOM): Wideband uplink amplification for ground stations
- 5G Infrastructure & Private LTE: Broadband boosting for cellular and enterprise networks
- Military & Tactical Communications: Wideband amplification for field-deployed equipment
- Amateur Radio (HAM): High-power linear amplification across VHF, UHF, and microwave bands
- Radar & Sensing Systems: Broadband RF front-end for detection and measurement
- Public Safety & Emergency Communications: Broadband booster for police, fire, and EMS radio networks
- Test & Measurement: General-purpose broadband amplification for lab and field validation
Technical Specifications
|
Parameter |
Value |
|
Output Power |
40 dBm (10W) |
|
Gain (S21) |
38 dB ± 1 dB (typical per band) |
|
Input Return Loss (S11) |
< -15 dB |
|
RF Input Power Range |
-13 ~ 10 dBm |
|
Operating Voltage |
24 – 28 V DC |
|
Current Consumption |
0.8 A @ 28V (at 40dBm output) |
|
Efficiency |
45% @ 40dBm |
|

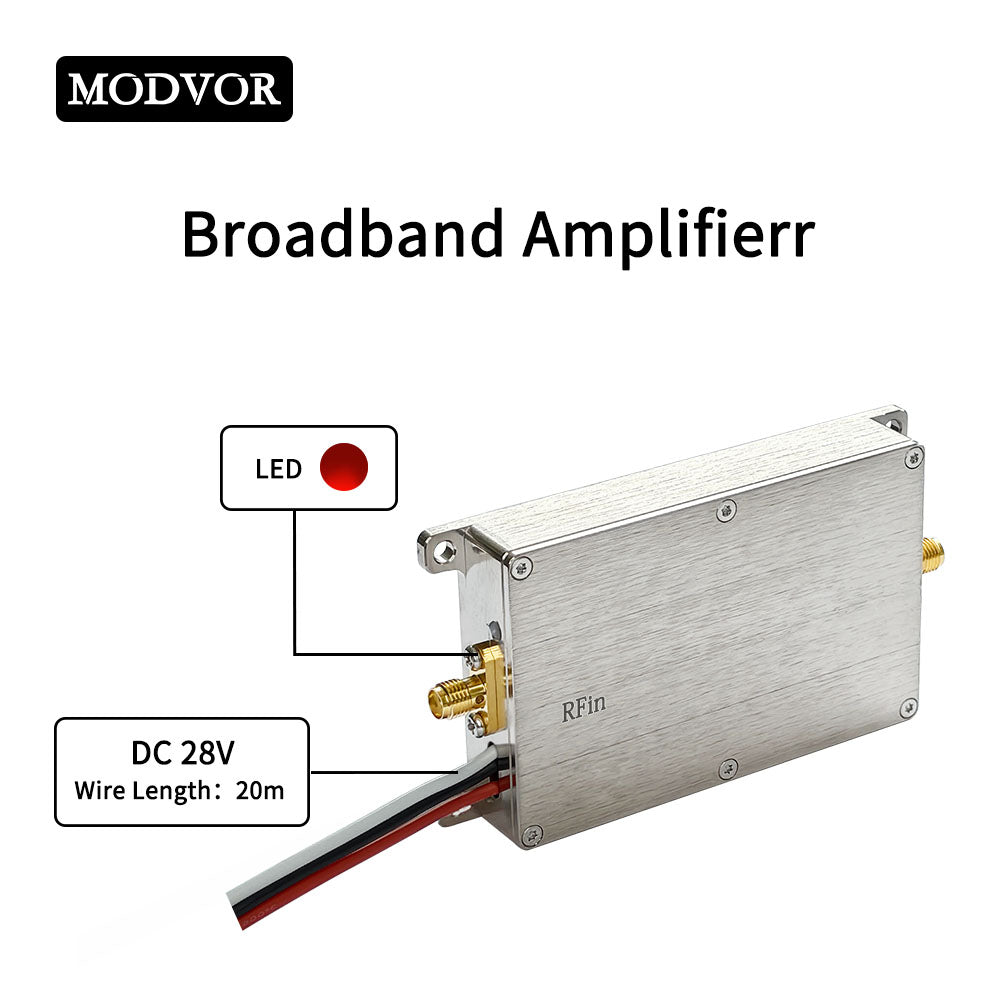

LED Indicator |
Red (Power On) |
|
Operating Temperature |
-30°C ~ +85°C |
|
Storage Temperature |
-40°C ~ +150°C |
|
Operating Humidity |
< 95% RH |
|

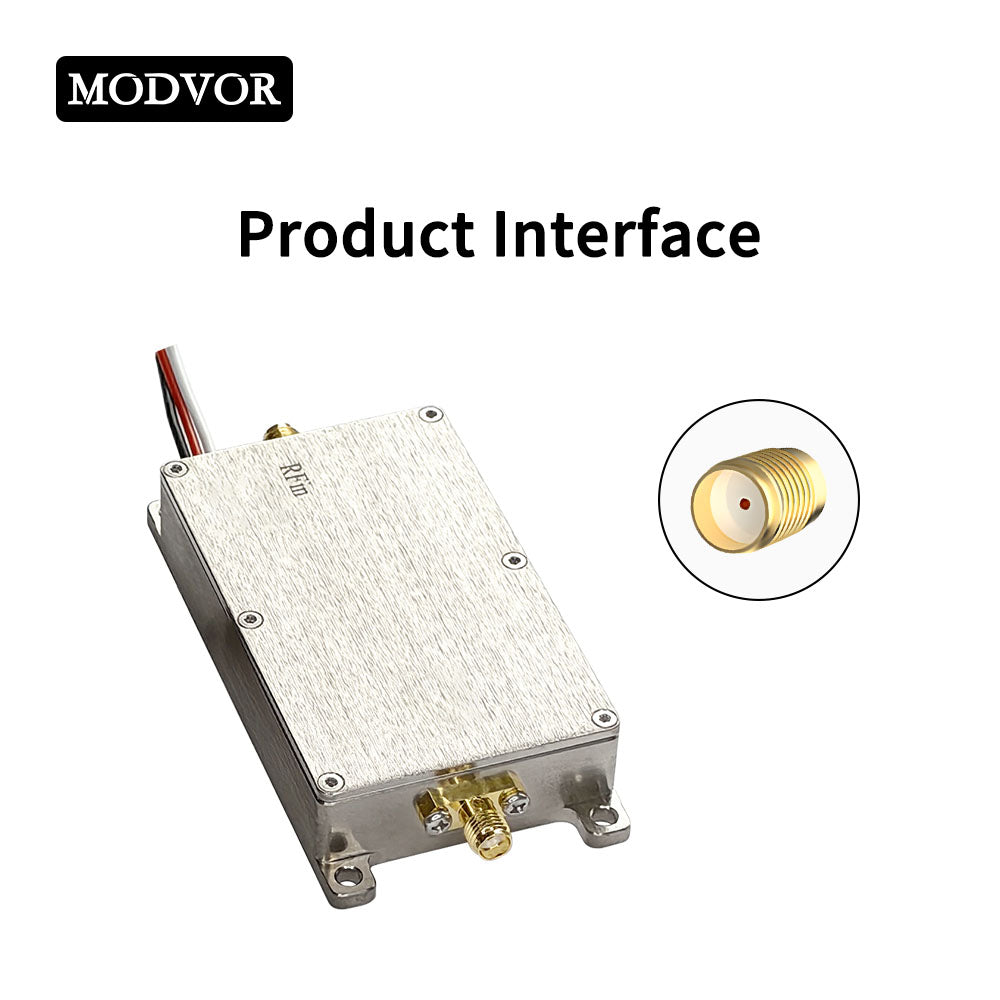

RF Connectors |
Input: SMA-K; Output: SMA-K |
|
DC Connector |
AWG18 20cm Red/Black wire leads |
|
Power Control |
3-28V 20cm Red wire (output adjustment) |
|
Shell Material |
Aluminum |
|

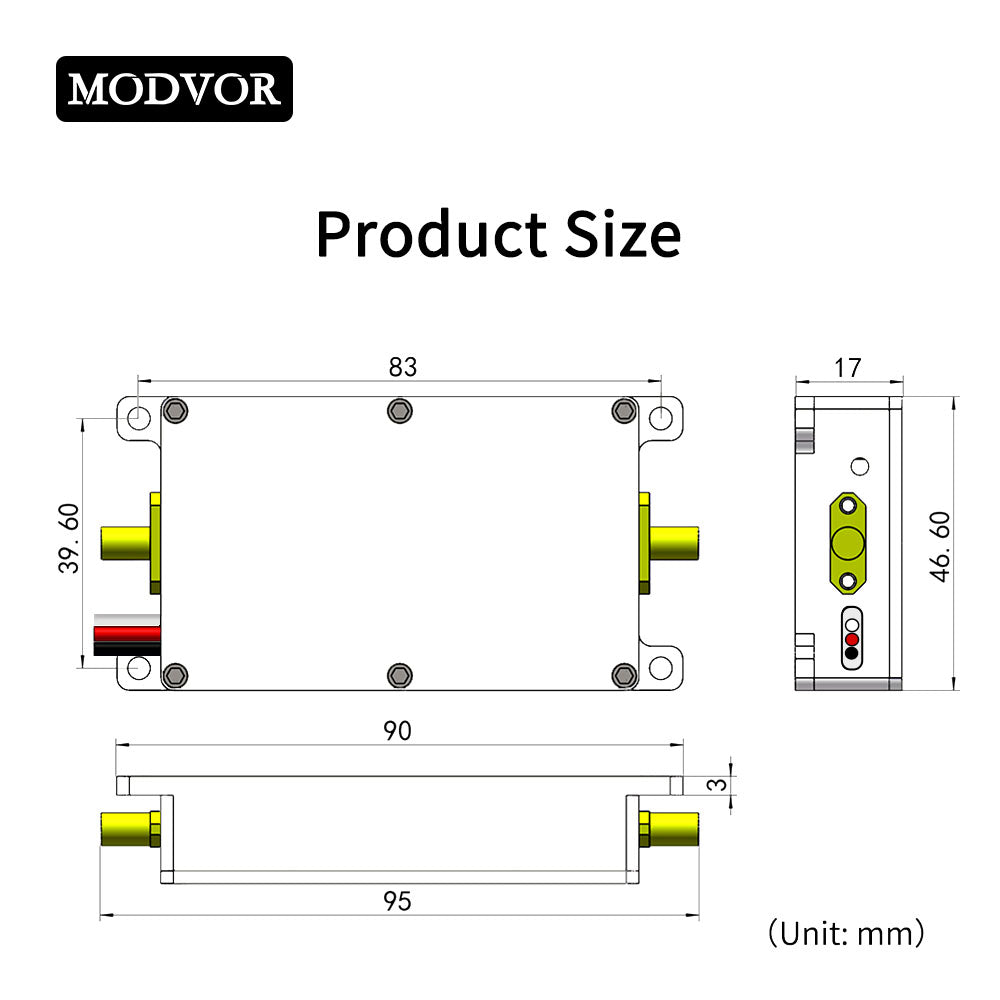

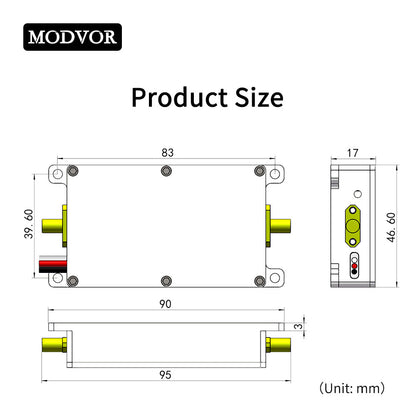

Dimensions |
90 × 46 × 17 mm |
|
Net Weight |
120 g |
Key Advantages
10W of GaN-powered broadband amplification delivers unmatched flexibility across the entire RF spectrum. With seven band options spanning 100MHz to 7200MHz, this series covers virtually every critical frequency from VHF to 6GHz Wi-Fi and beyond—eliminating the need for multiple narrowband amplifiers and simplifying your RF chain. Each band delivers 10W (40dBm) of clean output power with 5-8x the effective range of standard 1W transmitters.
Advanced GaN technology delivers higher efficiency, better thermal performance, and greater power density than conventional designs. The result is 10W of clean output in a compact package that weighs just 120g—an extraordinary power-to-weight ratio that makes it ideal for both drone mounting and ground station integration.
Built-in power control via the 3-28V red wire allows remote output adjustment—perfect for dynamic power management in drone, ground station, or telecom deployments. Connect to a flight controller's AUX output for real-time power control during flight.
Wide voltage tolerance (24-28V) ensures compatibility with 6S LiPo batteries, vehicle electrical systems, and regulated power supplies. With SMA-K connectors on both input and output, integration with existing RF chains is completely straightforward.
Seven precise frequency options mean you can select the exact band for your application—from VHF/UHF communications and amateur radio to 5G infrastructure, satellite uplinks, and emerging 6GHz Wi-Fi 6E/7. One amplifier platform, tailored to your frequency needs.
What's in the Box
- 1 × 10W GaN Broadband Power Amplifier
