Product Description

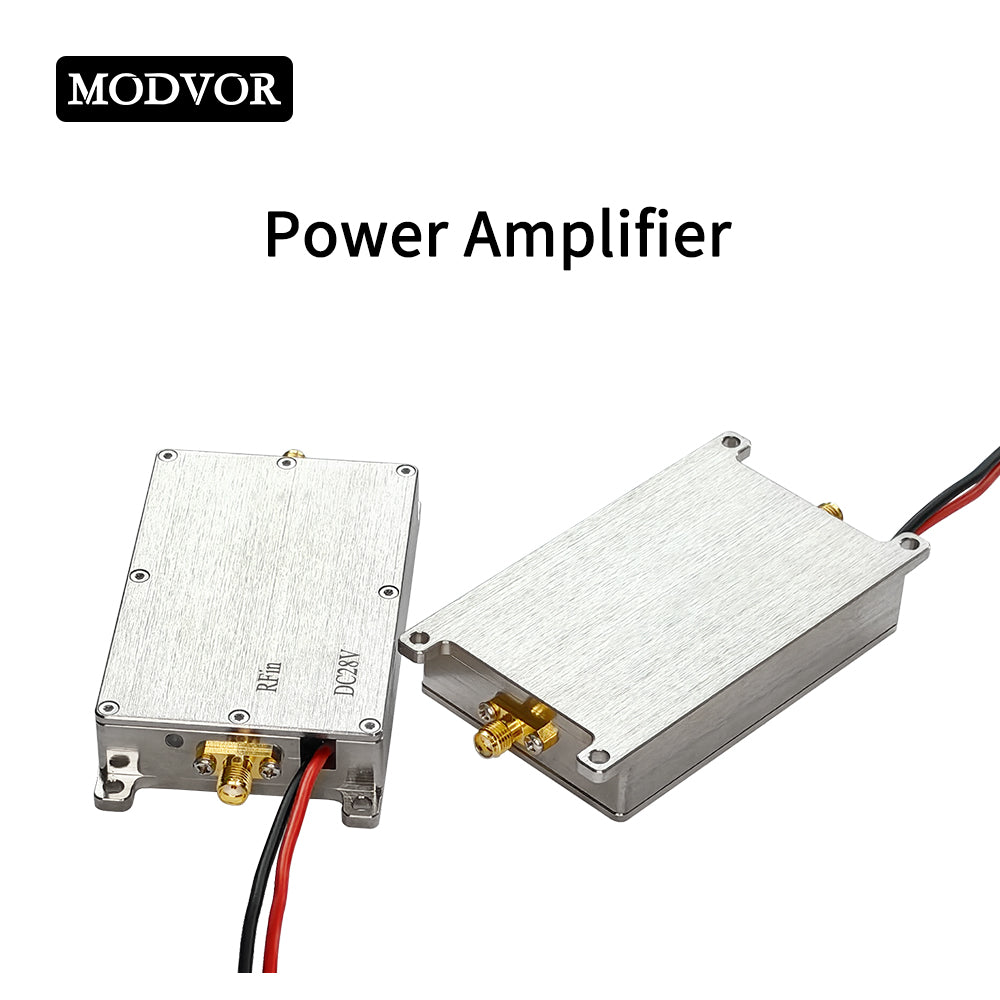

When your wireless application demands extreme output power and reliable signal penetration—whether for long-range FPV, critical communications, RF testing, or custom industrial systems—this 10W RF Power Amplifier delivers a robust 40dBm (10W) of clean output power with 40dB gain. Operating on a 24V DC supply (customizable to 28V) with just 1.5A current draw at full output, it features a rugged aluminum housing and SMA female connectors, built to withstand demanding field operations while delivering consistent, reliable performance across a wide range of custom frequency bands.
Typical Applications
- Long-Range FPV & Drone Operations: Boost video downlink or control links for BVLOS flights
- Ground Station Transmitters: Amplify relay links, telemetry, or command uplinks
- RF Test & Development: High-power driver amplifier for lab testing and prototyping
- Wireless Data Transmission: Extend range for telemetry, SCADA, and industrial IoT
- Amateur Radio / HAM: High-power linear amplification for licensed experimental use
-
Custom Communication Systems: Tailored for military, surveillance, or emergency networks
Technical Specifications
|
Parameter |
Value |
|
Frequency Range |
Customizable (up to 7200MHz) |
|
Output Power |
40 dBm (10W) |
|
Gain (S21) |
40 dB ± 1 dB |
|
Operating Voltage |
24 V DC (customizable to 28V) |
|
Current Consumption |
1.5 A @ 24V |
|
RF Connectors |
Input: SMA Female; Output: SMA Female |
|
Dimensions |
96 × 53 × 17 mm / 132 × 53 × 17 mm |
|
Net Weight |
0.15 kg / 0.21 kg |
|
DC Wiring |
15cm Red/Black wire leads |
|
Shell Material |
Aluminum |
Key Advantages
Why settle for lower power when 10W is within reach? Standard amplifiers typically max out at 1-5W, limiting your effective range and signal penetration. This 10W platform delivers 40dBm with up to 5-8x the range of conventional boosters—a decisive advantage for mission-critical operations.
The 40dB gain transforms even weak input signals into full 10W output with consistent, predictable performance. And with just 1.5A current draw at full power, you get massive output without straining your power supply.
Thermal performance is engineered for reliability. The rugged aluminum housing provides efficient passive cooling, while the compact 96×53×17mm / 132 × 53 × 17 mmform factor and 150g /210g weight make it easy to integrate into portable or fixed installations.
Wide voltage tolerance (24V standard, customizable to 28V) ensures compatibility with various power sources. And with SMA female connectors on both input and output, integration with existing RF chains is completely straightforward.
Flexible frequency options – this same high-power platform is available for virtually any band up to 7200MHz, making it a versatile solution across the entire RF spectrum. Simply tell us your required frequency, and we'll deliver a tuned amplifier ready for your specific application.
What's in the Box
- 1 × 10W RF Power Amplifier
