Product Description

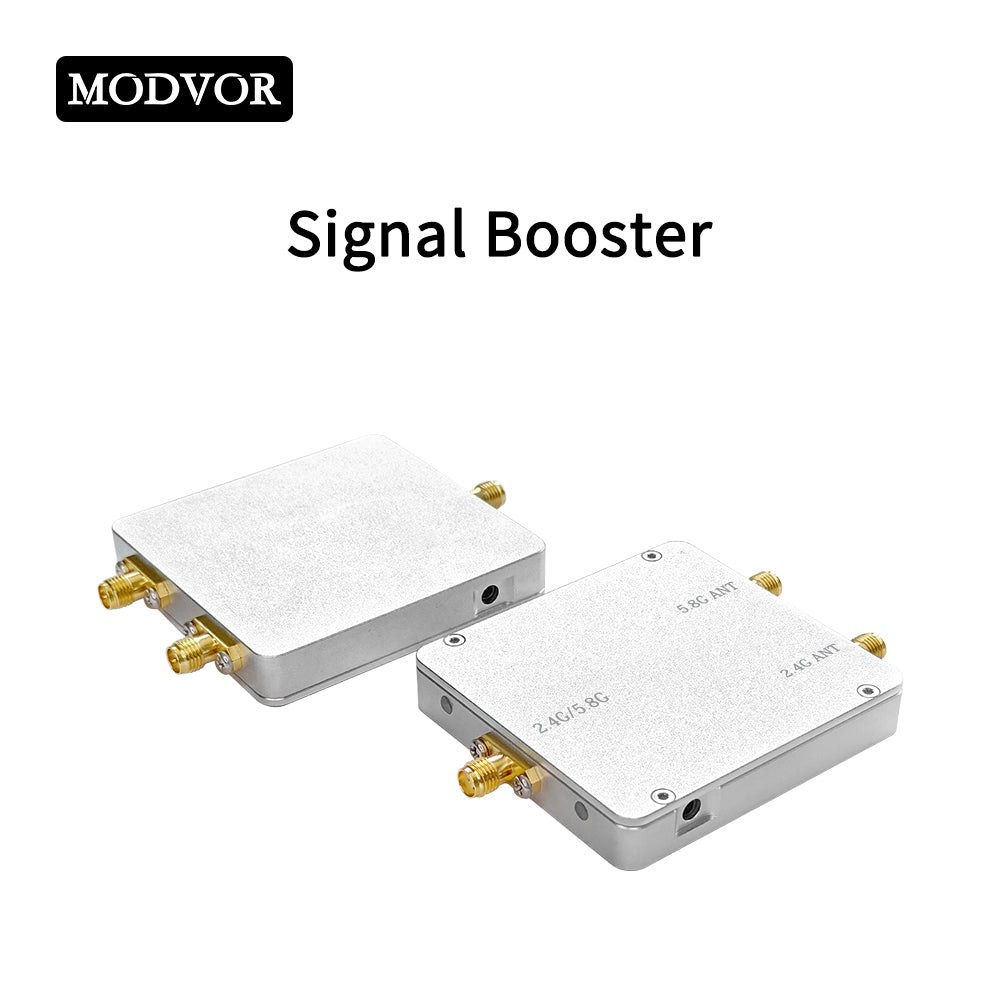

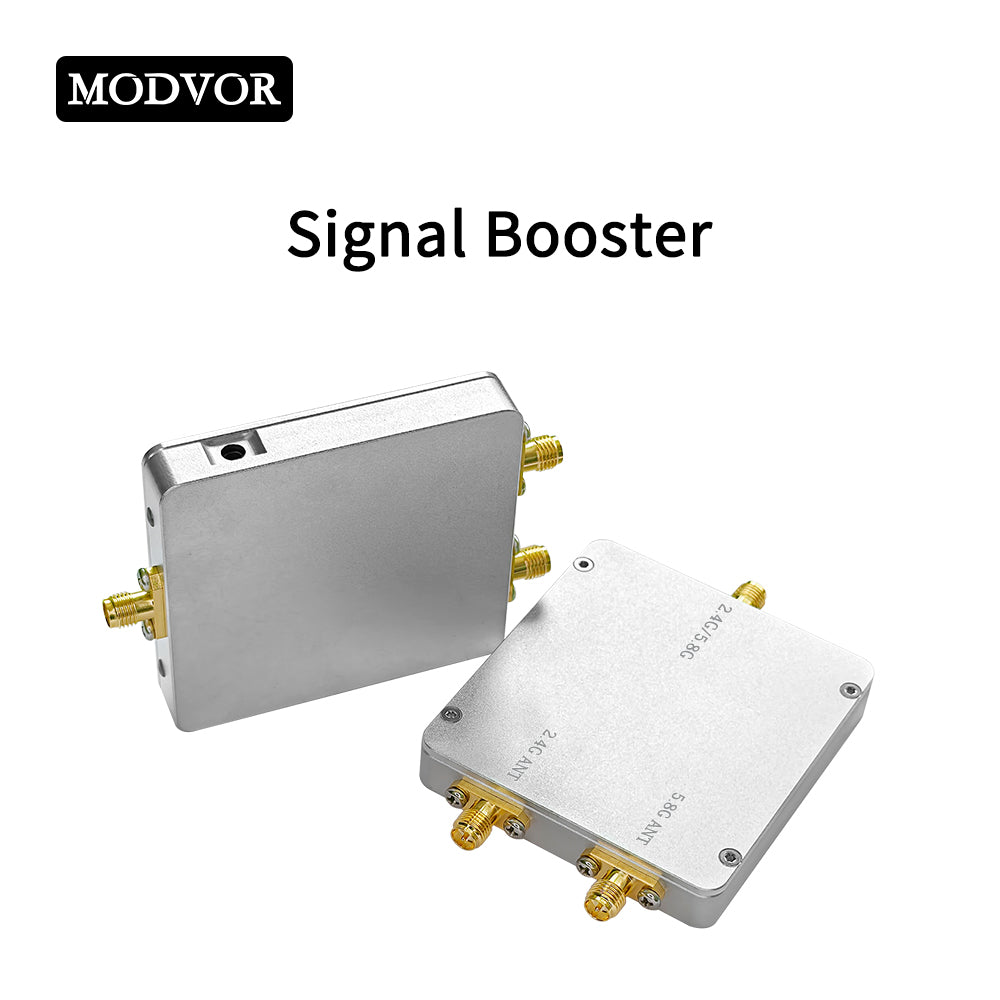

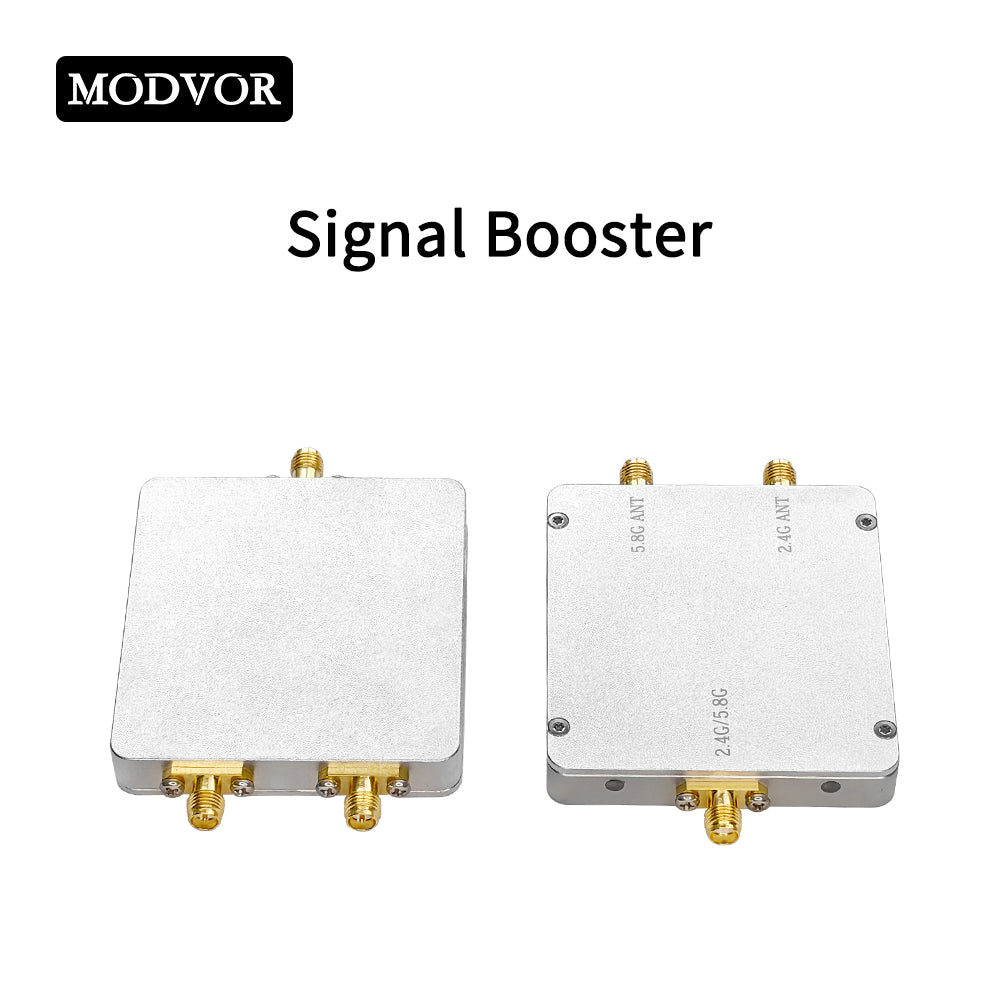

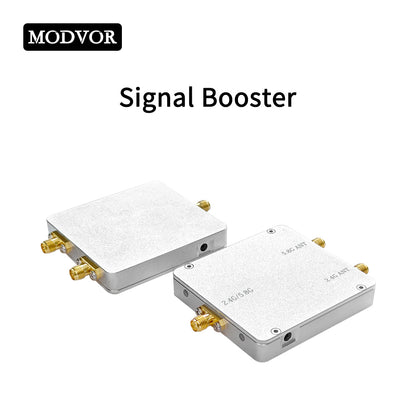

For wireless networks that need to serve multiple antennas or devices from a single amplified path, this 2.4G&5.8G 4W 1-In 2-Out Signal Booster delivers 80X the power across both frequency bands. It is engineered for WiFi, Bluetooth, LoRa and Industrial IoT signal extension, improving link quality and coverage of certified WLAN devices. The ultra-low noise figure, wide 6-16V DC input, and plug-and-play operation simplify deployment without software. Its 1-in 2-out configuration supports dual-antenna or multi-device distribution, while the compact aluminum housing provides passive cooling and mechanical protection. When coverage gaps or signal dropouts occur, this booster restores balanced bidirectional amplification across 2.4GHz and 5.8GHz links.
Typical Applications
- WiFi Signal Extension: Improve coverage for certified IEEE 802.11a/b/g/n/ac WLAN devices.
- Bluetooth Link Enhancement: Extend Bluetooth signal range in industrial and commercial environments.
- LoRa & IoT Networks: Boost bidirectional links for LoRa and industrial IoT sensor systems.
- Industrial IoT Signal Extender: Enhance two-way data transmission for remote controllers and sensors.
- Multi-Device WLAN Coverage: Distribute amplified signal to two antennas or device paths.
- Wireless Camera & Monitoring: Improve 2.4GHz/5.8GHz video and data links.
Technical Specifications
|
Parameter |
2.4GHz |
5.8GHz |
|
Working Frequency |
2400-2500MHz |
5725-5850MHz |
|
Operating Voltage |
6-16V DC |
6-16V DC |
|
Receiving Gain |
17dB±1 |
15dB±1 |
|
Transmission Gain |
18dB±1 |
18dB±1 |
|
Max Output Power (P1dB) |
36dBm(4W) |
36dBm(4W) |
|
Input Trigger Power |
Min:3dBm Max:23dBm |
Min:3dBm Max:23dBm |
|
EVM |
3%@27dBm |
3%@27dBm |
|
Noise Figure |
<3.0dB |
<4.0dB |
|
Current Supply |
680mA@Pout 27dBm 12V |
550mA@Pout 27dBm 12V |
|
TX/RX Switch Speed |
<1us |
<1us |
|

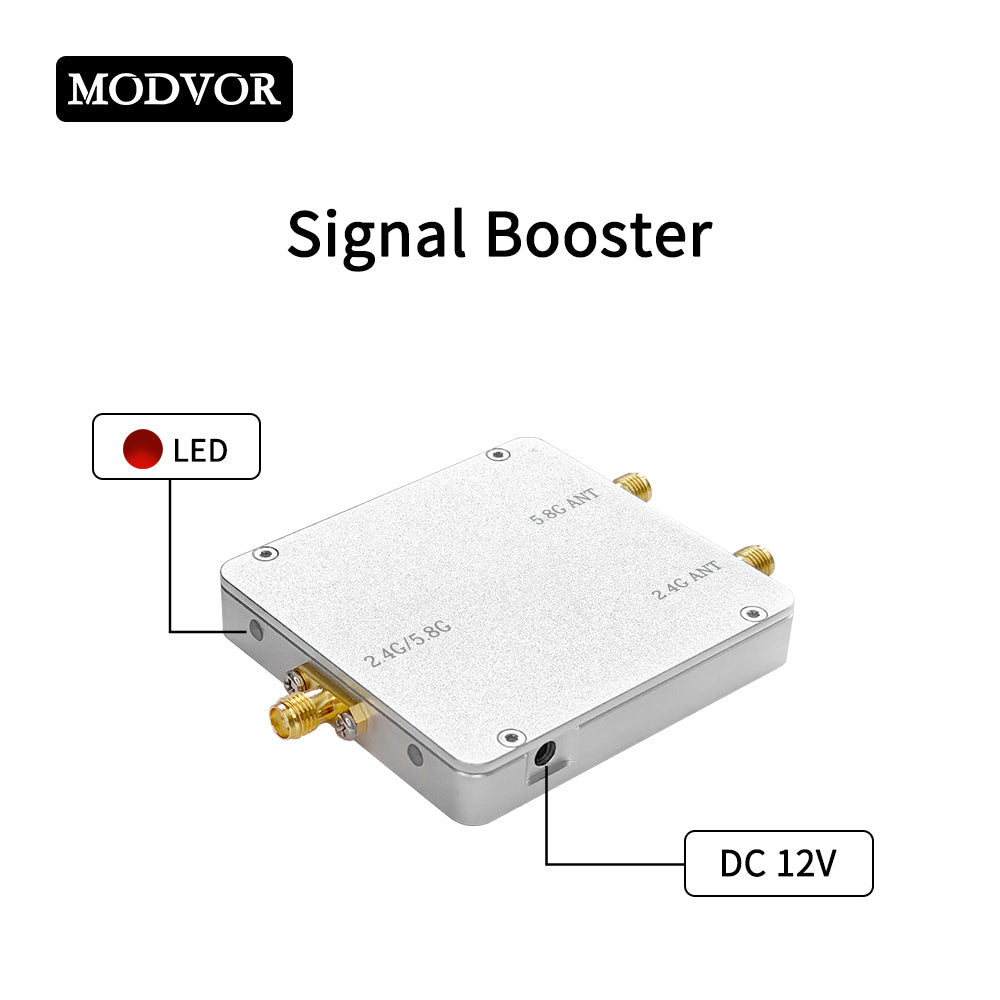

LED Indicator |
Transmitter:Green; Receiver: Red |
Transmitter: Green; |
|
Operating Temperature |
-30℃~+70℃ |
-30℃~+70℃ |
|
Storage Temperature |
-40℃~+150℃ |
-40℃~+150℃ |
|
Operating Humidity |
Up to 95% rel. humidity |
Up to 95% rel. humidity |
|

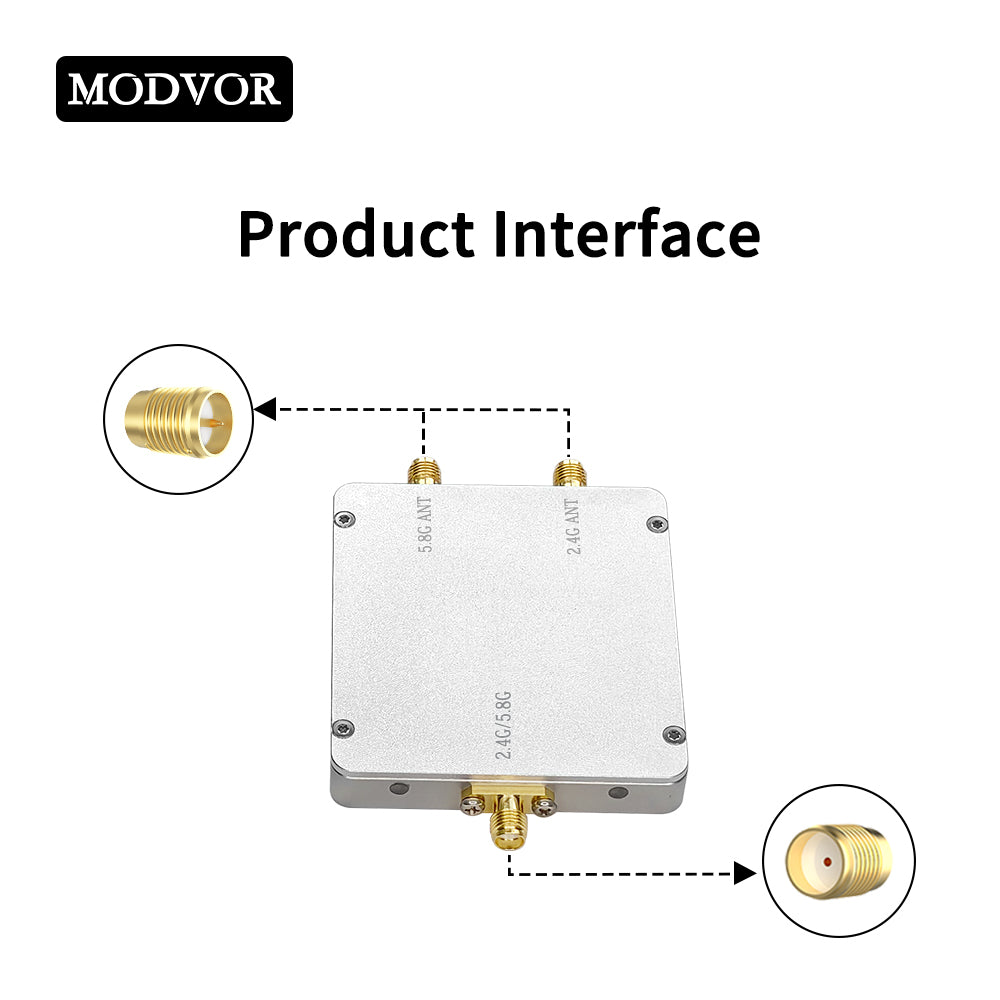

RF Connector |
Input:SMA-Female; Output: SMA-Male |
Input: SMA-Female; Output: SMA-Male |
|

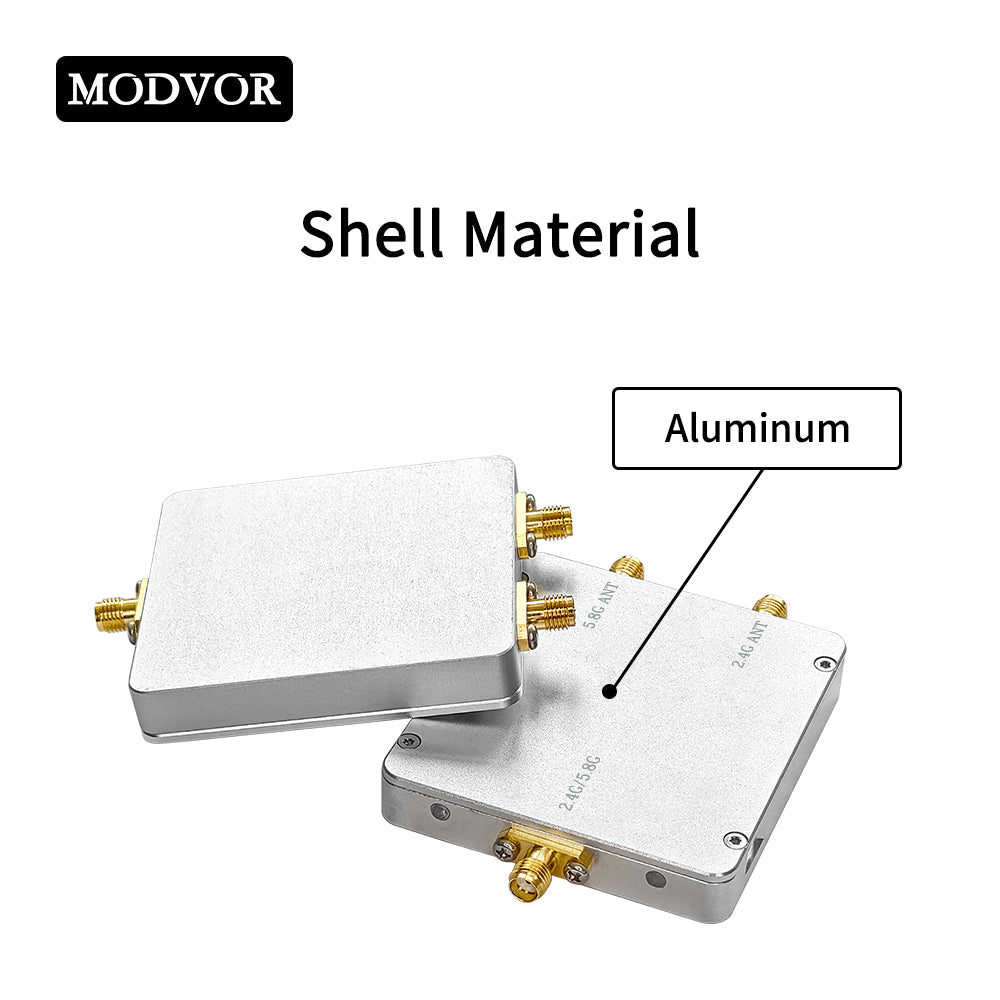

Shell Material |
Aluminum |
Aluminum |
|
Power Socket |
2.5*0.7mm DC |
2.5*0.7mm DC |
|

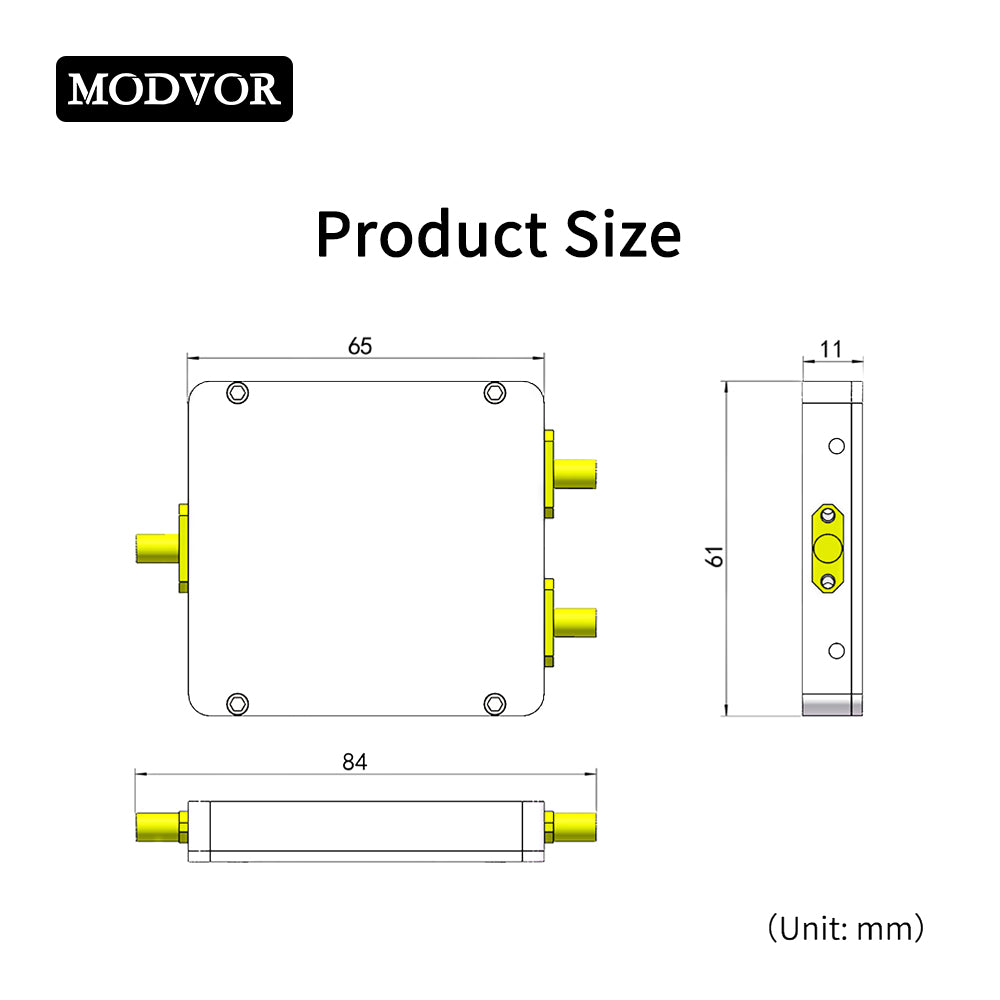

Dimension |
65*61*12mm |
65*61*12mm |
|
Net Weight |
0.12kg |
0.12kg |
Key Advantages
Dual-Band 1-In 2-Out Amplification. This Signal Booster provides 36dBm(4W) output with 18dB±1 TX gain across 2.4GHz and 5.8GHz, supporting dual-antenna or multi-device distribution from a single amplified path.
Ultra-Low Noise and Fast Switching. With <3.0dB noise figure on 2.4GHz and <4.0dB on 5.8GHz, plus <1us TX/RX switch speed, it maintains stable signal quality for WLAN, Bluetooth, LoRa, and IoT links.
Compact Plug-and-Play Integration. The 6-16V DC input, SMA-Female/SMA-Male connectors, and 2.5*0.7mm DC socket simplify installation. The 65*61*12mm aluminum housing weighs only 0.12kg, supporting flexible deployment.
What's in the Box
- 1 × 2.4G&5.8G 4W 1-In 2-Out Signal Booster
- 1 × Set of Connection Cables
- 2 × 6dBi Omnidirectional Antenna
