Product Description
For wireless systems that need to distribute amplified signal to two antennas or two device paths simultaneously, this 2.4G&5.8G 4W 2-In 2-Out Signal Booster provides dual-channel bidirectional amplification across both frequency bands. It is engineered for WiFi, Bluetooth, LoRa and Industrial IoT signal extension, improving link quality and coverage of certified WLAN devices with 80X the power. The ultra-low noise figure, wide 6-16V DC input, and plug-and-play operation simplify deployment without software. Its 2-in 2-out configuration supports 2x2 MIMO and multi-antenna distribution, while the compact aluminum housing provides passive cooling and mechanical protection. When coverage gaps or signal dropouts occur, this booster restores balanced bidirectional amplification across 2.4GHz and 5.8GHz links.
Typical Applications
- Dual-Channel WiFi Extension: Improve coverage for certified IEEE 802.11a/b/g/n/ac WLAN devices with two amplified paths.
- Bluetooth & LoRa Networks: Extend signal range in industrial and commercial environments using dual outputs.
- 2x2 MIMO WLAN Systems: Support multi-antenna access points and clients requiring two transmit/receive chains.
- Industrial IoT Signal Distribution: Enhance two-way data transmission for remote controllers and sensors across two channels.
- Wireless Camera & Surveillance: Improve 2.4GHz/5.8GHz video links for dual-camera or dual-radio installations.
- Commercial & Campus Coverage: Distribute amplified signal to two antennas for broader indoor or outdoor coverage.
Technical Specifications
|
Parameter |
2.4GHz |
5.8GHz |
|
Working Frequency |
2400-2500MHz |
5725-5850MHz |
|
Operating Voltage |
6-16V DC |
6-16V DC |
|
Receiving Gain |
17dB±1 |
15dB±1 |
|
Transmission Gain |
18dB±1 |
18dB±1 |
|
Max Output Power (P1dB) |
36dBm(4W) |
36dBm(4W) |
|
Input Trigger Power |
Min:3dBm Max:23dBm |
Min:3dBm Max:23dBm |
|
EVM |
3%@27dBm |
3%@27dBm |
|
Noise Figure |
<3.0dB |
<4.0dB |
|
Current Supply |
680mA@Pout 27dBm 12V |
550mA@Pout 27dBm 12V |
|
TX/RX Switch Speed |
<1us |
<1us |
|
LED Indicator |
Transmitter:Green; Receiver: Red |
Transmitter:Green; Receiver: Red |
|
Operating Temperature |
-30℃~+70℃ |
-30℃~+70℃ |
|
Storage Temperature |
-40℃~+150℃ |
-40℃~+150℃ |
|
Operating Humidity |
Up to 95% rel. humidity |
Up to 95% rel. humidity |
|
RF Connector |
Input:2×SMA-Female; Output: 2× SMA-Male |
Input:2×SMA-Female; Output: 2× SMA-Male |
|
Shell Material |
Aluminum |
Aluminum |
|
Power Socket |
2.5*0.7mm DC |
2.5*0.7mm DC |
|
Dimension |
65*61*12mm |
65*61*12mm |
|
Net Weight |
0.12kg |
0.12kg |
Key Advantages
Dual-Channel 2-In 2-Out Architecture. This Signal Booster provides two independent input and output paths, each delivering 36dBm(4W) output with 18dB±1 TX gain across 2.4GHz and 5.8GHz, enabling 2x2 MIMO and multi-antenna distribution from a single compact module.
Ultra-Low Noise and Fast Switching. With <3.0dB noise figure on 2.4GHz and <4.0dB on 5.8GHz, plus <1us TX/RX switch speed, it maintains stable signal quality for WLAN, Bluetooth, LoRa, and IoT links.

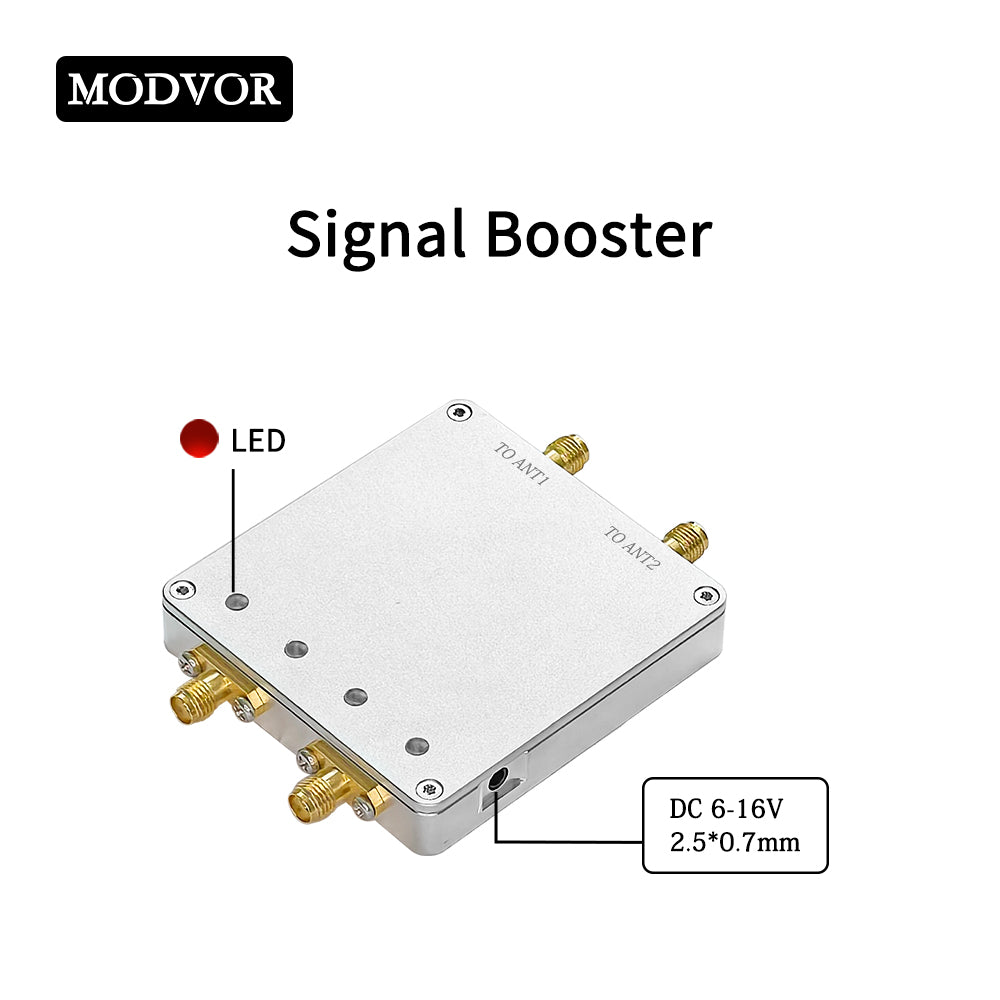

Compact Plug-and-Play Integration. The 6-16V DC input, 2× SMA-Female/2× SMA-Male connectors, and 2.5*0.7mm DC socket simplify installation. The 65*61*12mm aluminum housing weighs only 0.12kg, supporting flexible deployment.
What's in the Box
- 1 × 2.4G&5.8G 4W 2-In 2-Out Signal Booster
- 1 × Set of Connection Cables
- 2 × 6dBi Omnidirectional Antenna
