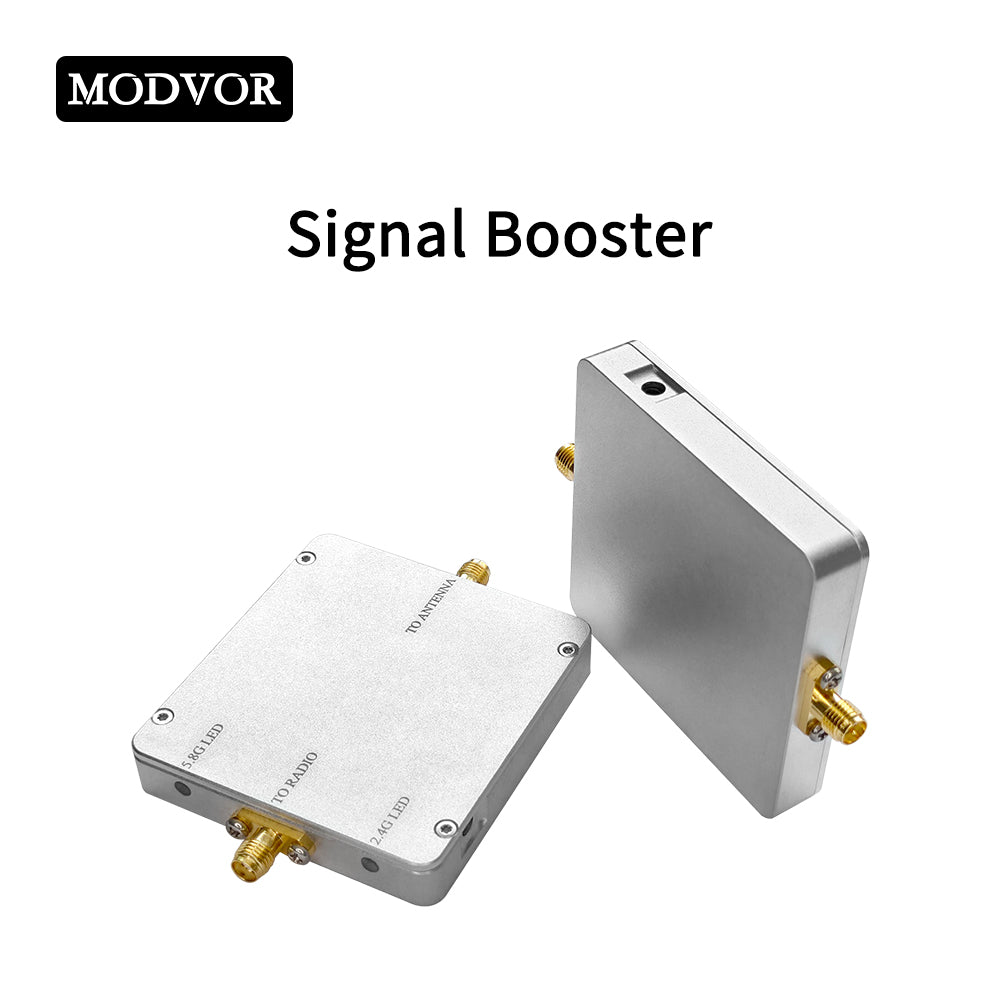

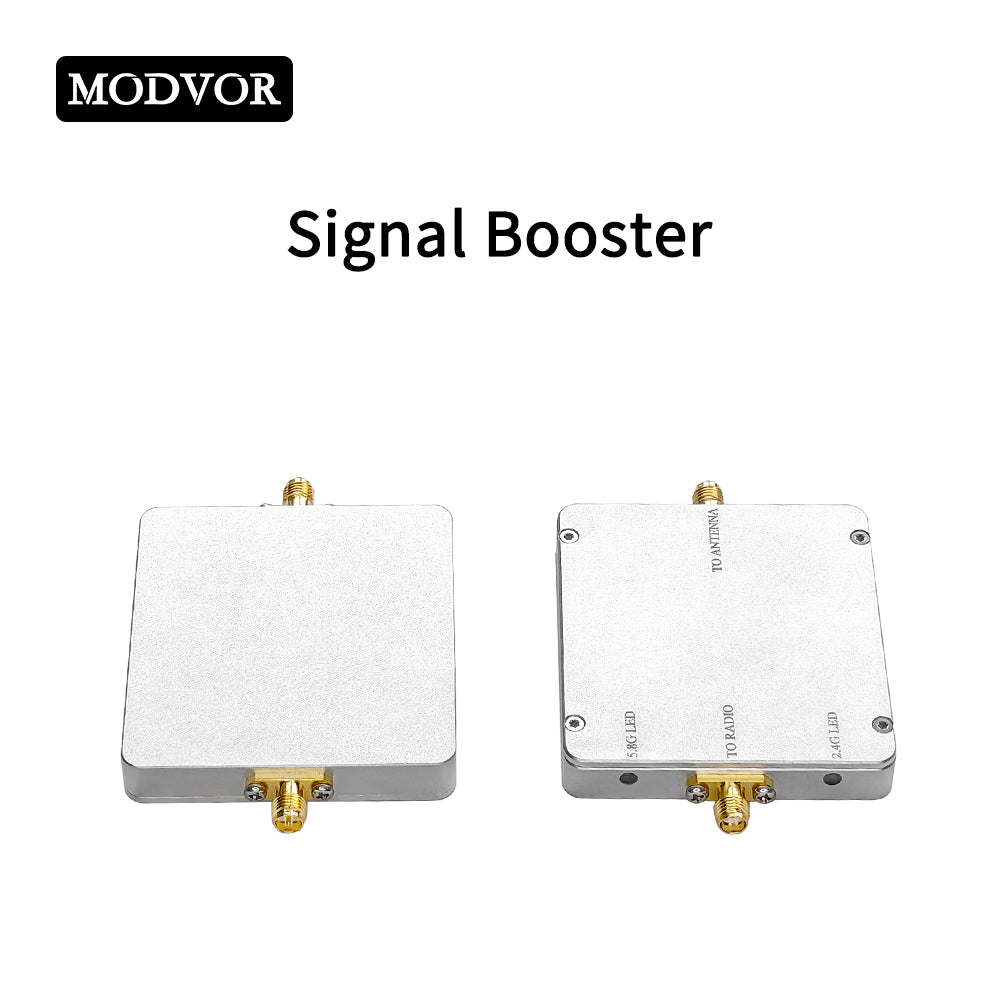

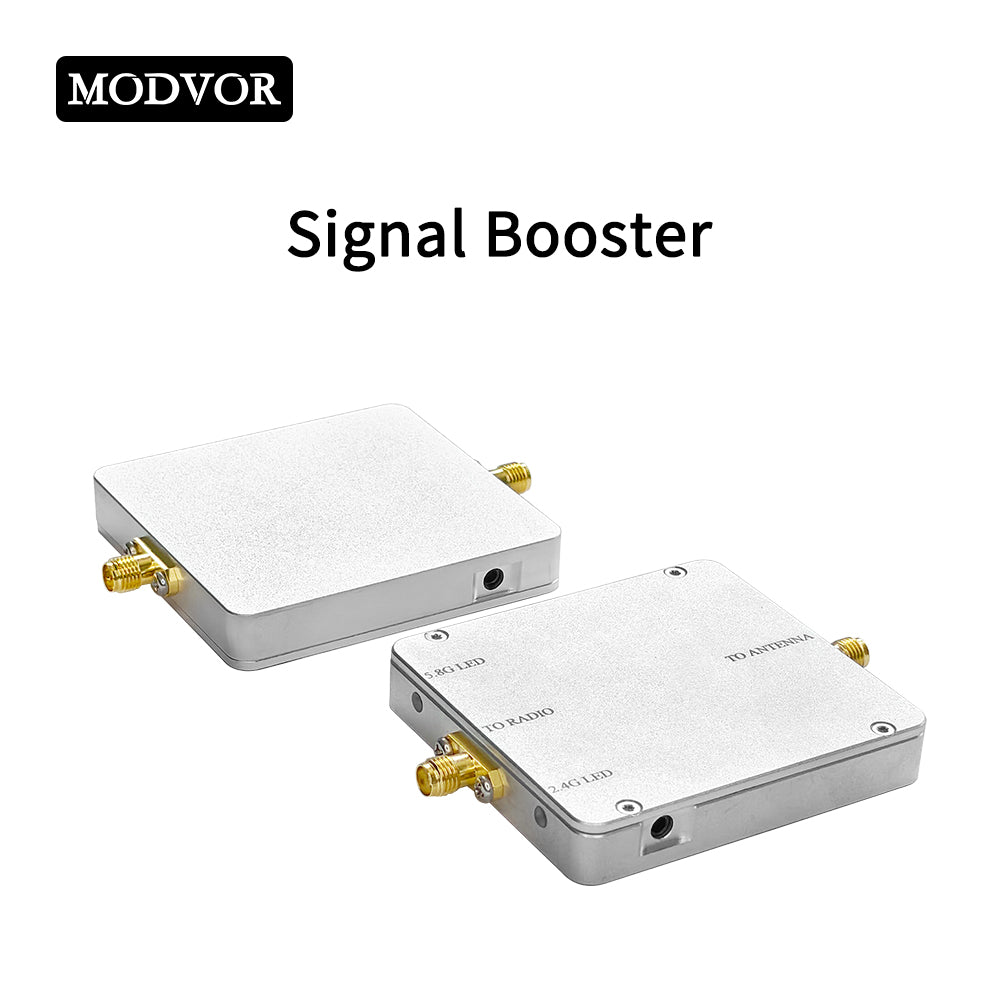

Product Description
For crowded 2.4GHz and 5.8GHz wireless environments, coverage and link stability often decide whether devices stay connected. This 2.4G&5.8G 4W 1-In 1-Out Signal Booster is engineered to extend WiFi, Bluetooth, LoRa and Industrial IoT links with 80X the power, improving coverage for certified WLAN devices. Its ultra-low noise figure, wide 6-16V DC input, and plug-and-play design simplify deployment without software. The compact aluminum housing provides passive cooling and mechanical protection, making it suitable for indoor, outdoor, and space-constrained installations. When signal dropouts or range limits appear, this booster adds balanced bidirectional amplification across both frequency bands.
Typical Applications
- WiFi Signal Extension: Improve coverage for certified IEEE 802.11a/b/g/n/ac WLAN devices.
- Bluetooth Link Enhancement: Extend Bluetooth signal range in industrial and commercial environments.
- LoRa & IoT Networks: Boost bidirectional links for LoRa and industrial IoT sensor systems.
- Industrial IoT Signal Extender: Enhance two-way data transmission for remote controllers and sensors.
- Wireless Camera & Monitoring: Improve 2.4GHz/5.8GHz video and data links.
- Commercial WLAN Coverage: Extend reliable coverage in offices, warehouses, and campuses.
Technical Specifications
|
Parameter |
2.4GHz |
5.8GHz |
|
Center Frequency |
2400-2500MHz |
5725-5850MHz |
|
Operating Voltage |
6-16V DC |
6-16V DC |
|
Receiving Gain |
17dB±1 |
15dB±1 |
|
Transmission Gain |
18dB±1 |
18dB±1 |
|
Max Output Power (P1dB) |
36dBm(4W) |
36dBm(4W) |
|
Input Trigger Power |
Min:3dBm Max:23dBm |
Min:3dBm Max:23dBm |
|
EVM |
3%@27dBm |
3%@27dBm |
|
Noise Figure |
<3.0dB |
<4.0dB |
|
Current Supply |
680mA@Pout 27dBm 12V |
550mA@Pout 27dBm 12V |
|
TX/RX Switch Speed |
<1us |
<1us |
|

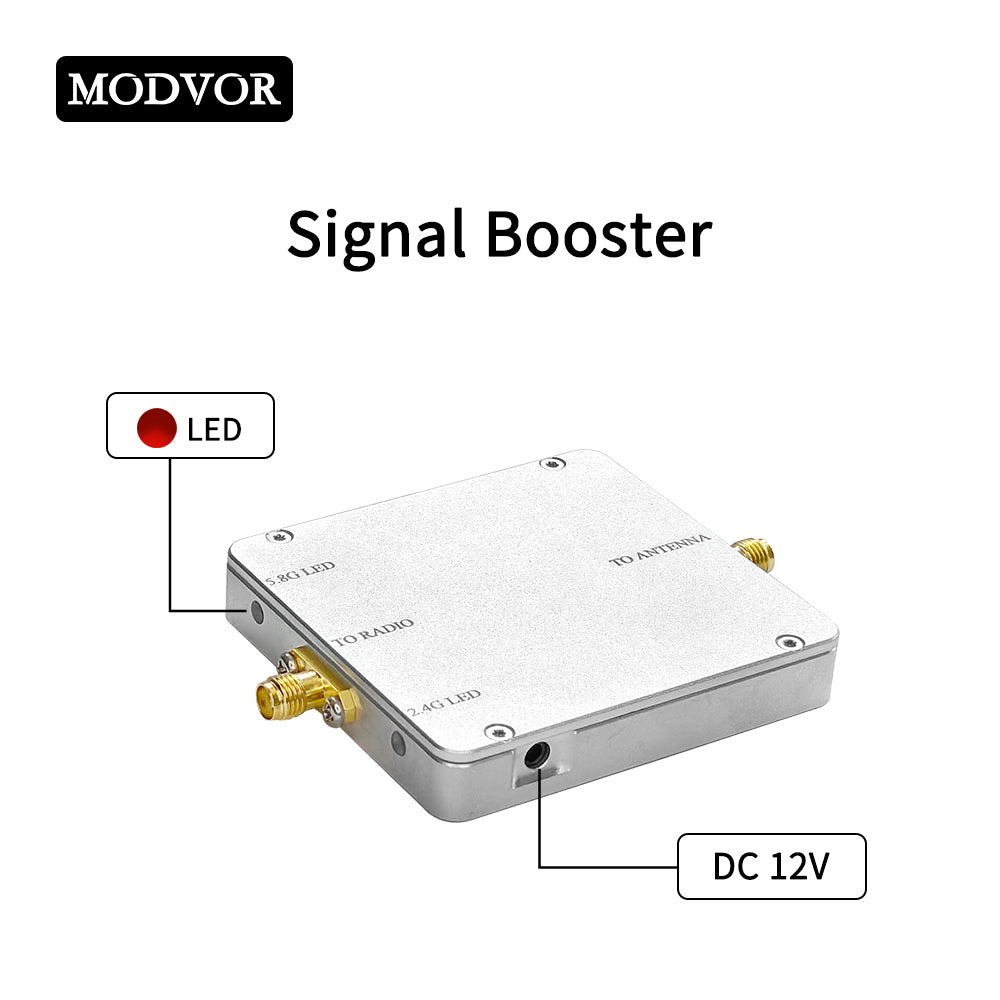

LED Indicator |
Transmitter:Green; |
Transmitter:Green; |
|
Operating Temperature |
-30℃~+70℃ |
-30℃~+70℃ |
|
Storage Temperature |
-40℃~+150℃ |
-40℃~+150℃ |
|
Operating Humidity |
Up to 95% rel. humidity |
Up to 95% rel. humidity |
|

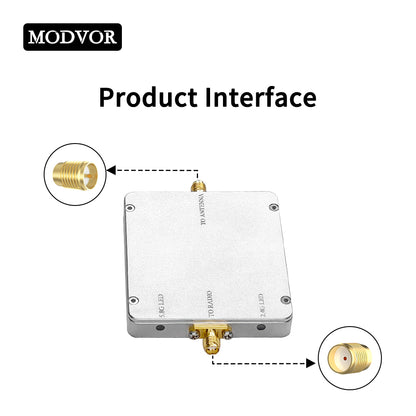

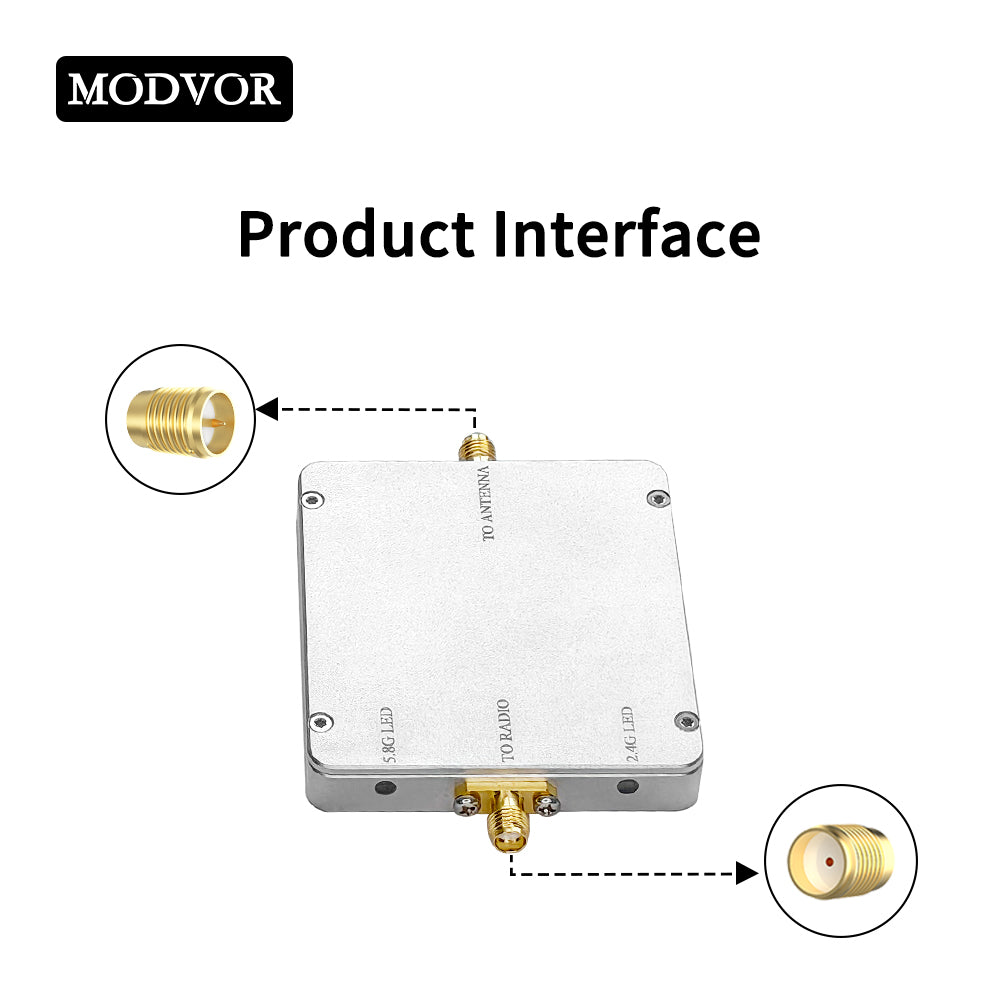

RF Connector |
Input: SMA-Female; Output: SMA-Male |
Input: SMA-Female; Output: SMA-Male |
|

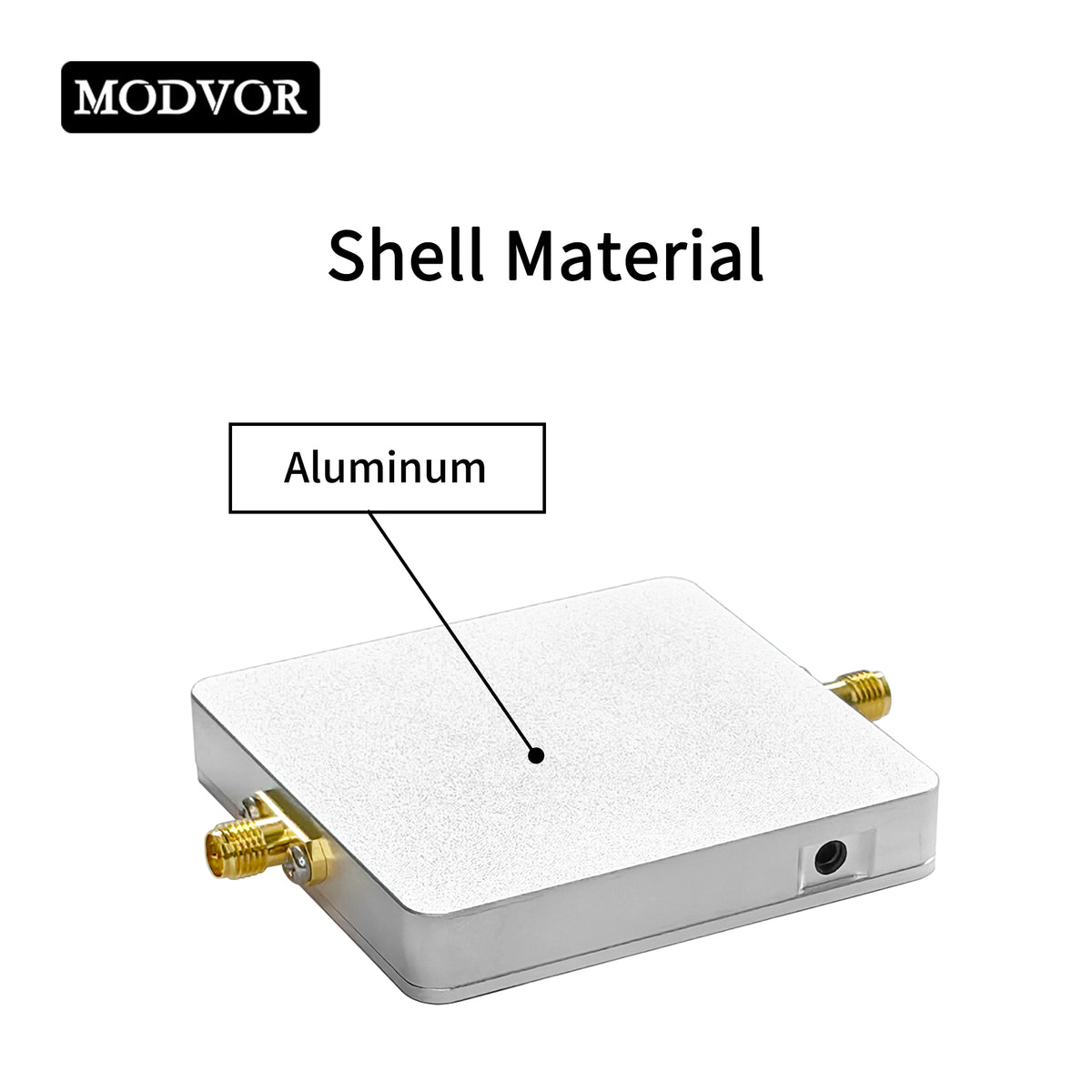

Shell Material |
Aluminum |
Aluminum |
|
Power Socket |
2.5*0.7mm DC |
2.5*0.7mm DC |
|

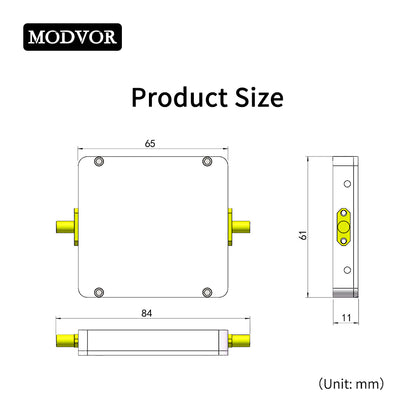

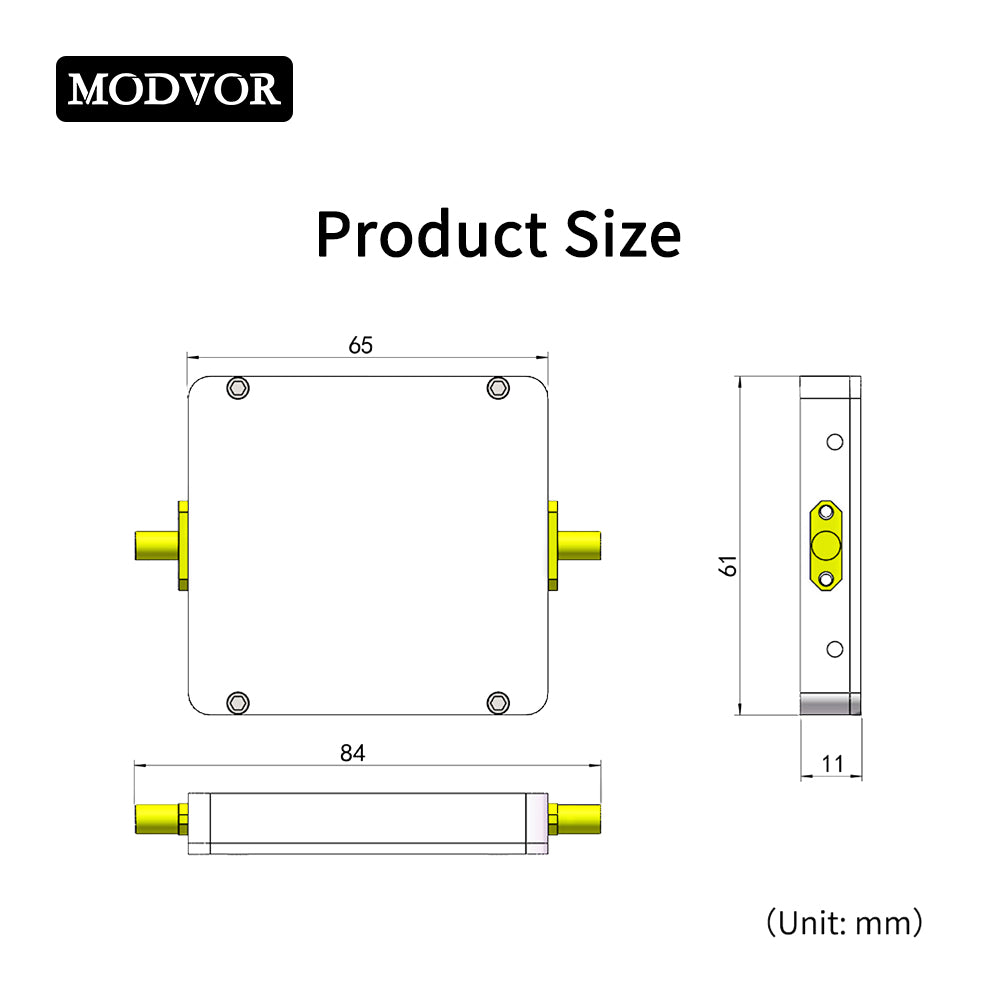

Dimension |
65*61*12mm |
65*61*12mm |
|
Net Weight |
0.12kg |
0.12kg |
Key Advantages
Dual-Band Bidirectional Amplification. This Signal Booster provides 36dBm (4W) output with 18dB±1 TX gain, improving both uplink and downlink performance across 2.4GHz and 5.8GHz bands.
Ultra-Low Noise and Fast Switching. With a <3.0dB noise figure on 2.4GHz and <4.0dB on 5.8GHz, plus <1us TX/RX switch speed, it maintains stable signal quality for WLAN, Bluetooth, LoRa, and IoT links.
Compact Plug-and-Play Integration. The 6-16V DC input, SMA-Female/SMA-Male connectors, and 2.5*0.7mm DC socket simplify installation. The 65*61*12mm aluminum housing weighs only 0.12kg, supporting flexible deployment.
What's in the Box
- 1 × 2.4G&5.8G 4W Signal Booster
- 1 × Set of Connection Cables
- 1 × 6dBi Omnidirectional Antenna
