Product Description

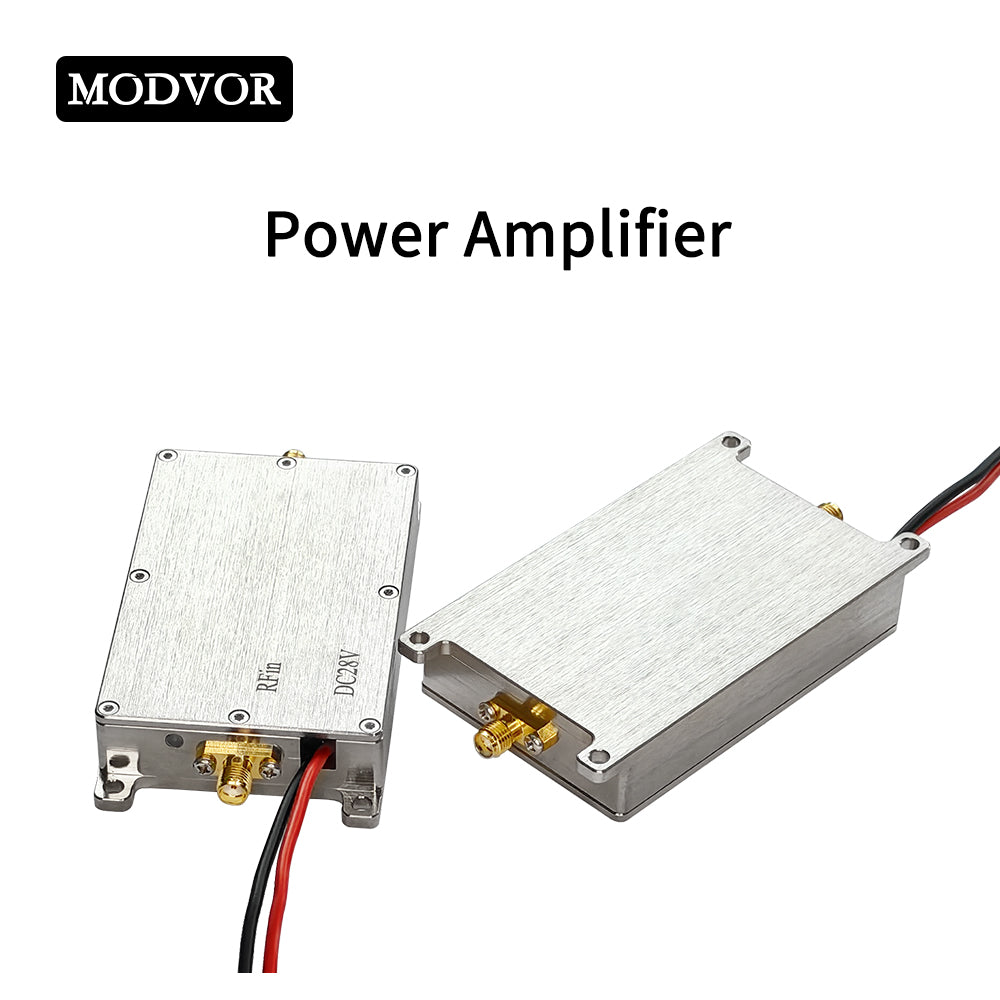

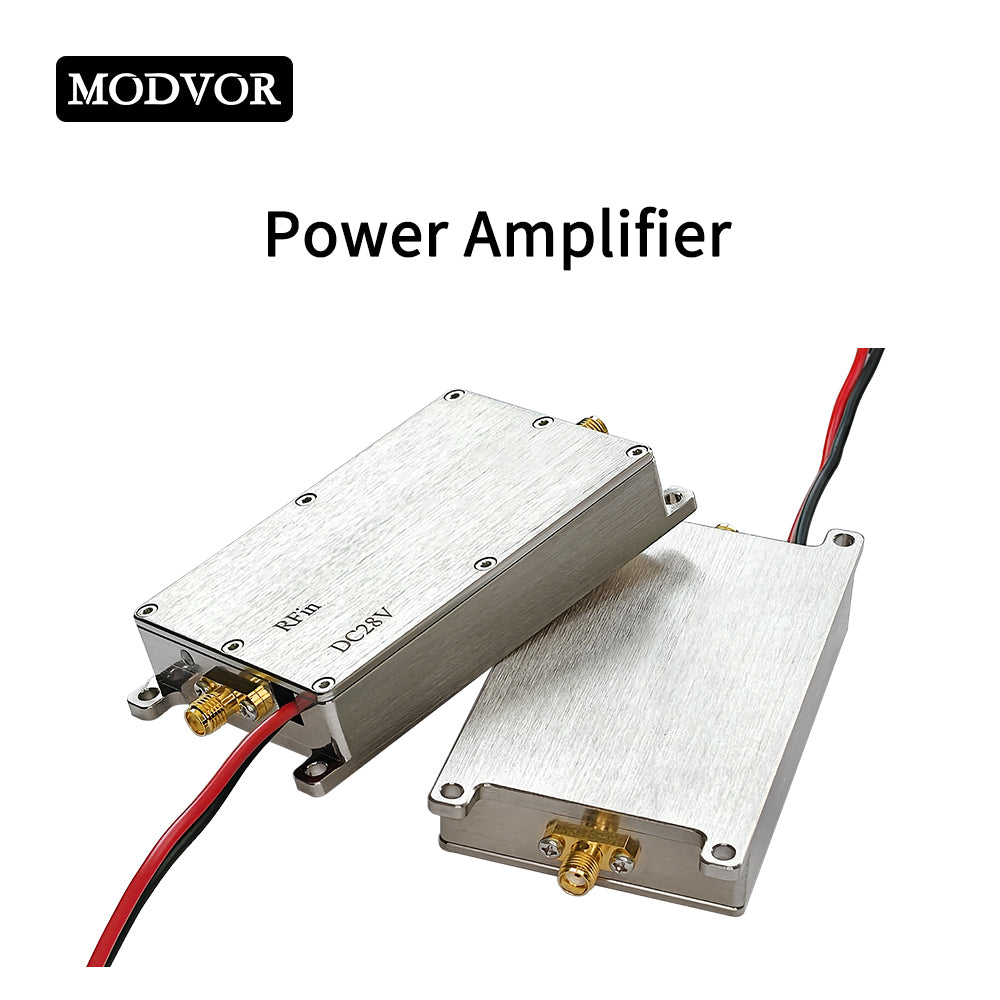

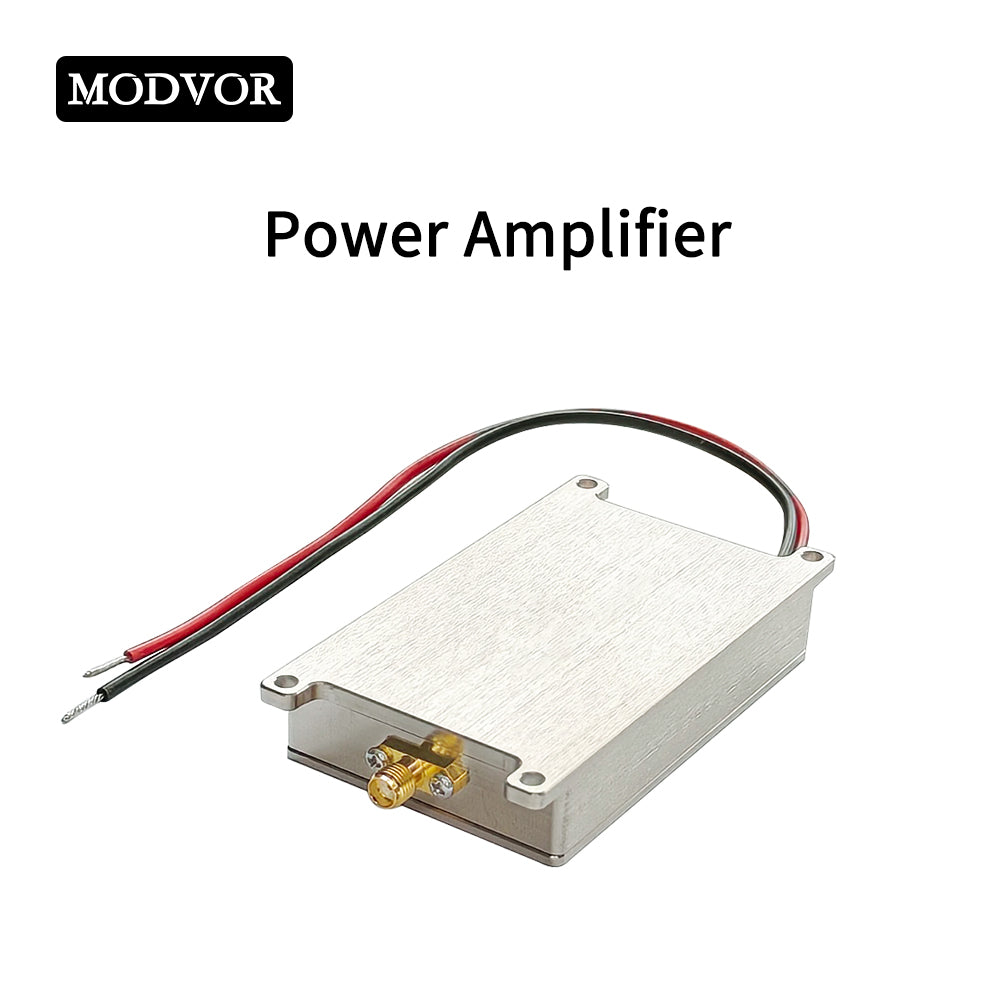

When your wireless system operates in the globally recognized 2.4GHz ISM band—whether for UAV control links, Wi-Fi range extension, drone telemetry, FPV transmitter boosting, or industrial wireless networks—clean, high-power amplification is the key to reliable long-range performance. This 10W RF Power Amplifier delivers a robust 40dBm (10W) of clean output power with 40dB gain across the full 2.4-2.485GHz range, covering all standard Wi-Fi channels, drone control frequencies, Bluetooth, ZigBee, and countless other ISM applications. Operating on a 24V DC supply (customizable to 28V) with just 1.5A current draw at full output, it features a rugged aluminum housing and SMA female connectors—built to withstand demanding field operations while delivering consistent, reliable performance for both airborne and ground-based deployments.
Typical Applications
- UAV Control Links: Extend RC command range for long-range drones and BVLOS operations
- Wi-Fi Range Extension: Boost access point or client signals for enterprise and outdoor networks
- FPV Transmitter Boosting: Amplify 2.4GHz video or control signals for enhanced FPV performance
- Drone Telemetry & Data Links: Ensure reliable real-time data transmission between drone and ground station
- Industrial Wireless Networks: Strengthen connections in factories, warehouses, and outdoor automation systems
- Amateur Radio (HAM) 13cm Band: High-power amplification for licensed 2.4GHz experimental operations
Technical Specifications
|
Parameter |
Value |
|
Frequency Range |
2400 – 2485 MHz |
|
Output Power |
40 dBm (10W) |
|
Gain (S21) |
40 dB ± 1 dB |
|
Operating Voltage |
24 V DC (customizable to 28V) |
|
Current Consumption |
1.5 A @ 24V |
|

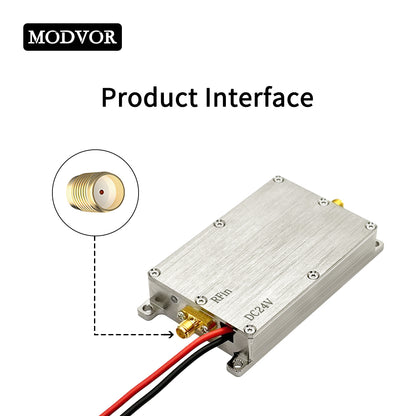

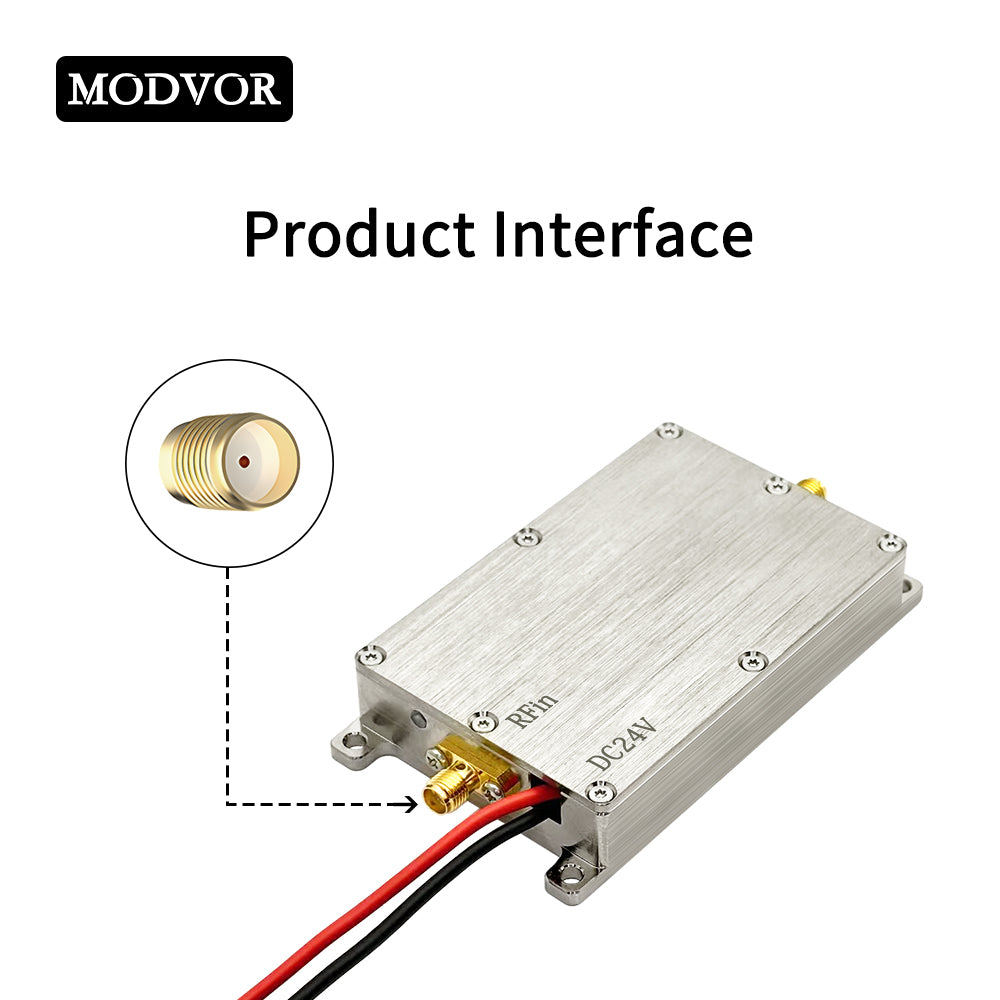

RF Connectors |
Input: SMA Female; Output: SMA Female |
|

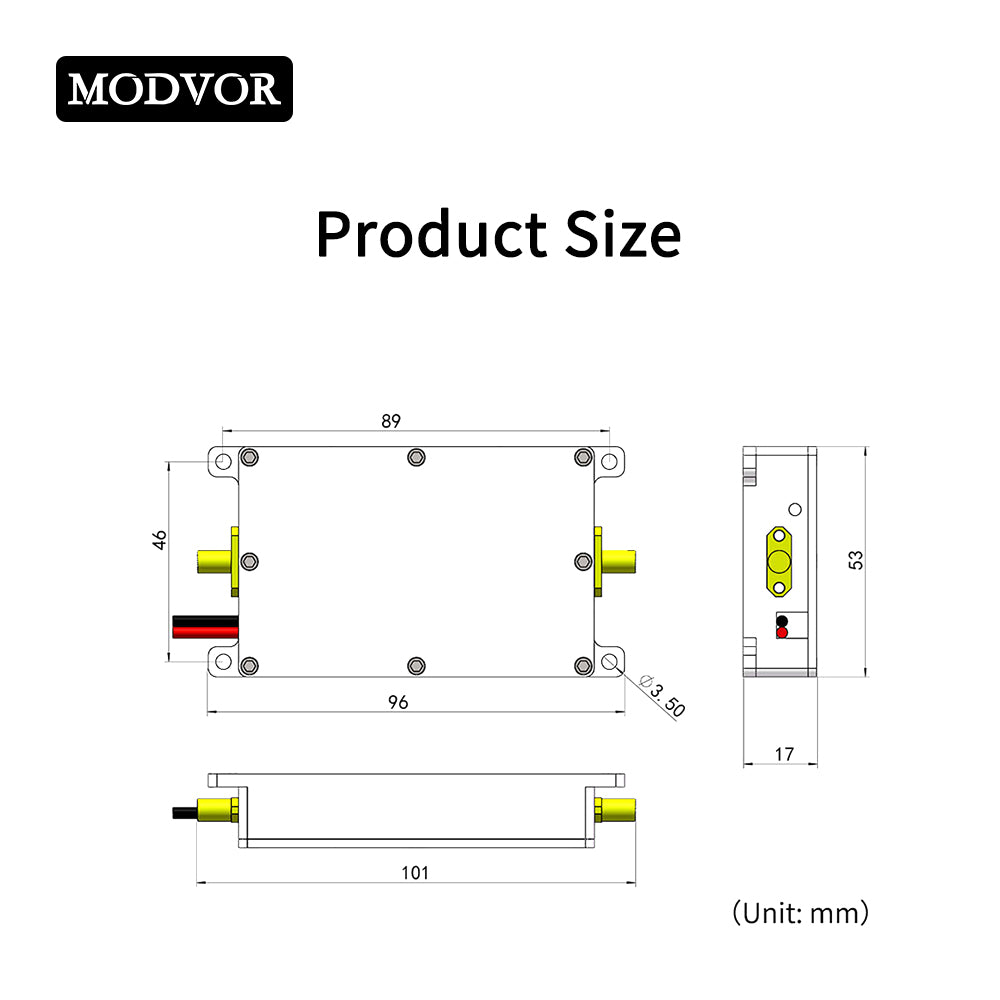

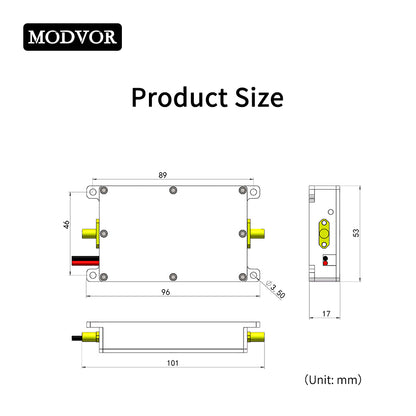

Dimensions |
96 × 53 × 17 mm |
|
Net Weight |
0.15 kg (150g) |
|

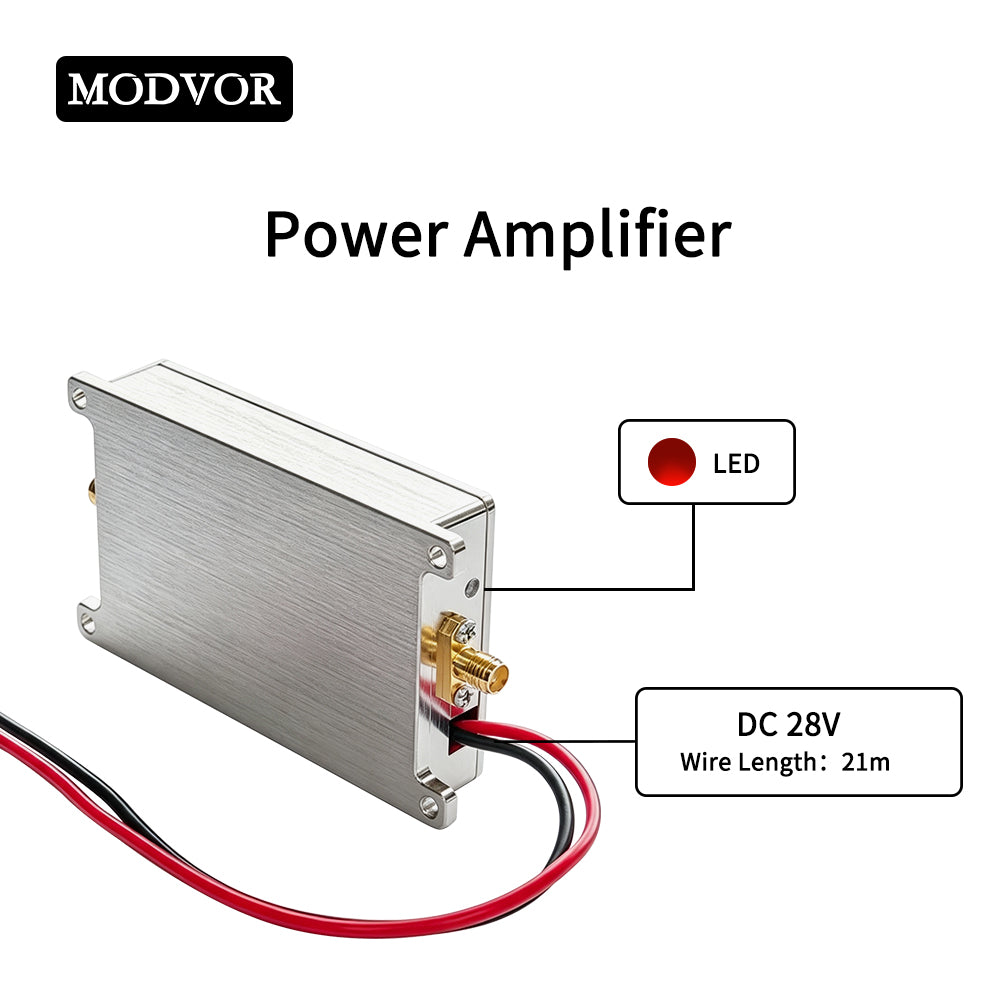

DC Wiring |
15cm Red/Black wire leads |
|
Shell Material |
Aluminum |
Key Advantages
The 40dB gain transforms even low-power transmitters (as low as 1-10mW from standard Wi-Fi modules or drone receivers) into full 10W output with consistent, predictable performance. And with just 1.5A current draw at full power, you get massive output without draining batteries—essential for portable and drone-mounted applications.

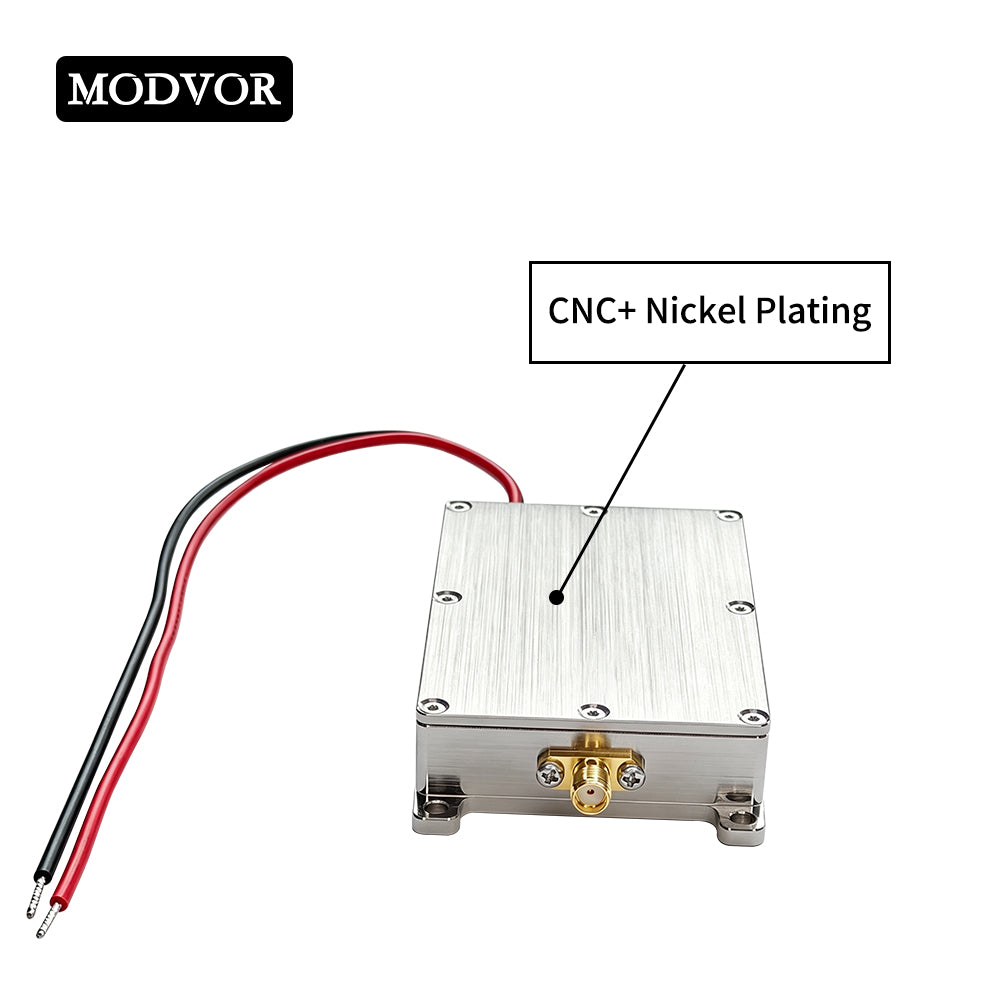

The rugged aluminum housing provides efficient passive cooling, while the compact 96×53×17mm form factor and 150g weight make it easy to mount on drones, ground stations, network racks, or portable field kits.Wide voltage tolerance (24V standard, customizable to 28V) ensures compatibility with ground station power supplies, and PoE systems. With SMA female connectors on both input and output, integration with existing RF chains is completely straightforward.
Universally compatible frequency coverage – spanning 2.4-2.485GHz, this amplifier covers all 14 Wi-Fi channels, every standard drone control frequency, and the entire ISM allocation used in virtually every country worldwide, making it a truly global solution.
What's in the Box
- 1 × 10W RF Power Amplifier
