Product Description

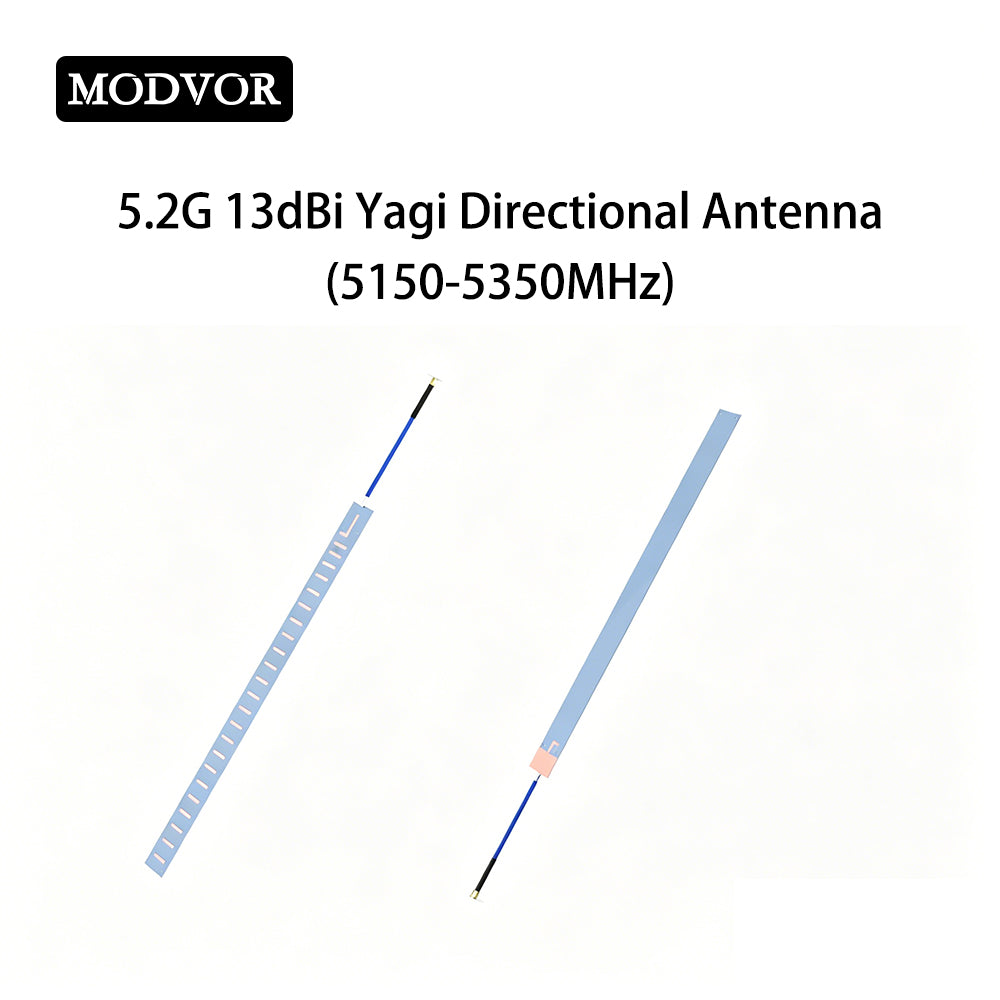

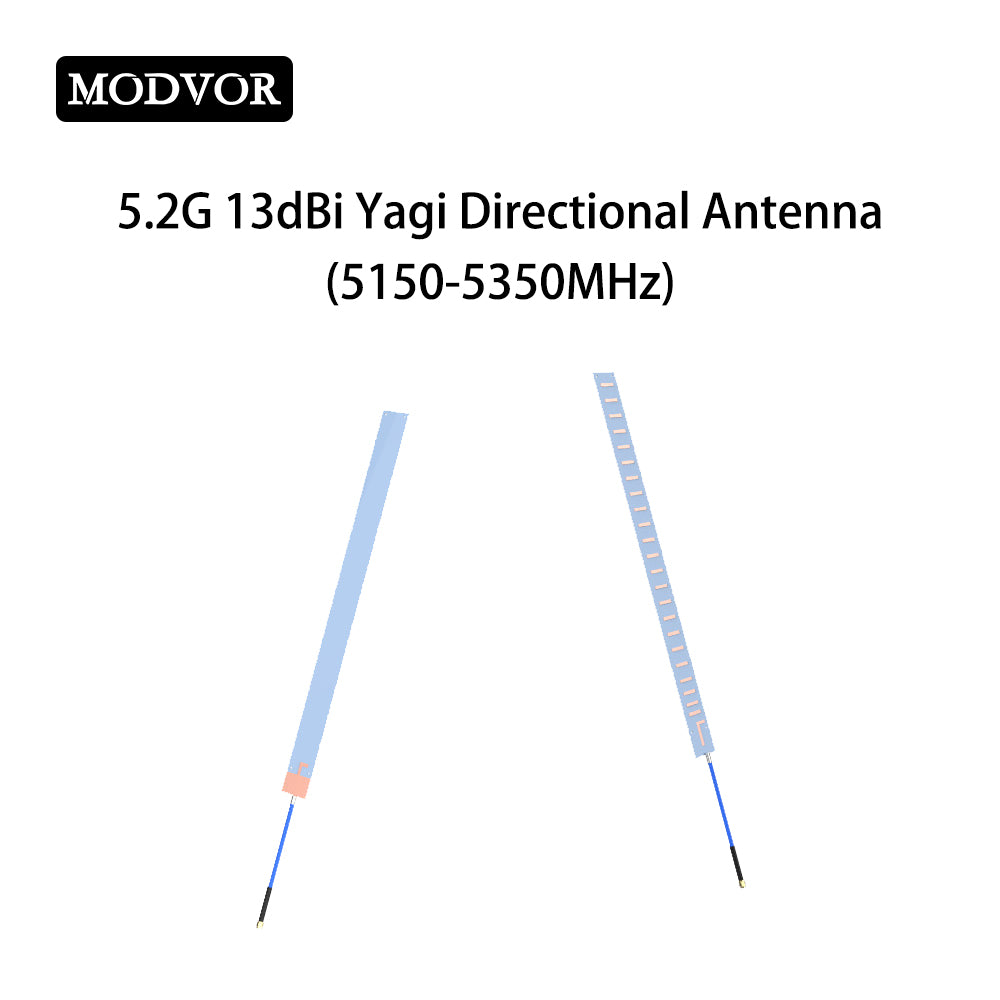

Our 5.2GHz 13dBi High‑Gain Yagi Directional Antenna is purpose‑built for long‑range, stable RF transmit and receive performance within the 5.2 GHz frequency band. Adopting classic Yagi‑Uda directional beam‑focusing architecture, this antenna concentrates signal energy toward the target direction, greatly improving effective communication distance while effectively mitigating multipath interference and unwanted background radio noise from surrounding environments.
Constructed from premium‑grade corrosion‑resistant metal alloy, the antenna features solid mechanical structure to withstand complex outdoor working conditions. It maintains excellent working performance under varying temperature, wind and humidity conditions, supporting long‑term continuous field deployment. With optimized internal impedance matching, it achieves low VSWR across the full 5.2 GHz operating band, minimizing signal reflection and power loss to maximize RF utilization efficiency.
Easy‑to‑mount structure allows flexible installation on poles, brackets and equipment housings. Its directional radiation pattern enables precise alignment toward target signal sources, making it well‑suited for both custom RF system integration and off‑the‑shelf wireless hardware matching. Fully compatible with mainstream 5GHz WiFi radios, drone RF transceivers, surveillance wireless modules and other 5.2 GHz band wireless devices.
Product Application
- 5GHz WiFi point‑to‑point bridge & long‑range WiFi link
- Drone / UAV signal transmission, FPV video link receiving & transmitting
- Wireless surveillance system, long‑distance camera data backhaul
- Outdoor wireless communication, remote site signal extension
- RF receiving and transmitting for 5.2GHz band wireless devices
Product Features
- Operating Frequency: 5.2 GHz, 13 dBi high gain for long‑range signal coverage
- Directional Yagi‑Uda structure, concentrates signal energy, reduces multi‑path interference
- Low VSWR, high signal efficiency, minimizes signal loss during transmission
- Compact directional radiation pattern, easy to aim and align for target signal source
- Compatible with 5GHz WiFi equipment, drone RF modules and wireless surveillance radio units
Product Specifications
| Working band | 5150-5350MHz |
| Gain | 13dBi |
| VSWR | ＜1.5 |
| Efficiency | ≥90% |
| Polarization | Linear Polarization |
| EL HPBW | 23° |
| AZ HPBW | 26° |
| Input Impedance | 50Ω |
| Power Handing | 50 W |

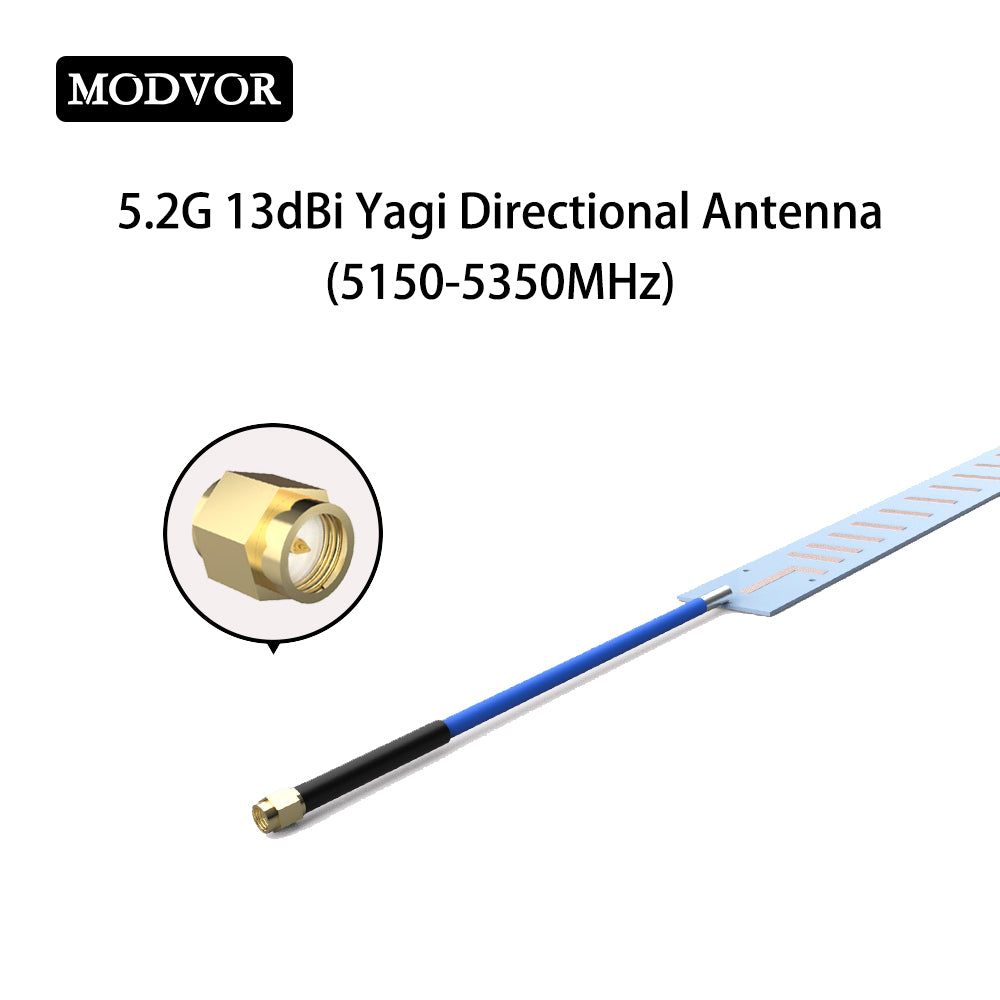

| RF Connector | SMA-Male |

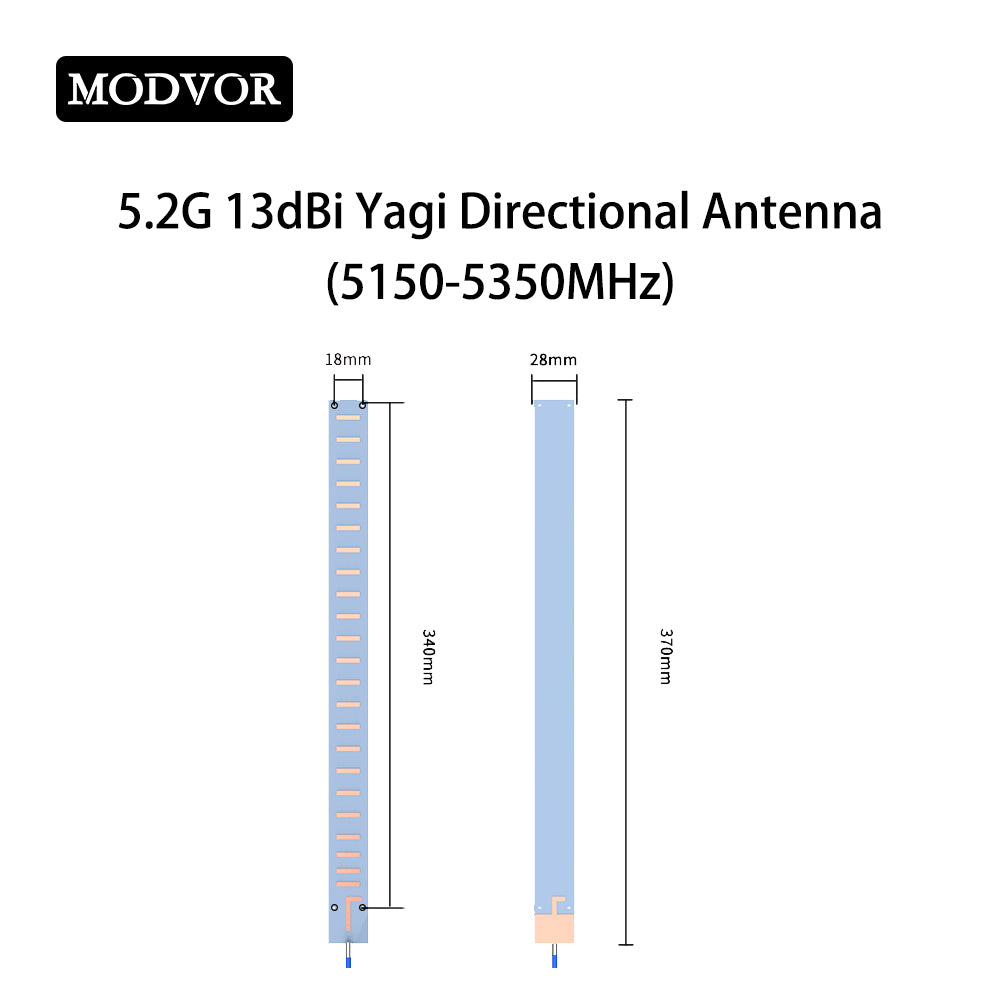

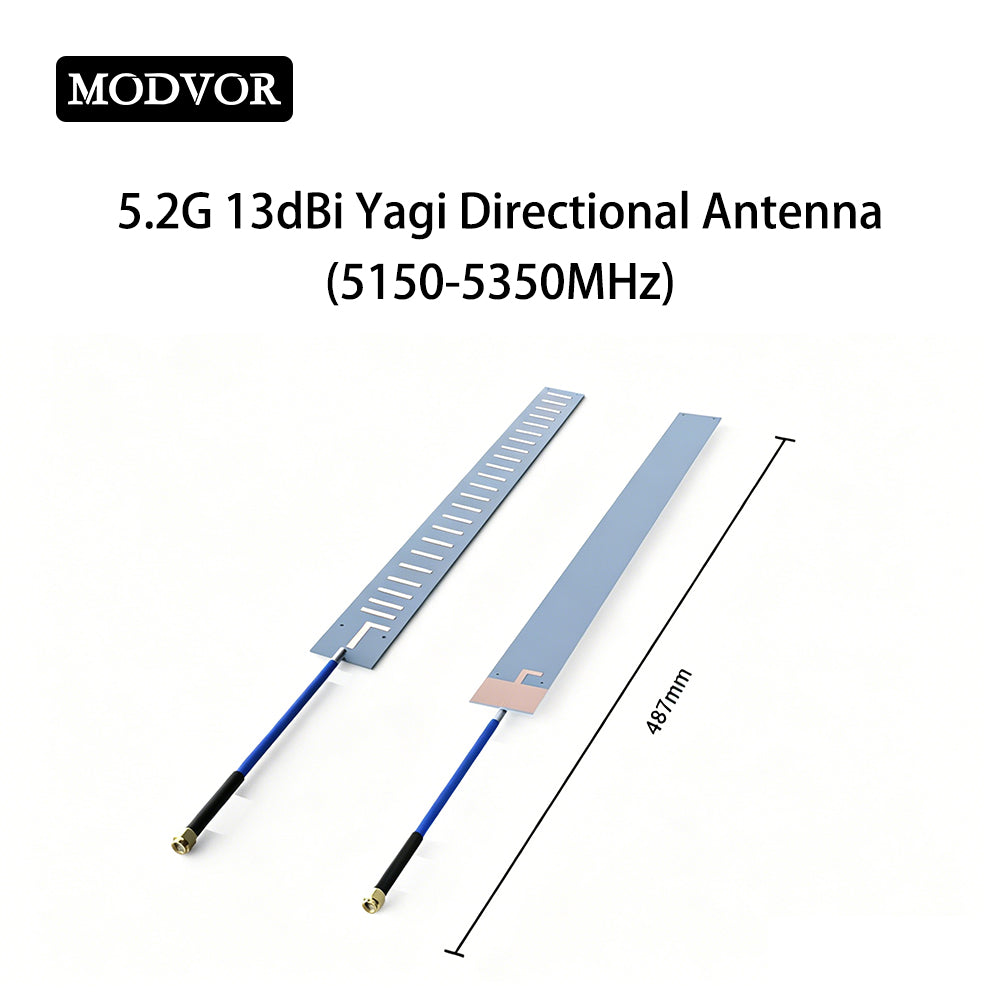

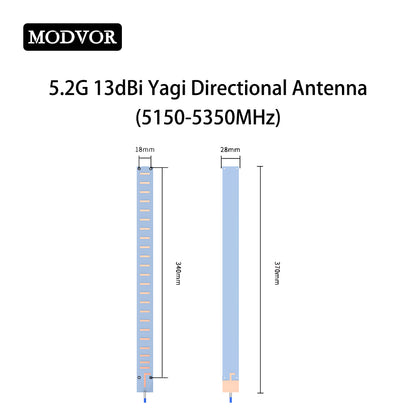

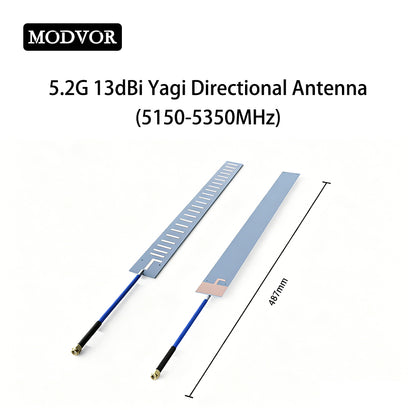

| Size | 487*28mm |
| Weight | 31g |
Package List
1 X 5.2GHz Yagi Antenna
