Product Description
This industrial-grade 20W 200-300MHz GaN anti drone jamming module is built with an integrated RF circulator and N-female connector. Designed to disable VHF wireless transmitters and achieve camp wireless isolation, it serves as the core RF power amplifier unit for UAV countermeasure systems.
Adopting advanced GaN semiconductor technology, the module provides high efficiency and stable 20W continuous output within the 200–300MHz VHF band. The built-in circulator isolates reverse reflected signals, preventing amplifier burnout caused by antenna mismatch and signal reflection, ensuring stable continuous operation.
Equipped with universal N-female RF port, this unit supports easy antenna matching and flexible system assembly. Widely used for camp wireless isolation, site security, no-fly zone UAV suppression and other temporary & fixed wireless shielding scenarios. Suitable for system integrators for OEM and customized anti-drone equipment development.
Product Features
- Frequency band: 200-300MHz
- GaN chip, stable 20W (43dBm) output
- Built-in integrated circulator for better isolation
- N female RF connector for easy assembly
- Compact aluminum alloy housing with good heat dissipation
- Customizable frequency band and output power as requested
Product Specifications
| Frequency Range | 200-300MHz |
| Operating Voltage | 24 V DC |
| Flatness | ±0.5 dB |
| Output Power | 20 W/43 dBm |
| Current Consumption | 2.5 A@24 V |
| Efficiency | 45%@43 dBm |

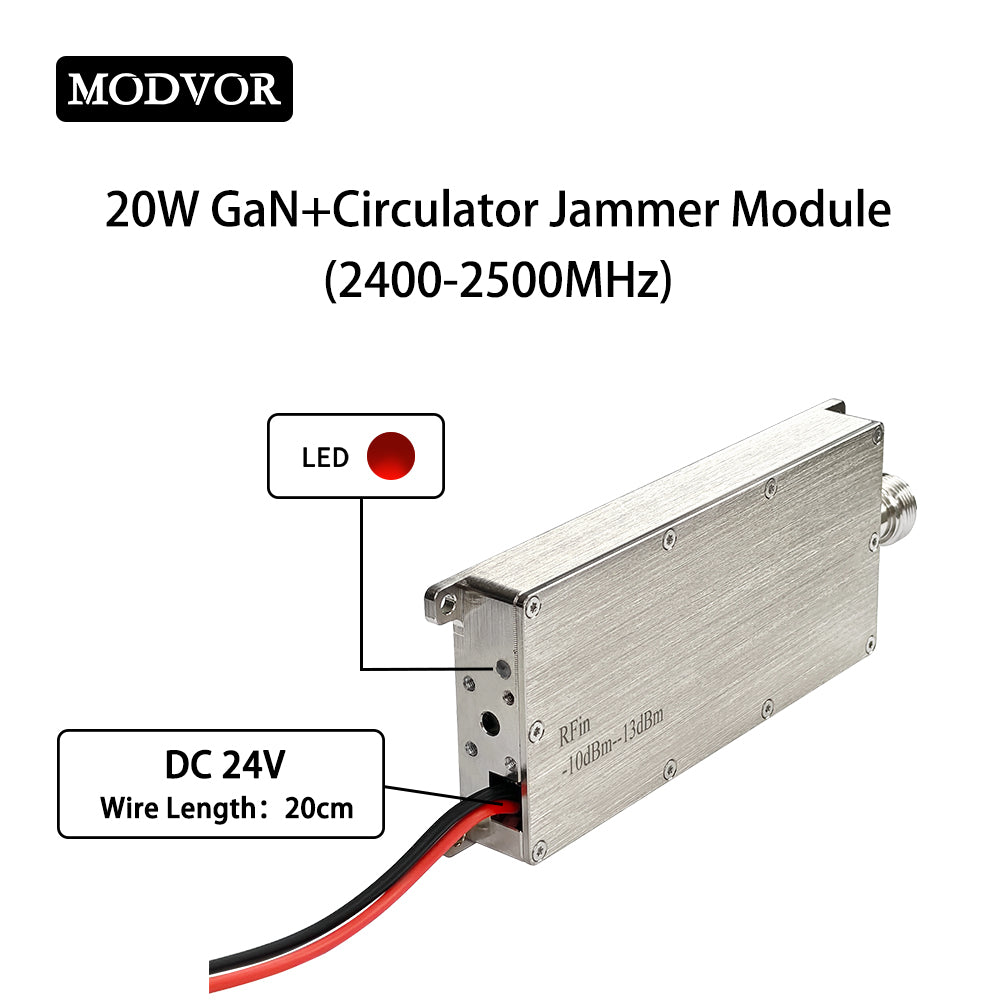

| LED State | Red |
| Operating Temperature | -30℃ ~ +85℃ |
| Storage Temperature | -40℃ ~ +150℃ |
| Operating Humidity | <95%RH |
| RF Connector | Output: N-Female |
| Power Socket | 20 cm red/black wire |
| Shell Material | Aluminum |

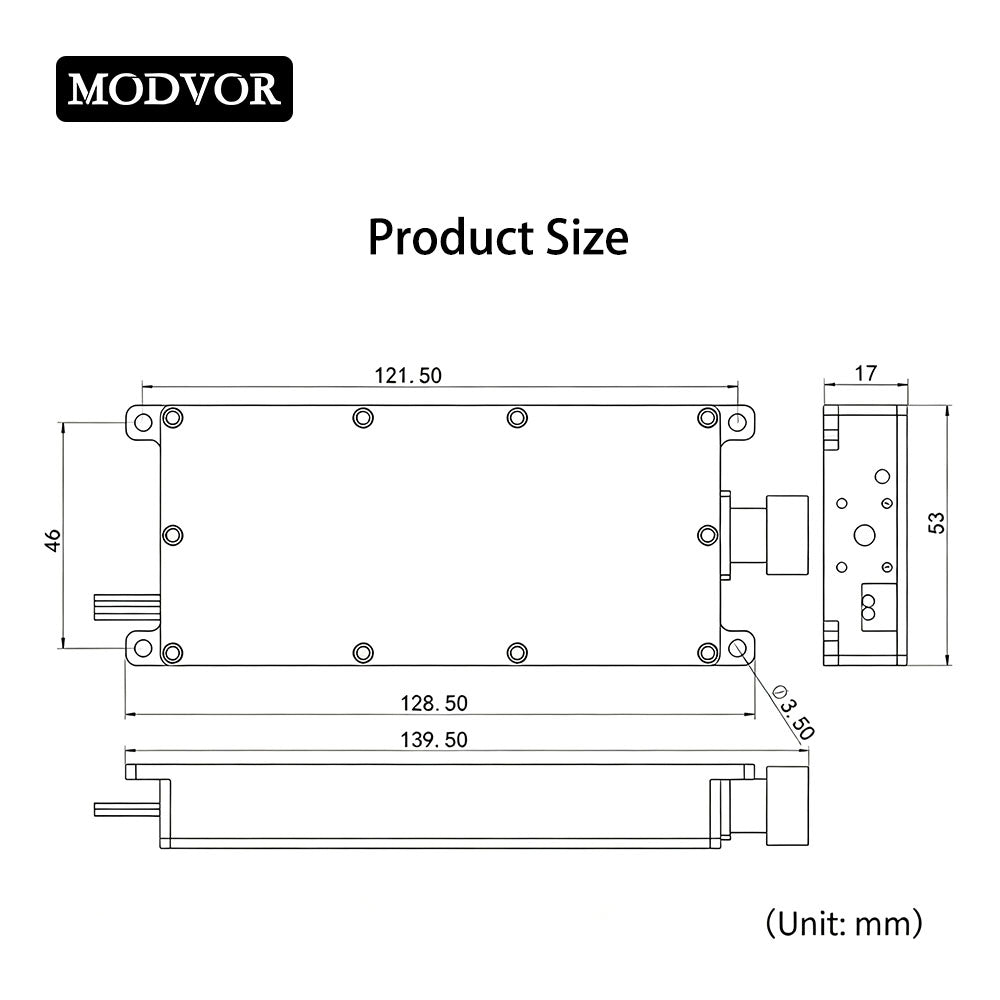

| Shell Size | 128.5*53*17 mm |
| Net Weight | 0.26 kg |
Package List
1 x N-type GaN+Circulator Jammer Module
