Product Description

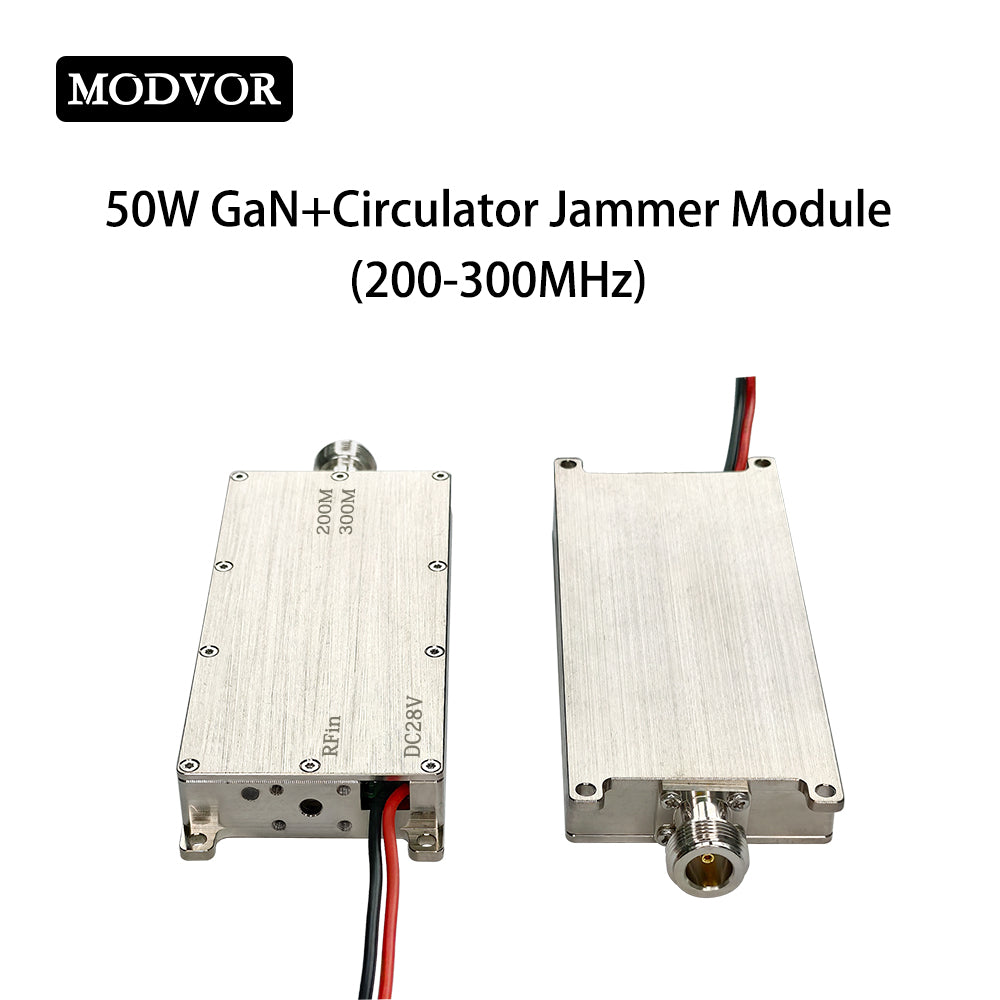

Industrial-grade 50W 200-300MHz high power GaN drone jammer module fitted with built-in RF circulator and N-female connector. Designed for jamming VHF walkie-talkie communications and drone flight control signals, it serves as the core RF power unit for UAV countermeasure systems.
Adopting advanced GaN semiconductor technology, the module delivers reliable 50W continuous power within the 200–300MHz band. The integrated circulator isolates reverse reflected signals and protects the amplifier from damage caused by antenna mismatch, supporting stable long-running operation.
Equipped with universal N-female RF interface, the module enables simple antenna matching and quick assembly. Widely used for VHF intercom suppression and drone no-fly zone protection. Ideal for system integrators building custom anti-drone and wireless security equipment.
Product Features
- Frequency band: 200-300MHz
- GaN chip, stable 50W (47dBm) output

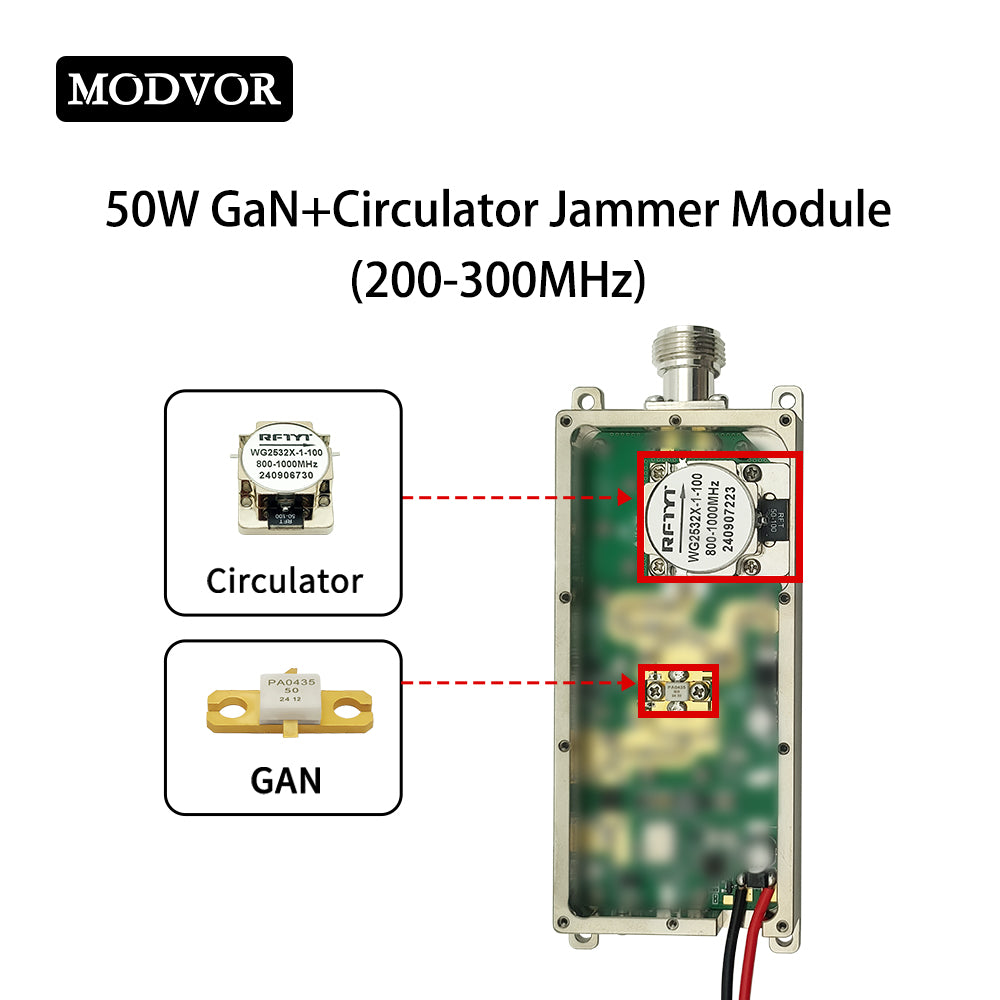

- Built-in integrated circulator for better isolation

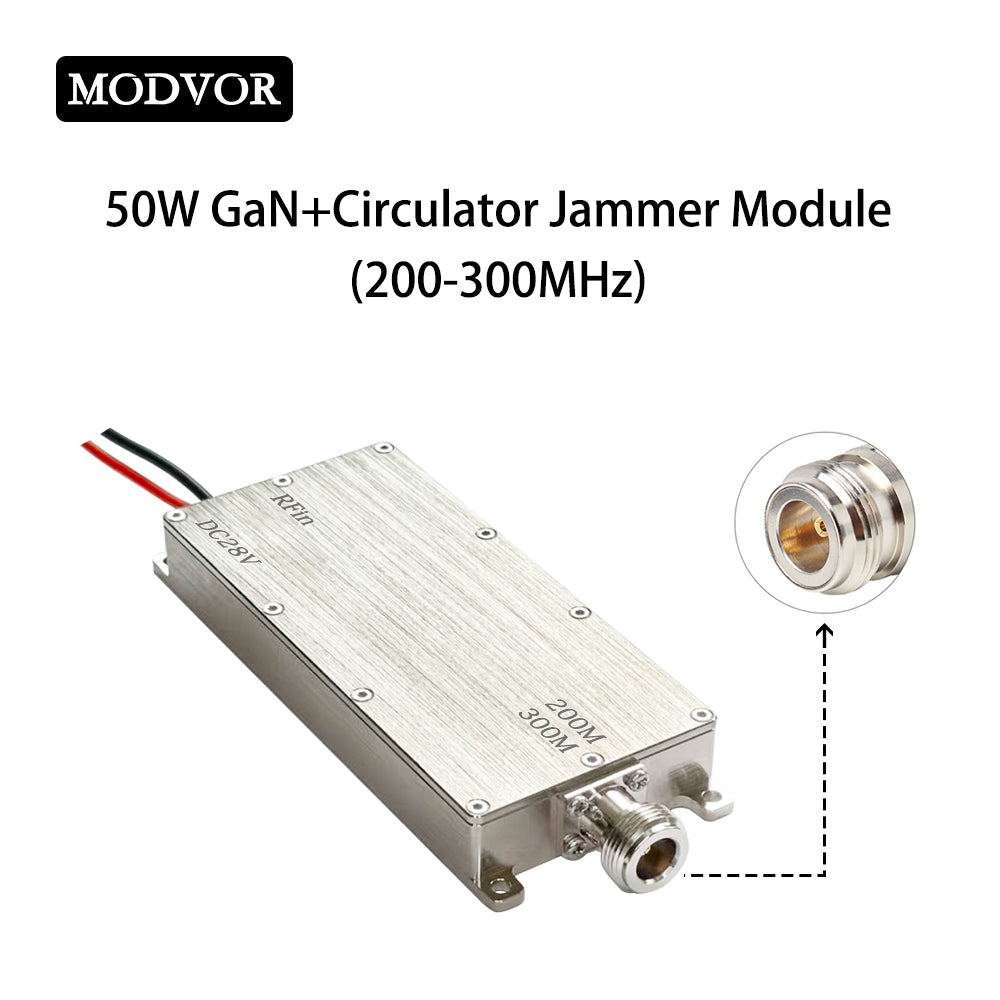

- N female RF connector for easy assembly
- Compact aluminum alloy housing with good heat dissipation
- Customizable frequency band and output power as requested
Product Specifications
| Frequency Range | 200-300MHz |
| Operating Voltage | 28 V DC |
| Flatness | ±0.5 dB |
| Output Power | 50 W/47 dBm |
| Current Consumption | 3.6 A@28 V |
| Efficiency | 45%@47 dBm |

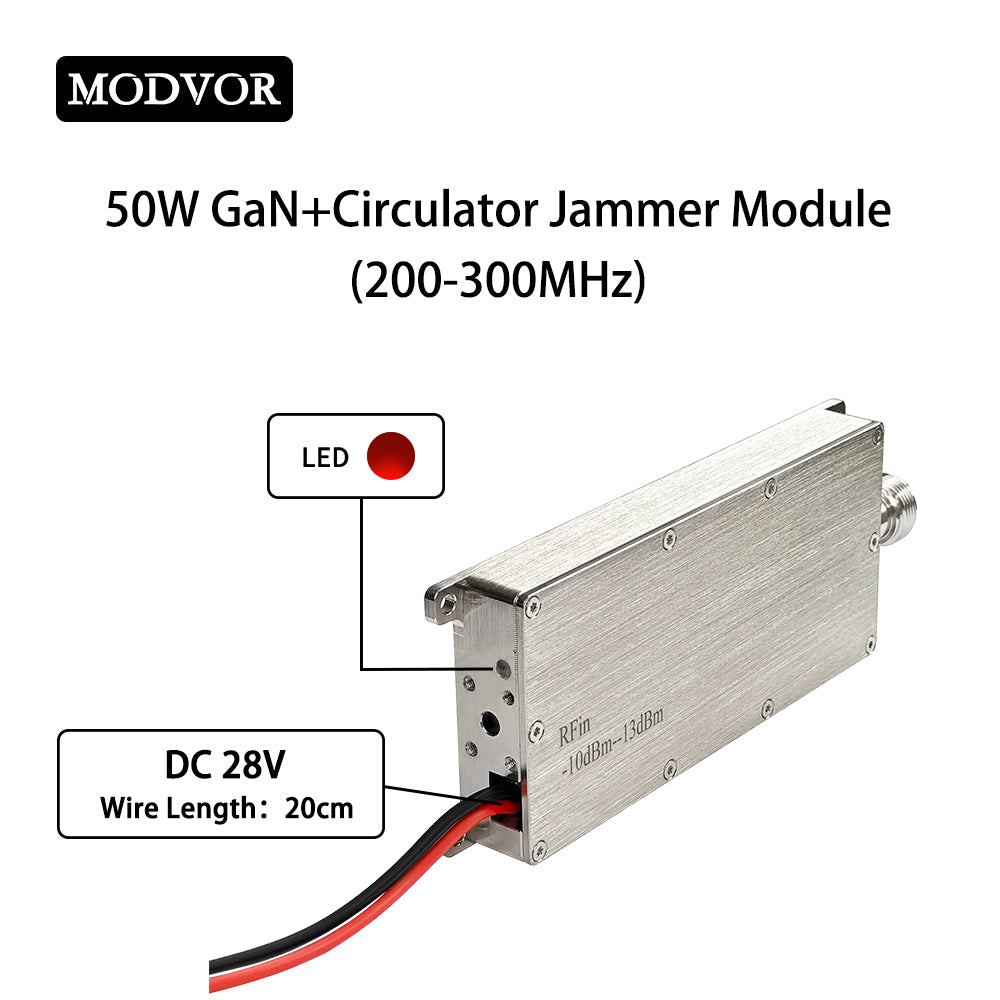

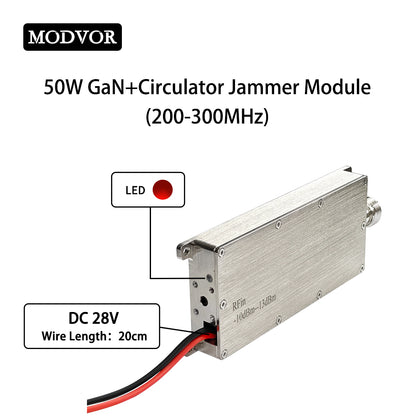

| LED State | Red |
| Operating Temperature | -30℃ ~ +85℃ |
| Storage Temperature | -40℃ ~ +150℃ |
| Operating Humidity | <95%RH |
| RF Connector | Output: N-Female |
| Power Socket | 20 cm red/black wire |

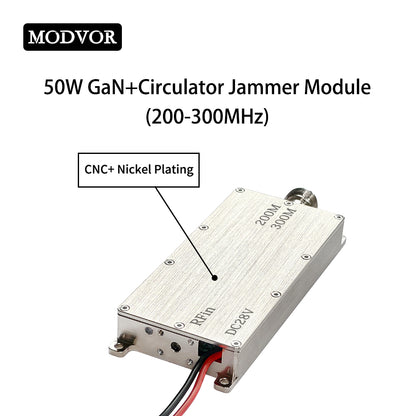

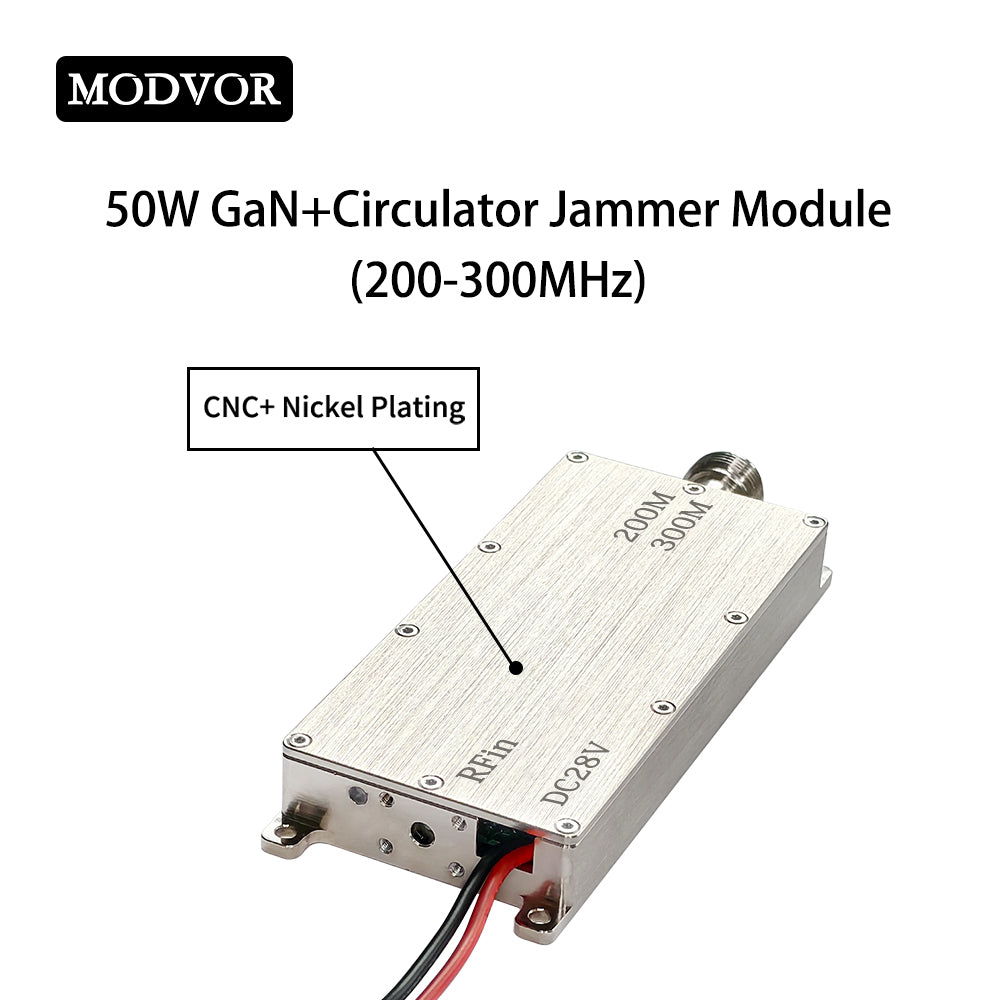

| Shell Material | Aluminum |

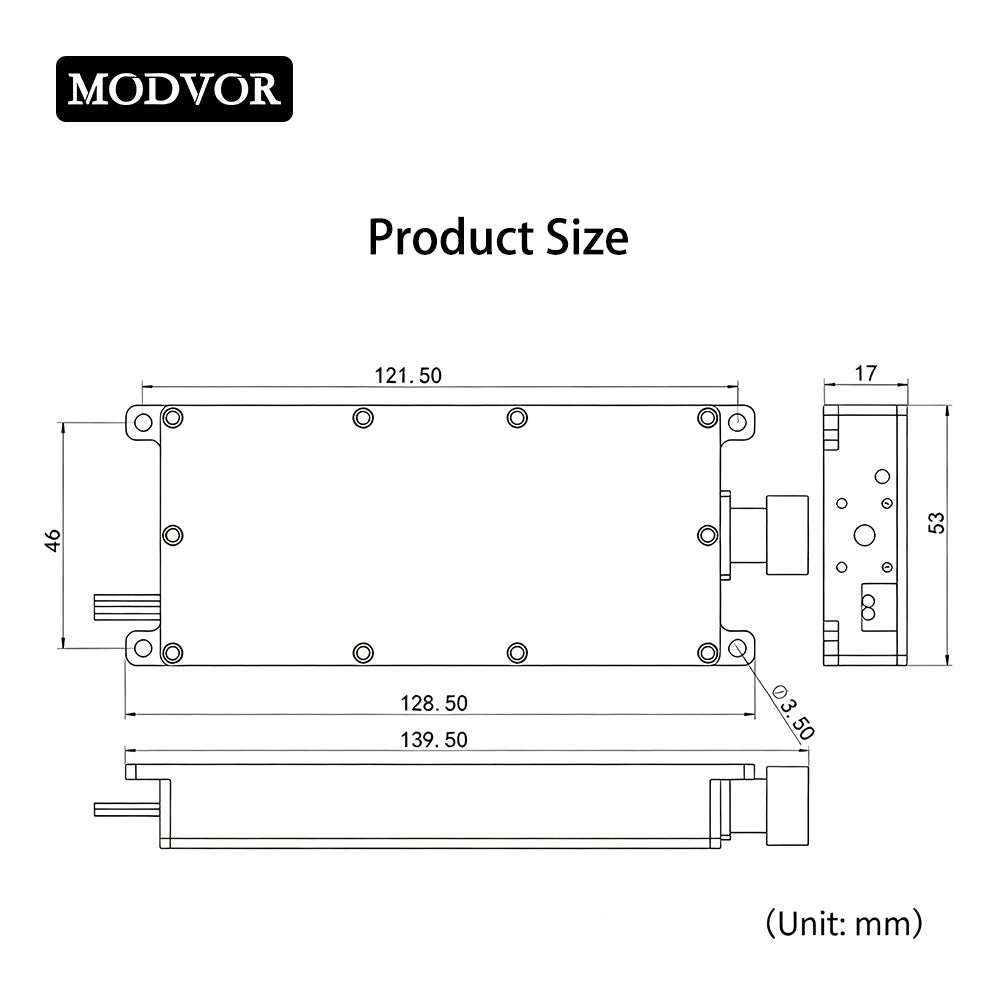

| Shell Size | 128.5*53*17 mm |
| Net Weight | 0.26 kg |
Package List
1 x N-type GaN+Circulator Jammer Module
