Product Description

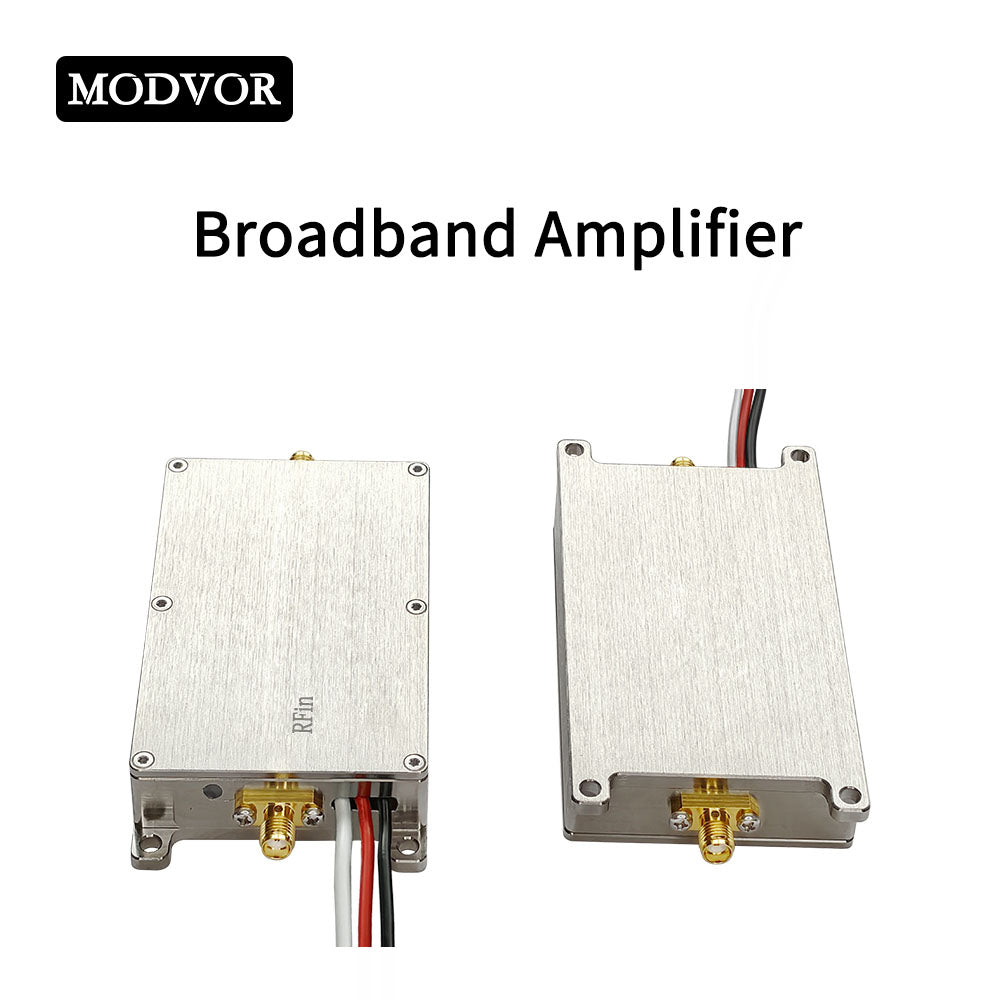

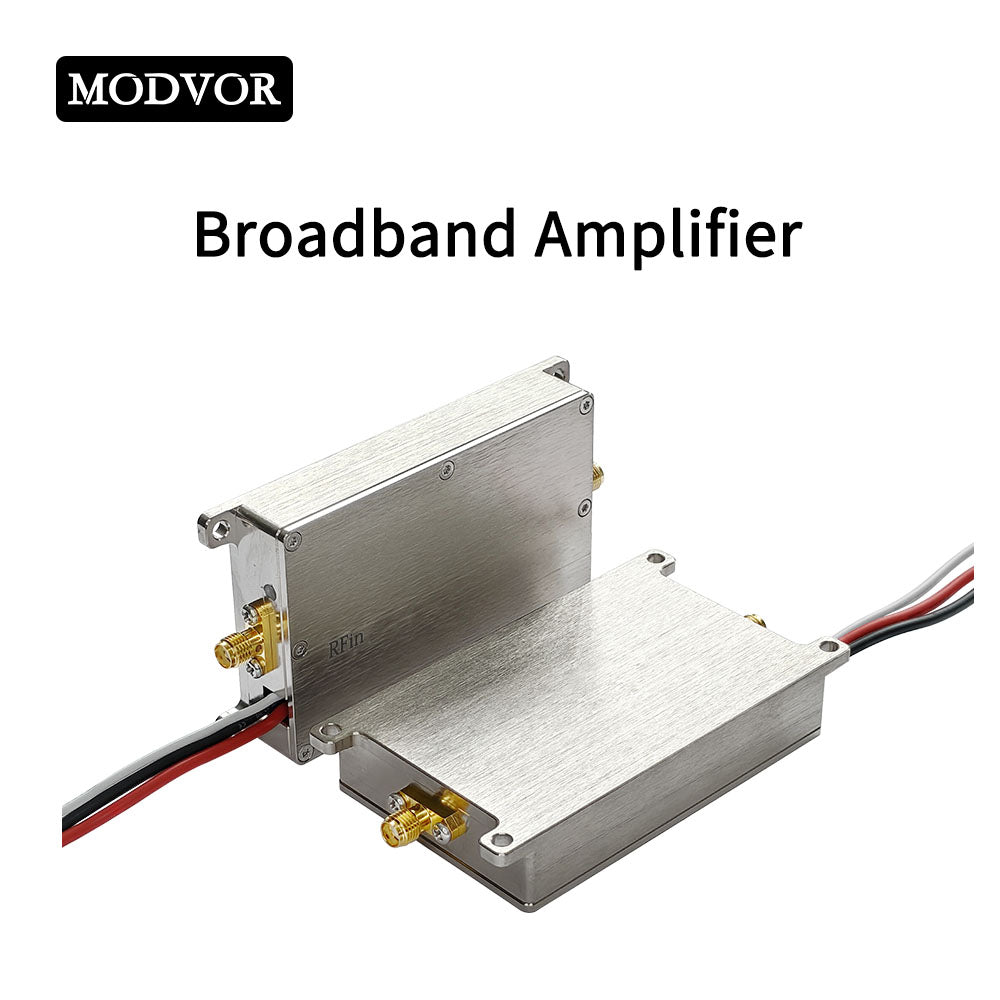

The 2000-3000MHz S-band is one of the most strategically important frequency ranges for defense, aerospace, and infrastructure—home to weather radar systems, satellite communications (SATCOM) , military telemetry, aviation surveillance, and aerospace testing. This 2000-3000MHz 5W GaN Broadband Power Amplifier delivers a robust 37dBm (5W) of clean output power with 35dB gain across the full 2000-3000MHz spectrum, covering critical S-band frequencies used in ground-to-satellite links, weather monitoring, and secure tactical networks. Leveraging advanced GaN (Gallium Nitride) technology for superior efficiency, linearity, and thermal performance, it operates on a 22-28V DC supply with just 0.45A current draw at full output. Housed in an ultracompact aluminum enclosure with SMAK connectors and builtin power control, it's engineered for professionals who need wideband flexibility and efficient, lightweight performance across the Sband spectrum.
Typical Applications
- Weather Radar Systems: Boost radar transmitter signals for meteorological monitoring and storm tracking
- Satellite Communications (SATCOM): Amplify ground-to-satellite uplink signals in S-band
- Military Telemetry & Secure Data Links: Ensure long-range, interference-resistant communication for defense operations
- Aviation Surveillance (TCAS/ADS-B): Enhance aircraft detection and collision avoidance system performance
- UAV & Drone Data Links: Wideband command and telemetry links for unmanned systems
- Aerospace & Radar Altimeters: Efficient amplification for precise altitude measurement and flight testing
Technical Specifications
|
Parameter |
Value |
|
Frequency Range |
2000 – 3000 MHz |
|
Output Power |
37 dBm (5W) |
|
Gain (S21) |
35 dB ± 1 dB |
|
Input Return Loss (S11) |
≤ -15 dB |
|
RF Input Power Range |
-13 ~ 10 dBm |
|
Operating Voltage |
22 – 28 V DC |
|
Current Consumption |
0.45 A @ 24V (at 37dBm output) |
|
Efficiency |
45% @ 37dBm |
|
Operating Temperature |
-30°C ~ +85°C |
|
Storage Temperature |
-40°C ~ +150°C |
|
Operating Humidity |
< 95% RH |
|

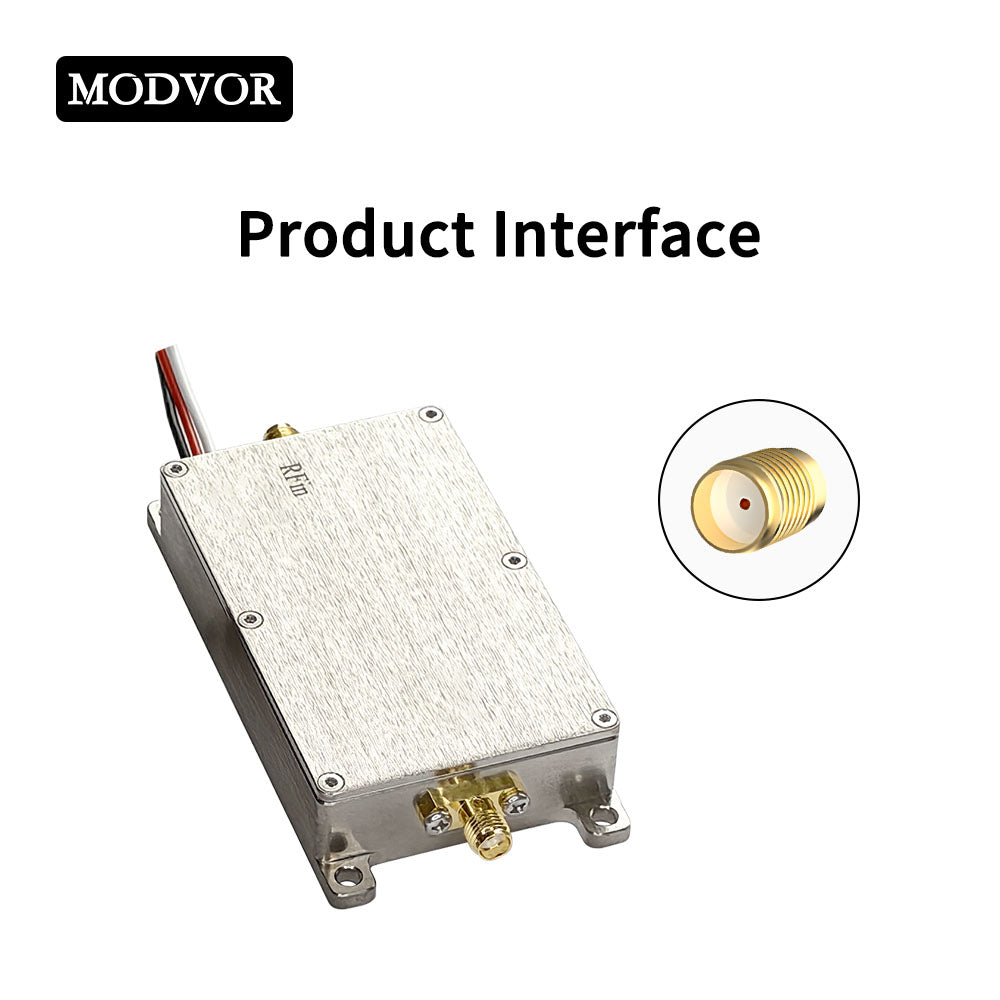

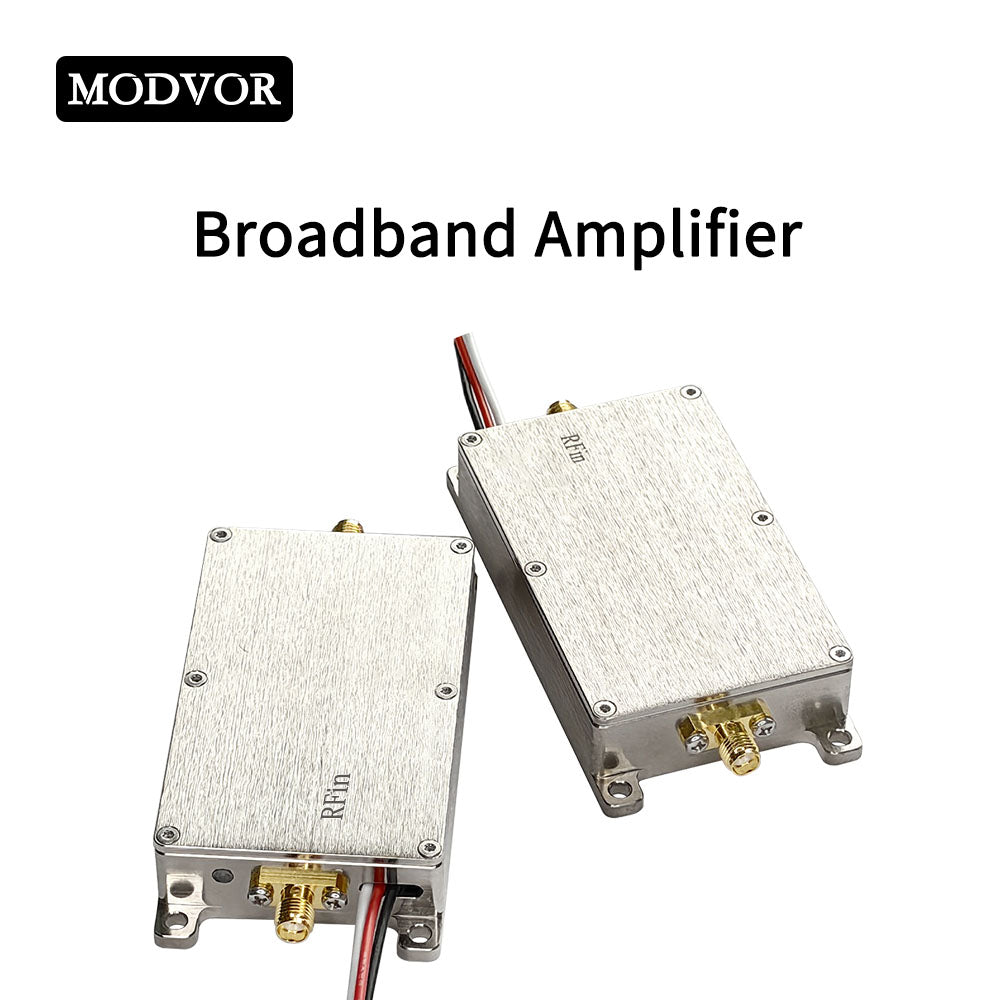

RF Connectors |
Input: SMAK; Output: SMAK |
|

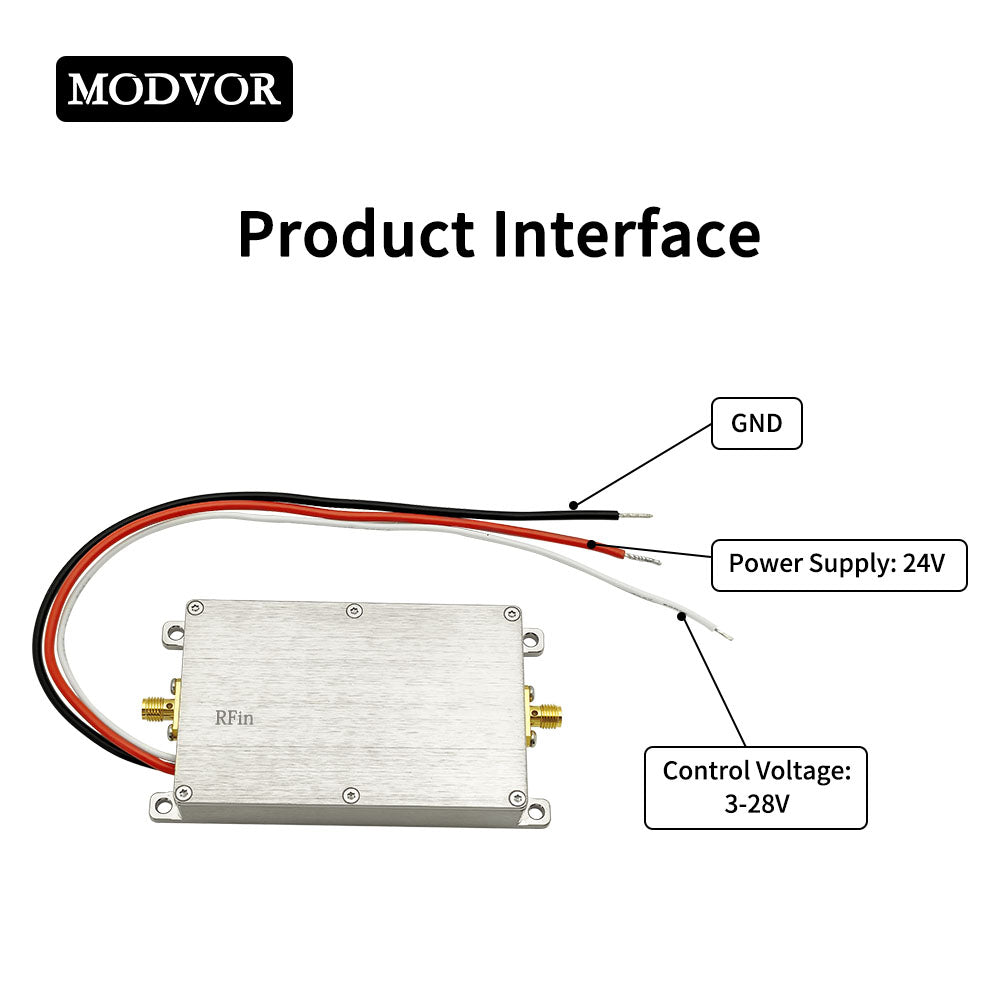

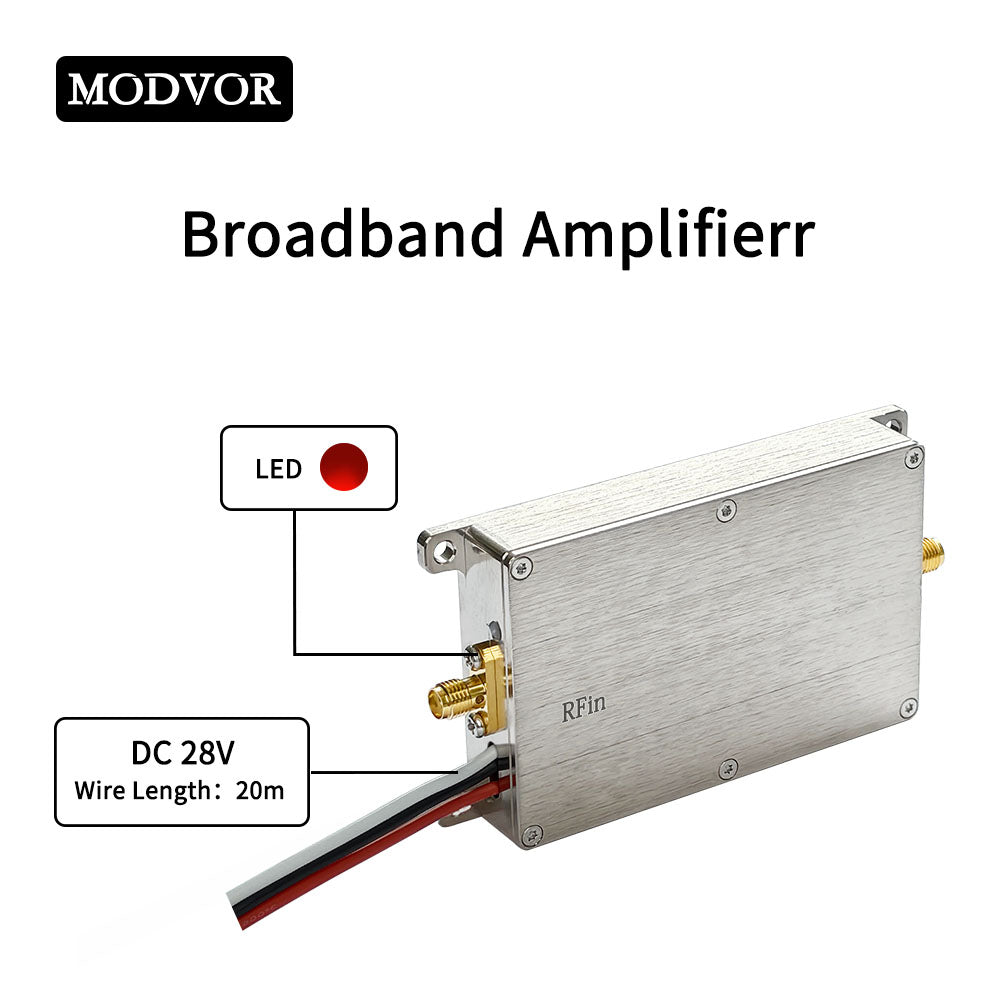

DC Connector |

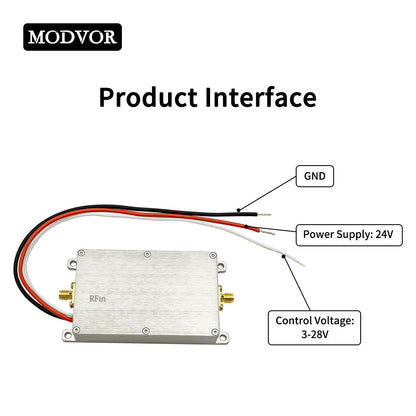

AWG18 20cm Red/Black wire leads |
|
Power Control |
3-28V 20cm Red wire (output adjustment) |
|

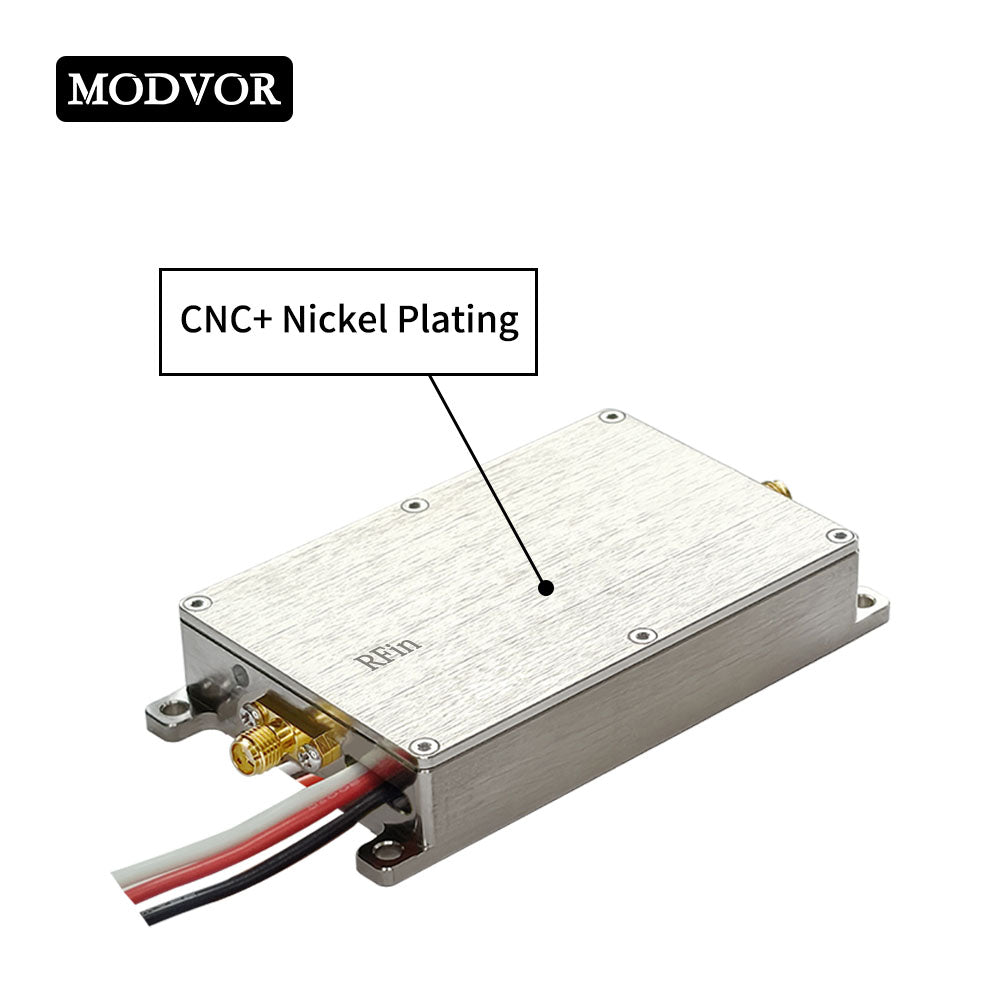

Shell Material |
Aluminum |
|

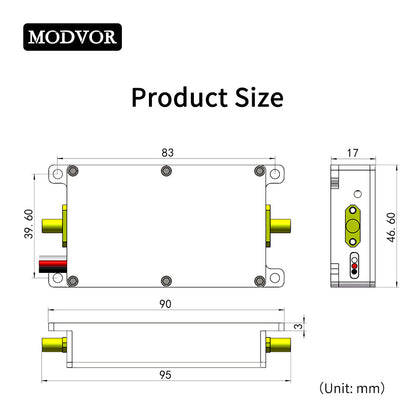

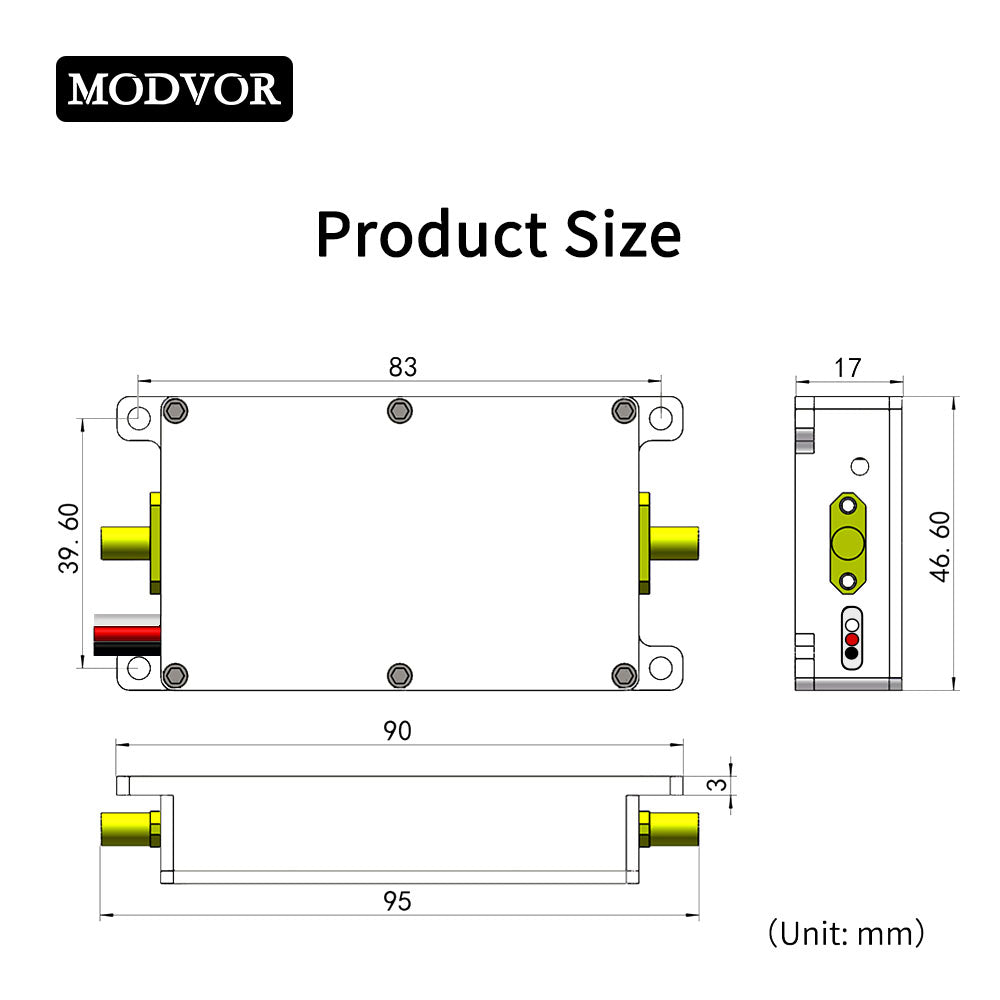

Dimensions |
90 × 46 × 17 mm |
|
Net Weight |
120 g |
Key Advantages
With 5W (37dBm) of clean GaNpowered output across the 2000-3000MHz Sband, this amplifier delivers 3-5× the effective range of standard 1W transmitters while maintaining exceptional efficiency—ideal for portable and batterypowered applications where power consumption is critical. The 35dB gain ensures consistent, predictable linearity even from lowpower exciters, while the ultracompact 120g design and efficient 0.45A current draw make it the perfect choice for drone integration, handheld devices, and fielddeployable radar and satellite terminals.
Builtin remote power control via the 3-28V red wire allows dynamic output adjustment—perfect for realtime power management in radar systems, satellite terminals, or drone operations. The wide 22-28V voltage tolerance ensures compatibility with 4S-6S LiPo batteries, aircraft electrical systems, and regulated power supplies, while SMAK connectors enable plugandplay integration with existing RF chains.
Precisiontuned for the 2000-3000MHz Sband, this amplifier covers critical frequencies used by weather radar, satellite ground stations, military telemetry, aviation surveillance, and aerospace applications. Whether deployed in portable ground stations, UAV platforms, or mobile field operations, it delivers the wideband flexibility and efficient power that missioncritical Sband systems demand.
What's in the Box
- 1 × 2000-3000MHz 5W GaN Broadband Power Amplifier
