Product Description
This 20W high-power GaN RF signal jammer covers the 1160–1280MHz frequency band, engineered for GNSS L2/L5 band suppression. Adopting cutting-edge GaN semiconductor technology, it delivers consistent high power output, superior energy efficiency and reduced thermal buildup, enabling dependable suppression of GNSS L2/L5 signals under diverse operating environments.
Integrated with a professional circulator for robust signal isolation, it avoids signal reflection and protects the internal module from damage to significantly enhance working stability. Fitted with a standard SMA-Female interface, the module supports flexible antenna configuration and simple installation to satisfy long-range signal suppression demands.
Compact, high in efficiency and long in effective range, this GaN signal jammer is well-suited for site security, anti-intrusion and privacy protection applications, offering steady and reliable GNSS L2/L5 signal shielding performance.
Product Features
- Frequency: 1160-1280MHz coverage
- Advanced GaN technology, stable 20W (43dBm) output
- Integrated circulator for enhanced reliability
- SMA female RF connector
- Compact aluminum alloy housing
Custom frequency bands & power are available, feel free to contact us for your requirements.
Product Specifications
| Frequency Range | 1160-1280MHz |
| Operating Voltage | 24 V DC |
| Flatness | ±0.5 dB |
| Output Power | 20 W/43 dBm |
| Current Consumption | 2.5 A@24 V |
| Efficiency | 45%@43 dBm |
| LED State | Red |
| Operating Temperature | -30℃ ~ +85℃ |
| Storage Temperature | -40℃ ~ +150℃ |
| Operating Humidity | <95%RH |
| RF Connector | Output: SMA-Female |
| Power Socket | 20 cm red/black wire |
| Shell Material | Aluminum |

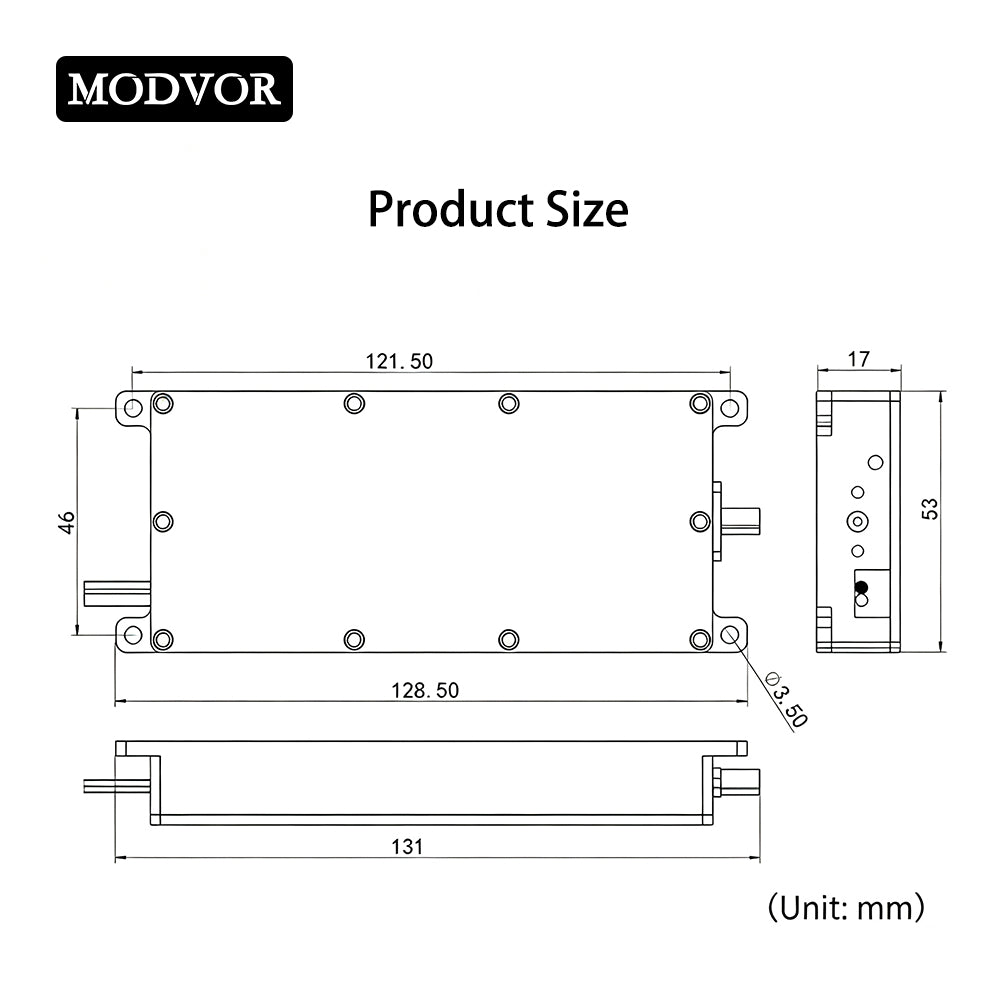

| Shell Size | 128.5*53*17 mm |
| Net Weight | 0.26 kg |
Package List
1 x GaN+Circulator Jammer Module
