Product Description
This 30W high-power GaN RF drone jammer module covers the 1160–1280MHz frequency band, designed for disrupting drone navigation signals and forcing target drones to land. Leveraging advanced GaN semiconductor technology, it delivers stable high power output, outstanding energy efficiency and lower heat generation, achieving reliable navigation signal interference under various working conditions.
Built-in professional circulator provides effective signal isolation, eliminates signal reflection and protects the module from damage to greatly improve operational stability. Equipped with a standard SMA-Female interface, this module supports flexible antenna matching and quick installation to meet long-range jamming requirements.
Compact, high-efficiency and long-reaching, this GaN drone jammer module is ideal for site security and anti-drone intrusion scenarios, offering stable and dependable performance to break drone navigation and trigger forced landing.
Product Features
- Frequency: 1160-1280MHz coverage
- Advanced GaN technology, stable 30W (45dBm) output
- Integrated circulator for enhanced reliability
- SMA female RF connector
- Compact aluminum alloy housing
Custom frequency bands & power are available, feel free to contact us for your requirements.
Product Specifications
| Frequency Range | 1160-1280MHz |
| Operating Voltage | 28 V DC |
| Flatness | ±0.5 dB |
| Output Power | 30 W/45 dBm |
| Current Consumption | 2.8 A@28 V |
| Efficiency | 45%@45 dBm |
| LED State | Red |
| Operating Temperature | -30℃ ~ +85℃ |
| Storage Temperature | -40℃ ~ +150℃ |
| Operating Humidity | <95%RH |
| RF Connector | Output: SMA-Female |
| Power Socket | 20 cm red/black wire |
| Shell Material | Aluminum |

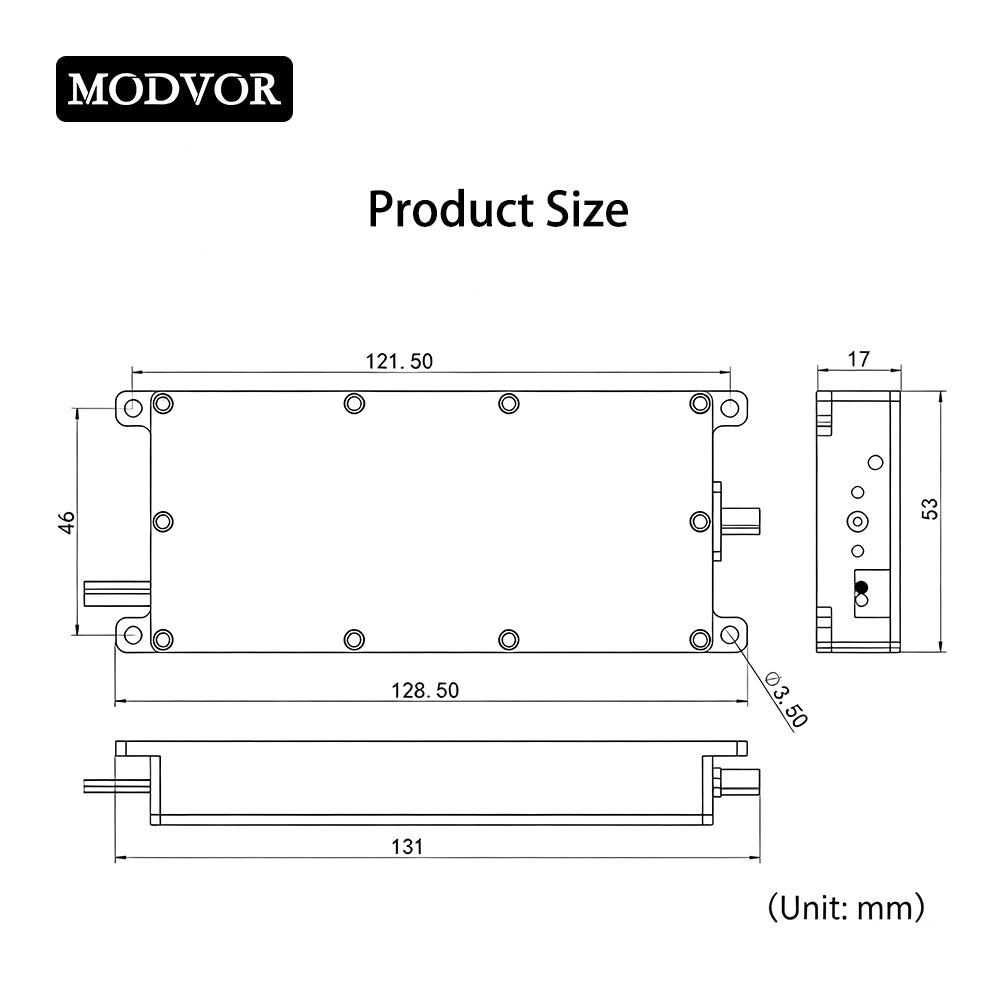

| Shell Size | 128.5*53*17 mm |
| Net Weight | 0.26 kg |
Package List
1 x GaN+Circulator Jammer Module
