Product Description
This high-power GaN drone radio frequency jammer module provides 30W/45dBm saturated output power, designed for commercial and military-grade anti-UAV and C-UAS countermeasure systems. Utilizing advanced GaN semiconductor technology, it features higher power efficiency, lower heat emission and more stable operation than traditional LDMOS modules, delivering consistent high-intensity RF jamming in complex electromagnetic environments.
Built with a high-performance circulator, the anti drone jammer module shields internal RF circuits from signal reflection and standing wave damage, enhancing stability and service life during long-term high-power operation. The standard N-female interface ensures great compatibility and simple installation, enabling easy integration with antennas, power supplies and custom drone jamming devices.
It effectively suppresses drone remote control, data transmission and positioning signals to disable unauthorized drones and force safe landing. Ideal for anti-drone security defense at airports, military bases, government facilities, industrial parks, power stations and other key sites against illegal UAV invasions.
With a compact and highly integrated structure, this anti uav module supports continuous CW operation with stable output power and strong anti-interference performance, fully meeting the long-duration and high-reliability demands of professional anti-drone jamming systems.
We are original manufacturer, flexible OEM & ODM customization is available for frequency, power, connector type and other hardware requirements.
Product Features
- Advanced GaN Technology: Adopts gallium nitride high-power chip, featuring high power density, low heat generation and high working efficiency, realizing stable 43dBm high-power continuous output.
- Built-in Circulator Protection: Optimizes RF signal transmission, suppresses signal reflection, protects internal circuits, and enhances system anti-interference ability and operational stability.
- Standard N-Female Interface: Industrial-grade interface design, low signal loss, strong compatibility, easy to install and match with various antennas and system equipment.
- Powerful Jamming Performance: 30W high-power output covers mainstream UAV frequency bands, achieving efficient and accurate signal suppression.
-
Wide Application & High Durability: Compact integrated structure, adaptable to multiple deployment methods, supporting long-term stable operation in harsh electromagnetic environments.
Product Specifications
| Frequency Range | Sub‑band: 100‑2700MHz, Bandwidth: 80‑200MHz |
| Operating Voltage | 28 V DC |
| Flatness | ±0.5 dB |
| Output Power | 30 W/45 dBm |
| Current Consumption | 2.8 A@28 V |
| Efficiency | 45%@45 dBm |

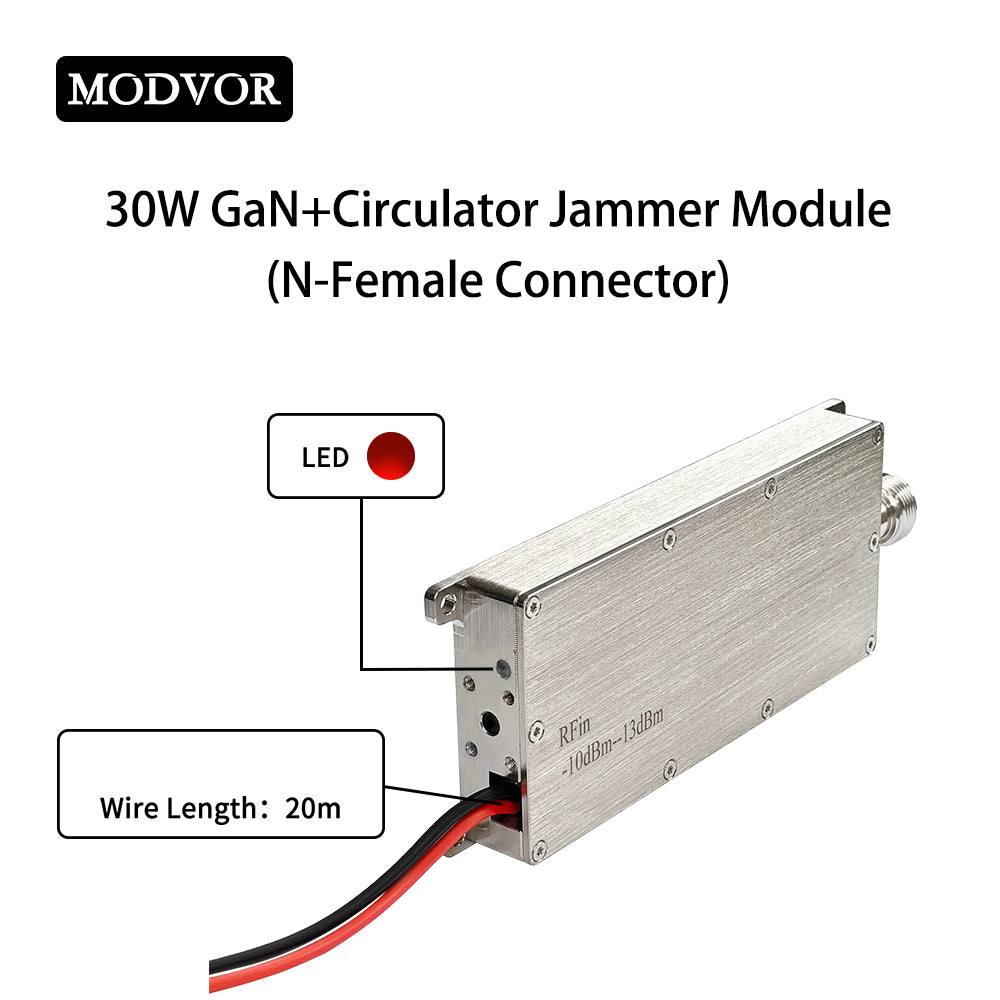

| LED State | Red |
| Operating Temperature | -30℃ ~ +85℃ |
| Storage Temperature | -40℃ ~ +150℃ |
| Operating Humidity | <95%RH |

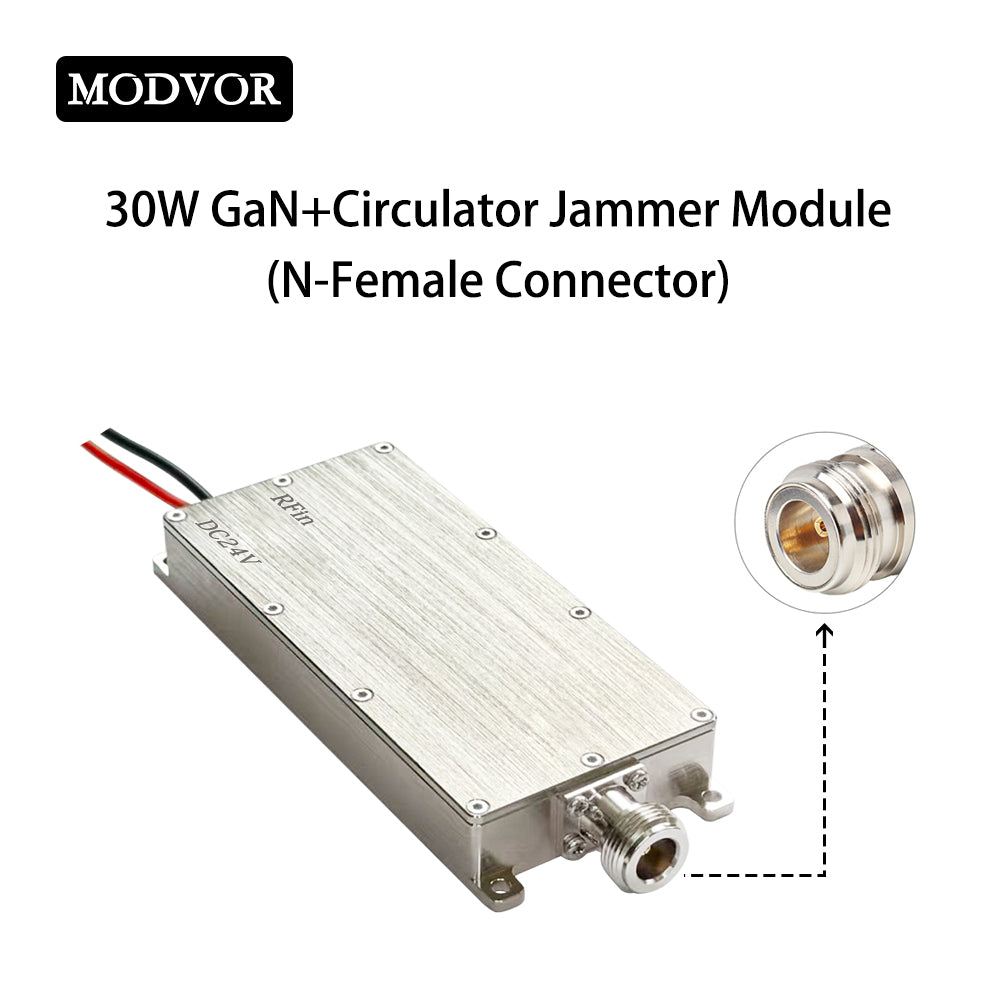

| RF Connector | Output: N-Female |
| Power Socket | 20 cm red/black wire |
| Shell Material | Aluminum |

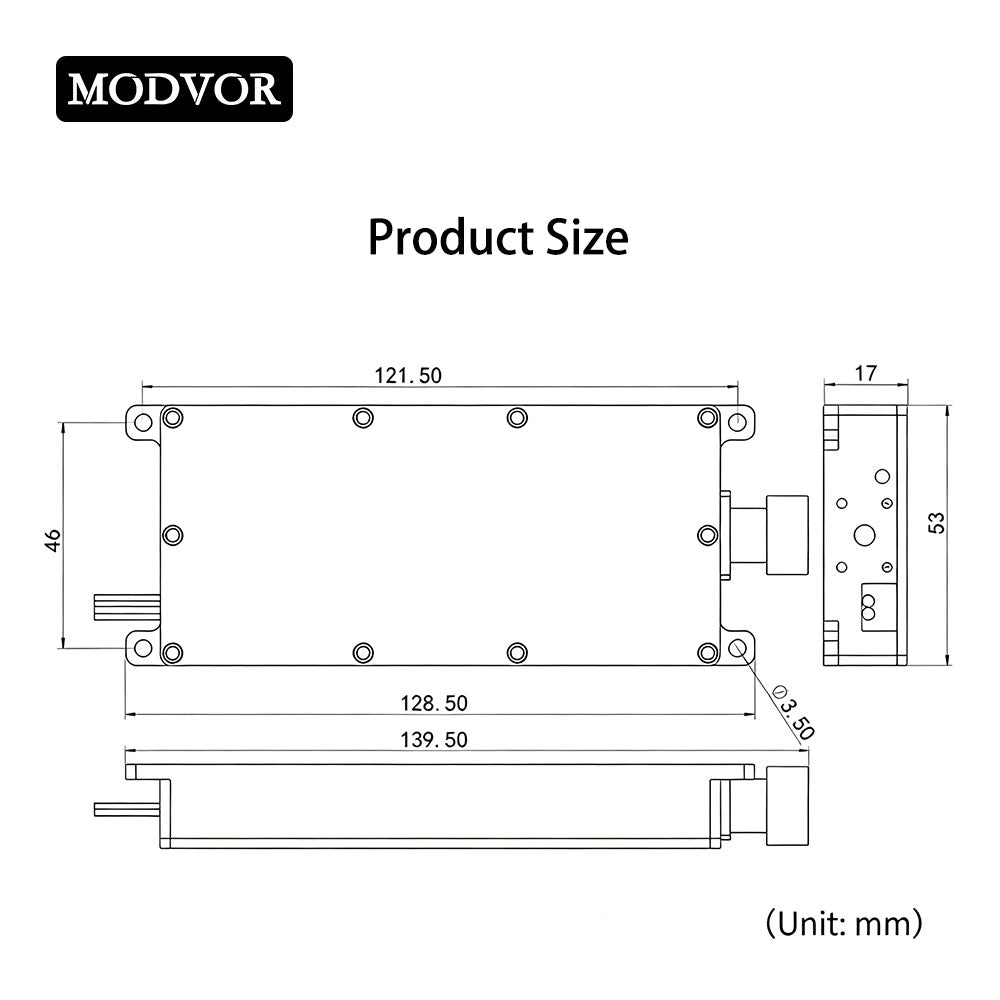

| Shell Size | 128.5*53*17 mm |
| Net Weight | 0.26 kg |
Package List

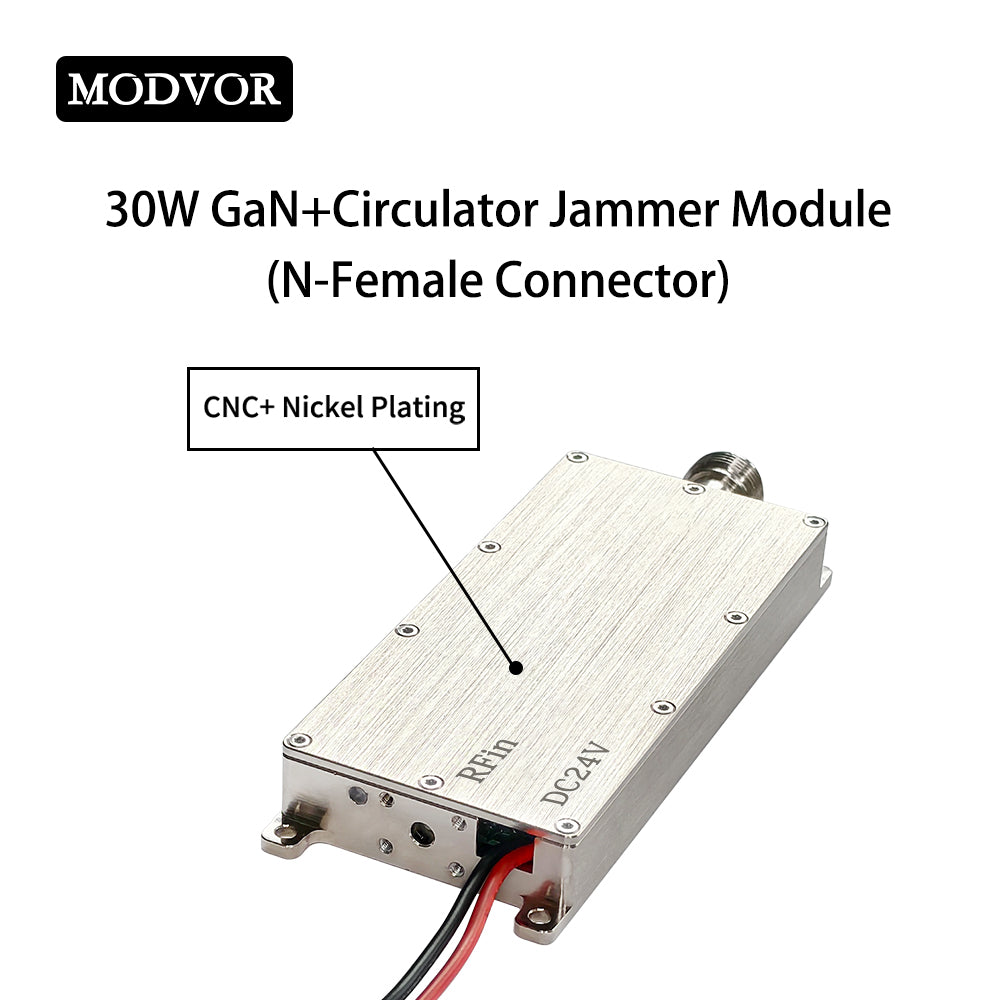

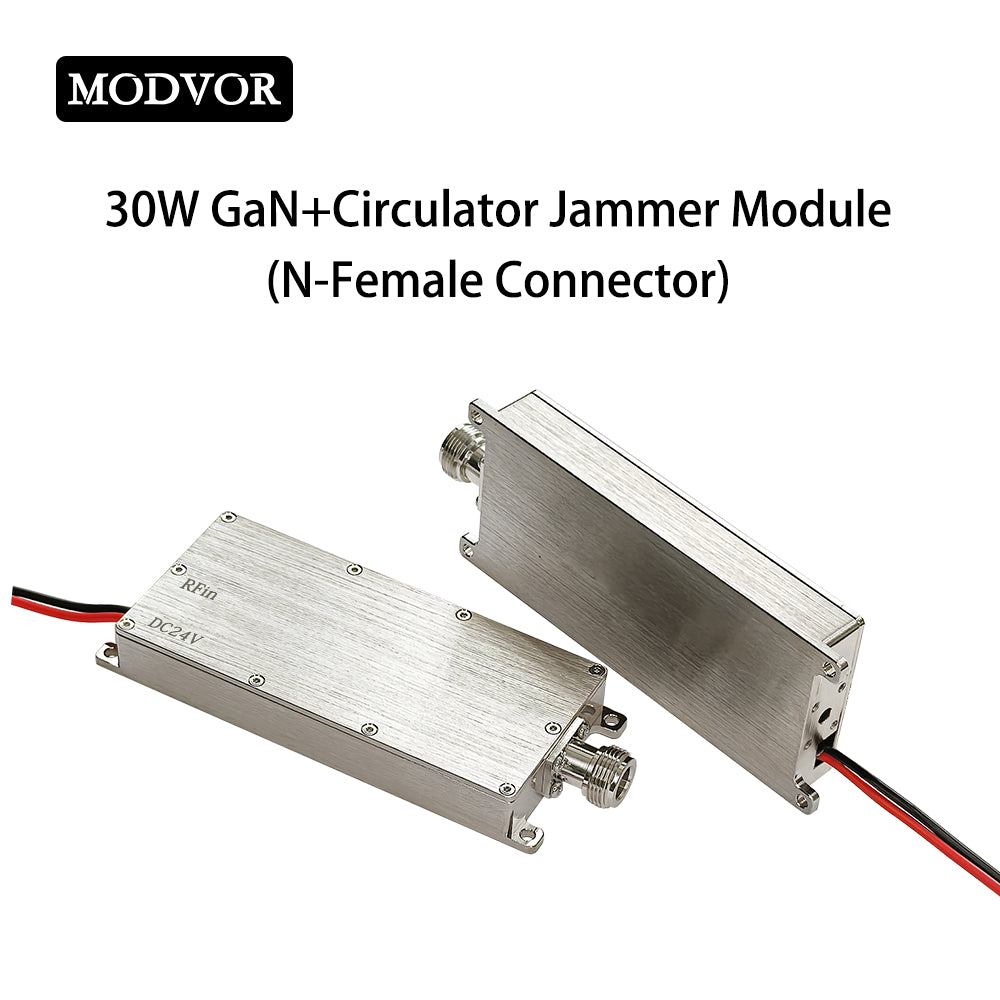

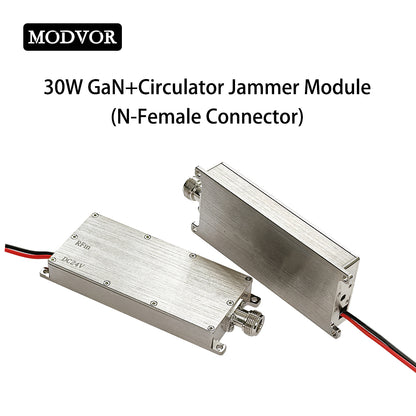

1 x 30W N-type GaN+Circulator Jammer Module
