Product Descriptions

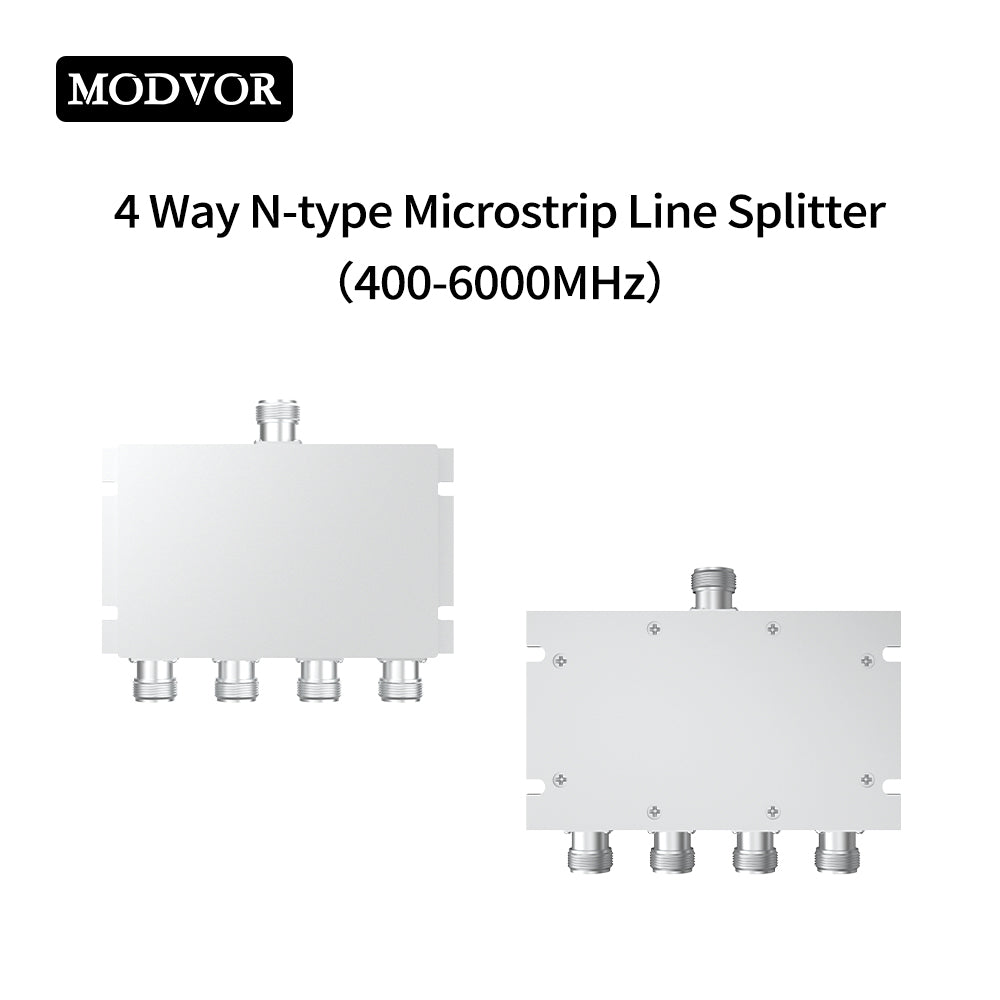

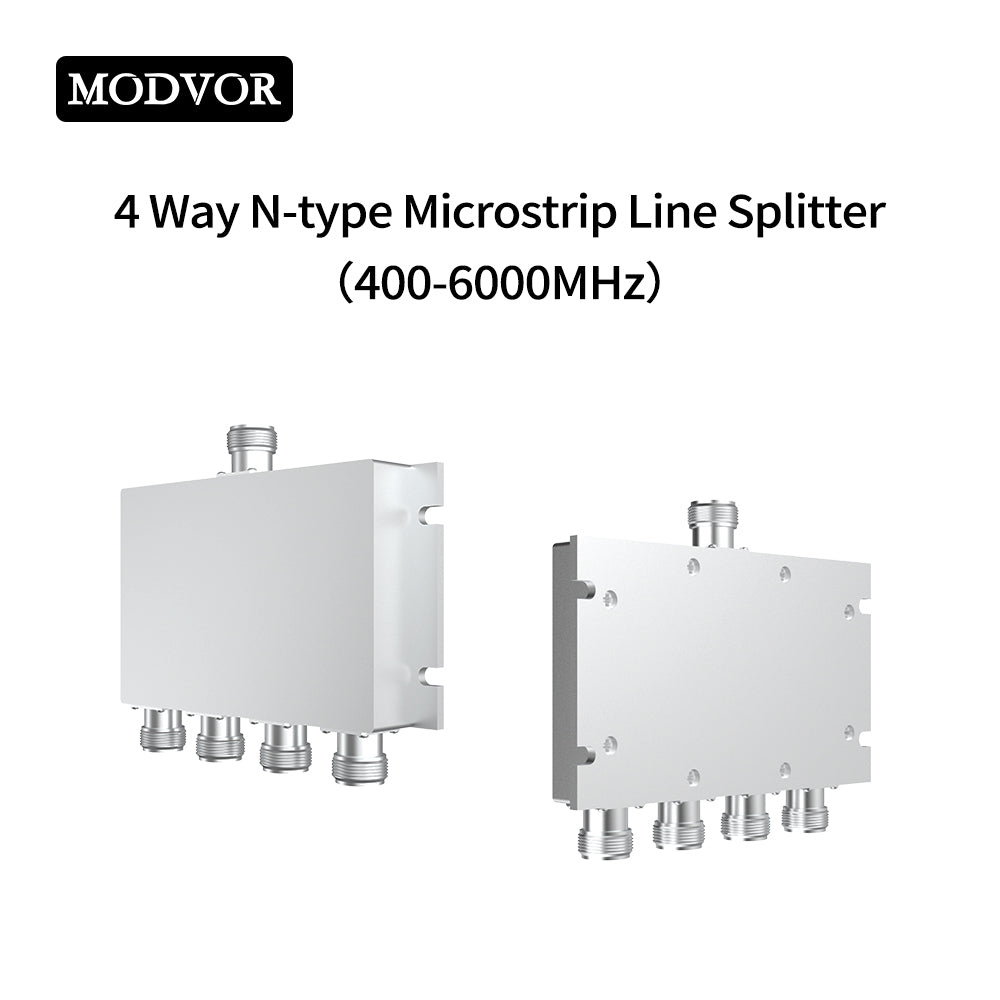

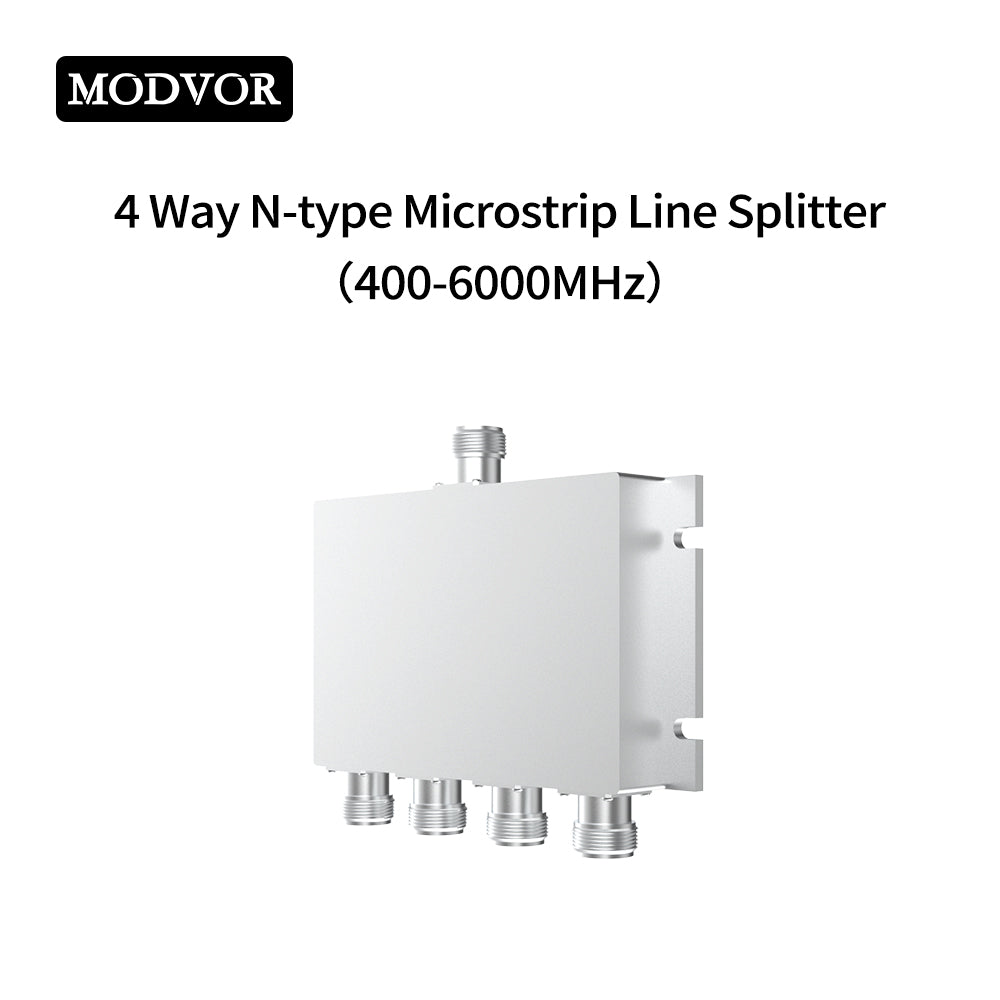

Our 4-Way Microstrip Line Coaxial Splitter covers 400MHz to 6000MHz broadband frequency range, fitted with N-female connectors and 50Ω characteristic impedance. Built on microstrip Wilkinson topology, this power divider achieves low insertion loss, high isolation between output ports, good VSWR and consistent amplitude balance. It can equally split one input RF signal into four output paths with little signal degradation and suppress mutual interference between ports. The compact microstrip structure delivers stable electrical performance across the full operating band, while robust metal housing provides effective electromagnetic shielding and mechanical durability. It ensures dependable performance for indoor wireless coverage, distributed antenna systems, antenna feeding networks and RF laboratory signal distribution.
Product Applications
- Radio communication systems & base station antenna distribution
- Microwave test and RF laboratory measurement
- 5G, LTE, WLAN, GSM, CDMA broadband wireless networks
- Wireless signal distribution and antenna feeding networks
- RF signal monitoring & testing equipment
Product Features
- Wide frequency range: 400–6000 MHz
- 4-way signal splitting with low insertion loss ≤0.5 dB
- Microstrip design with cavity construction for stable performance

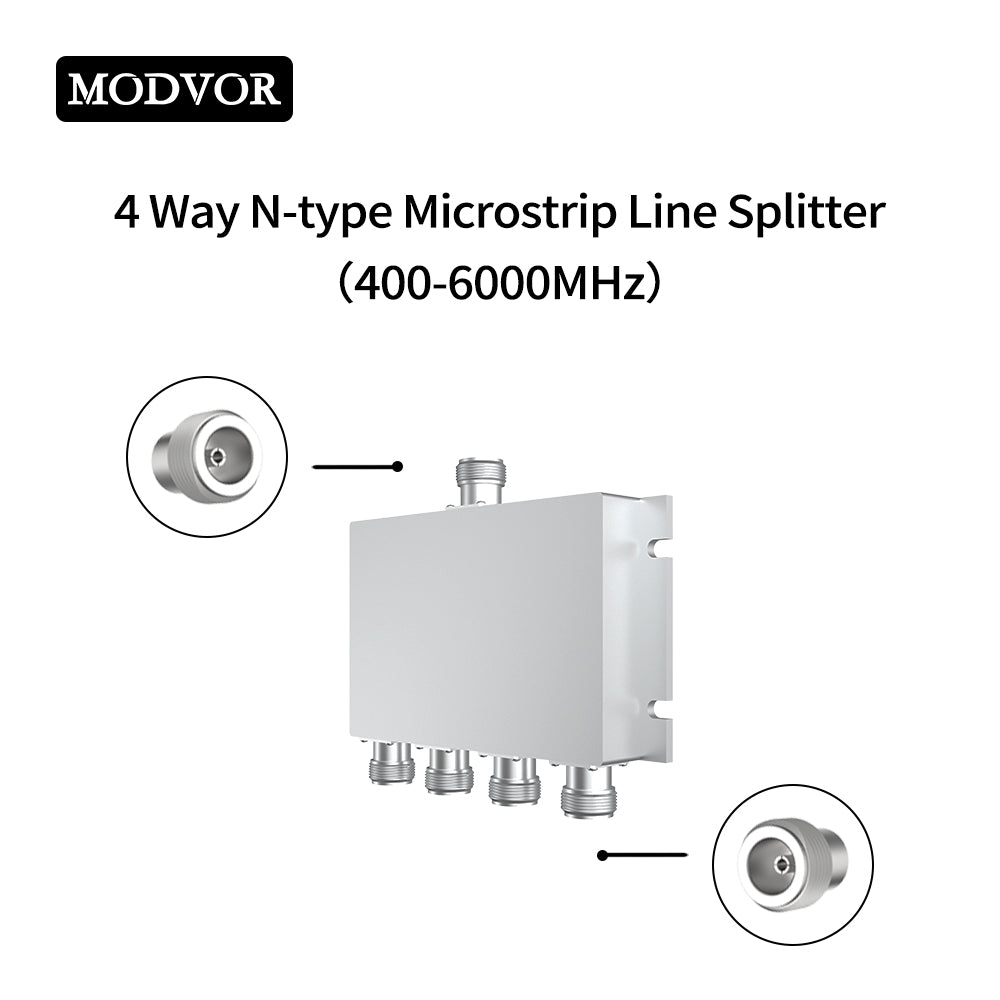

- N-Female connectors for secure, low-loss connections
- Excellent shielding and interference resistance
- Ideal for radio communication and microwave test application
Product Specifications
| Frequency range | 400-6000MHz |
| Output ports | 4-ways |
| Insertion Loss | ≤0.5dB |
| Ripple | ≤0.2dB |
| Return Loss | ≤1.5 : 1 |
| Isolation | ≥20dB |
| Amplitude Balance | 0.2dB |
| Phase Balance | 3° |
| Impedance | 50Ω |
| Power Handing | 50W |
| Operating Temperature | -40℃～75℃ |
| RF Connector | N-Female |
| Surface Finish | White Paint |

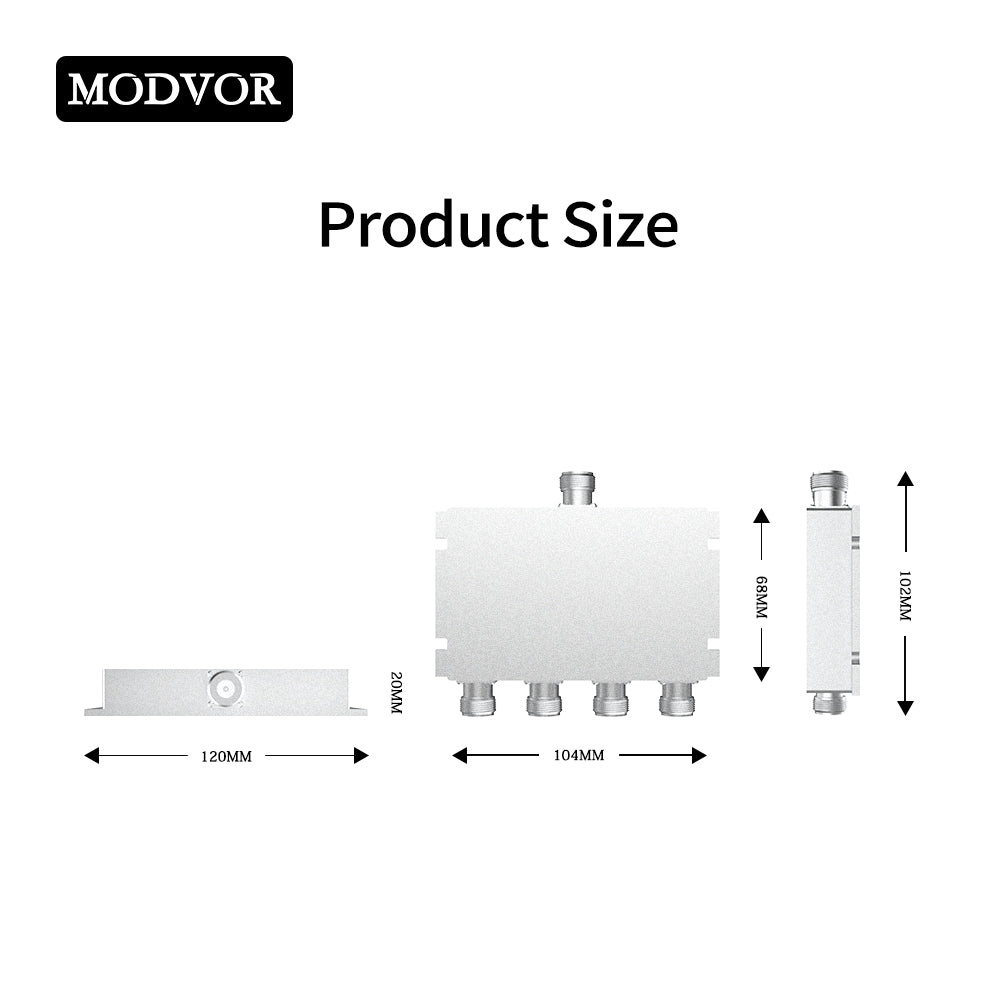

| Size | 120*68*20mm |
| Weight | 0.55kg |
Package List
1 X 4 Way Power Splitter
