Product Description

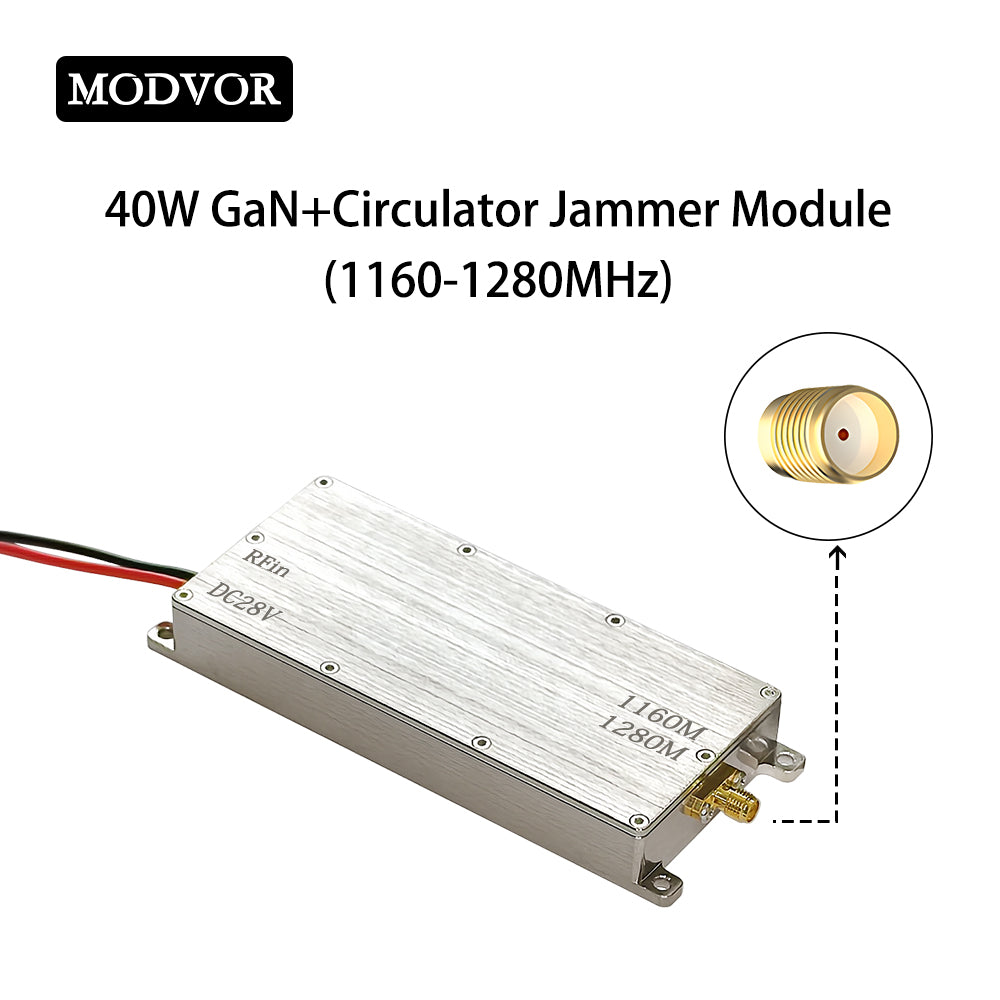

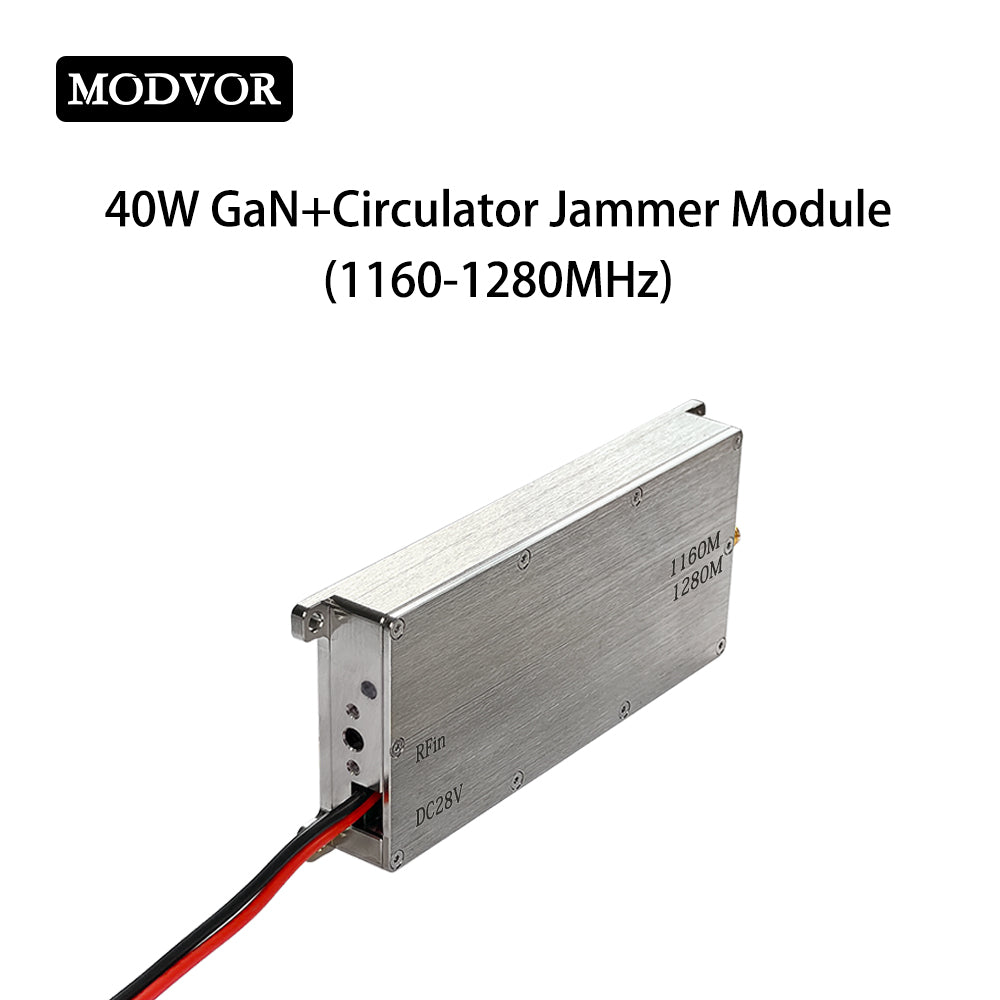

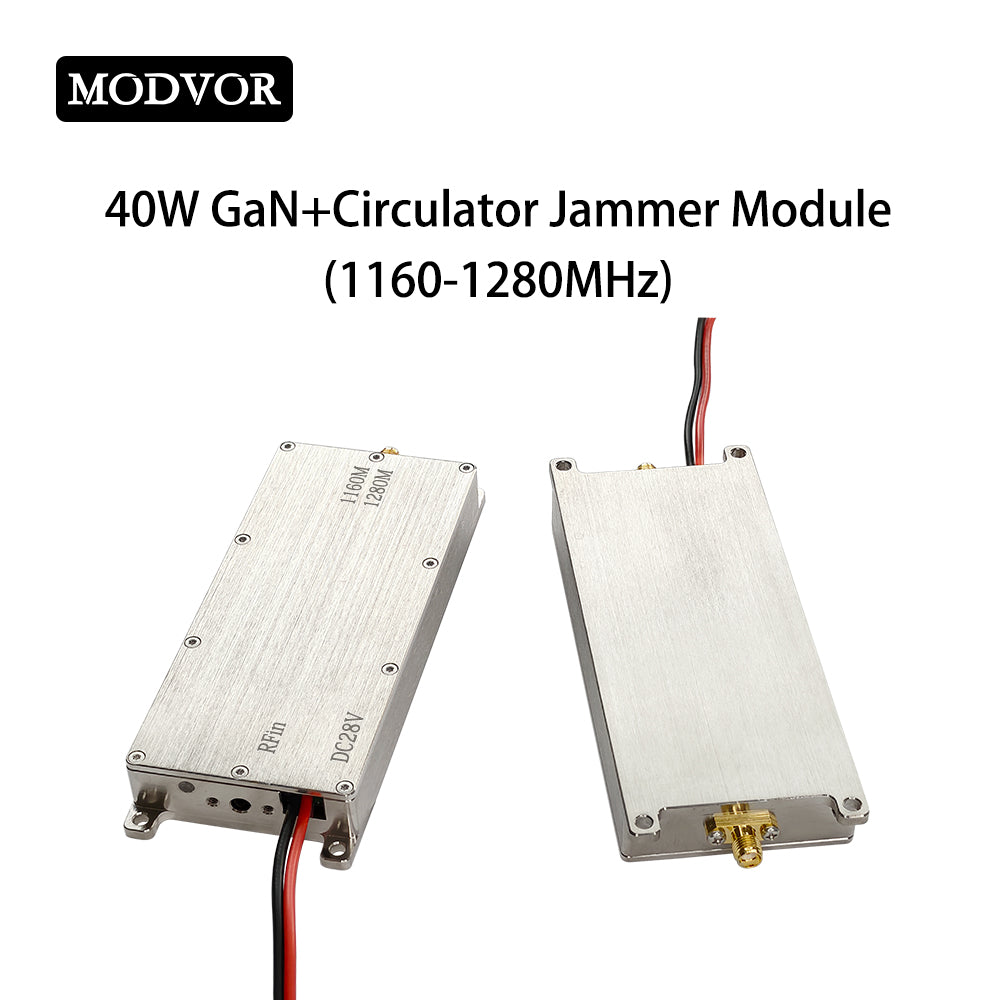

This 40W high-power GaN RF drone GPS jamming module covers the 1160–1280MHz frequency band, specially developed for jamming GPS L5 satellite navigation signals. Adopting advanced GaN semiconductor technology, it delivers stable high power output, higher energy efficiency and low heat emission, achieving reliable suppression of GPS L5 navigation signals under various operating conditions.

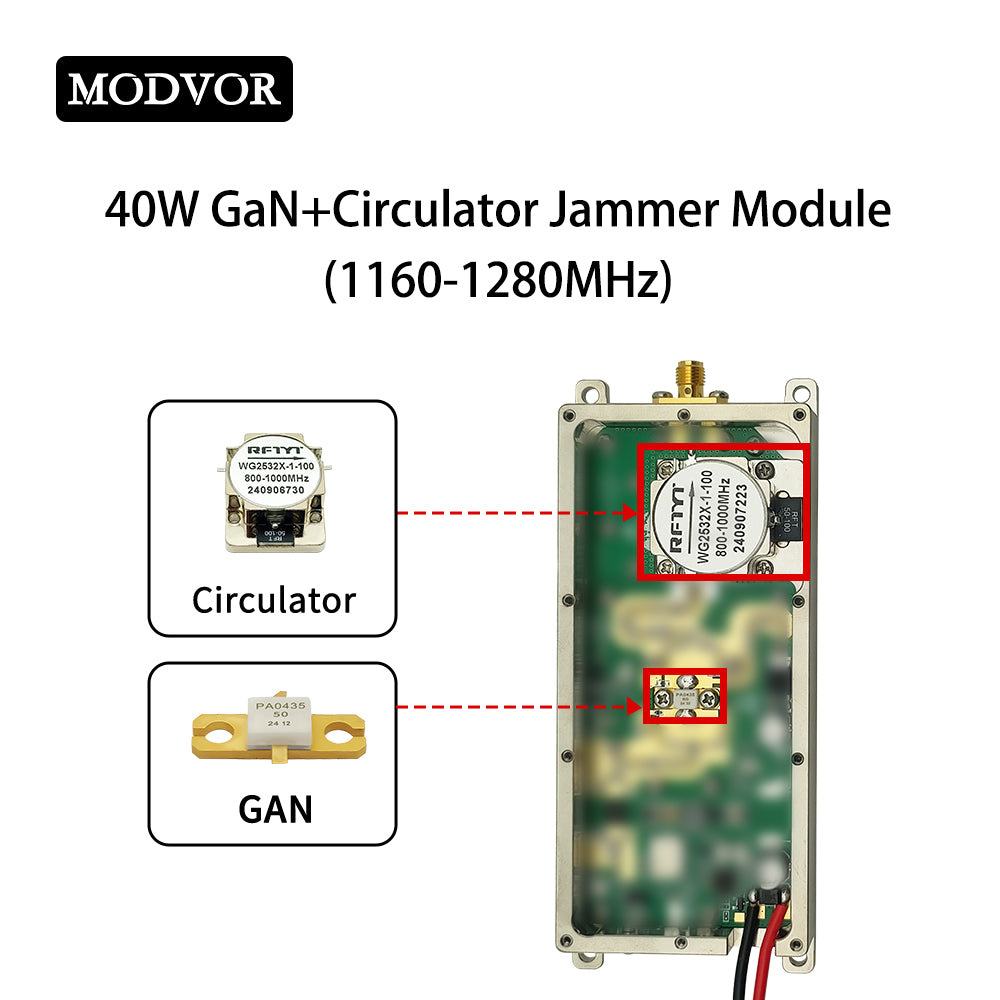

Built-in professional circulator realizes effective signal isolation, prevents signal reflection and module damage, and greatly boosts operational stability. Equipped with a standard SMA-Female interface, this module supports flexible antenna matching and simple installation to fulfill long-range jamming demands.
Compact, efficient and long-range capable, this GaN GPS jamming module is suitable for site security and anti-drone intrusion scenarios, providing stable and dependable shielding performance against GPS L5 satellite navigation signals.
Product Features
- Frequency: 1160-1280MHz coverage
- Advanced GaN technology, stable 40W (46dBm) output
- Integrated circulator for enhanced reliability
- SMA female RF connector
- Compact aluminum alloy housing
Custom frequency bands & power are available, feel free to contact us for your requirements.
Product Specifications
| Frequency Range | 1160-1280MHz |
| Operating Voltage | 28 V DC |
| Flatness | ±0.5 dB |
| Output Power | 40 W/46 dBm |
| Current Consumption | 3.2 A@28 V |
| Efficiency | 45%@46 dBm |

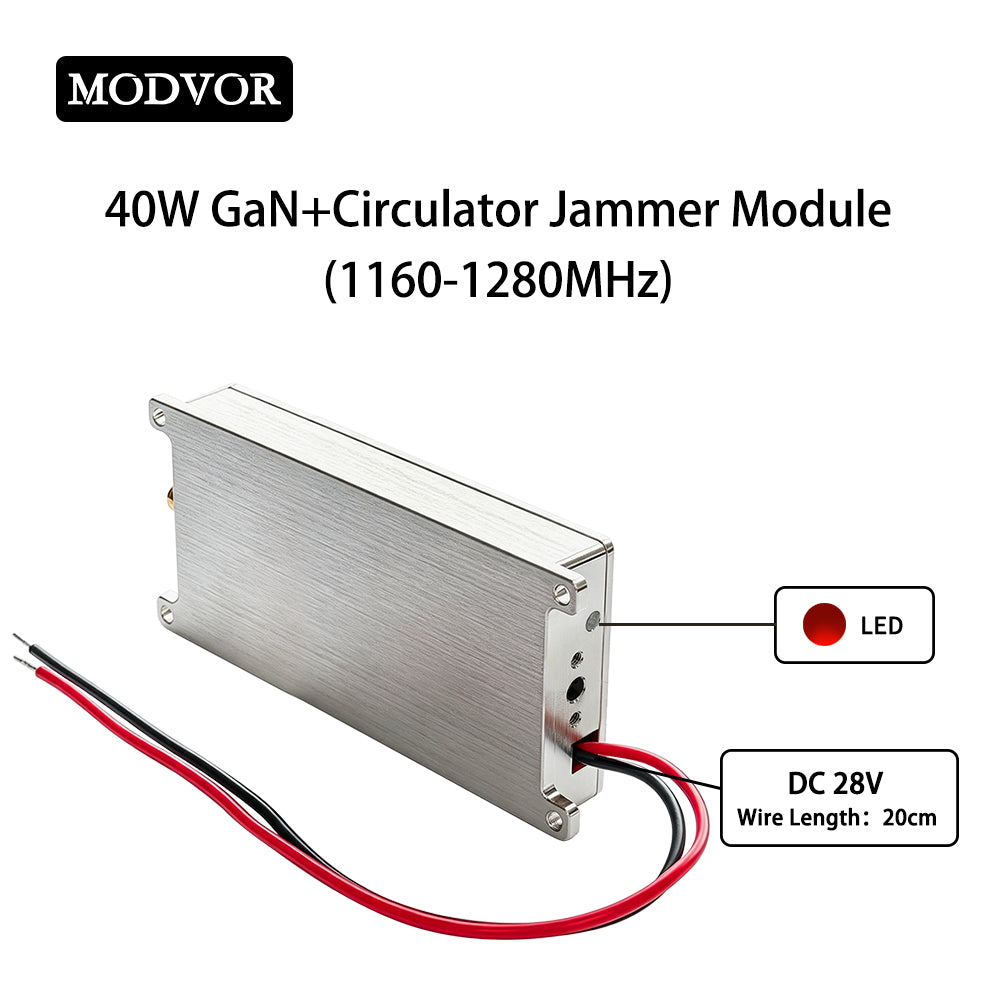

| LED State | Red |
| Operating Temperature | -30℃ ~ +85℃ |
| Storage Temperature | -40℃ ~ +150℃ |
| Operating Humidity | <95%RH |
| RF Connector | Output: SMA-Female |
| Power Socket | 20 cm red/black wire |
| Shell Material | Aluminum |

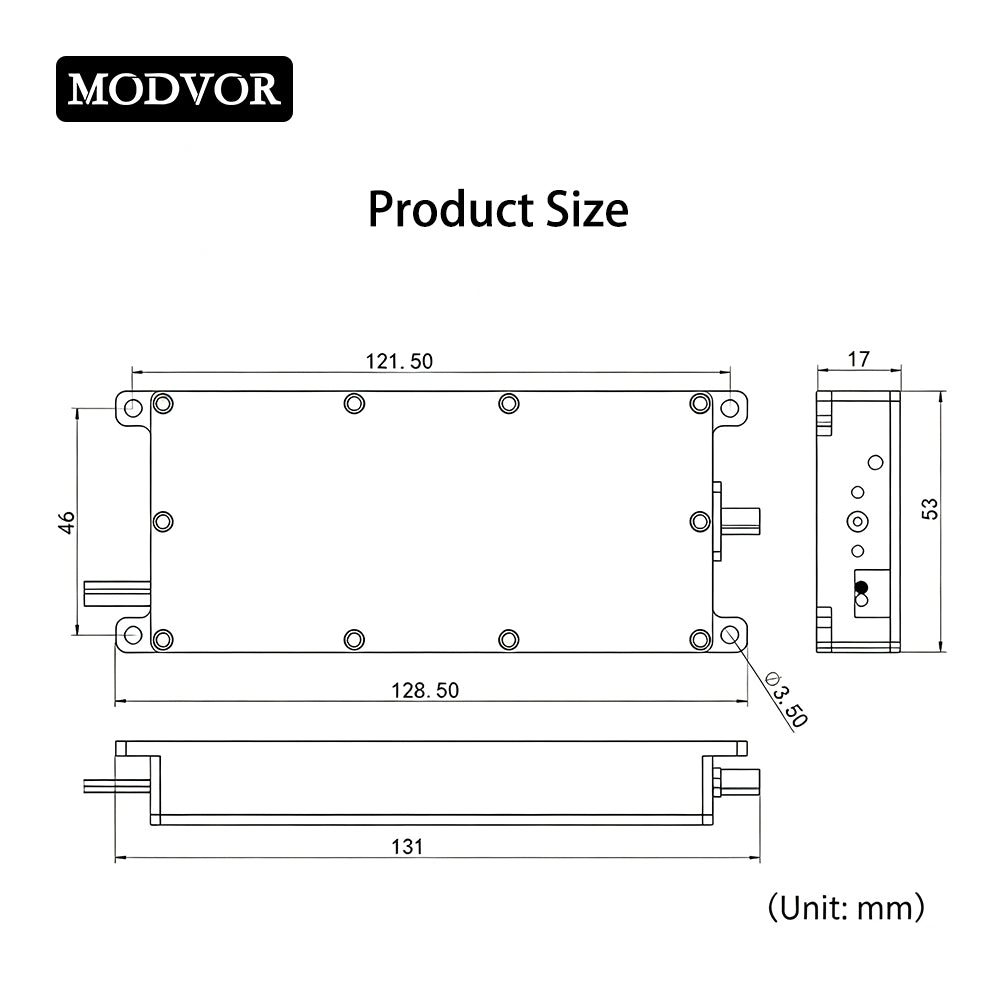

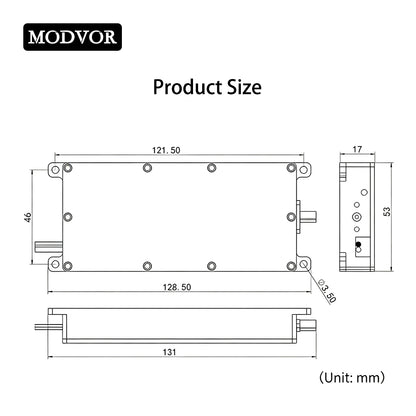

| Shell Size | 128.5*53*17 mm |
| Net Weight | 0.26 kg |
Package List
1 x GaN+Circulator Jammer Module
