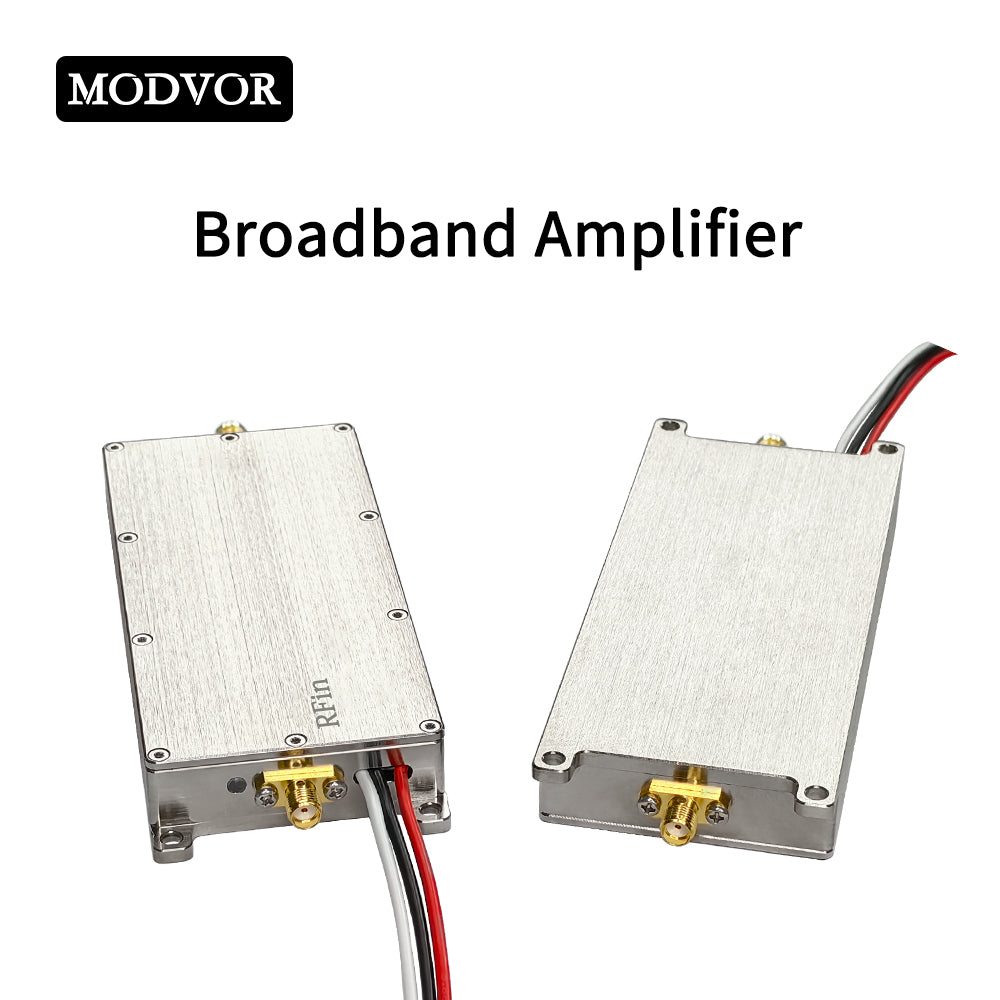

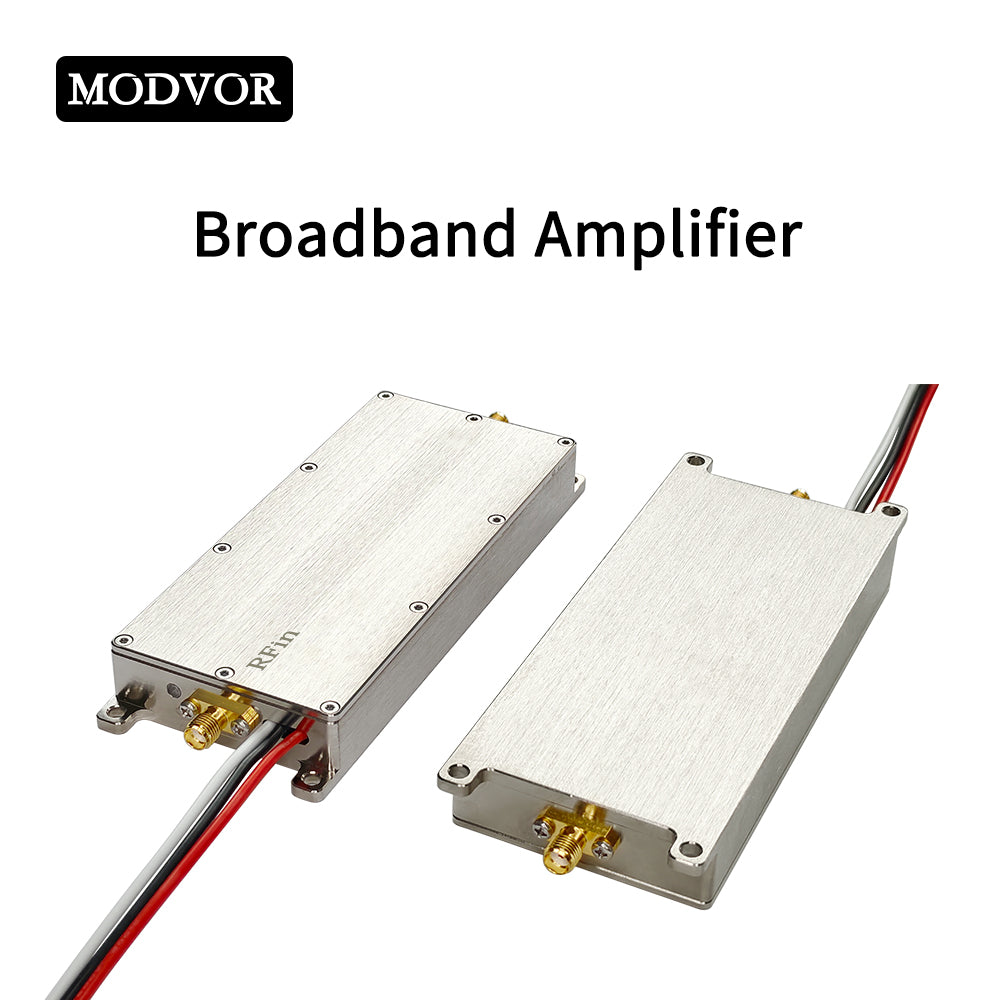

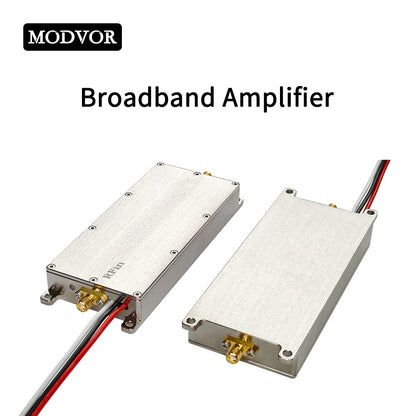

Product Description

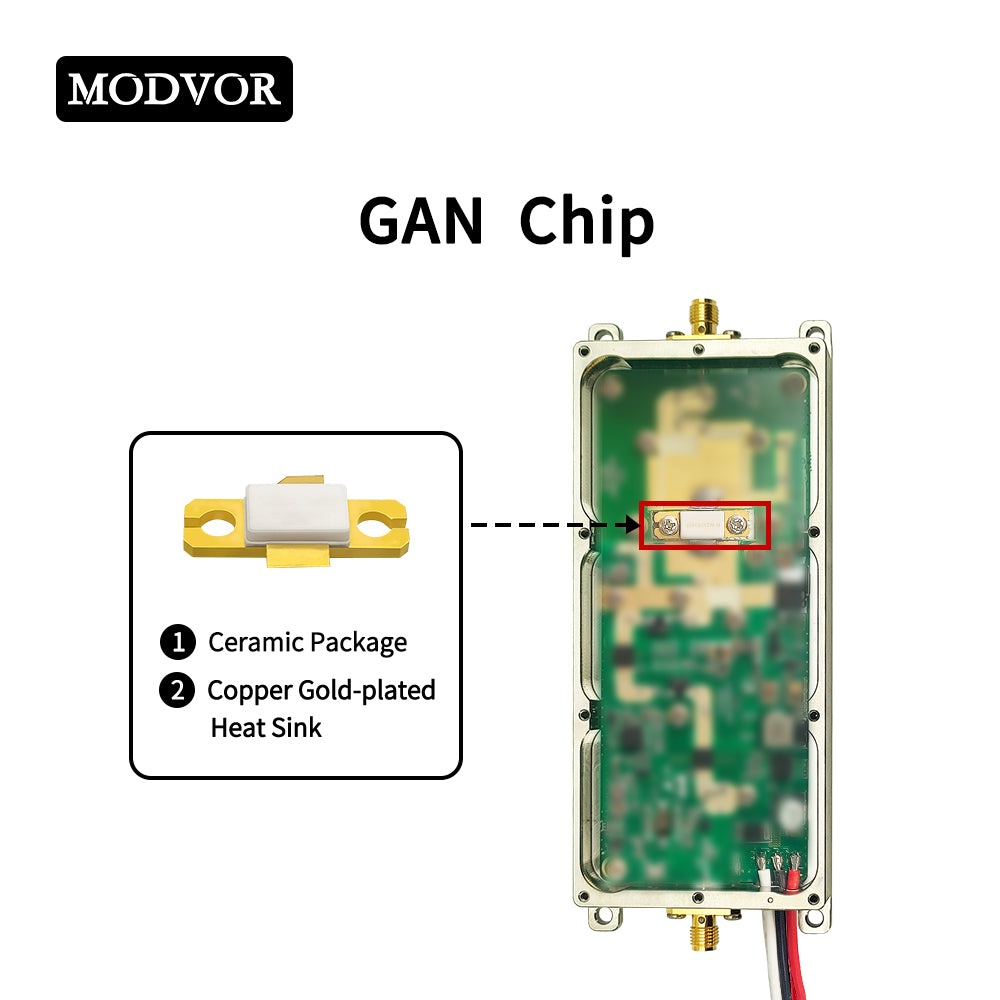

For professionals who demand high-power performance across multiple frequency bands—from 5G infrastructure and satellite communications to radar systems, military networks, and Wi-Fi 6/6E infrastructure—this 40W GaN Broadband Power Amplifier Series delivers 46dBm (40W) of clean output power with 40dB gain across a suite of wideband options covering 100MHz all the way to 7200MHz. Leveraging advanced GaN (Gallium Nitride) technology for superior efficiency, linearity, and thermal performance, these amplifiers operate on a 28V DC supply with just 3.2A current draw at full output. Housed in rugged aluminum enclosures with SMA-K connectors and built-in power control, they're engineered for professionals who need wideband flexibility and substantial power headroom for the most demanding applications—eliminating the need for multiple narrowband amplifiers across different frequency segments.
Typical Applications
- 5G Infrastructure & Private LTE: High-power boosting for cellular networks and enterprise wireless
- Satellite Communications (SATCOM): Wideband uplink amplification for ground stations
- Military & Tactical Communications: Wideband amplification for field-deployed equipment
- Radar & Sensing Systems: Broadband RF front-end for detection and measurement applications
- Wi-Fi 6/6E Infrastructure: Amplify access point signals for enhanced enterprise and public network coverage
- FPV & UAV Video Downlinks: High-power video transmission for long-range drone operations
Technical Specifications
|
Parameter |
Value |
|
Frequency Range |
Customizable (100 – 7200MHz) |
|
Output Power |
46 dBm (40W) |
|
Gain (S21) |
40 dB ± 1 dB |
|
Input Return Loss (S11) |
≤ -15 dB |
|
RF Input Power Range |
-13 ~ 10 dBm |
|
Operating Voltage |
28 V DC |
|
Current Consumption |
3.2 A @ 28V (at 46dBm output) |
|
Efficiency |
45% @ 46dBm |
|
Operating Temperature |
-30°C ~ +85°C |
|
Storage Temperature |
-40°C ~ +150°C |
|
Operating Humidity |
< 95% RH |
|

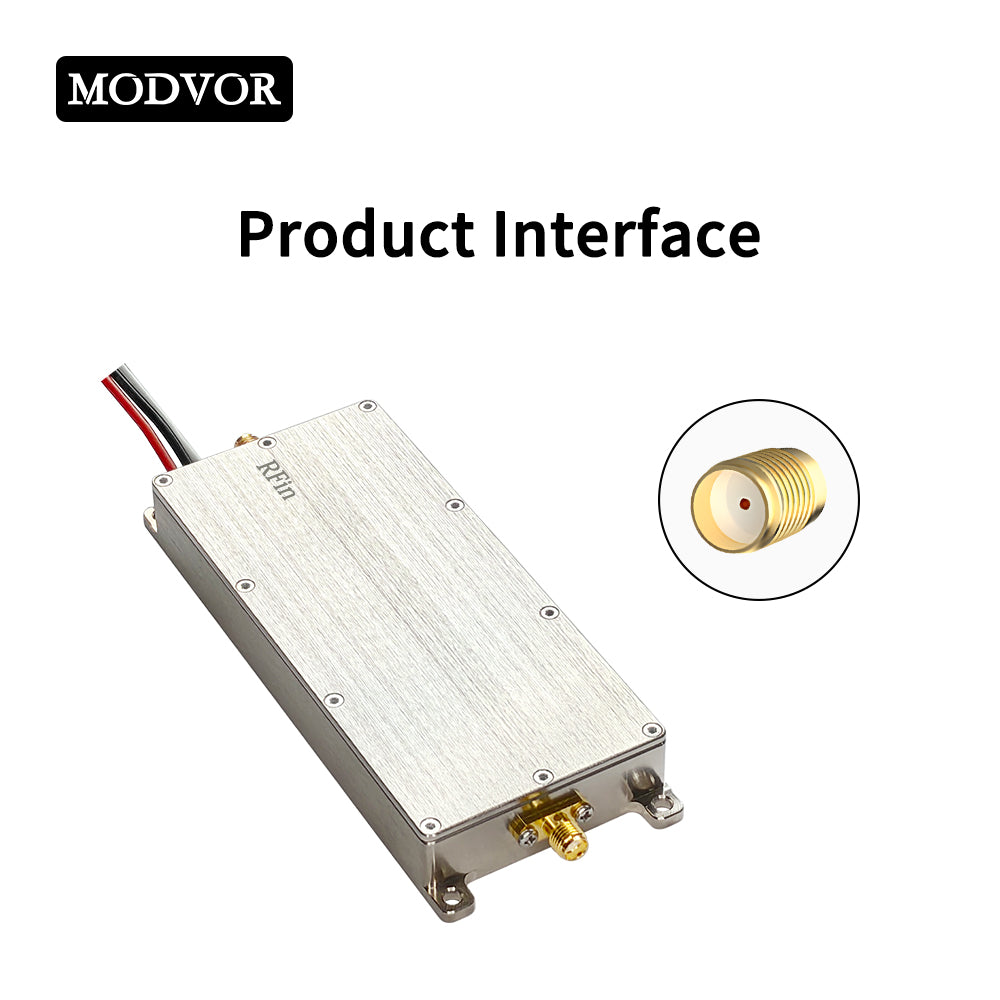

RF Connectors |
Input: SMA-K; Output: SMA-K |
|

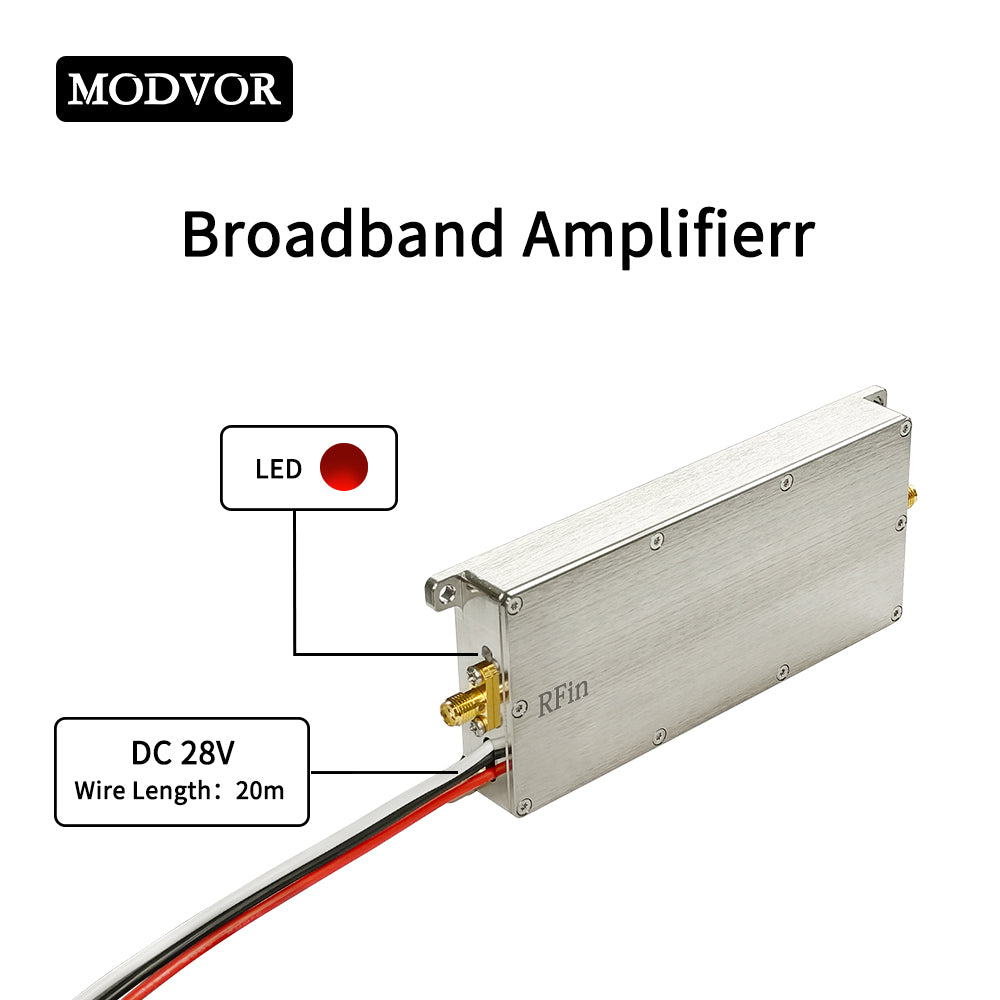

DC Connector |

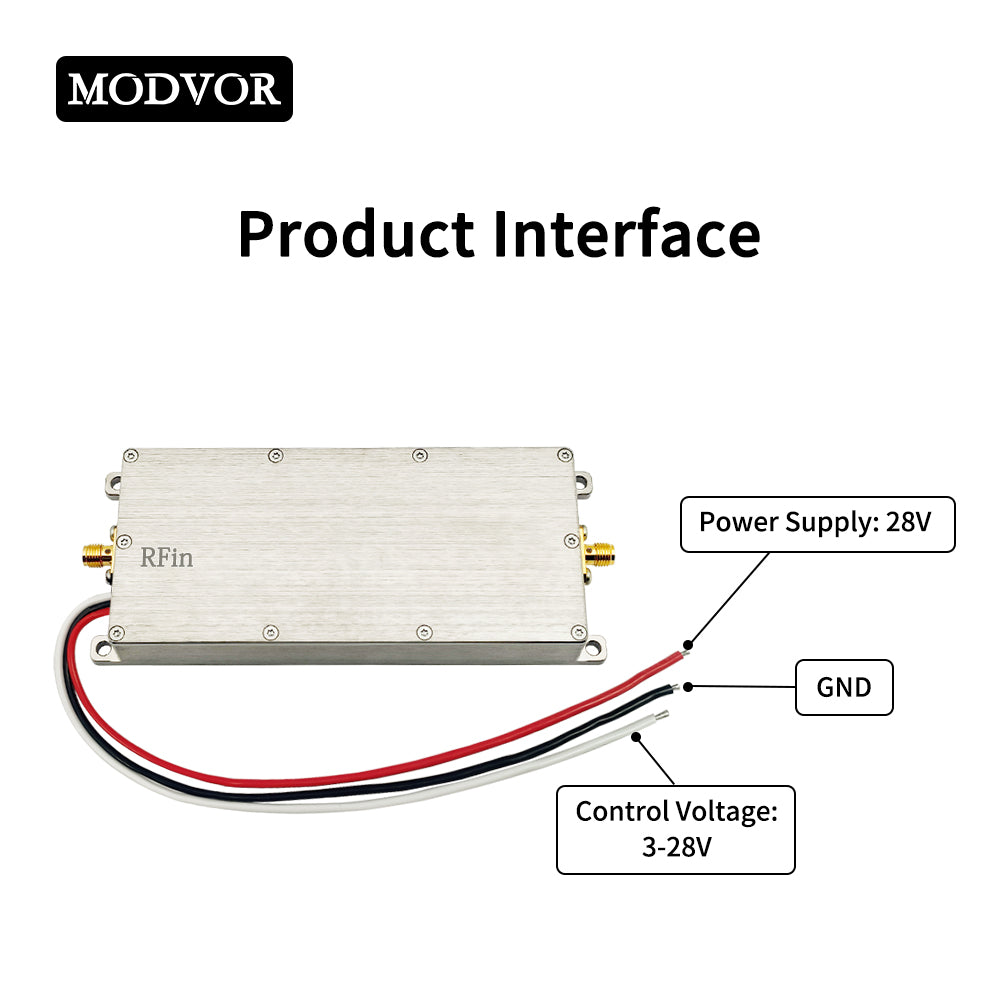

AWG18 20cm Red/Black wire leads |
|
Power Control |
3-28V 20cm Red wire (output adjustment) |
|

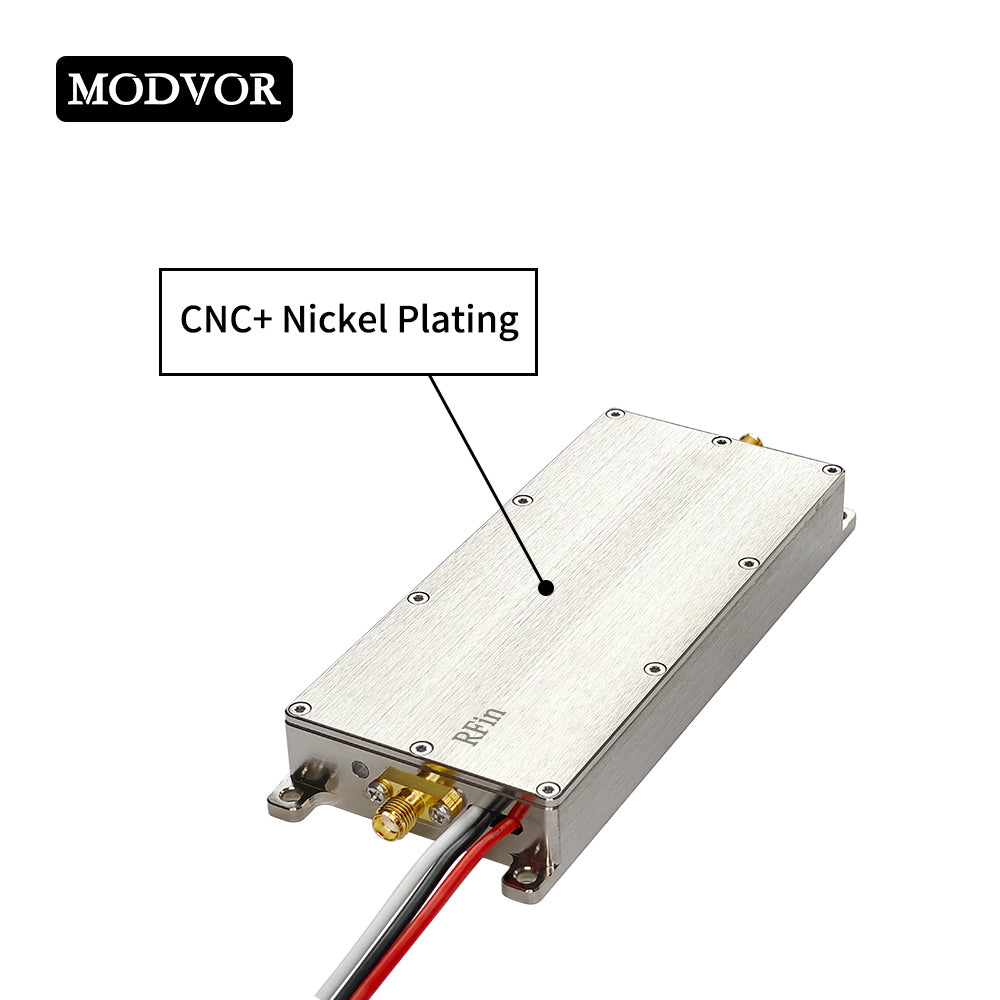

Shell Material |
Aluminum |
|
Dimensions |

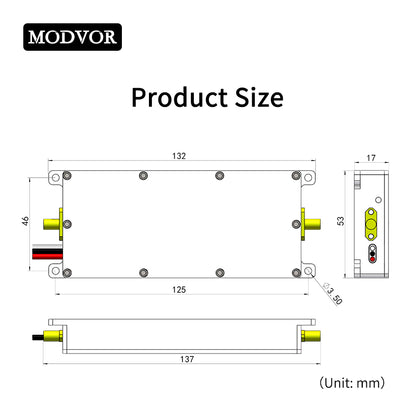

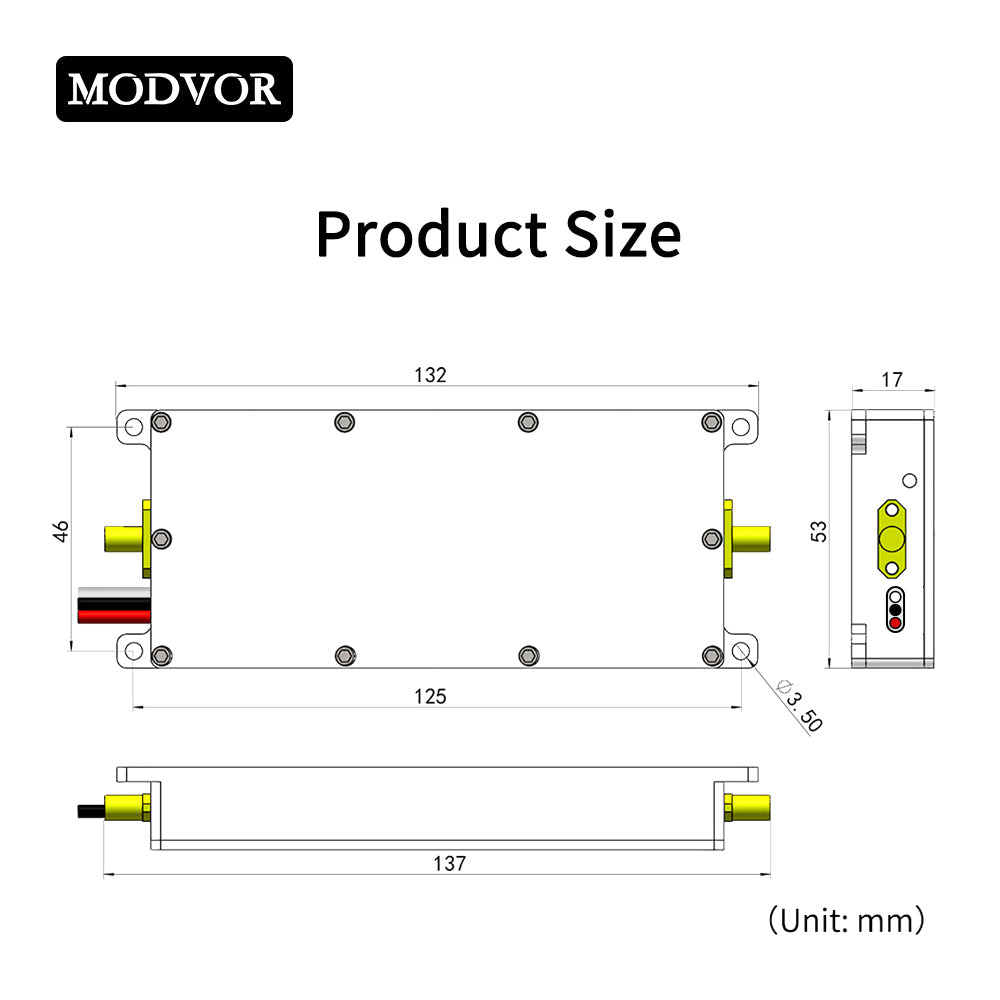

132 × 53 × 17 mm |
|
Net Weight |
210 g |
Key Advantages
With 40W (46dBm) of clean GaN-powered output across seven bands from 100MHz to 7200MHz, this series delivers 6-10× the effective range of standard 1W transmitters—providing substantial power headroom for the most demanding applications including 5G infrastructure, satellite uplinks, radar systems, and military communications. The 40dB gain ensures consistent, predictable linearity even from low-power exciters, while the 210g design and efficient 3.2A current draw offer an exceptional power-to-weight ratio for both fixed installations and mobile field deployment.
Built-in remote power control via the 3-28V red wire allows dynamic output adjustment—perfect for real-time power management in telecom networks, satellite terminals, radar systems, or drone operations. The 28V operating voltage ensures compatibility with 6S LiPo batteries, vehicle electrical systems, and regulated power supplies, while SMA-K connectors enable plug-and-play integration with existing RF chains.
Seven precise frequency options mean you can select the exact band for your application—from VHF/UHF communications and amateur radio to 5G infrastructure, satellite uplinks, C-band radar, and emerging 6GHz Wi-Fi 6E/7 systems. Whether deployed in base stations, ground stations, UAV platforms, or field test kits, this series delivers the wideband flexibility and high power that mission-critical professional applications demand.
What's in the Box
- 1 × 40W GaN Broadband Power Amplifier
