Product Description

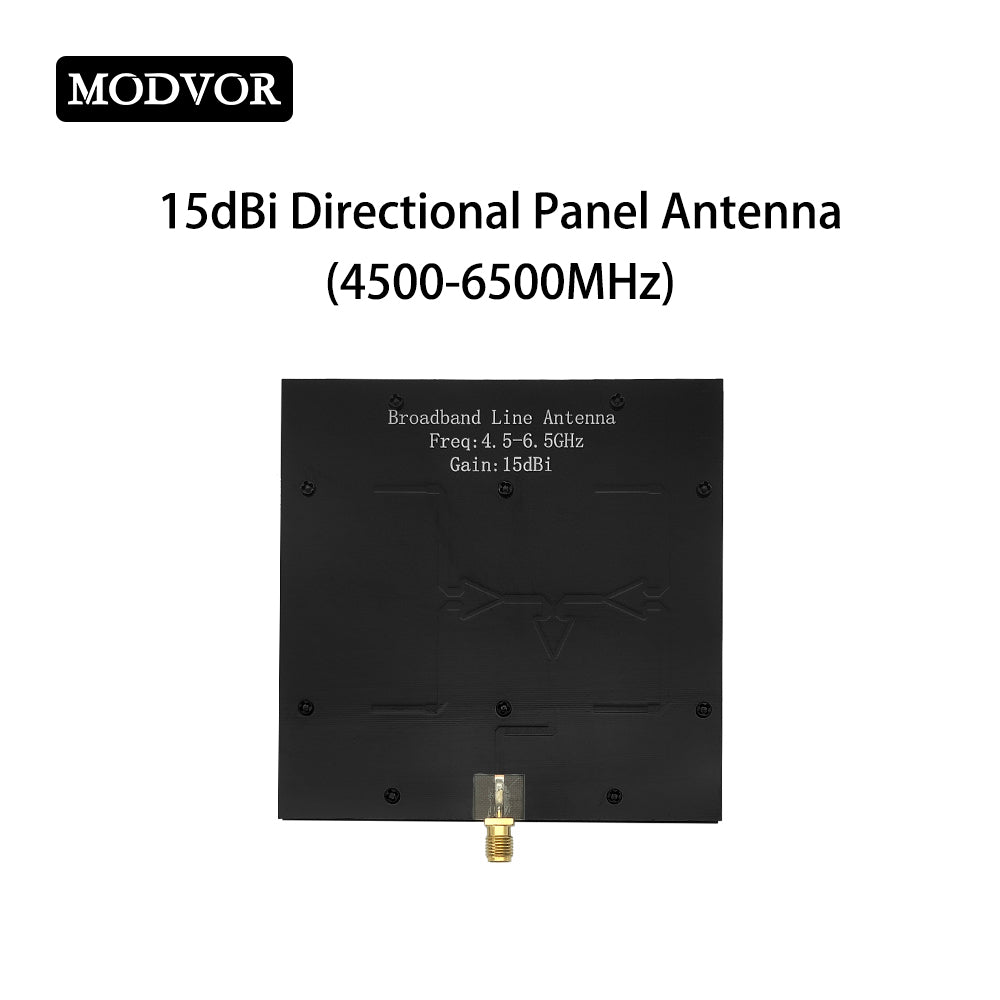

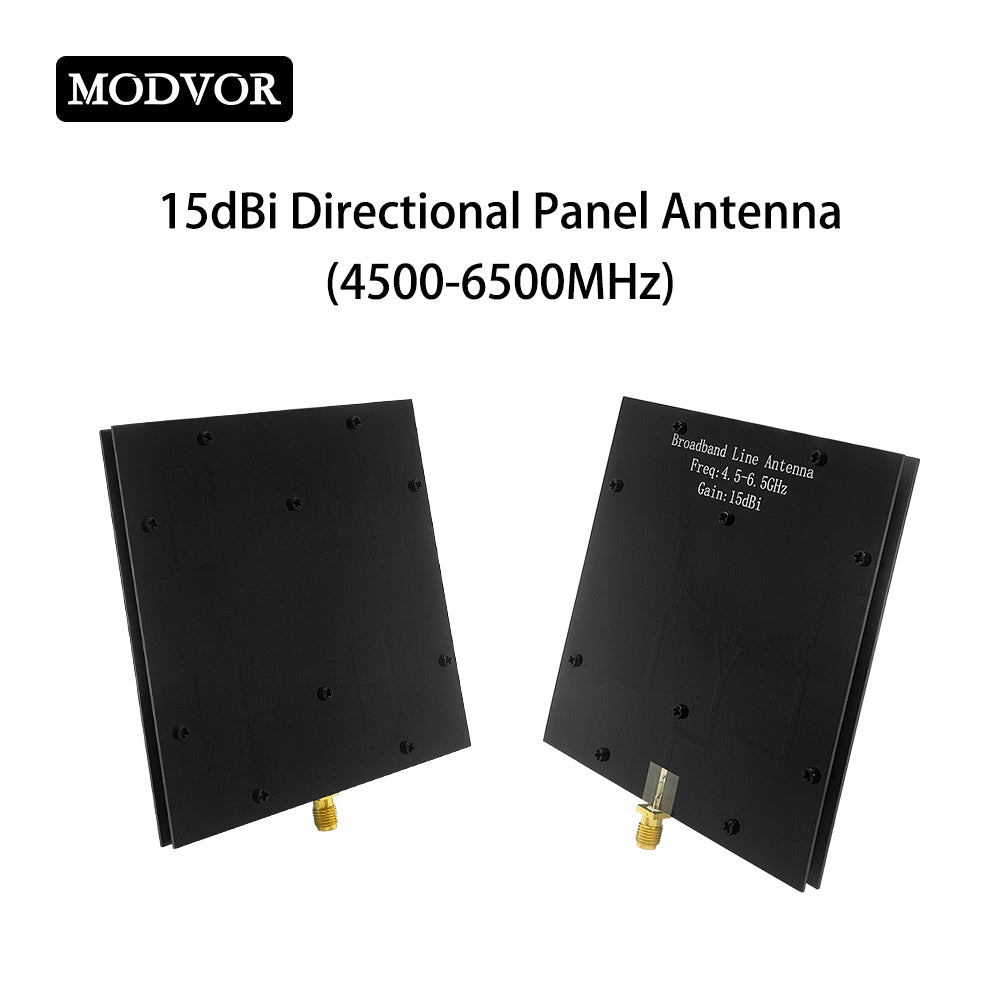

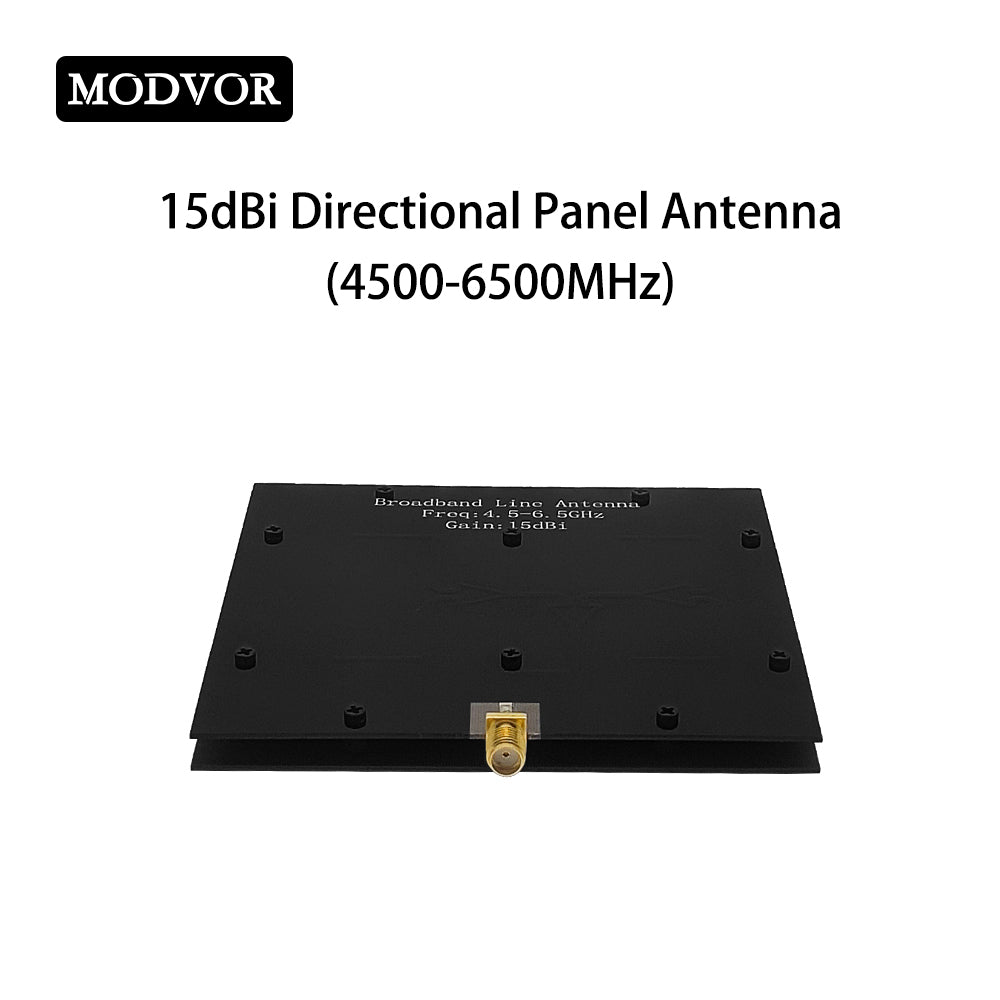

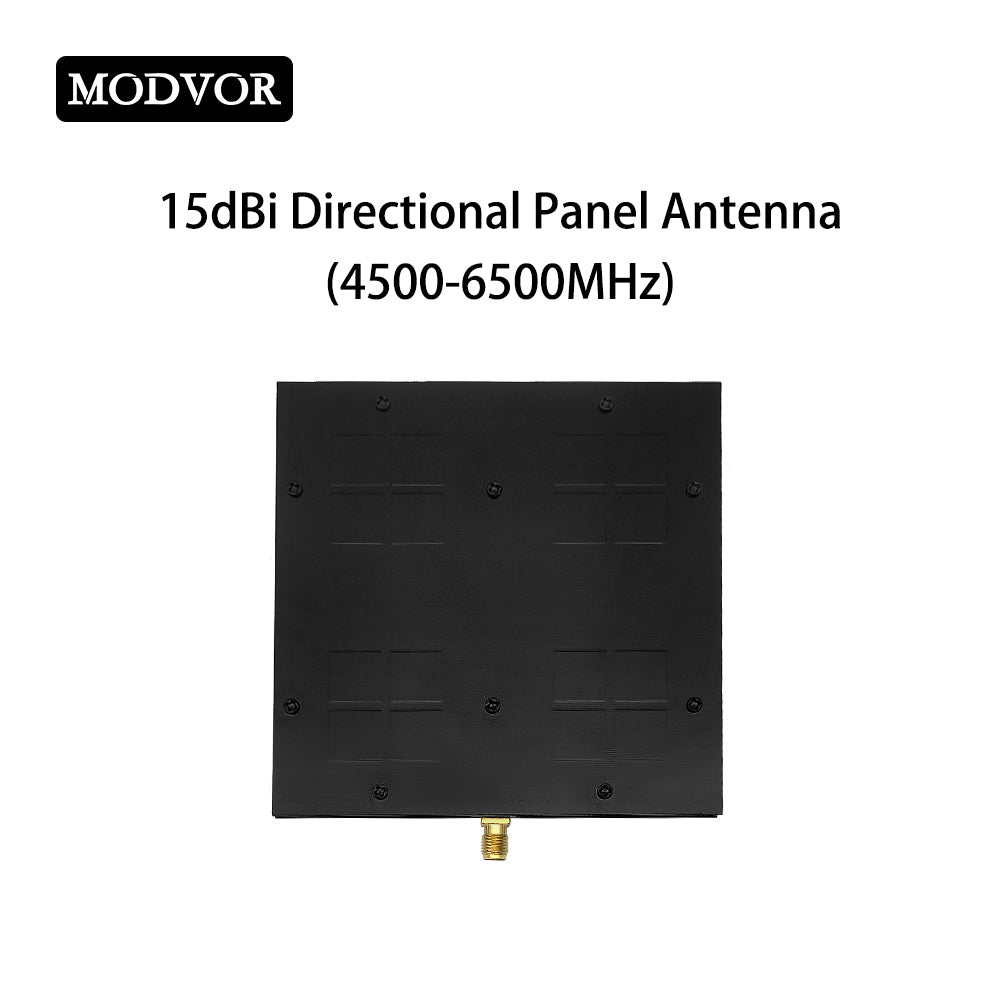

This 4500-6500MHz 15dBi directional panel antenna is engineered for high-performance long-range wireless communication. Adopting directional panel design, the drone antenna concentrates radio frequency energy in the target direction to achieve 15dBi high gain, effectively amplifying wireless signals for both transmission and reception.
It suppresses unwanted interference from off-axis signals and improves signal stability, which greatly extends the effective communication distance in complex outdoor environments. The solid panel structure brings consistent radiation performance and good weather resistance, supporting continuous operation for outdoor point-to-point wireless links.
It is a premium FPV antenna solution dedicated to UAV and drone communication links. It can reliably transmit and receive real-time video, control commands and sensor data between ground stations and drones. Besides UAV communication, this antenna also fits other point-to-point wireless data transmission scenarios, including remote wireless monitoring and private long-range radio connectivity. It is widely selected by system integrators for stable, high-bandwidth long-range wireless connection builds.
Product Application
- FPV drone video transmission
- UAV Relay Communication Nodes
- 5G/dedicated LTE network wireless backhaul
- Reflector antenna feed
- Antenna Measurement Ranges
- Directional Antennas for Electronic Attack (EA)
- Ground Receiving Station for Synthetic Aperture Radar (SAR)
Product Features
- 2G Ultra wideband, relative bandwidth 33%
- 15dBi High Gain
- 27°wide beam
- 7mm low profile
Product Specifications
| Working band | 4500-6500MHz |
| Gain | 15dBi |
| VSWR | ＜1.7 |
| Efficiency | ≥90% |
| Polarization | Horizontal Polarization |
| EL HPBW | 24° |
| AZ HPBW | 27° |
| Input Impedance | 50Ω |
| Power Handing | 30W |

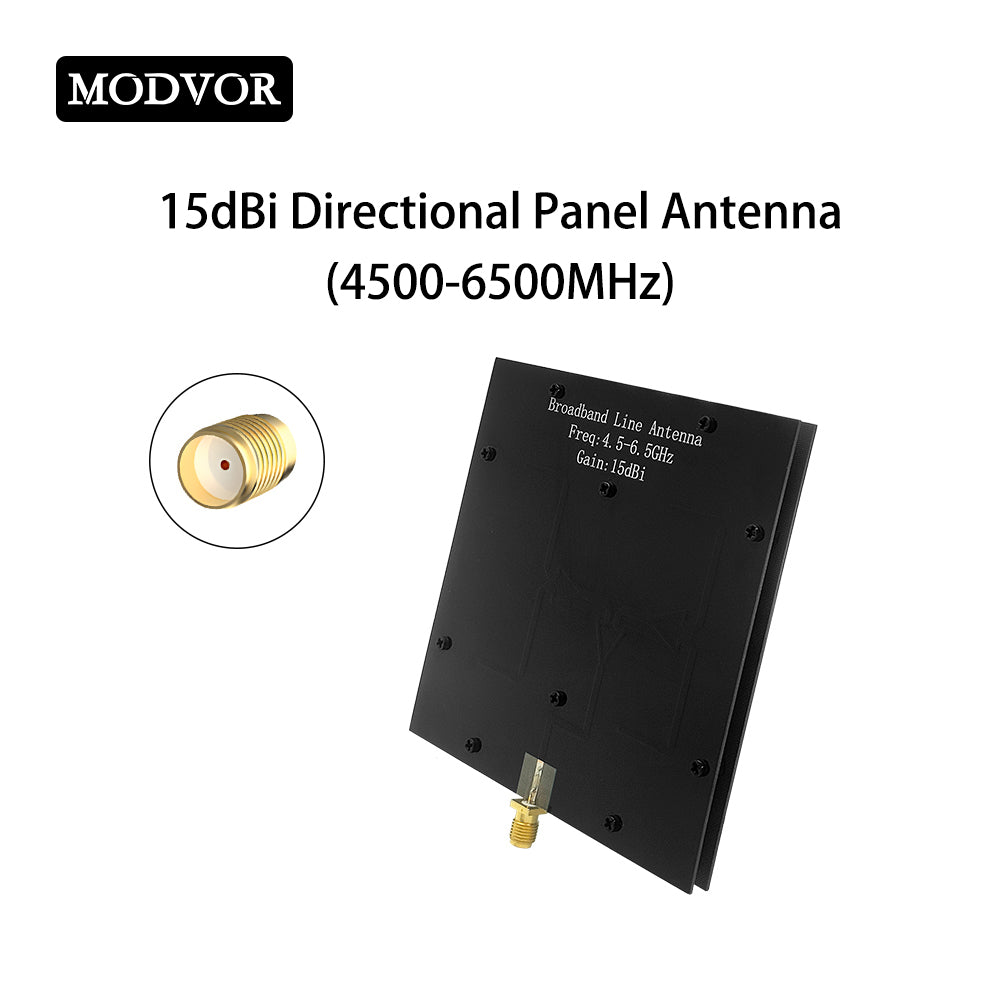

| RF Connector | SMA-Female |

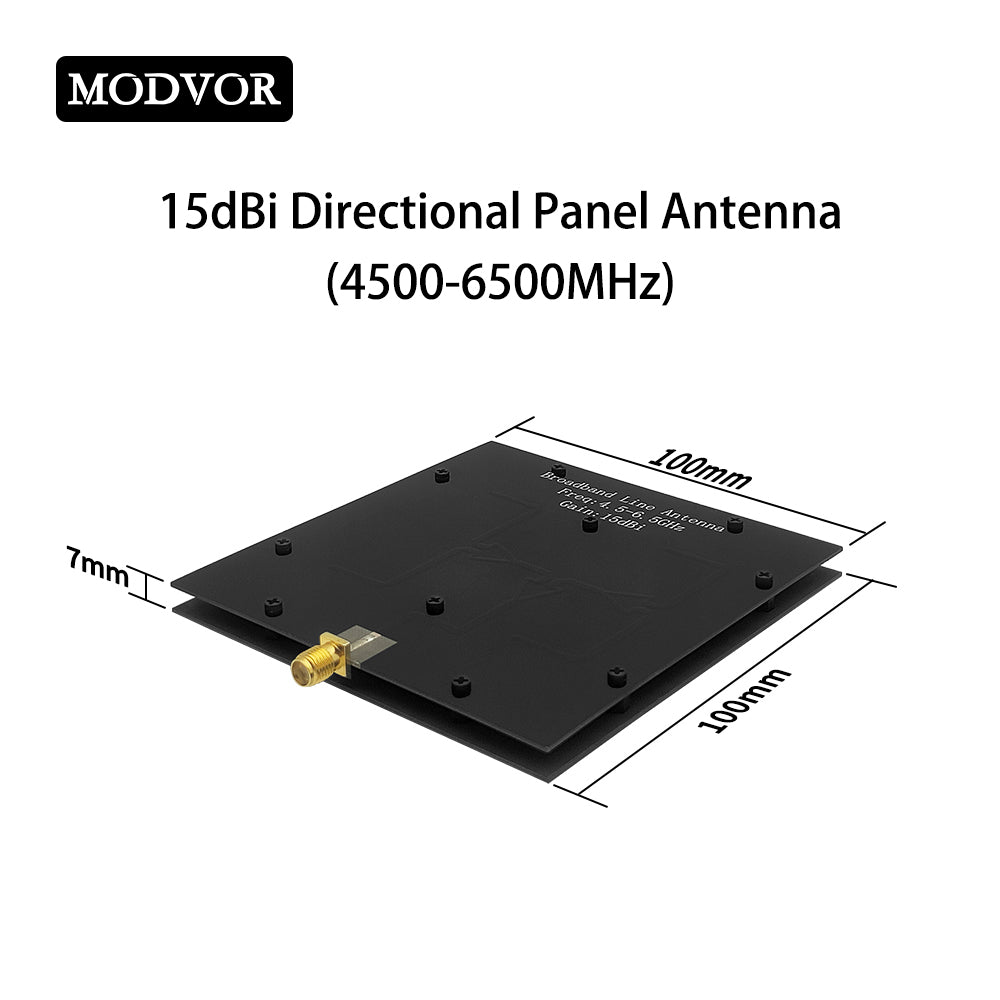

| Size | 100*100*7mm |
| Weight | 50g |

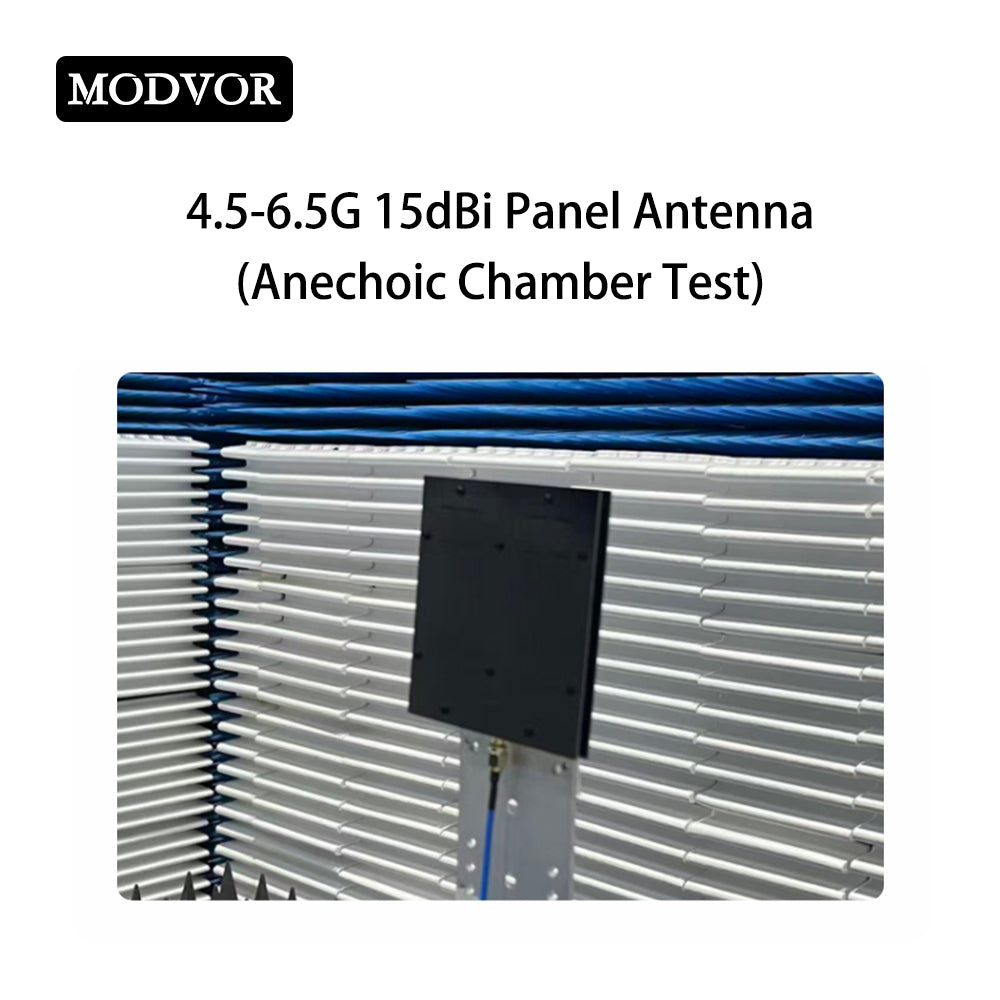

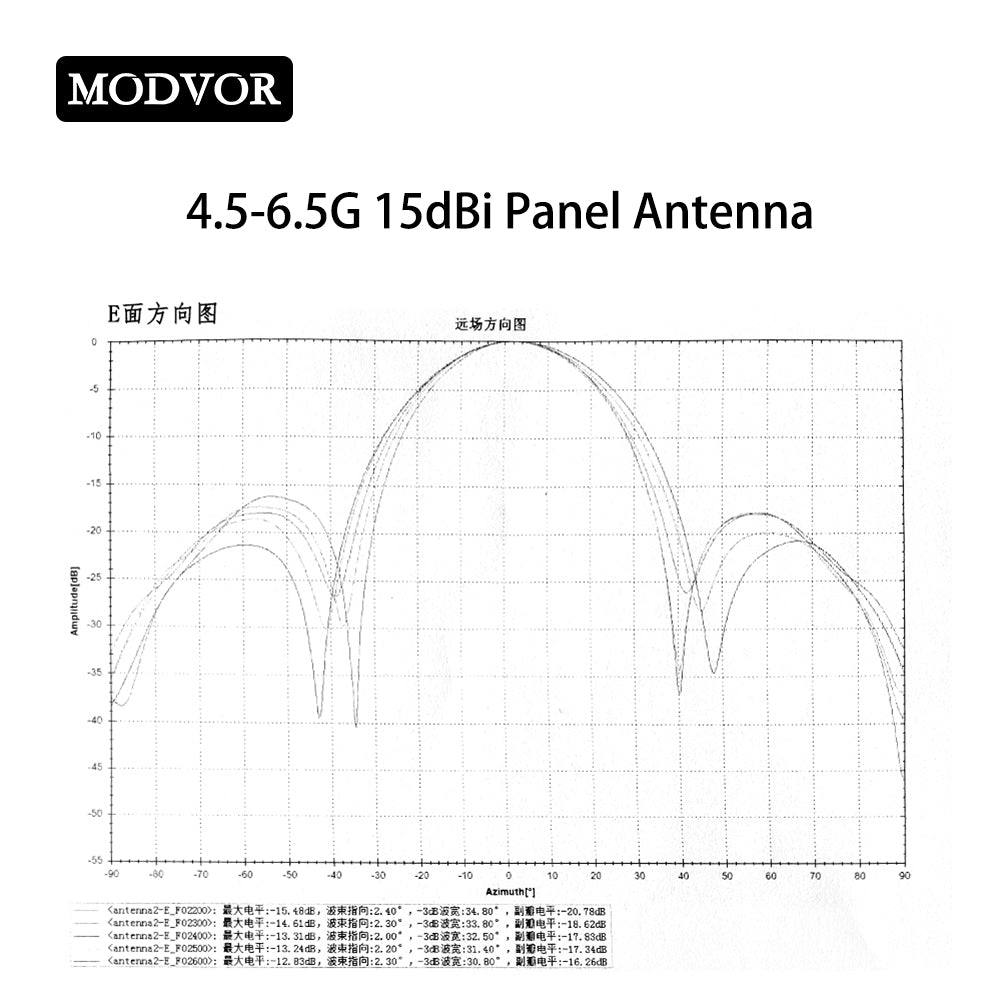

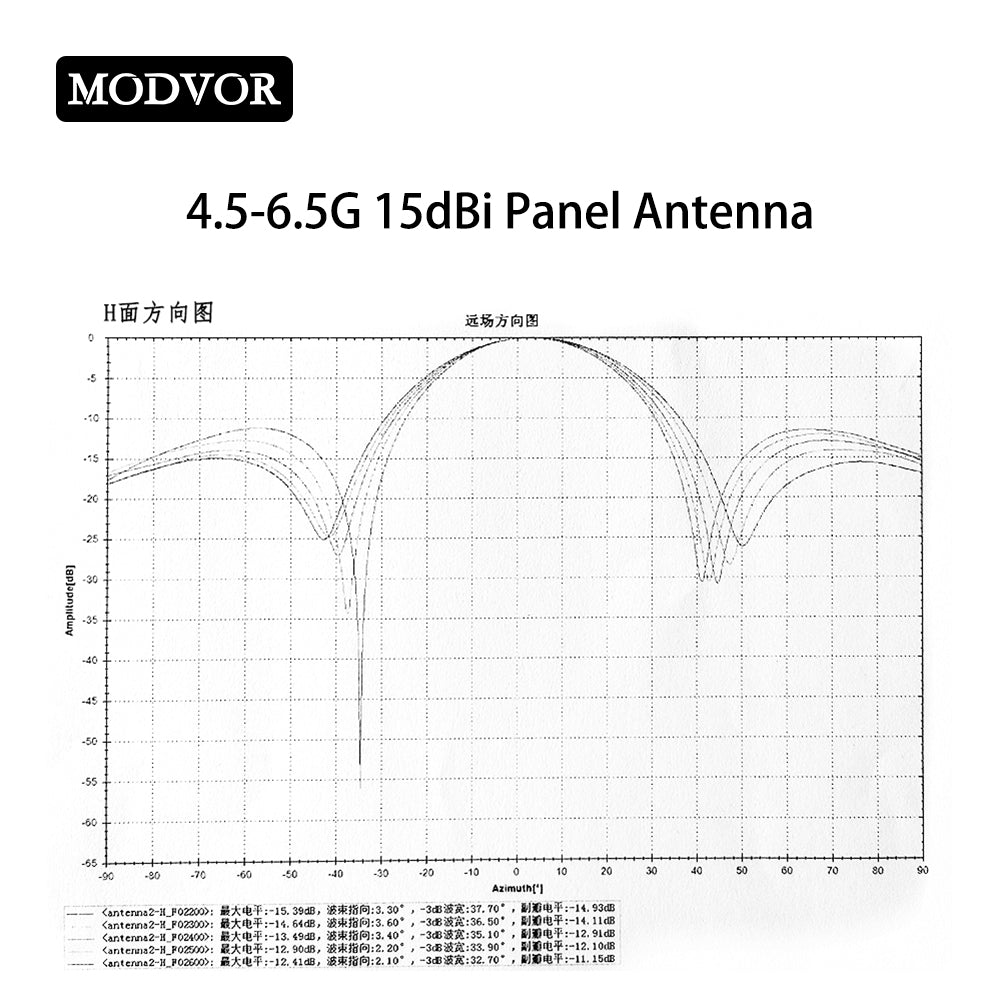

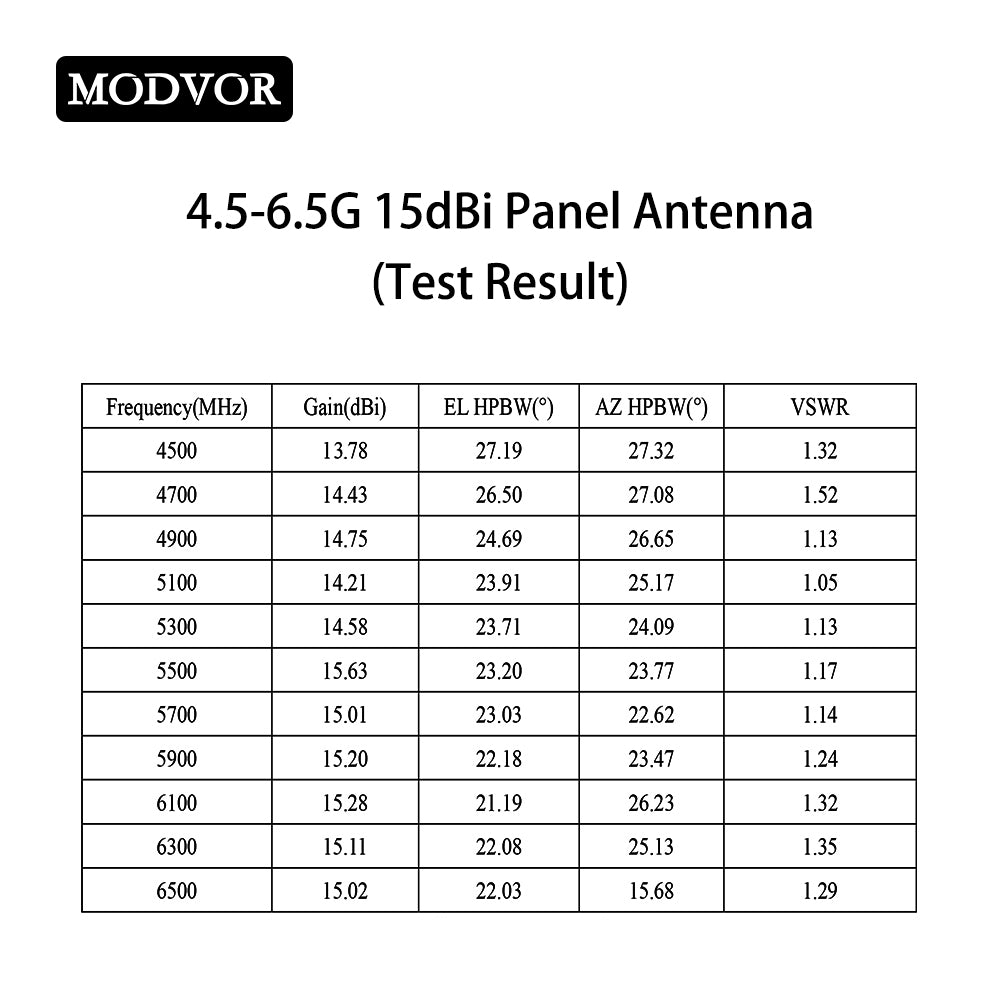

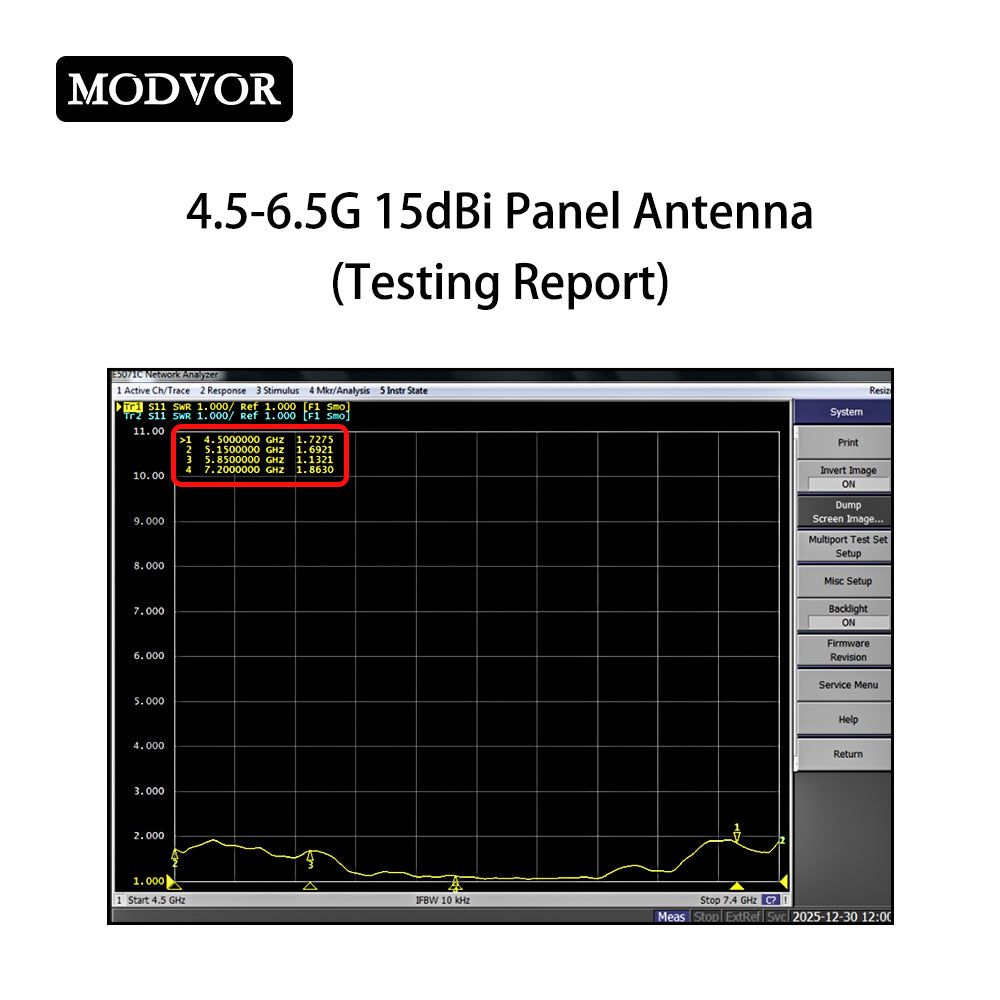

Test Result
| Frequency(MHz) | Gain(dBi) | EL HPBW(°) | AZ HPBW(°) | VSWR |
| 4500 | 13.78 | 27.19 | 27.32 | 1.32 |
| 4700 | 14.43 | 26.5 | 27.08 | 1.52 |
| 4900 | 14.75 | 24.69 | 26.65 | 1.13 |
| 5100 | 14.21 | 23.91 | 25.17 | 1.05 |
| 5300 | 14.58 | 23.71 | 24.09 | 1.13 |
| 5500 | 15.63 | 23.2 | 23.77 | 1.17 |
| 5700 | 15.01 | 23.03 | 22.62 | 1.14 |
| 5900 | 15.20 | 22.18 | 23.47 | 1.24 |
| 6100 | 15.28 | 21.19 | 26.23 | 1.32 |
| 6300 | 15.11 | 22.08 | 25.13 | 1.35 |
| 6500 | 15.02 | 22.03 | 15.68 | 1.29 |
Package List
1 X 4.5-6.5G Panel Directional Antenna
