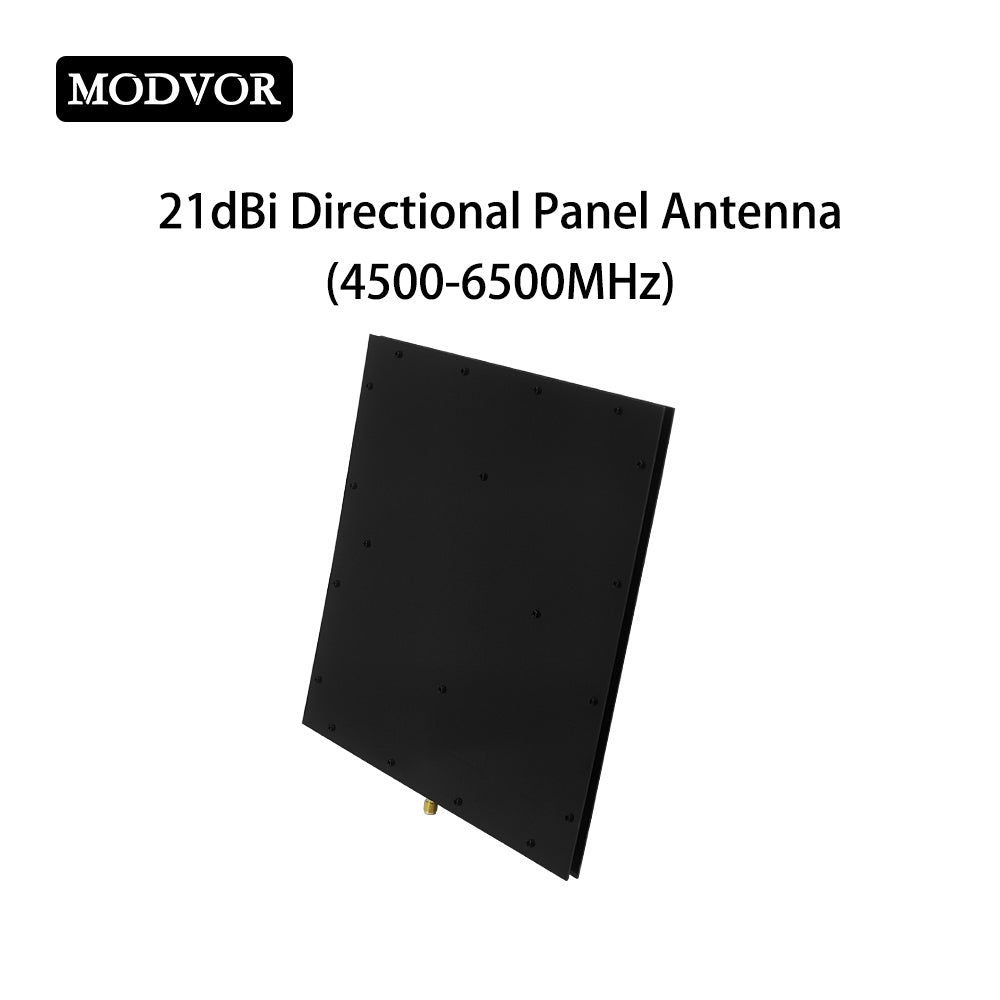

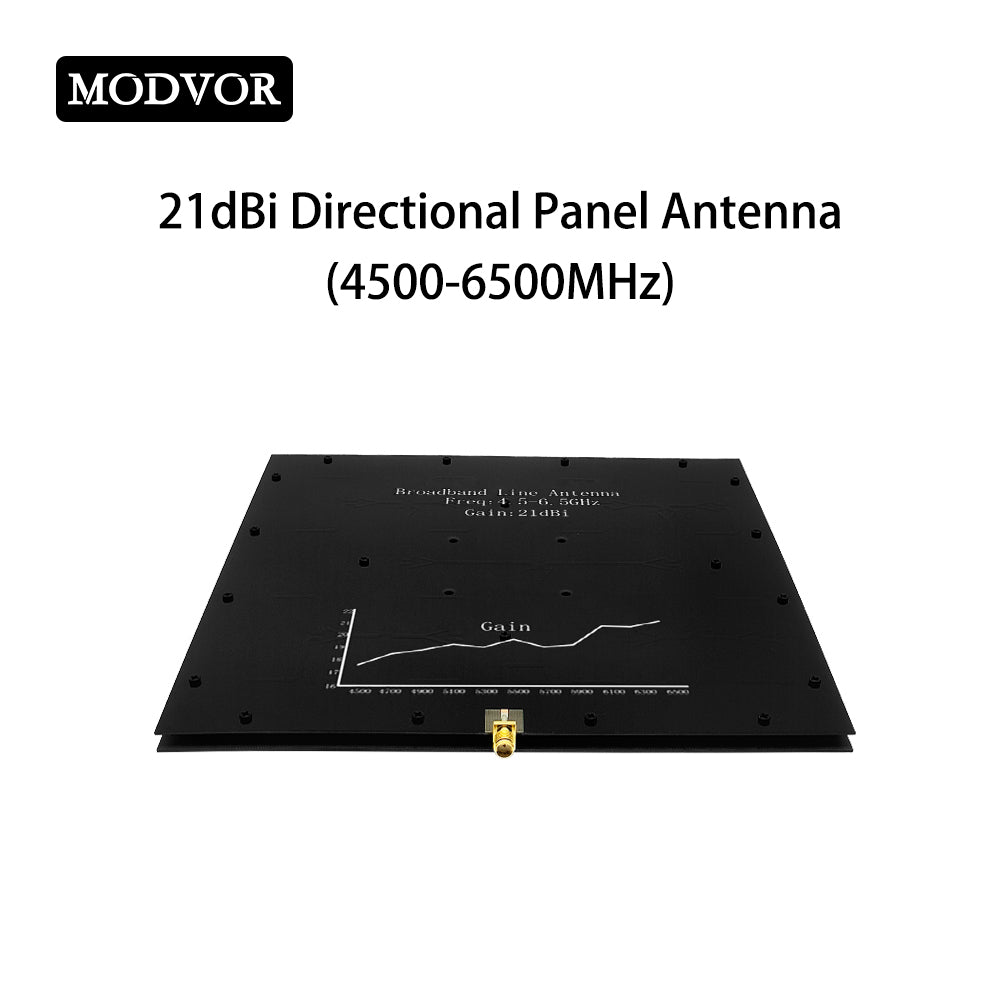

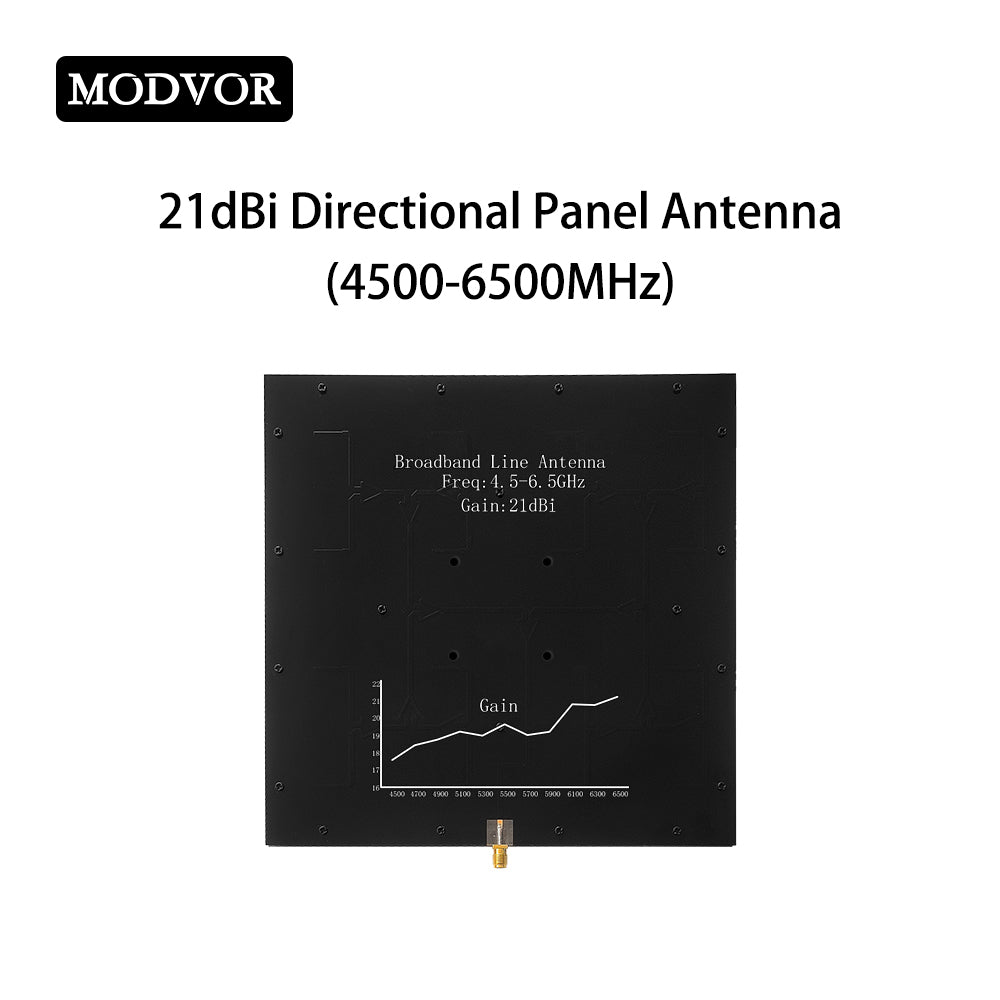

Product Description
The antenna features an advanced microstrip array design, achieving an extremely high gain of 21 dBi while maintaining a low-profile and lightweight structure. Covering the wide frequency range of 4500 to 6500 MHz, this characteristic provides exceptional long-distance signal coverage, offering sufficient link budget redundancy for scenarios such as beyond visual line of sight (BVLOS) operations.
Additionally, the superior low sidelobe level (SLL) of better than -15 dB endows the antenna with excellent spatial filtering capabilities, effectively mitigating multipath interference and co-channel interference to ensure stable and secure communication links in complex electromagnetic environments.
Furthermore, the voltage standing wave ratio (VSWR) of less than 1.6 across the entire frequency band ensures good impedance matching and efficient signal transmission. Its compact flat panel form makes it compatible with motorized gimbals for target tracking applications.
Built for outdoor deployment, this directional flat panel antenna delivers reliable directional signal focusing, ideal for long-range point-to-point wireless communication, remote data transmission and target tracking systems. Robust construction supports outdoor installation and continuous operation under varied weather conditions.
Product Application
- FPV drone video transmission
- UAV Relay Communication Nodes
- 5G/dedicated LTE network wireless backhaul
- Reflector antenna feed
- Antenna Measurement Ranges
- Directional Antennas for Electronic Attack (EA)
- Ground Receiving Station for Synthetic Aperture Radar (SAR)
Product Features
- 2G Ultra wideband, relative bandwidth 33%
- 21dBi High Gain
- 12°wide beam
- 7mm low profile
Product Specifications
| Working band | 4500-6500MHz |
| Gain | 21dBi |

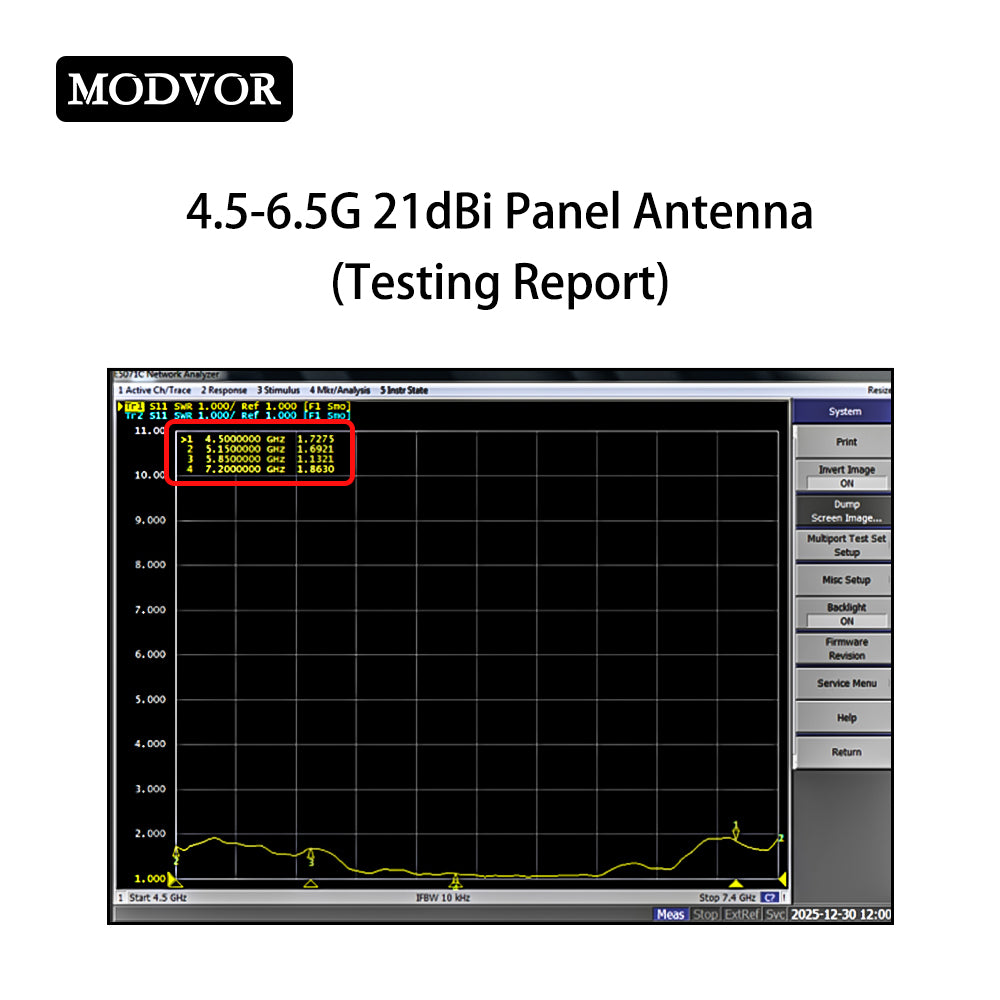

| VSWR | ＜2 |
| Efficiency | ≥90% |
| Polarization | Horizontal Polarization |
| EL HPBW | 11° |
| AZ HPBW | 12° |
|
Front-to-back ratio
|
14dB
|
| Input Impedance | 50Ω |
| Power Handing | 30W |

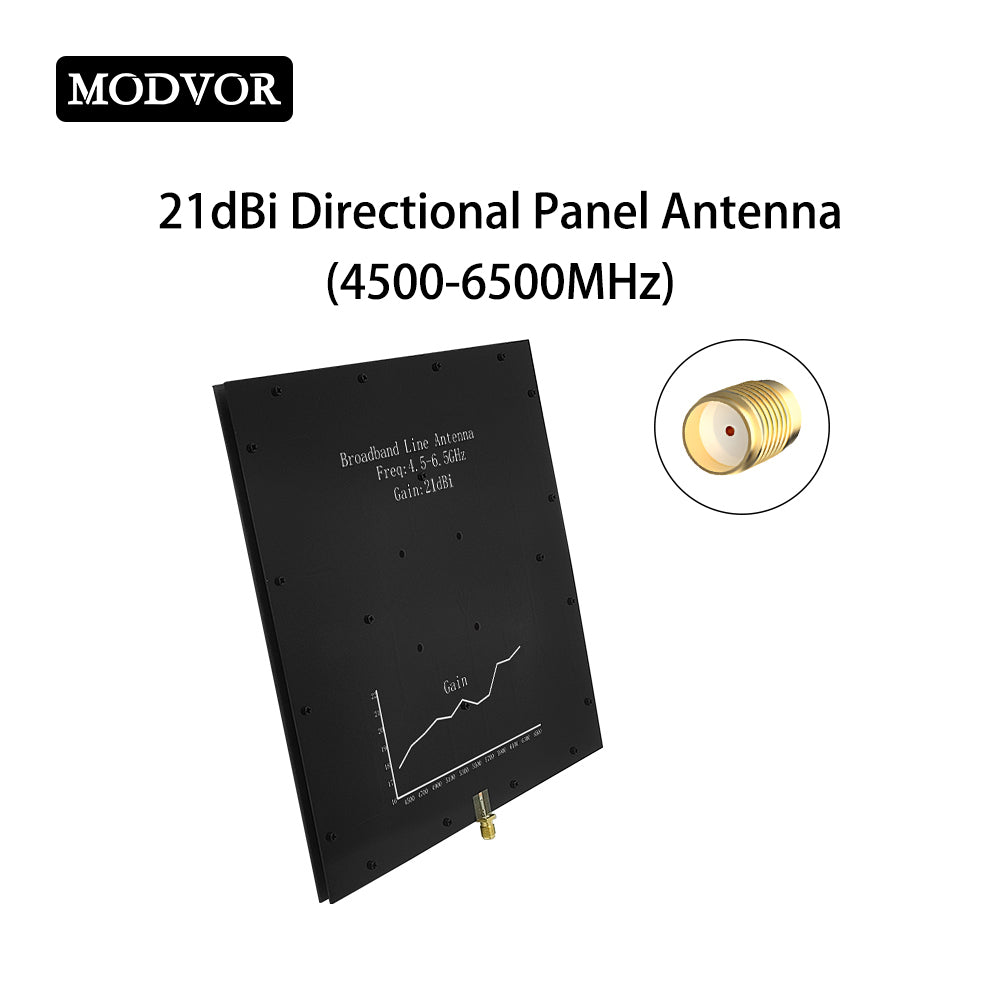

| RF Connector | SMA-Female |

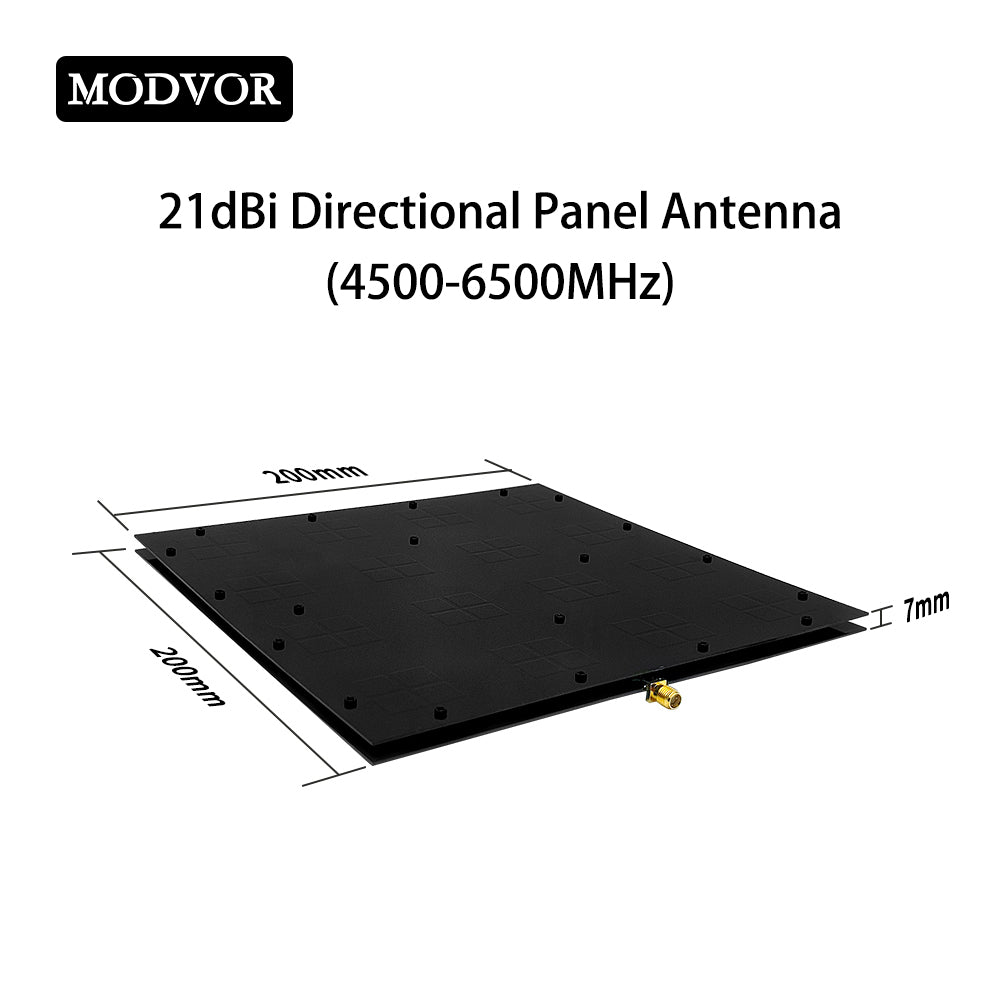

| Size | 200*200*7mm |
| Weight | 198g |

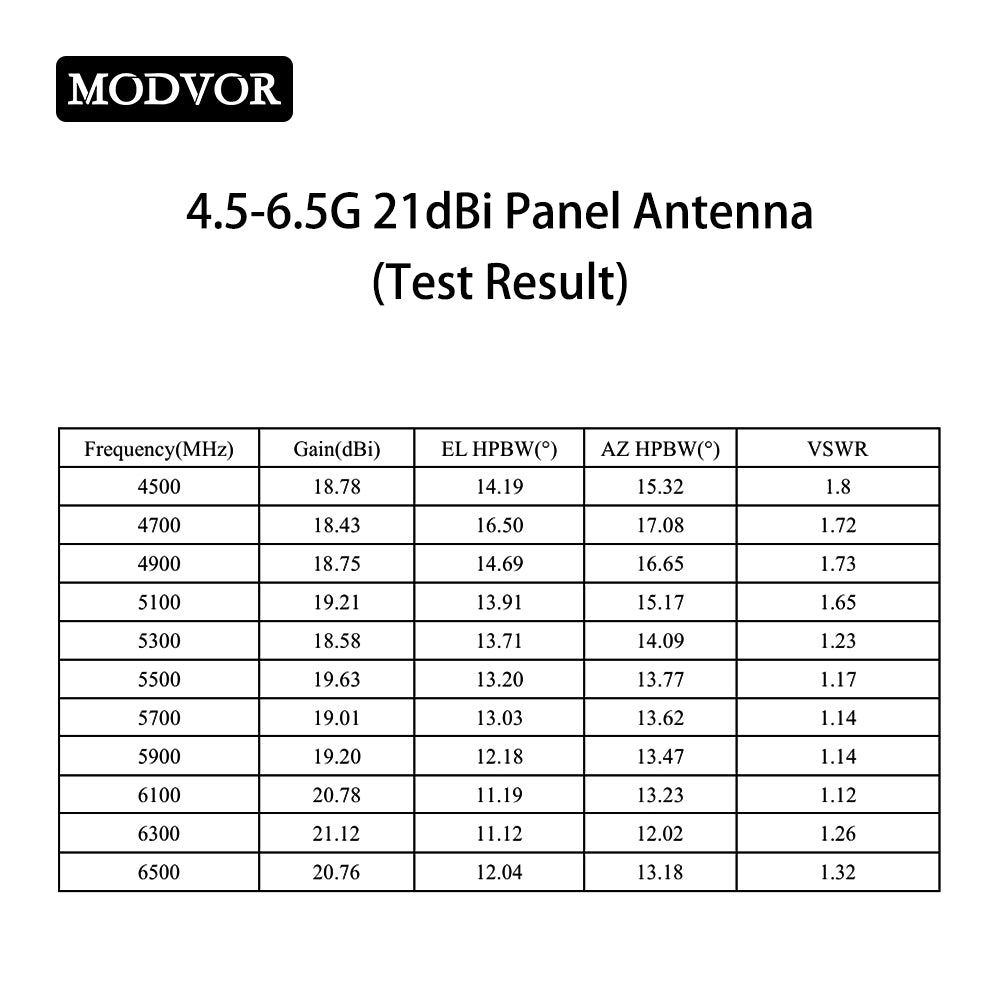

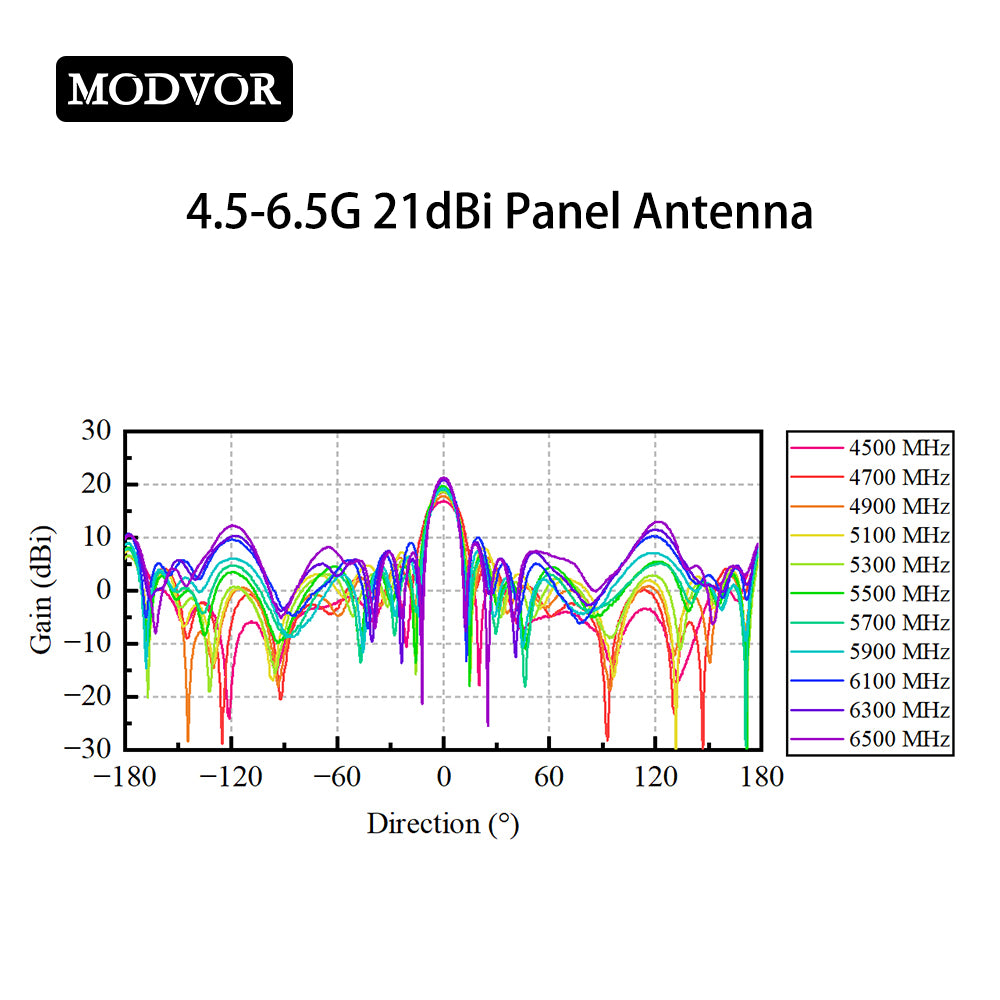

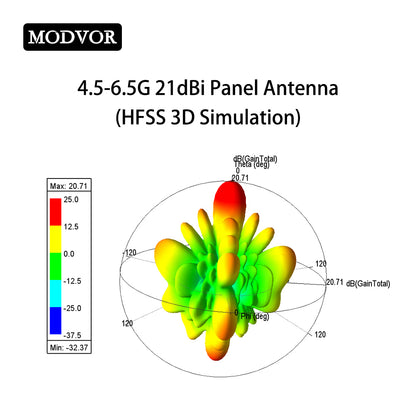

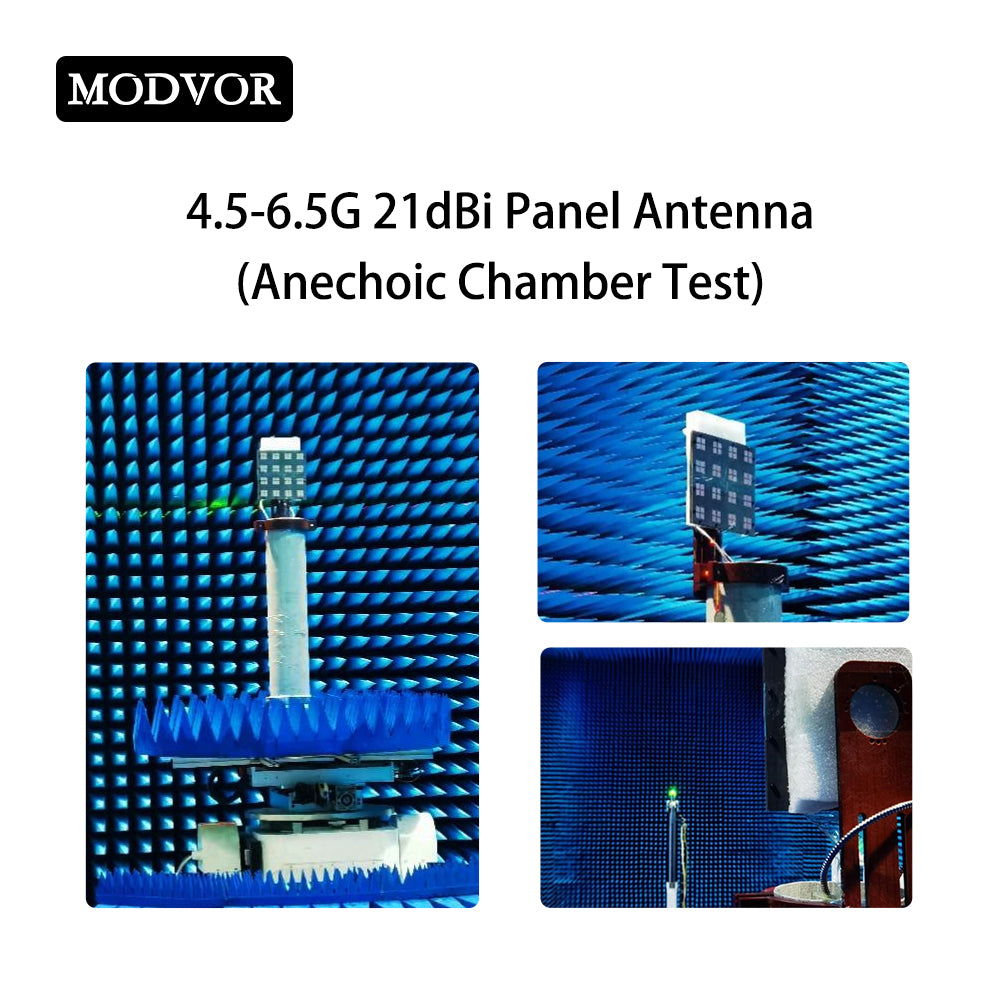

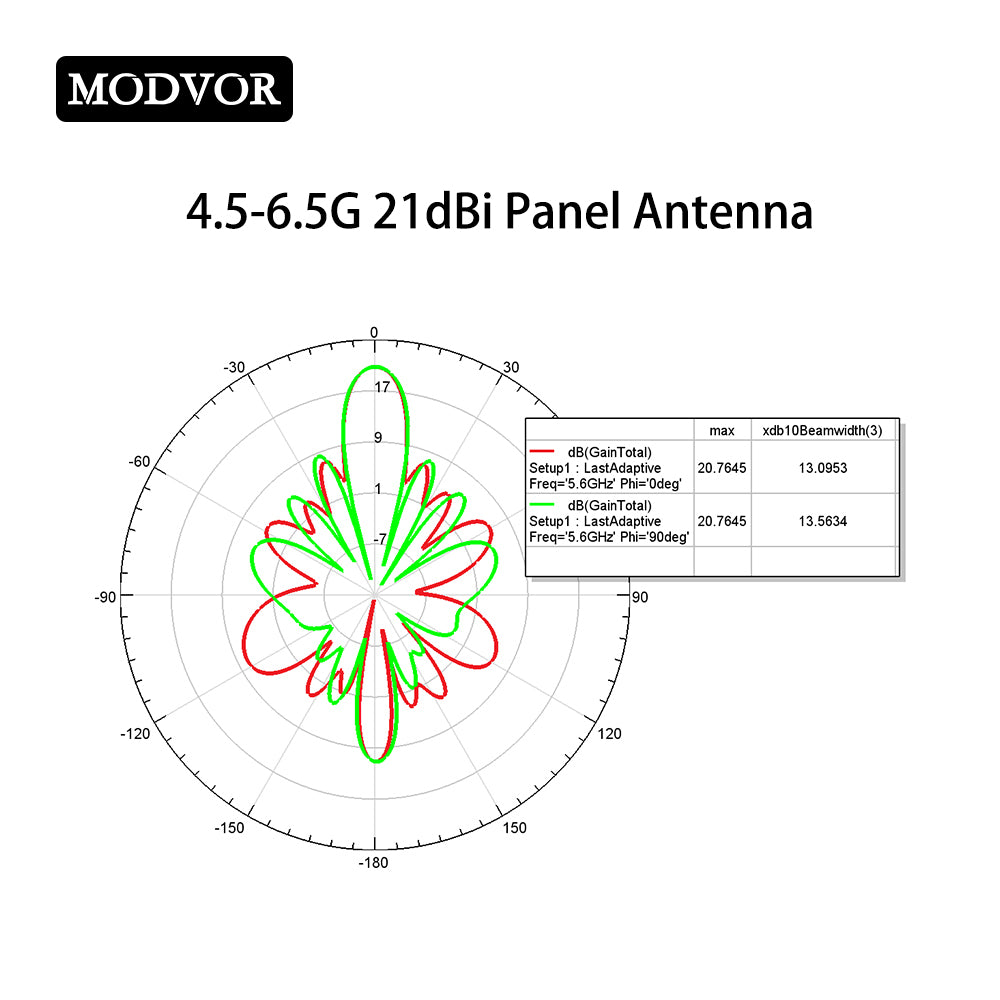

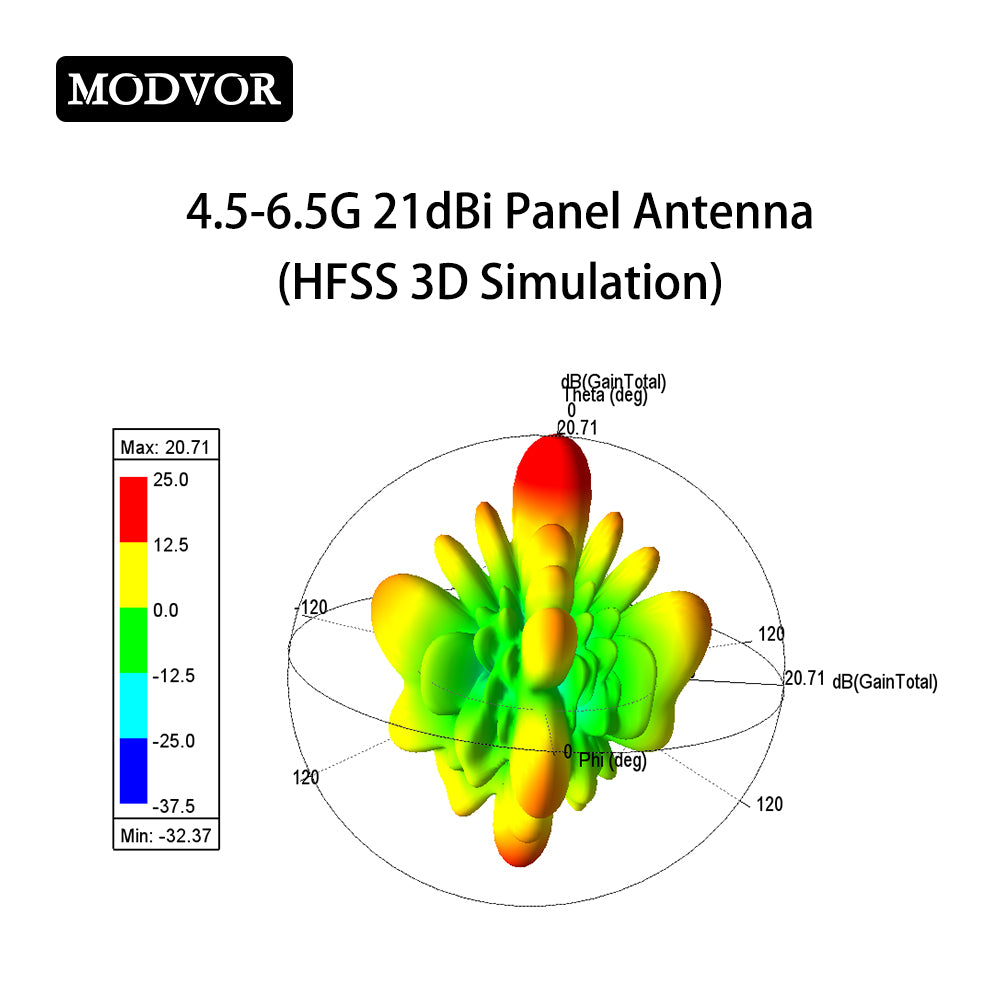

Test Result
| Frequency(MHz) | Gain(dBi) | EL HPBW(°) | AZ HPBW(°) | VSWR |
| 4500 | 18.78 | 14.19 | 15.32 | 1.8 |
| 4700 | 18.43 | 16.5 | 17.08 | 1.72 |
| 4900 | 18.75 | 14.69 | 16.65 | 1.73 |
| 5100 | 19.21 | 13.91 | 15.17 | 1.65 |
| 5300 | 18.58 | 13.71 | 14.09 | 1.23 |
| 5500 | 19.63 | 13.2 | 13.77 | 1.17 |
| 5700 | 19.01 | 13.03 | 13.62 | 1.14 |
| 5900 | 19.20 | 12.18 | 13.47 | 1.14 |
| 6100 | 20.78 | 11.19 | 13.23 | 1.12 |
| 6300 | 21.12 | 11.12 | 12.02 | 1.26 |
| 6500 | 20.76 | 12.04 | 13.18 | 1.32 |
Package List
1 X 4.5-6.5G Panel Directional Antenna
