Product Description

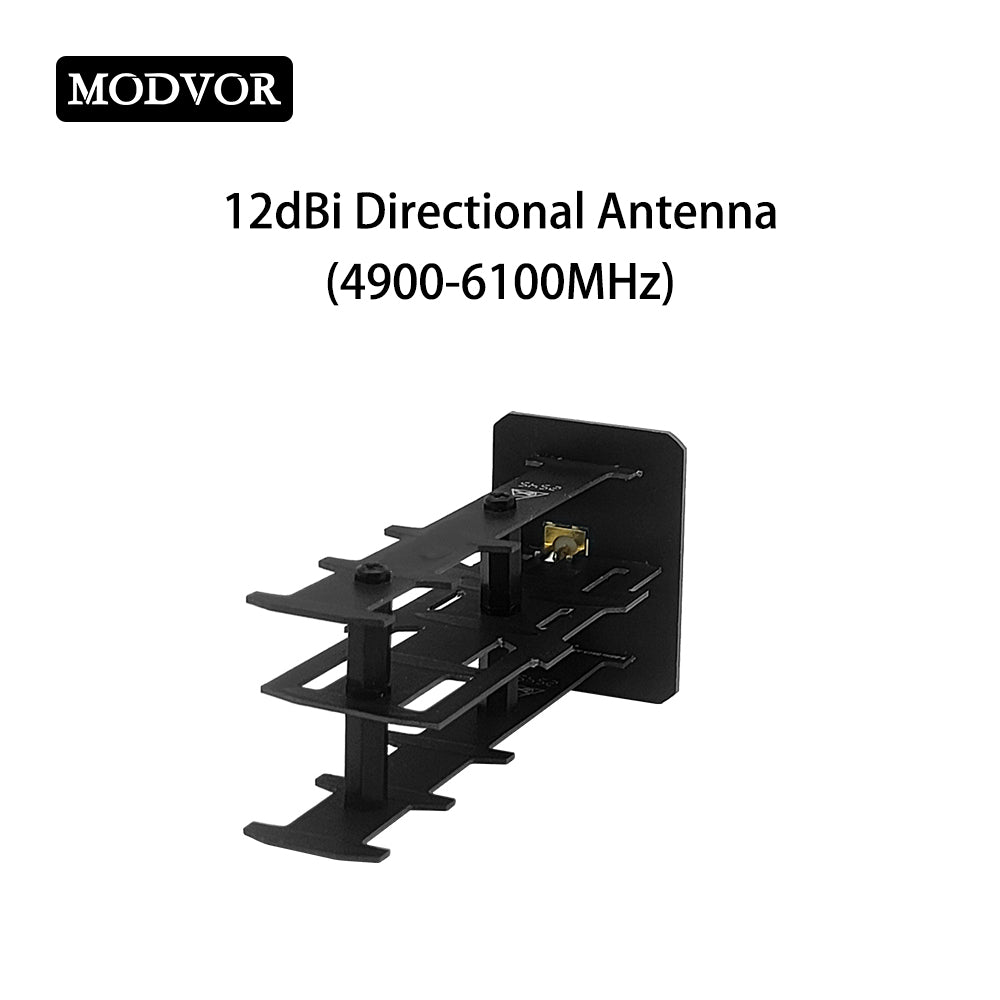

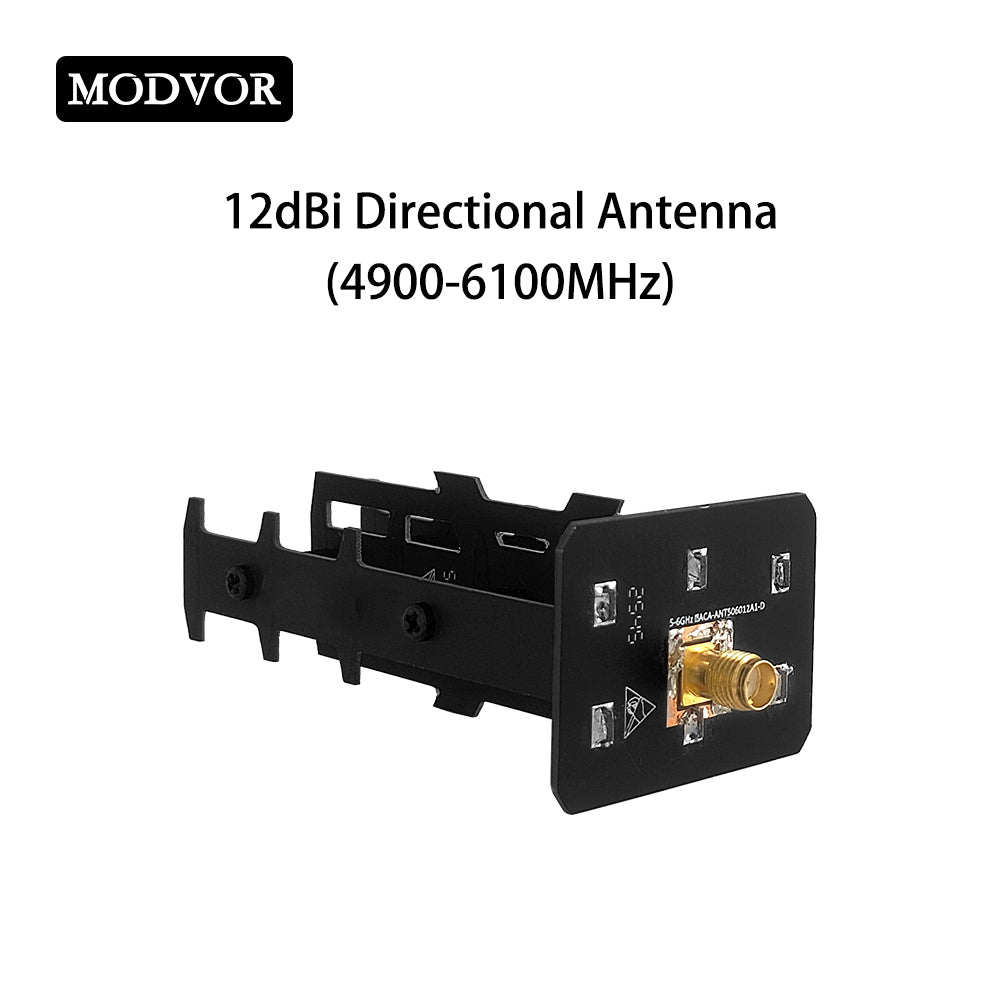

This lightweight directional microstrip antenna covers the frequency range of 4900–6100MHz (5–6GHz), delivering 12dBi high gain for long-distance wireless communication. Featuring ultra-compact dimensions of 76×40×30mm and a minimal weight of merely 12g, it perfectly fits weight-sensitive and space-limited airborne platforms without adding extra payload burden.

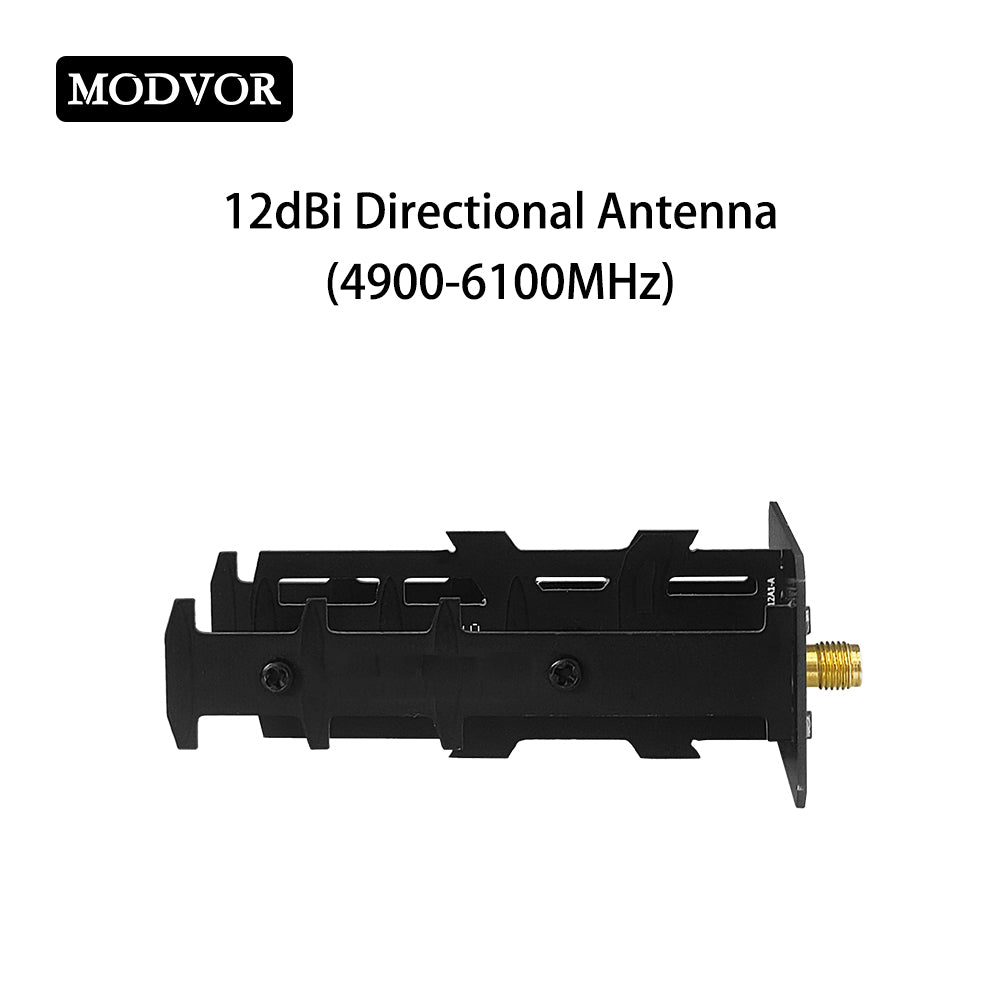

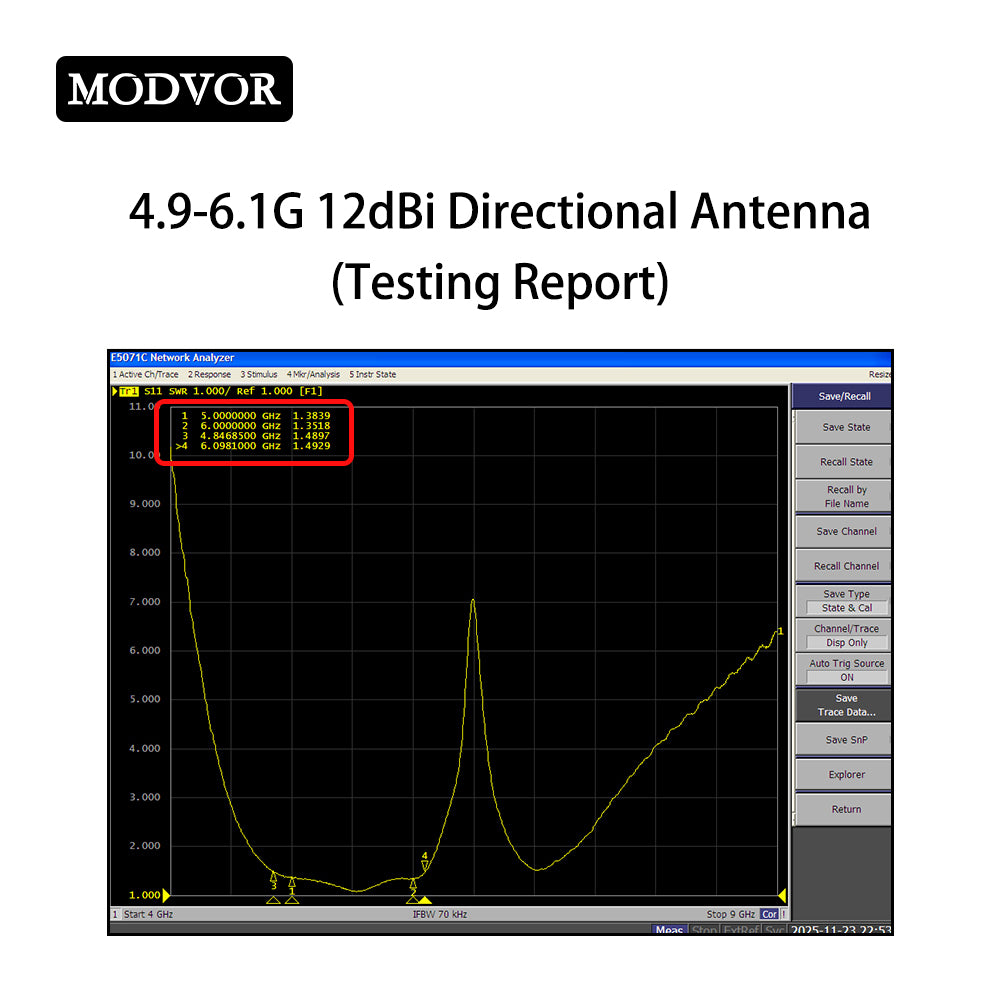

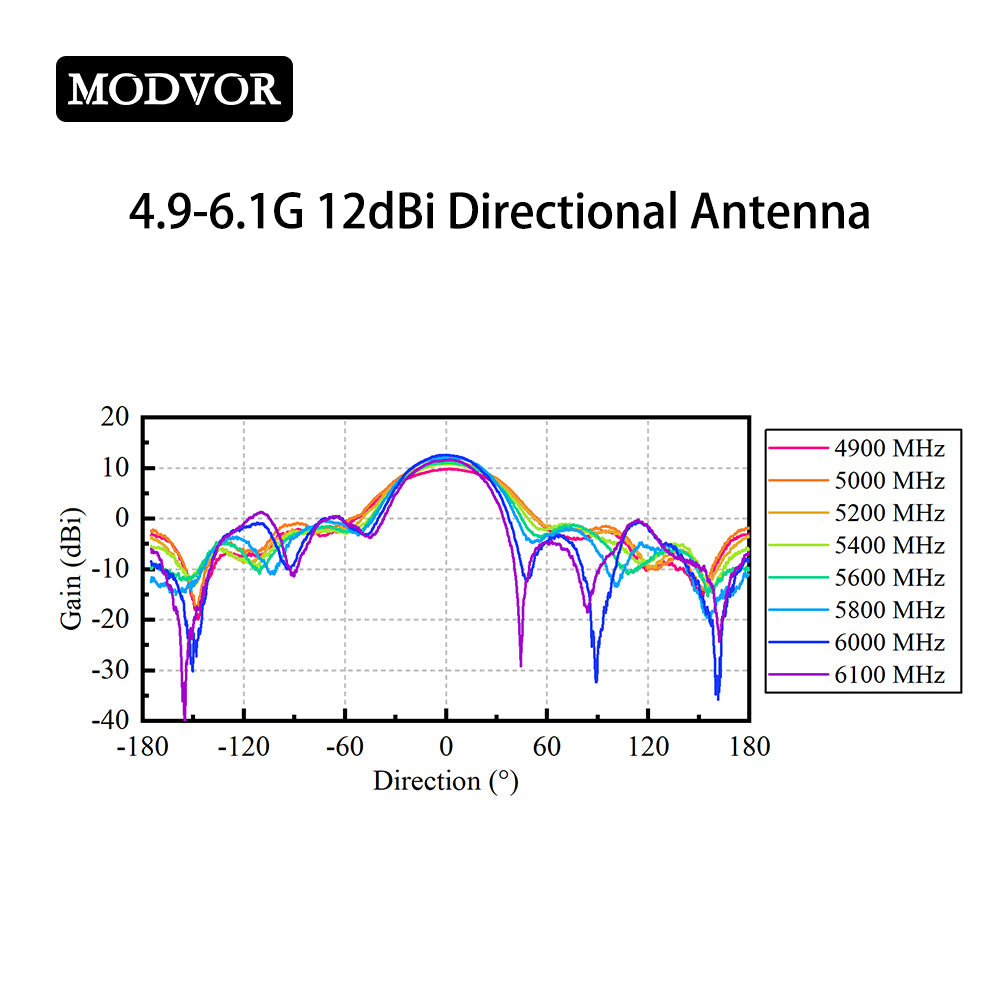

It supports 1G ultra wideband with 18% relative bandwidth, and the VSWR stays below 1.6 over the full operating band to guarantee outstanding impedance matching and high-efficiency signal transmission. The antenna offers 54° elevation HPBW and 55° azimuth HPBW directional beamwidth. Its directional radiation pattern concentrates signal energy, greatly extending communication distance while suppressing unwanted interference from off-target directions.
Boasting an ultra-light and compact structure, it provides stable signal transmission capacity with wide compatibility and versatile application scenarios. Widely adopted for FPV racing drones, UAV telemetry modules, high-definition video downlink, point-to-point back-haul links and other airborne wireless systems, it works reliably for drone real-time video feed and flight control links.
Product Application
- FPV Drones (Racing Drones)
- Back-haul Links
- Airborne antenna
- High-Definition Video Downlink
- UAV Telemetry Module
- Point-to-Point
Product Features
-
1G Ultra wideband, relative bandwidth 18%
- 12dBi High Gain
- 54°EL HPBW
- 55°AZ HPBW
- Ultra-Lightweight & Compact Structure
- Stable Signal Transmission Capacity
- Wide Compatibility & Versatile Application
Product Specifications
| Working band | 4900-6100MHz |
| Gain | 12dBi |
| VSWR | ＜1.5 |
| Efficiency | ≥90% |
| Polarization | Vertical polarization |
| EL HPBW | 54° |
| AZ HPBW | 55° |
| Front-to-back ratio | 15dB |
| Input Impedance | 50Ω |
| Power Handing | 30W |

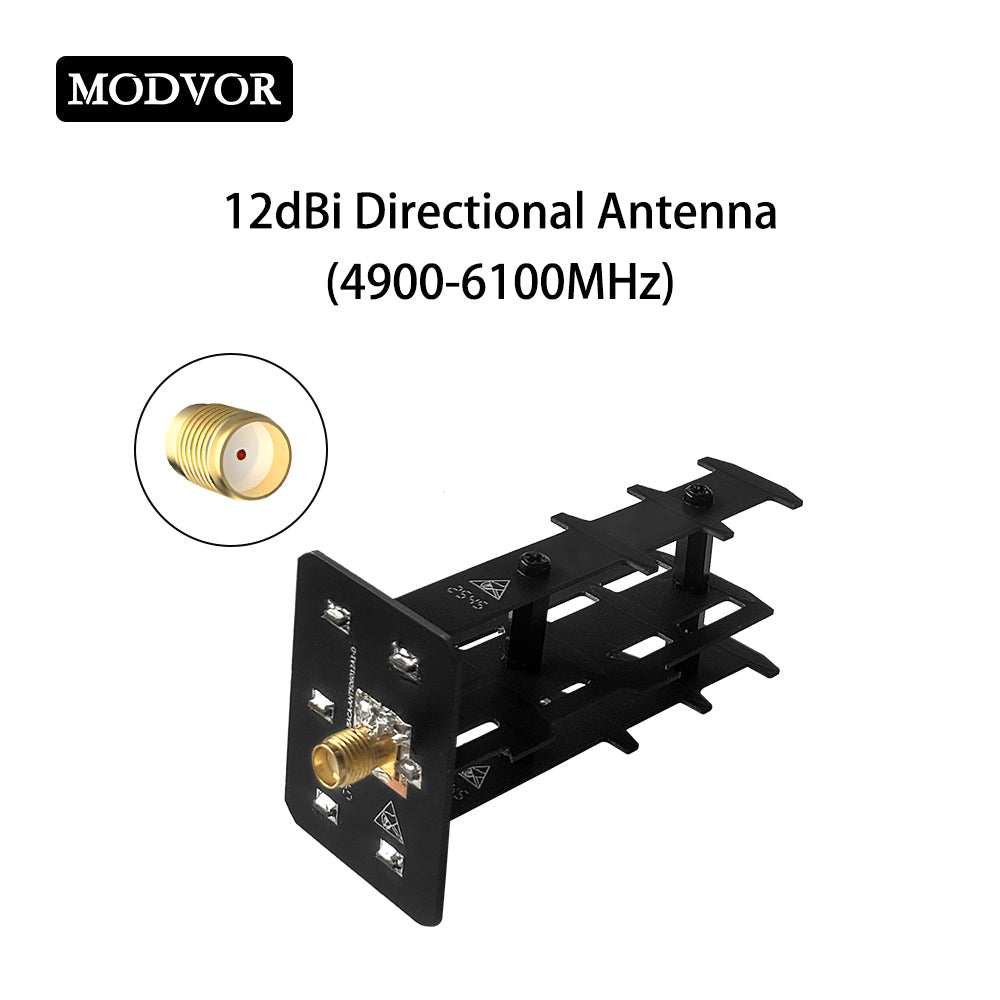

| RF Connector | SMA-Female |

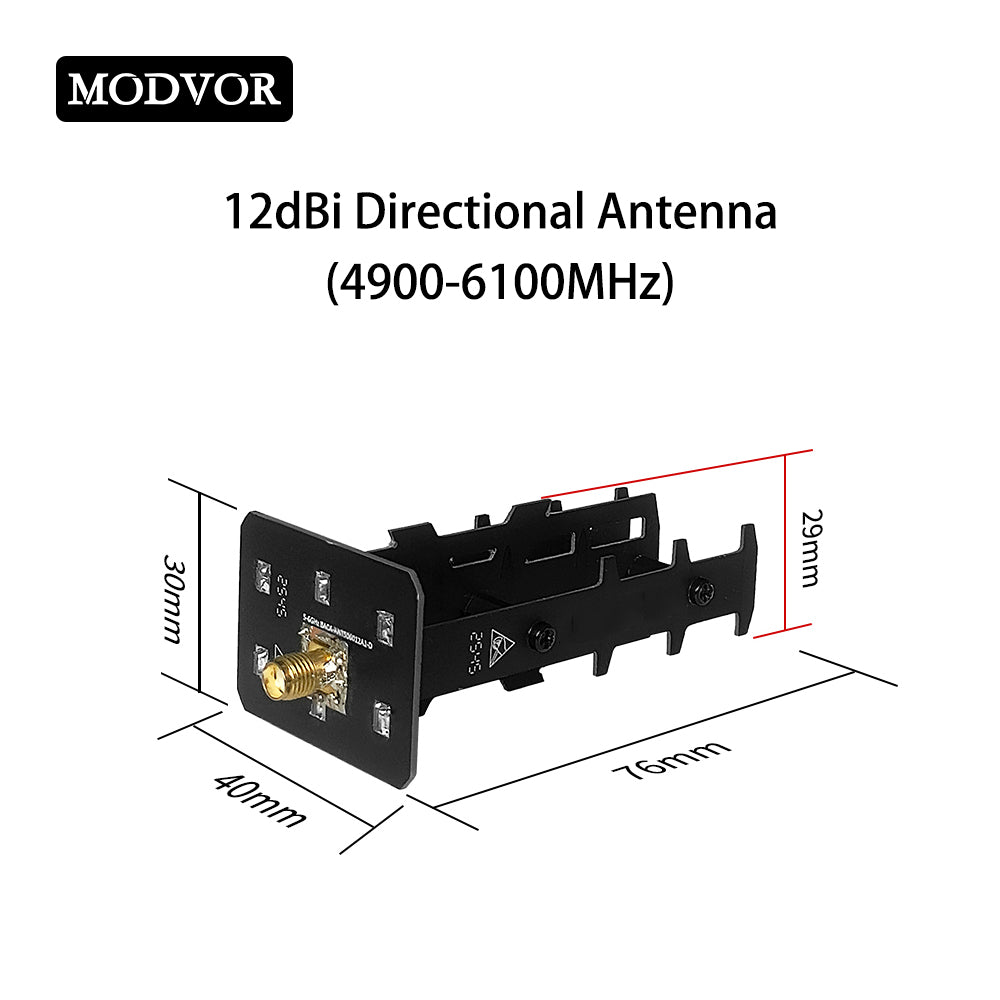

| Size | 76*40*30mm |
| Weight | 12g |

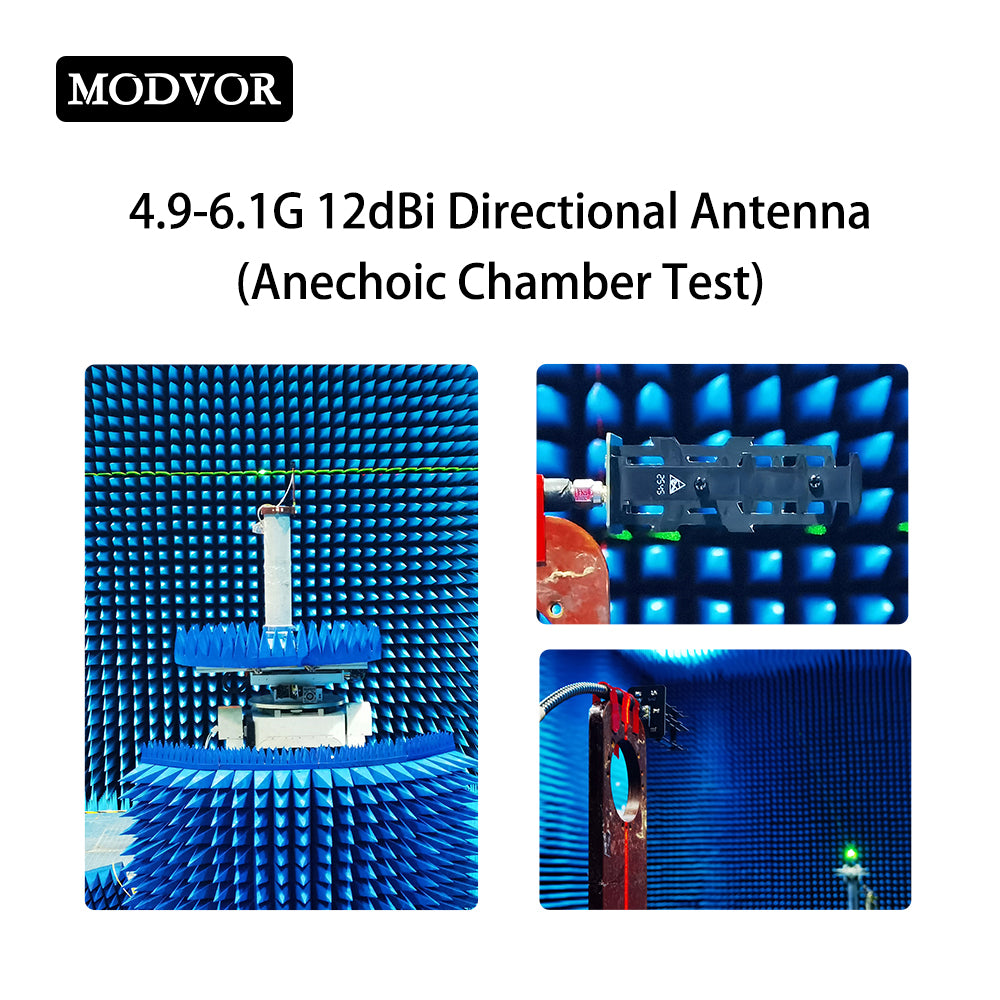

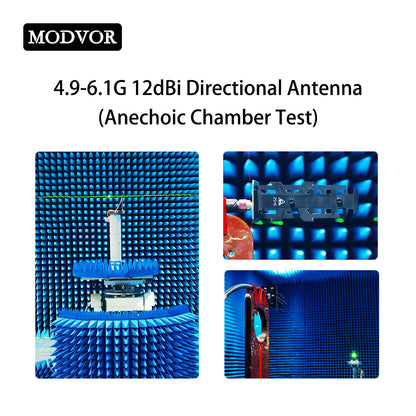

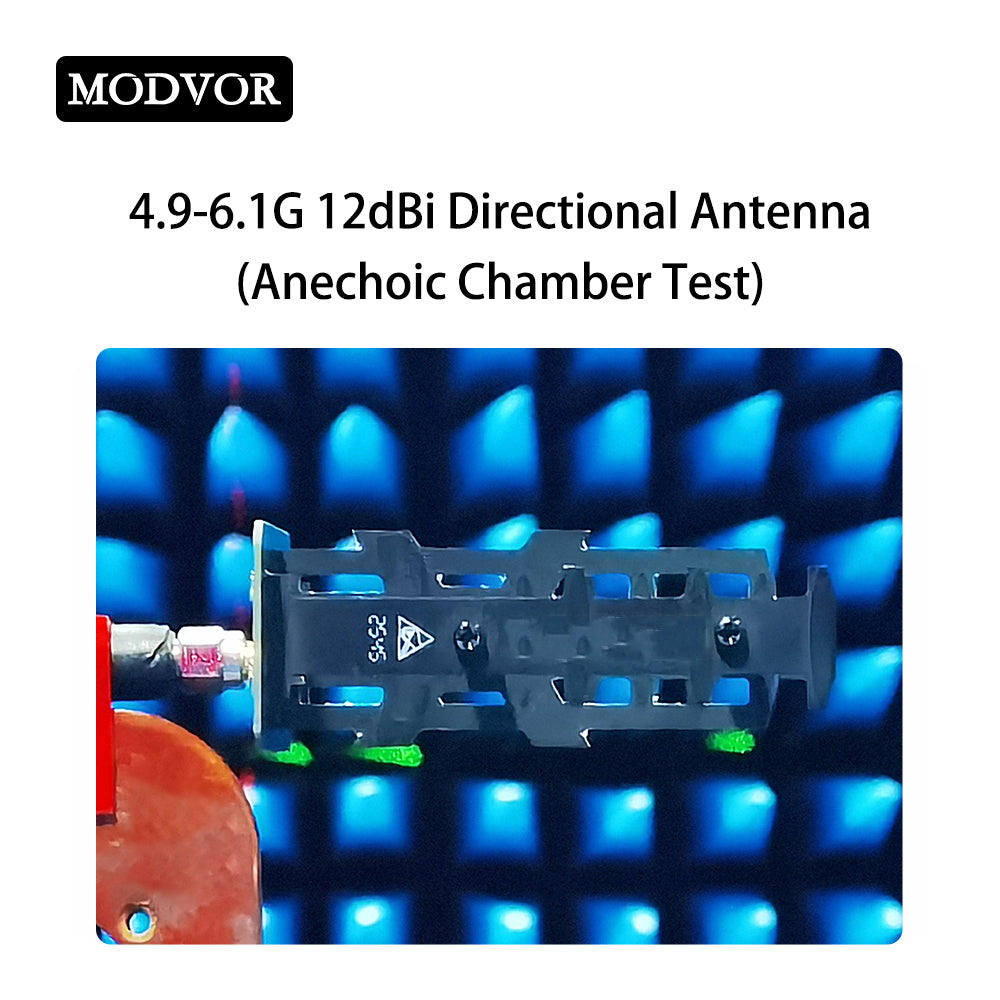

Test Result

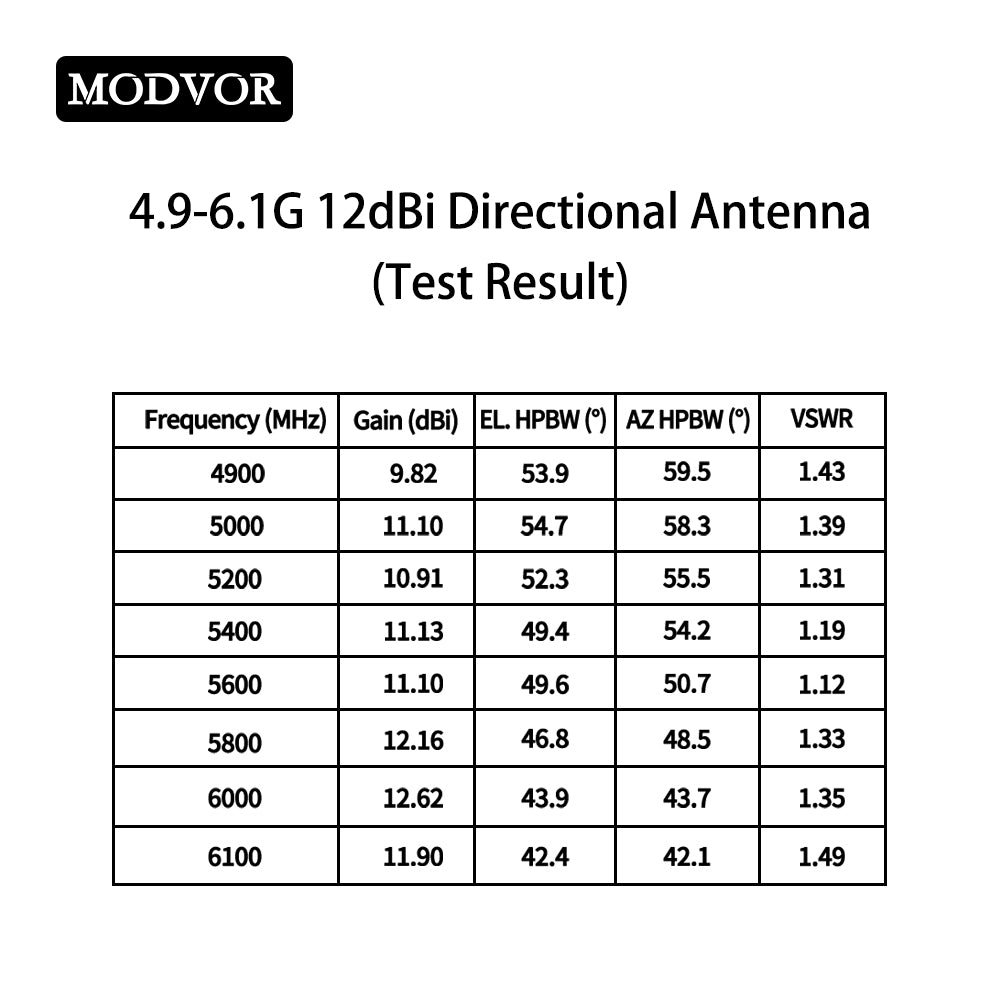

| Frequency(MHz) | Gain(dBi) | EL HPBW(°) | AZ HPBW(°) | VSWR |
| 4900 | 9.82 | 53.9 | 59.5 | 1.43 |
| 5000 | 11.1 | 54.7 | 58.3 | 1.39 |
| 5200 | 10.91 | 52.3 | 55.5 | 1.31 |
| 5400 | 11.13 | 49.4 | 54.2 | 1.19 |
| 5600 | 11.1 | 49.6 | 50.7 | 1.12 |
| 5800 | 12.16 | 46.8 | 48.5 | 1.33 |
| 6000 | 12.62 | 43.9 | 43.7 | 1.35 |
| 6100 | 11.9 | 42.4 | 42.1 | 1.49 |
Package List
1 X 4.9-6.1GHz Directional Antenna
