Product Description
The 5.2GHz band remains a practical choice for UAV video, telemetry, remote control, and fixed wireless links that need wider channels than 2.4GHz can offer. This 5.2GHz 5W RF Power Amplifier is designed to strengthen the transmit path in drone downlinks, telemetry radios, industrial wireless equipment, and point-to-point 5GHz systems. Its compact aluminum housing, SMA-K input/output connectors, and wide 22-28V DC input allow direct integration into airborne, ground-station, and pole-mounted installations. When distance or interference begins to shrink link margin, this module restores RF headroom without forcing a redesign of the existing RF chain.
Typical Applications
- UAV Video & Data Downlinks: Improve transmit performance for real-time drone video and payload data.
- UAV Telemetry & Remote Control: Reinforce command and telemetry links in extended-range operations.
- 5GHz Fixed Wireless Access: Enhance transmit links for point-to-point and broadband radio equipment.
- Industrial Wireless & SCADA: Boost signals for remote sensors, controllers, and industrial radio systems.
- Public Safety & Field Communications: Extend coverage in remote or obstructed environments.
- Licensed RF Testing & Development: Support 5.15-5.35GHz experimentation with higher output.
Technical Specifications
|
Parameter |
Value |
|
Working Frequency |
5.15-5.35GHz |
|
Operating Voltage |
22-28V |
|
Gain (S21) |
35±1dB |
|
Input Return Loss (S11) |
≤-15dB |
|
RF in Power |
-13~10dBm |
|
Output Power |
37dBm |
|
Current |
0.45A @24V, 37dBm |
|
Efficiency |
45%@37dBm |
|

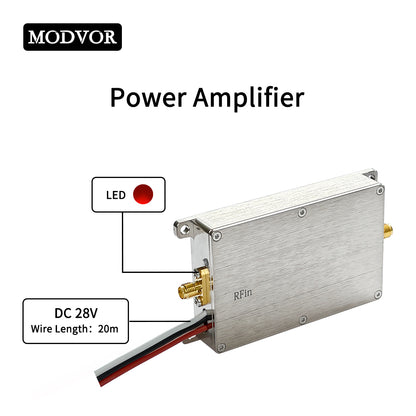

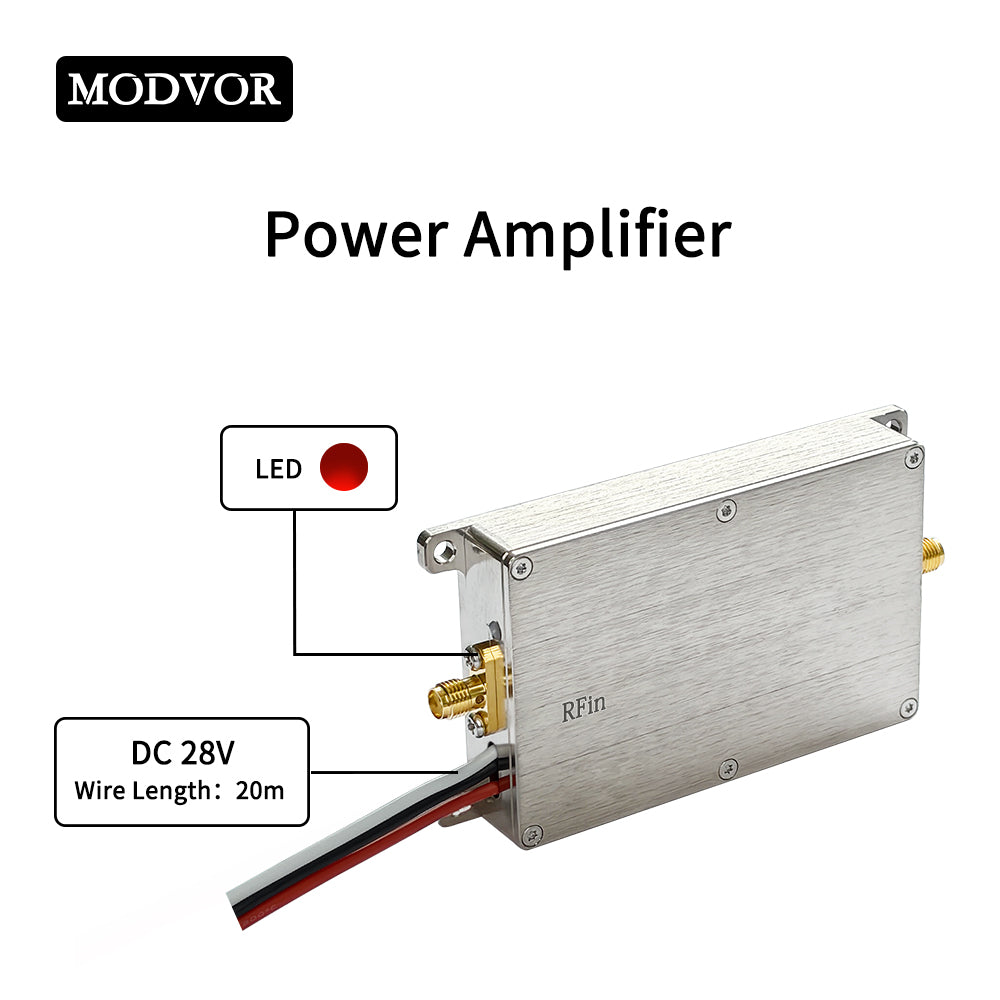

LED State |
Red |
|
Operating Temperature |
-30℃~85℃ |
|
Storage Temperature |
-40℃~150℃ |
|
Operating Humidity |
≤95%RH |
|

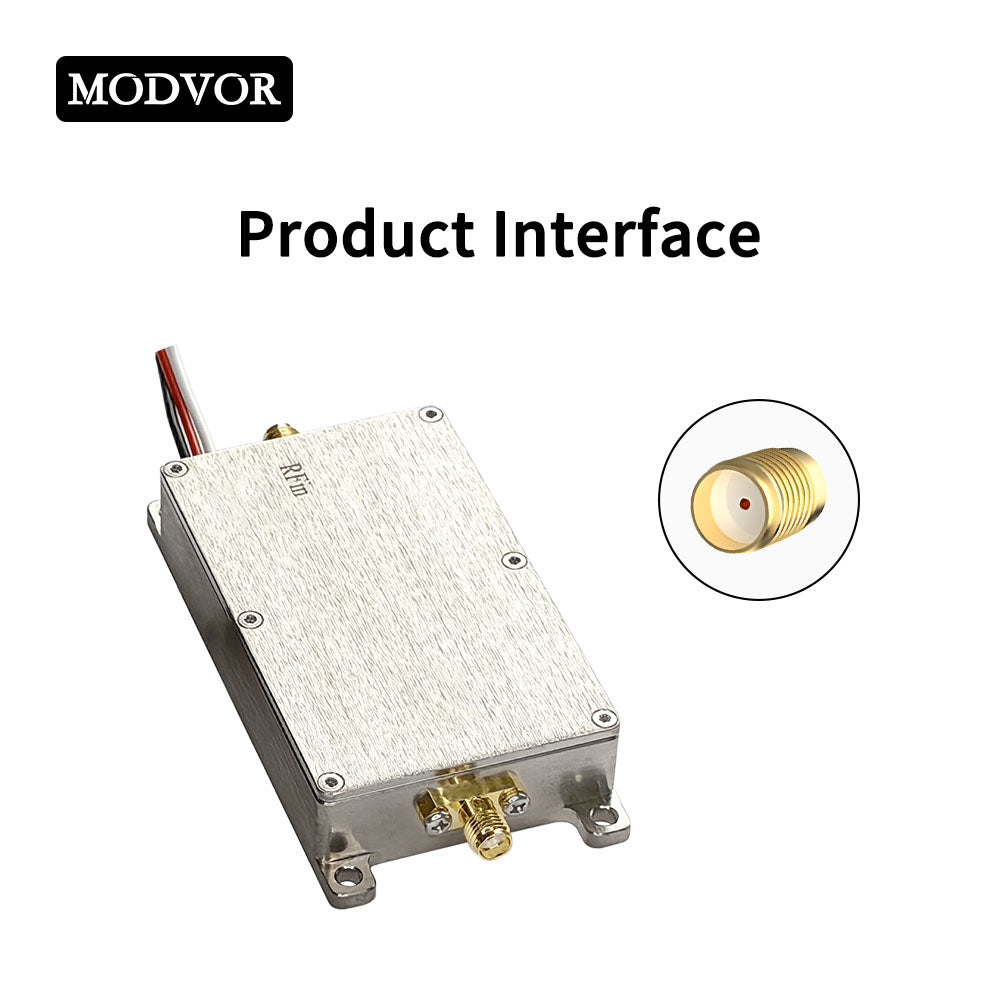

RF Connector |
Input: SMA-K; Output: SMA-K |
|

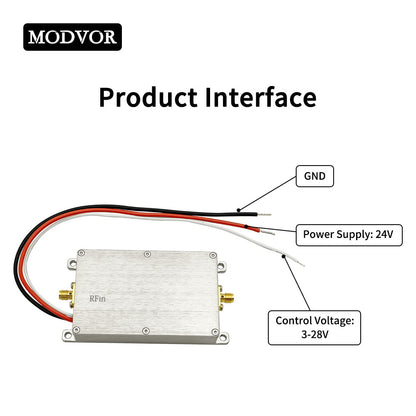

DC Connector |
AWG18 20cm red/black wire |
|

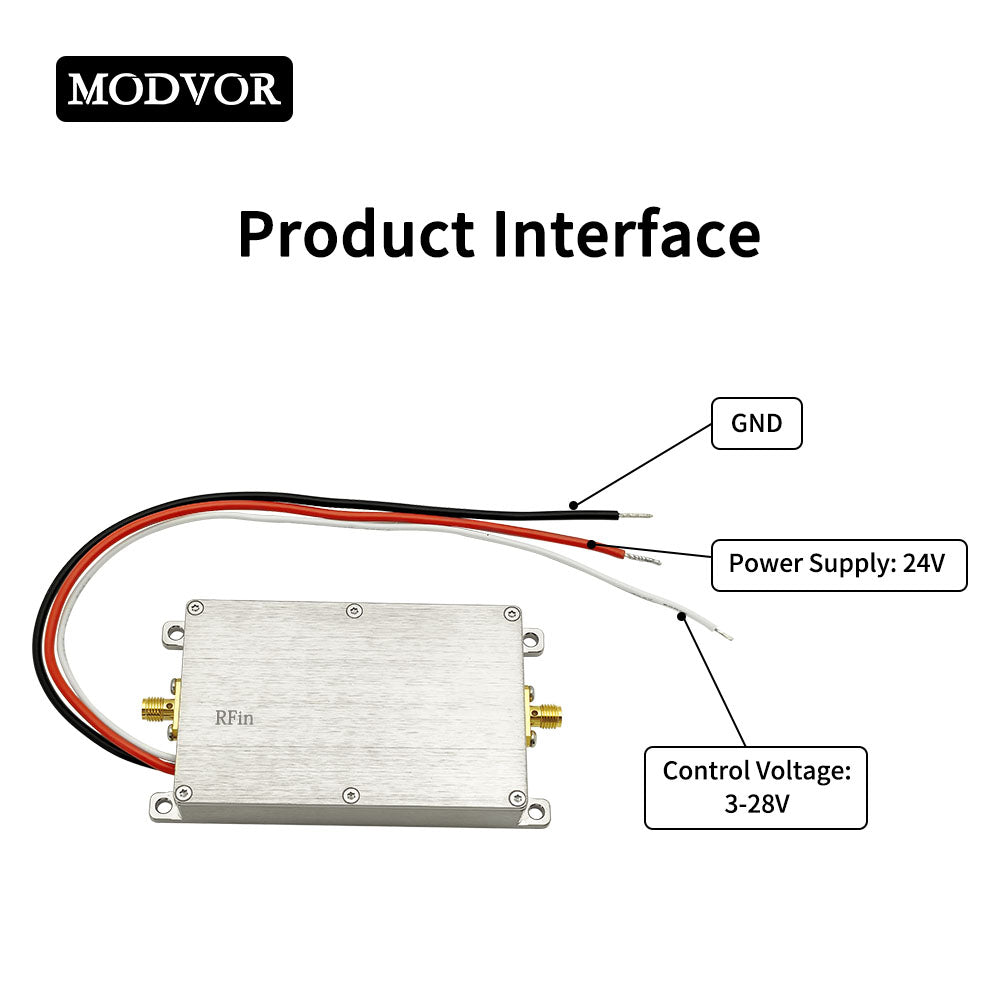

Power Control |
3-28V 20cm red wire |
|
Shell Material |
Aluminum |
|

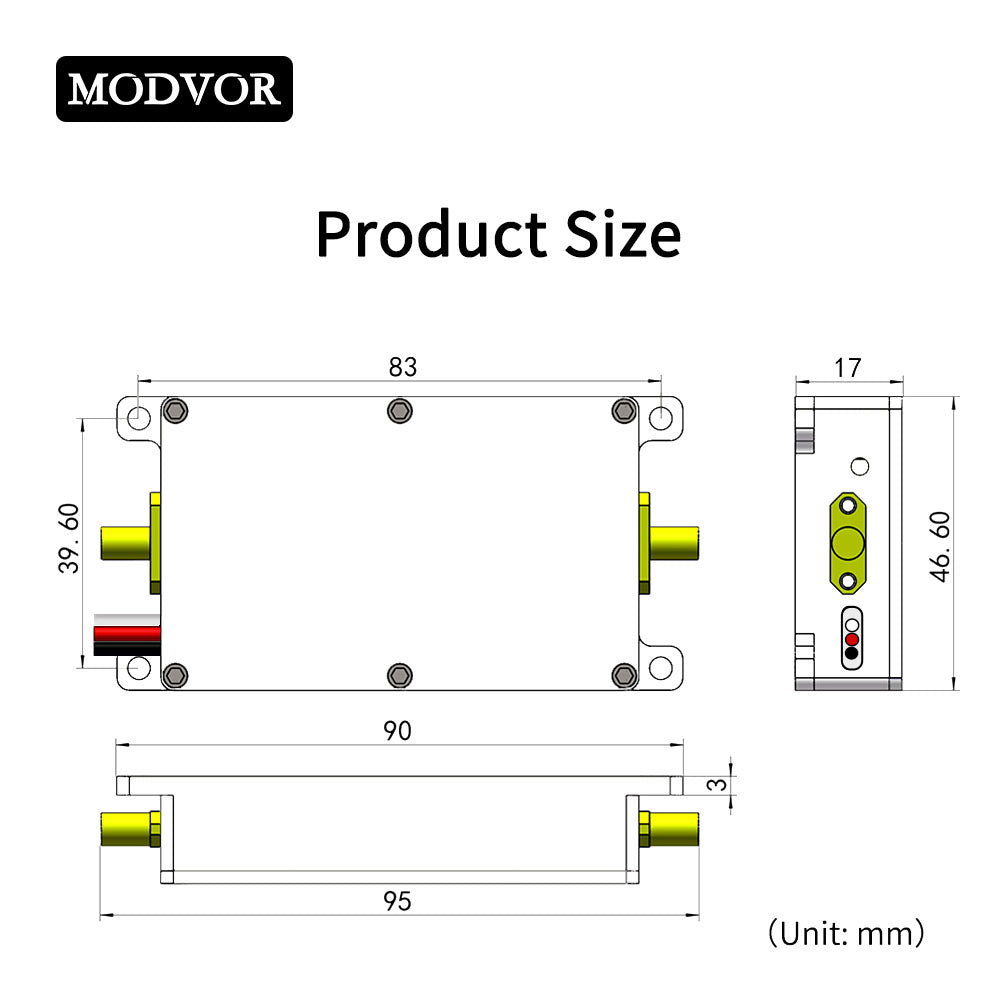

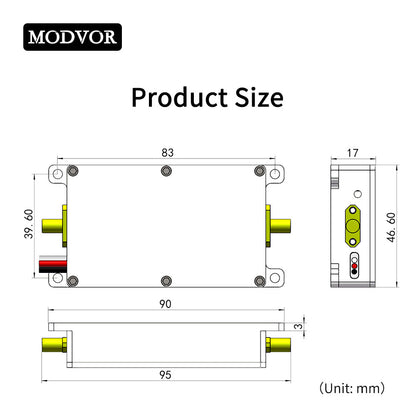

Shell Size |
90×46×17mm |
|
Net Weight |
120g |
Key Advantages
5.2GHz Transmit-Path Amplification. This RF Power Amplifier provides 35±1dB gain and 37dBm output for 5.15-5.35GHz links that require additional RF margin in the transmit chain.
UAV and Industrial Integration. The 22-28V DC input, SMA-K connectors, and dedicated 3-28V power control wire simplify installation in drone, ground-station, and remote industrial equipment.

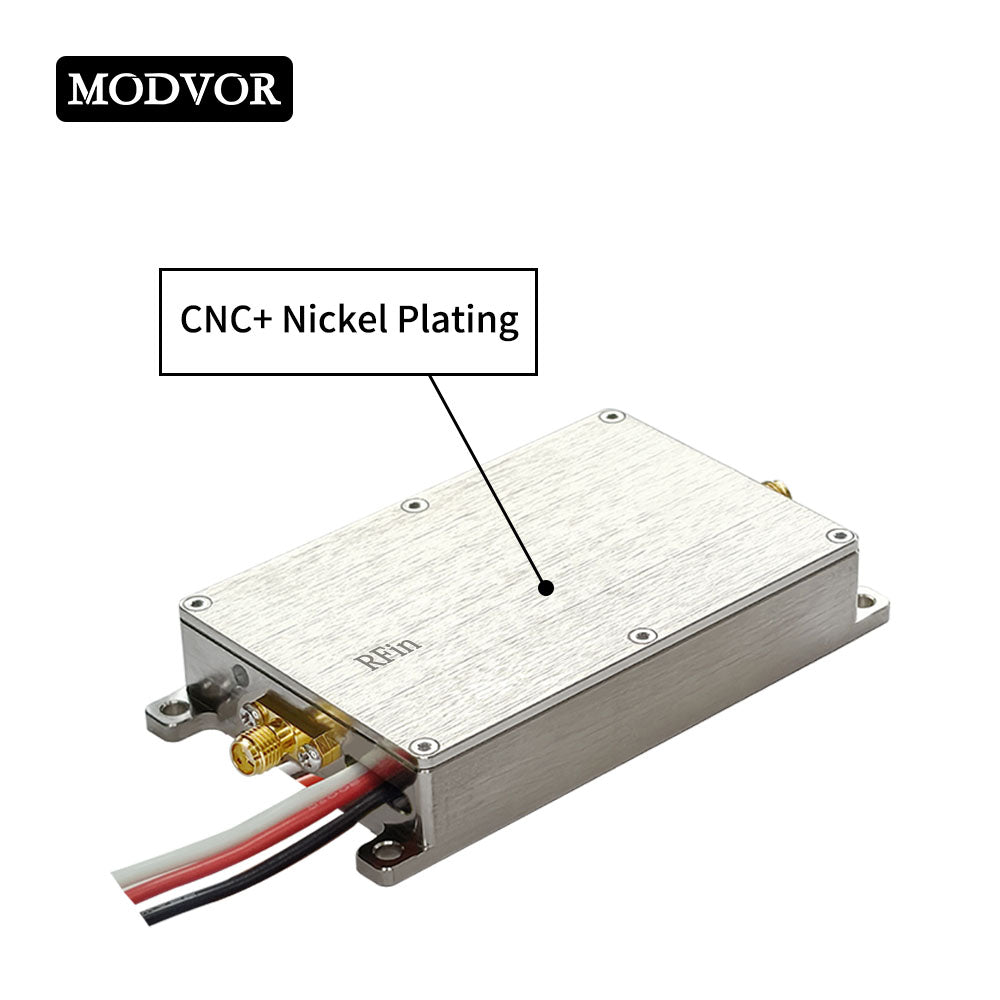

Compact Passive-Cooled Aluminum Housing. The 90×46×17mm enclosure weighs only 120g, offering passive cooling and mechanical protection for space-constrained, mobile, and airborne deployments.
What's in the Box
- 1 × 5.2GHz 5W RF Power Amplifier
