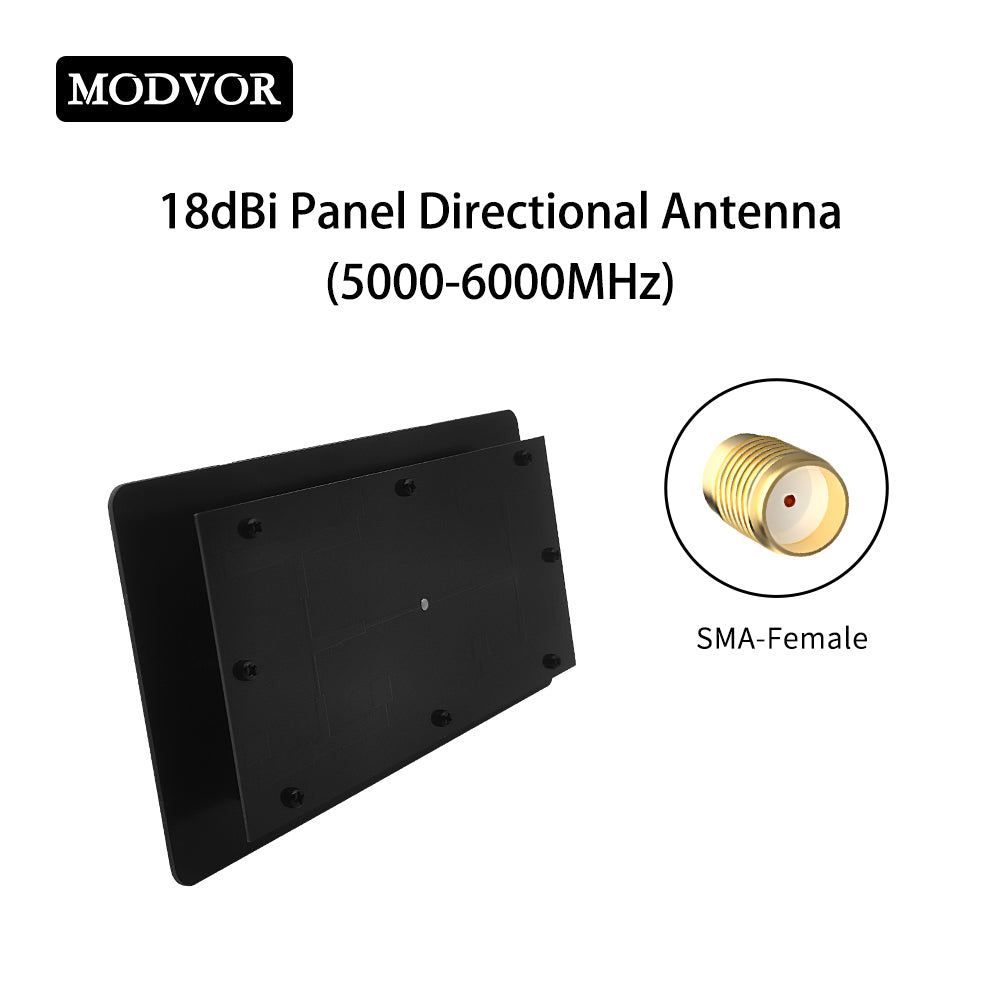

Product Description

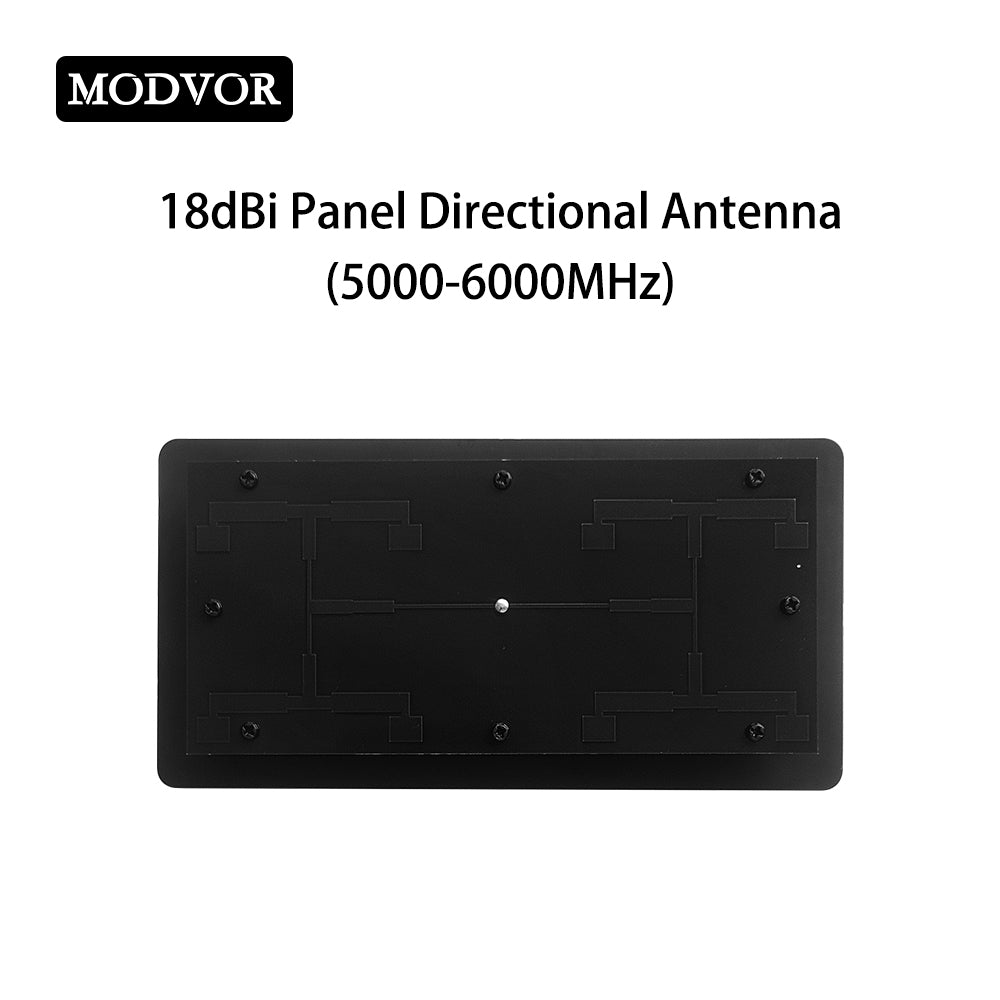

This antenna is a high-gain microstrip array antenna operating in the 5-6GHz frequency band. With compact dimensions of 165mm × 85mm ×14.5mm, it features a low-profile, lightweight architecture.
In terms of performance, the antenna achieves a stable gain of 18dBi and maintains a VSWR of less than 1.5 across the entire operating bandwidth, ensuring excellent impedance matching and signal transmission efficiency. It adopts horizontal polarization design with a 33° azimuth beamwidth and 17° elevation beamwidth, supporting up to 30W power handling and ≥90% antenna efficiency. Its high-gain directional radiation pattern concentrates RF energy to realize ultra-long-range point-to-point communication. Equipped with SMA-Female RF connector for easy and reliable connection to radio modules.
For functional advantages, the 1GHz ultra-wide bandwidth covers 5000–6000MHz, with a relative bandwidth of 18%. The flat panel form factor is easy to mount and install, suitable for outdoor deployment. It delivers stable directional signal focusing and minimizes signal loss during long-distance wireless transmission.
It is widely used for UAV relay communication nodes, 5G and dedicated LTE network wireless backhaul, reflector antenna feed, antenna measurement ranges, directional antennas for Electronic Attack (EA), and ground receiving stations for Synthetic Aperture Radar (SAR). It is also an ideal choice for long-range wireless bridge, industrial point-to-point data link and remote wireless surveillance systems.
Product Application
- UAV Relay Communication Nodes
- 5G/dedicated LTE network wireless backhaul
- Reflector antenna feed
- Antenna Measurement Ranges
- Directional Antennas for Electronic Attack (EA)
- Ground Receiving Station for Synthetic Aperture Radar (SAR)
Product Features
- 1G Ultra wideband, relative bandwidth 18%
- 18dBi High Gain
- 33°wide beam

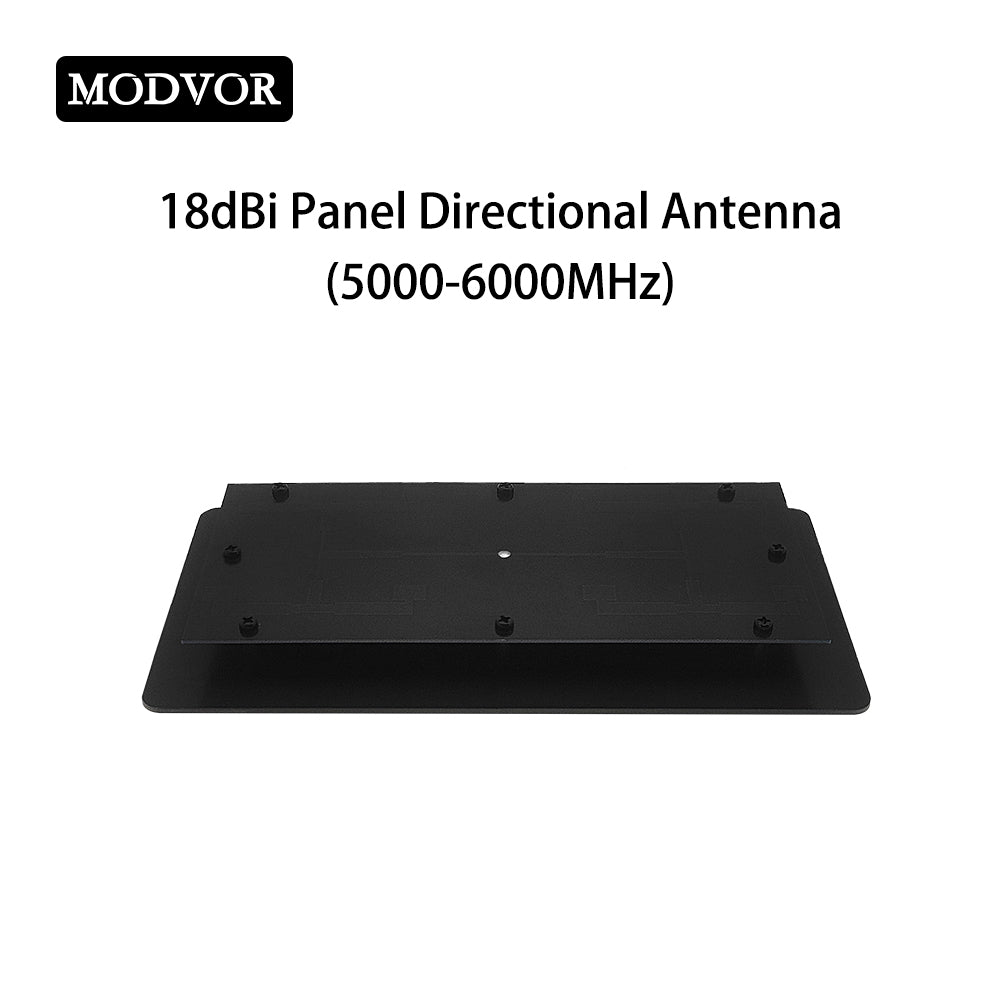

- 14.5mm low profile
Product Specifications
| Working band | 5000-6000MHz |
| Gain | 18dBi |
| VSWR | ＜1.5 |
| Efficiency | ≥90% |
| Polarization | Horizontal Polarization |
| EL HPBW | 17° |
| AZ HPBW | 33° |
| Input Impedance | 50Ω |
| Power Handing | 30W |
| RF Connector | SMA-Female |

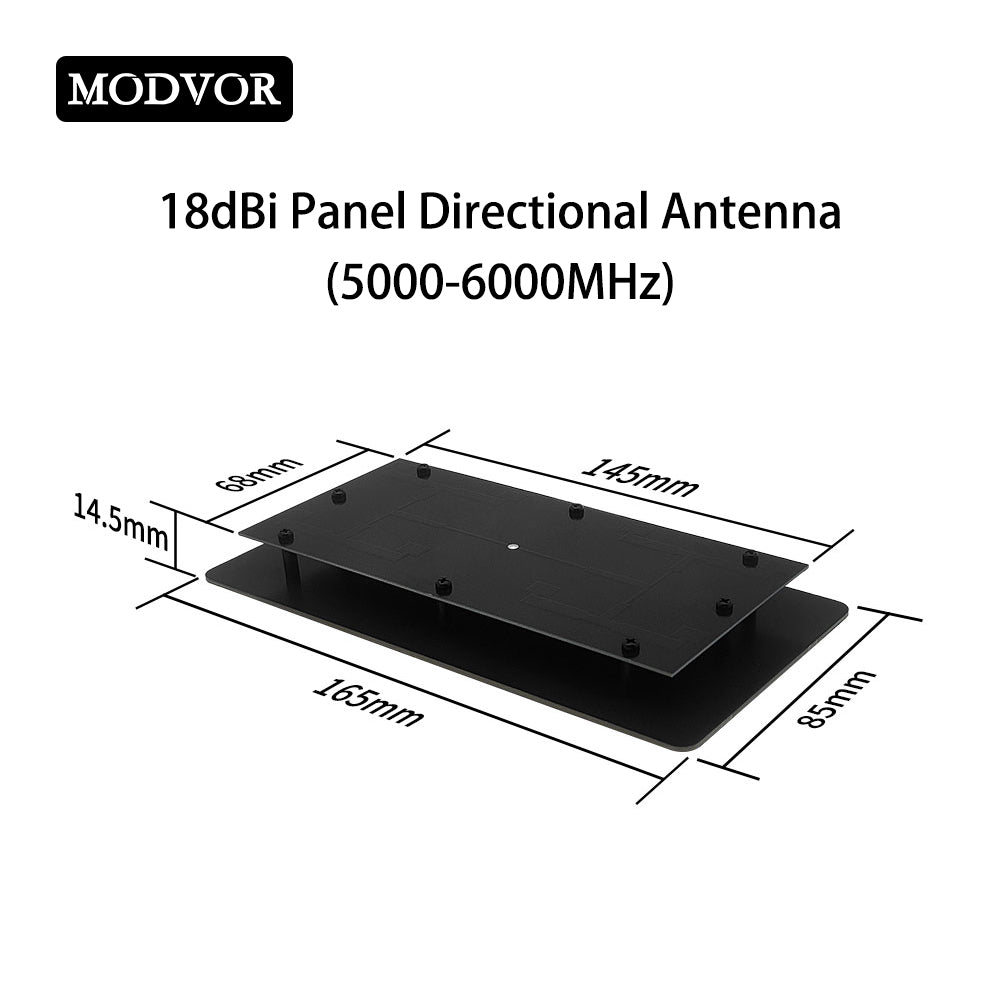

| Size | 165*85*14.5mm |
| Weight | 82g |

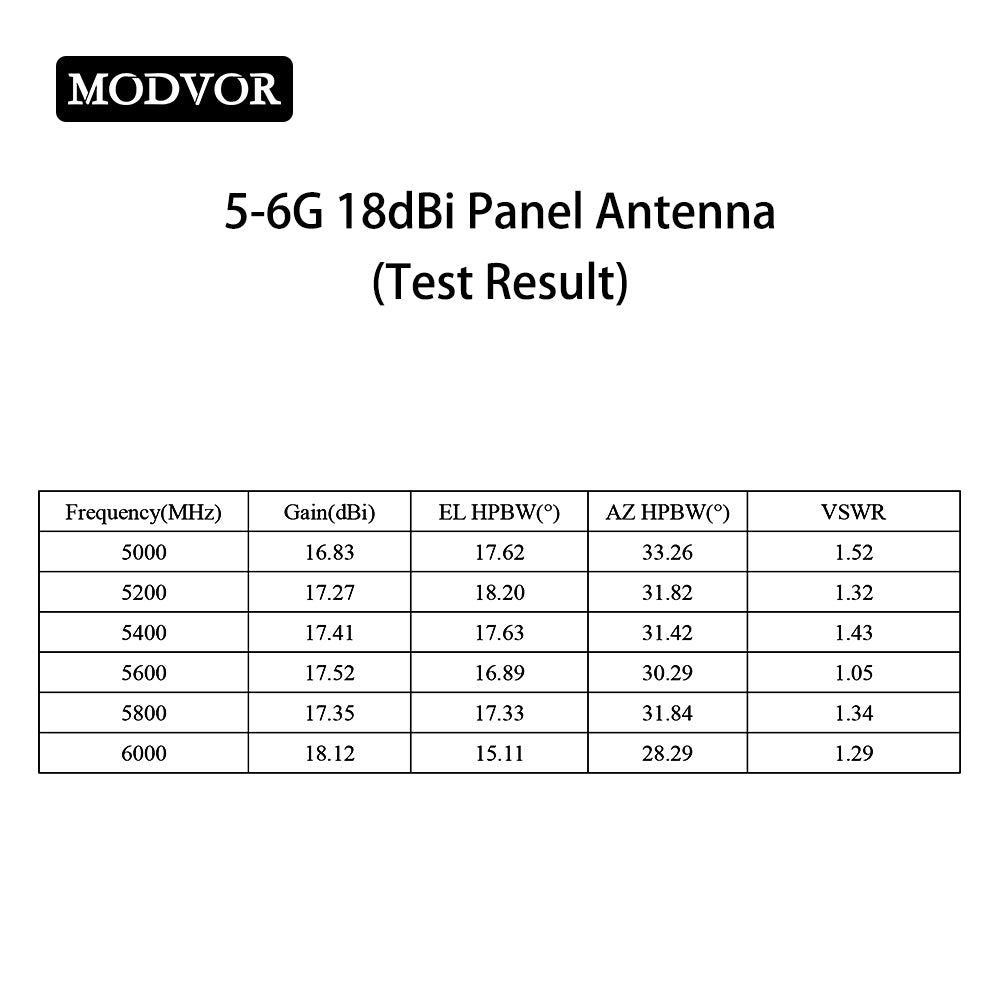

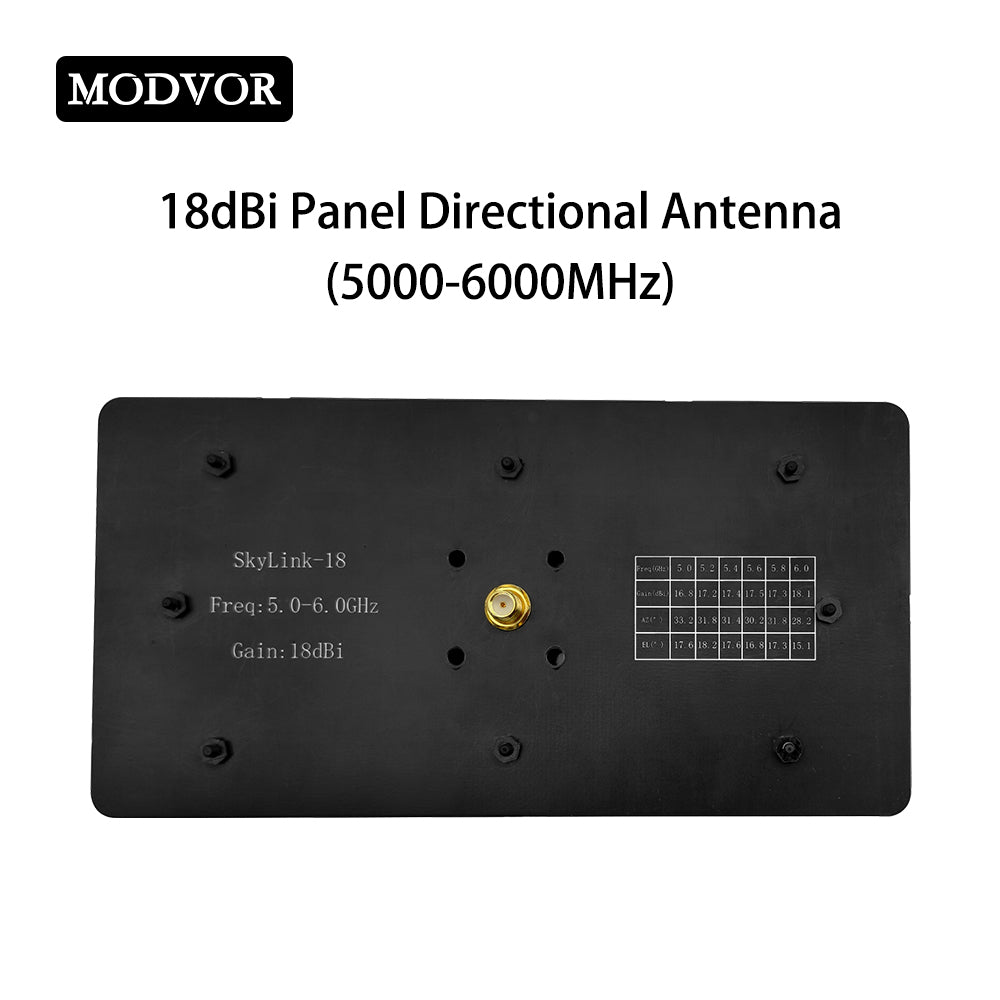

Test Result
| Frequency(MHz) | Gain(dBi) | EL HPBW(°) | AZ HPBW(°) | VSWR |
| 5000 | 16.83 | 17.62 | 33.26 | 1.52 |
| 5200 | 17.27 | 18.2 | 31.82 | 1.32 |
| 5400 | 17.41 | 17.63 | 31.42 | 1.43 |
| 5600 | 17.52 | 16.89 | 30.29 | 1.05 |
| 5800 | 17.35 | 17.33 | 31.84 | 1.34 |
| 6000 | 18.12 | 15.11 | 28.29 | 1.29 |
Package List
1 X 5-6G Panel Directional Antenna
