Product Description

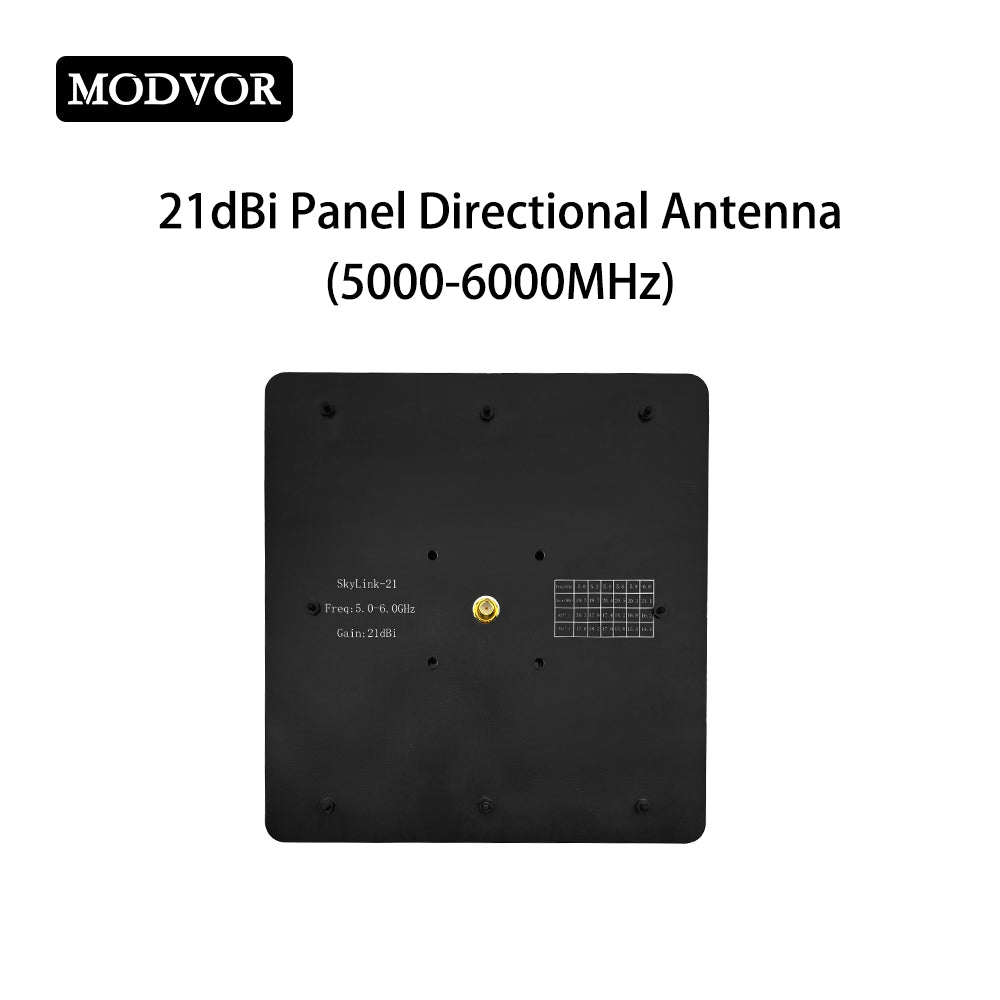

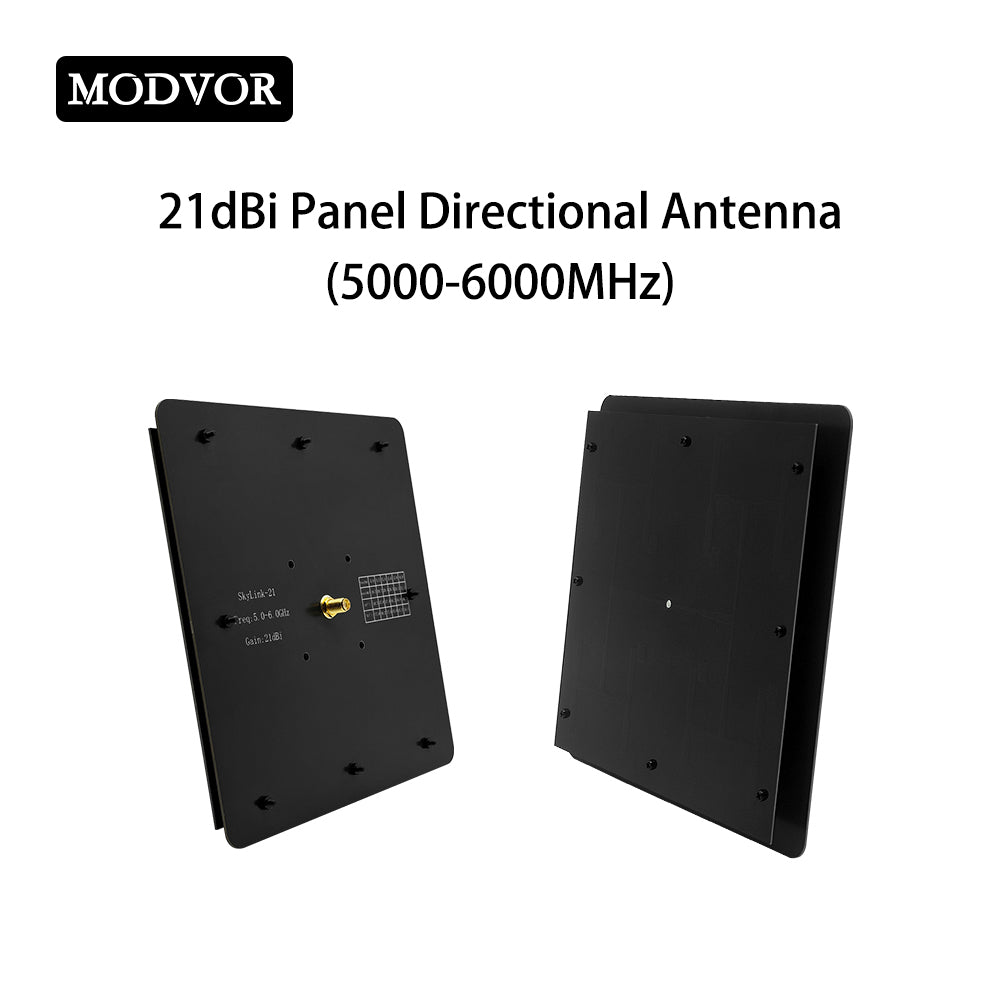

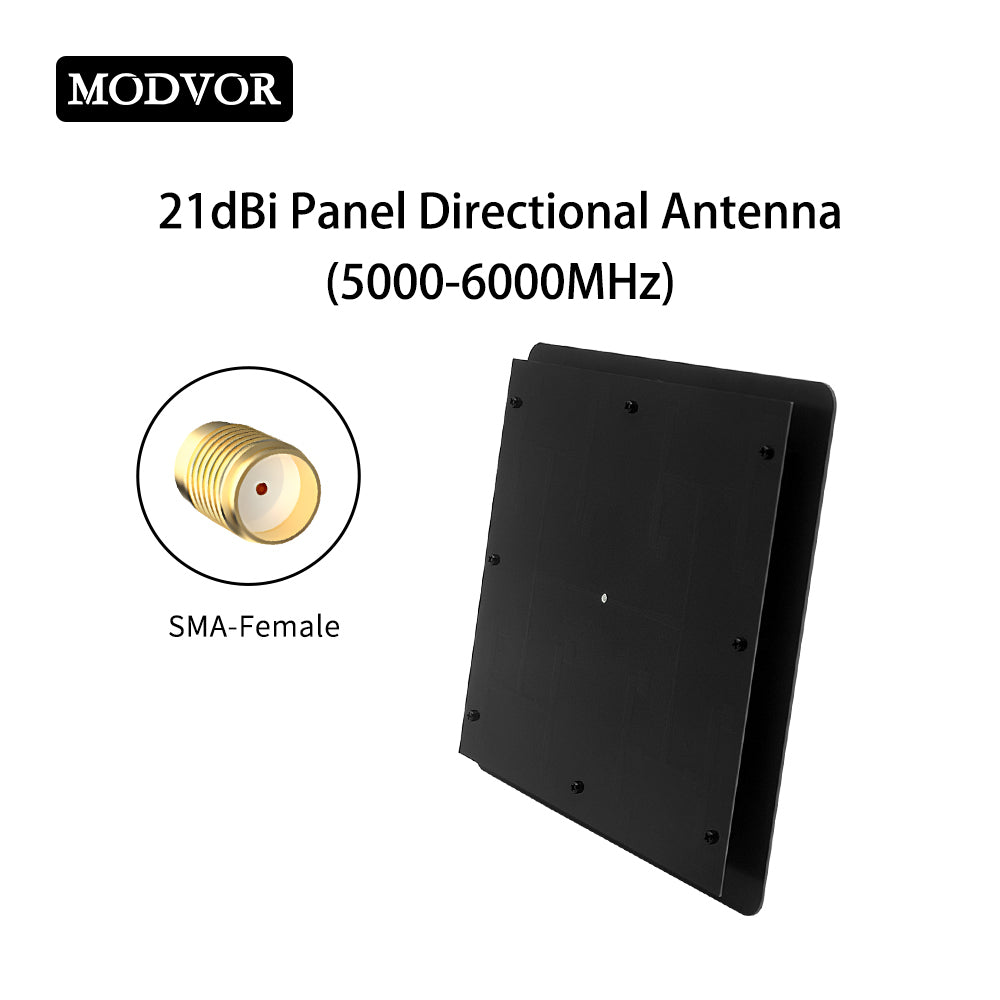

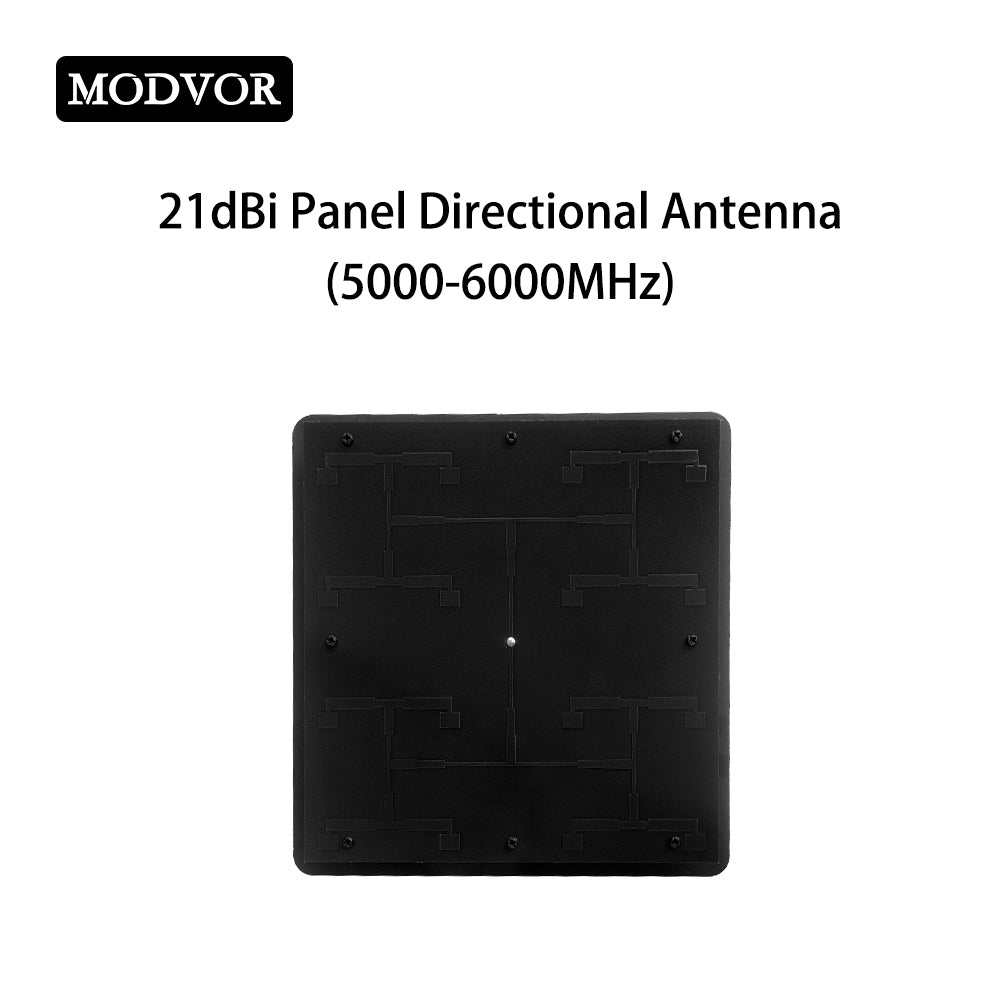

This antenna is a high-gain microstrip array antenna operating in the 5-6GHz frequency band. With compact dimensions of 175mm ×165mm ×14.5mm, it features a low-profile, lightweight architecture for easy wall or pole mounting. The directional panel antenna achieves a gain exceeding 21dBi and maintains a VSWR of less than 1.5 across the entire operating bandwidth, ensuring excellent impedance matching and high signal transmission efficiency. Its high-gain directional radiation pattern concentrates signal energy, supporting stable ultra-long-range wireless communication.
Designed for outdoor deployment, it has good weather resistance to withstand harsh outdoor environments. It is widely used for point-to-point wireless bridge, 5.8G long range WiFi communication, wireless backhaul, remote video surveillance and other outdoor wireless data transmission scenarios. Ideal for building-to-building connectivity, campus network extension and industrial remote wireless links.
Product Application
- UAV Relay Communication Nodes
- 5G/dedicated LTE network wireless backhaul
- Reflector antenna feed
- Antenna Measurement Ranges
- Directional Antennas for Electronic Attack (EA)
- Ground Receiving Station for Synthetic Aperture Radar (SAR)
Product Features
- 1G Ultra wideband, relative bandwidth 18%
- 21dBi High Gain

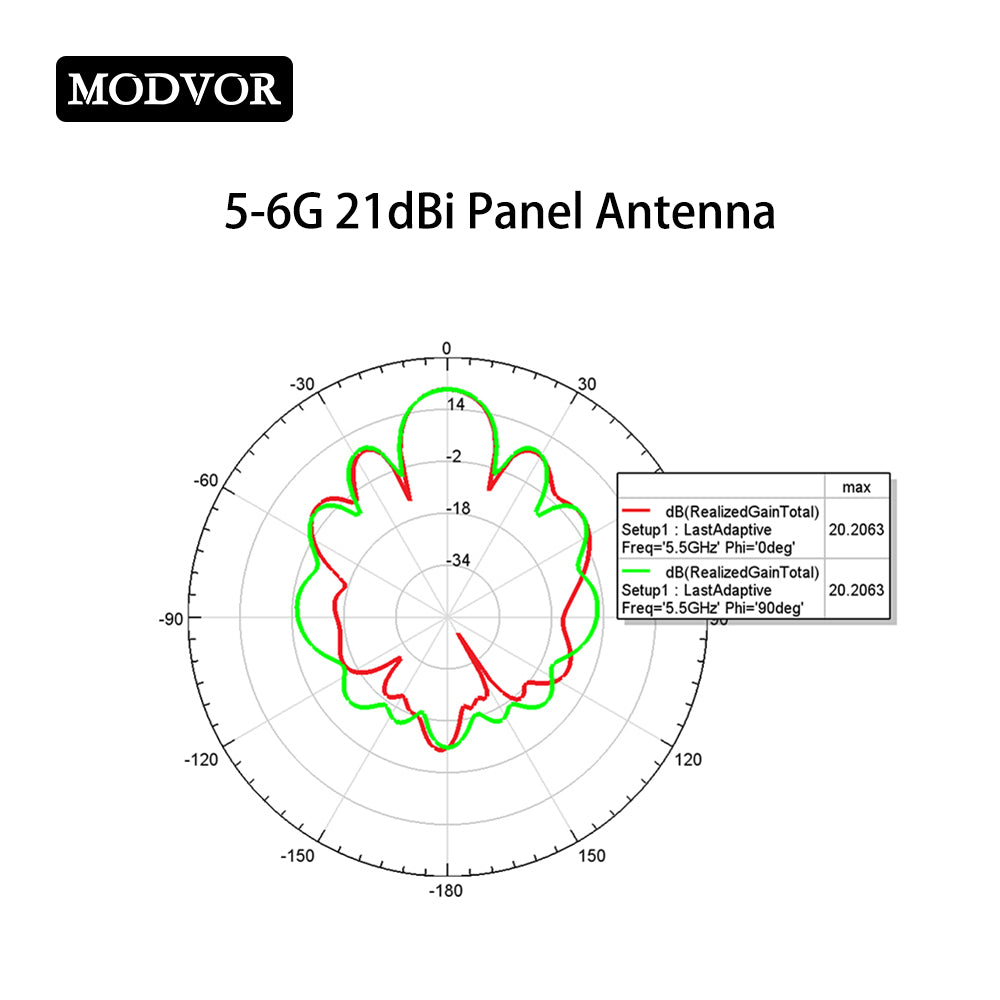

- 19°wide beam
- 14.5mm low profile
Product Specifications
| Working band | 5000-6000MHz |
| Gain | 21dBi |

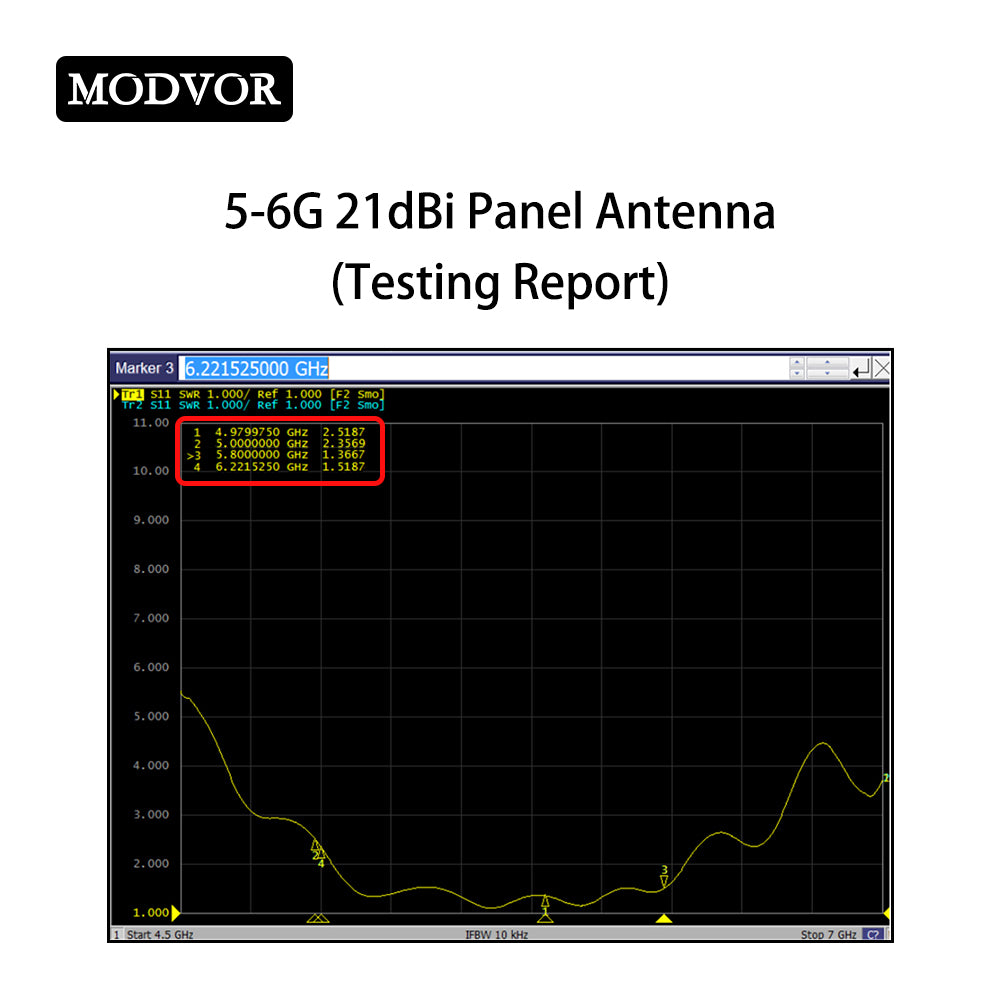

| VSWR | ＜1.5 |
| Efficiency | ≥90% |
| Polarization | Horizontal Polarization |

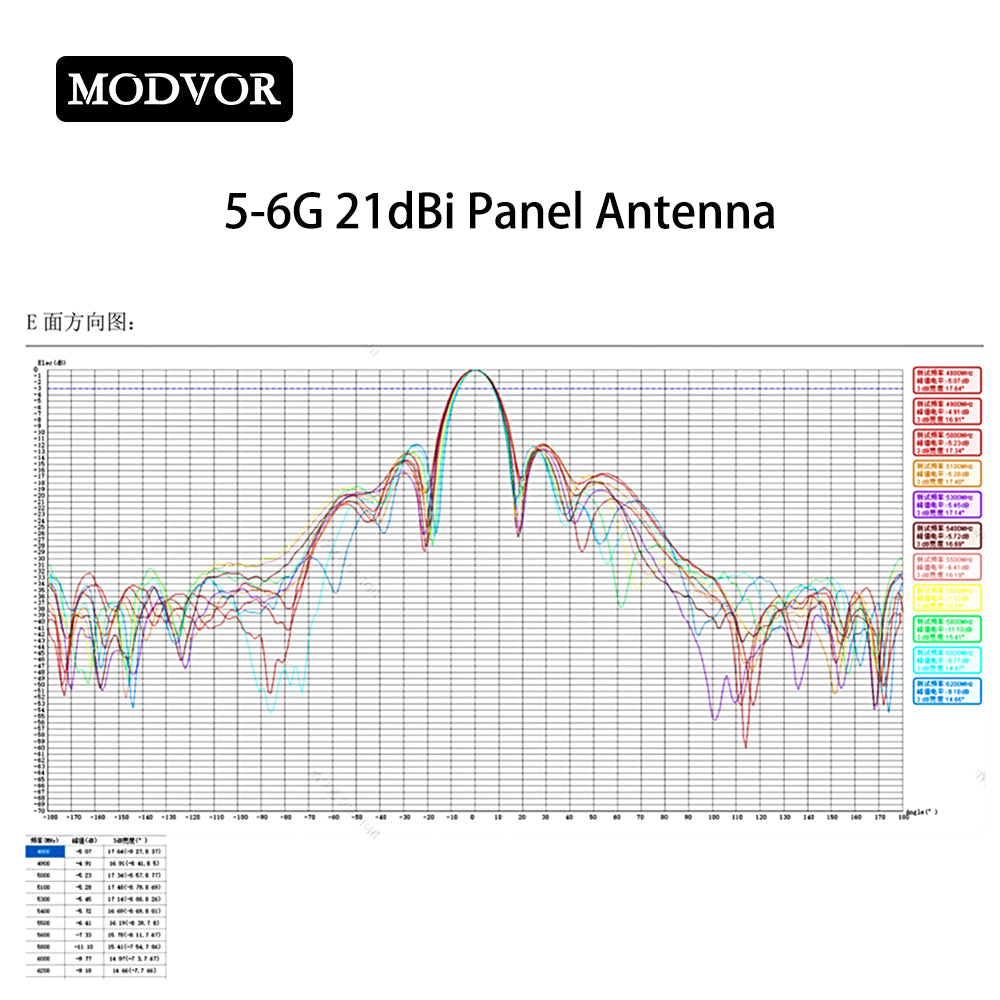

| EL HPBW | 18° |

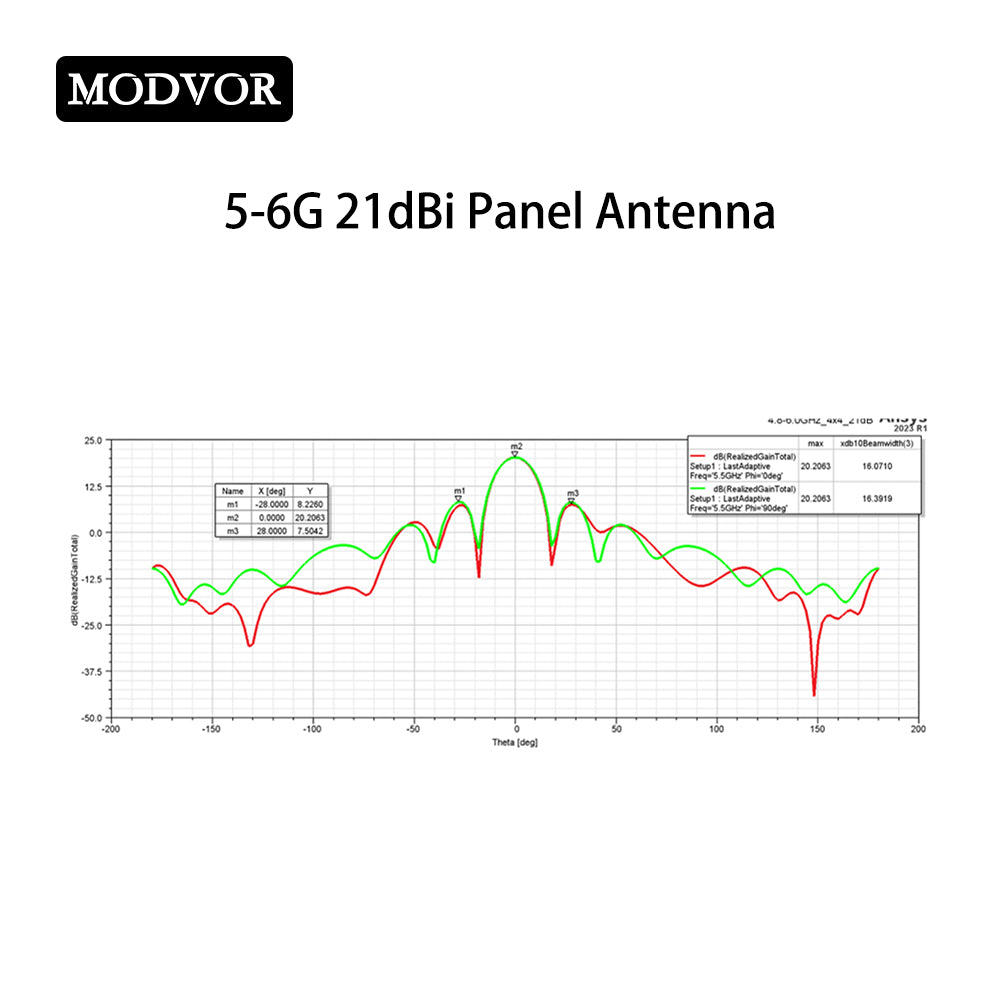

| AZ HPBW | 19° |
| Input Impedance | 50Ω |
| Power Handing | 30W |
| RF Connector | SMA-Female |
| Size | 175*165*14.5mm |
| Weight | 170g |

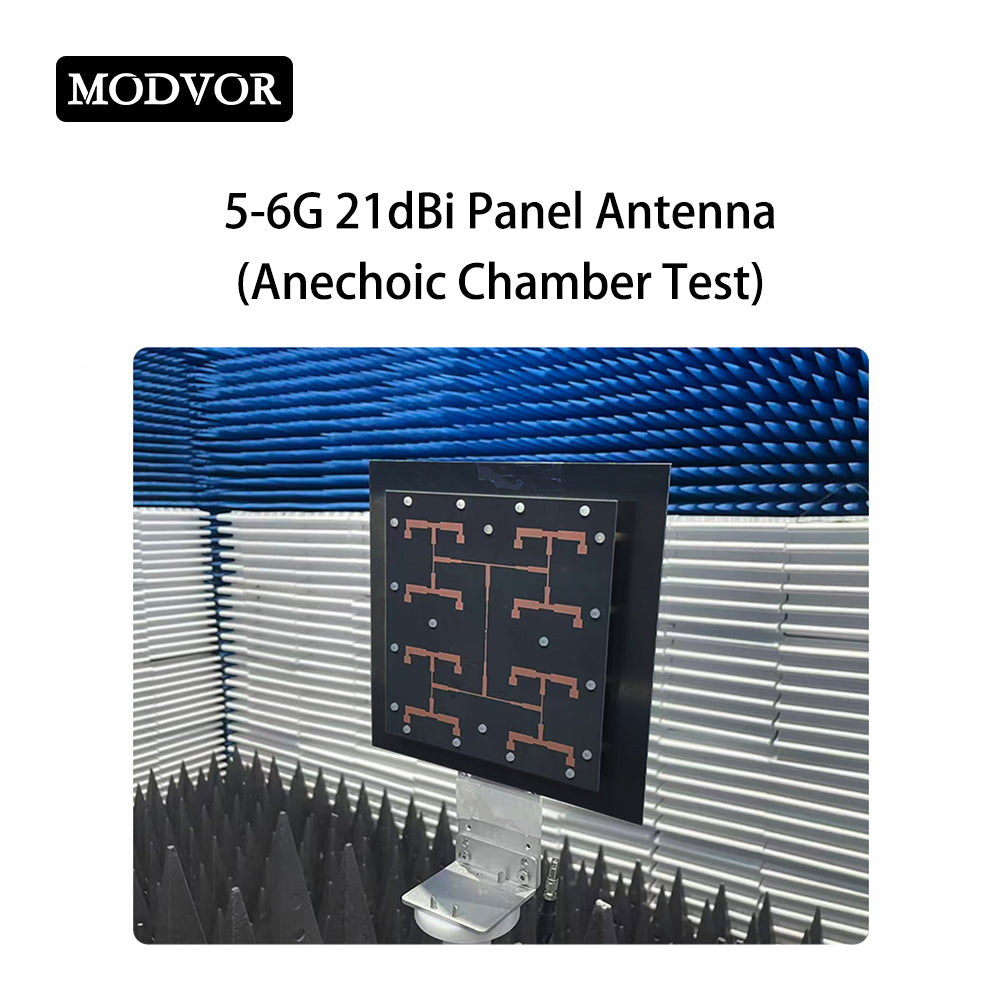

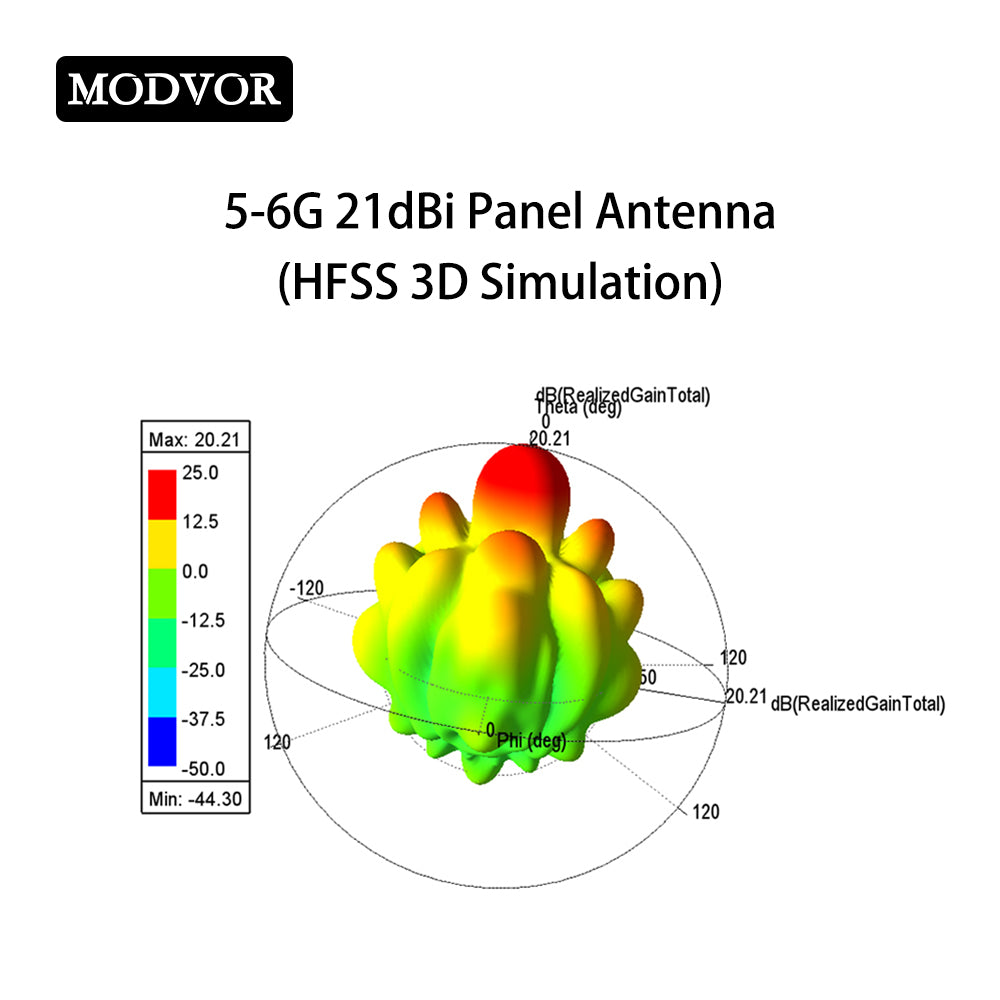

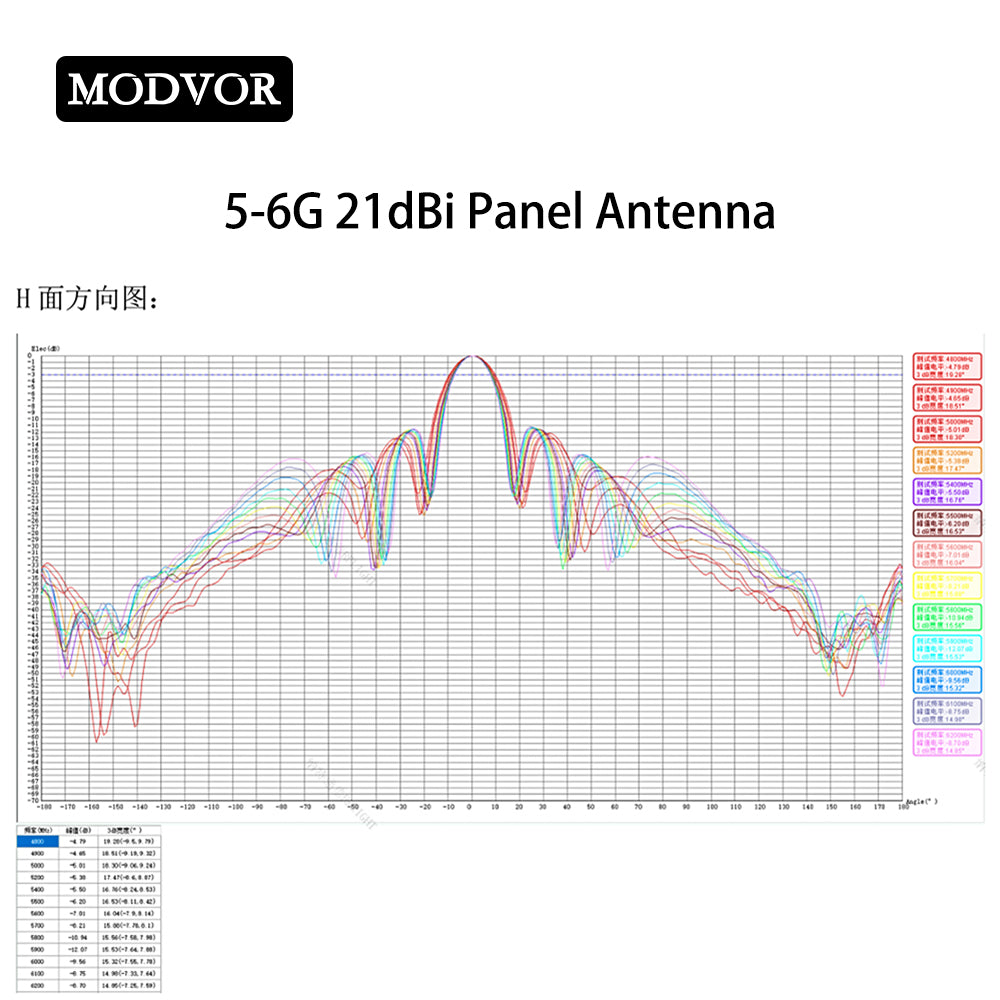

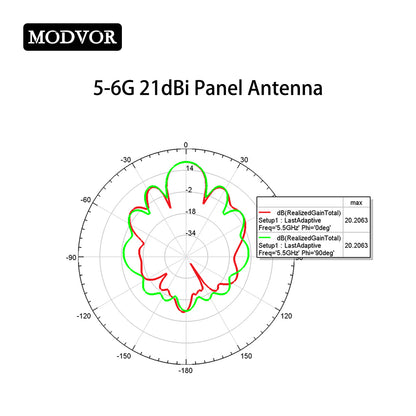

Test Result

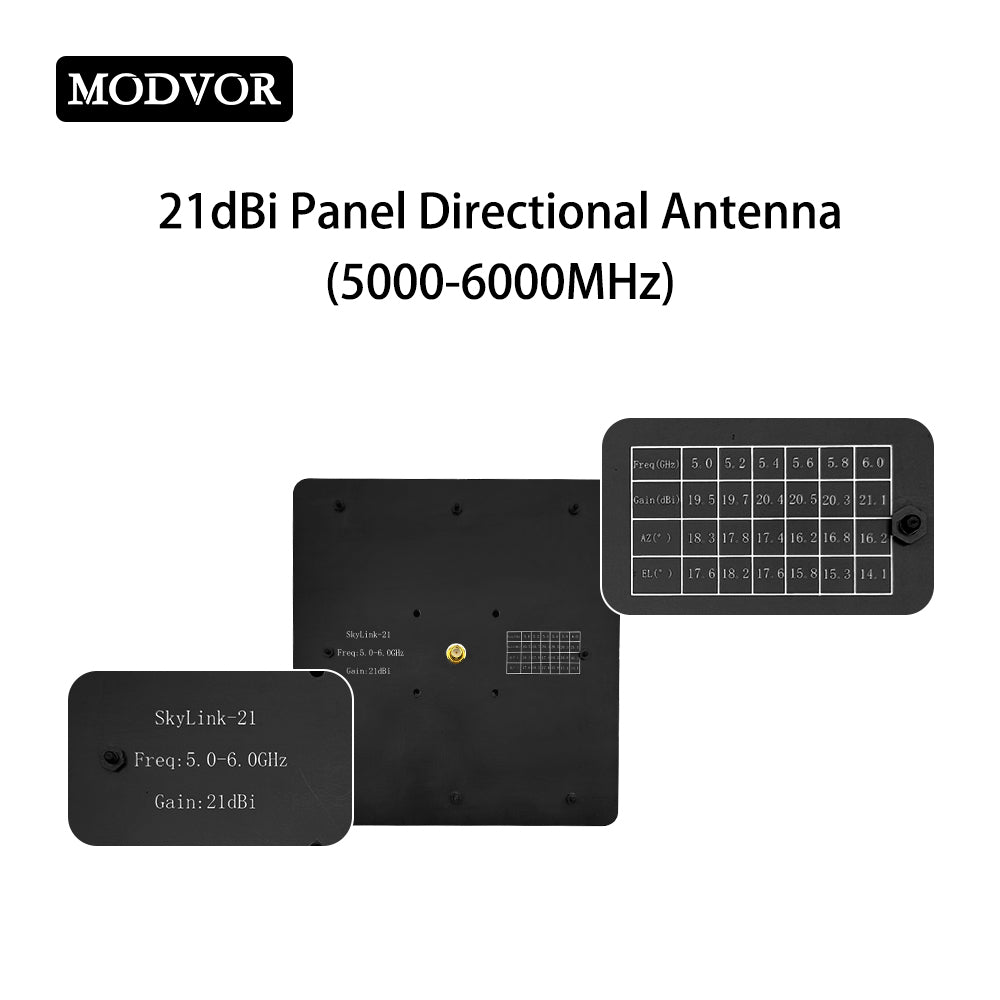

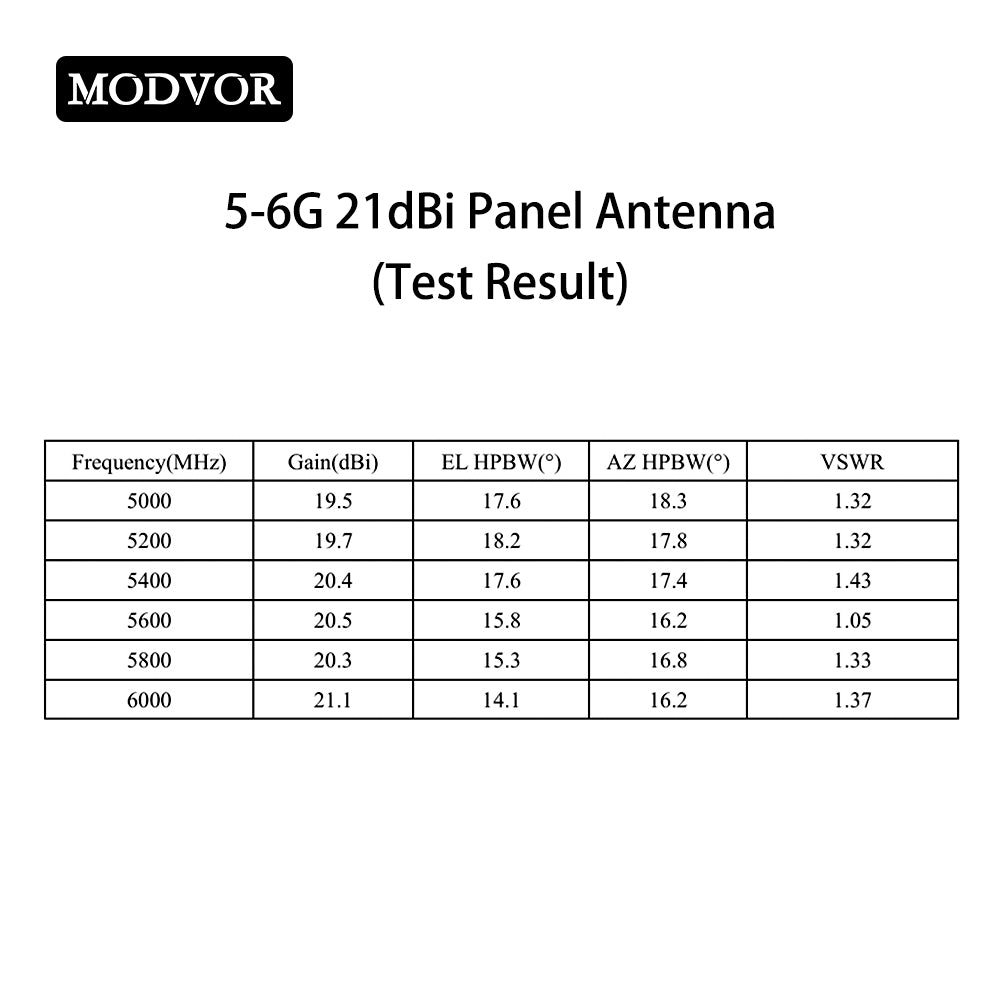

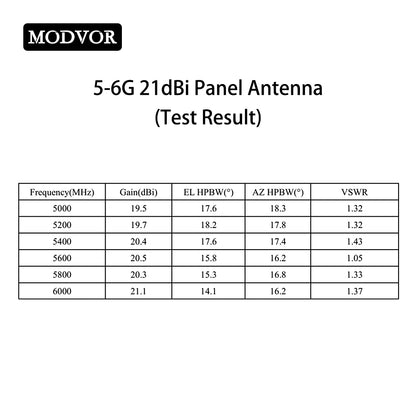

| Frequency(MHz) | Gain(dBi) | EL HPBW(°) | AZ HPBW(°) | VSWR |
| 5000 | 19.5 | 17.6 | 18.3 | 1.32 |
| 5200 | 19.7 | 18.2 | 17.8 | 1.32 |
| 5400 | 20.4 | 17.6 | 17.4 | 1.43 |
| 5600 | 20.5 | 15.8 | 16.2 | 1.05 |
| 5800 | 20.3 | 15.3 | 16.8 | 1.33 |
| 6000 | 21.1 | 14.1 | 16.2 | 1.37 |
Package List
1 X 5-6G Panel Directional Antenna
