Product Description

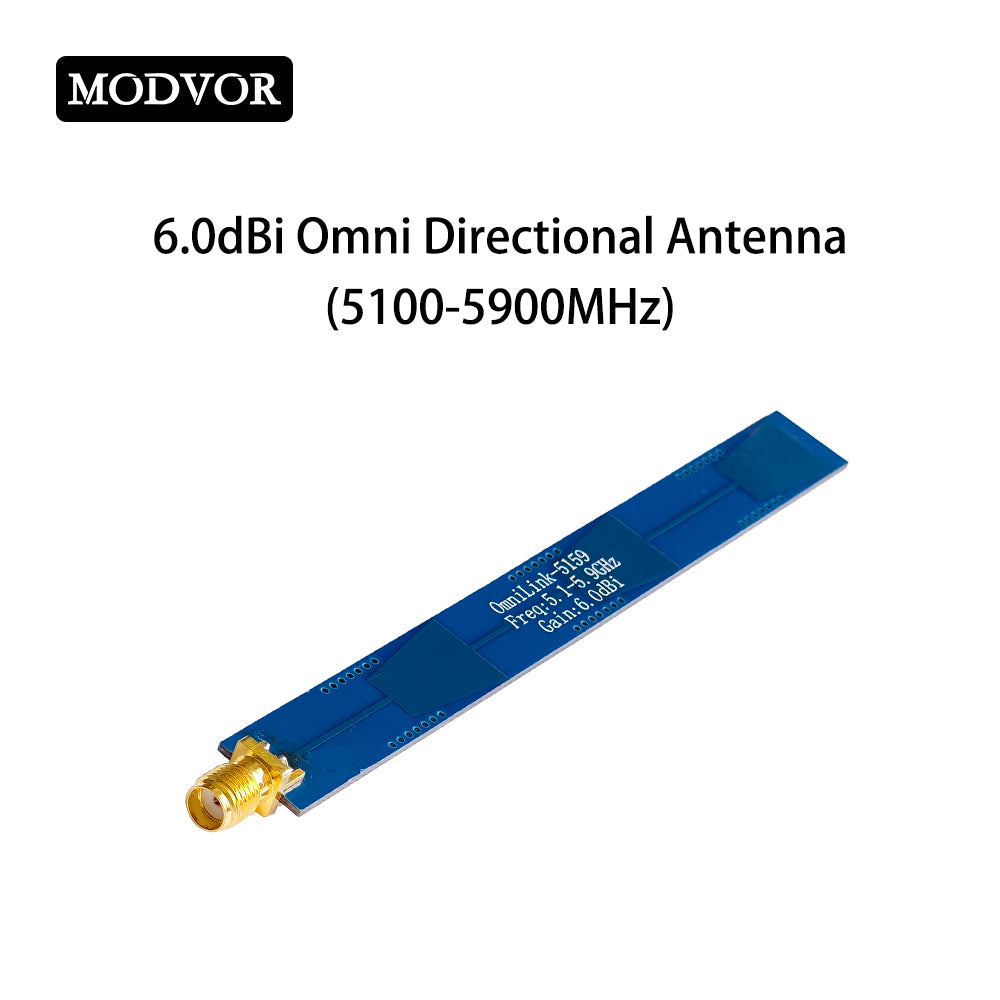

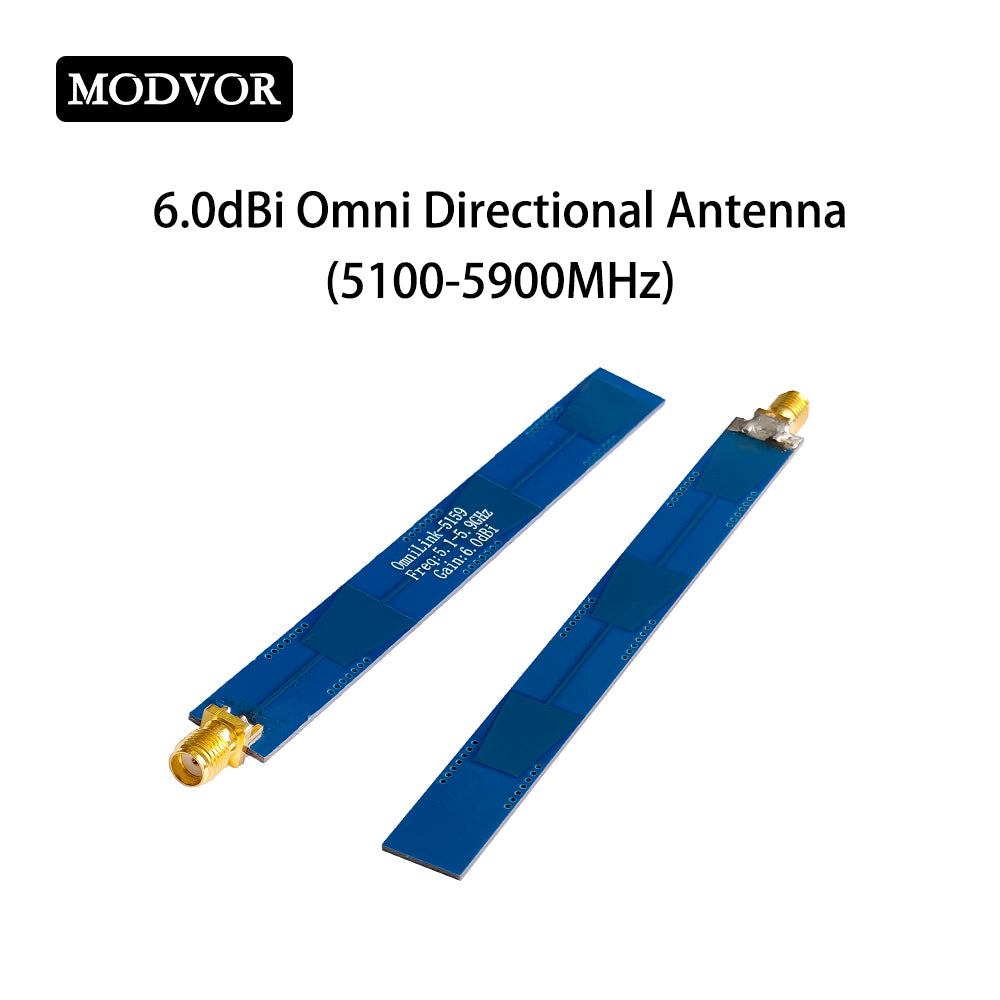

Our 5.8G omnidirectional wifi antenna long range is a high‑performance wide‑band aerial specially engineered for stable long‑range wireless transmission across the 5100‑5900 MHz frequency spectrum. Delivering a peak gain of 6dBi, this omni directional outdoor antenna provides full 360° azimuth (horizontal) signal coverage.
Built with horizontal polarization design, the high gain antenna features excellent radiation performance with radiation efficiency reaching no less than 90%, which greatly reduces signal loss and improves the reliability of long‑distance wireless data and video links. It maintains a very low VSWR of less than 1.7 across its entire working band, ensuring good impedance matching between the antenna and your RF transceiver module, avoiding signal reflection and power waste.

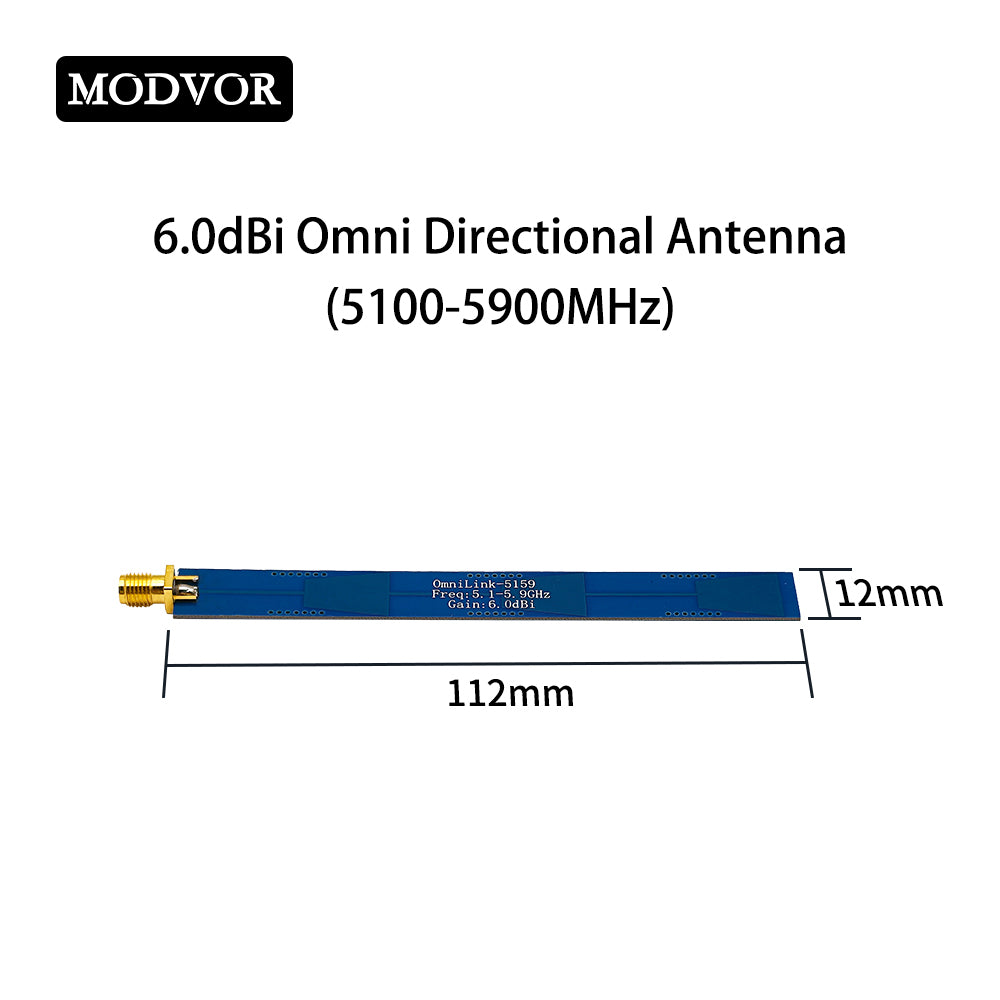

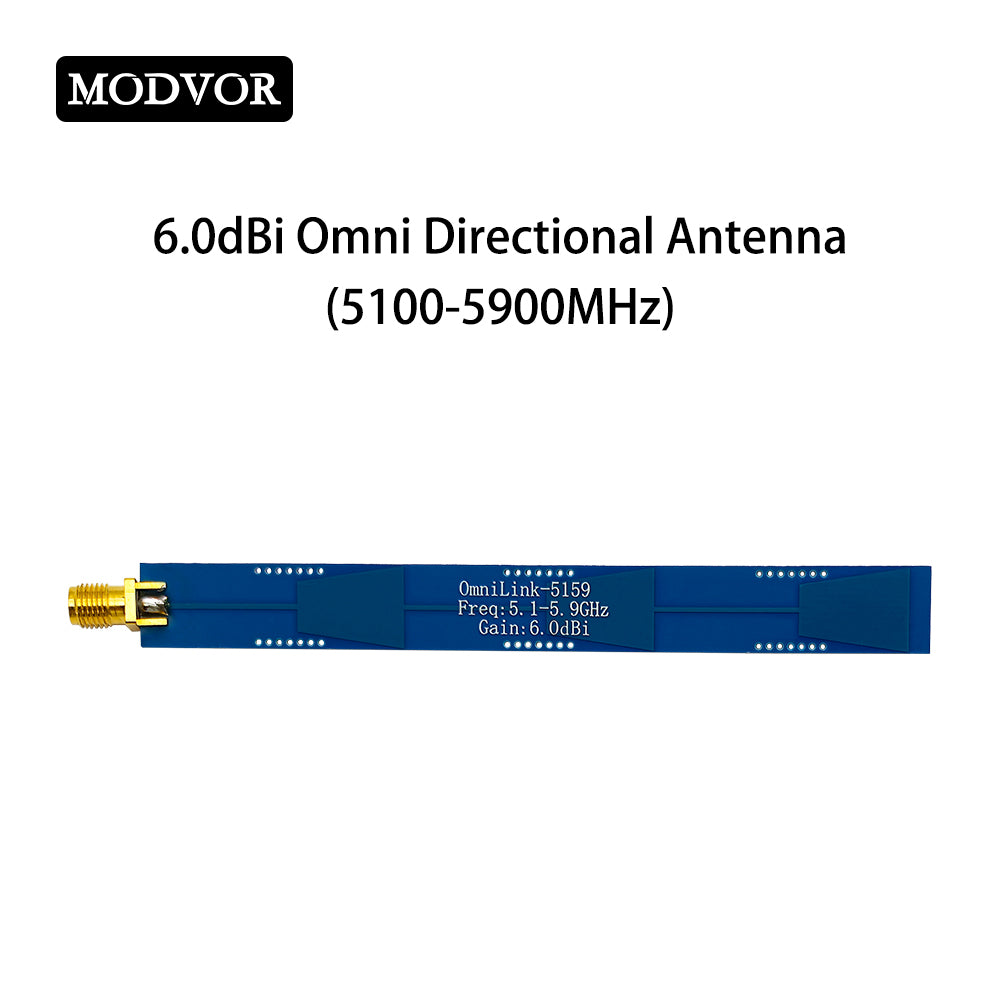

Adopting an ultra‑thin and compact PCB structure, its dimension is only 12*112*1 mm with an ultra‑light weight of just 5 grams. The slim profile takes up very little installation space and brings nearly zero load burden to your equipment. We provide optional SMA‑Female or SMA‑Male RF connectors for flexible installation, which can be quickly matched to various radio transmitters, receivers and data‑link hardware.
This rugged long range drone antenna is an ideal upgrade solution for long‑range wireless communication, broadband radio transmission, mobile data link and other 5.8‑GHz wireless systems.
Product Application
- Long‑range Telemetry & Data‑Link Ground Station
- 5 GHz outdoor Wi‑Fi base stations
- Mobile Robot Communications
- Long‑distance real‑time video transmission
- Industrial broadband radio links
- Outdoor remote‑monitoring wireless system
- 5.8 GHz industrial wireless communication modules
Product Features
- 1G Ultra wideband, relative bandwidth 18%
- 6.0dBi High Gain
- 360° Omnidirectionality
Product Specifications
| Working band | 5100-5900 MHz |
| Gain | 6.0 dBi |
| VSWR | ＜1.7 |
| Efficiency | ≥90% |
| Polarization | Horizontal polarization |
| EL HPBW | 27° |
| AZ HPBW | 360° |
| Input Impedance | 50Ω |
| Power Handing | 30 W |
| RF Connector | SMA - Female / SMA- Male |
| Size | 12*112*1 mm |
| Weight | 5g |
Test Result
| Frequency (MHz) | Gain (dBi) | Circularity (dB) | EL HPBW(°) | AZ HPBW(°) | VSWR |
| 5100 | 5.57 | 1.07 | 27.2 | 360 | 1.33 |
| 5300 | 5.67 | 0.82 | 27.15 | 360 | 1.4 |
| 5500 | 5.1 | 0.71 | 29.18 | 360 | 1.58 |
| 5700 | 5.63 | 1.09 | 27.29 | 360 | 1.57 |
| 5800 | 5.96 | 1.42 | 25.24 | 360 | 1.68 |
| 5900 | 6.29 | 2.12 | 23.81 | 360 | 1.43 |
Package List
1 X 5.1-5.9 GHz Omni Dipole Antenna
