Product Description

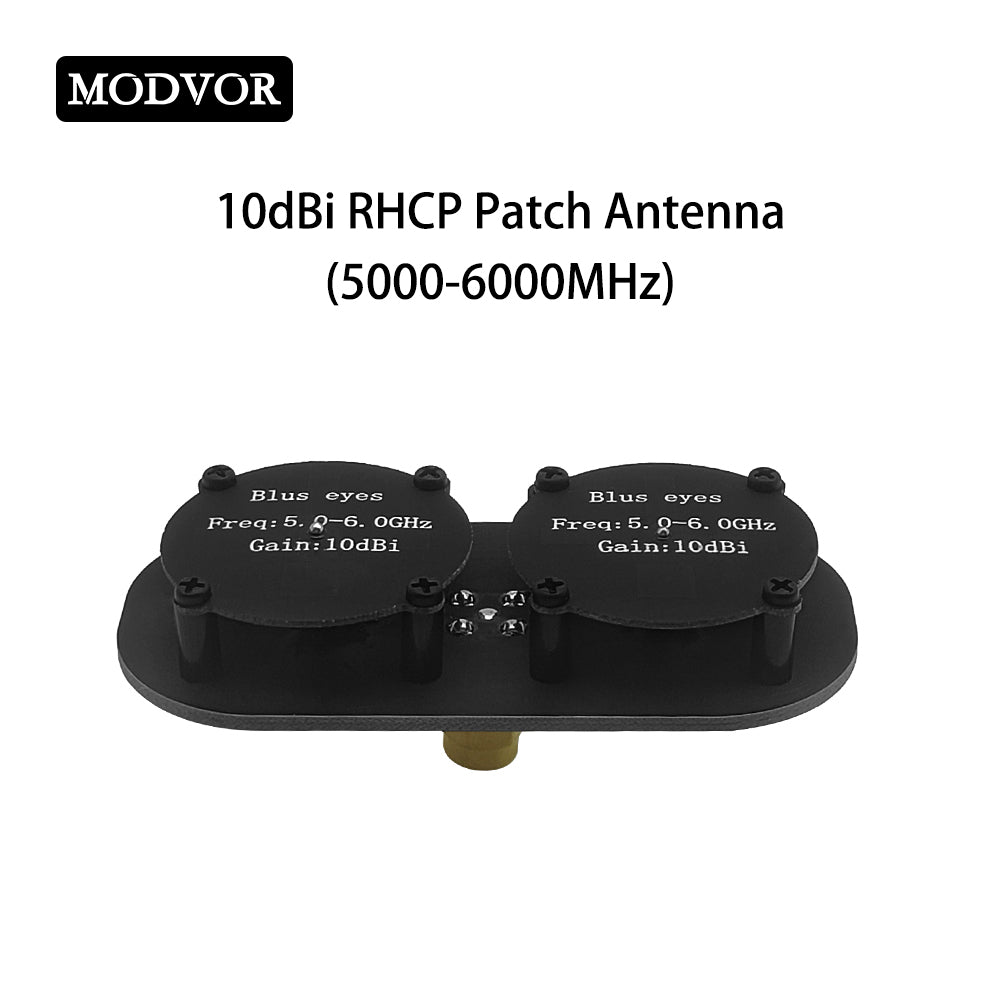

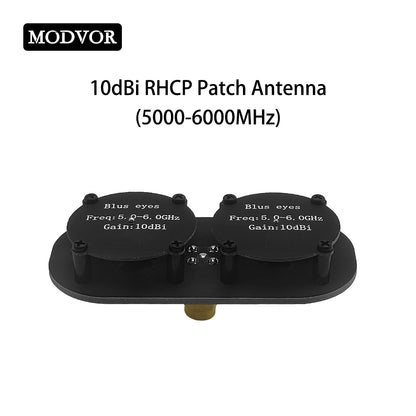

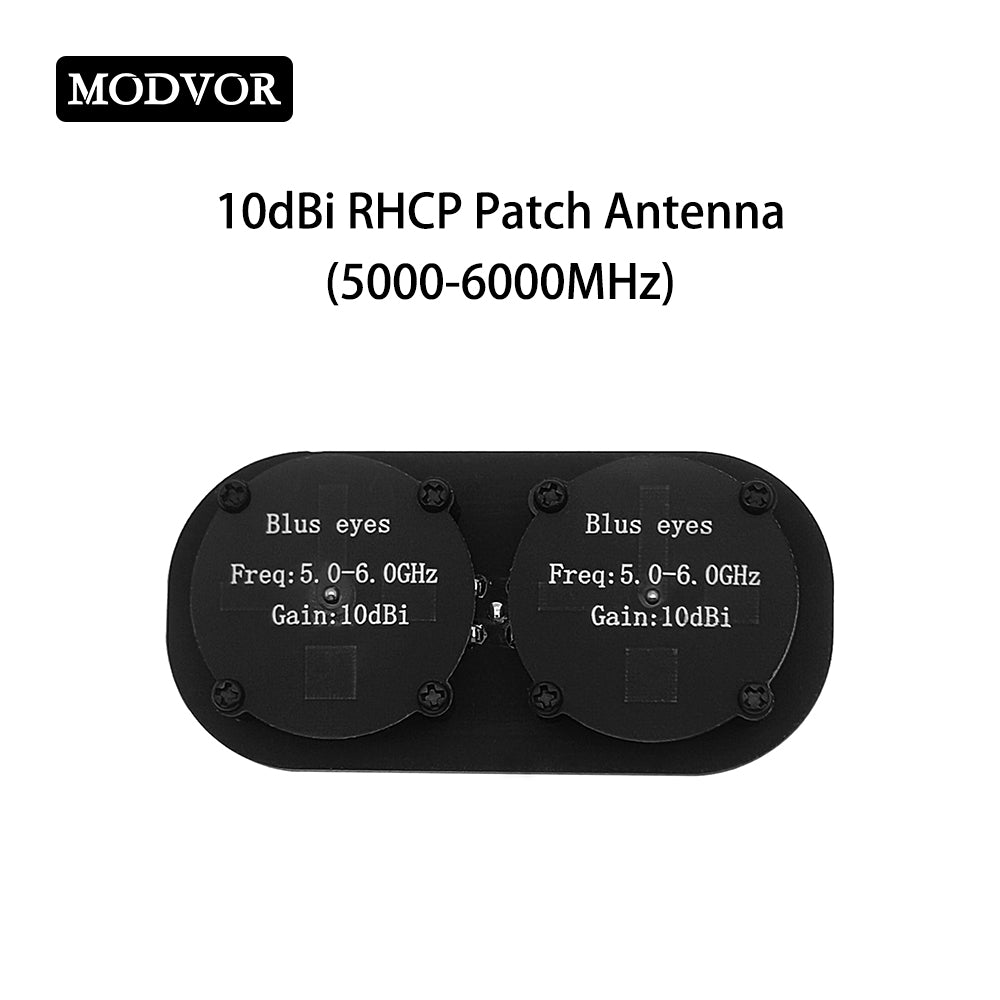

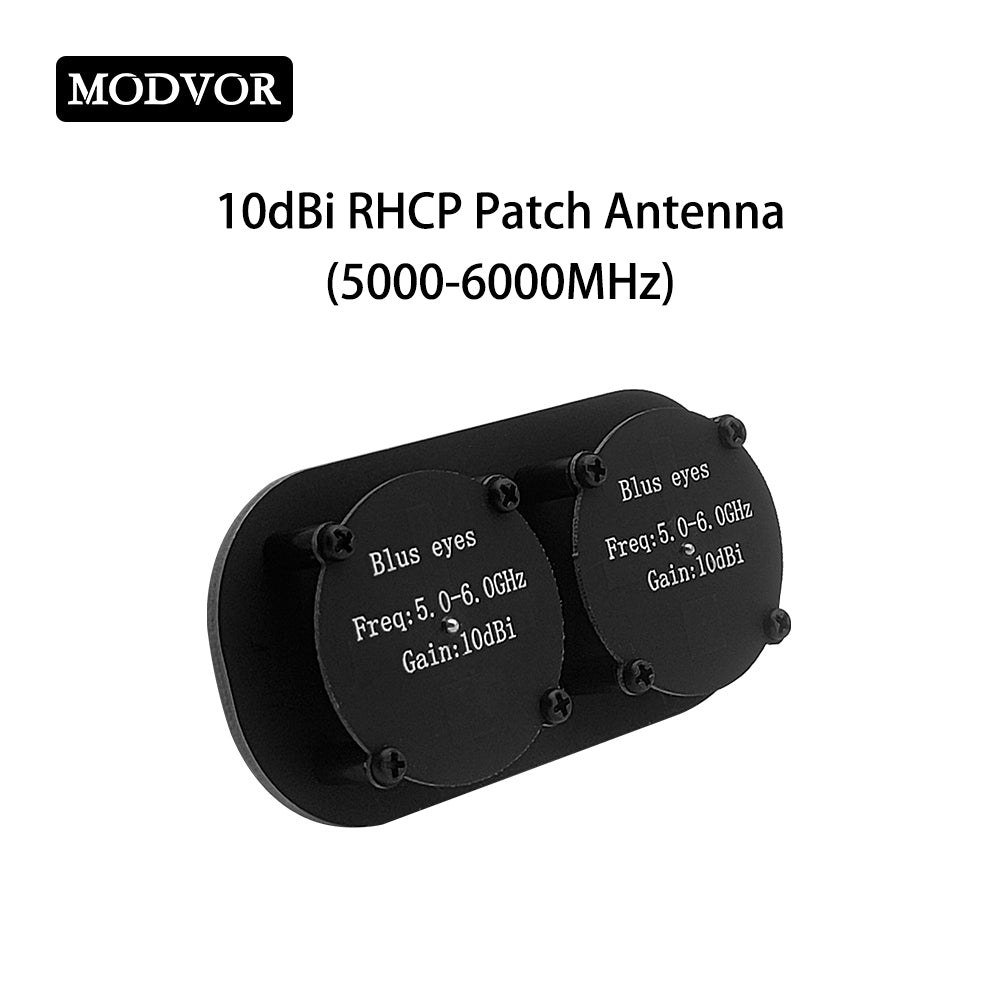

This 5.8GHz RHCP panel directional patch antenna is engineered specifically for FPV drone goggle receivers. Covering the 5000–6000MHz frequency band, it provides a high gain of 10 dBi with compact dimensions of 72×35×10.5 mm.
Built with right-hand circular polarization technology, the antenna effectively suppresses multipath interference and maintains reliable signal performance regardless of antenna orientation. It greatly improves signal stability and extends the transmission distance of your drone video downlink system.
Designed to be mounted on the receiver side (FPV goggle end), this flat panel antenna is a perfect pick for long-range video transmission, flying in complicated surroundings, and aggressive FPV drone racing. It delivers consistent, clear video feed even under tough flight conditions.
Product Application
- FPV Racing
- FPV Freestyle
- Long Range Video Transmission
- Long Range Out and Back Flight
- Video Ground Station

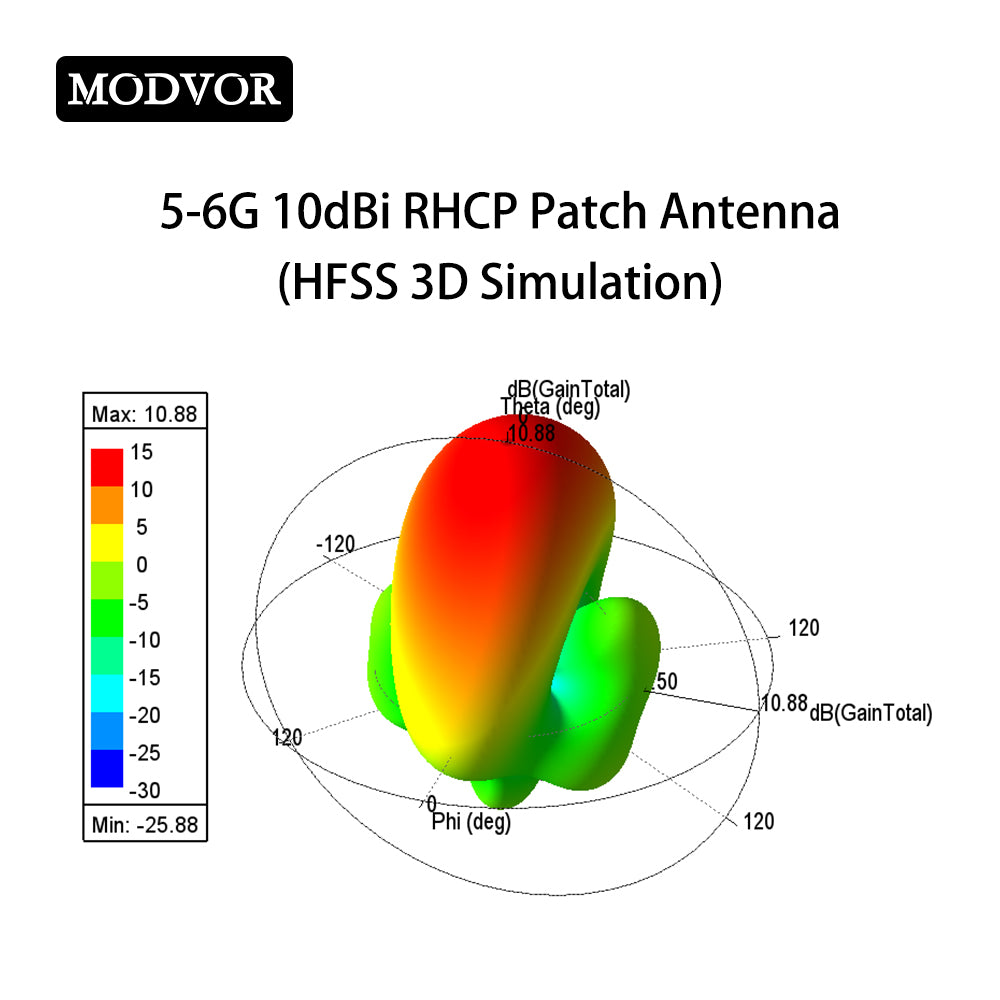

Product Features
- 1G Ultra wideband, relative bandwidth 18%
- 10dBi High Gain
- 83°EL HPBW
- 46°AZ HPBW
Product Specifications
| Working band | 5000-6000MHz |
| Gain | 10dBi |
| VSWR | ＜1.7 |
| Efficiency | ≥90% |
| Polarization | RHCP |
| EL HPBW | 83° |
| AZ HPBW | 46° |
| Input Impedance | 50Ω |
| Power Handing | 30W |

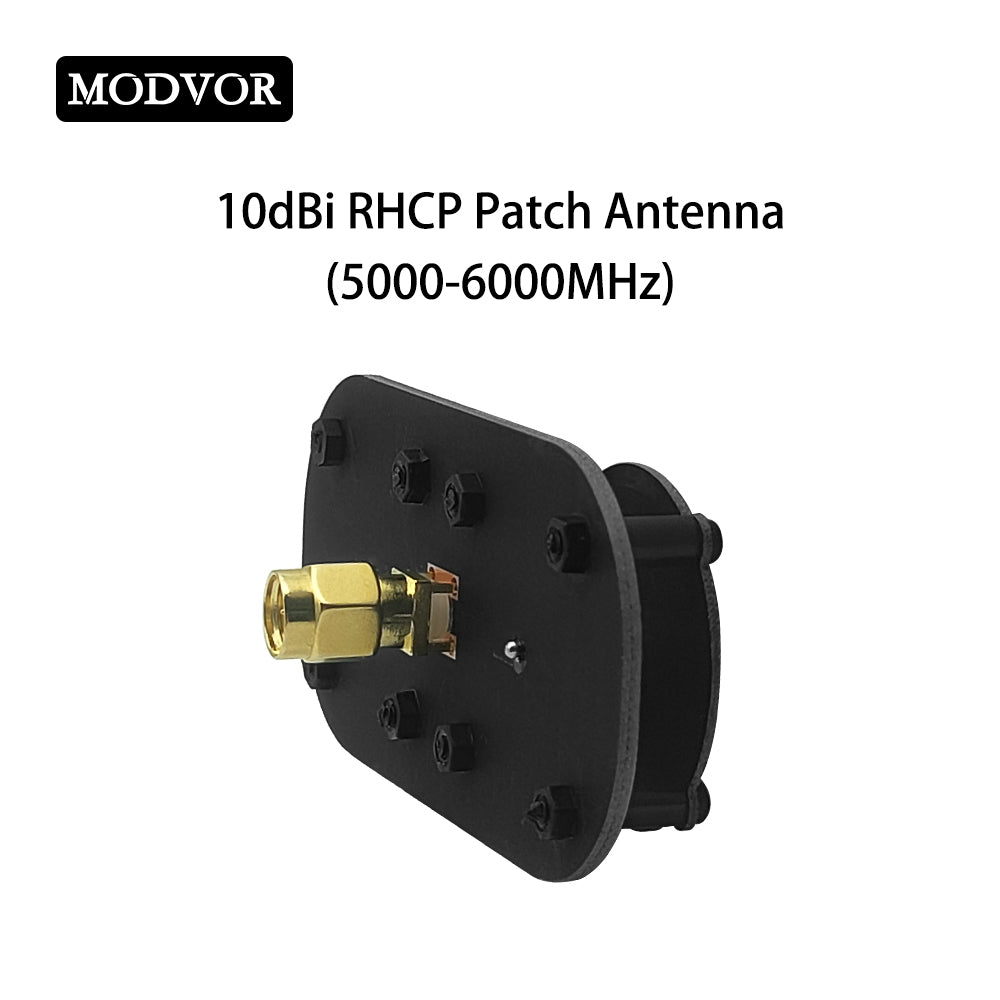

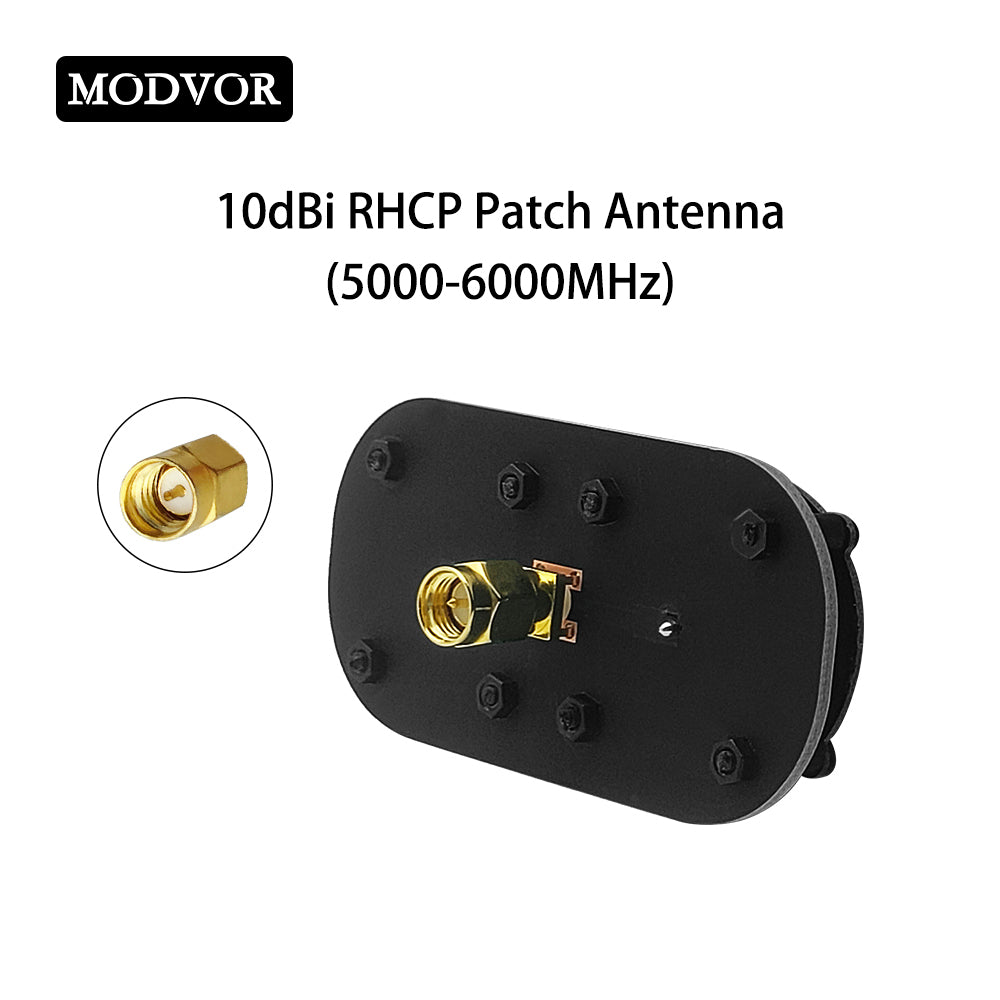

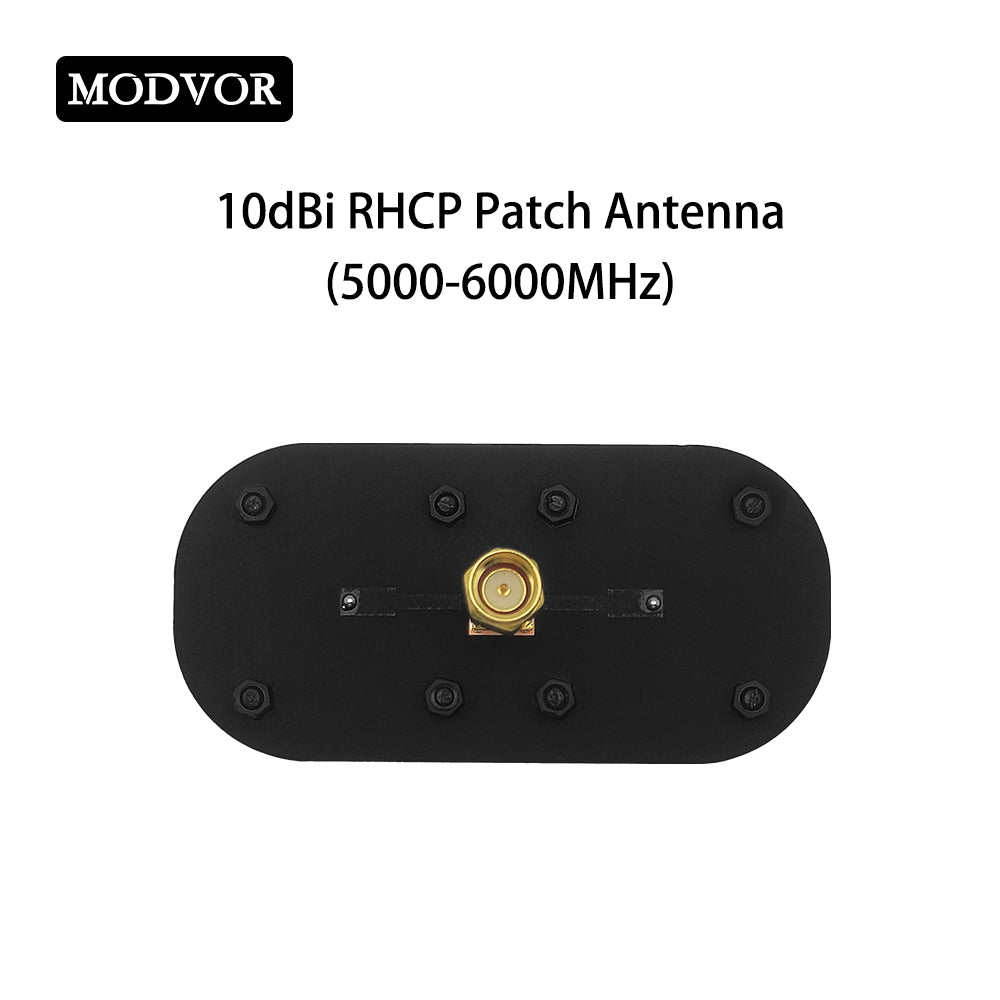

| RF Connector | SMA-Male |

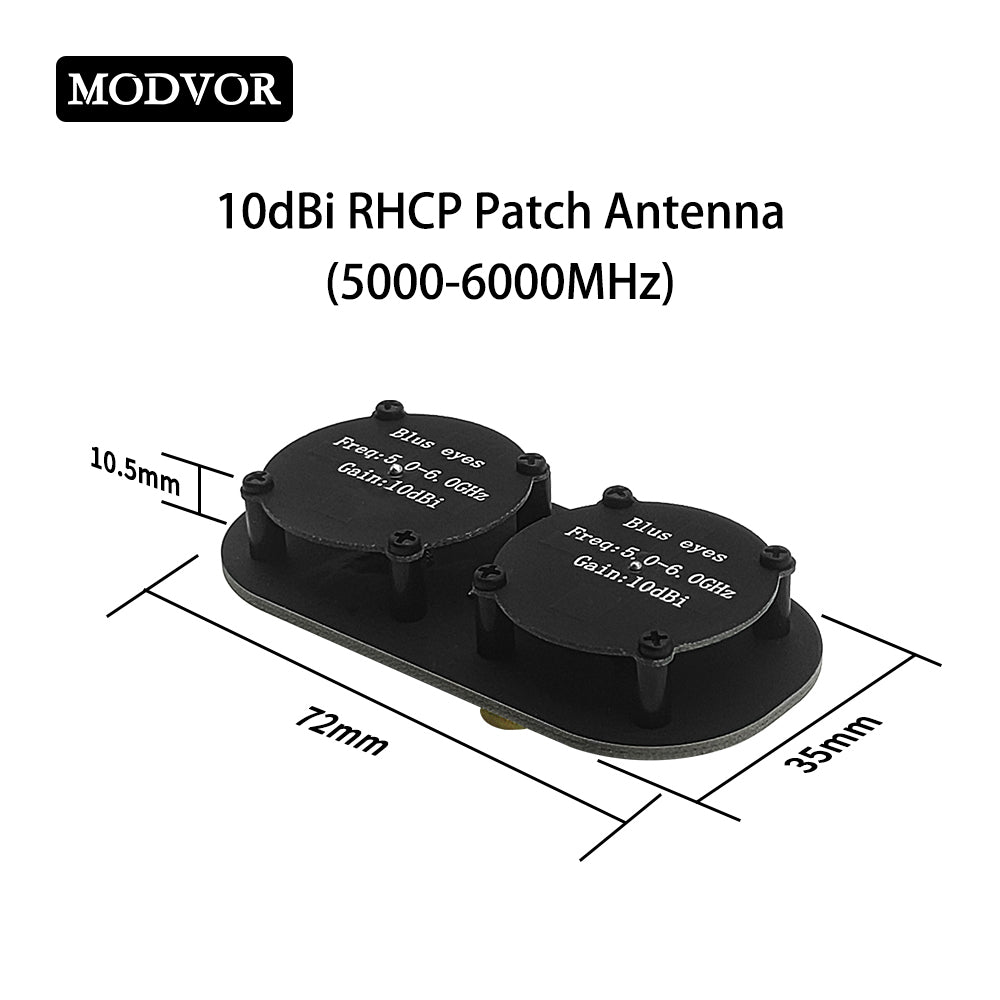

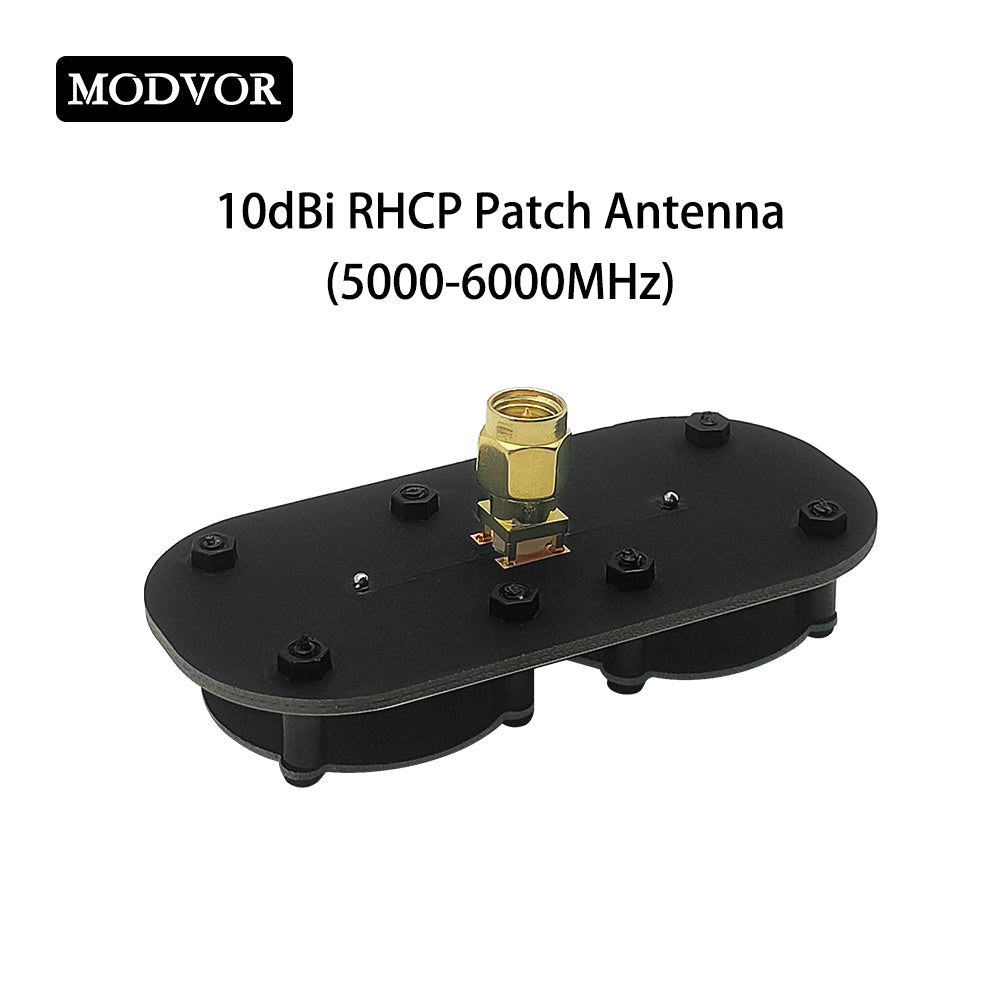

| Size | 72*35*10.5mm |
| Weight | 16.4g |

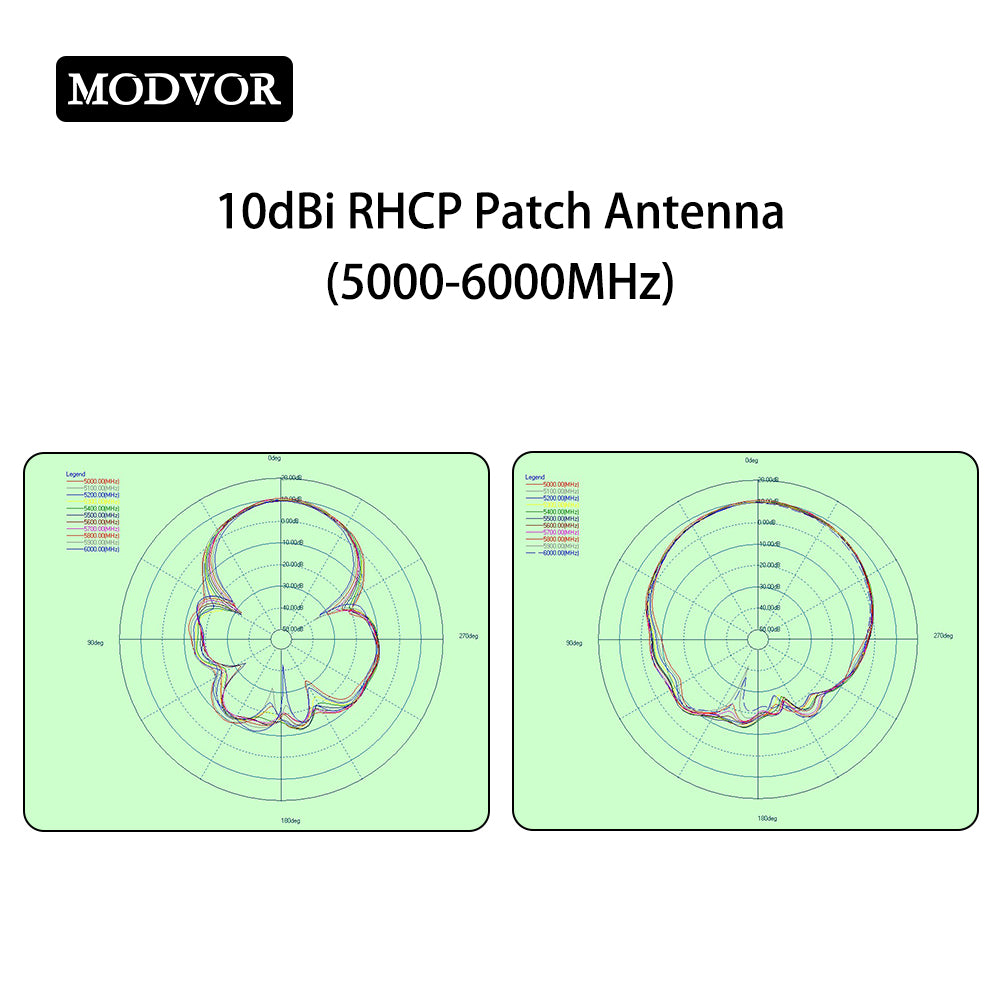

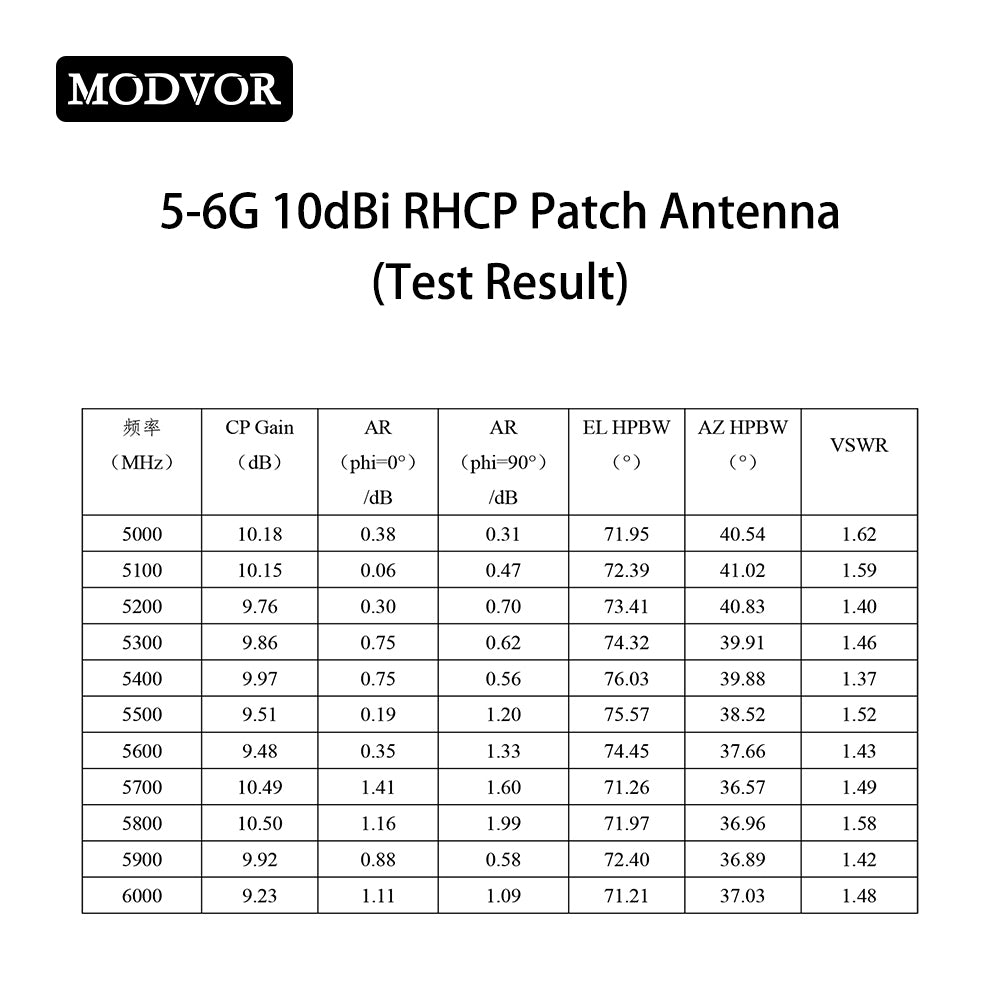

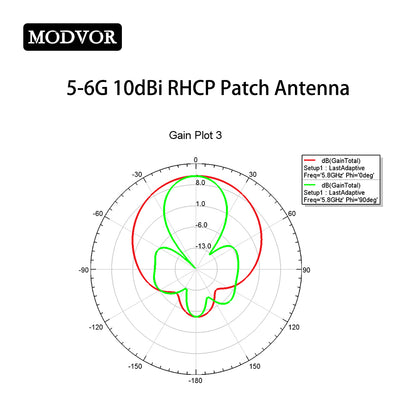

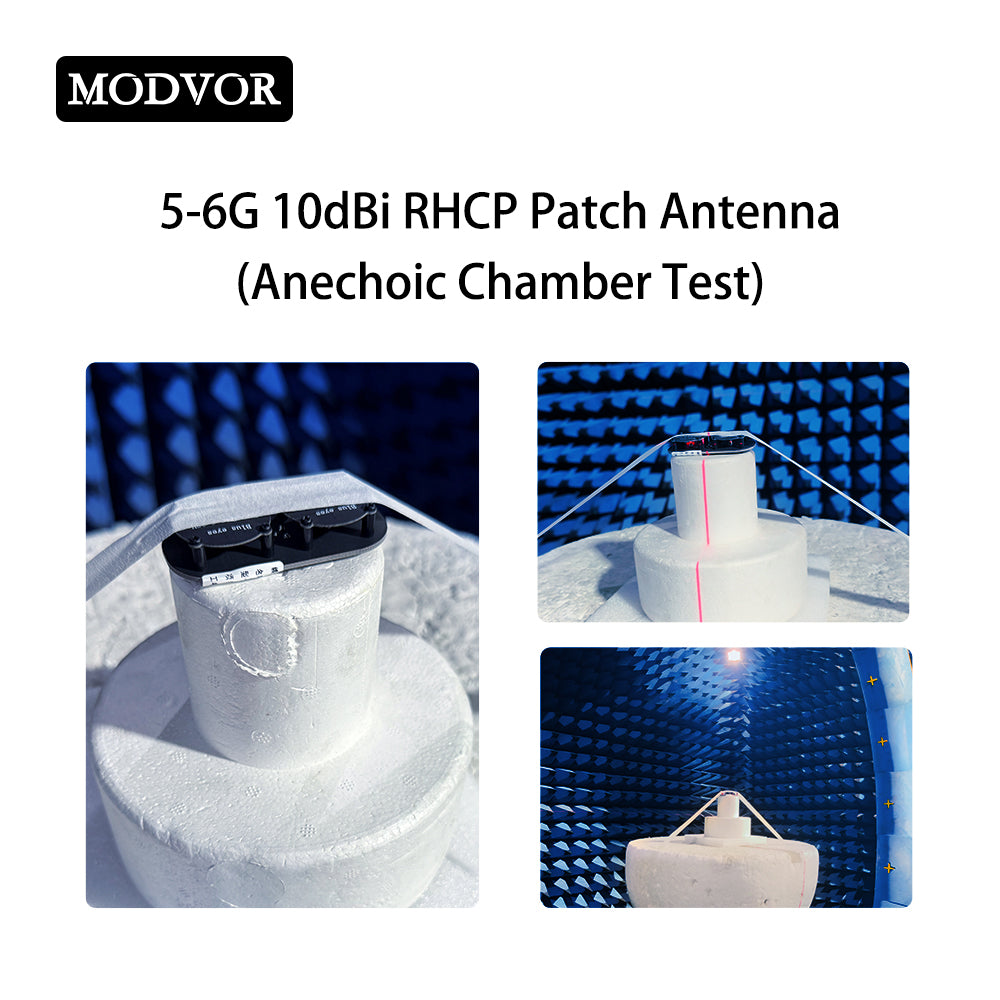

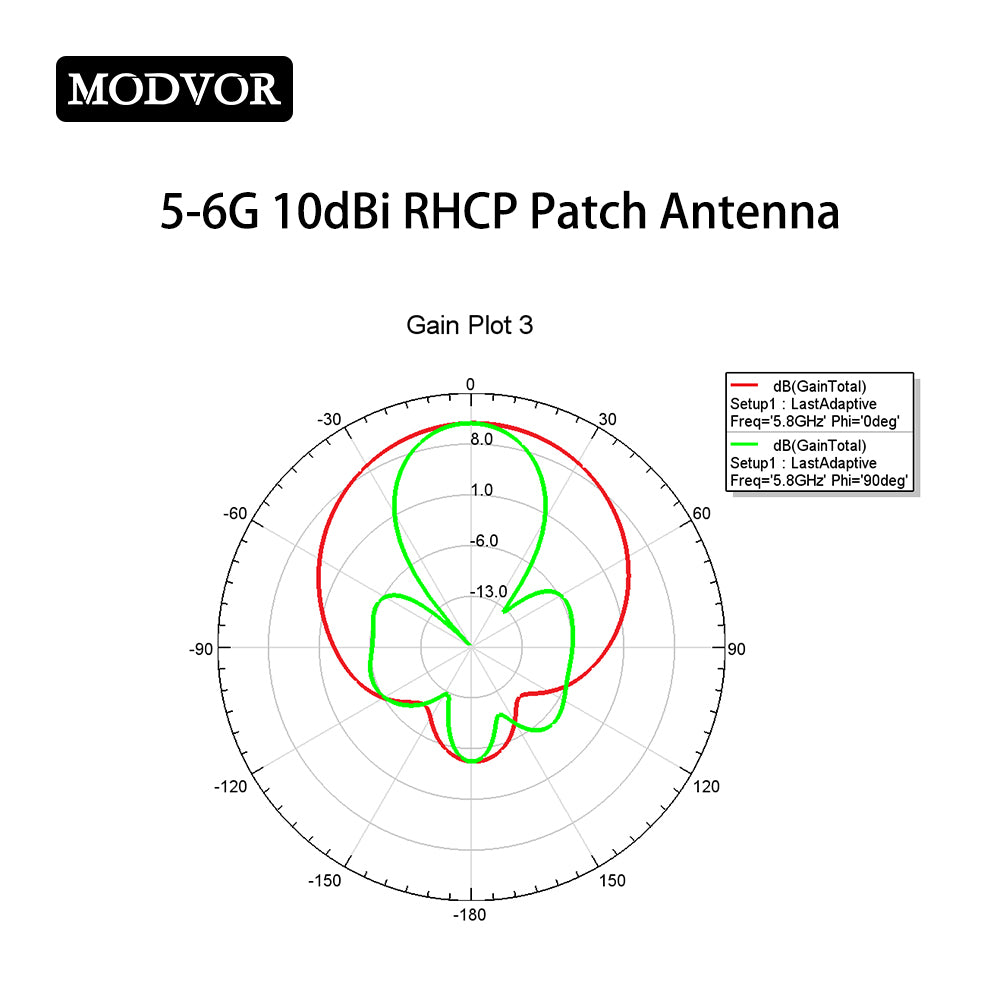

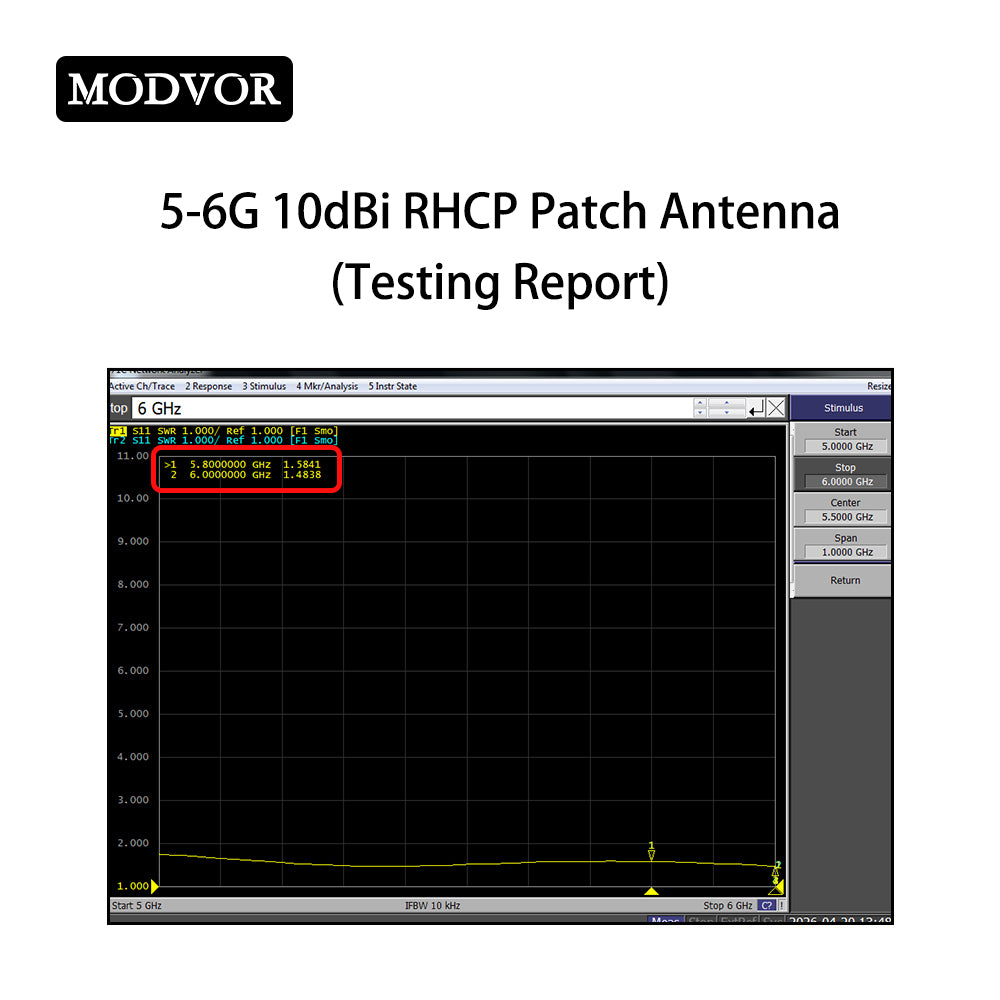

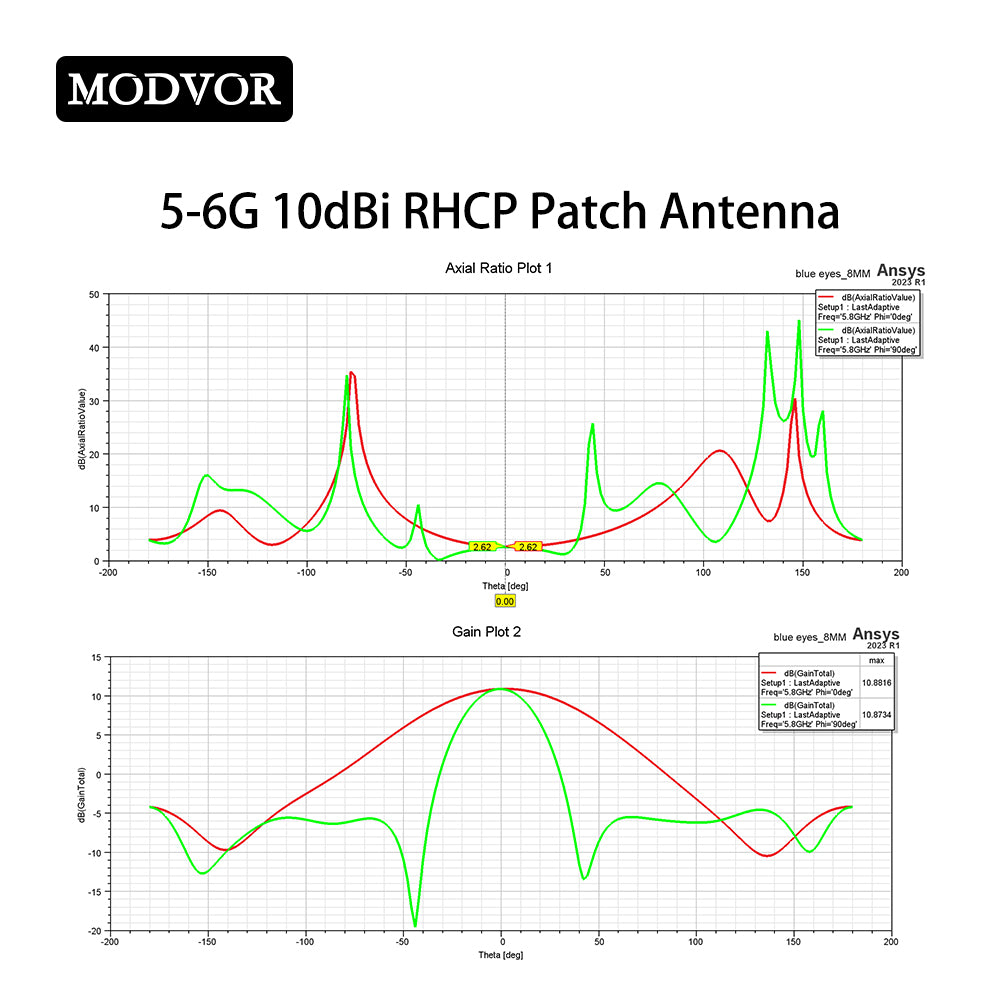

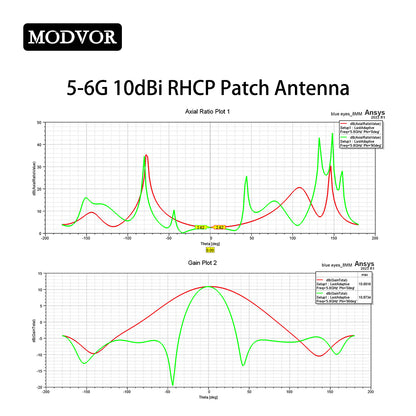

Test Result
| Frequency(MHz) | CP Gain(dBi) | AR(phi=0°) /dB | AR(phi=90°) /dB | EL HPBW(°) | AZ HPBW(°) | VSWR |
| 5000 | 10.18 | 0.38 | 0.31 | 71.95 | 40.54 | 1.62 |
| 5100 | 10.15 | 0.06 | 0.47 | 72.39 | 41.02 | 1.59 |
| 5200 | 9.76 | 0.3 | 0.7 | 73.41 | 40.83 | 1.4 |
| 5300 | 9.86 | 0.75 | 0.62 | 74.32 | 39.91 | 1.46 |
| 5400 | 9.97 | 0.75 | 0.56 | 76.03 | 39.88 | 1.37 |
| 5500 | 9.51 | 0.19 | 1.2 | 75.57 | 38.52 | 1.52 |
| 5600 | 9.48 | 0.35 | 1.33 | 74.45 | 37.66 | 1.43 |
| 5700 | 10.49 | 1.41 | 1.6 | 71.26 | 36.57 | 1.49 |
| 5800 | 10.5 | 1.16 | 1.99 | 71.97 | 36.96 | 1.58 |
| 5900 | 9.92 | 0.88 | 0.58 | 72.4 | 36.89 | 1.42 |
| 6000 | 9.23 | 1.11 | 1.09 | 71.21 | 37.03 | 1.48 |
Package List
1 X 5-6G RHCP Directional Panel Antenna
