Product Description

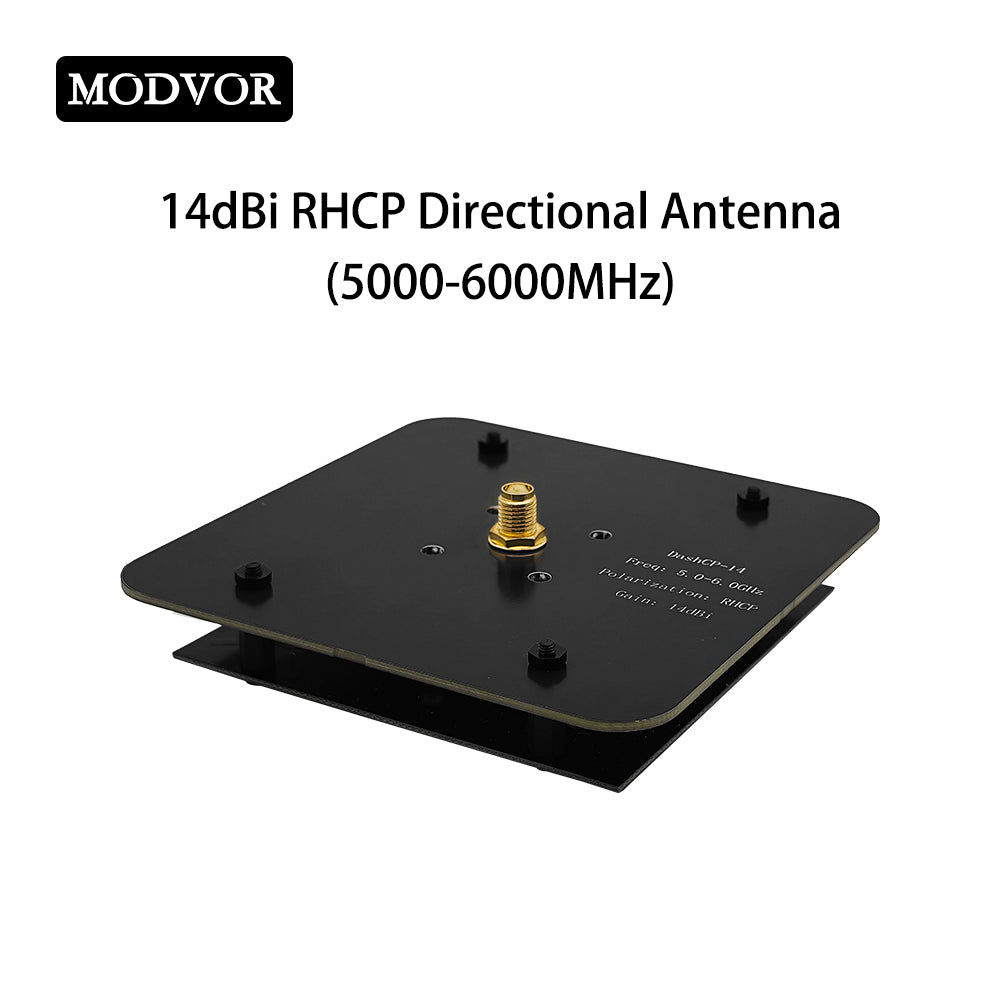

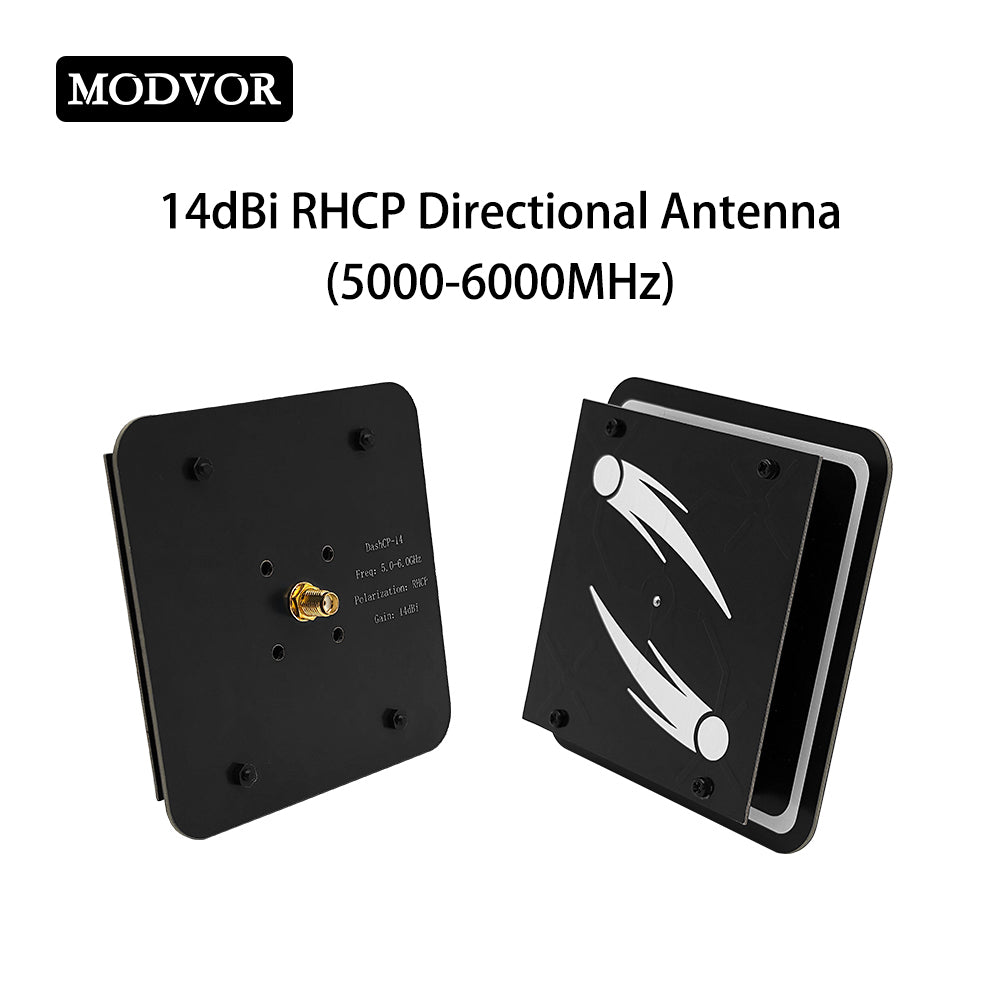

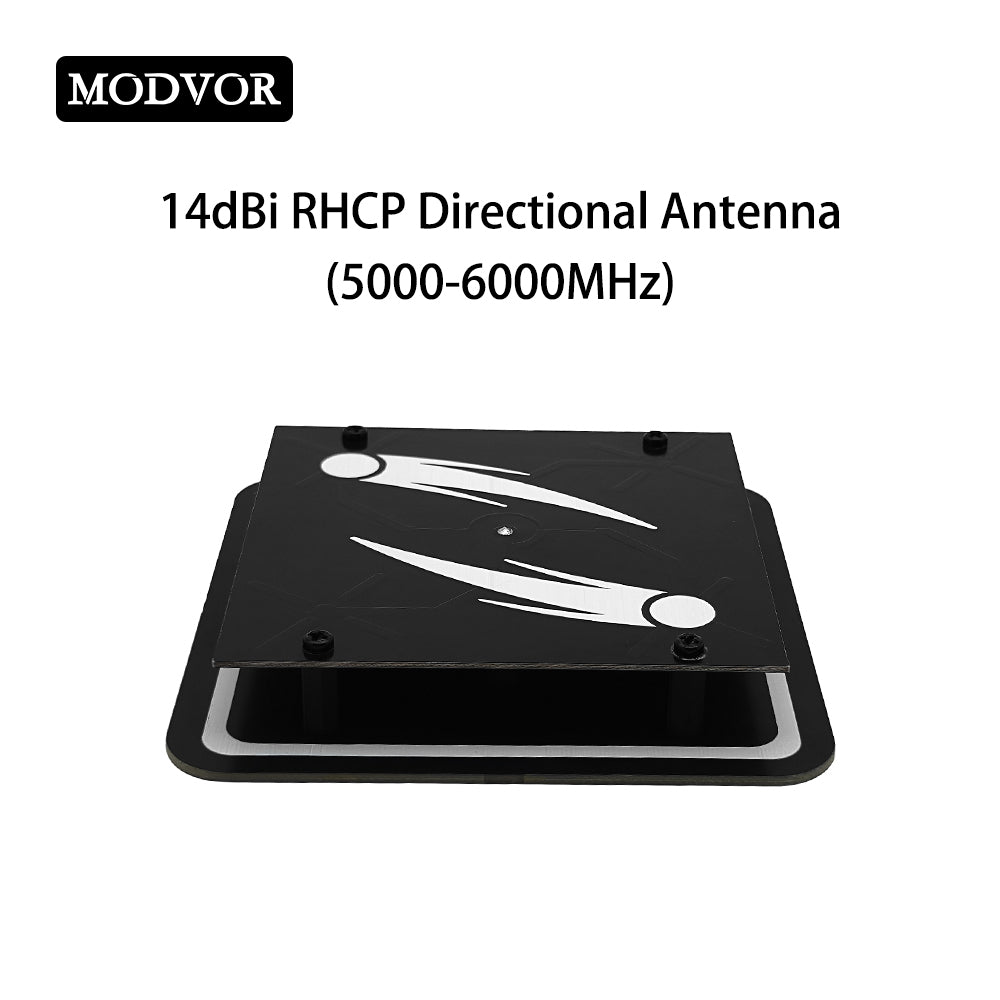

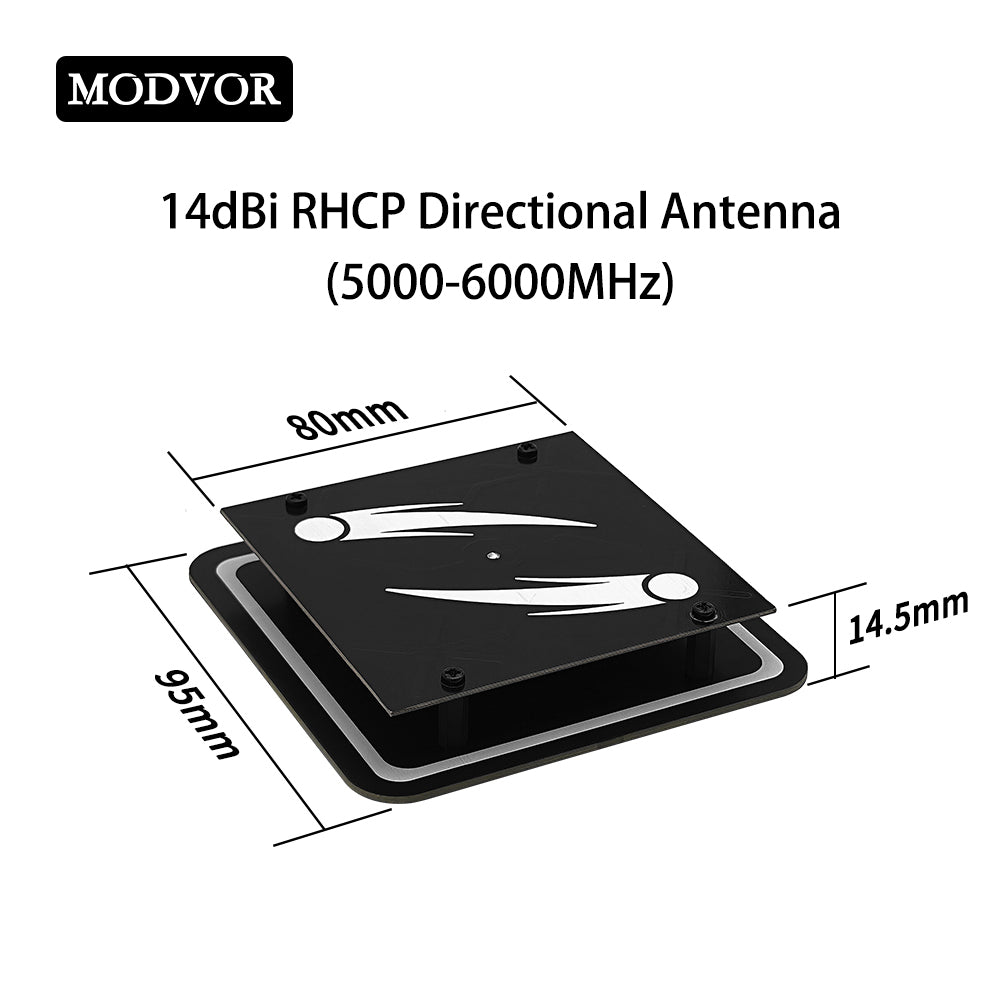

This flat panel directional antenna is a high-performance microstrip array antenna designed for the 5000–6000 MHz frequency band. It adopts RHCP (Right Hand Circular Polarization) technology to effectively mitigate multipath effects and polarization mismatches, ensuring stable and reliable signal reception. Across the entire operating bandwidth, the antenna maintains a Voltage Standing Wave Ratio (VSWR) of ≤ 1.6, delivering outstanding impedance matching performance. Powered by a high-gain array structure, this flat panel directional antenna achieves a peak gain of 14 dBi, greatly extending communication distance and improving data throughput. With a compact form factor (95 mm × 95 mm × 14.5 mm), it balances high RF performance and miniaturized size perfectly.
This RHCP panel directional antenna is ideal for long range wireless communication, remote monitoring, point-to-point wireless link, industrial wireless data transmission, wireless backhaul and outdoor video transmission. Robust construction supports outdoor deployment for fixed wireless access and IoT wireless connection.
Product Application
- FPV Drones (Racing Drones)
- Video Transmitter (VTx)
- Digital FPV Systems
- FPV Goggles/Monitor
- Ground Station Receiver Modules
Product Features
- 1G Ultra wideband, relative bandwidth 18%
- 14dBi High Gain
- 32°EL HPBW
- 30°AZ HPBW
Product Specifications
| Working band | 5000-6000MHz |
| Gain | 14dBi |

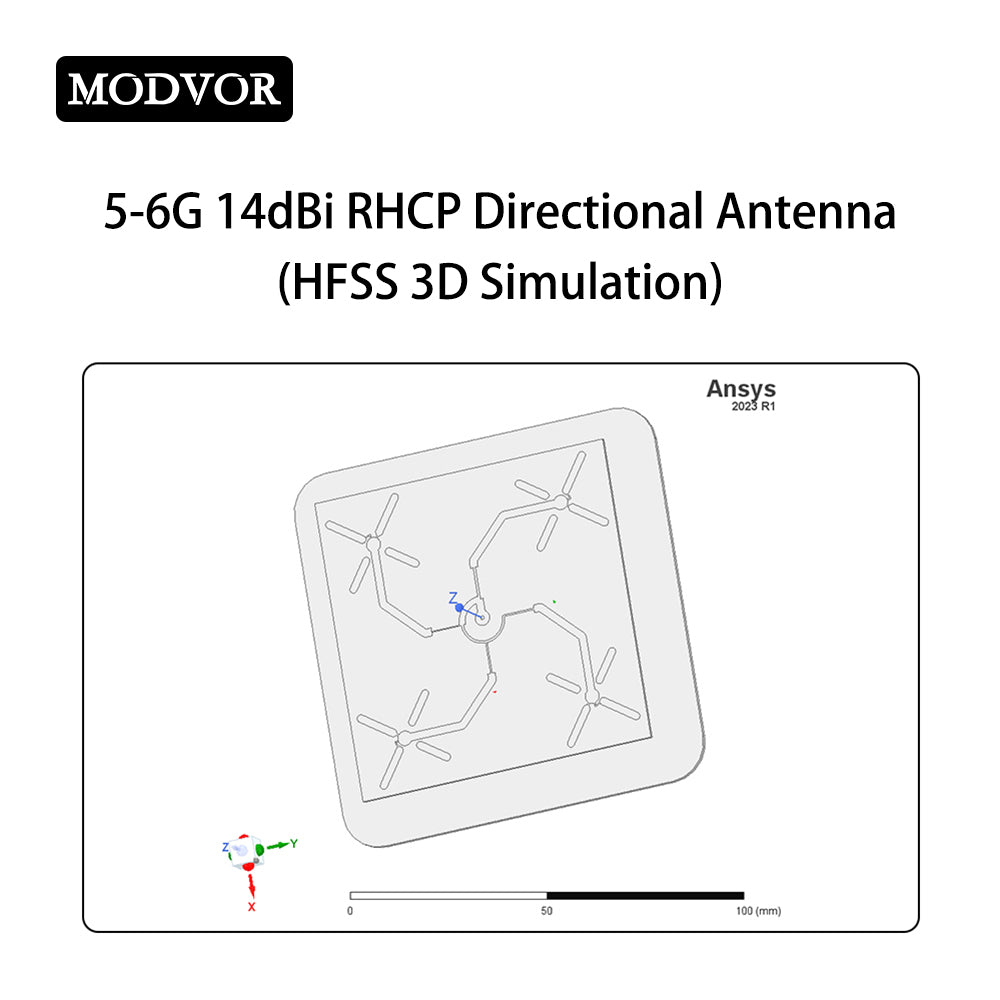

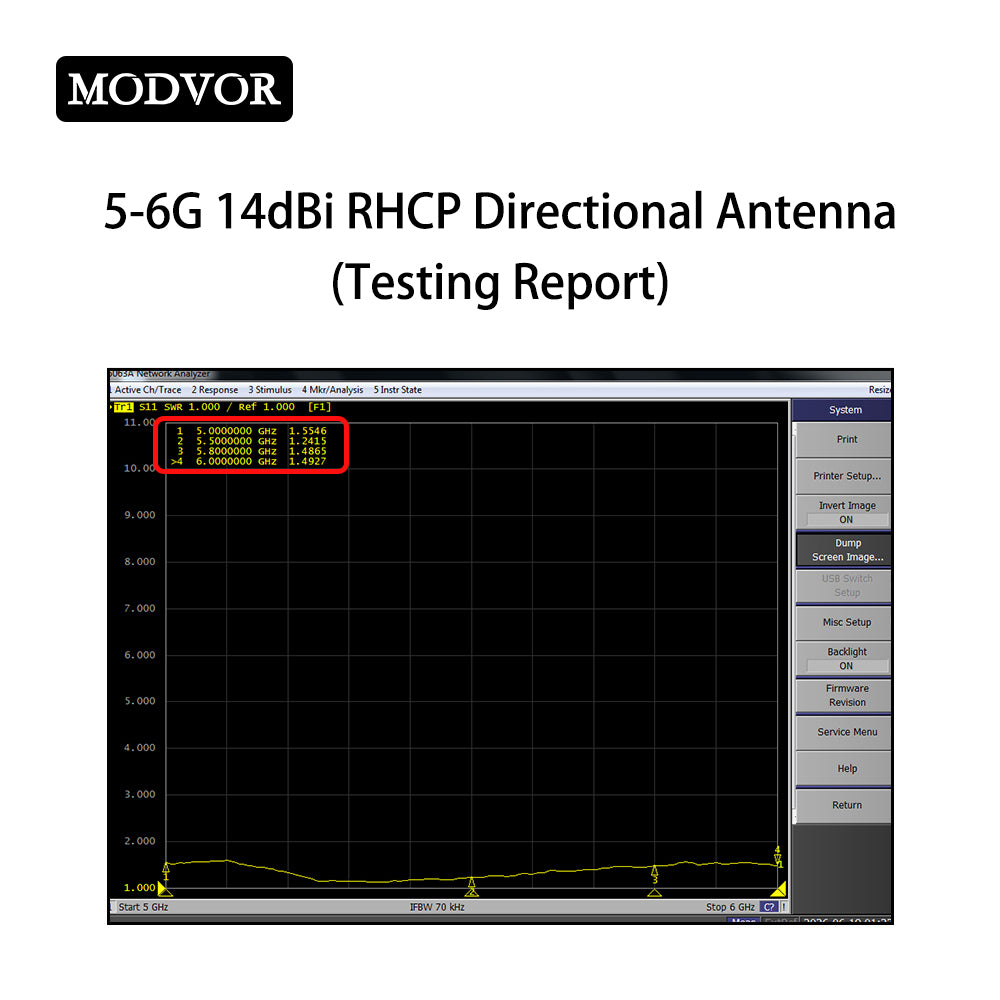

| VSWR | ＜1.6 |
| Efficiency | ≥90% |
| Polarization | RHCP |
| EL HPBW | 32° |
| AZ HPBW | 30° |
| Input Impedance | 50Ω |
| Power Handing | 30W |

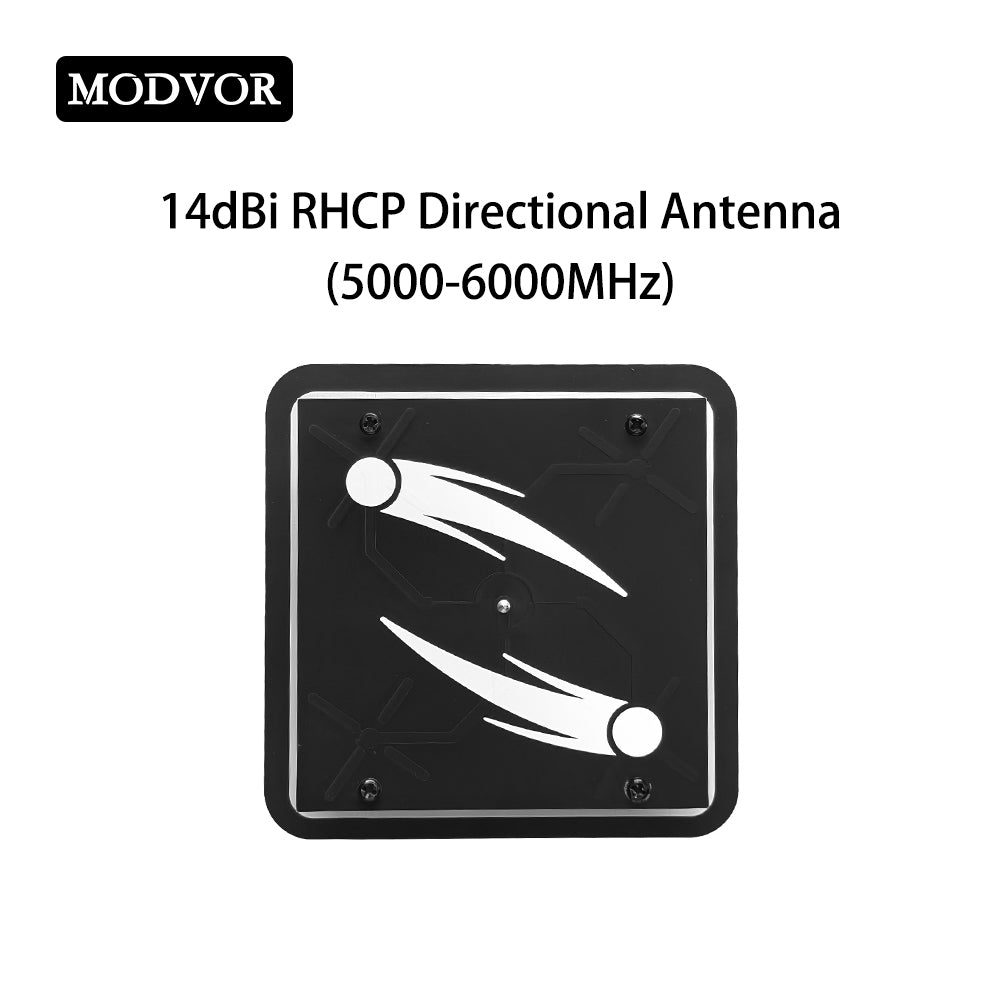

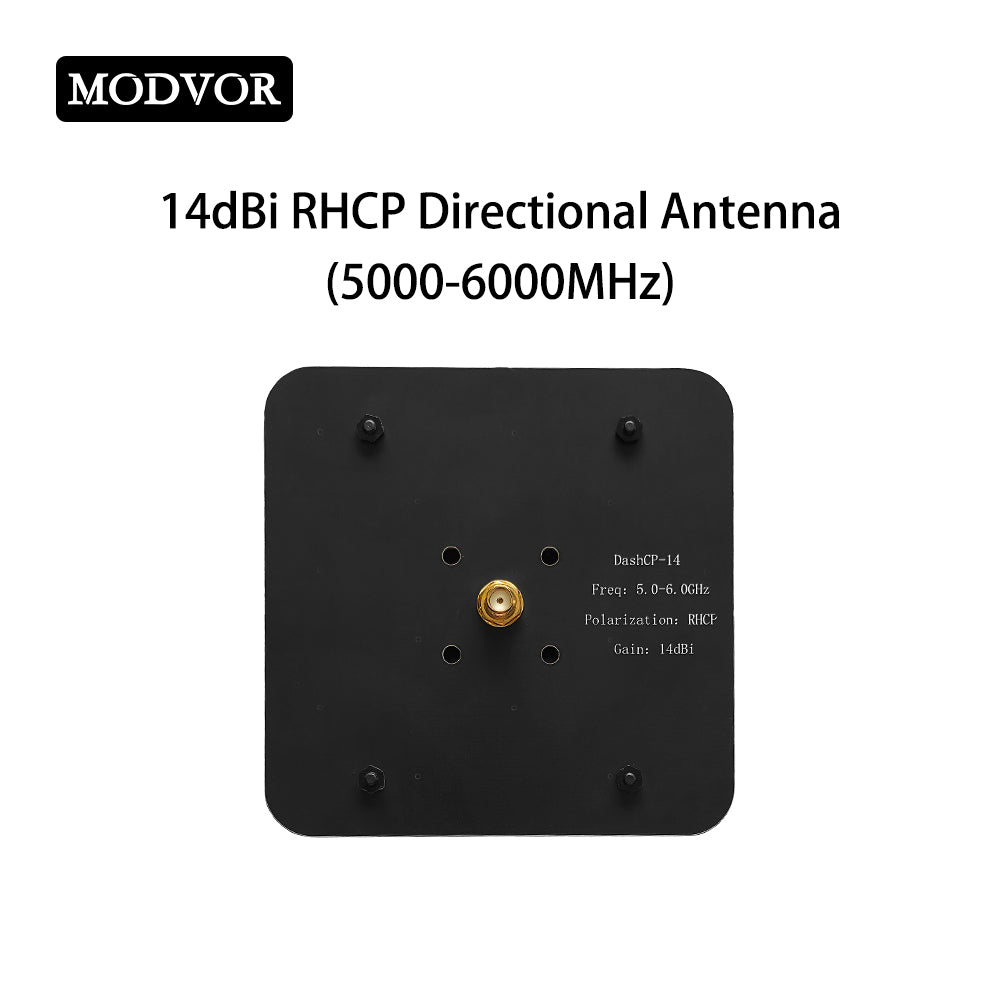

| RF Connector | SMA-Female |
| Size | 95*95*14.5mm |
| Weight | 54g |

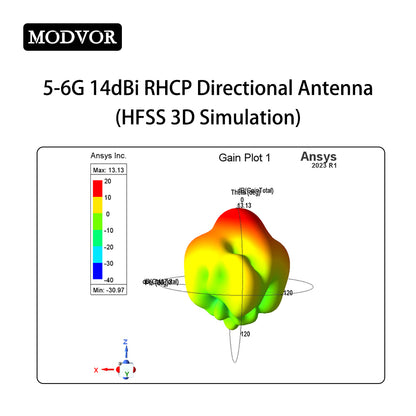

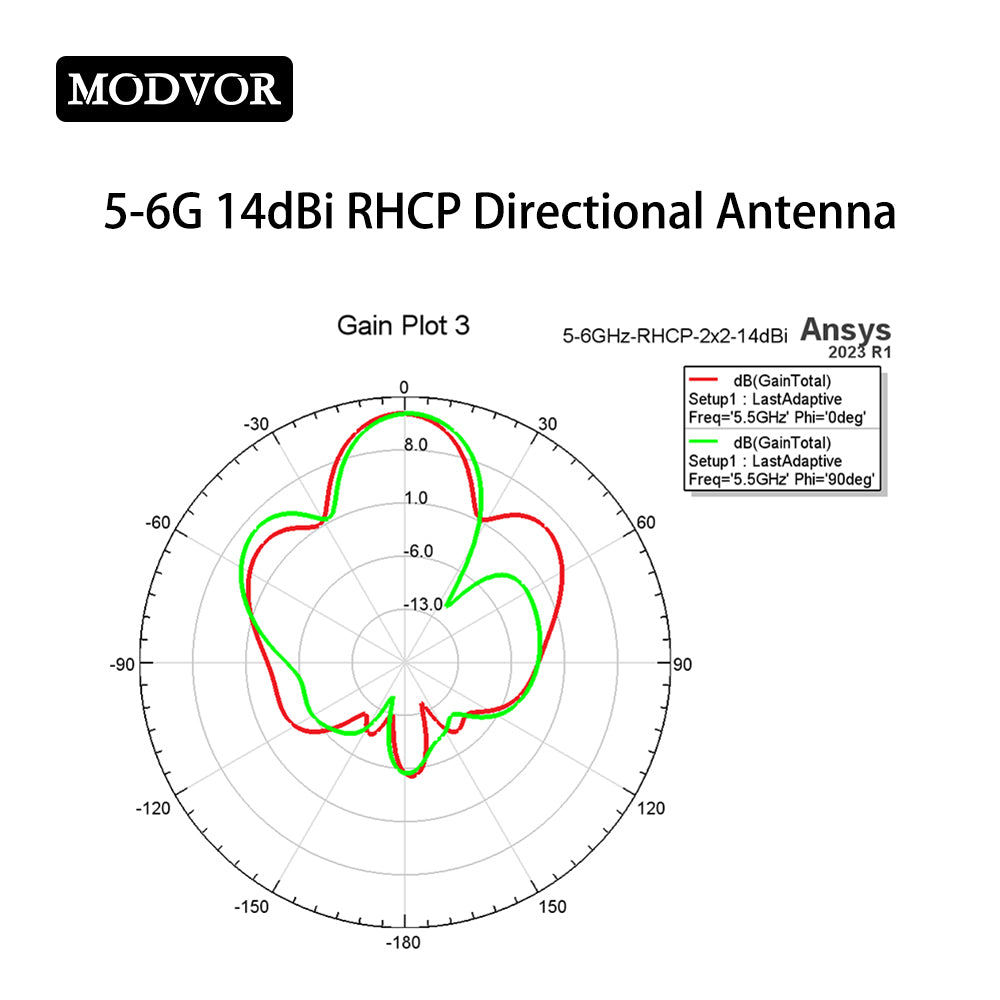

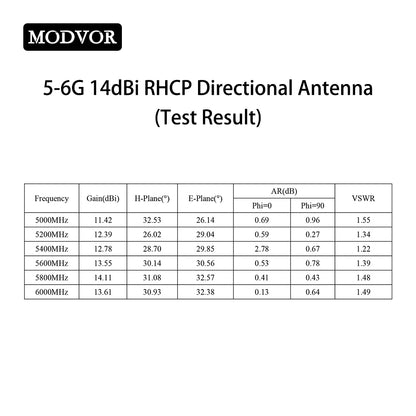

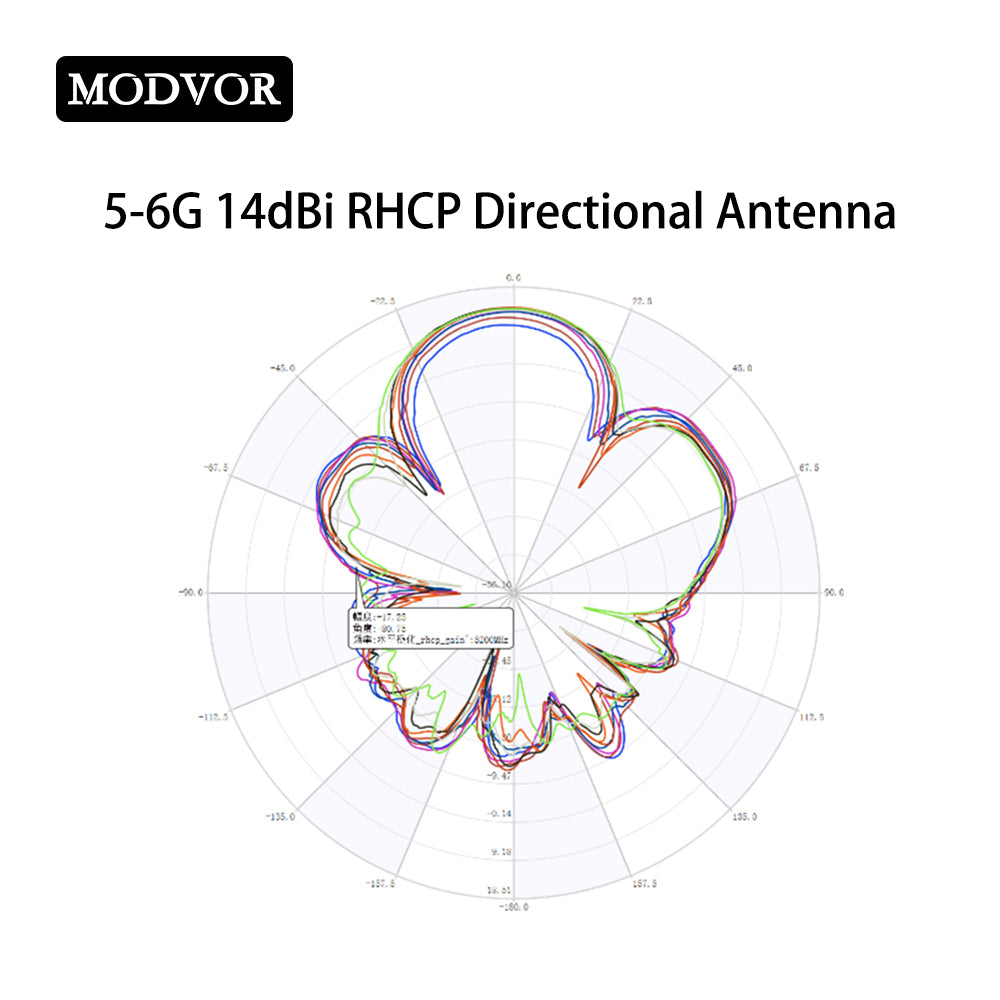

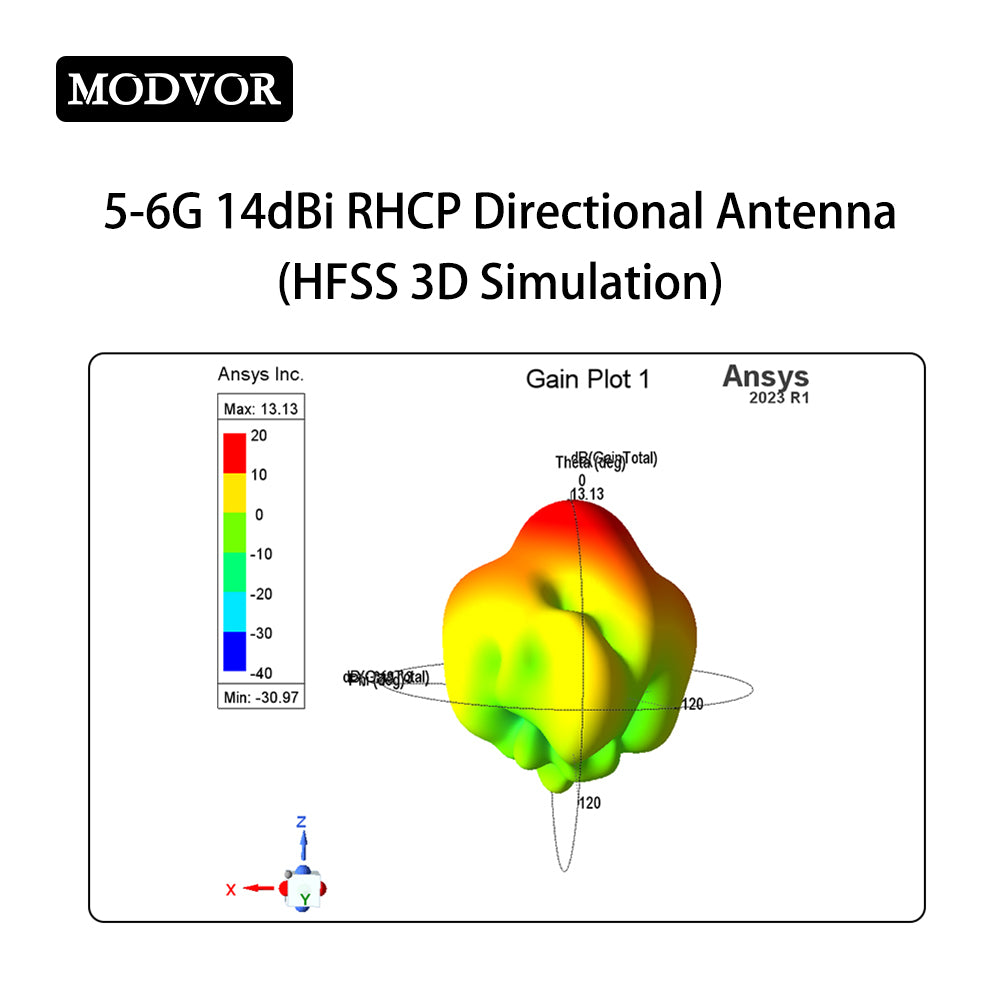

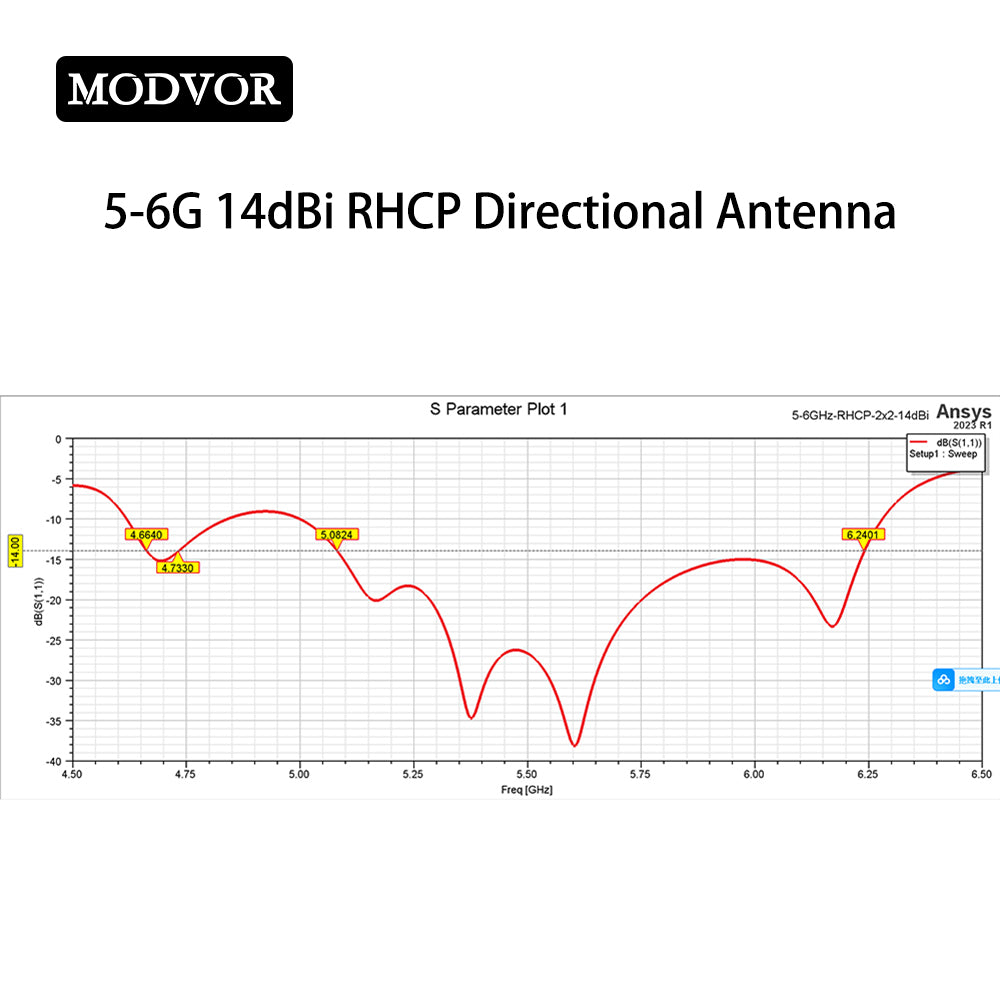

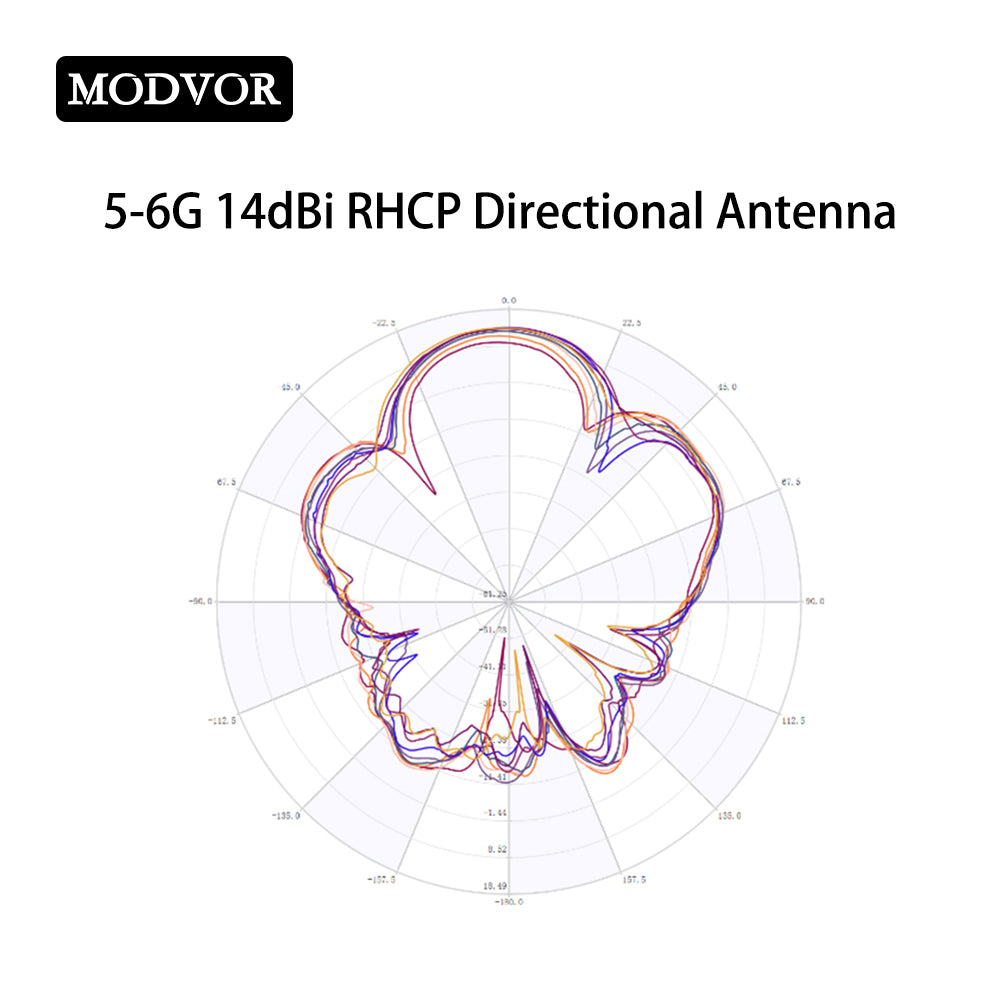

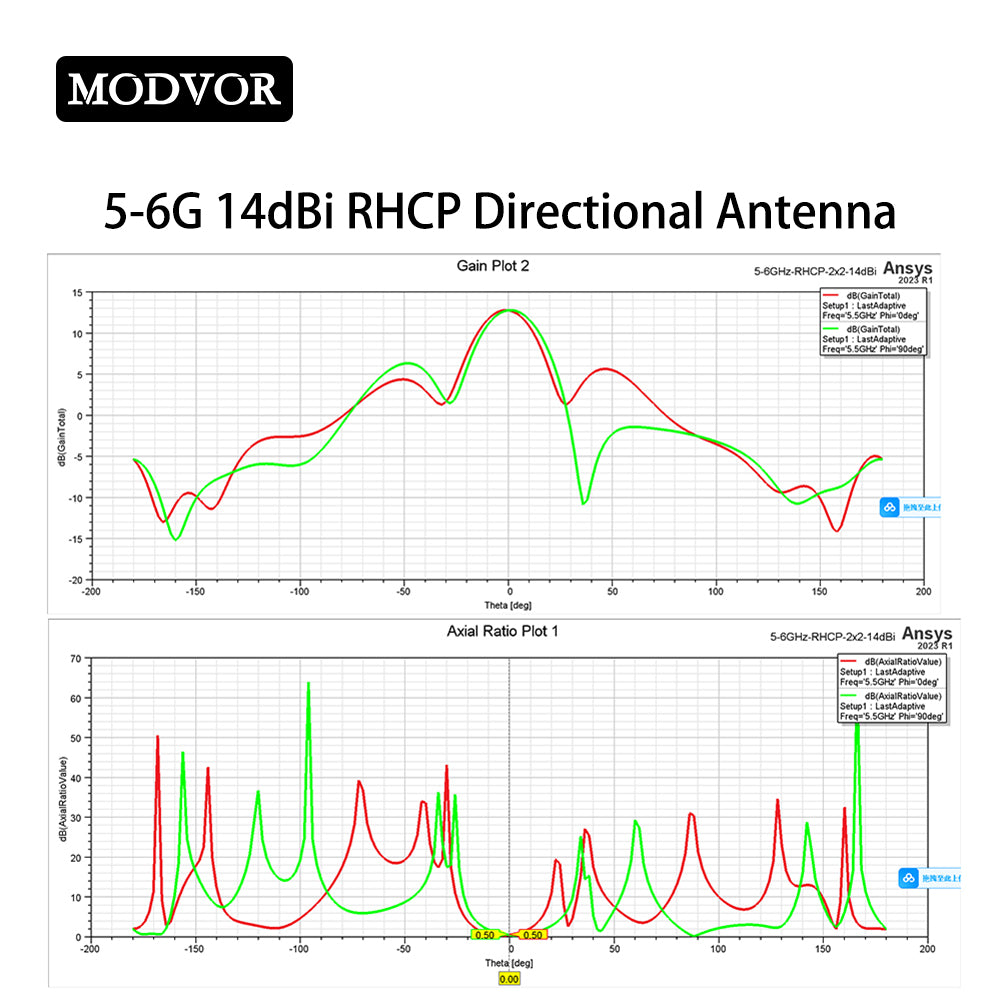

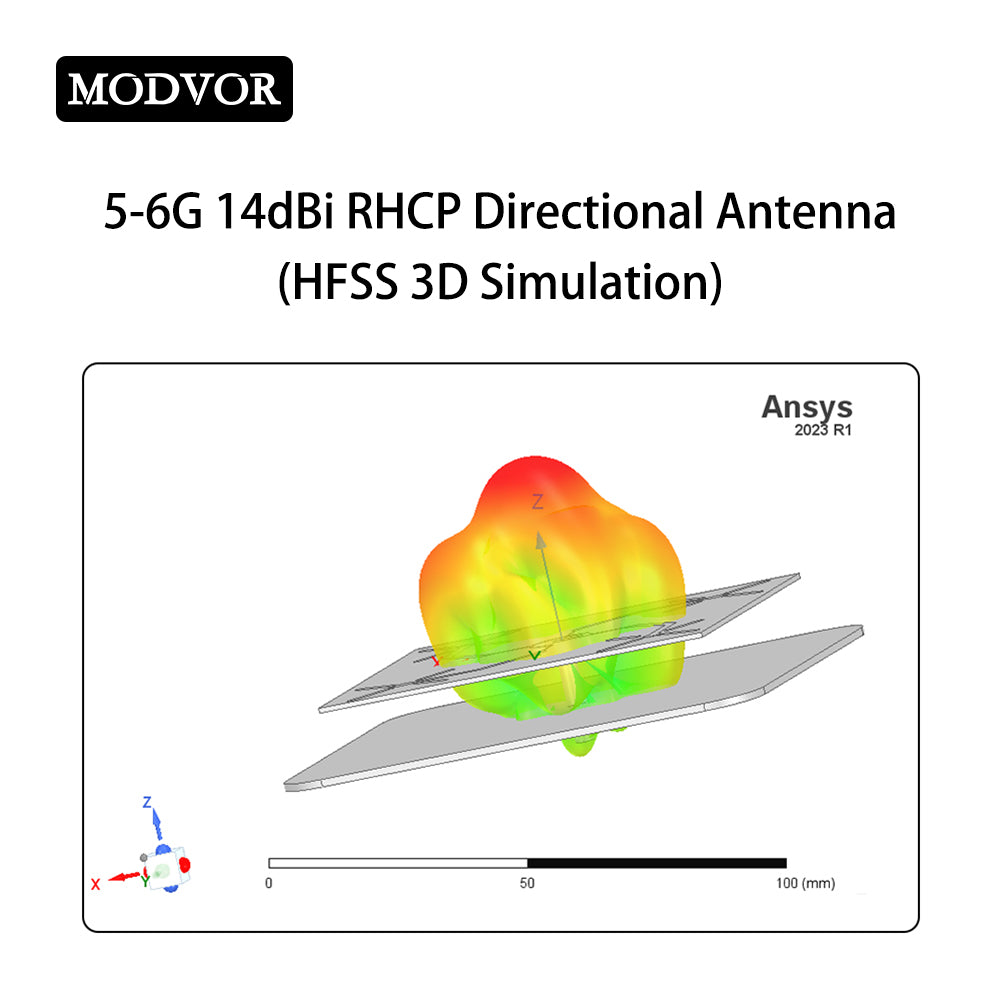

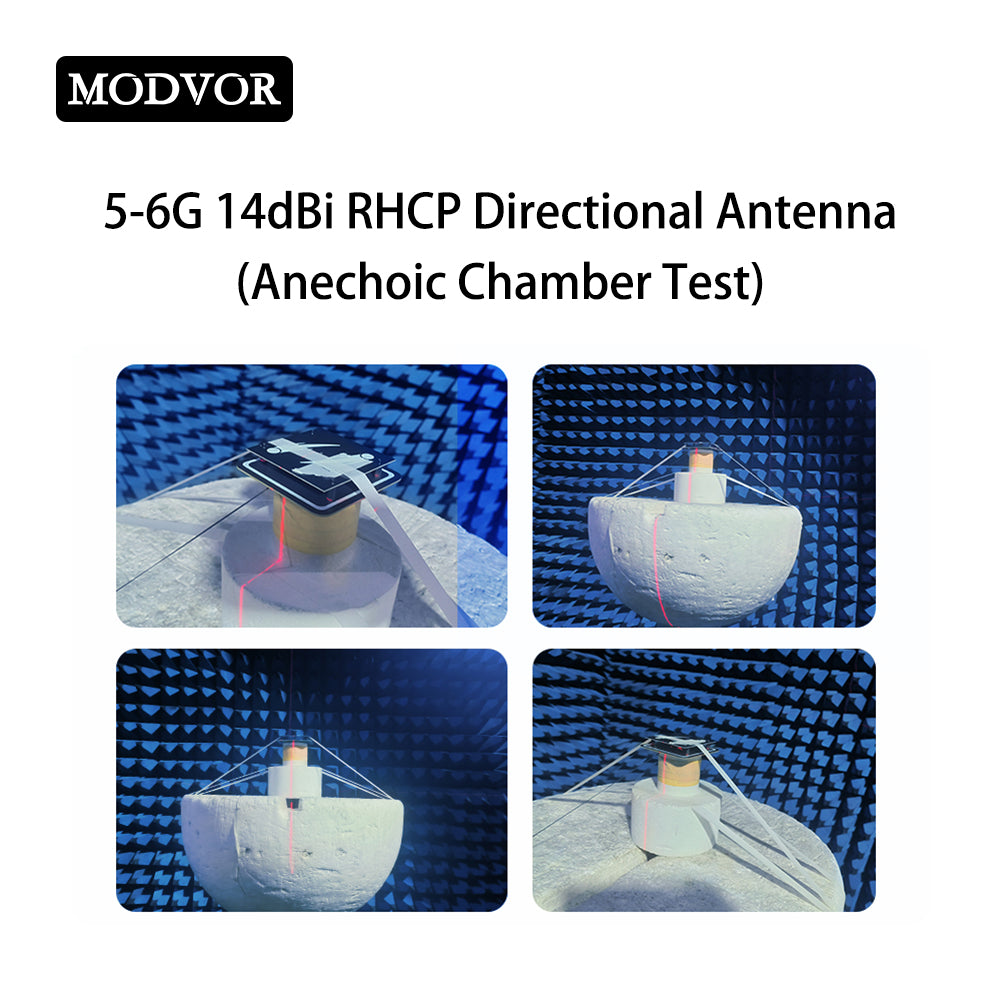

Test Result

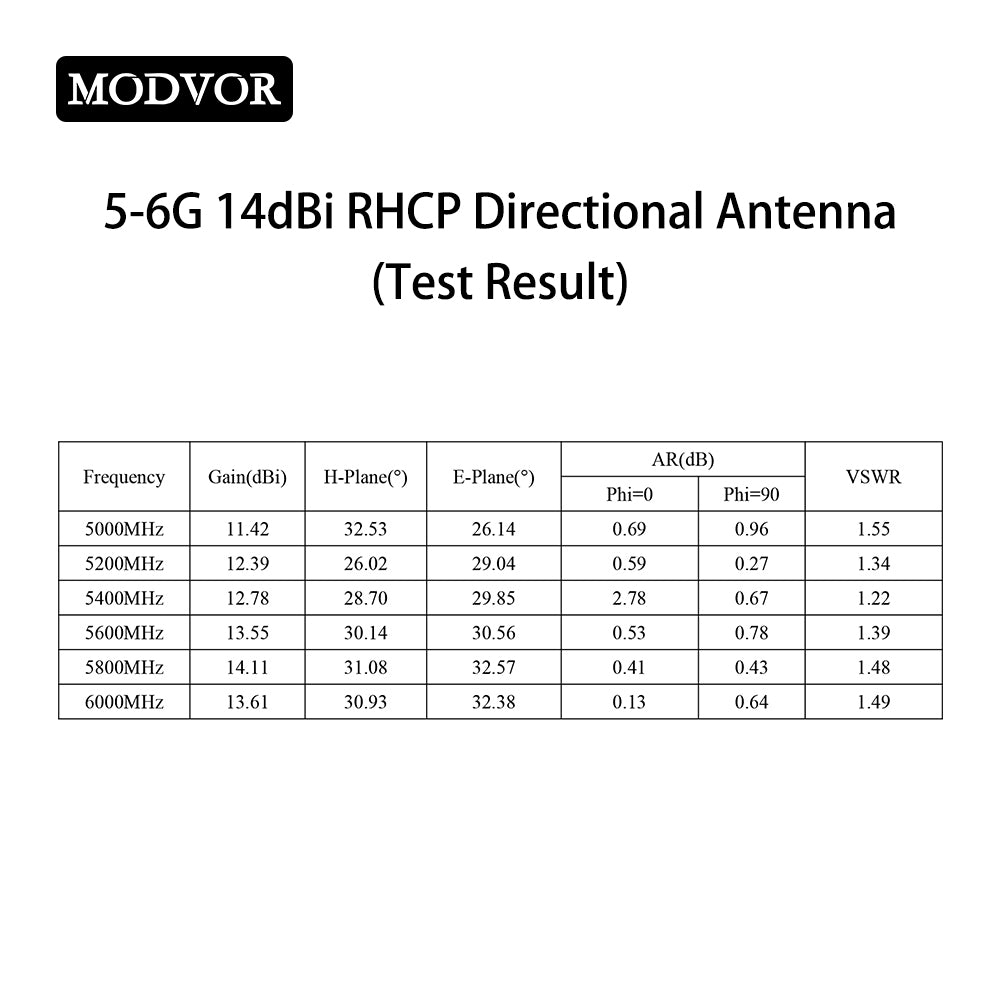

| Frequency | Gain(dBi) | H-Plane(°) | E-Plane(°) | AR(dB) | VSWR | |
| Phi=0 | Phi=90 | |||||
| 5000MHz | 11.42 | 32.53 | 26.14 | 0.69 | 0.96 | 1.55 |
| 5200MHz | 12.39 | 26.02 | 29.04 | 0.59 | 0.27 | 1.34 |
| 5400MHz | 12.78 | 28.7 | 29.85 | 2.78 | 0.67 | 1.22 |
| 5600MHz | 13.55 | 30.14 | 30.56 | 0.53 | 0.78 | 1.39 |
| 5800MHz | 14.11 | 31.08 | 32.57 | 0.41 | 0.43 | 1.48 |
| 6000MHz | 13.61 | 30.93 | 32.38 | 0.13 | 0.64 | 1.49 |
Package List
1 X 5-6G RHCP Directional Panel Antenna
