Product Description

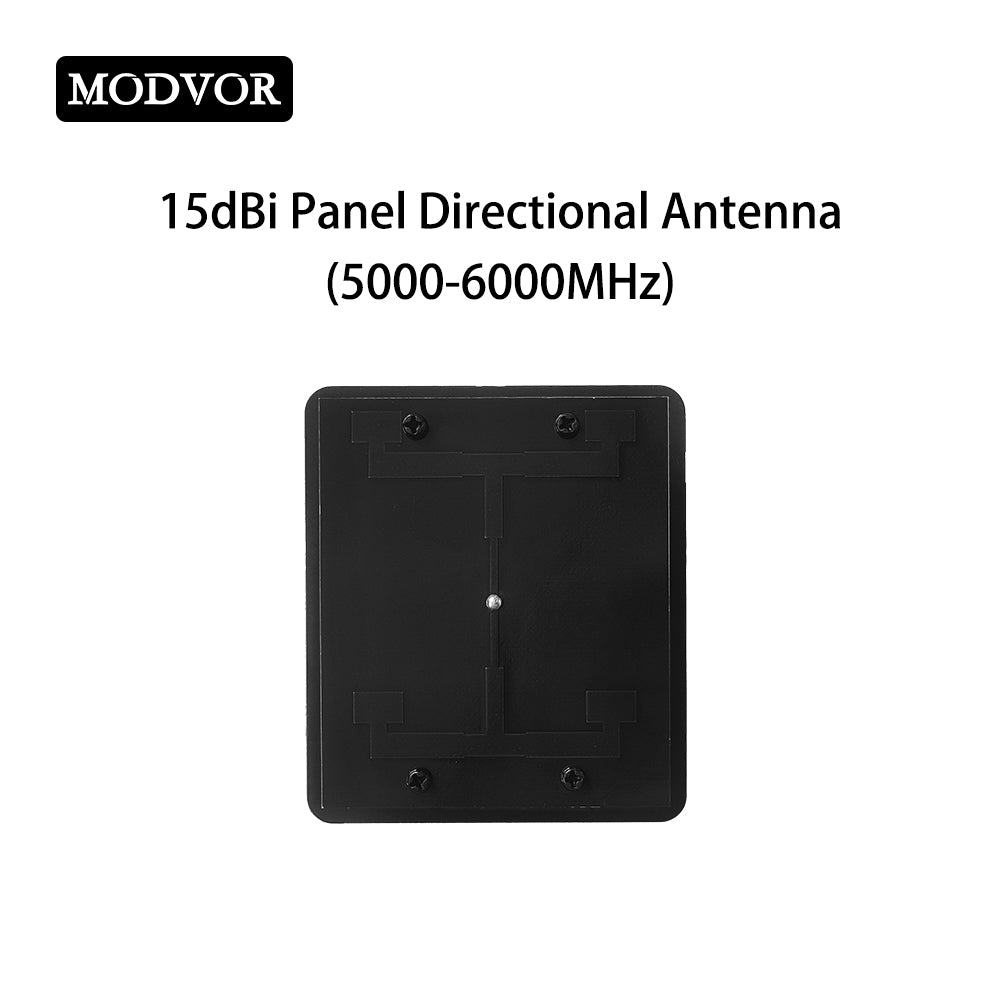

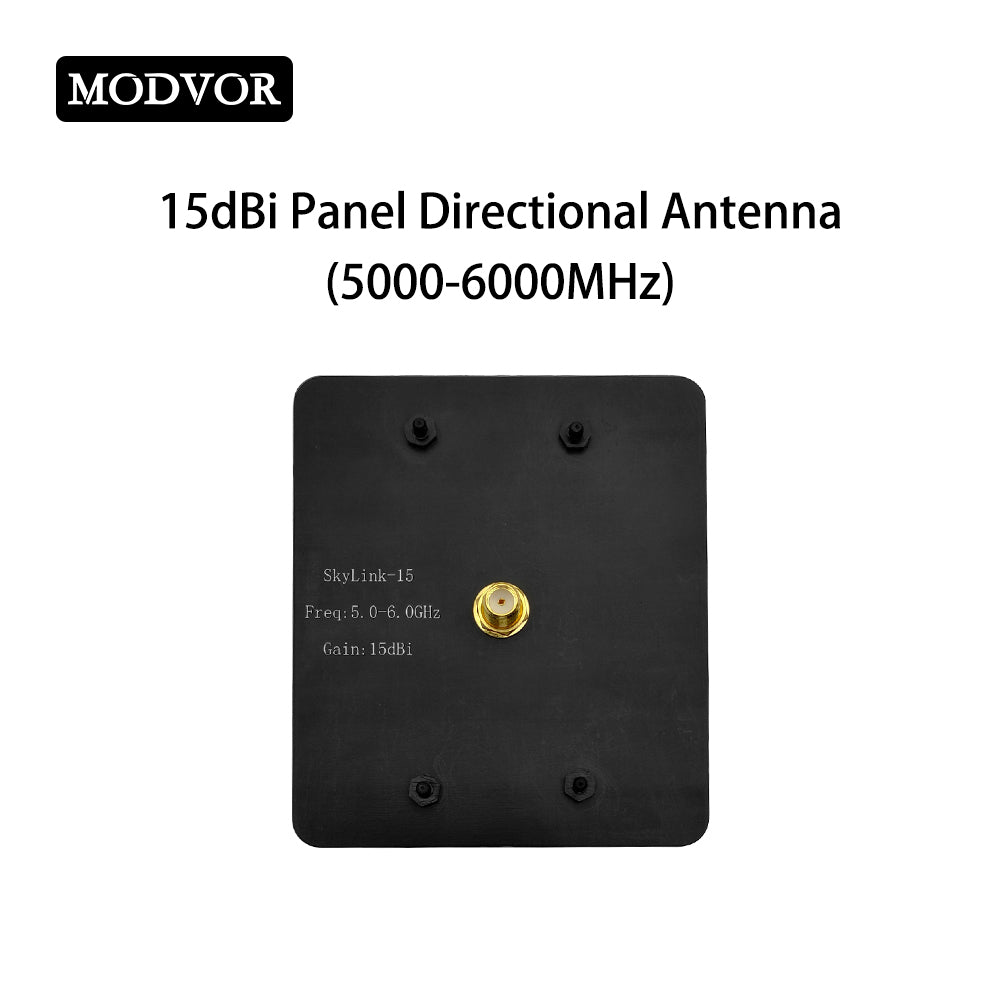

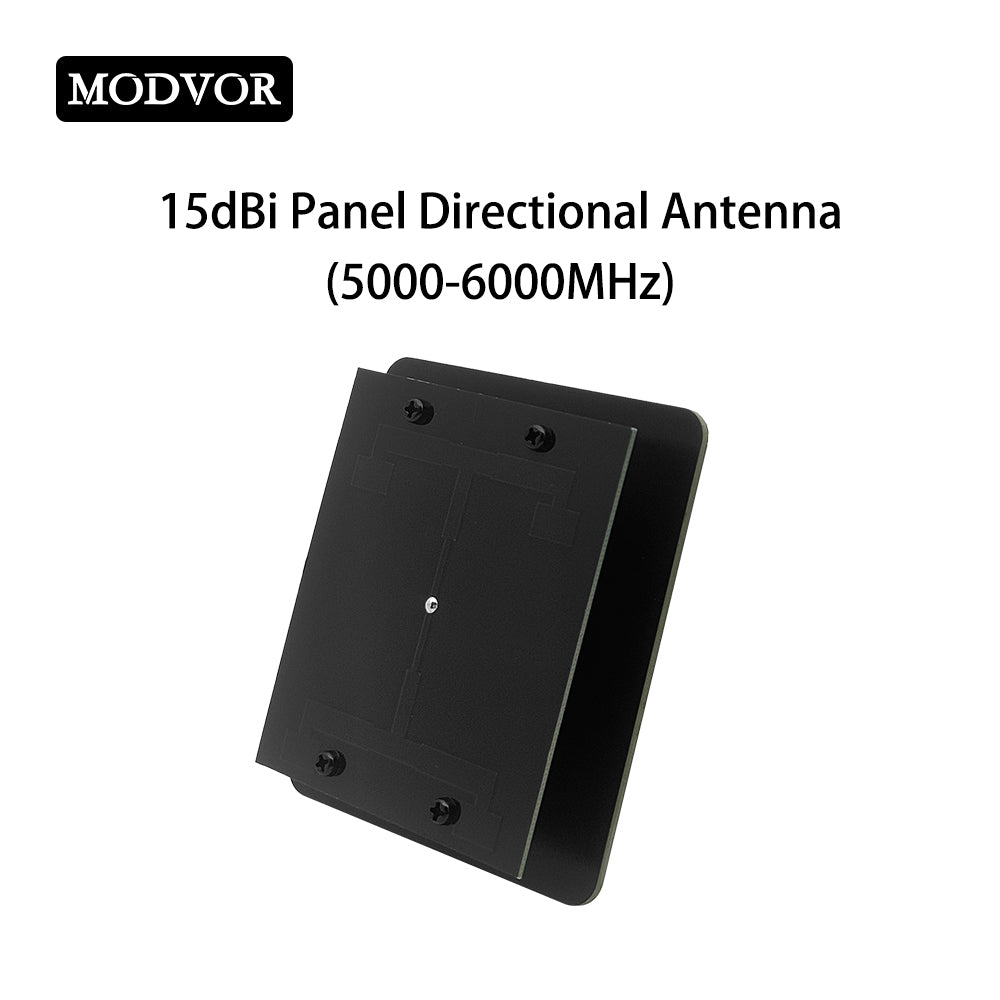

This 5.8GHz flat panel antenna is a high-gain microstrip array antenna operating in the 5-6GHz frequency band. With compact dimensions of 70mm ×80mm ×14.5mm, it features a low-profile, lightweight architecture, weighing only 35.4g for easy integration and embedded installation.

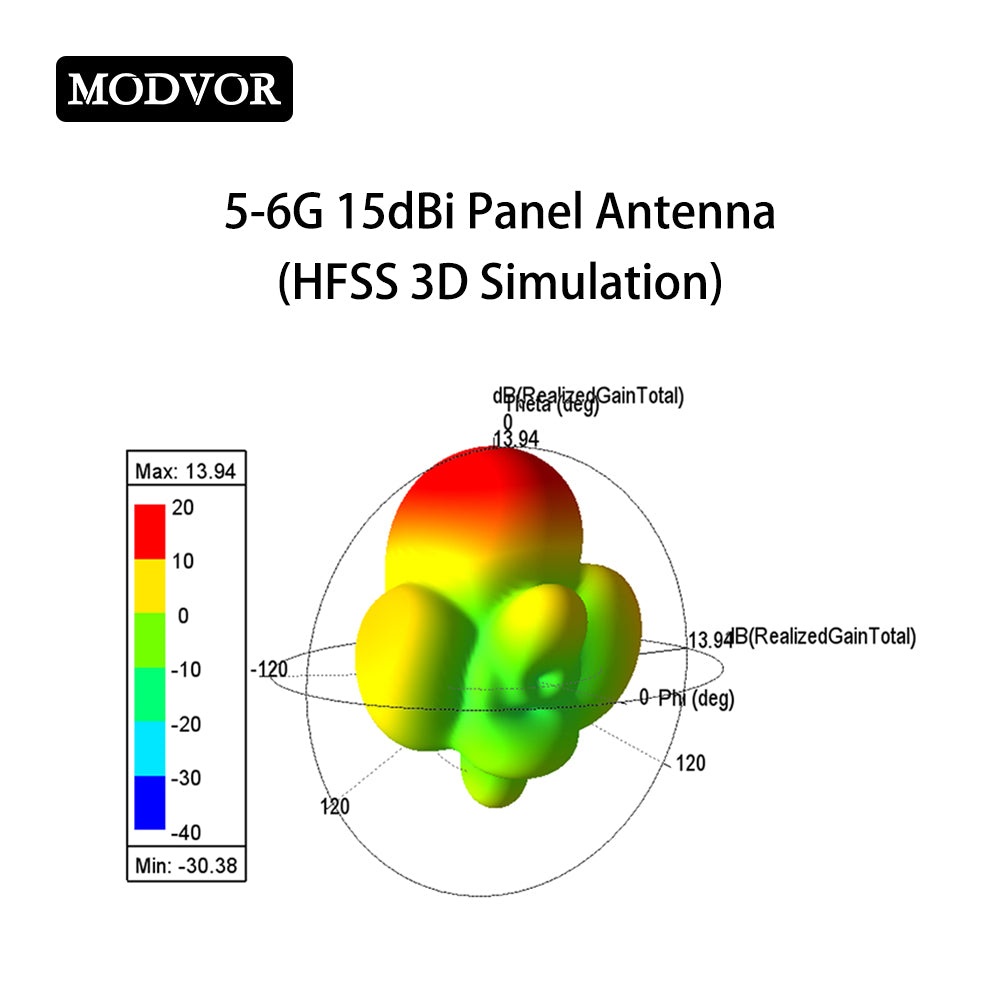

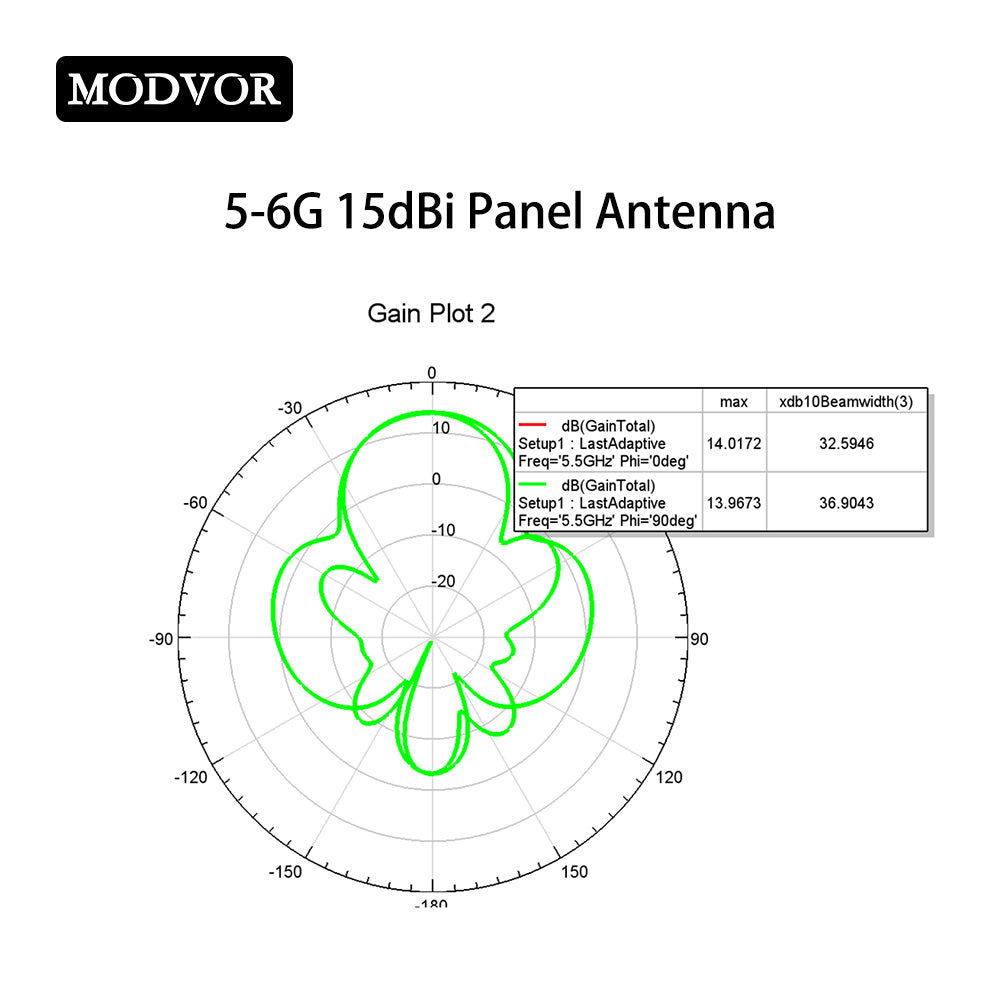

In terms of performance, the patch antenna achieves a gain exceeding 15dBi and maintains a VSWR of less than 1.5 across the entire operating bandwidth, with radiation efficiency ≥90%. It adopts horizontal polarization design, offering 34° elevation HPBW and 36° azimuth HPBW, which provides concentrated directional radiation to support ultra-long-range communication with focused energy. It is equipped with SMA-Female RF connector and can handle up to 30W input power, delivering stable and reliable signal transmission.
For application scenarios, this directional 5.8 ghz panel antenna is well suited for UAV relay communication nodes, 5G and dedicated LTE network wireless backhaul, reflector antenna feed, antenna measurement ranges, directional receiving antennas for electronic attack, as well as ground receiving stations for Synthetic Aperture Radar (SAR). It is also widely used in point-to-point 5.8GHz wireless bridge and industrial long-distance wireless communication systems.
Product Application
- UAV Relay Communication Nodes
- 5G/dedicated LTE network wireless backhaul
- Reflector antenna feed
- Antenna Measurement Ranges
- Directional Antennas for Electronic Attack (EA)
- Ground Receiving Station for Synthetic Aperture Radar (SAR)
Product Features
- 1G Ultra wideband, relative bandwidth 18%
- 15dBi High Gain
- 36°wide beam
- 14.5mm low profile
Product Specifications
| Working band | 5000-6000MHz |
| Gain | 15dBi |
| VSWR | ＜1.5 |
| Efficiency | ≥90% |
| Polarization | Horizontal Polarization |

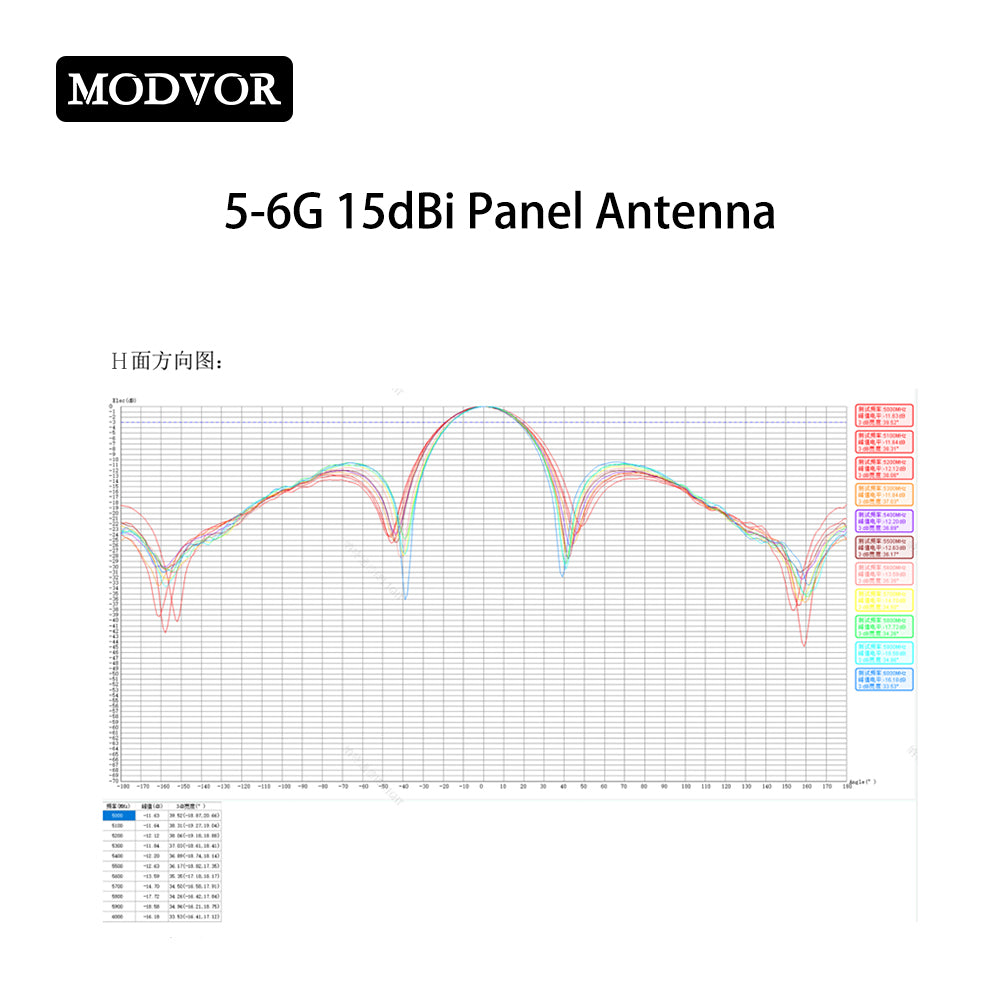

| EL HPBW | 34° |
| AZ HPBW | 36° |
| Input Impedance | 50Ω |
| Power Handing | 30W |

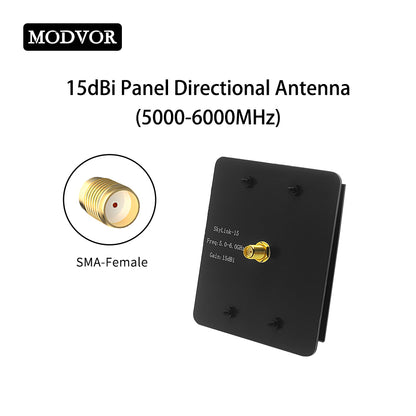

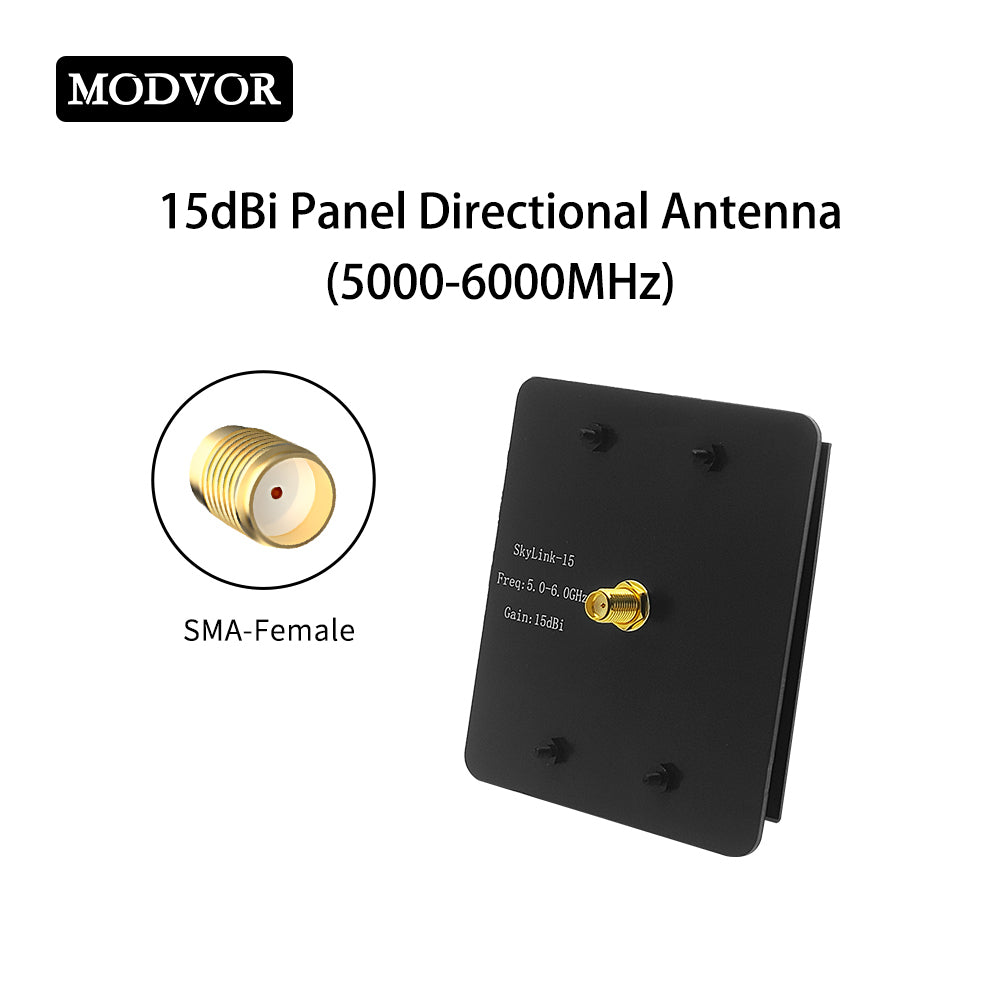

| RF Connector | SMA-Female |

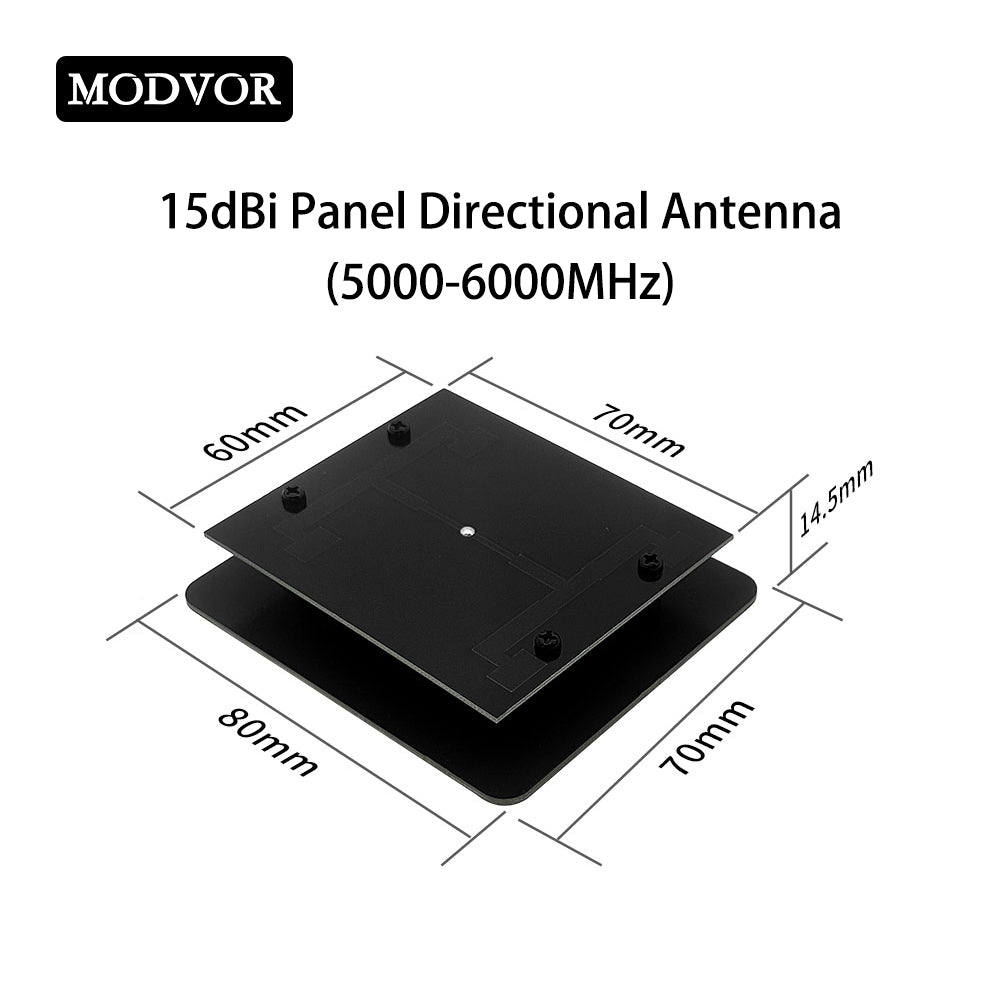

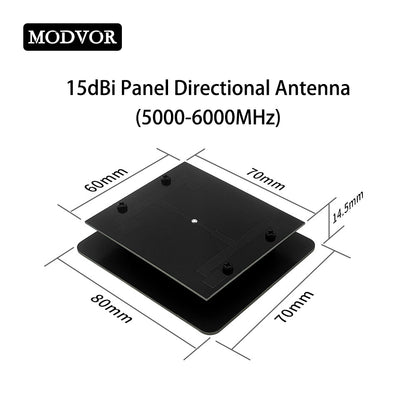

| Size | 70*80*14.5mm |
| Weight | 35g |

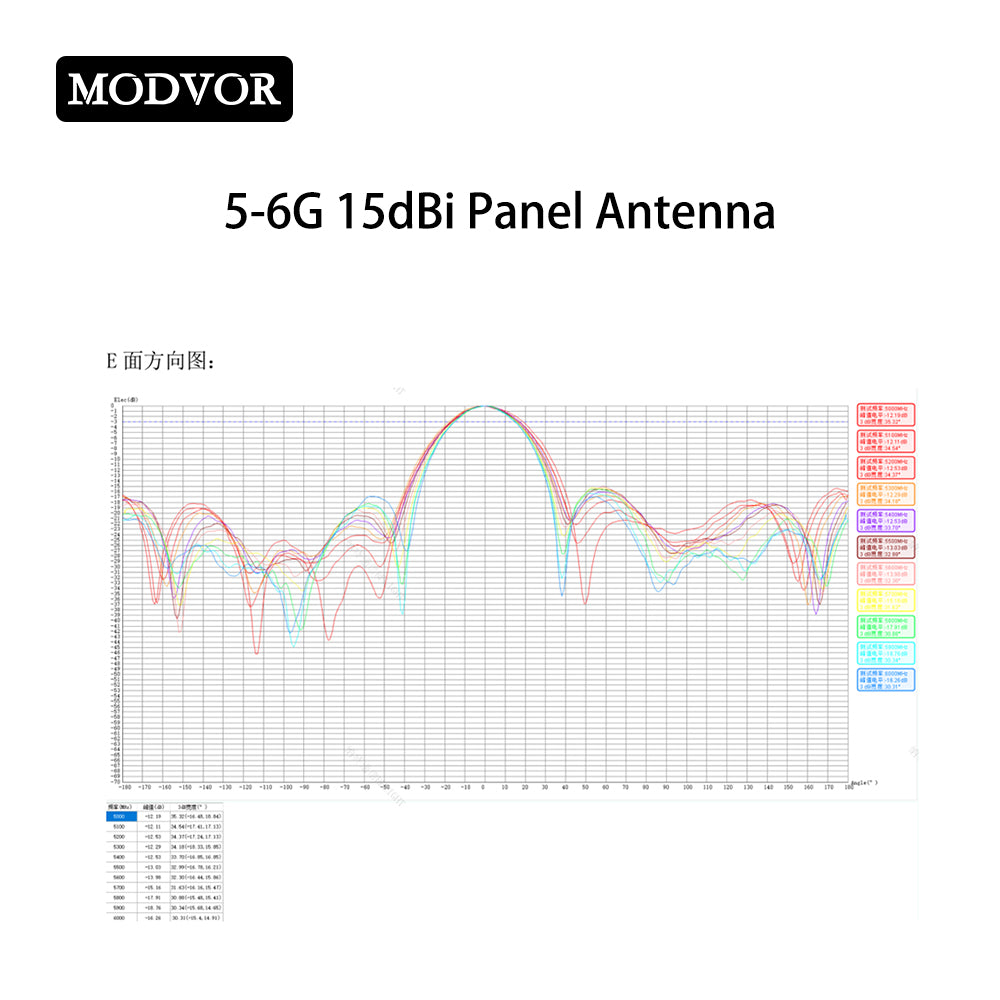

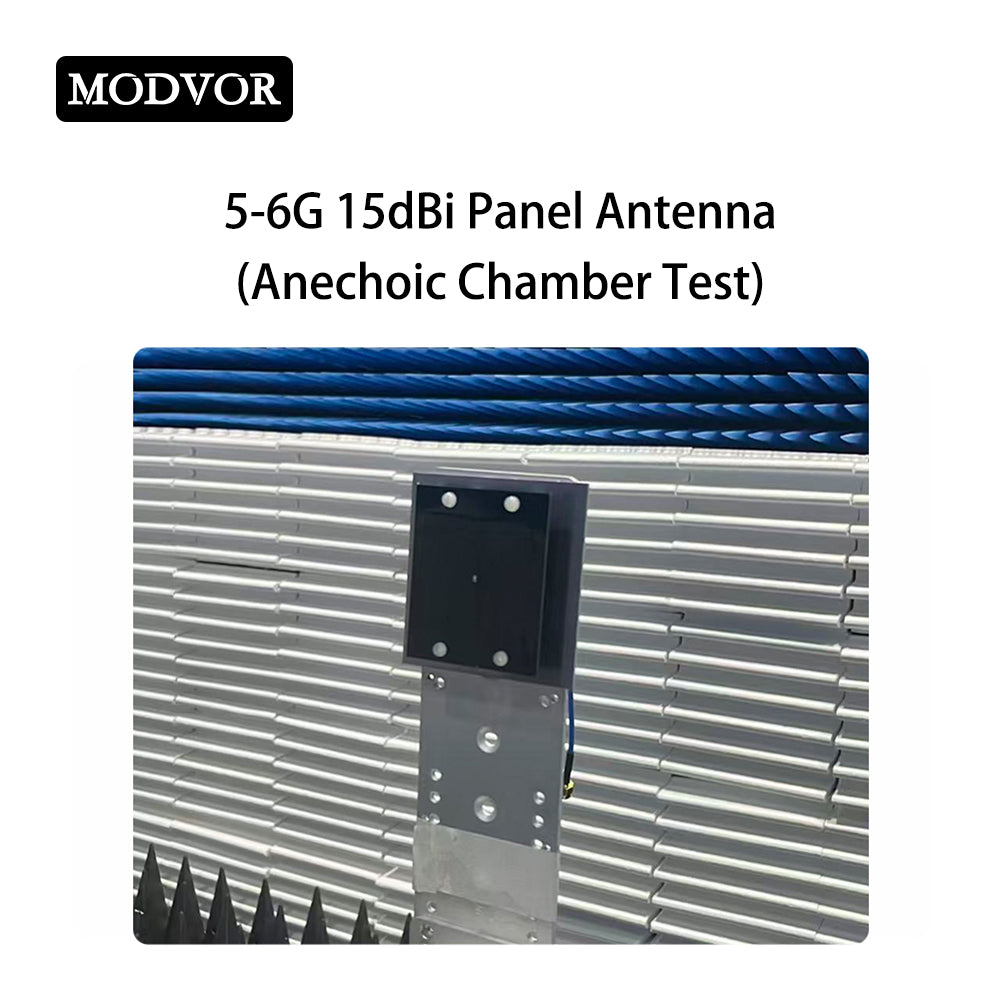

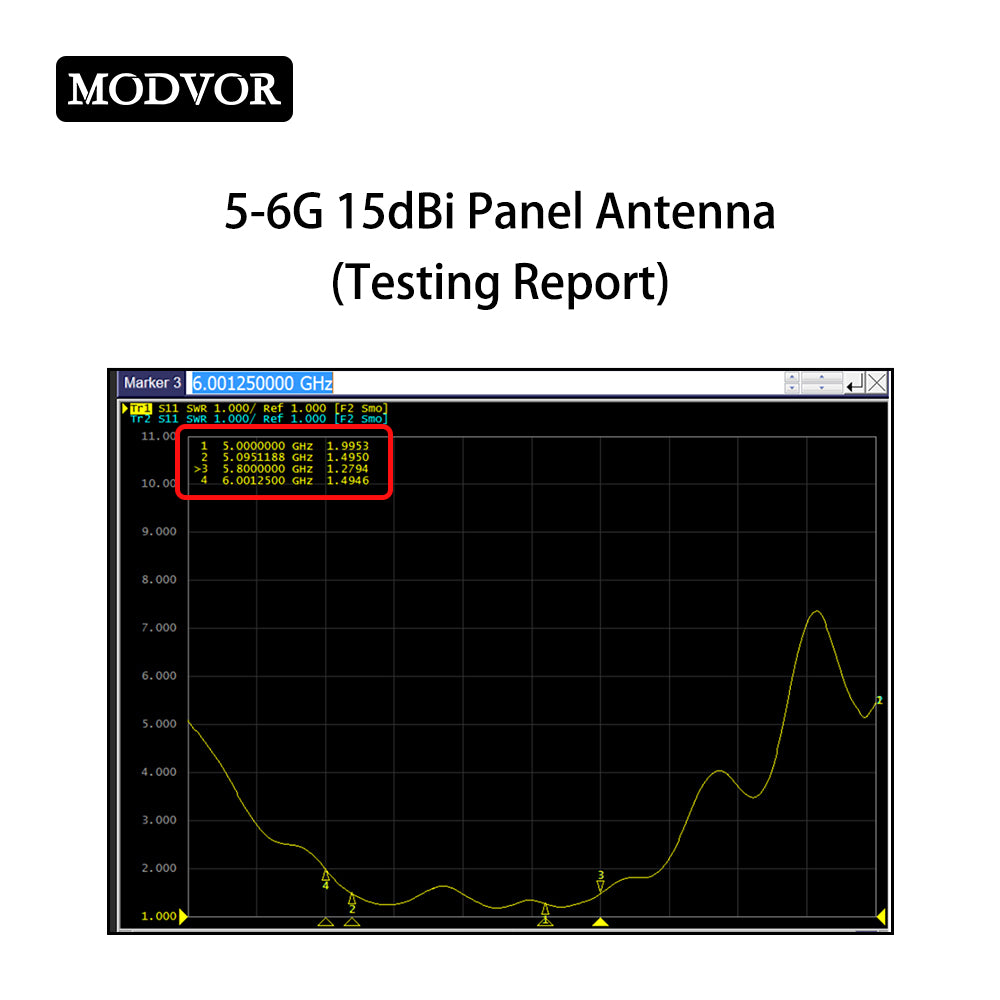

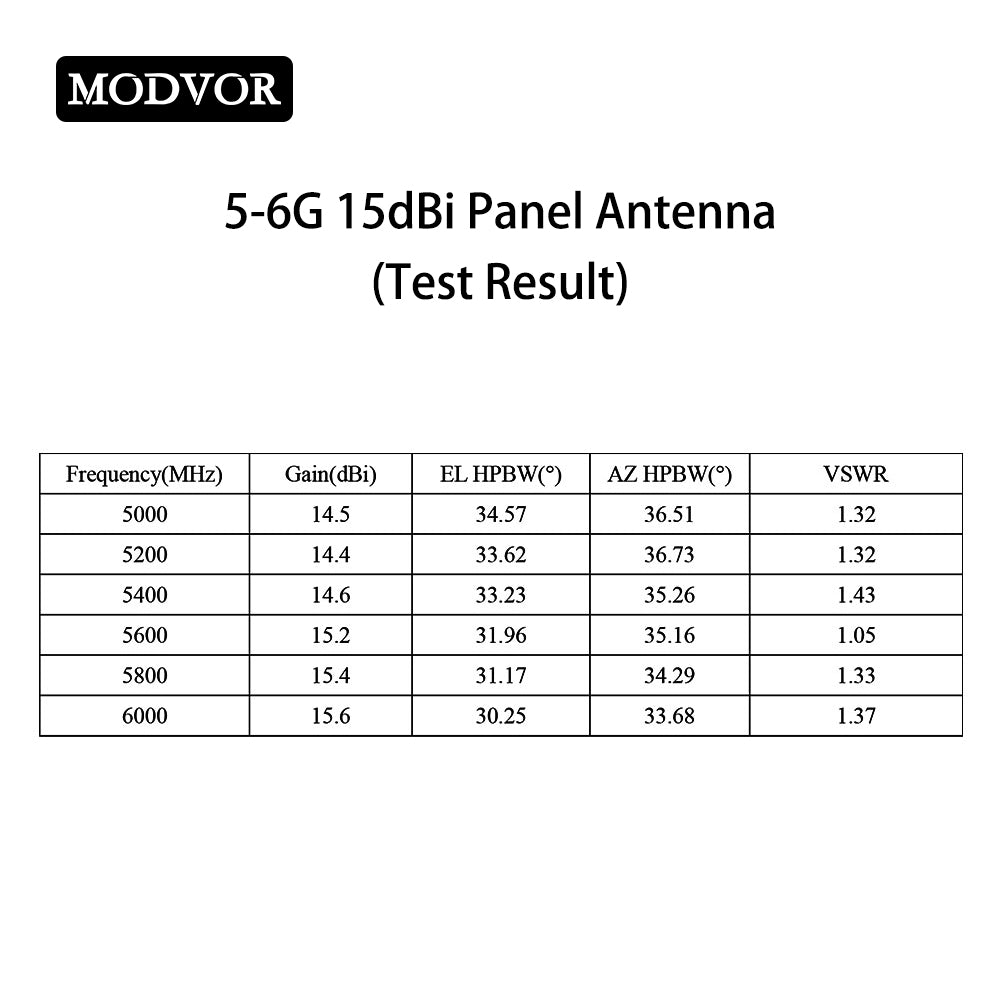

Test Result
| Frequency(MHz) | Gain(dBi) | EL HPBW(°) | AZ HPBW(°) | VSWR |
| 5000 | 14.5 | 34.57 | 36.51 | 1.32 |
| 5200 | 14.4 | 33.62 | 36.73 | 1.32 |
| 5400 | 14.6 | 33.23 | 35.26 | 1.43 |
| 5600 | 15.2 | 31.96 | 35.16 | 1.05 |
| 5800 | 15.4 | 31.17 | 34.29 | 1.33 |
| 6000 | 15.6 | 30.25 | 33.68 | 1.37 |
Package List
1 X 5-6G Panel Directional Antenna
