Product Description

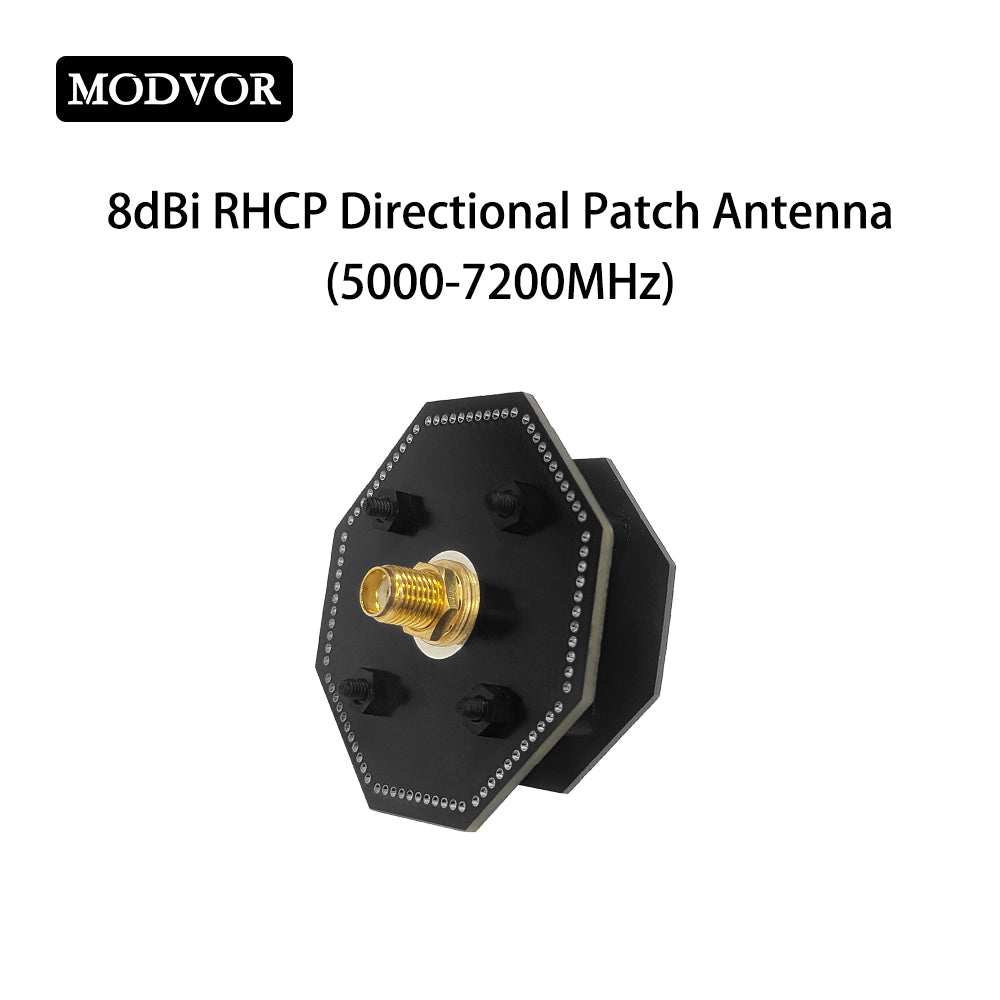

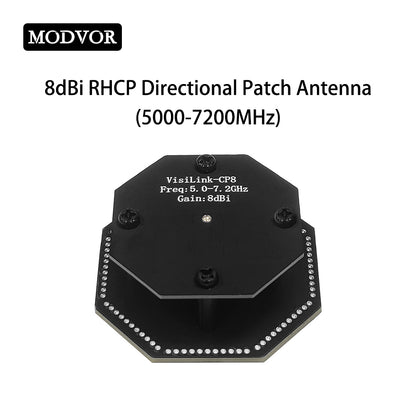

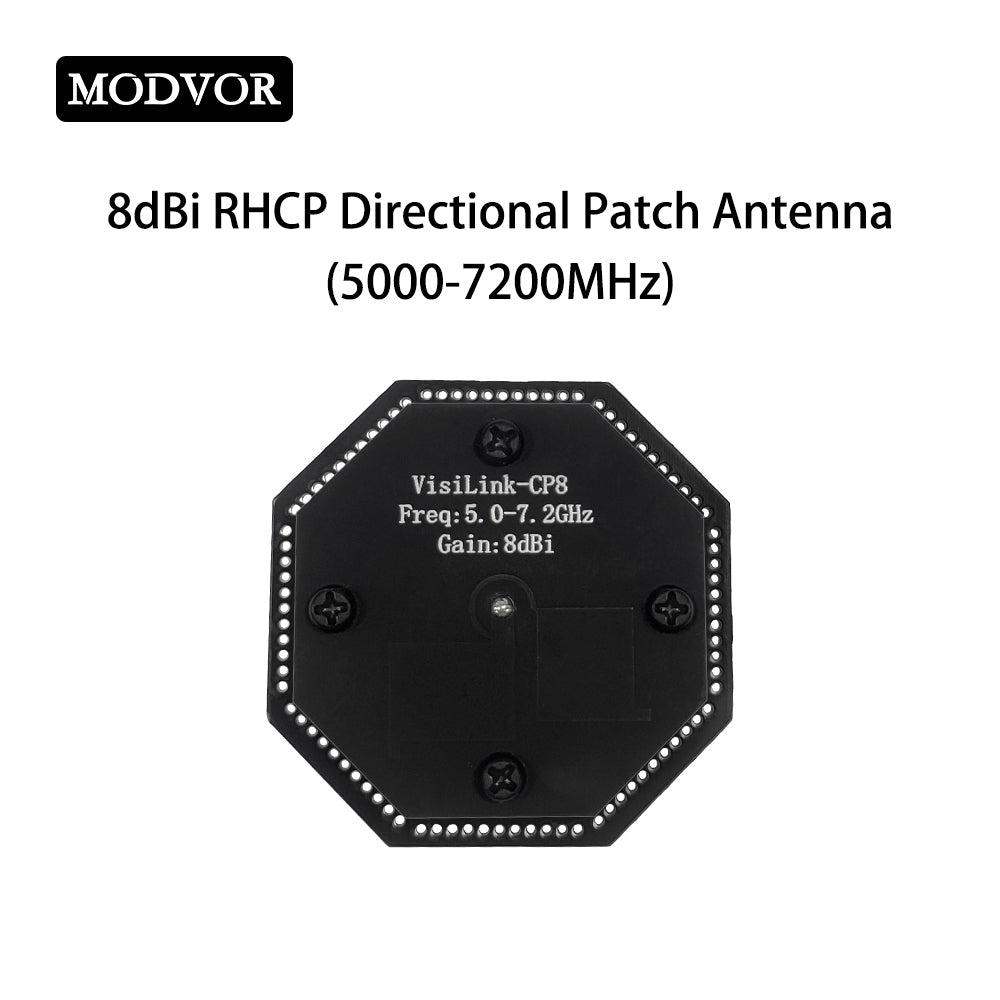

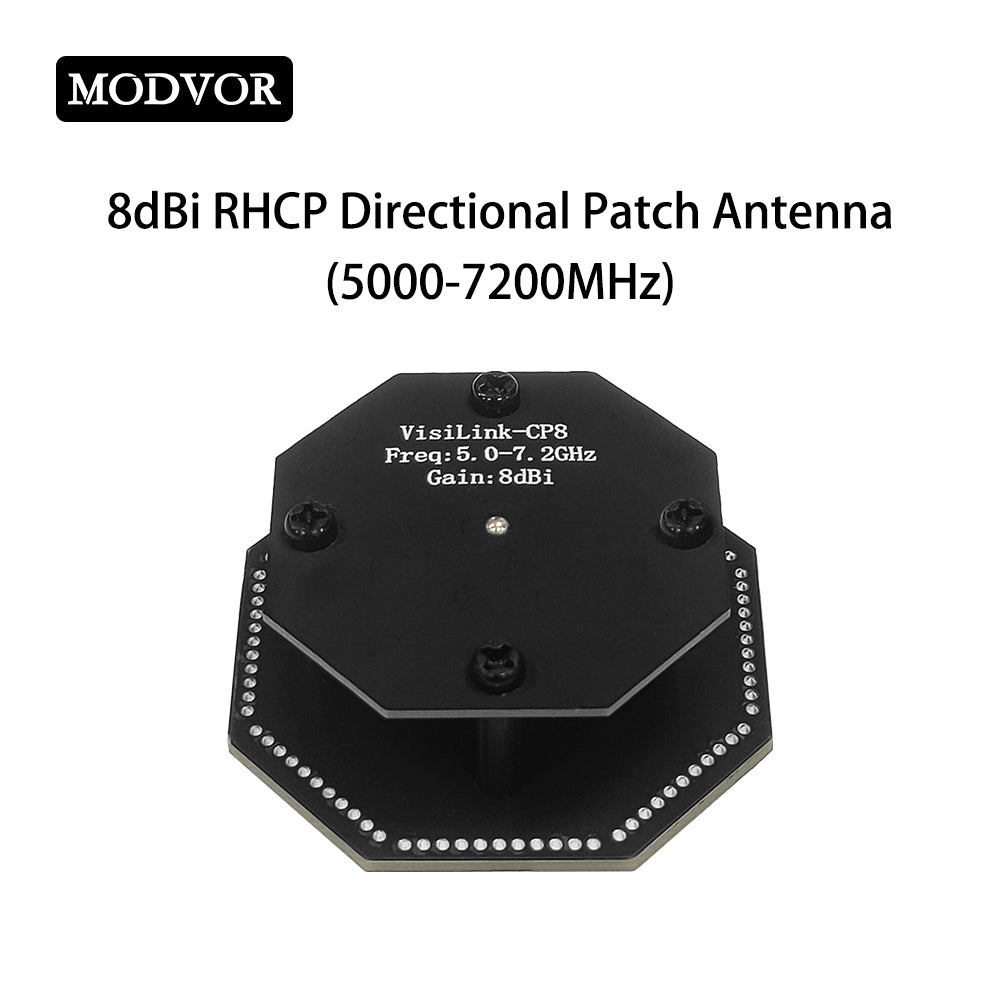

This is a high-gain, circularly polarized directional patch antenna tailor-made for FPV drone goggle receivers. Boasting a compact form factor of 45*45*15.5 mm, this ultra-wideband panel antenna operates within the 5000–7200 MHz frequency spectrum and achieves an impressive 8 dBi gain.
Built with advanced circular polarization technology, the antenna effectively suppresses multipath interference and features excellent orientation adaptability. Even when your drone tilts or rotates mid-flight, it maintains consistent signal reception, greatly improving signal stability and extending the effective transmission range of your drone video downlink system.
Designed to be installed on the receiver side at the goggle end, it is well-suited for multiple FPV scenarios. Whether you are pursuing long-range video transmission, flying in complicated terrain with heavy signal reflections, or taking part in high-aggression FPV drone racing, this directional patch antenna serves as a reliable upgrade to boost your video link performance.
Product Application
- FPV Racing
- FPV Freestyle
- Long Range Video Transmission
- Long Range Out and Back Flight
- Video Ground Station
Product Features
- 2G Ultra wideband, relative bandwidth 36%
- 8dBi High Gain
- 73°EL HPBW
- 74°AZ HPBW
Product Specifications
| Working band | 5000-7200MHz |
| Gain | 8dBi |

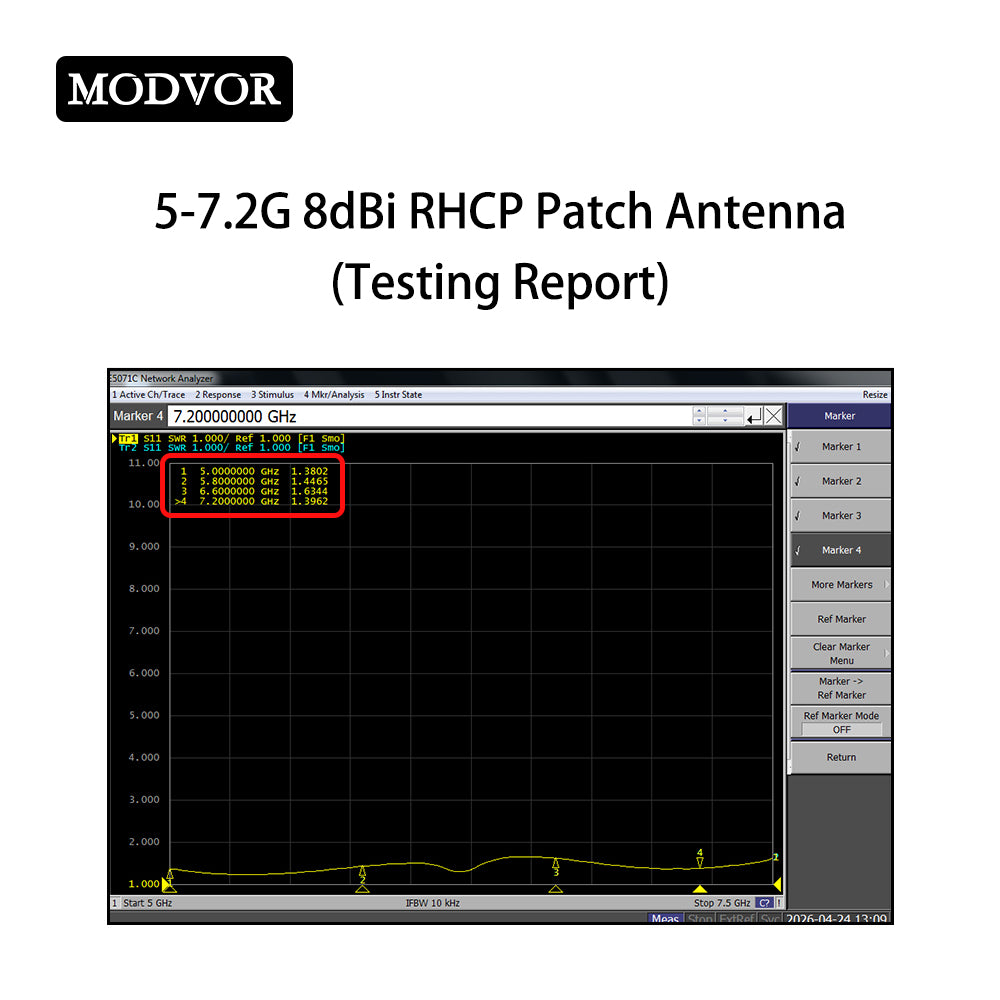

| VSWR | ＜1.6 |
| Efficiency | ≥90% |
| Polarization | RHCP |
| EL HPBW | 73° |
| AZ HPBW | 74° |
| Input Impedance | 50Ω |
| Power Handing | 30W |

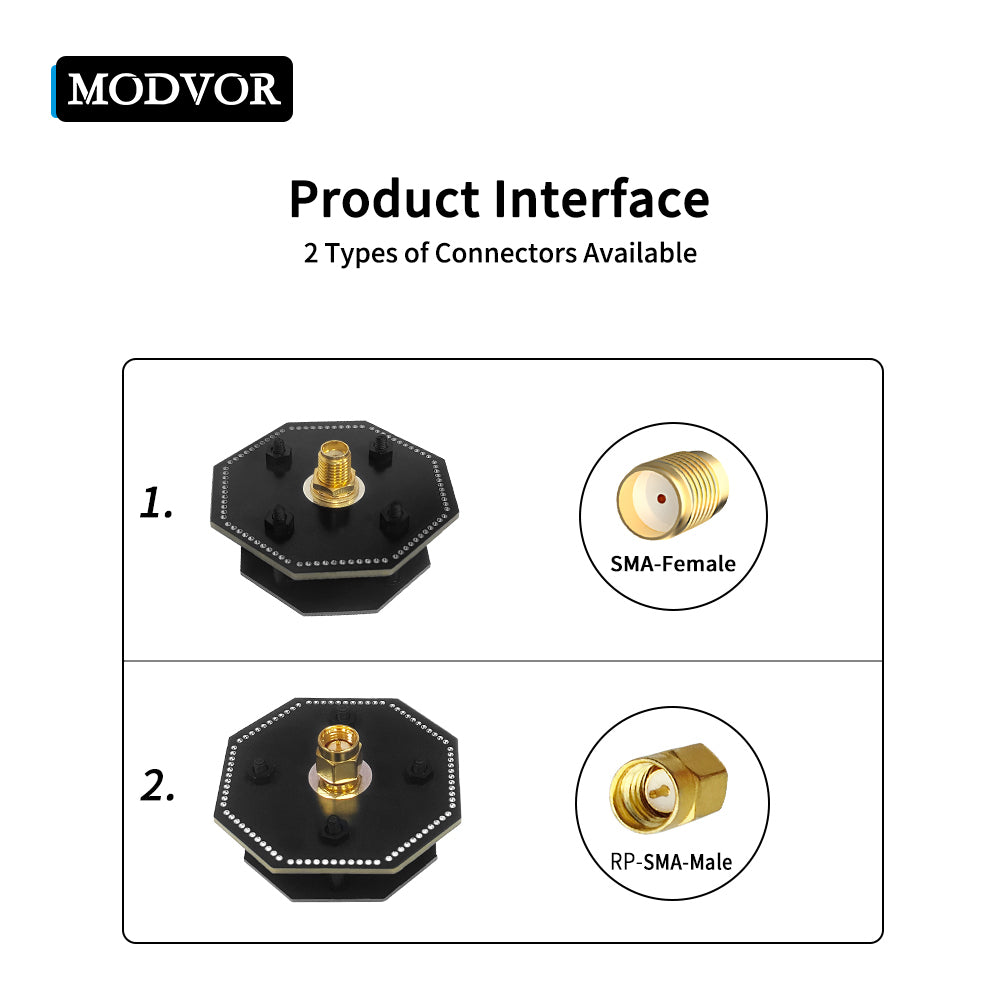

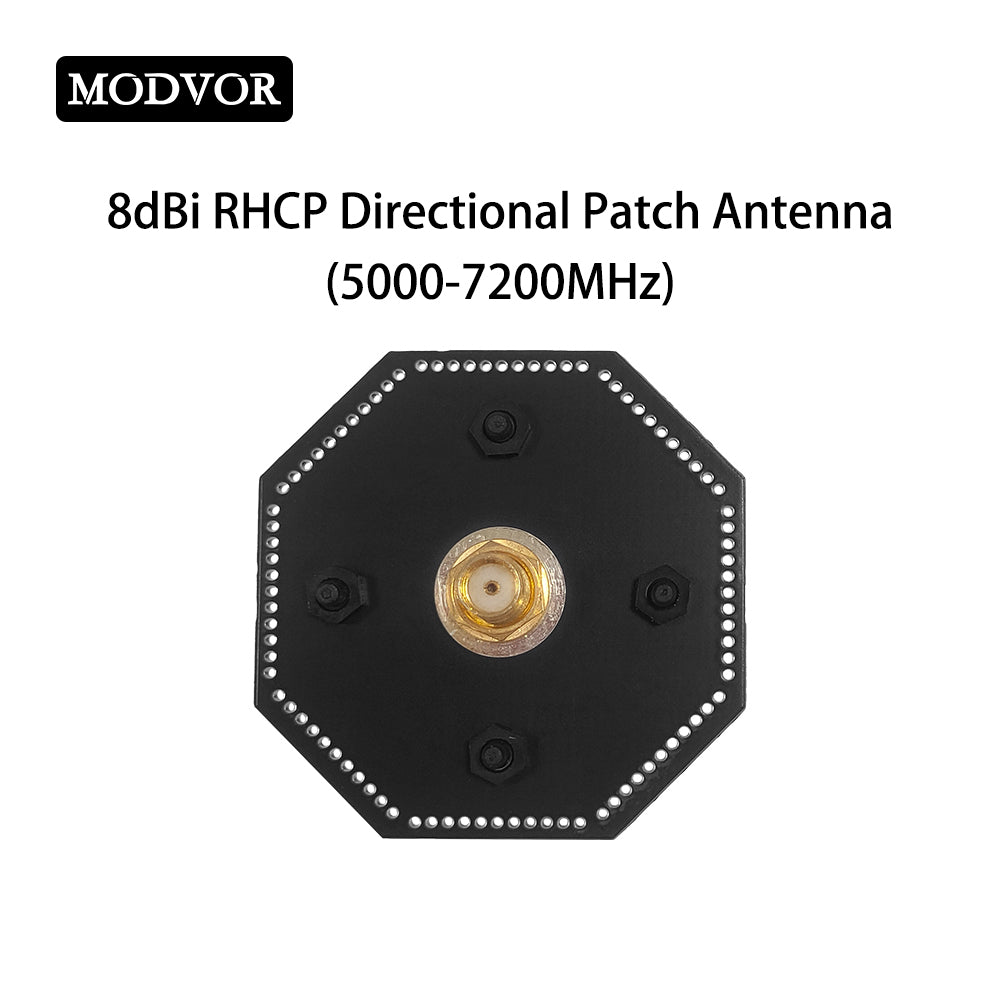

| RF Connector | SMA- Fmale/Male |

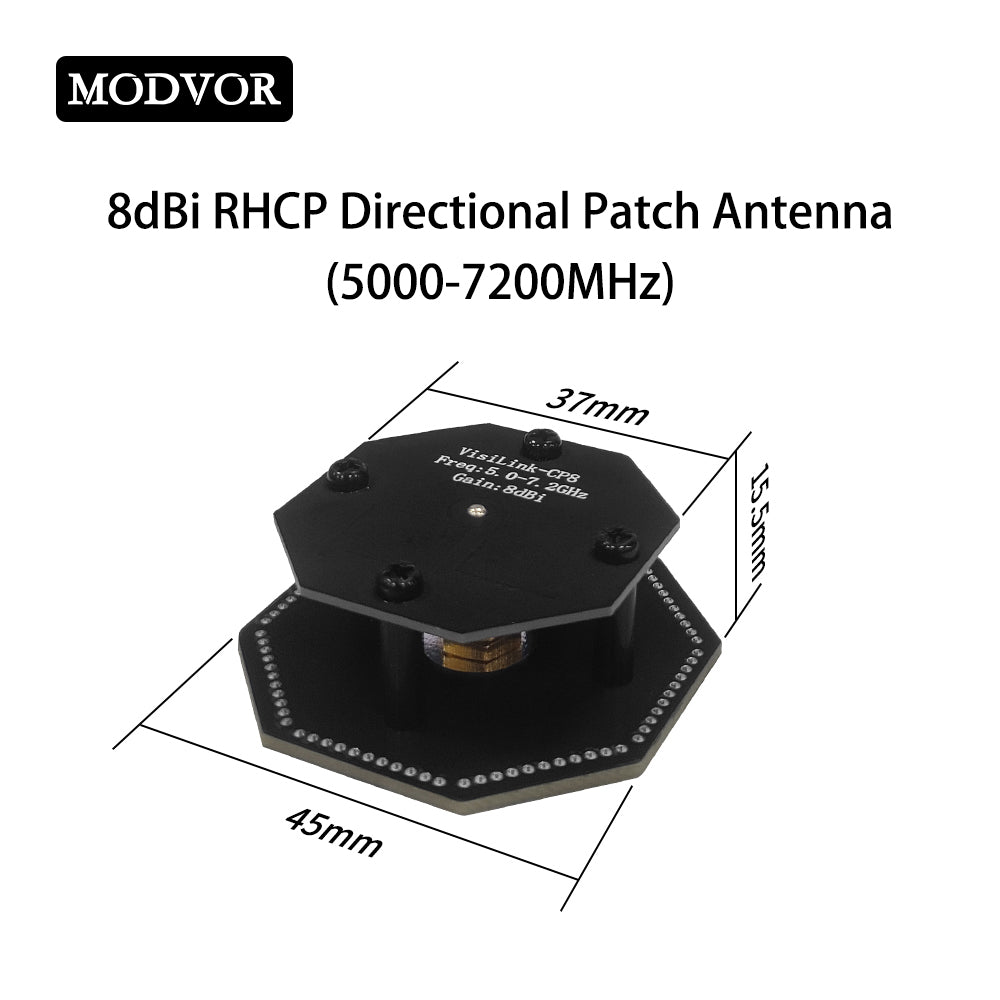

| Size | 45*45*15.5mm |
| Weight | 13.2g |

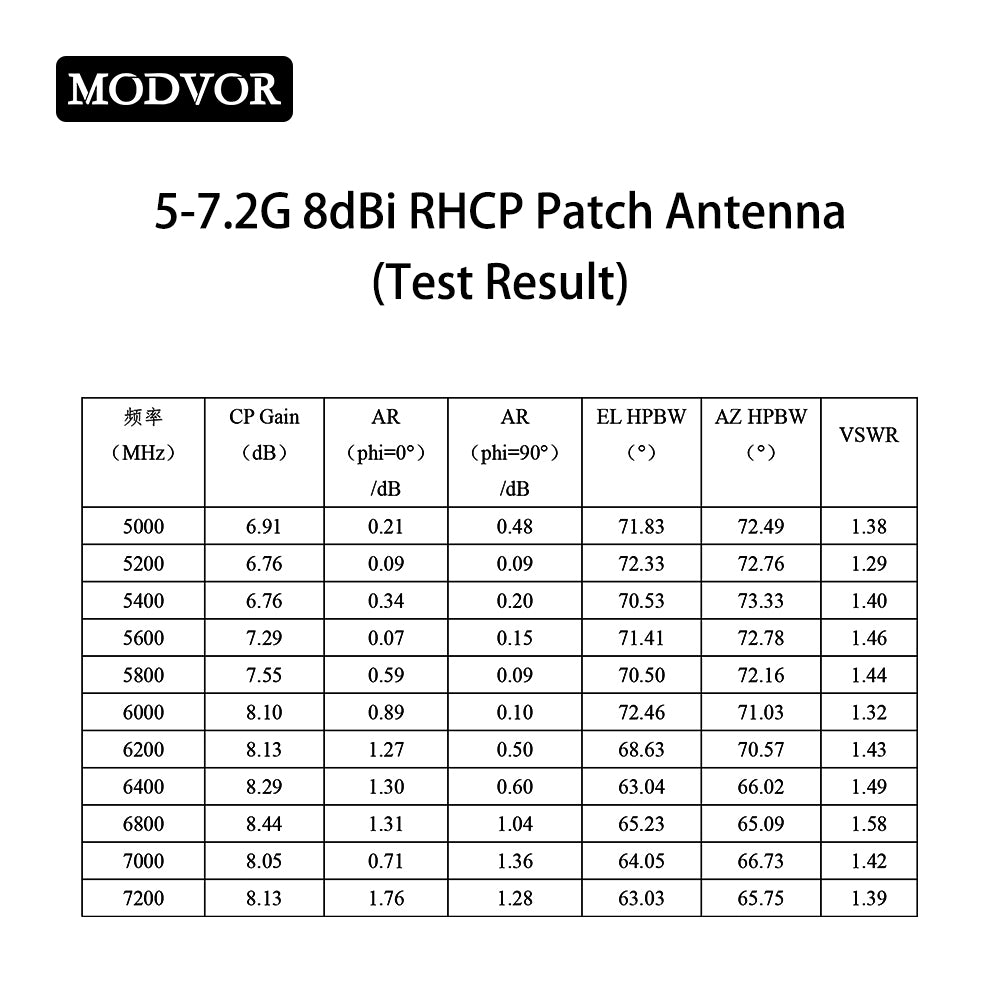

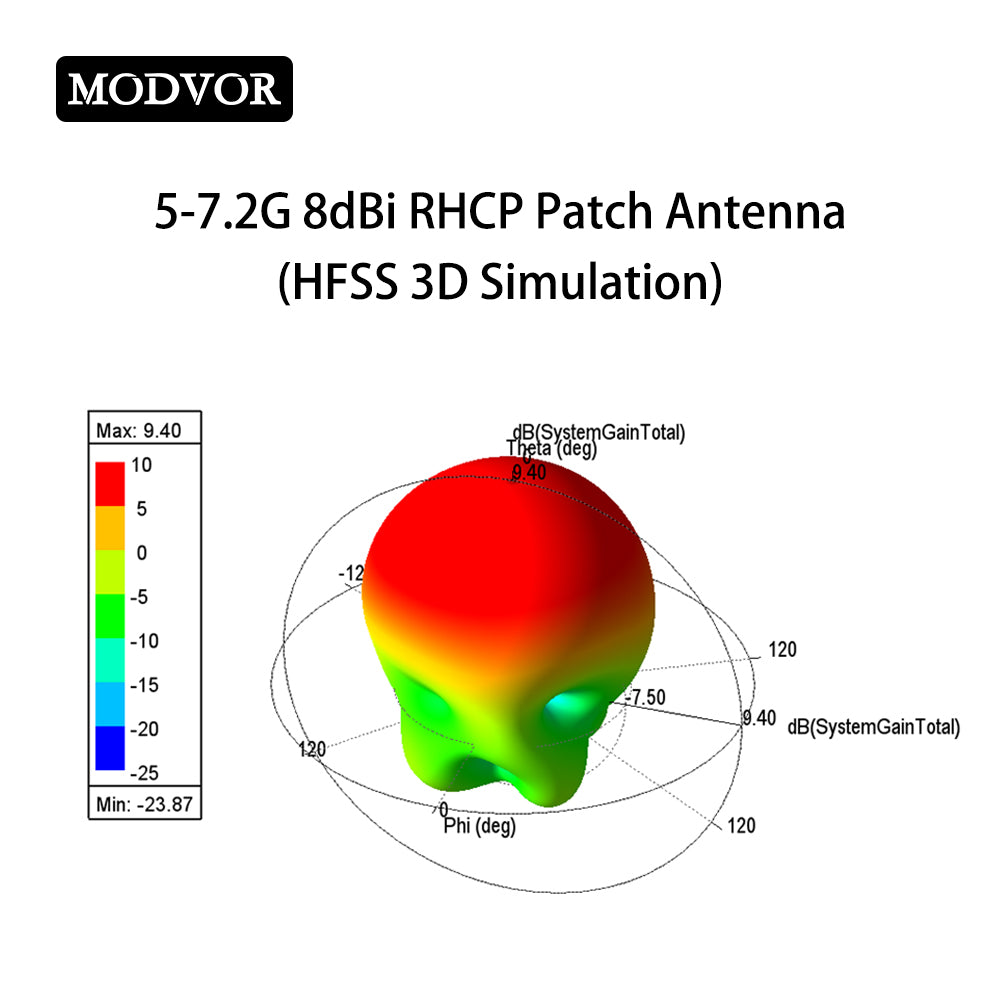

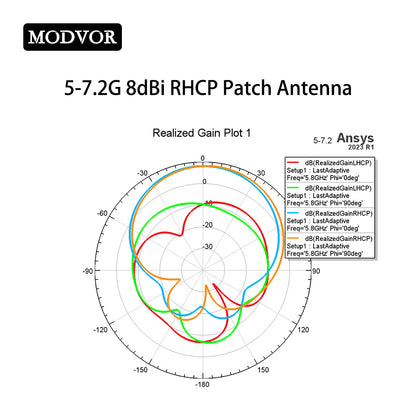

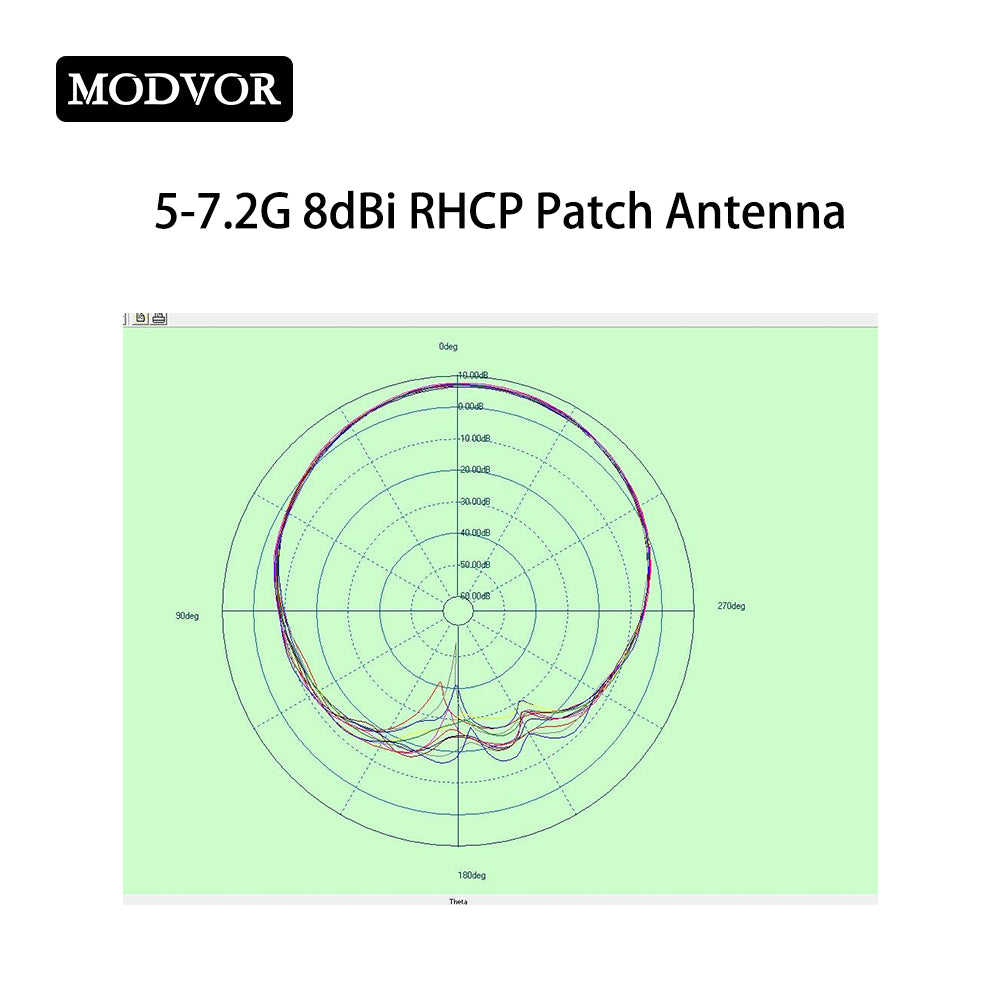

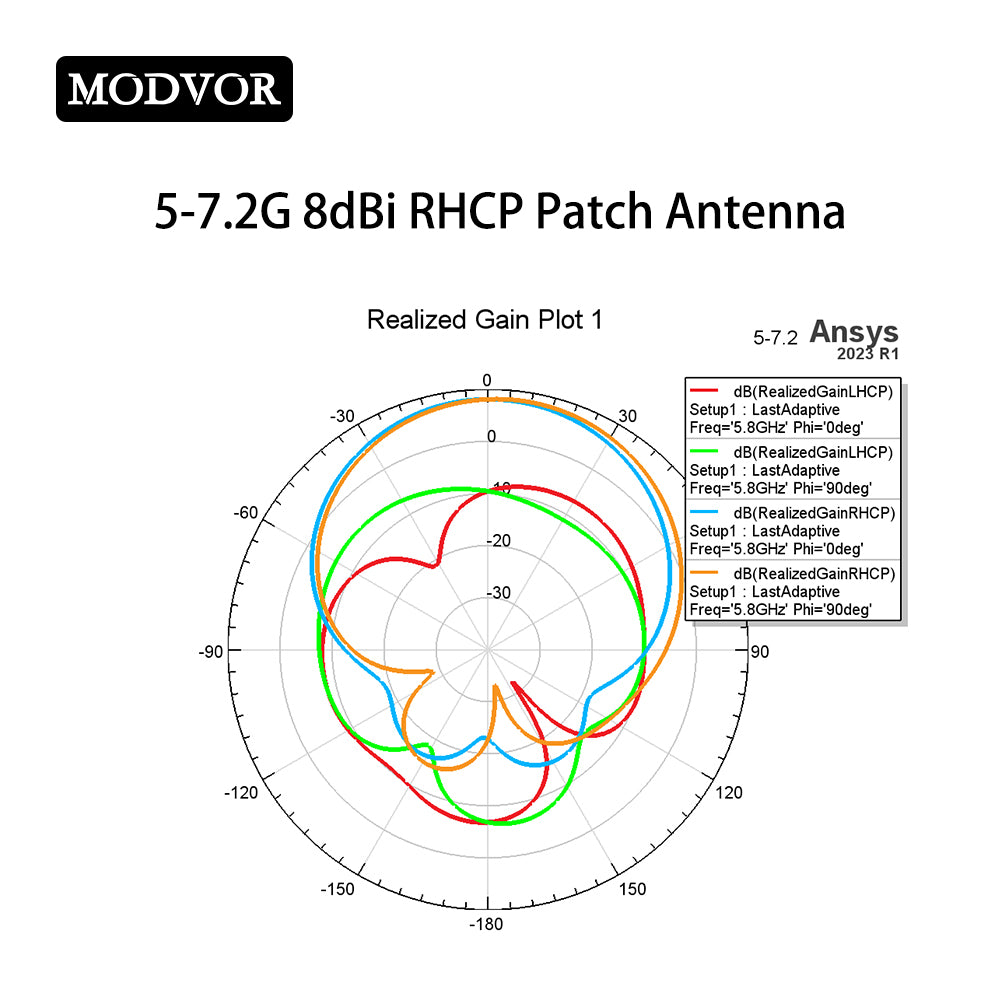

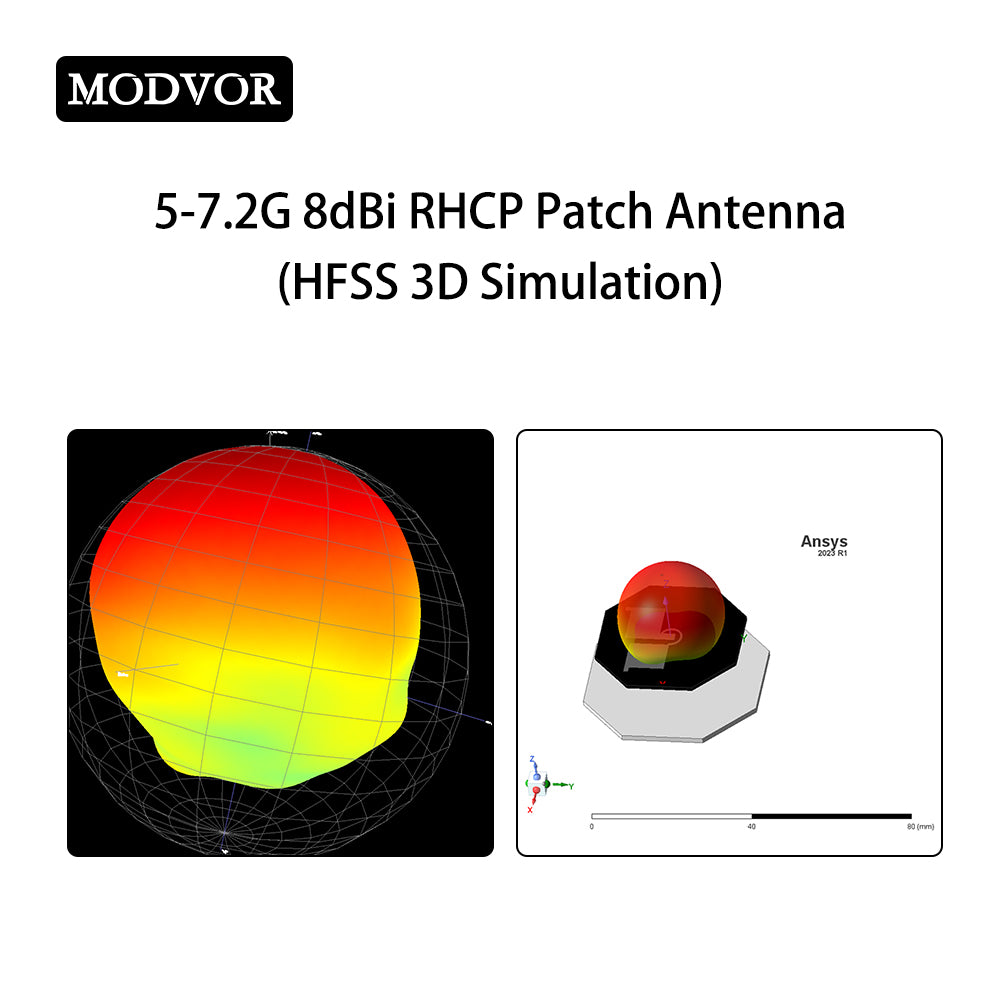

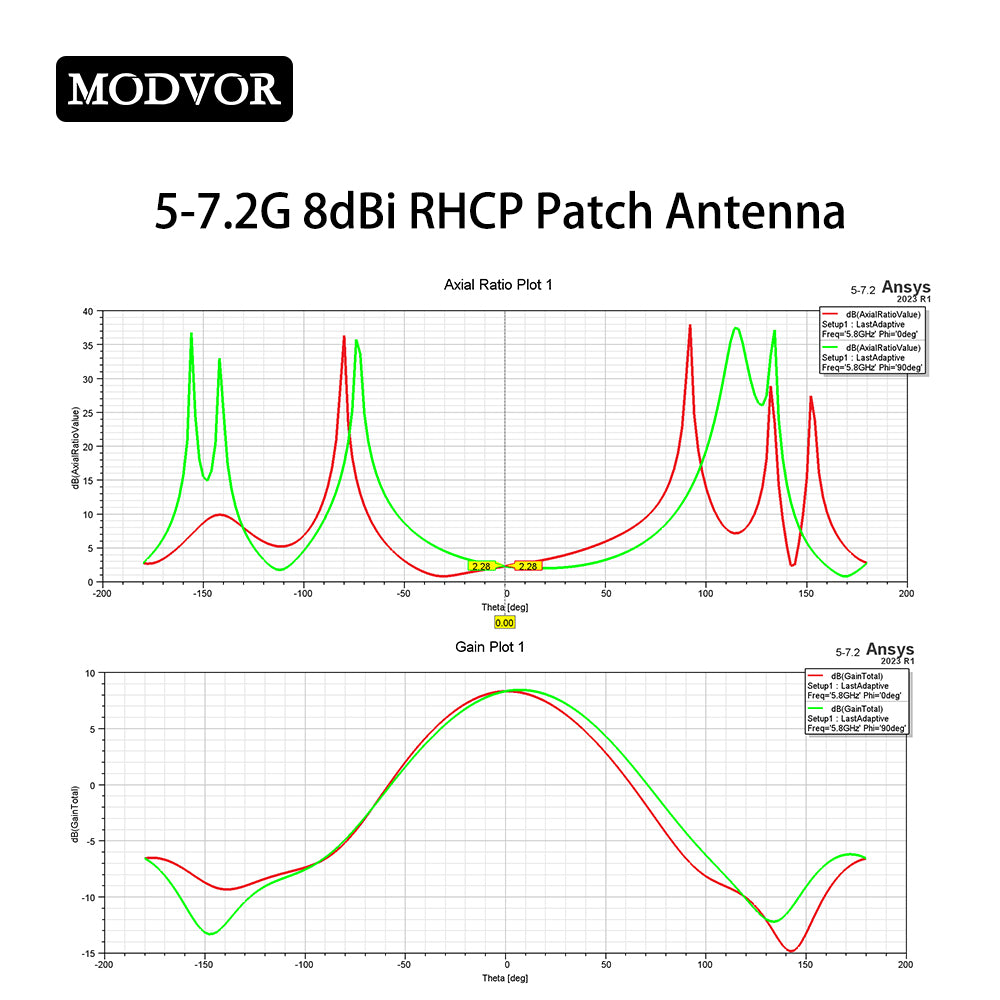

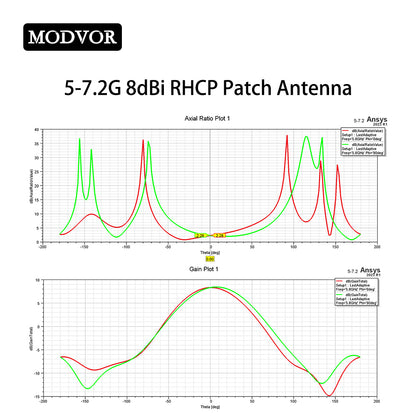

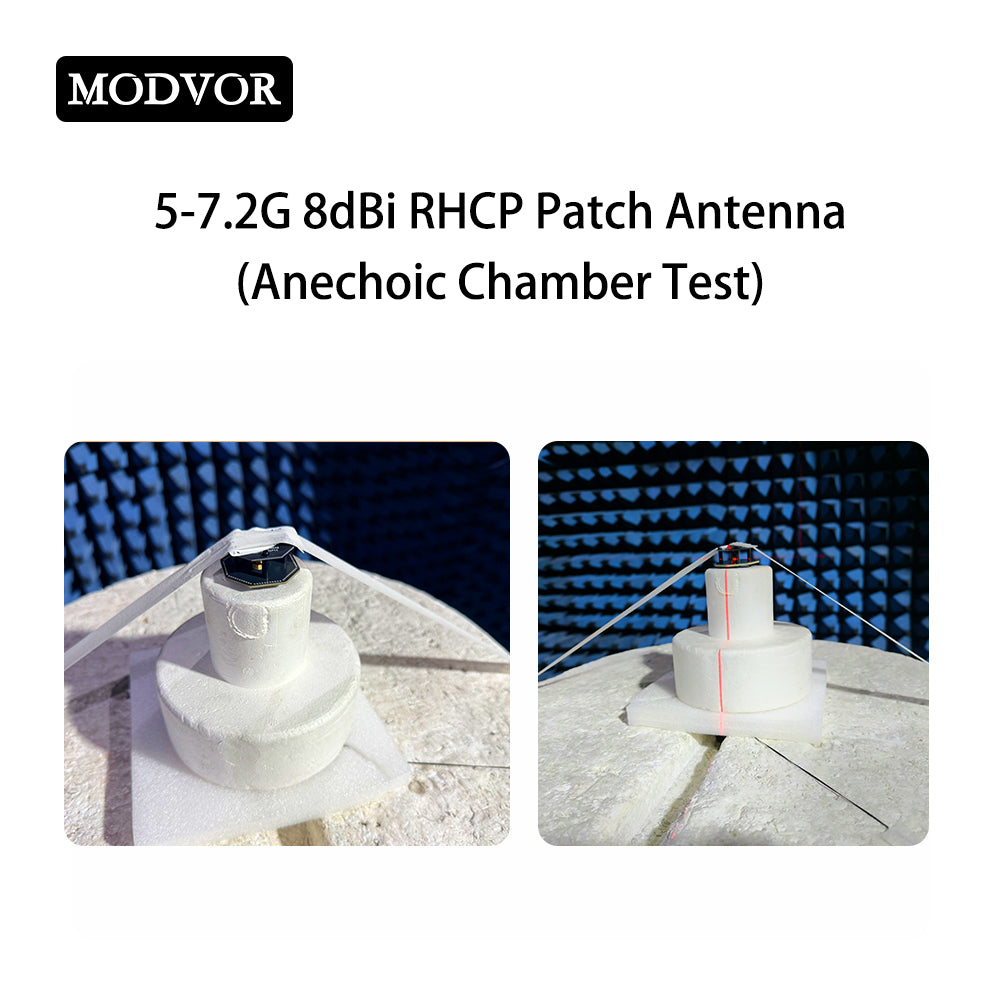

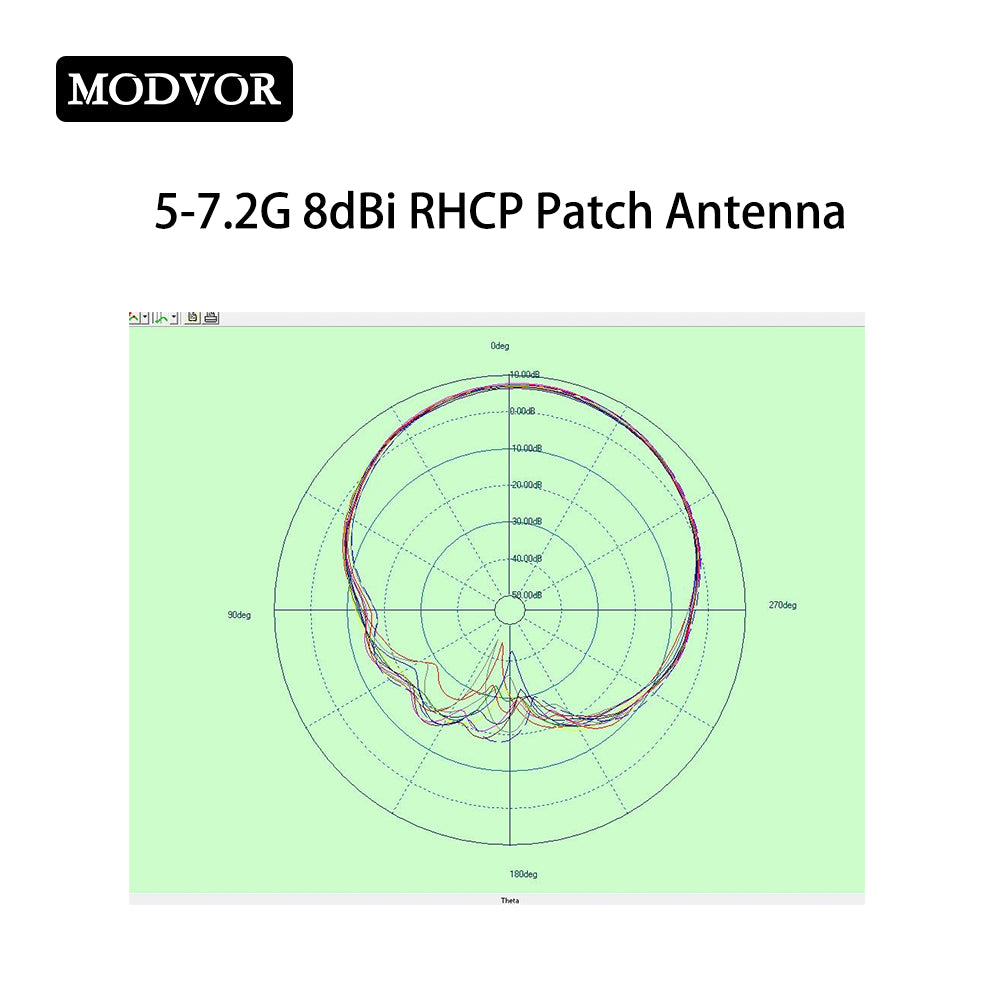

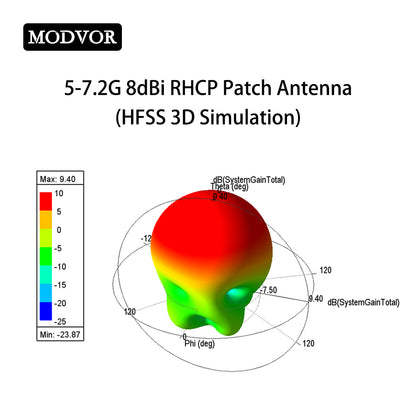

Test Result

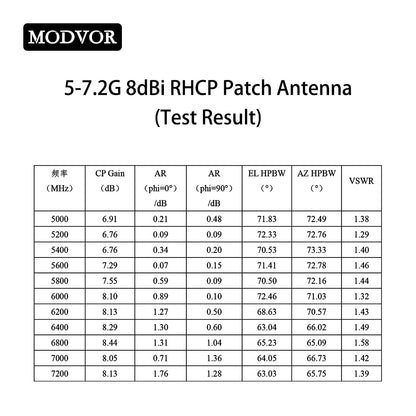

| Frequency(MHz) | CP Gain(dBi) | AR(phi=0°) /dB | AR(phi=90°) /dB | EL HPBW(°) | AZ HPBW(°) | VSWR |
| 5000 | 6.91 | 0.21 | 0.48 | 71.83 | 72.49 | 1.38 |
| 5200 | 6.76 | 0.09 | 0.09 | 72.33 | 72.76 | 1.29 |
| 5400 | 6.76 | 0.34 | 0.2 | 70.53 | 73.33 | 1.4 |
| 5600 | 7.29 | 0.07 | 0.15 | 71.41 | 72.78 | 1.46 |
| 5800 | 7.55 | 0.59 | 0.09 | 70.5 | 72.16 | 1.44 |
| 6000 | 8.1 | 0.89 | 0.1 | 72.46 | 71.03 | 1.32 |
| 6200 | 8.13 | 1.27 | 0.5 | 68.63 | 70.57 | 1.43 |
| 6400 | 8.29 | 1.3 | 0.6 | 63.04 | 66.02 | 1.49 |
| 6800 | 8.44 | 1.31 | 1.04 | 65.23 | 65.09 | 1.58 |
| 7000 | 8.05 | 0.71 | 1.36 | 64.05 | 66.73 | 1.42 |
| 7200 | 8.13 | 1.76 | 1.28 | 63.03 | 65.75 | 1.39 |
Package List
1 X 5-7.2G RHCP Directional Panel Antenna
