Product Description
This 50W high-power GaN RF UAV jammer module covers the 1160–1280MHz frequency band, specially engineered for jamming GPS L5 satellite navigation and long-distance FPV drone signals. Featuring advanced GaN semiconductor technology, it provides stable high power output, superior energy efficiency and lower heat generation, reliably suppressing both GPS L5 navigation and FPV transmission signals under various working conditions.
Built-in professional circulator ensures effective signal isolation, prevents signal reflection and module damage, and greatly improves operational stability. Equipped with a standard SMA-Female interface, this unit supports flexible antenna matching and easy installation to meet long-range jamming requirements.
Compact, efficient and long-range capable, this GaN UAV jammer module is ideal for anti-drone intrusion and site security scenarios, delivering stable and reliable shielding performance for GPS L5 and long-distance FPV drone signals.
Product Features
- Frequency: 1160-1280MHz coverage
- Advanced GaN technology, stable 50W (47dBm) output
- Integrated circulator for enhanced reliability
- SMA female RF connector
- Compact aluminum alloy housing
Custom frequency bands & power are available, feel free to contact us for your requirements.
Product Specifications
| Frequency Range | 1160-1280MHz |
| Operating Voltage | 28 V DC |
| Flatness | ±0.5 dB |
| Output Power | 50 W/47 dBm |
| Current Consumption | 3.8 A@28 V |
| Efficiency | 45%@47 dBm |
| LED State | Red |
| Operating Temperature | -30℃ ~ +85℃ |
| Storage Temperature | -40℃ ~ +150℃ |
| Operating Humidity | <95%RH |
| RF Connector | Output: SMA-Female |
| Power Socket | 20 cm red/black wire |
| Shell Material | Aluminum |

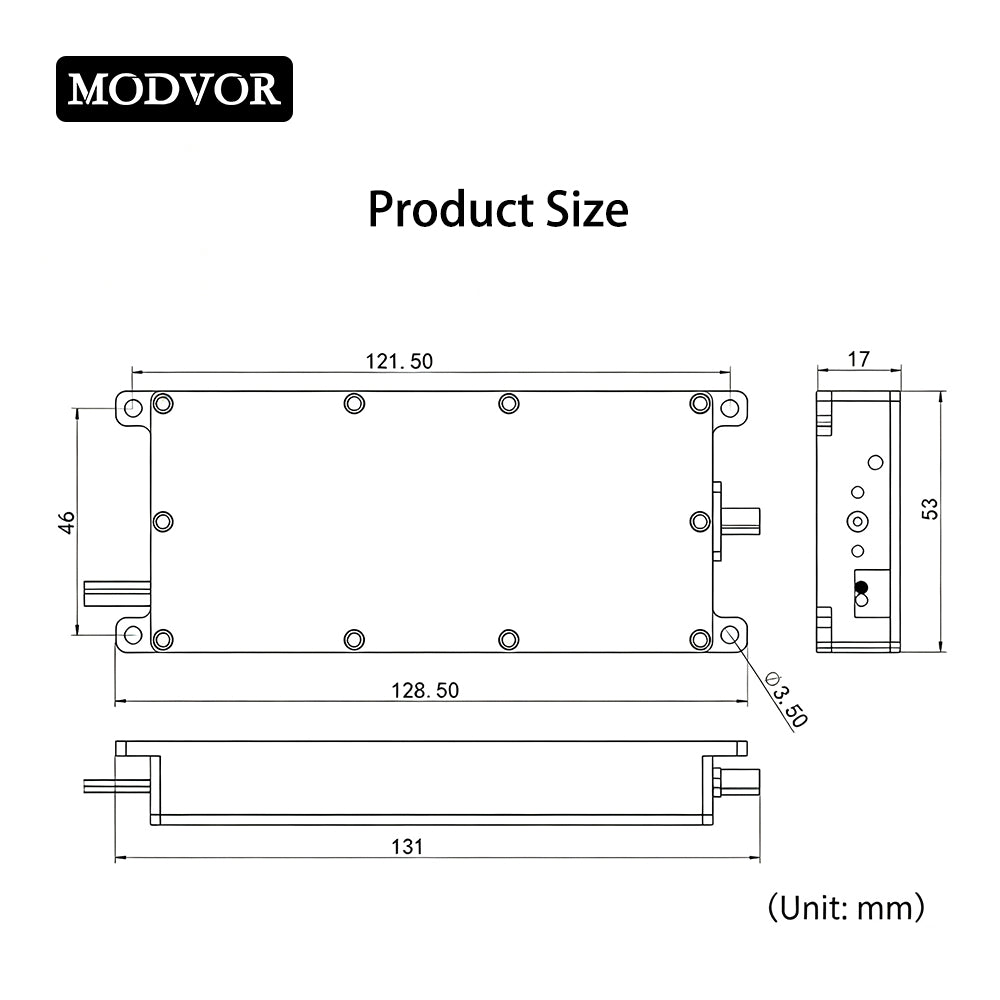

| Shell Size | 128.5*53*17 mm |
| Net Weight | 0.26 kg |
Package List
1 x GaN+Circulator Jammer Module
