Product Description

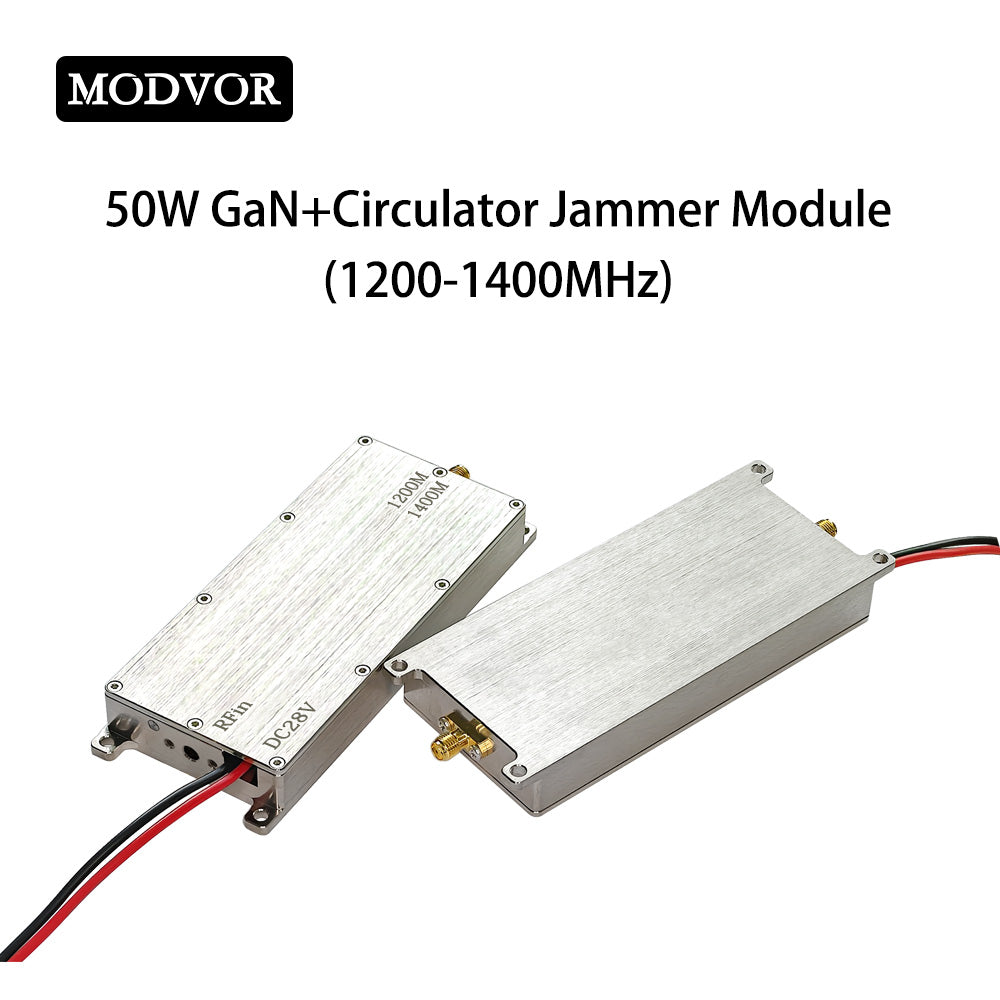

This 50W GaN anti-drone jammer module delivers high-power, dependable interference across the 1200–1400 MHz band, specifically targeting L-band signals and long-range telemetry control links used by drones. Built on advanced Gallium Nitride (GaN) technology, it offers high output power, excellent efficiency, and stable thermal performance for demanding, continuous operation.

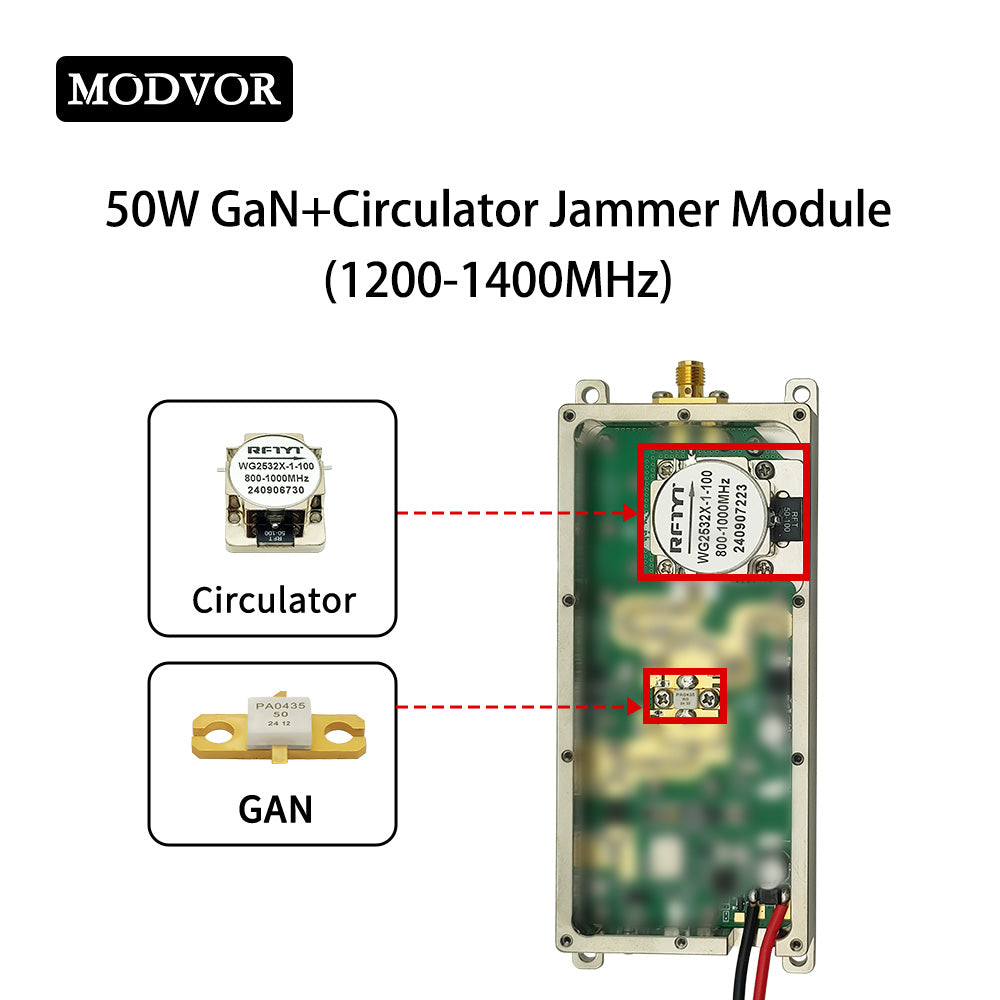

The integrated circulator provides strong isolation, protecting the power amplifier from reflected power and ensuring reliable performance even under antenna mismatch or harsh field conditions. With an SMA-Female interface, the module integrates easily with standard antennas and RF cables, making it suitable for fixed, vehicle-mounted, or portable counter-UAV deployments.
Designed for L-band and long-range telemetry control jamming, it is ideal for counter-UAV systems, border control, critical infrastructure protection, and high-security zones where blocking unauthorized drone telemetry and control signals is mission-critical.
Product Features
- 50W output power, 1200–1400 MHz frequency range
- GaN technology for high efficiency and thermal stability
- Built‑in circulator for VSWR protection
- SMA-Female connectors for easy integration
- Compact module format suitable for portable or fixed installations
Custom frequency bands & power are available, feel free to contact us for your requirements.
Product Specifications
| Frequency Range | 1200-1400MHz |
| Operating Voltage | 28 V DC |
| Flatness | ±0.5 dB |
| Output Power | 50 W/47 dBm |
| Current Consumption | 3.8 A@28 V |
| Efficiency | 45%@47 dBm |

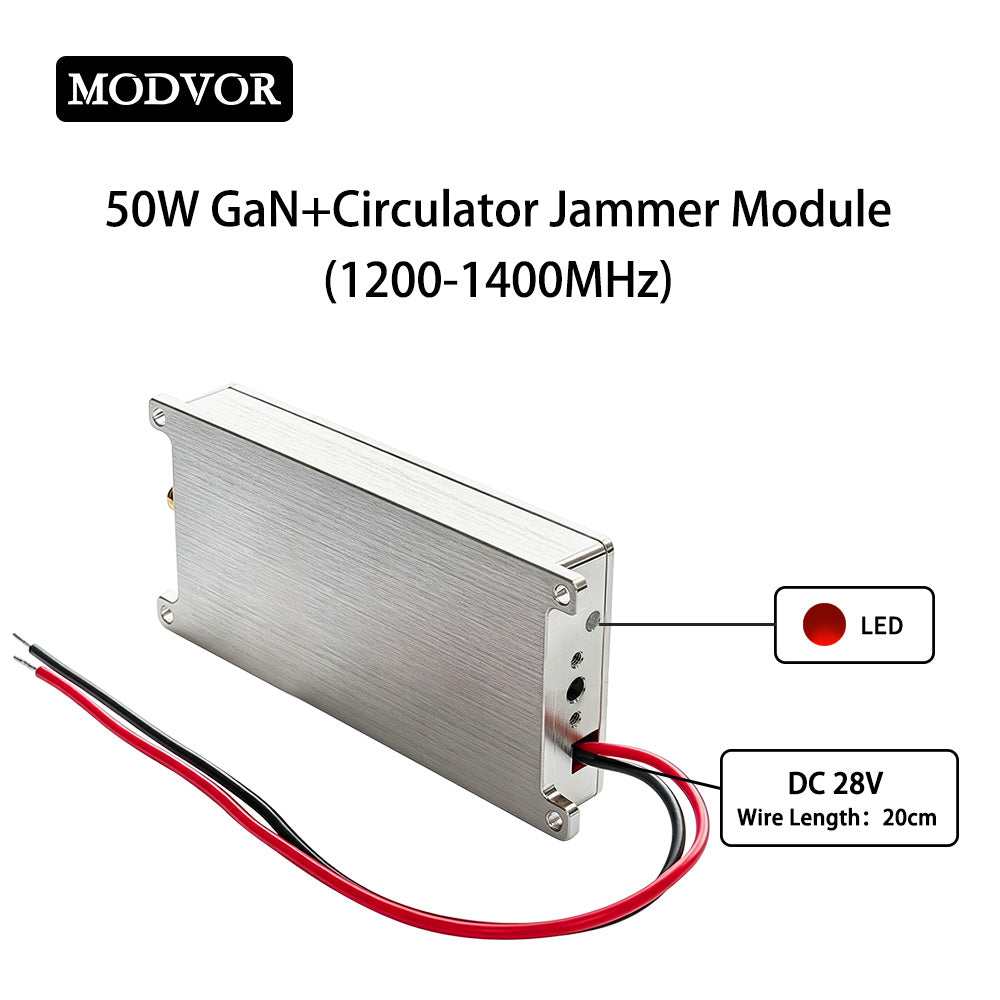

| LED State | Red |
| Operating Temperature | -30℃ ~ +85℃ |
| Storage Temperature | -40℃ ~ +150℃ |
| Operating Humidity | <95%RH |

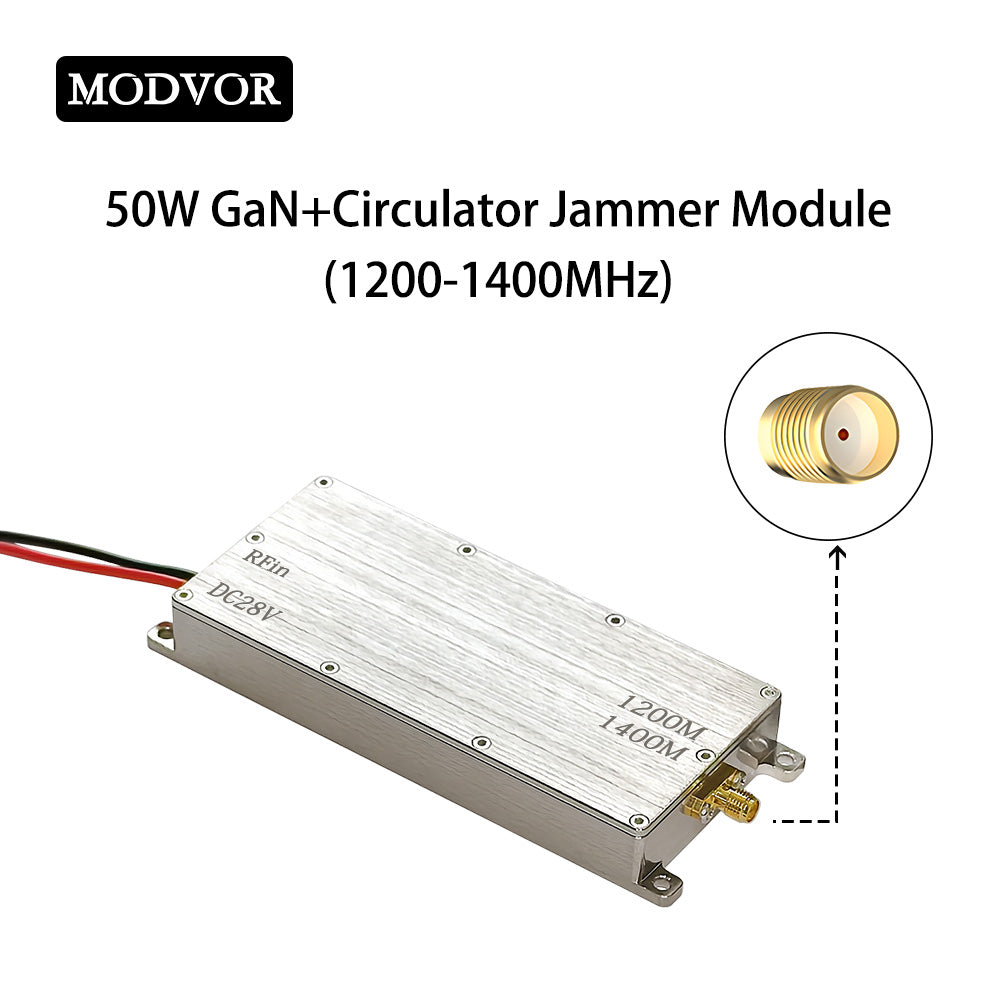

| RF Connector | Output: SMA-Female |
| Power Socket | 20 cm red/black wire |

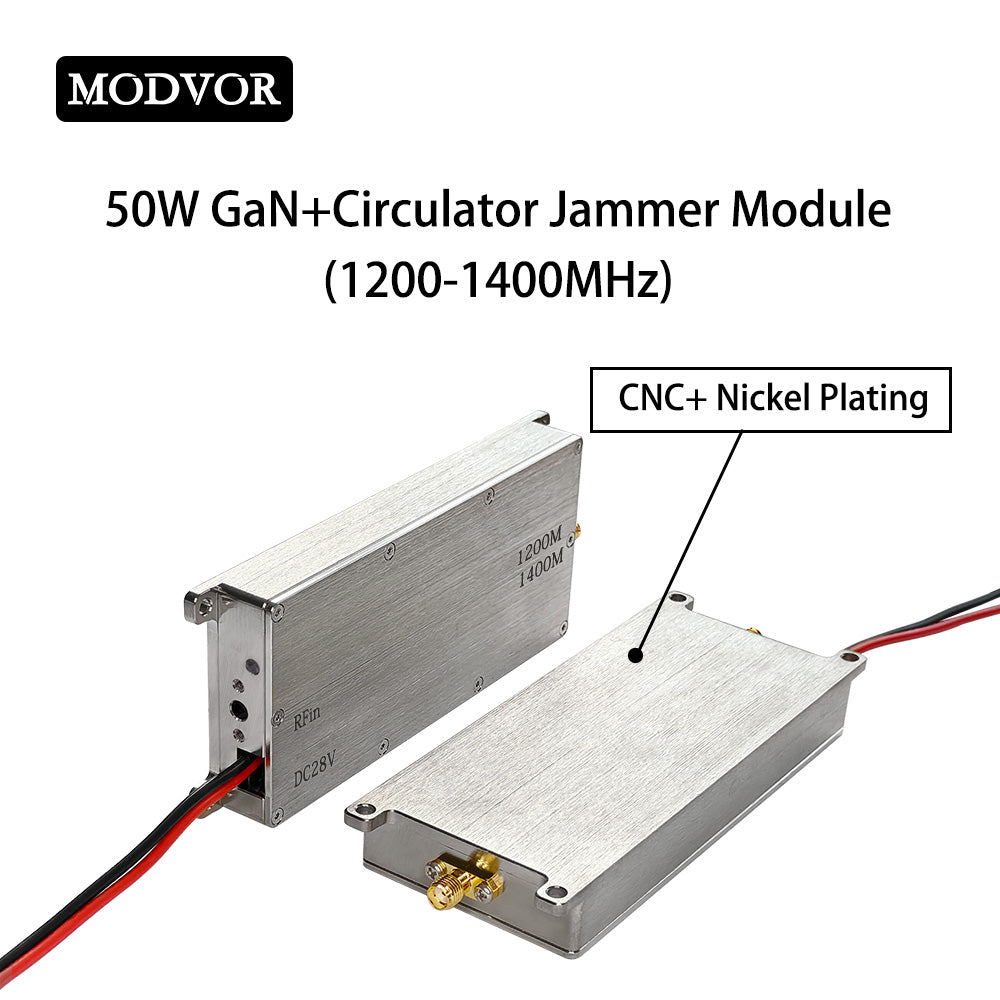

| Shell Material | Aluminum |

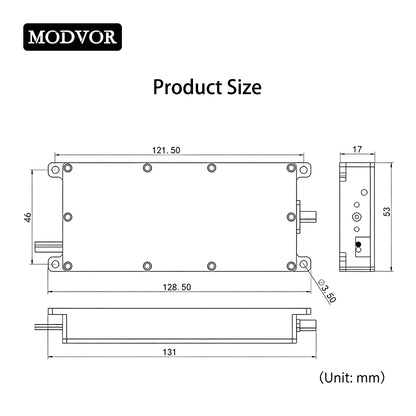

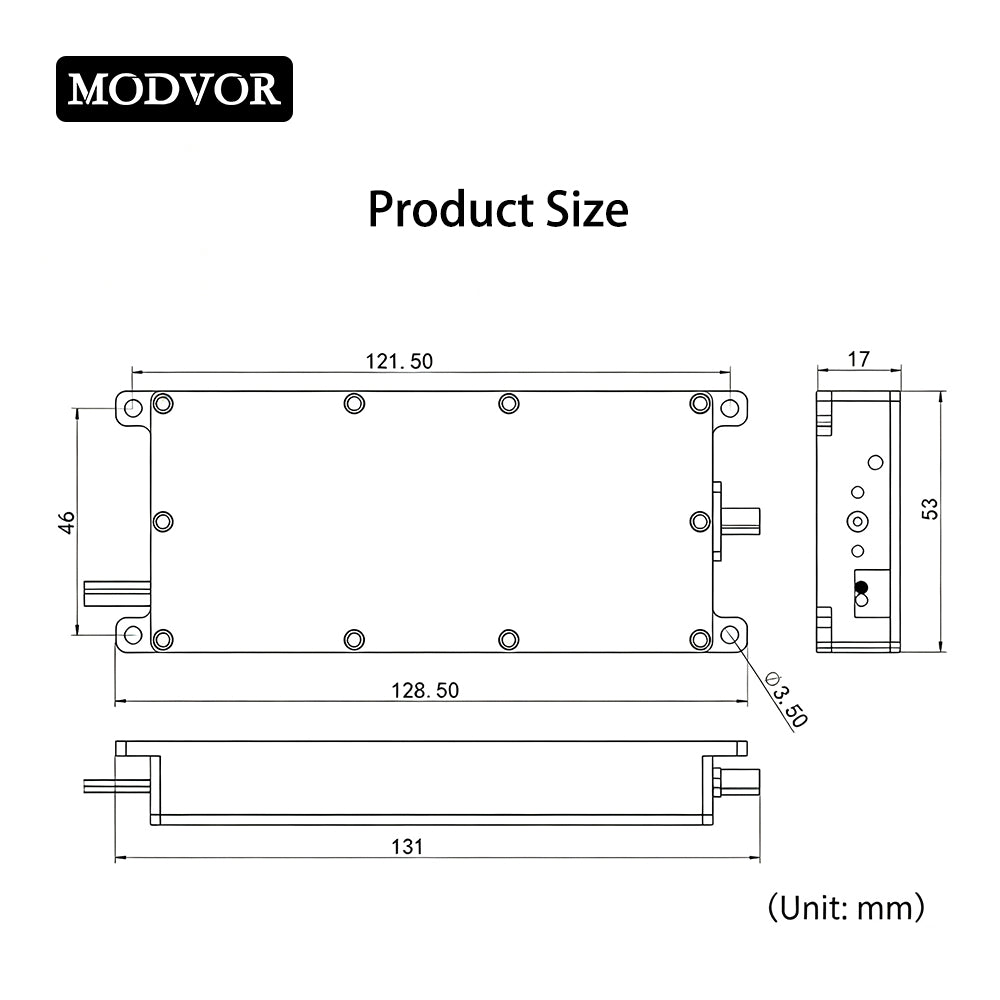

| Shell Size | 128.5*53*17 mm |
| Net Weight | 0.26 kg |
Package List
1 x GaN+Circulator Jammer Module
