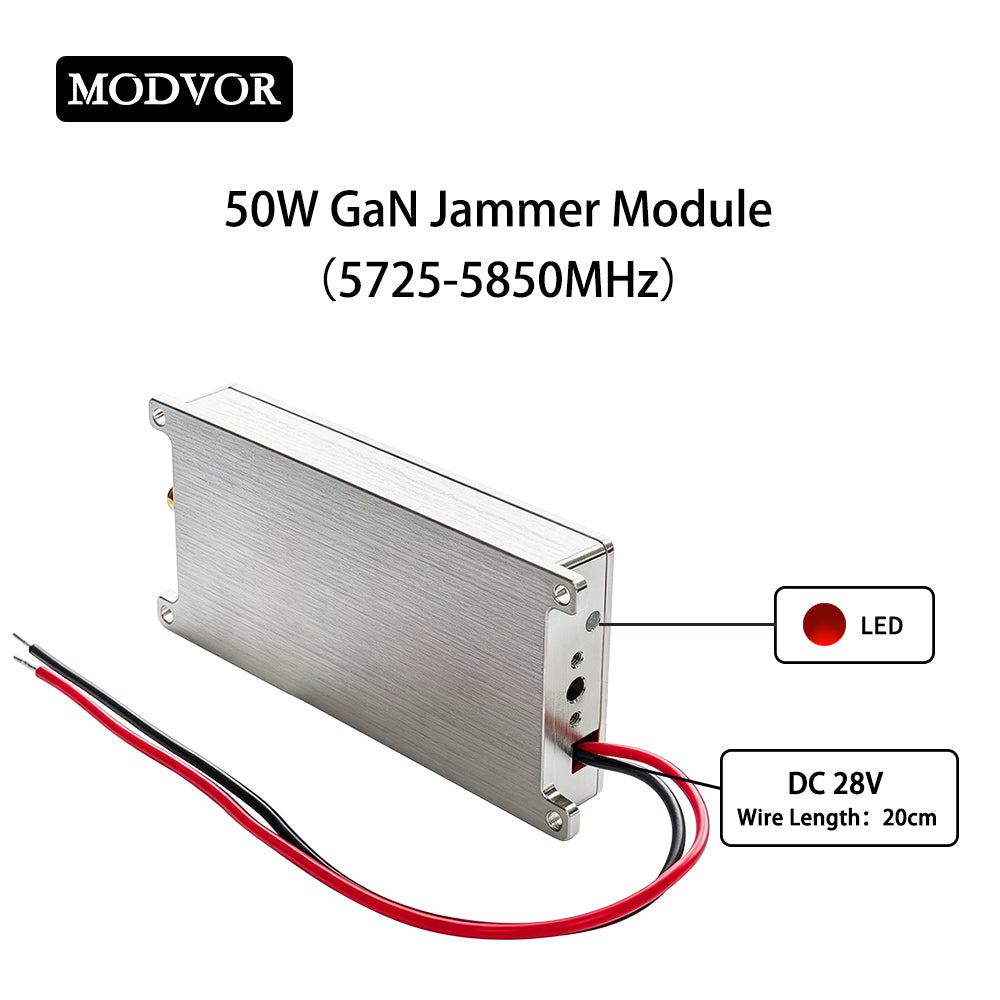

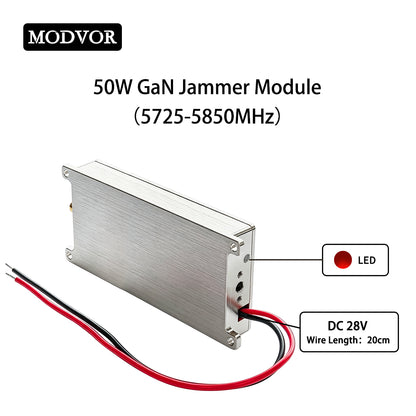

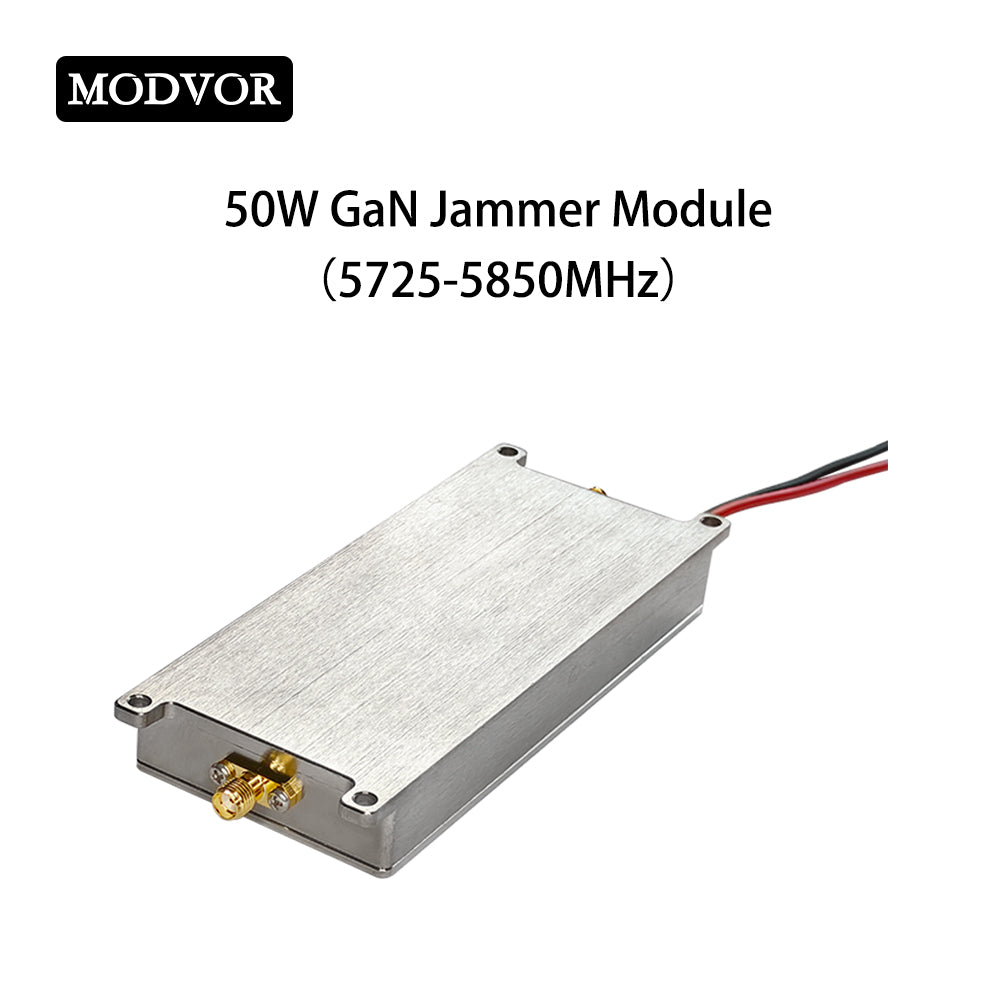

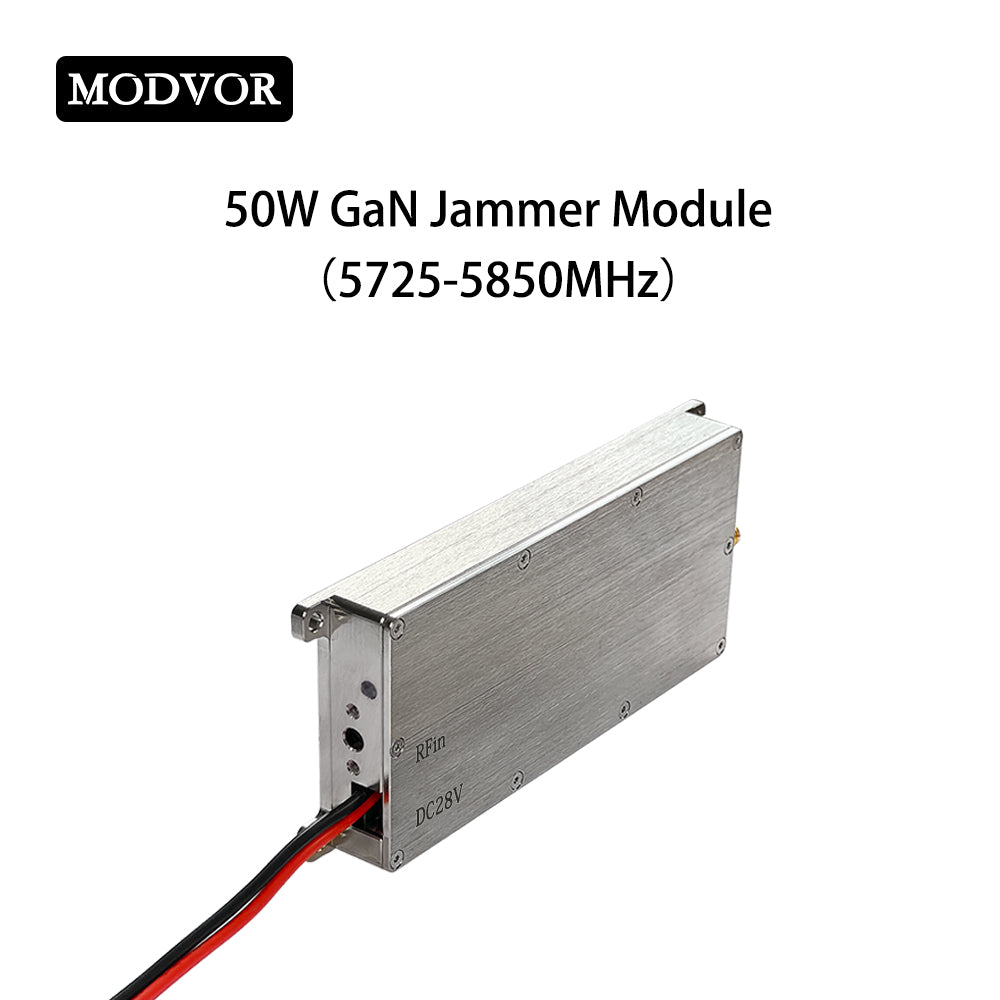

50 W 5725-5850 MHz GaN GaN RF Power Jammer, built with advanced gallium‑nitride chip technology for stable, high‑power RF output. This anti‑drone module delivers continuous 50 W working power across 5725-5850 MHz frequency band, featuring excellent heat dissipation, compact metal housing and outstanding signal suppression performance. Designed for anti‑UAV security projects, it supports external power supply and easily integrates into custom‑built counter‑drone systems. High efficiency, low signal attenuation and durable structure make it an ideal RF power module for long‑range drone signal interception applications.
Product Features

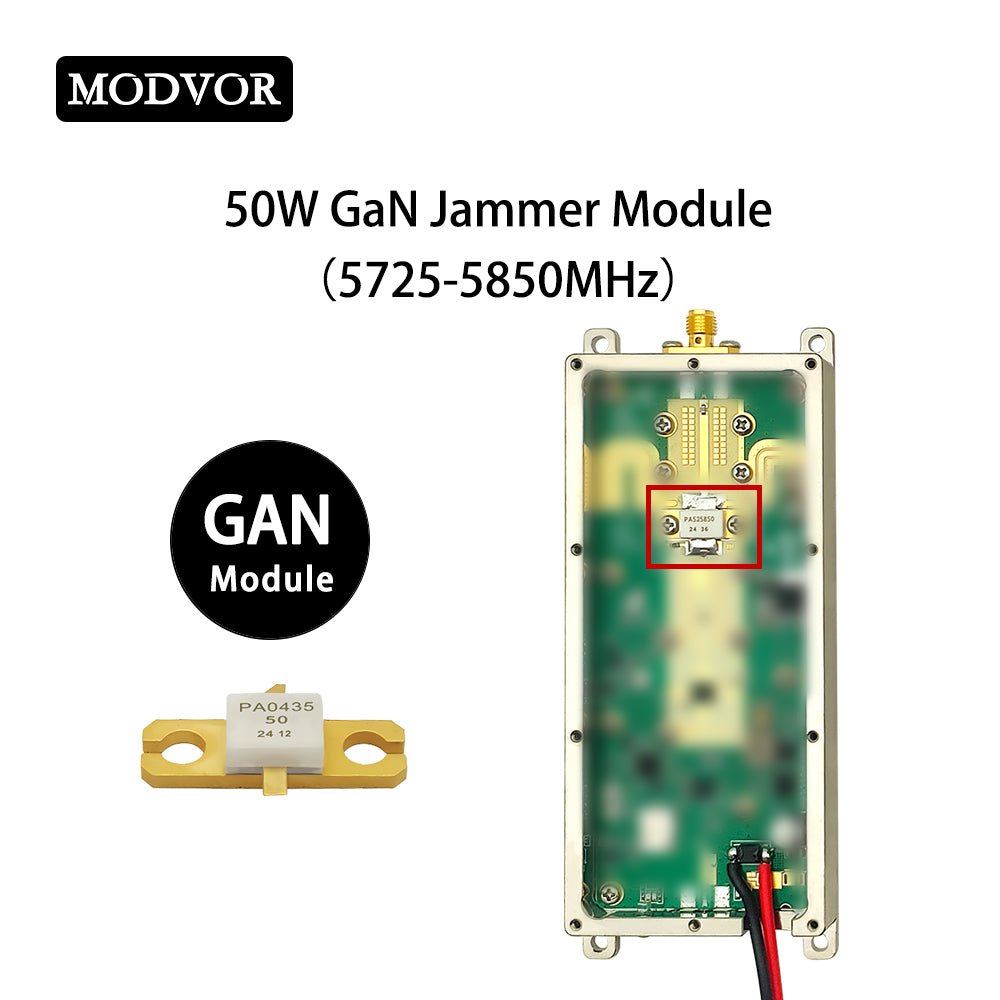

- GaN chip, stable 50 W output
- 5725-5850 MHz, custom frequency available
- Compact module, easy system integration
Product Specifications
| Frequency Range | 5725-5850 MHz |
| Operating Voltage | 28 V DC |
| Flatness | ±0.5 dB |
| Output Power | 50 W/47 dBm |
| Current Consumption | 3.6 A@28 V |
| Efficiency | 45%@47 dBm |
| LED State | Red |
| Operating Temperature | -30℃ ~ +85℃ |
| Storage Temperature | -40℃ ~ +150℃ |
| Operating Humidity | <95%RH |

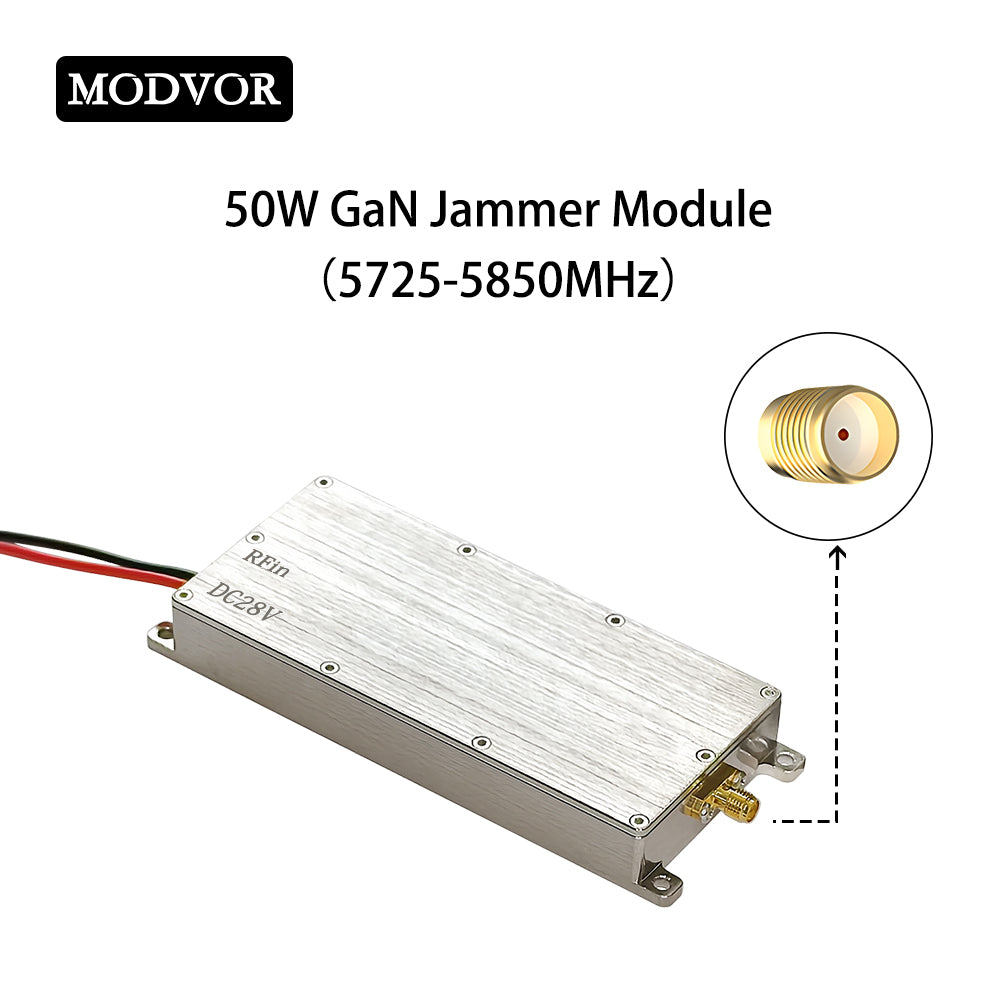

| RF Connector | Output: SMA-Female |
| Power Socket | 15 cm red/black wire |
| Shell Material | Aluminum |

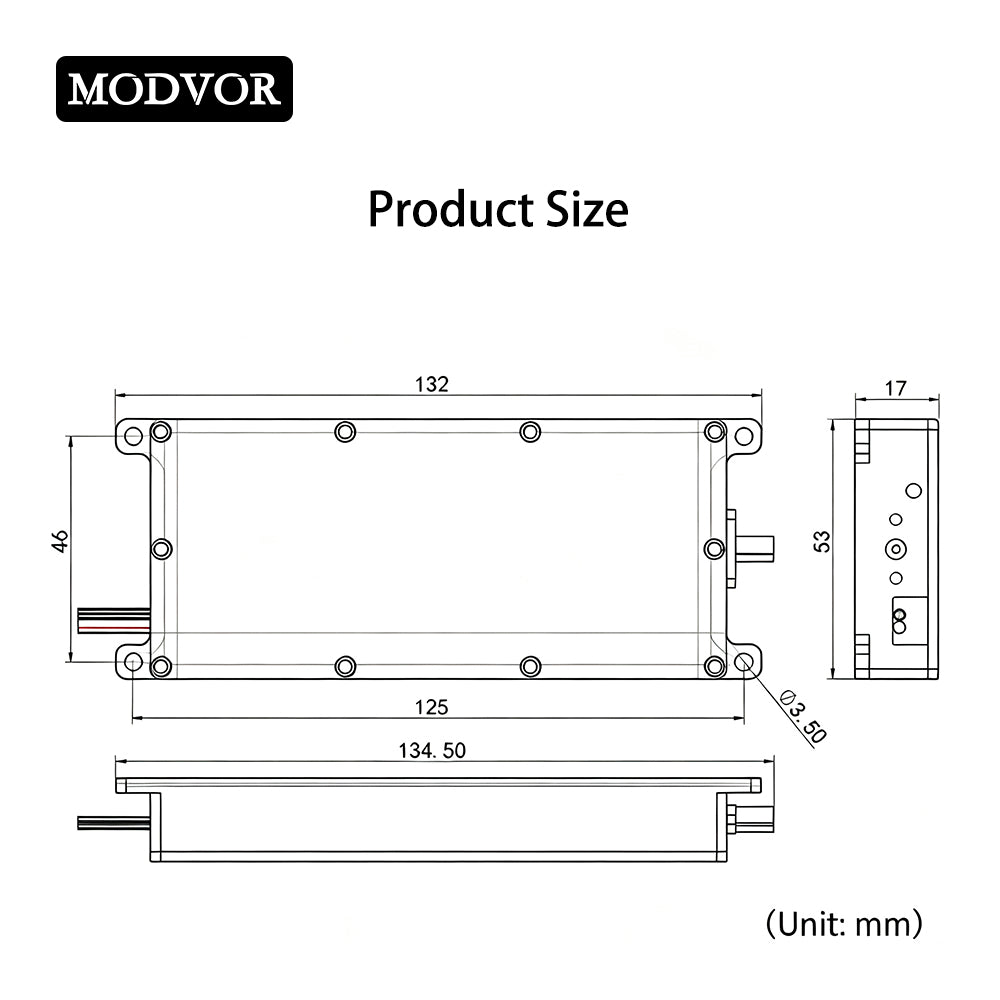

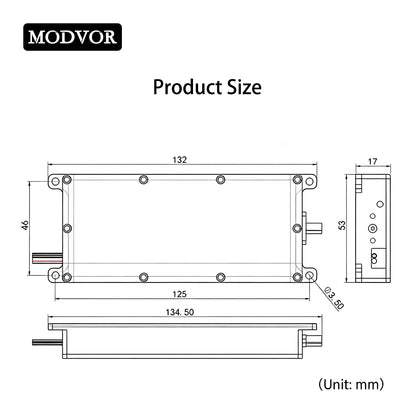

| Shell Size | 132*53*17 mm |
| Net Weight | 0.21 kg |
Package List
1 x GaN Signal Jammer Module
