Product Description

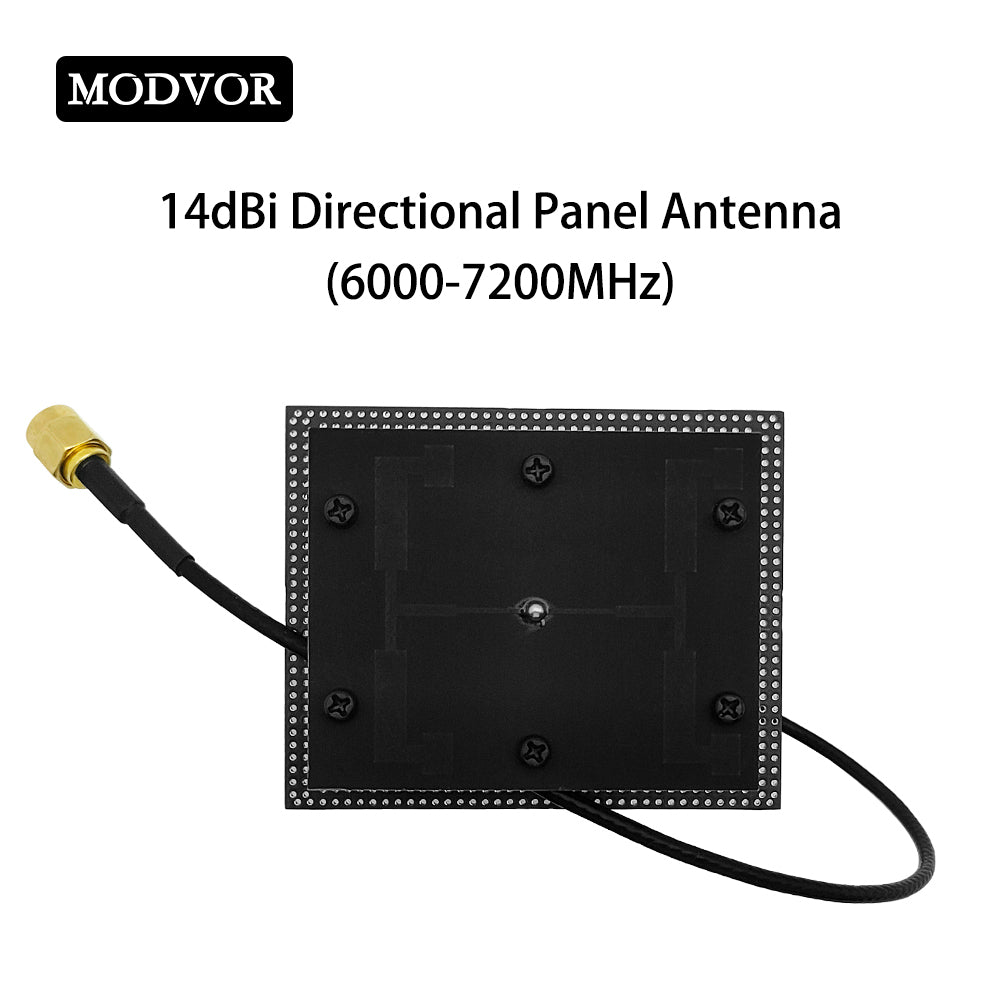

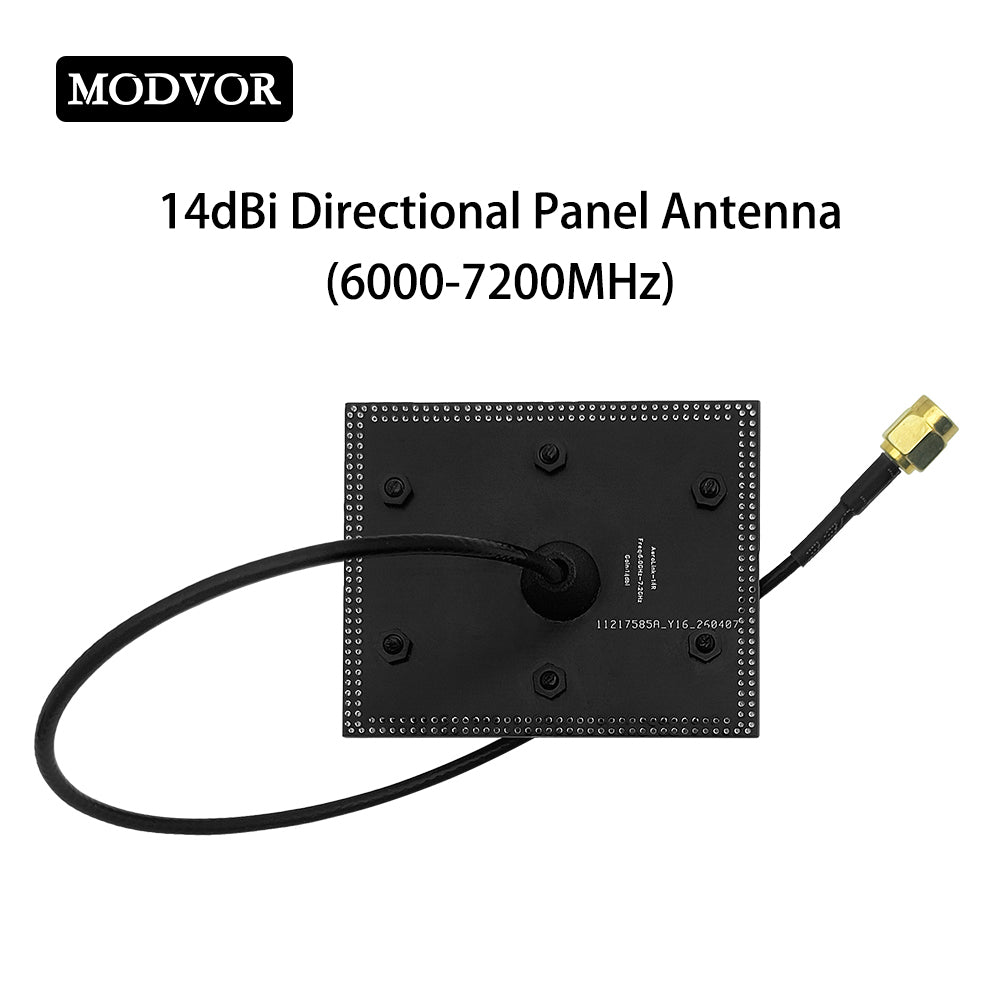

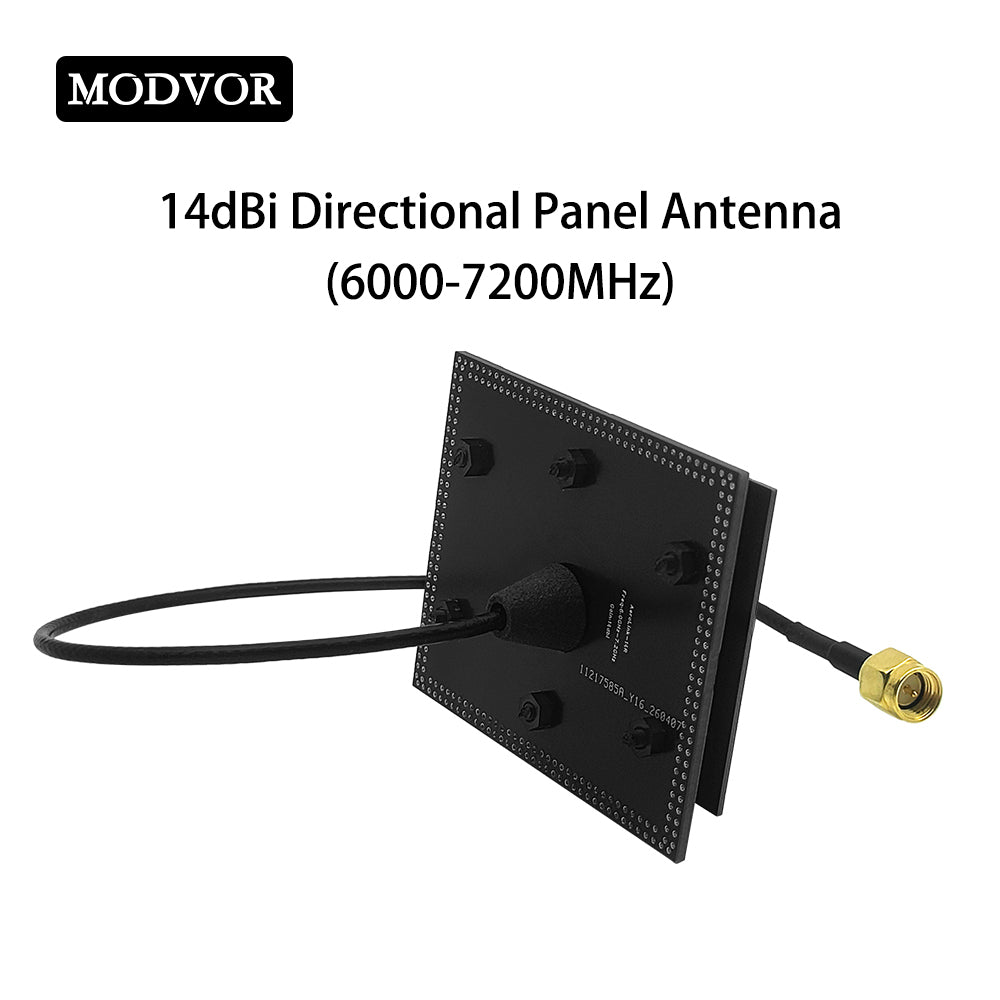

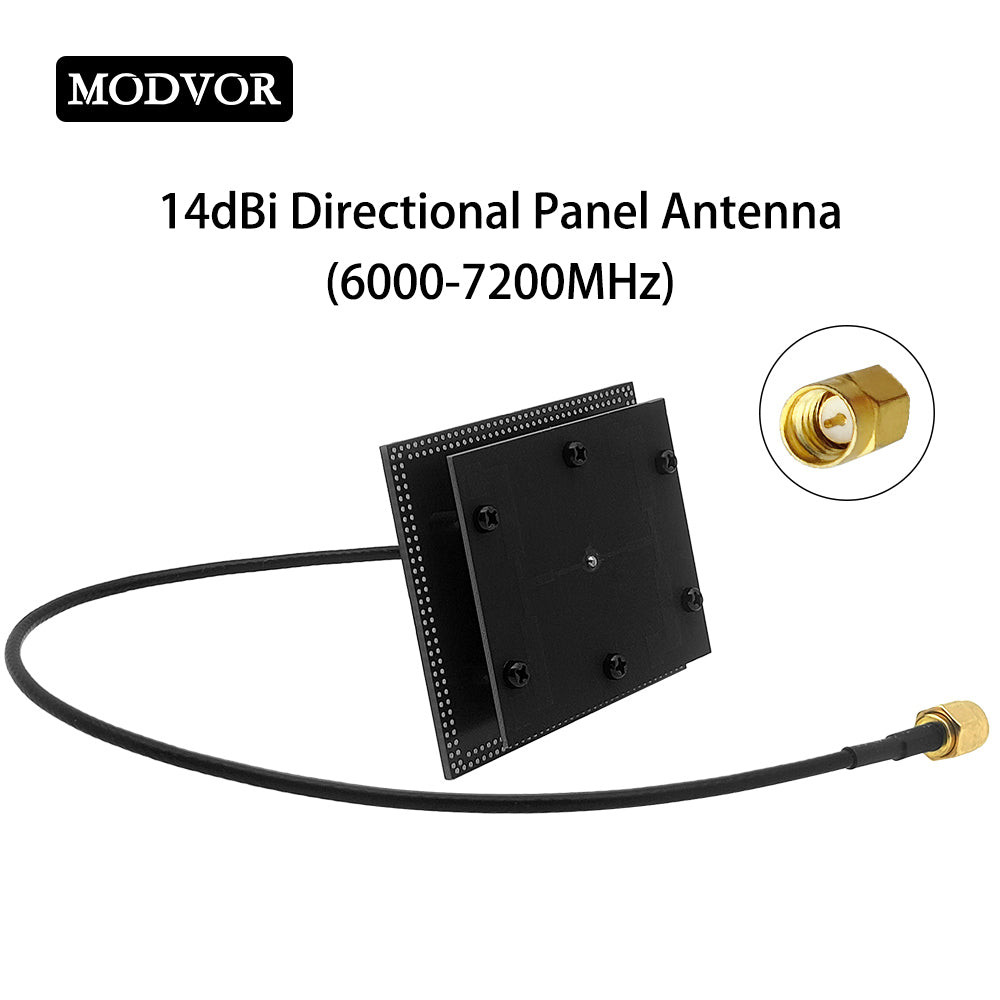

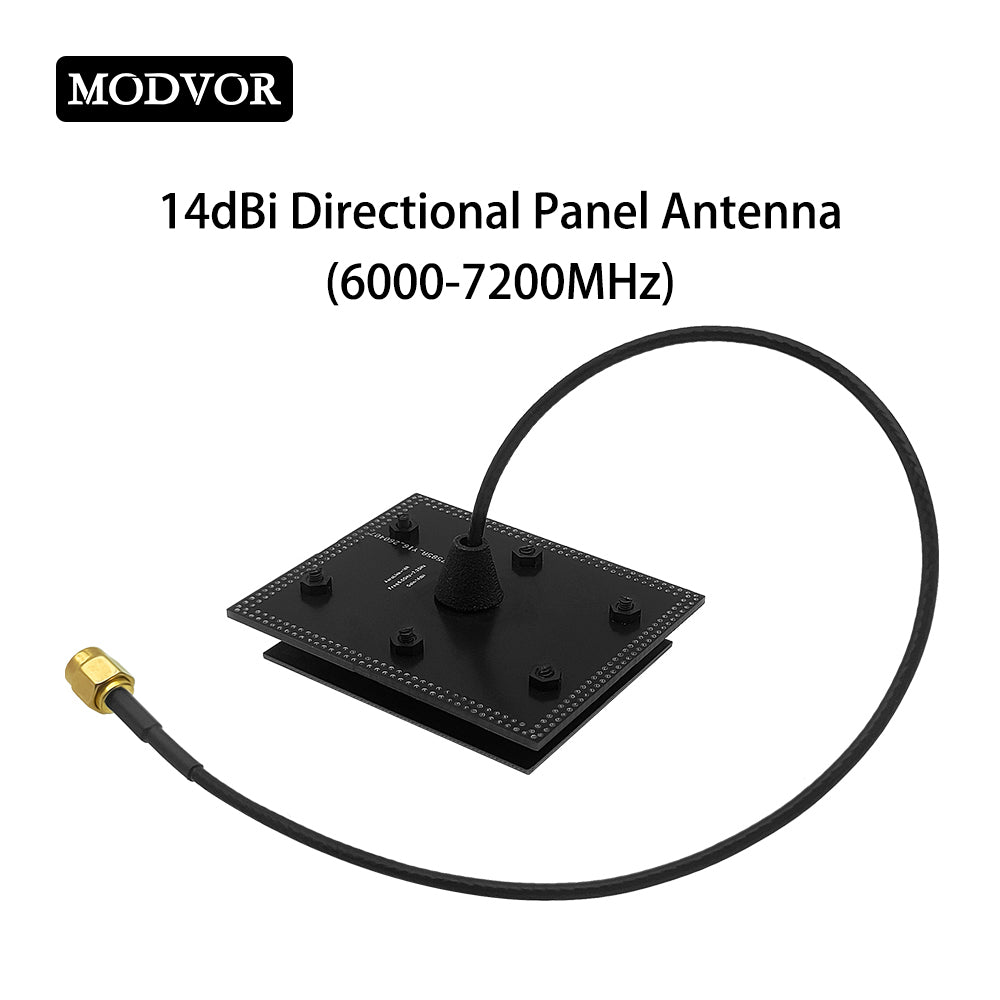

This is a high-gain microstrip array directional antenna operating within the 6–7.2 GHz wide frequency band. Adopting a low-profile planar design, it has compact overall dimensions of 52 mm × 64 mm × 11 mm. The antenna delivers a peak gain over 14 dBi, with VSWR maintained below 1.5 across the full working bandwidth, which guarantees superior impedance matching and low transmission loss.

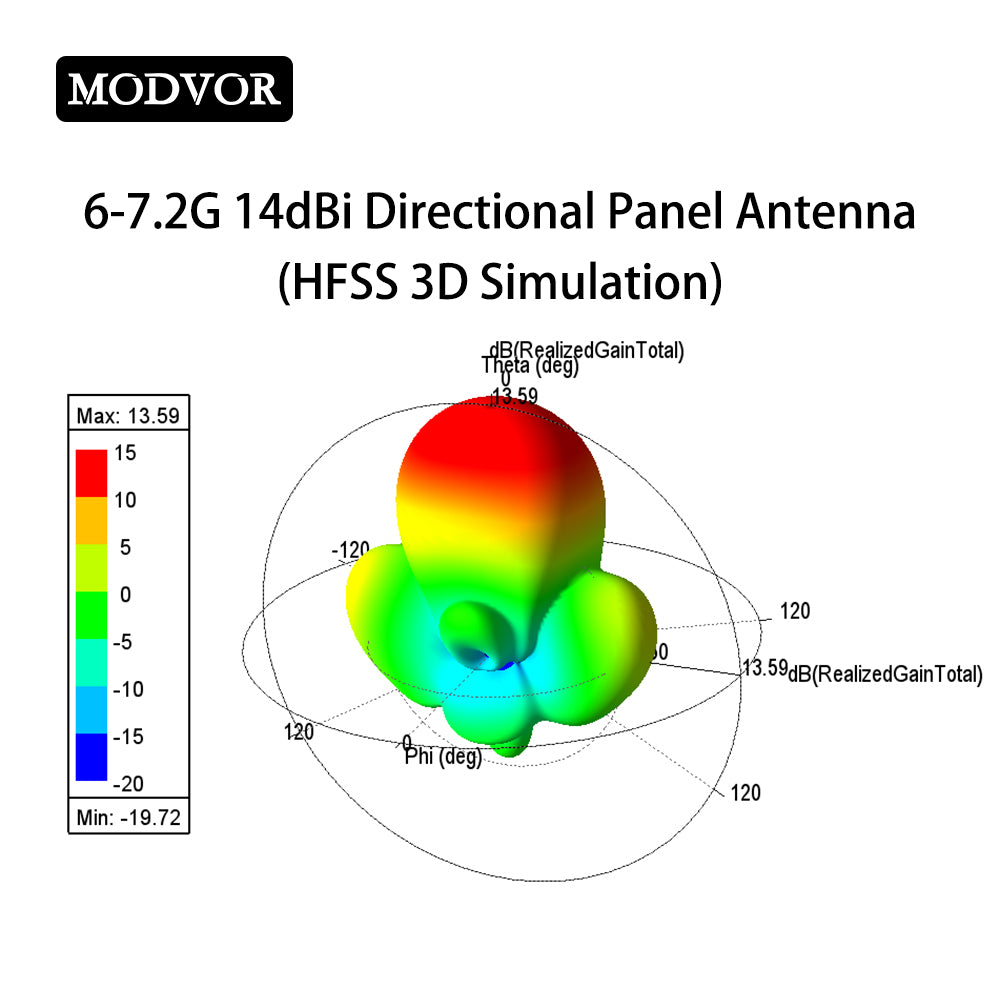

Its directional radiation pattern concentrates RF energy along the main beam, supporting long-distance and highly reliable directional wireless communication links. Thanks to the compact flat structure, it can be seamlessly integrated onto stationary equipment or vehicle-mounted platforms.
Typical application scenarios include UAV relay communication nodes, UAV auto-tracking ground stations, 5G and dedicated LTE wireless backhaul, BVLOS industrial UAV operations, electronic attack directional antennas, as well as ground receiving stations for Synthetic Aperture Radar (SAR).
Product Application
- UAV Relay Communication Nodes
- UAV Auto-Tracking Ground Station
- 5G/dedicated LTE network wireless backhaul
- BVLOS Industrial UAV Operations
- Directional Antennas for Electronic Attack (EA)
- Ground Receiving Station for Synthetic Aperture Radar (SAR)
Product Features
- 1G Ultra wideband, relative bandwidth 18%
- 14dBi High Gain
- 41°wide beam
- 10.5mm low profile
Product Specifications

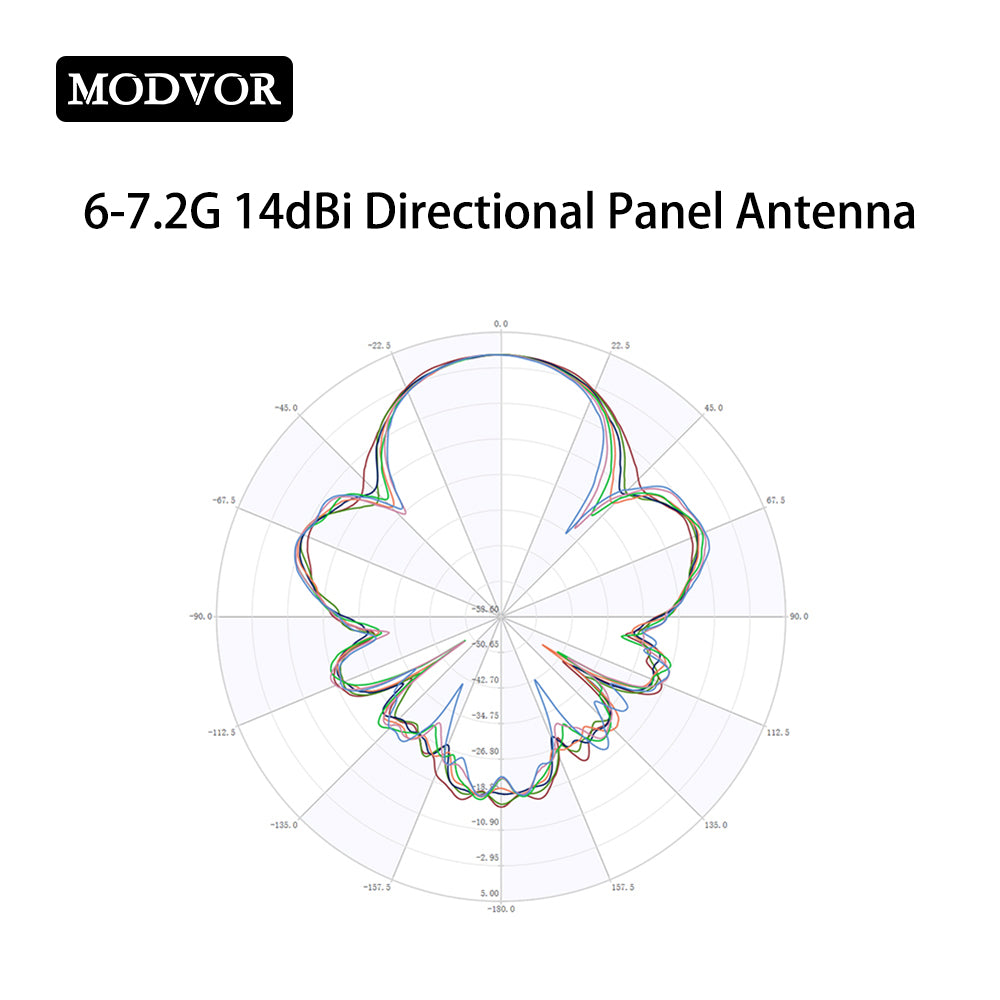

| Working band | 6000-7200MHz |
| Gain | 14dBi |
| VSWR | ＜1.5 |
| Efficiency | ≥90% |
| Polarization | Horizontal Polarization |
| EL HPBW | 35° |
| AZ HPBW | 41° |
| Input Impedance | 50Ω |
| Power Handing | 30W |
| RF Connector | SMA-Male |

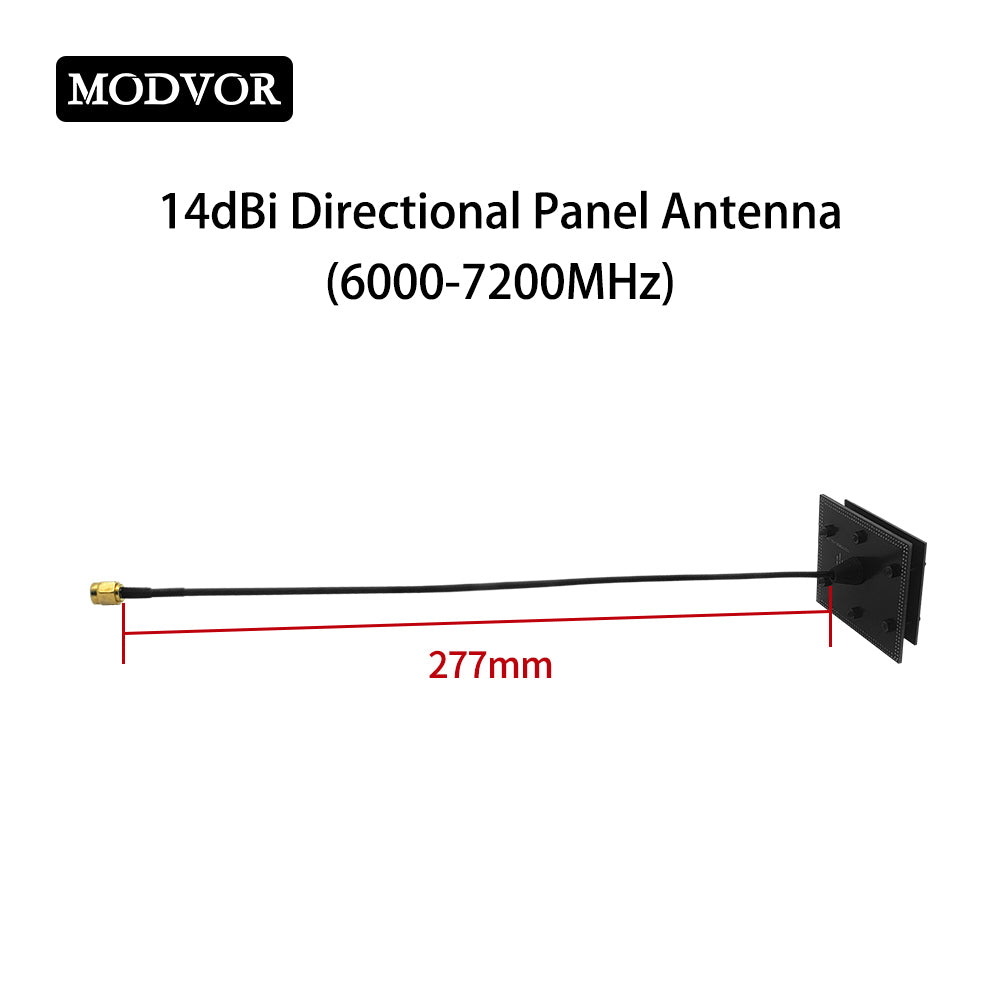

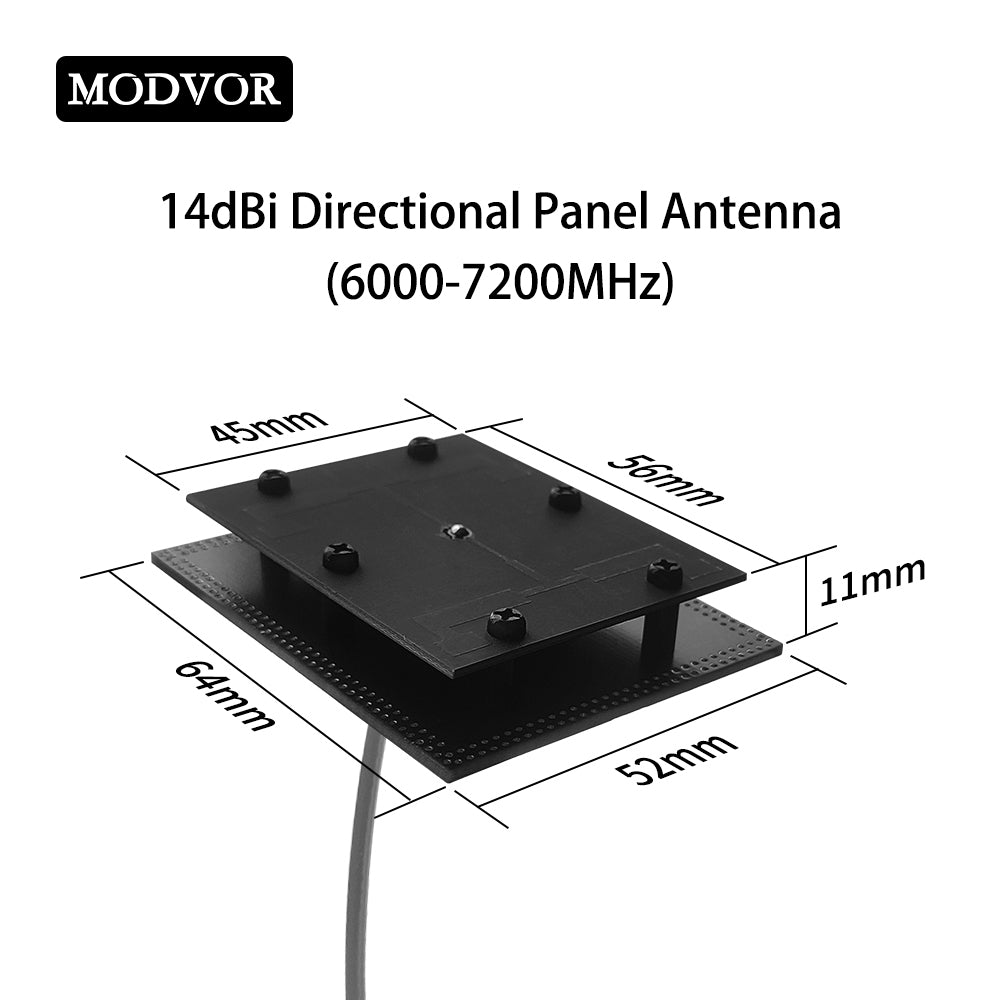

| Size | 52*64*11mm |
| Weight | 26g |

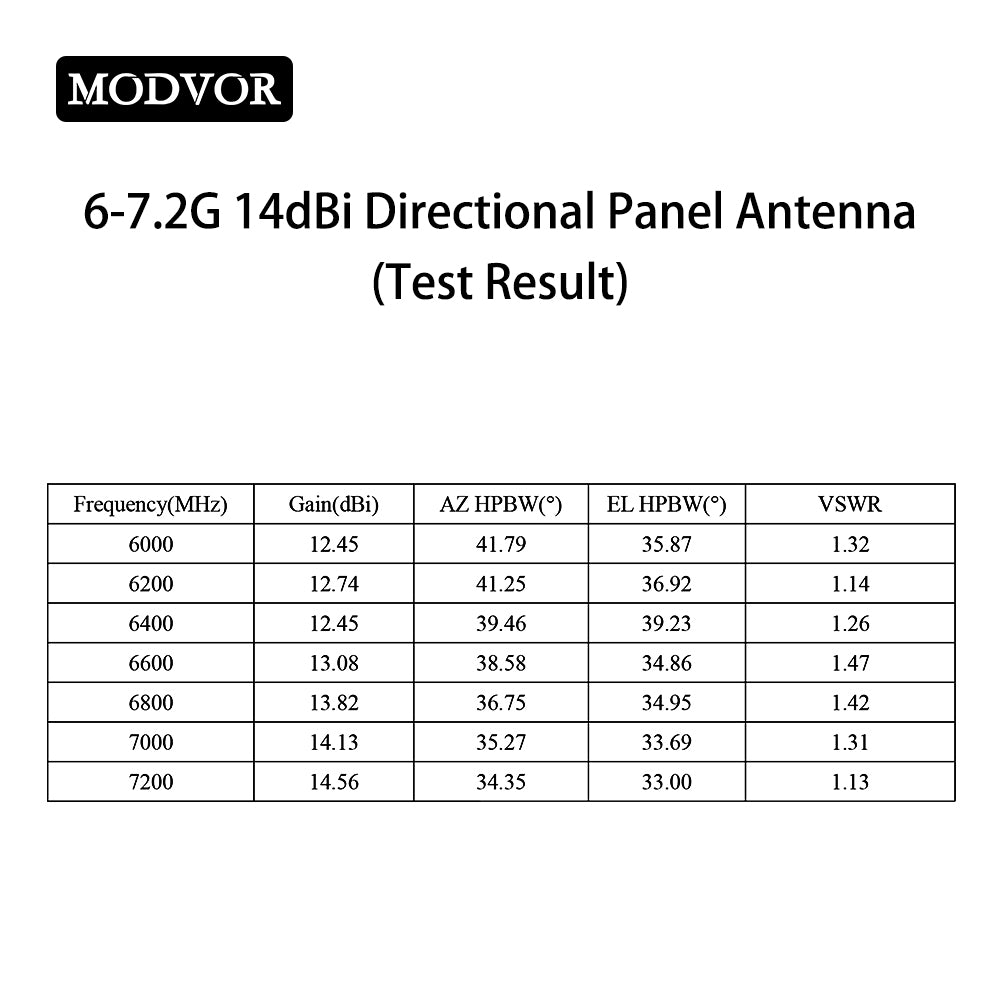

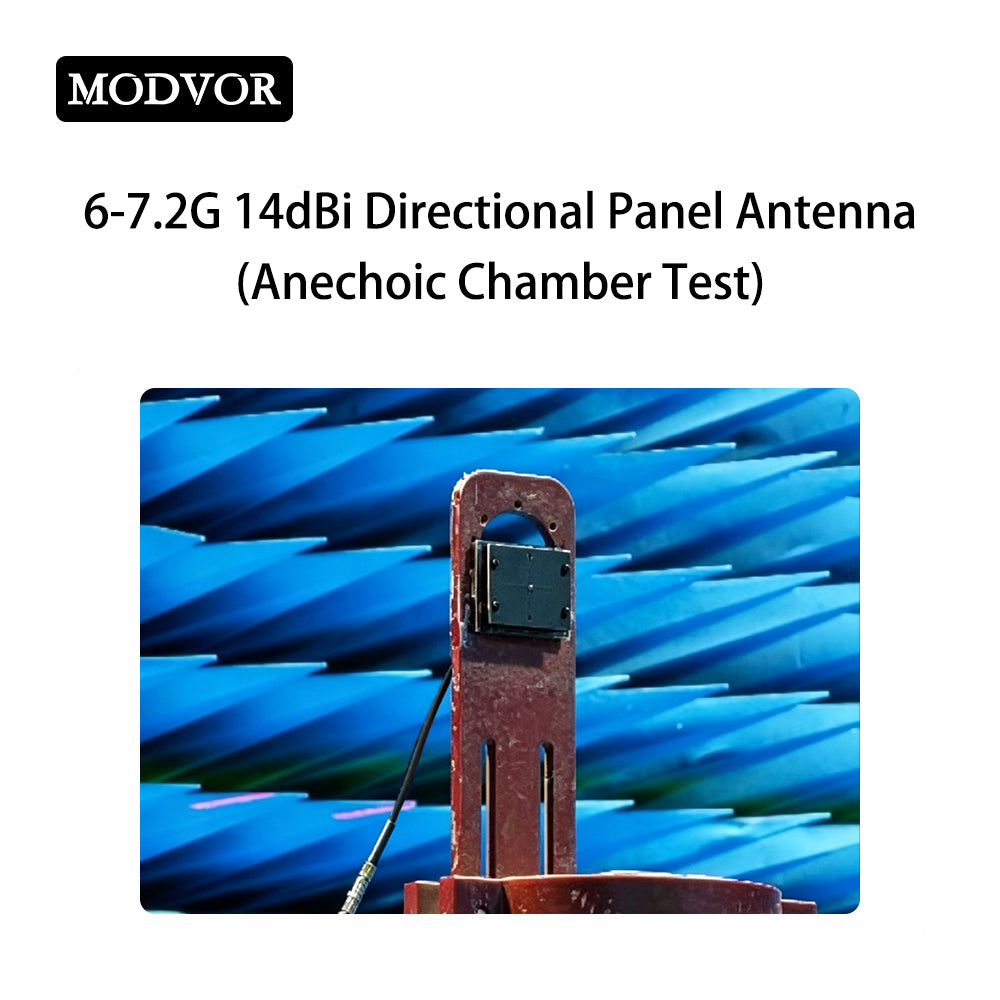

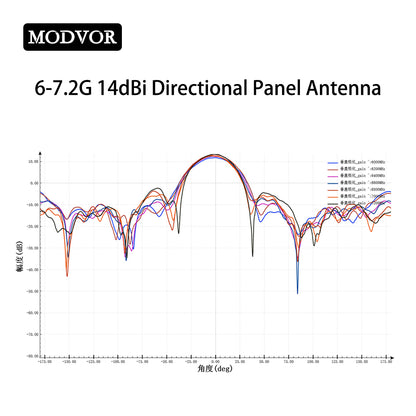

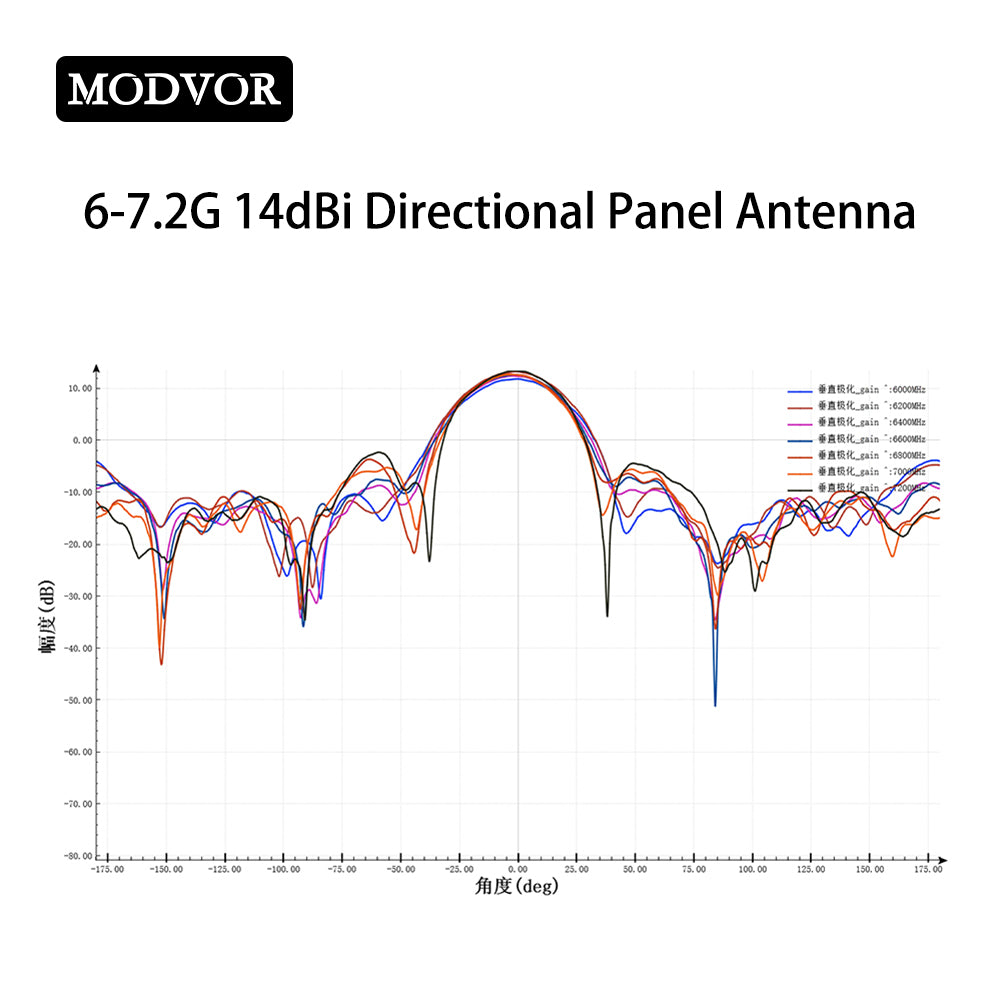

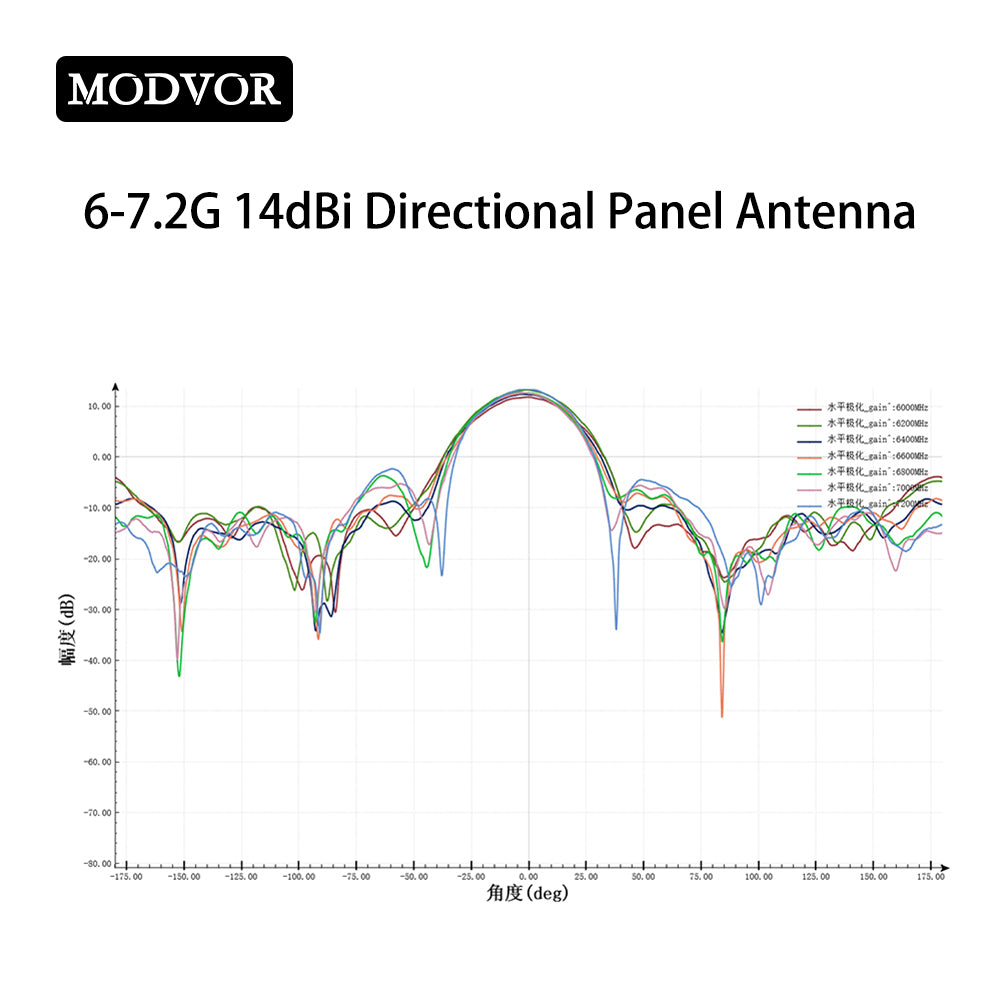

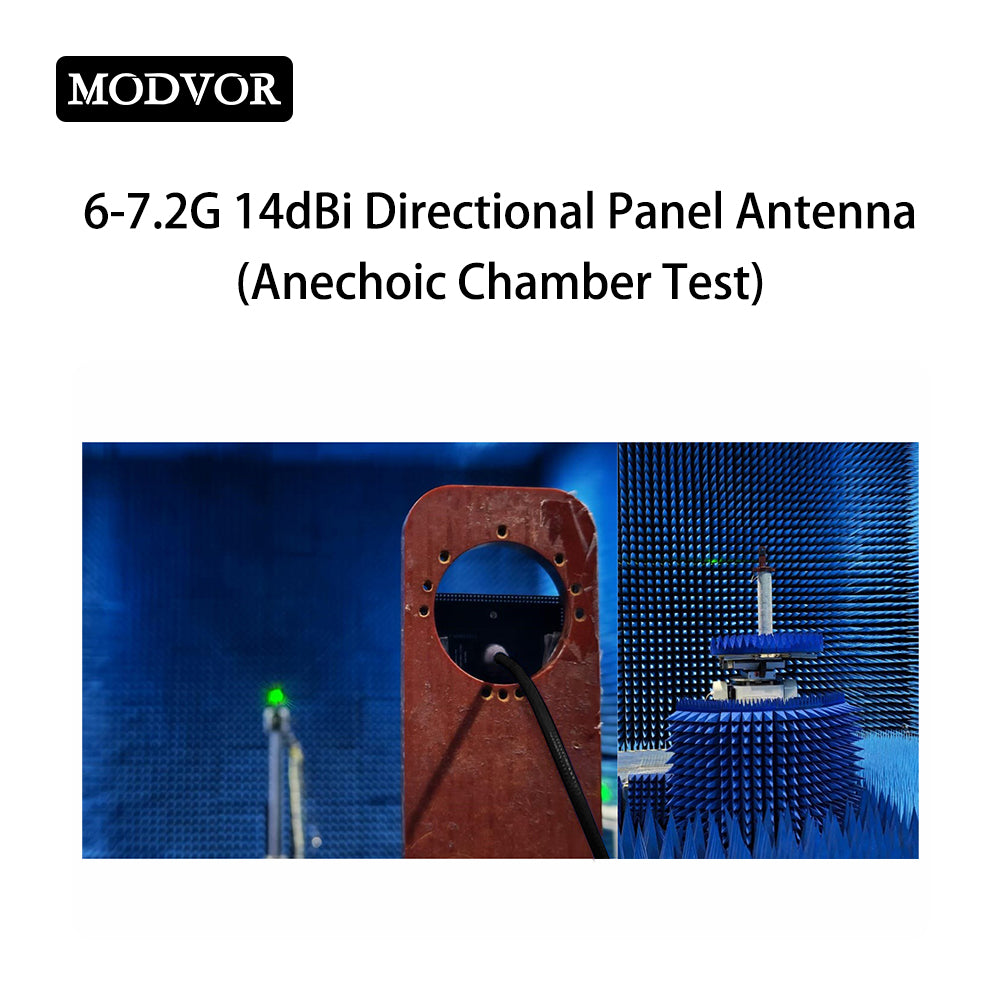

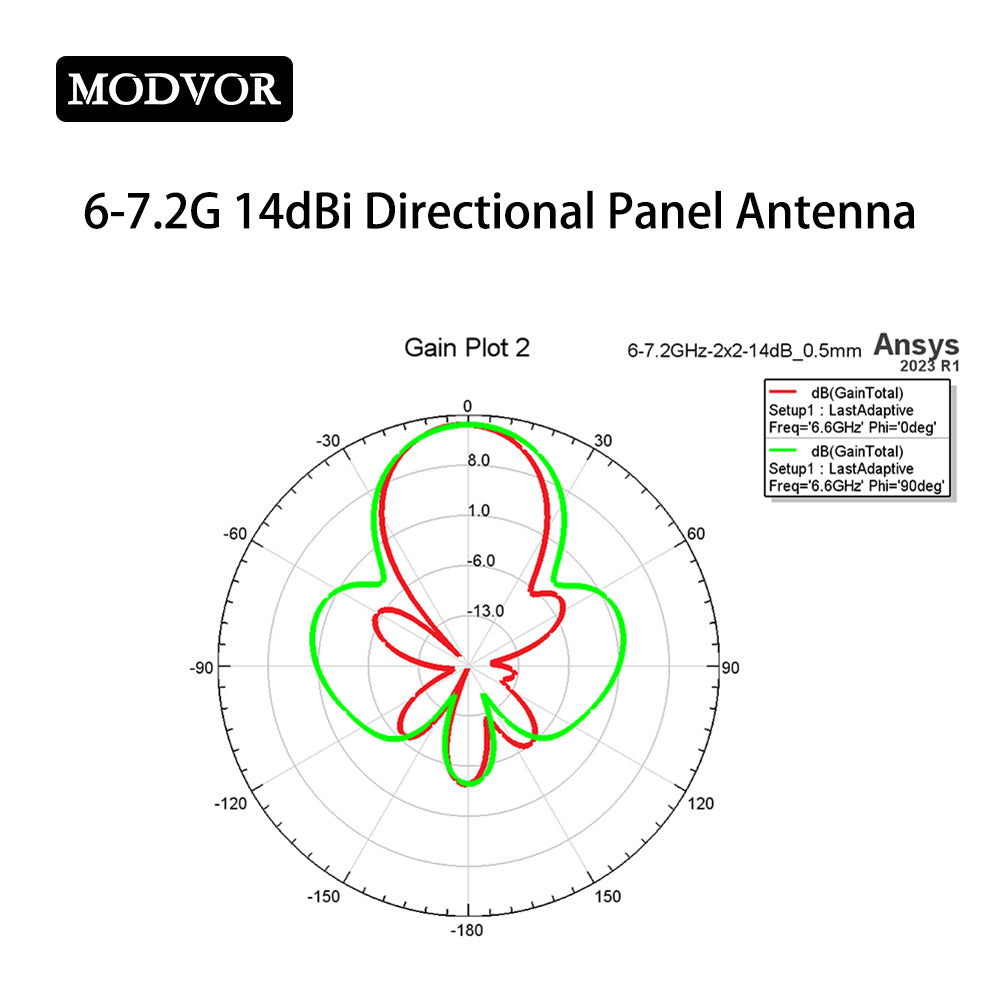

Test Result

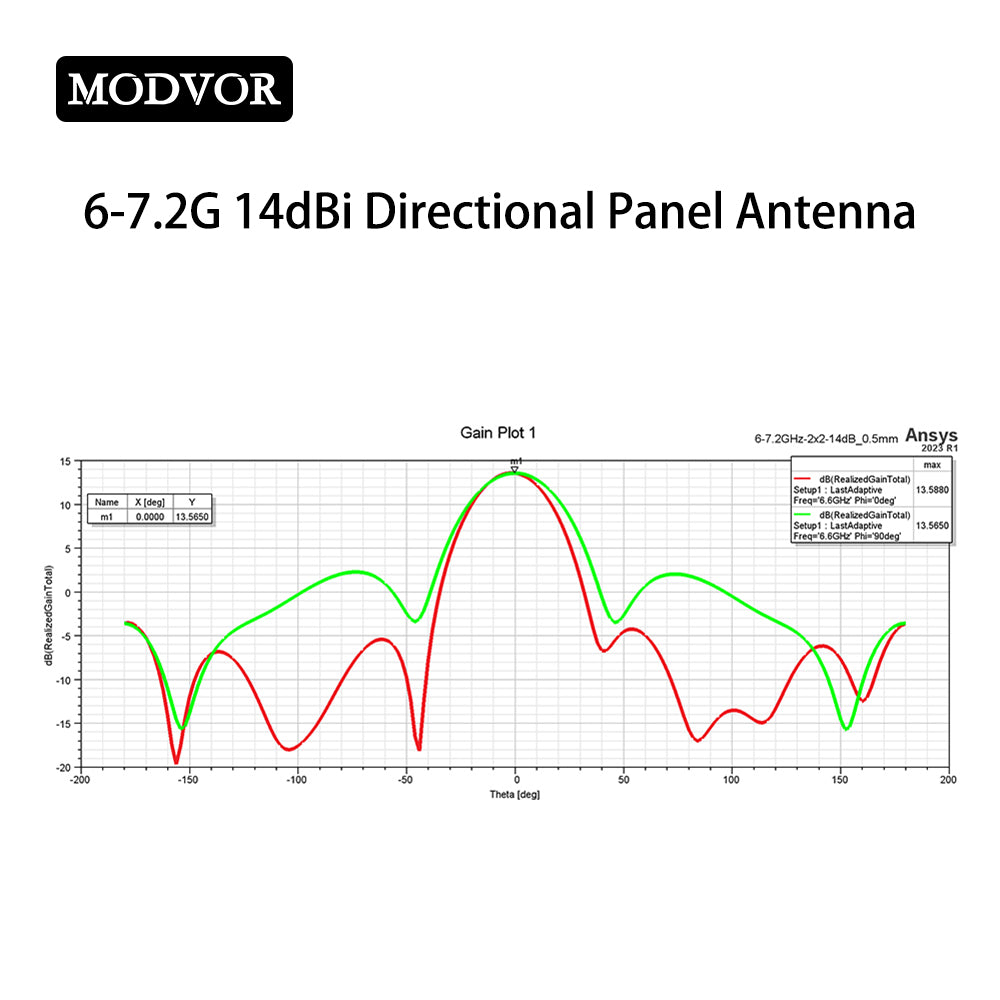

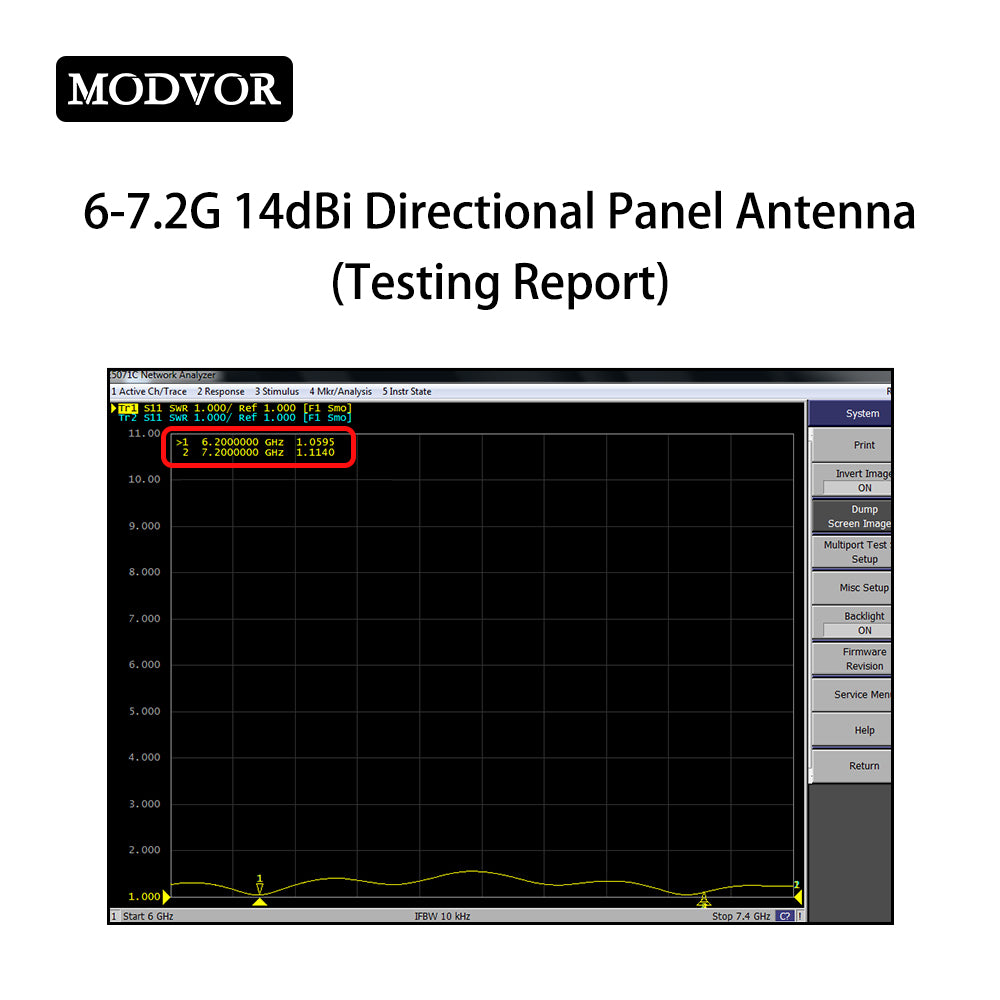

| Frequency(MHz) | Gain(dBi) | AZ HPBW(°) | EL HPBW(°) | VSWR |
| 6000 | 12.45 | 41.79 | 35.87 | 1.32 |
| 6200 | 12.74 | 41.25 | 36.92 | 1.14 |
| 6400 | 12.45 | 39.46 | 39.23 | 1.26 |
| 6600 | 13.08 | 38.58 | 34.86 | 1.47 |
| 6800 | 13.82 | 36.75 | 34.95 | 1.42 |
| 7000 | 14.13 | 35.27 | 33.69 | 1.31 |
| 7200 | 14.56 | 34.35 | 33 | 1.13 |
Package List
1 X 6-7.2G Directional Panel Antenna
