Product Description
The 6000-7200MHz spectrum represents the cutting edge of wireless technology—powering Wi-Fi 6E/7 networks, next-generation FPV video downlinks, point-to-point microwave links, and emerging 6GHz wireless systems. This 6000-7200MHz 10W GaN Broadband Power Amplifier delivers a robust 40dBm (10W) of clean output power with 38dB gain across the full 6000-7200MHz spectrum, covering the newly available 6GHz UNII-5/6/7/8 bands and emerging 7.2GHz applications. Leveraging advanced GaN (Gallium Nitride) technology for superior efficiency, linearity, and thermal performance, it operates on a 24-28V DC supply with just 0.8A current draw at full output. Housed in a rugged aluminum enclosure with SMA-K connectors and built-in power control, it's engineered for early adopters, network engineers, and FPV pioneers who need wideband flexibility and reliable high-power performance at the forefront of the RF spectrum.
Typical Applications
- Wi-Fi 6E/7 Infrastructure: Amplify access point signals for enhanced coverage in enterprise and public networks
- 6GHz FPV & UAV Video Downlinks: High-power video transmission for long-range drone operations
- Point-to-Point Microwave Links: Boost wireless backhaul for telecom and enterprise connectivity
- Radar & Sensing Systems: High-power RF front-end for detection and measurement applications
- Amateur Radio (HAM) & Experimental: High-power amplification for licensed 6GHz experimental operations
- Emerging 7.2GHz Wireless Systems: Future-proof amplification for next-generation applications
Technical Specifications
|
Parameter |
Value |
|
Frequency Range |
6000 – 7200 MHz |
|
Output Power |
40 dBm (10W) |
|
Gain (S21) |
38 dB ± 1 dB |
|
Input Return Loss (S11) |
< -15 dB |
|
RF Input Power Range |
-13 ~ 10 dBm |
|
Operating Voltage |
24 – 28 V DC |
|
Current Consumption |
0.8 A @ 28V (at 40dBm output) |
|
Efficiency |
45% @ 40dBm |
|
Operating Temperature |
-30°C ~ +85°C |
|
Storage Temperature |
-40°C ~ +150°C |
|
Operating Humidity |
< 95% RH |
|

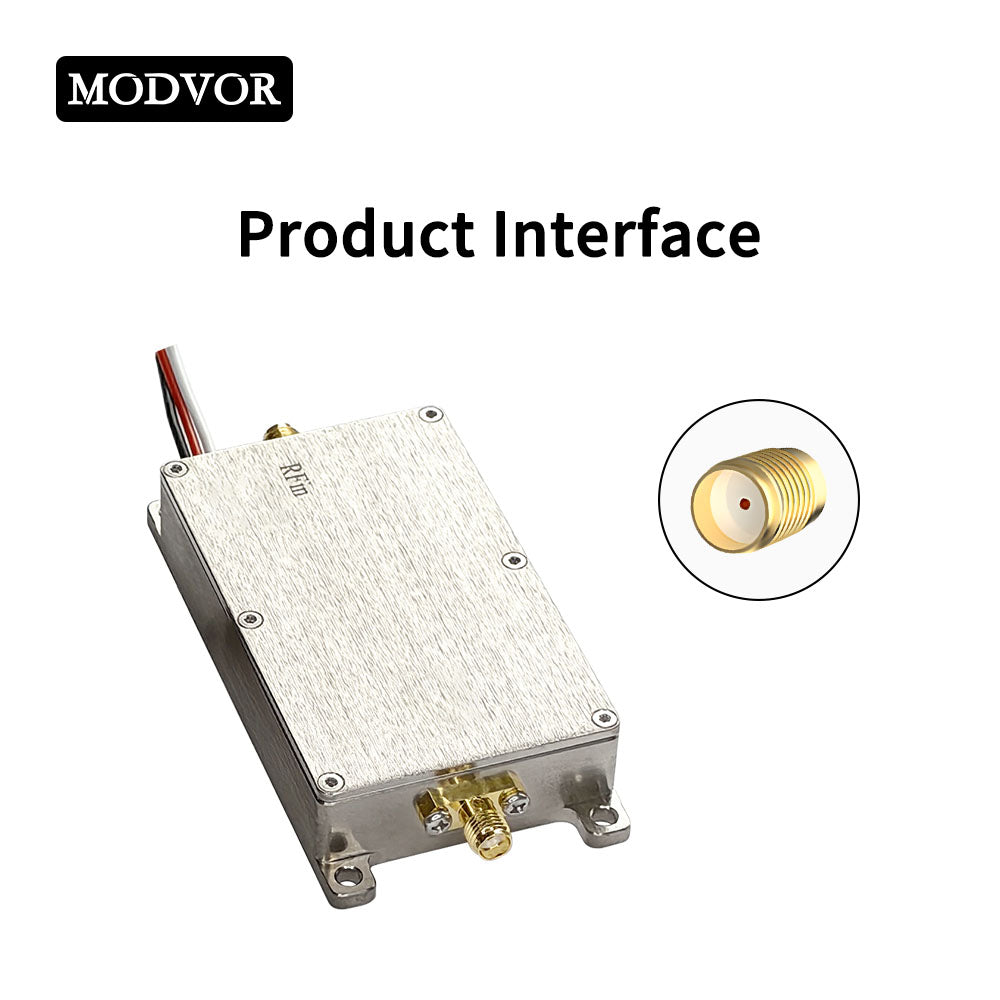

RF Connectors |
Input: SMA-K; Output: SMA-K |
|

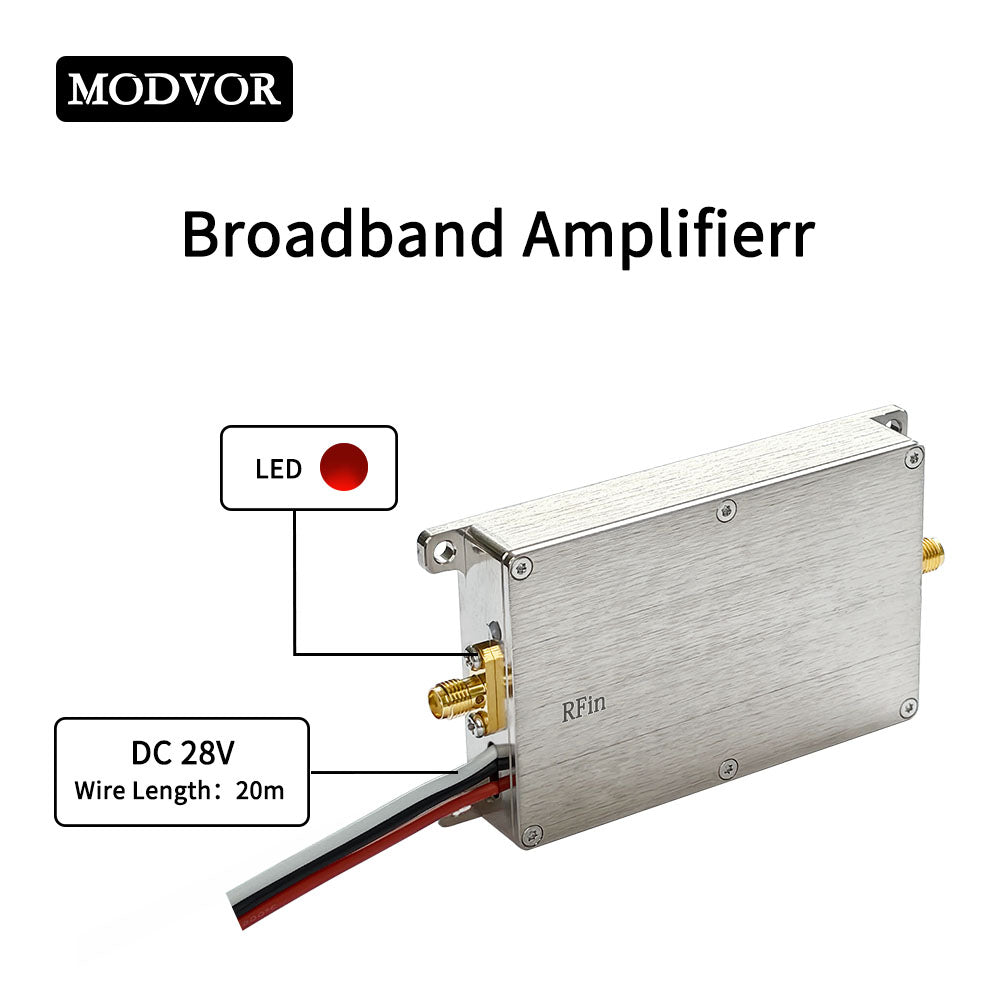

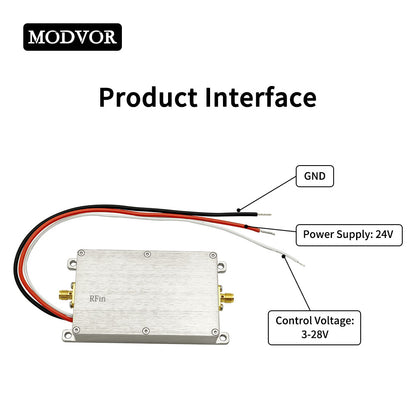

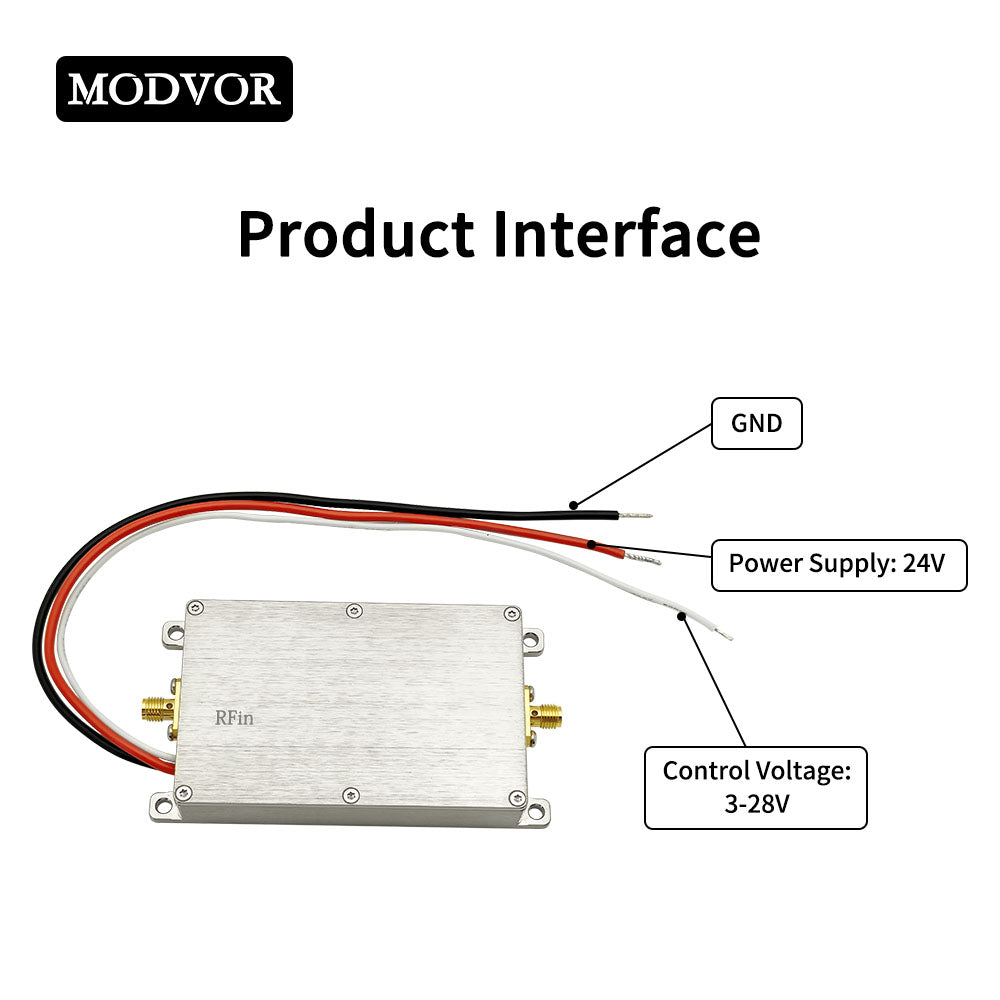

DC Connector |
AWG18 20cm Red/Black wire leads |
|
Power Control |
3-28V 20cm Red wire (output adjustment) |
|

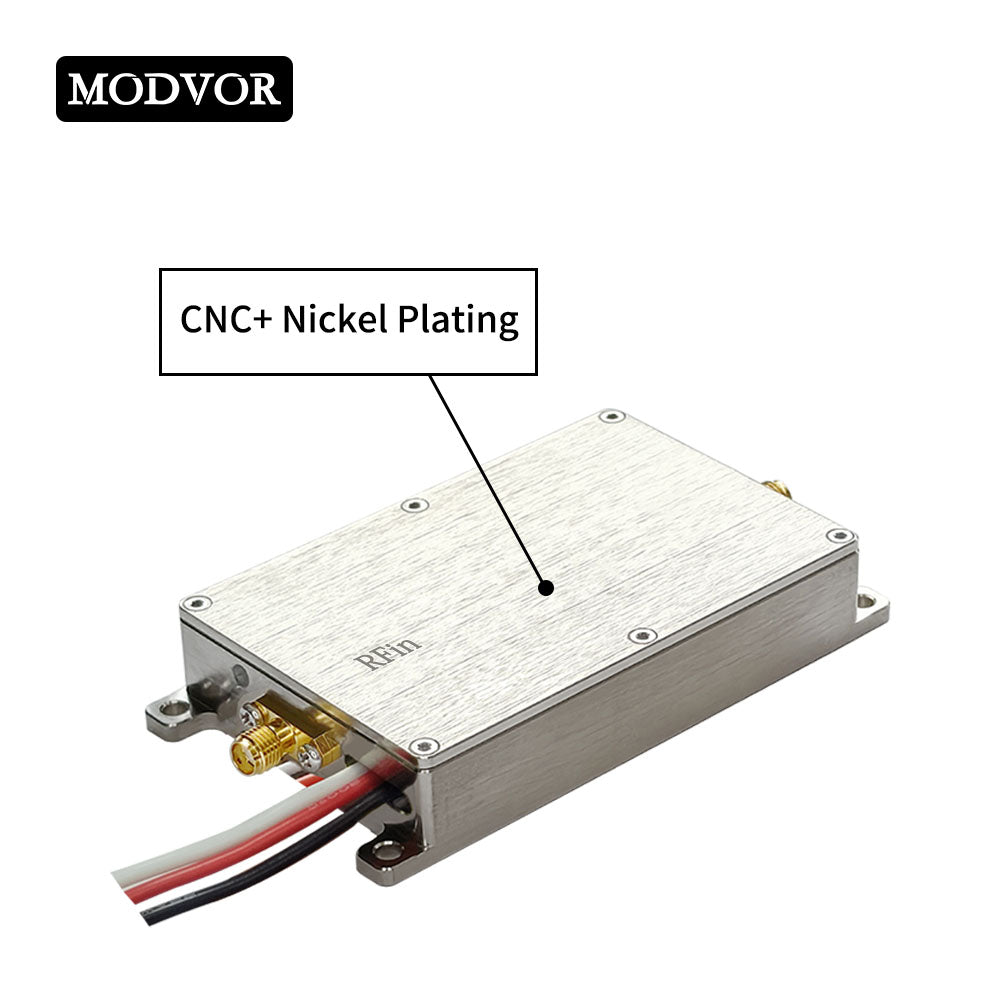

Shell Material |
Aluminum |
|

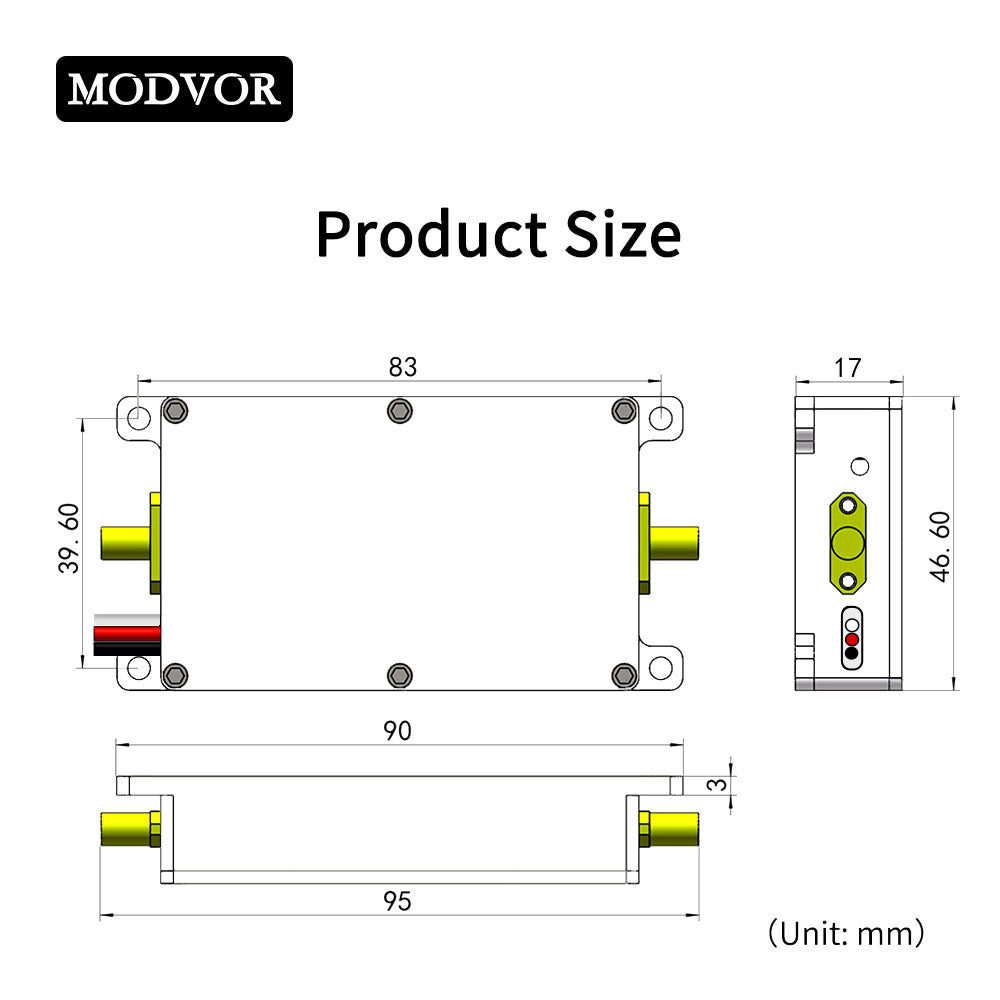

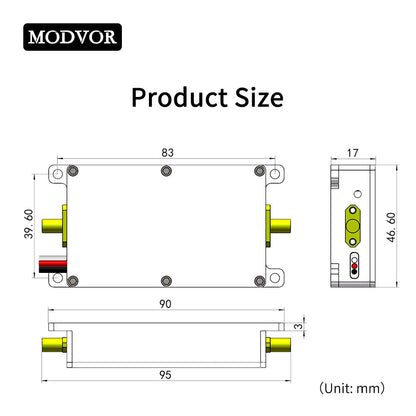

Dimensions |
90 × 46 × 17 mm |
|
Net Weight |
120 g |
Key Advantages
With 10W (40dBm) of clean GaN-powered output across the 6000-7200MHz spectrum, this amplifier delivers 5-8× the effective range of standard 1W transmitters, covering Wi-Fi 6E/7 infrastructure, 6GHz FPV video links, and point-to-point backhaul in a single wideband solution. The 38dB gain ensures consistent, predictable linearity even from low-power exciters, while the compact 120g design and efficient 0.8A current draw make it ideal for both drone mounting and ground station integration.
Built-in remote power control via the 3-28V red wire allows dynamic output adjustment—perfect for real-time power management in Wi-Fi networks, drone operations, or telecom deployments. The wide 24-28V voltage tolerance ensures compatibility with 6S LiPo batteries, PoE injectors, and regulated power supplies, while SMA-K connectors enable plug-and-play integration with existing RF chains.
Precision-tuned for the 6000-7200MHz band, this amplifier covers critical frequencies used in Wi-Fi 6E/7 (UNII-5/6/7/8), 6GHz FPV video transmission, point-to-point microwave links, and emerging wireless systems. Whether deployed in enterprise networks, drone ground stations, or experimental setups, it delivers the wideband flexibility and reliable power that next-generation 6GHz applications demand.
What's in the Box
- 1 × 6000-7200MHz 10W GaN Broadband Power Amplifier
