Product Descriptions

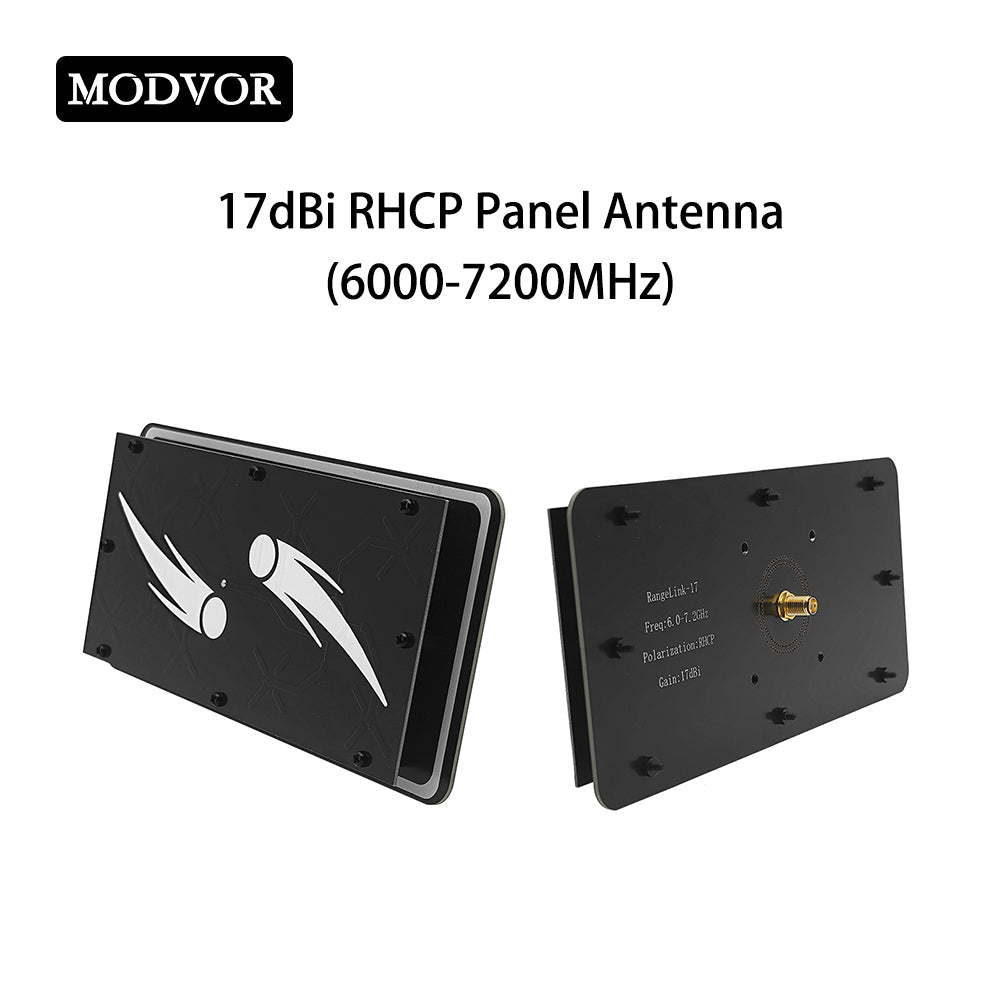

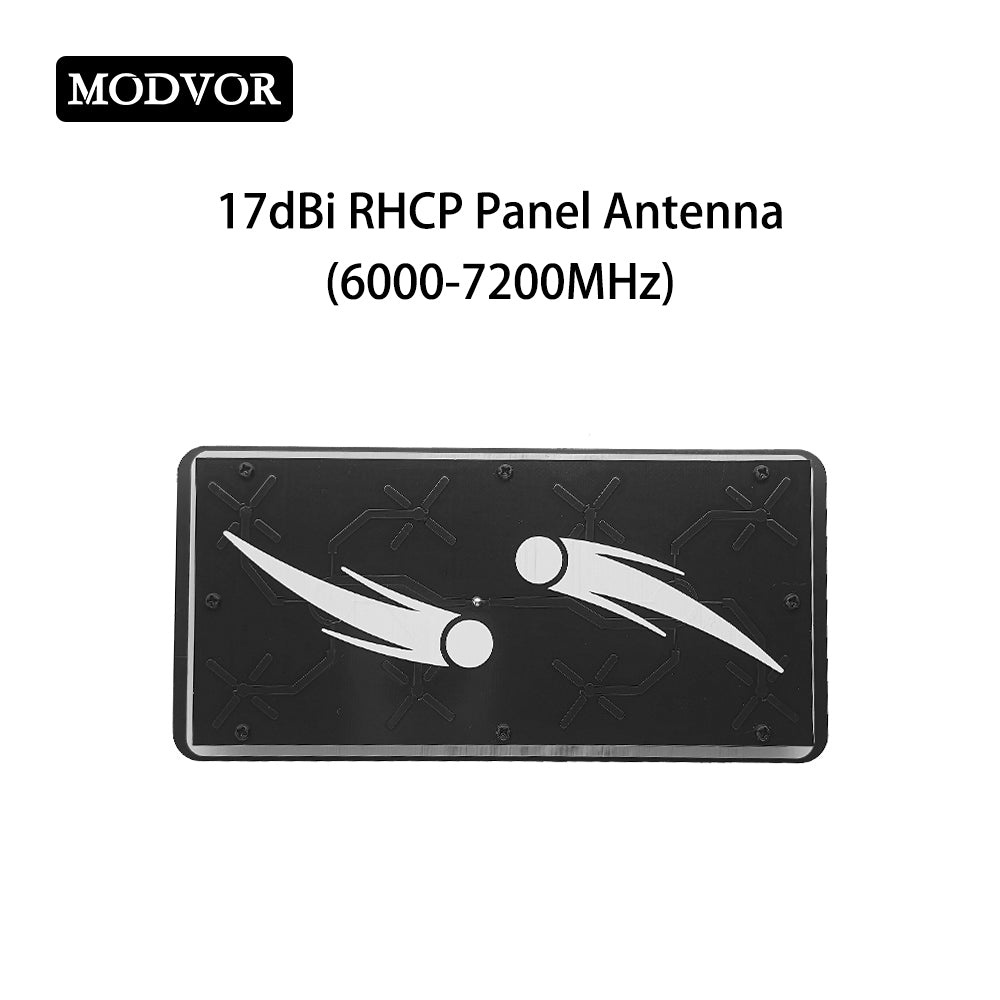

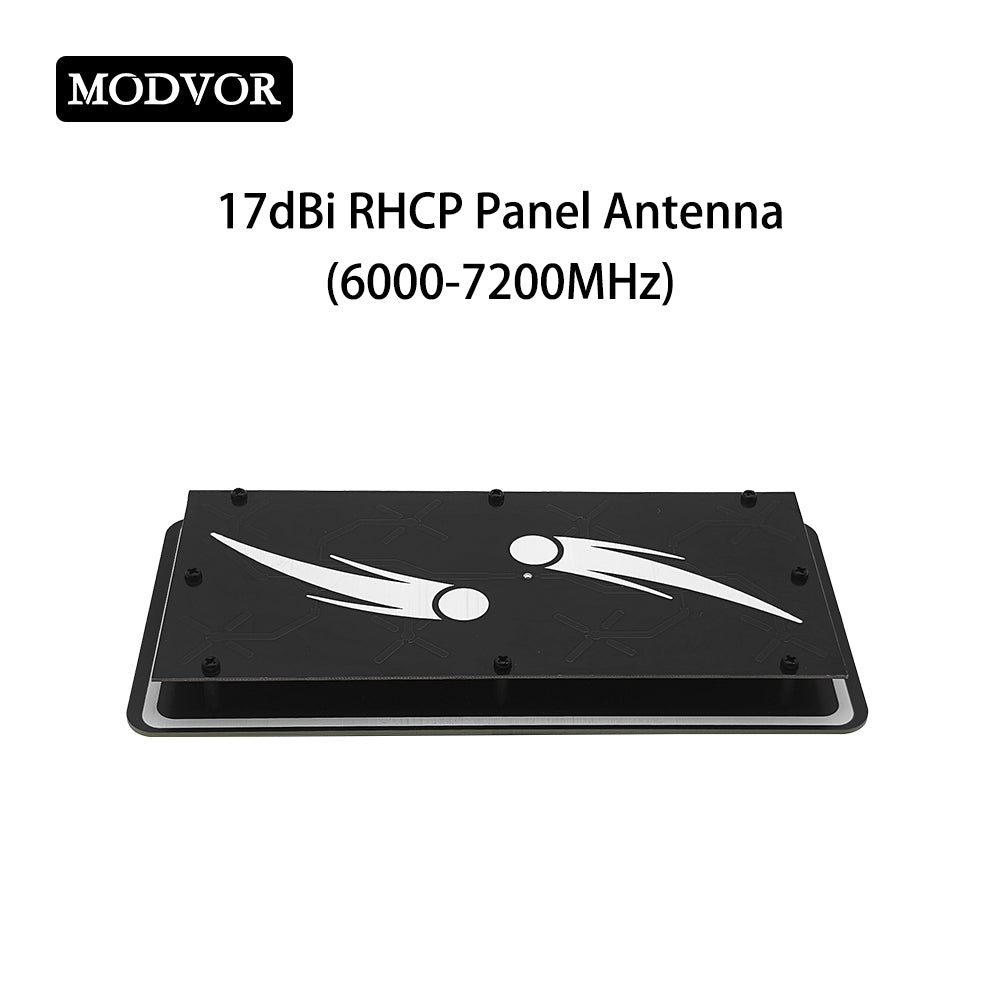

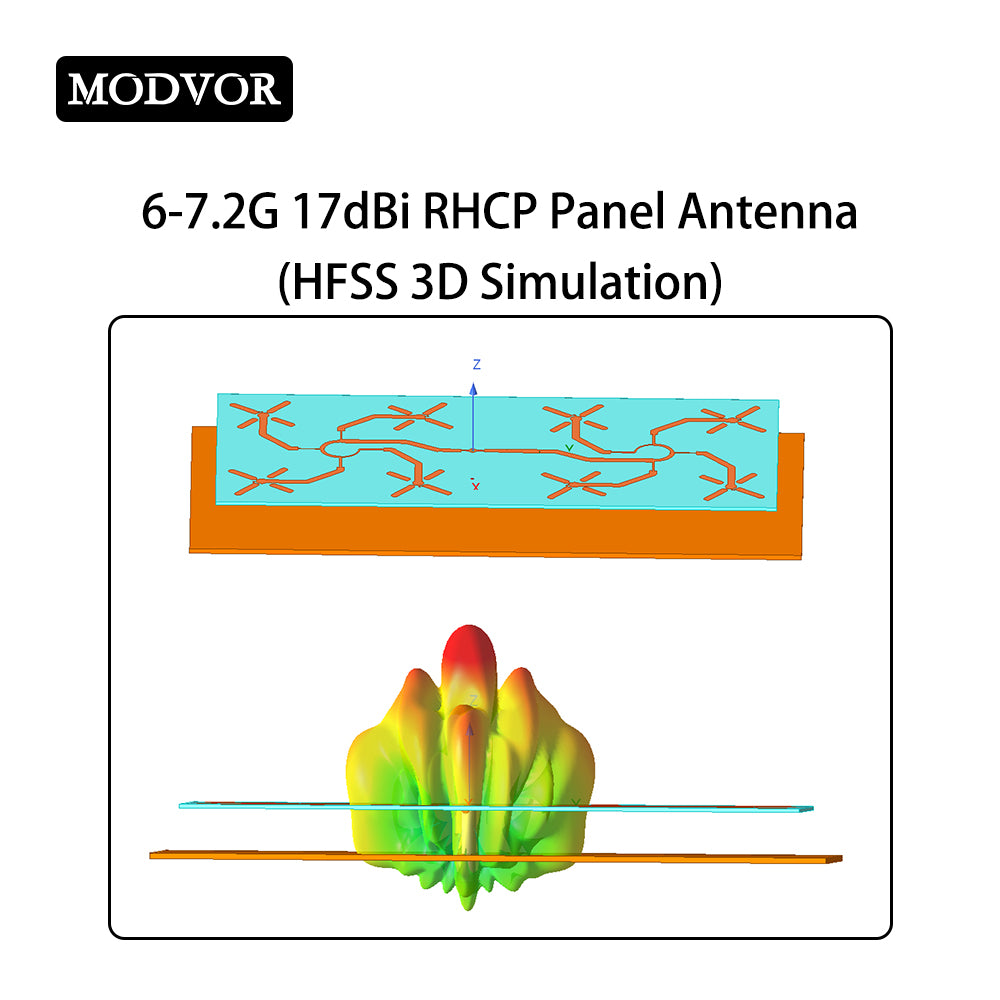

Built on mature microstrip antenna technology, this compact panel antenna measures only 180 × 85 × 14.5 mm, making it easy to integrate into space-constrained installations. It covers a wide operating band from 6.0 to 7.2 GHz with a VSWR below 1.5 across the entire frequency range, ensuring highly efficient signal transmission and stable performance.
With a peak gain of up to 17 dBi, the antenna effectively concentrates radiated energy in a specific direction, substantially improving communication range and signal quality. It employs right-hand circular polarization (RHCP), which effectively mitigates attenuation caused by rain and fog as well as multipath reflection effects. It is also capable of receiving incident waves of arbitrary polarization, thereby avoiding signal loss caused by polarization mismatch between the transmitting and receiving antennas.
Equipped with an SMA-Female connector, this directional antenna is an ideal choice for low-altitude surveillance radar and WiFi 6/6E/7 access point applications.
Product Applications
- Vehicular Mobile Satellite Terminal
- UAV Airborne Communication
- UAV Video Transmission System
- Low-Altitude Surveillance Radar
- WiFi 6/6E/7 Access Point
Product Features
- 1G Ultra wideband, relative bandwidth 18%

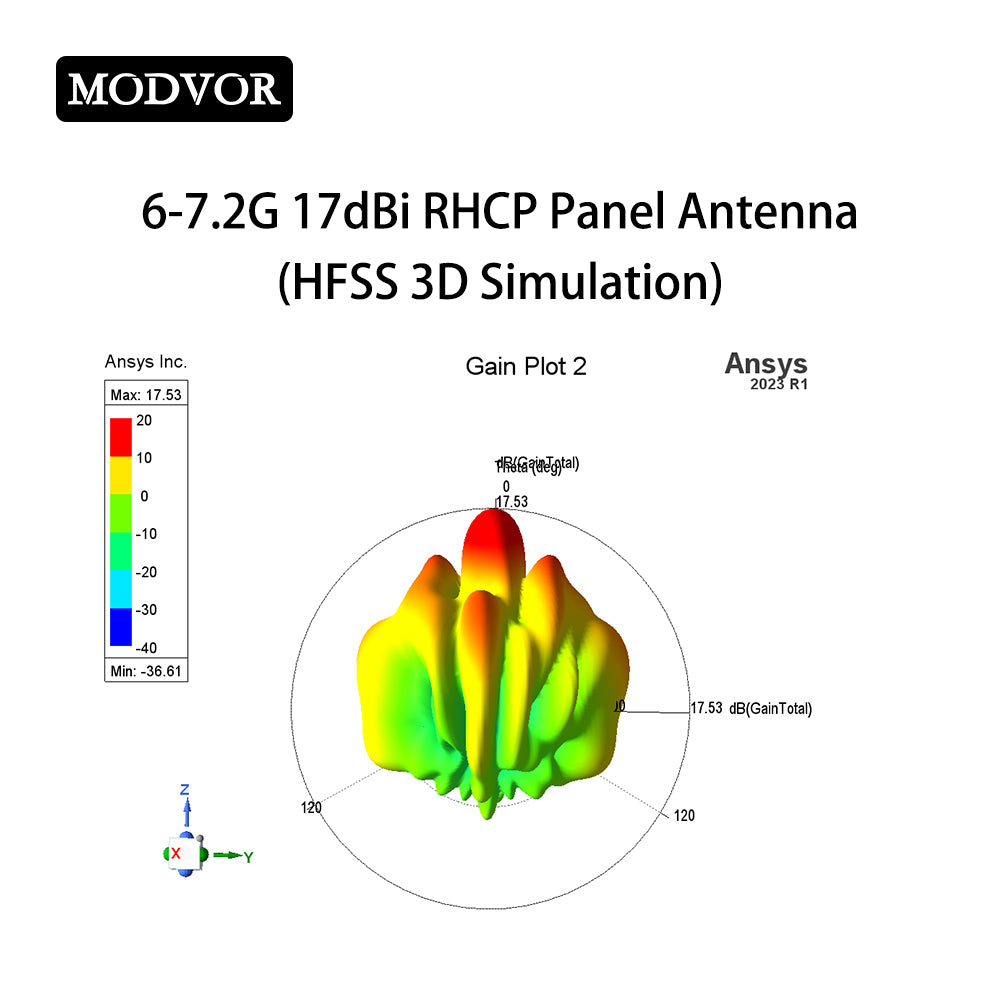

- 17dBi High Gain

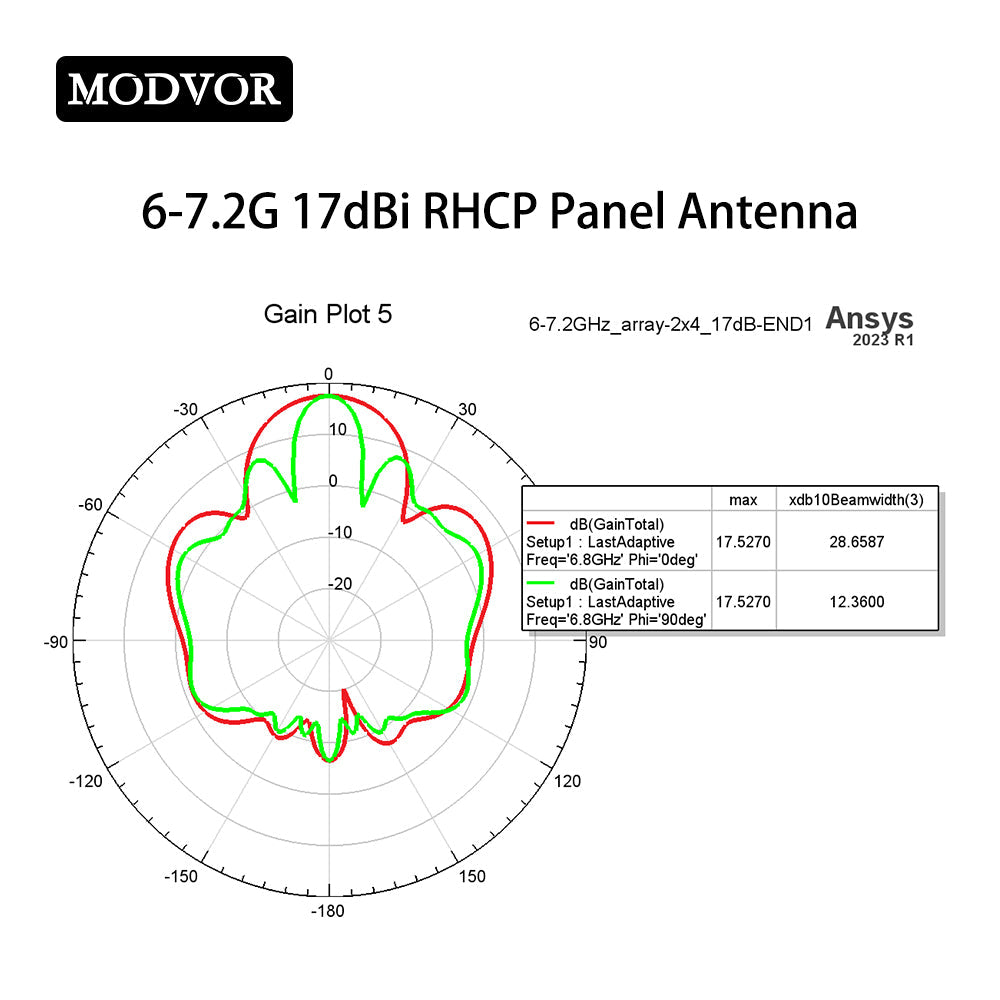

- 34°EL HPBW
- 13°AZ HPBW
Product Specifications
| Working band | 6000-7200MHz |
| Gain | 17dBi |

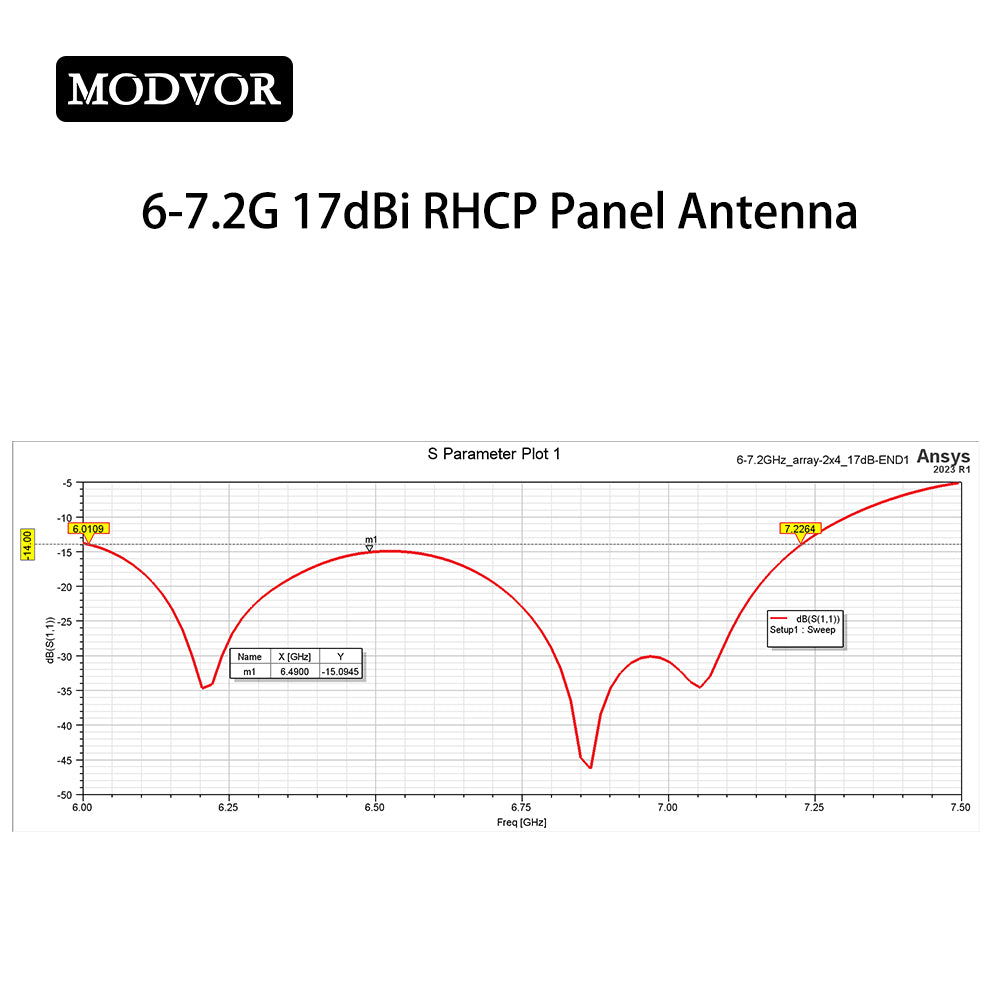

| VSWR | ＜1.5 |

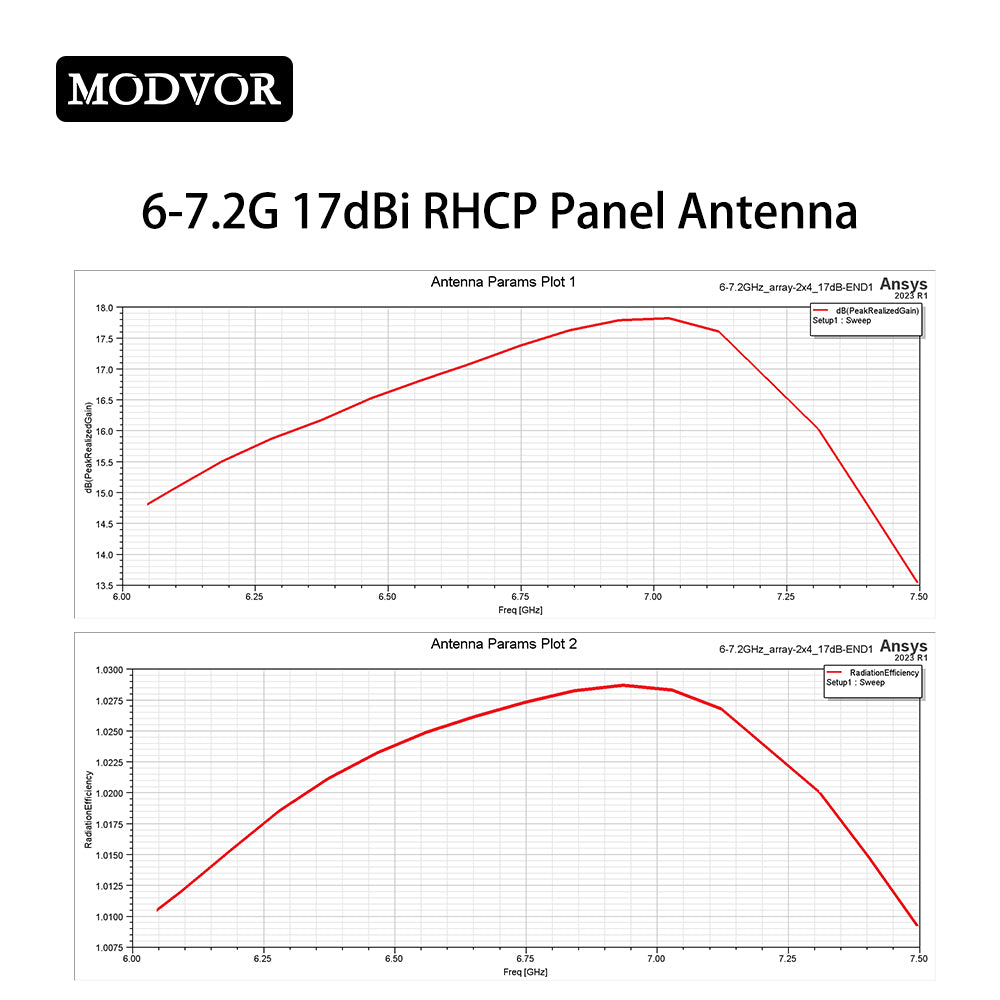

| Efficiency | ≥90% |
| Polarization | RHCP |
| EL HPBW | 34° |
| AZ HPBW | 13° |
| Input Impedance | 50Ω |
| Power Handing | 30W |

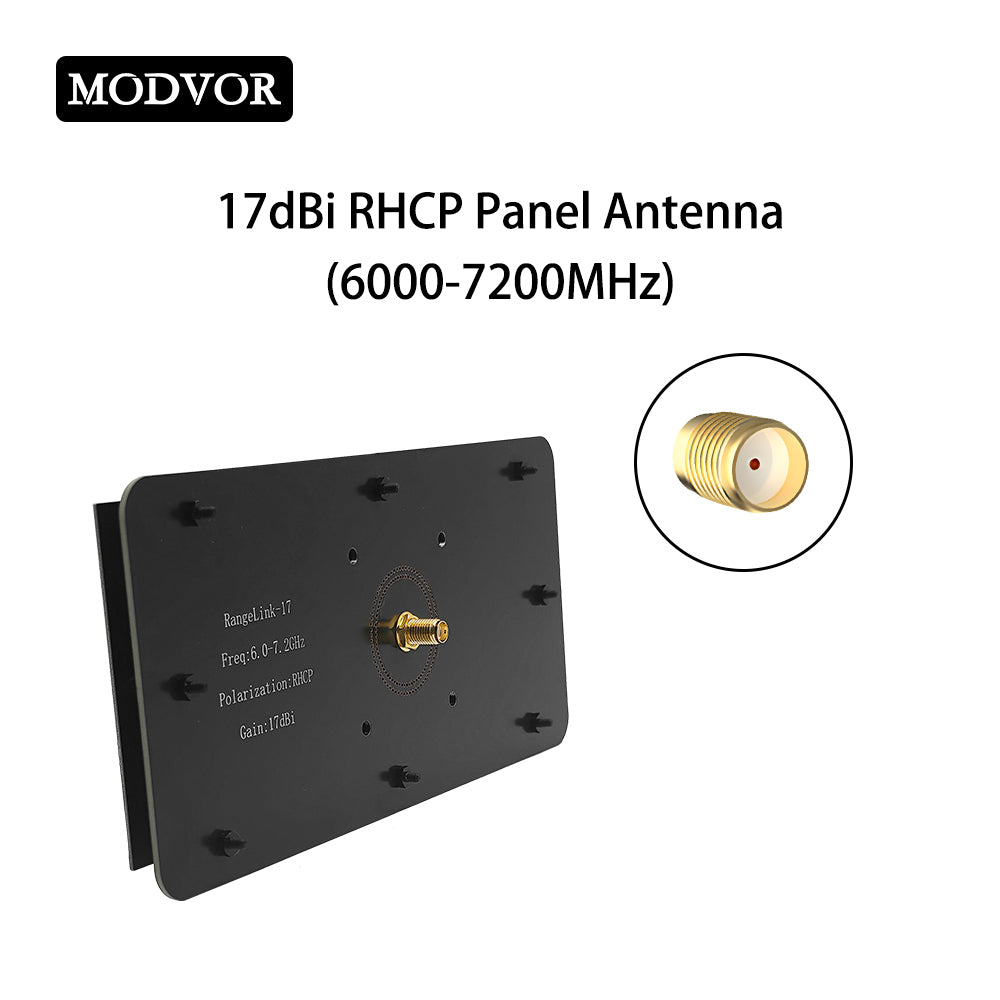

| RF Connector | SMA-Female |
| Size | 180*85*14.5mm |
| Weight | 91g |

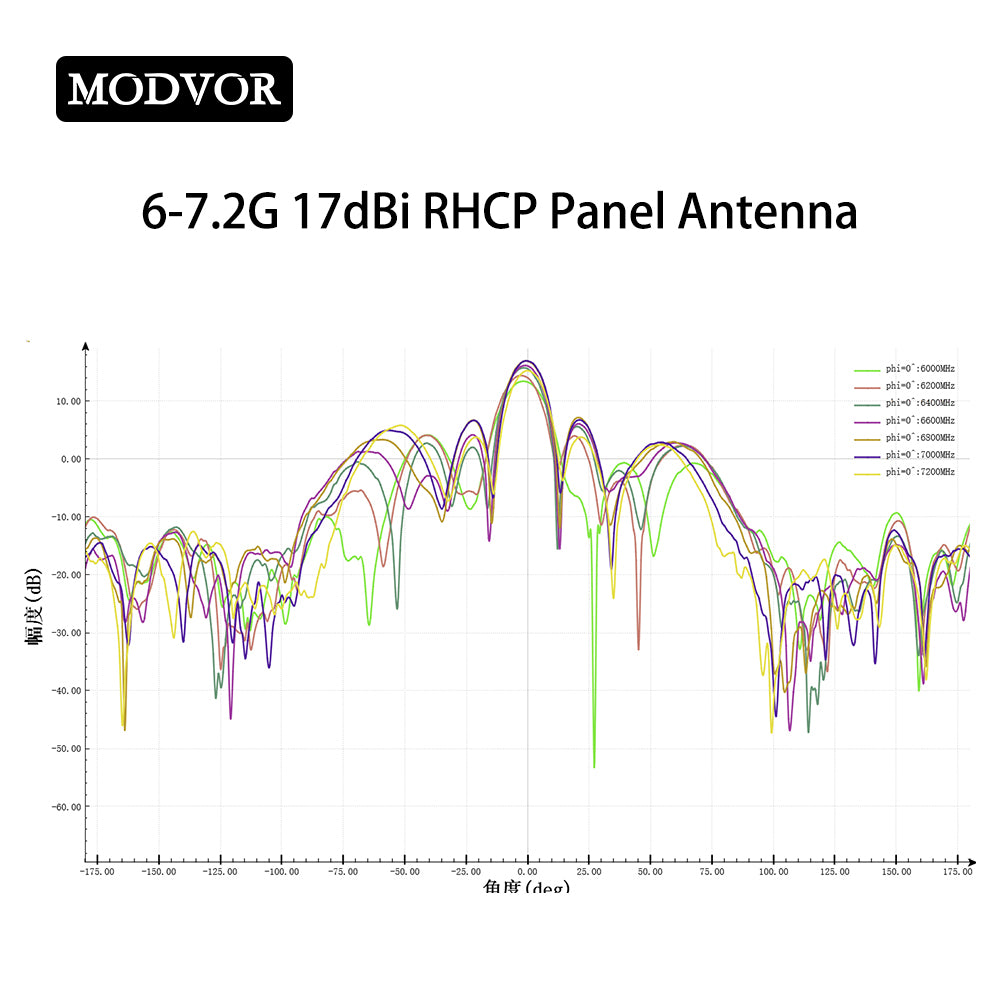

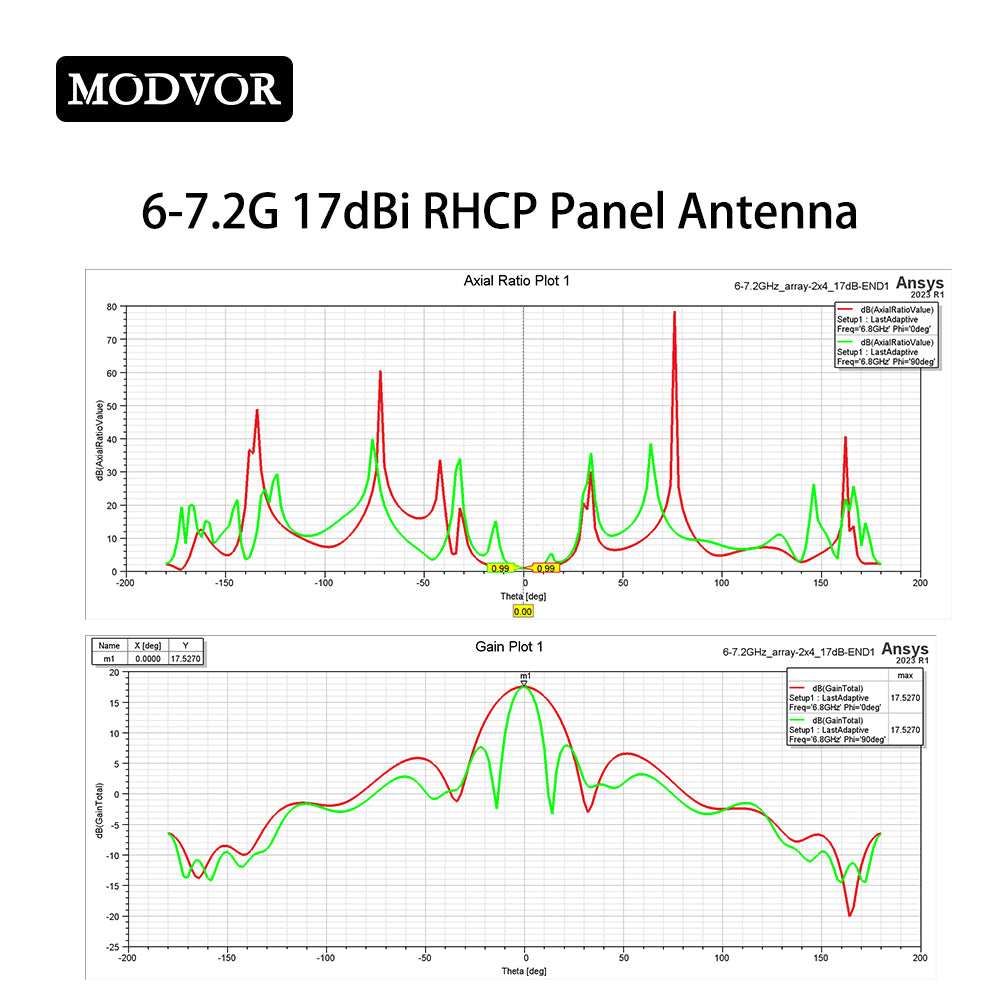

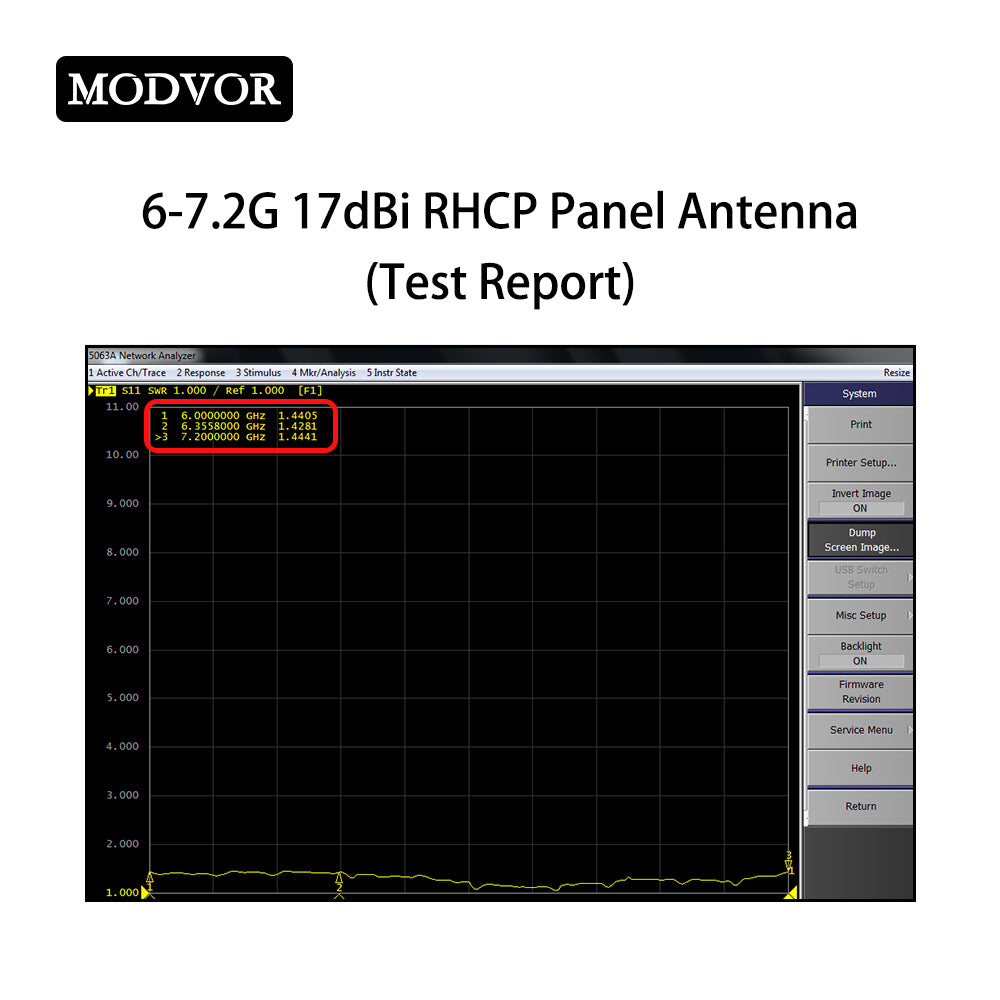

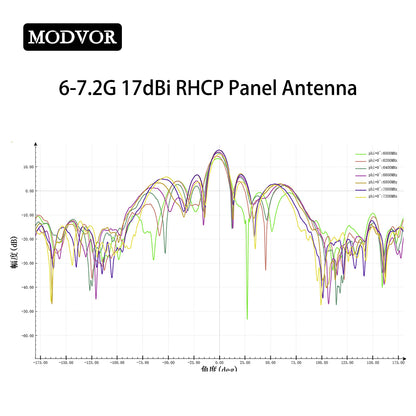

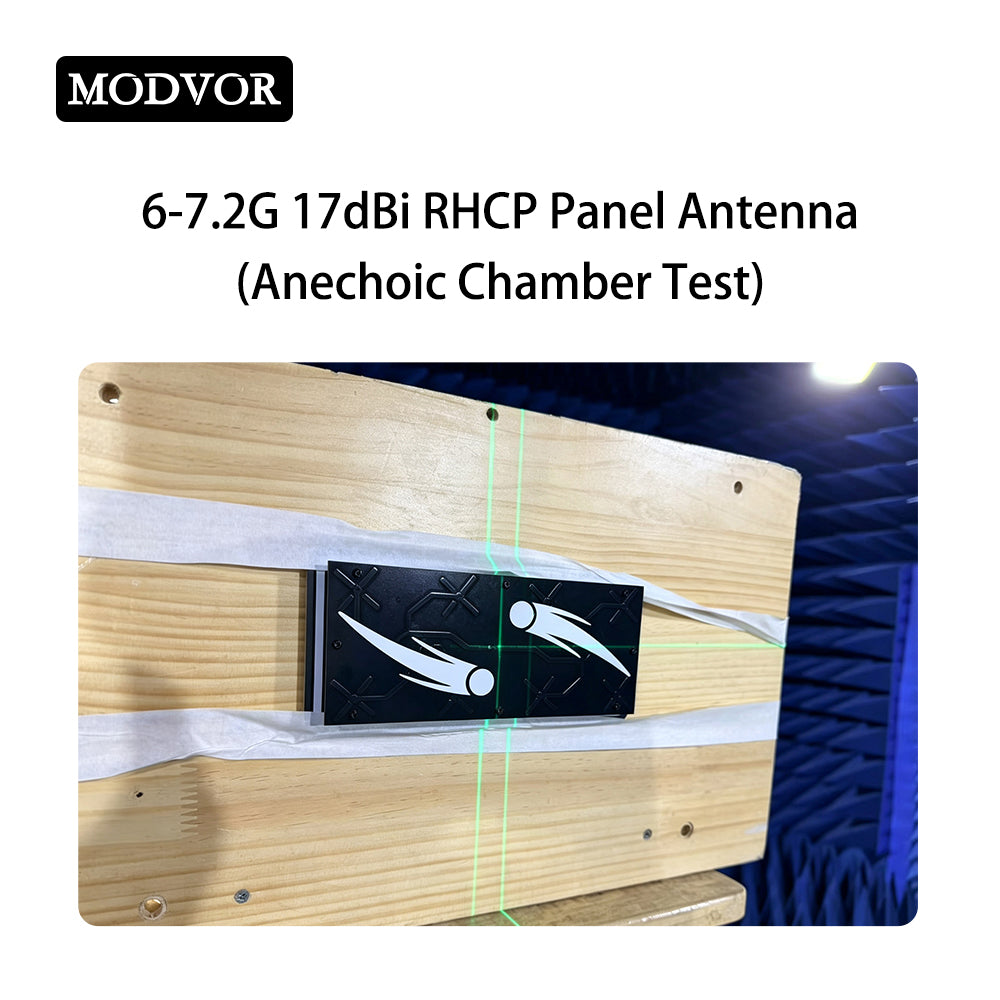

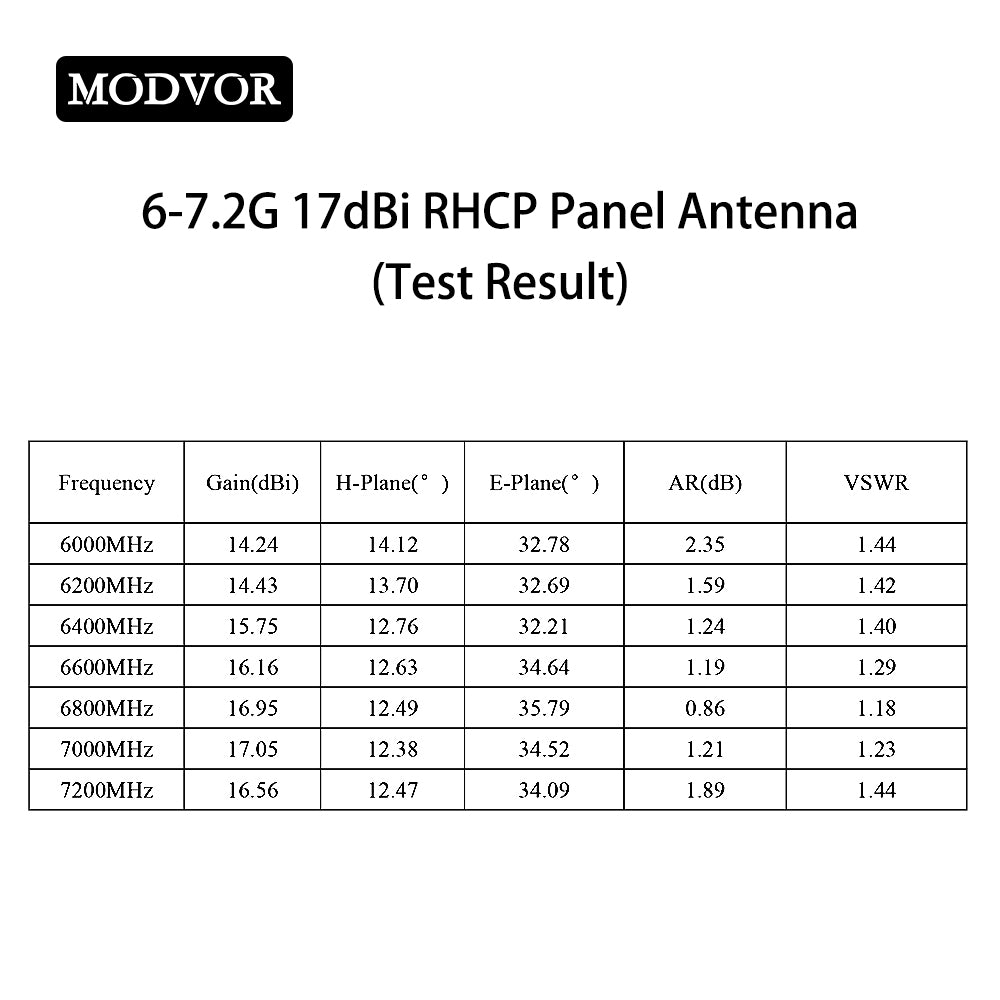

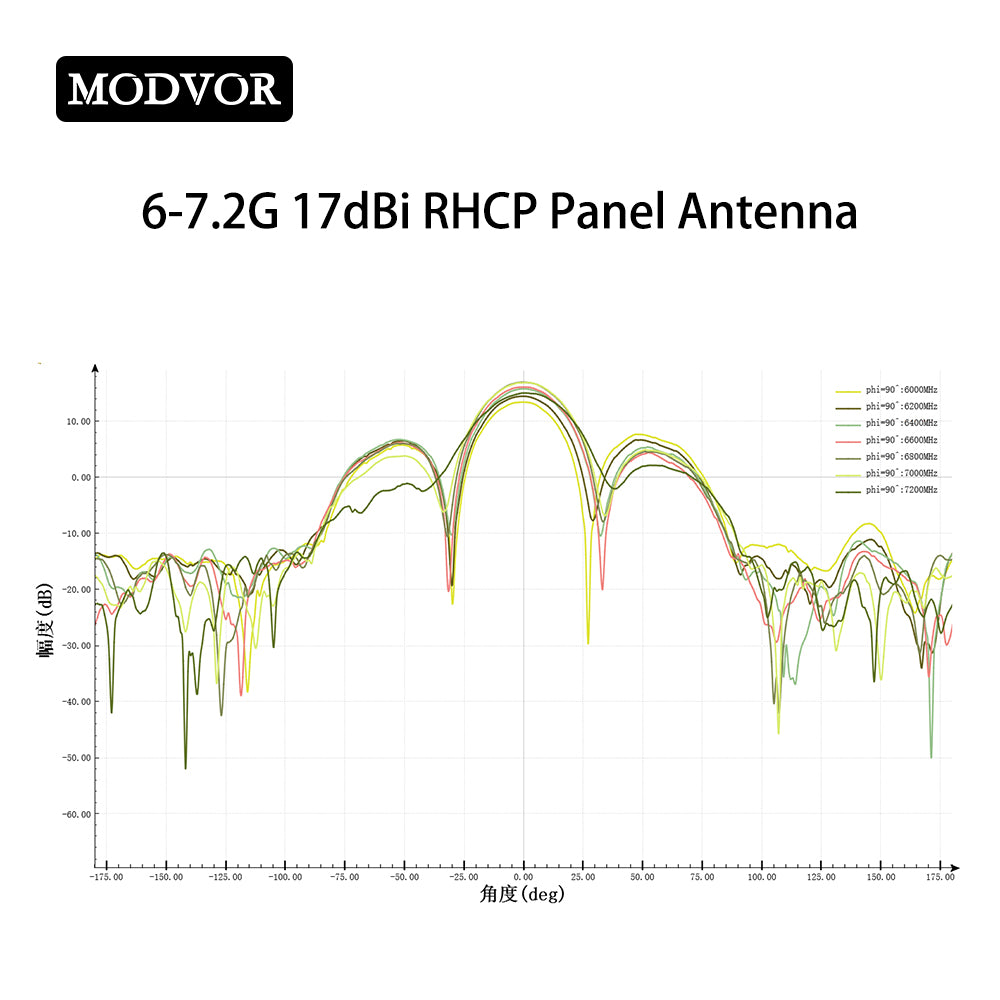

Test Results
| Frequency | Gain(dBi) | H-Plane(°) | E-Plane(°) | AR(dB) | VSWR |
| 6000MHz | 14.24 | 14.12 | 32.78 | 2.35 | 1.44 |
| 6200MHz | 14.43 | 13.7 | 32.69 | 1.59 | 1.42 |
| 6400MHz | 15.75 | 12.76 | 32.21 | 1.24 | 1.4 |
| 6600MHz | 16.16 | 12.63 | 34.64 | 1.19 | 1.29 |
| 6800MHz | 16.95 | 12.49 | 35.79 | 0.86 | 1.18 |
| 7000MHz | 17.05 | 12.38 | 34.52 | 1.21 | 1.23 |
| 7200MHz | 16.56 | 12.47 | 34.09 | 1.89 | 1.44 |
Package List
1 X 6-7.2G RHCP Directional Panel Antenna
