Product Descriptions

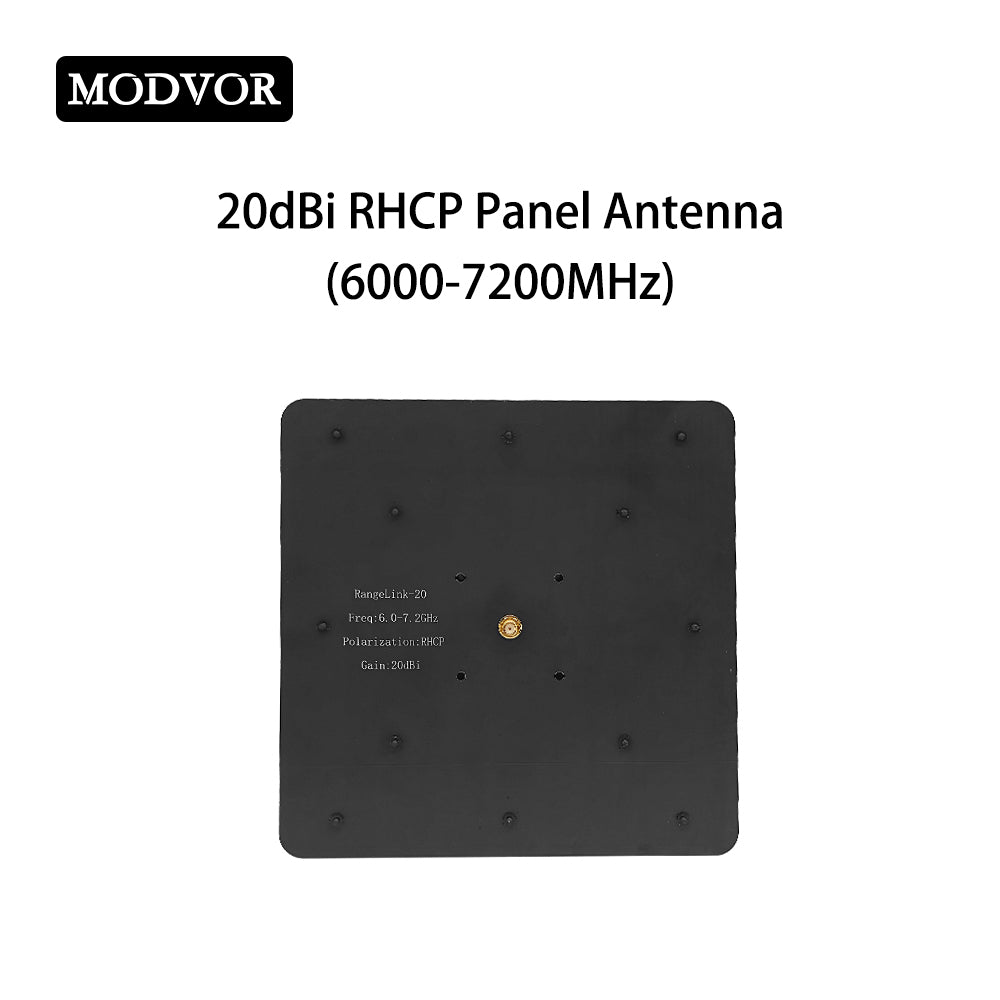

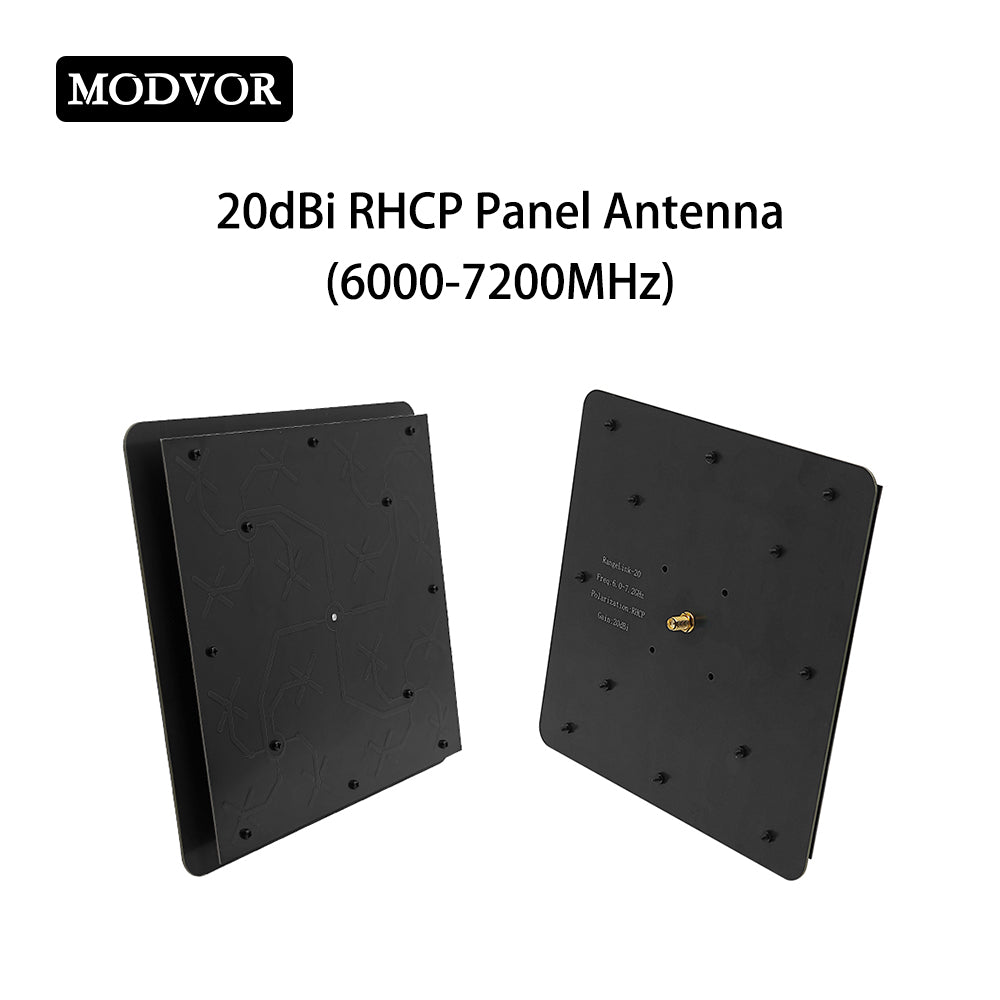

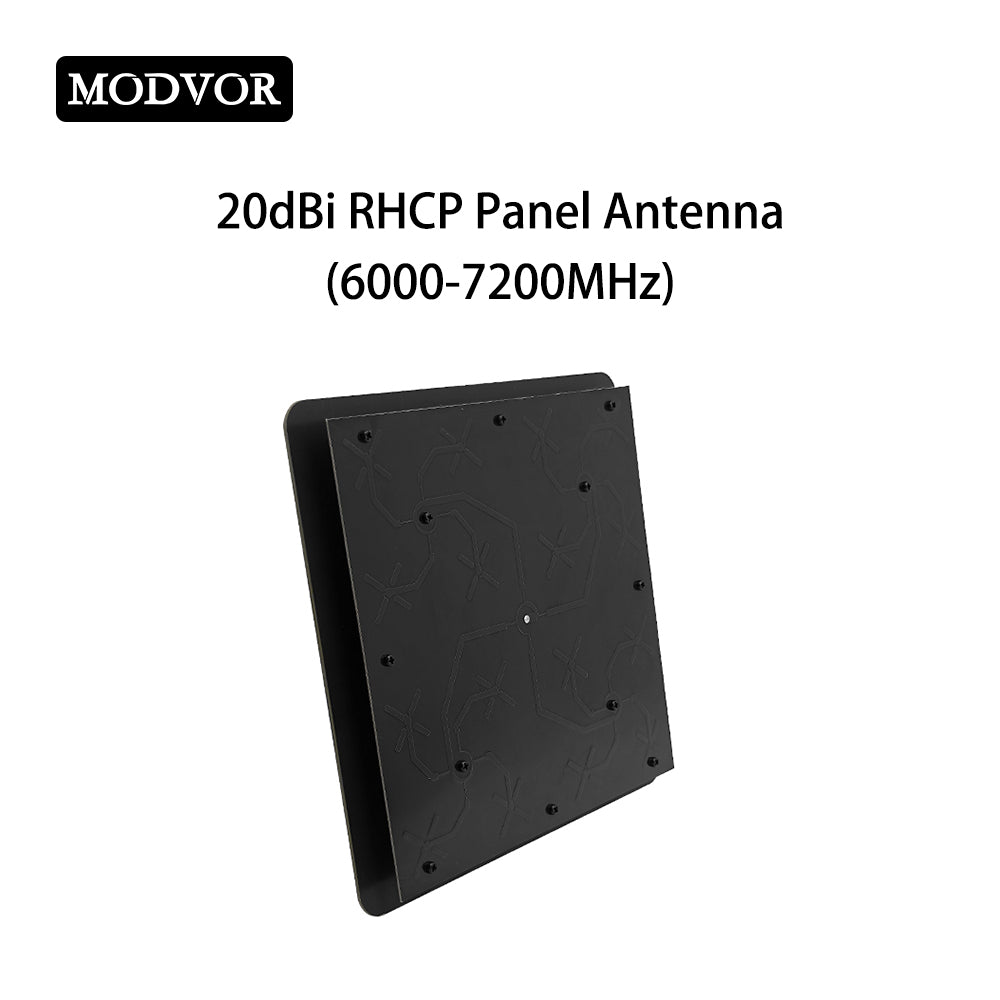

The 6000–7200 MHz 20 dBi High-Gain Directional RHCP Patch Microstrip Antenna is a professional-grade RF antenna designed to deliver stable, long-range, and interference-resistant wireless connectivity across the full 6–7.2 GHz frequency band. Combining Right-Hand Circular Polarization (RHCP) with a high 20 dBi directional gain, it is purpose-built for demanding applications such as industrial robot control, high-speed wireless communication, and AR/VR transmission links.

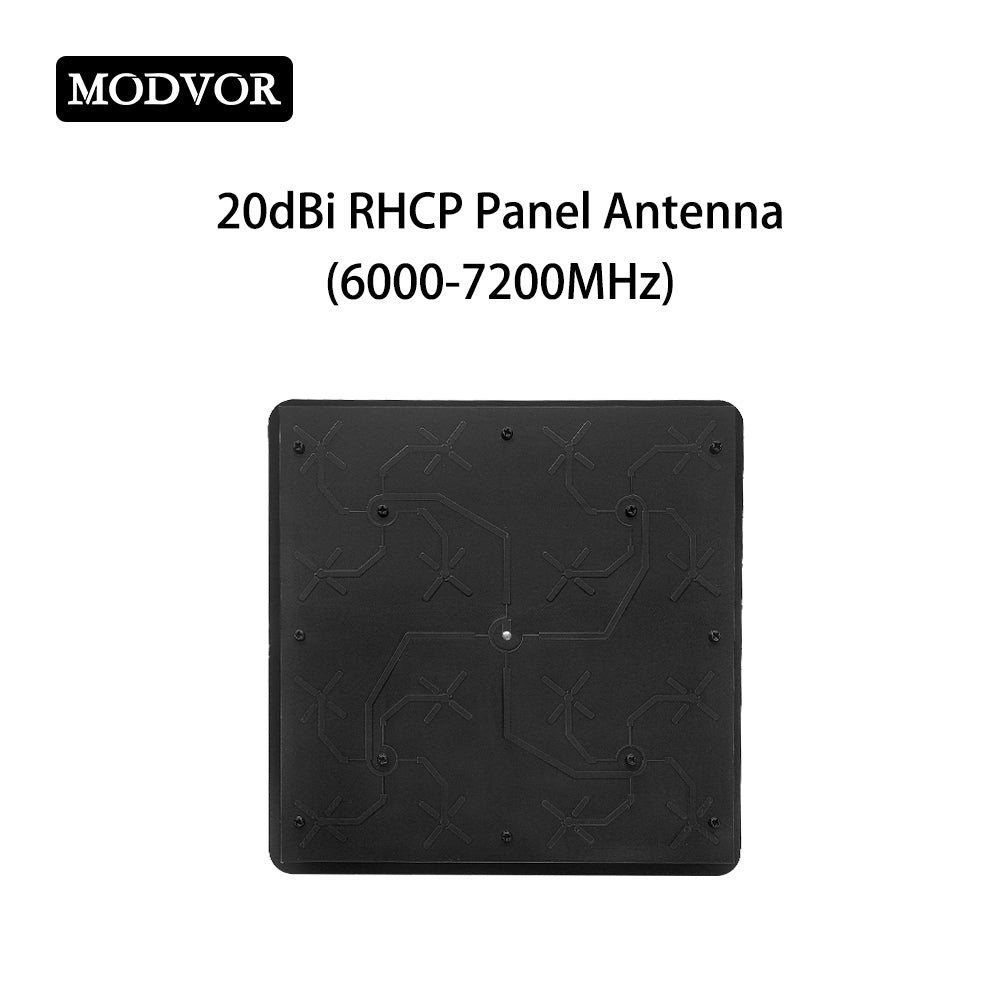

Its microstrip patch construction offers a low-profile, lightweight, and highly stable solution that integrates easily into industrial equipment, robotic systems, and compact communication devices — without sacrificing performance. The SMA female connector ensures a secure, low-loss connection to RF cables, transceivers, and wireless modules.
Product Applications
- Vehicular Mobile Satellite Terminal
- UAV Airborne Communication
- UAV Video Transmission System
- Low-Altitude Surveillance Radar
- WiFi 6/6E/7 Access Point
Product Features
- 1G Ultra wideband, relative bandwidth 18%
- 20dBi High Gain
- 15°EL HPBW
- 13°AZ HPBW
Product Specifications
| Working band | 6000-7200MHz |
| Gain | 20dBi |

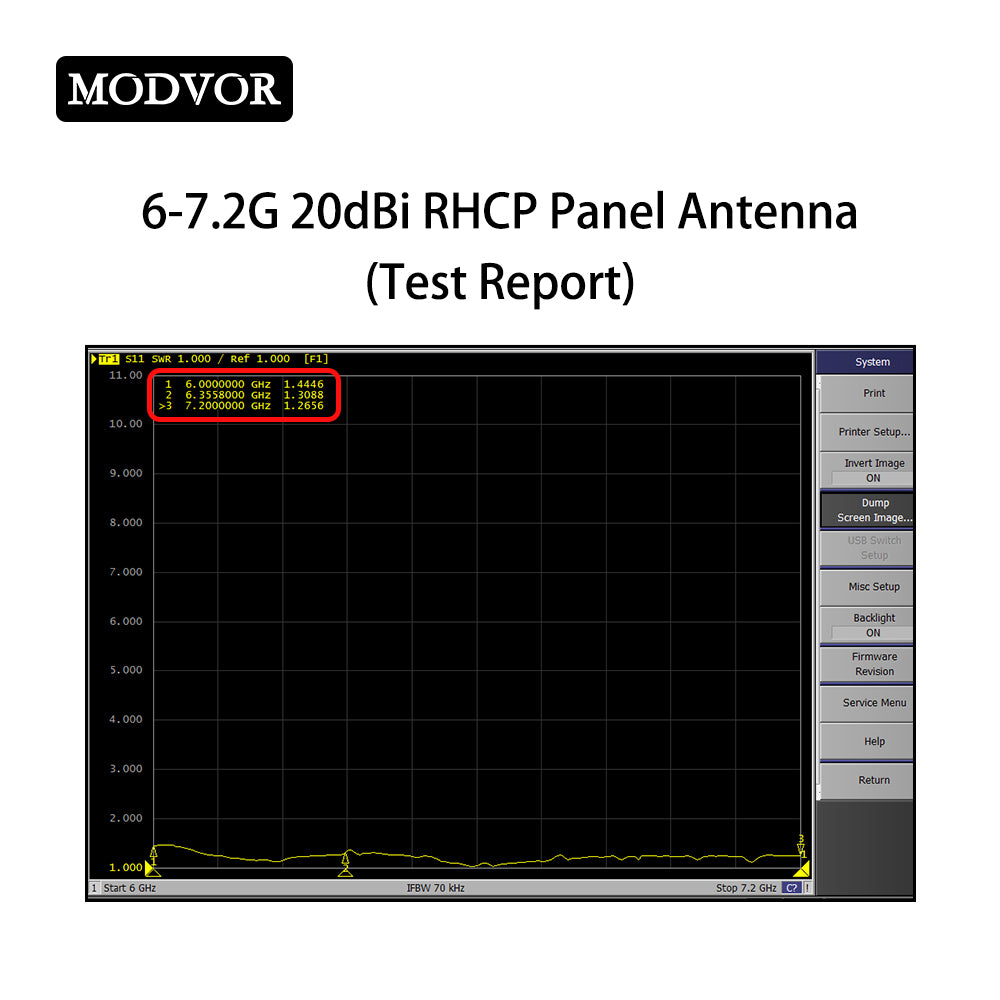

| VSWR | ＜1.5 |
| Efficiency | ≥90% |
| Polarization | RHCP |
| EL HPBW | 15° |
| AZ HPBW | 13° |
| Input Impedance | 50Ω |
| Power Handing | 30W |

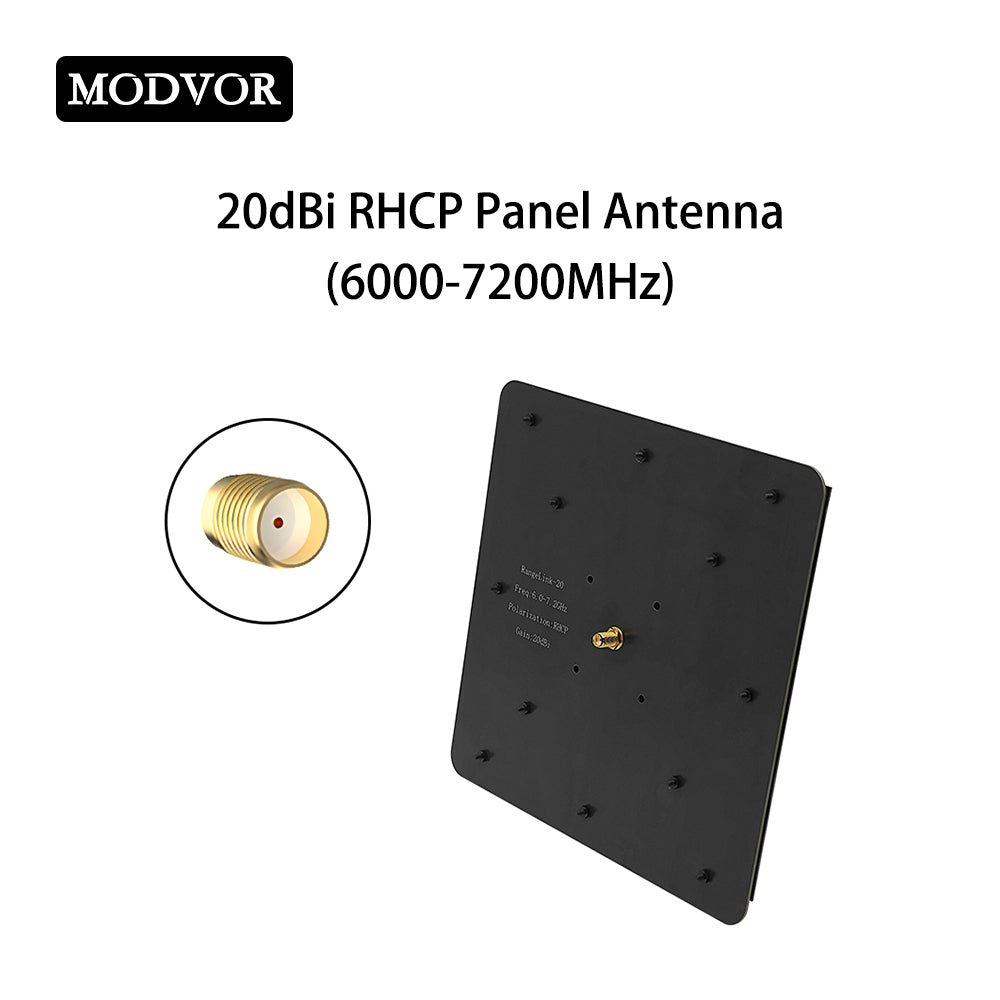

| RF Connector | SMA-Female |
| Size | 185*185*14.5mm |
| Weight | 204g |

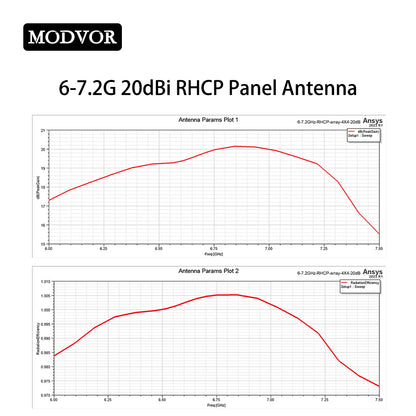

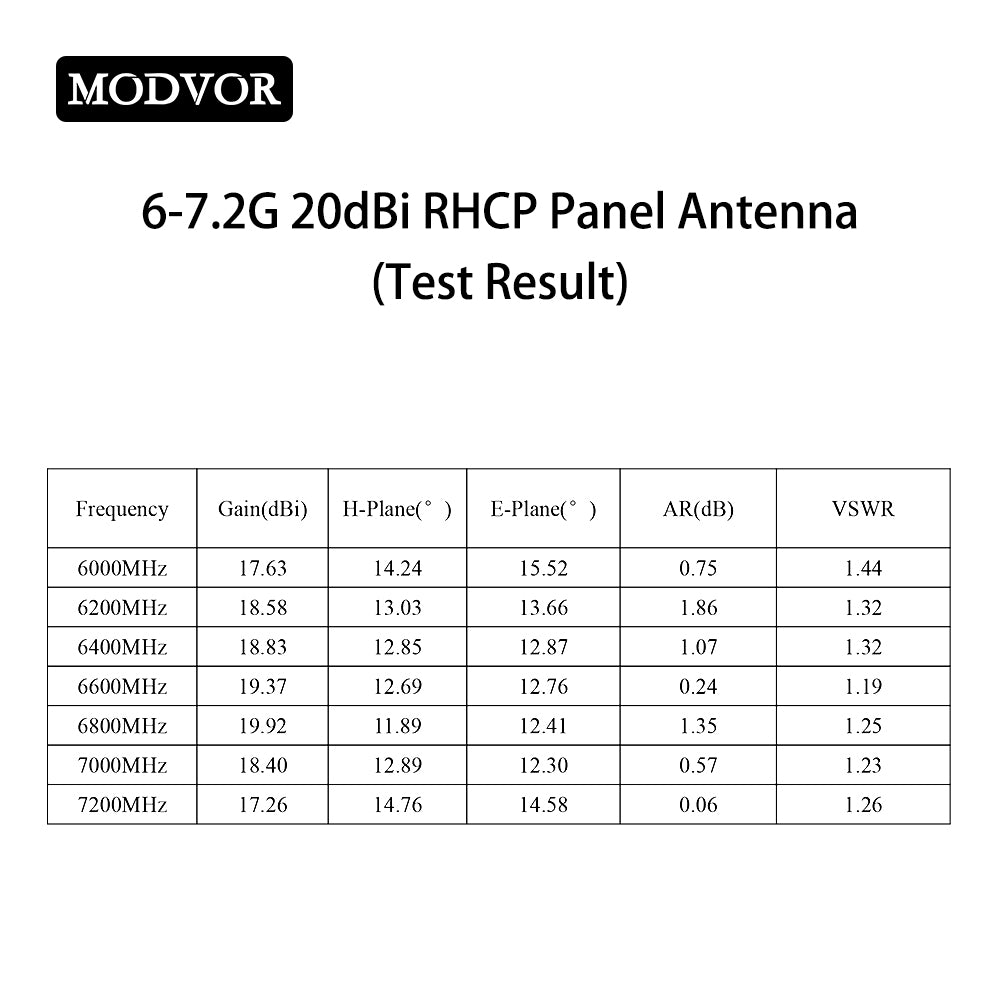

Test Results
| Frequency | Gain(dBi) | H-Plane(°) | E-Plane(°) | AR(dB) | VSWR |
| 6000MHz | 17.63 | 14.24 | 15.52 | 0.75 | 1.44 |
| 6200MHz | 18.58 | 13.03 | 13.66 | 1.86 | 1.32 |
| 6400MHz | 18.83 | 12.85 | 12.87 | 1.07 | 1.32 |
| 6600MHz | 19.37 | 12.69 | 12.76 | 0.24 | 1.19 |
| 6800MHz | 19.92 | 11.89 | 12.41 | 1.35 | 1.25 |
| 7000MHz | 18.4 | 12.89 | 12.3 | 0.57 | 1.23 |
| 7200MHz | 17.26 | 14.76 | 14.58 | 0.06 | 1.26 |
Package List
1 X 6-7.2G RHCP Directional Panel Antenna
