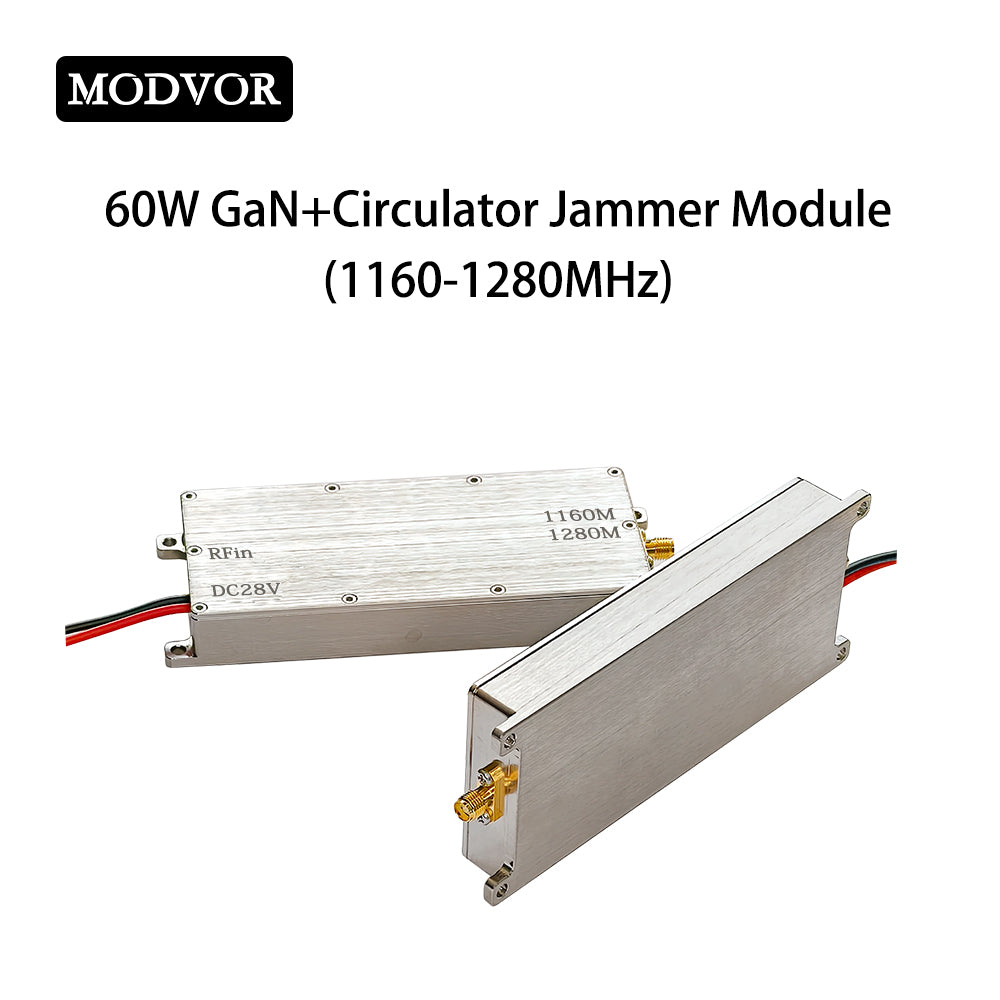

Product Description
This 60W high-power GaN RF drone UAV jammer module covers the 1160–1280MHz frequency band, specially engineered for seamless integration with anti-drone detection systems. Featuring advanced GaN semiconductor technology, it delivers stable high power output, superior energy efficiency and lower heat generation, reliably suppressing drone navigation and transmission signals under various working conditions.
Built-in professional circulator ensures effective signal isolation, prevents signal reflection and module damage, and greatly improves operational stability. Equipped with a standard SMA-Female interface, this unit supports flexible antenna matching and easy installation to meet long-range jamming requirements.
Compact, efficient and long-range capable, this GaN drone UAV jammer module is ideal for site security and anti-drone intrusion projects, delivering stable and reliable signal shielding performance when paired with anti-drone detection equipment.
Product Features
- Frequency: 1160-1280MHz coverage
- Advanced GaN technology, stable 60W (48dBm) output
- Integrated circulator for enhanced reliability

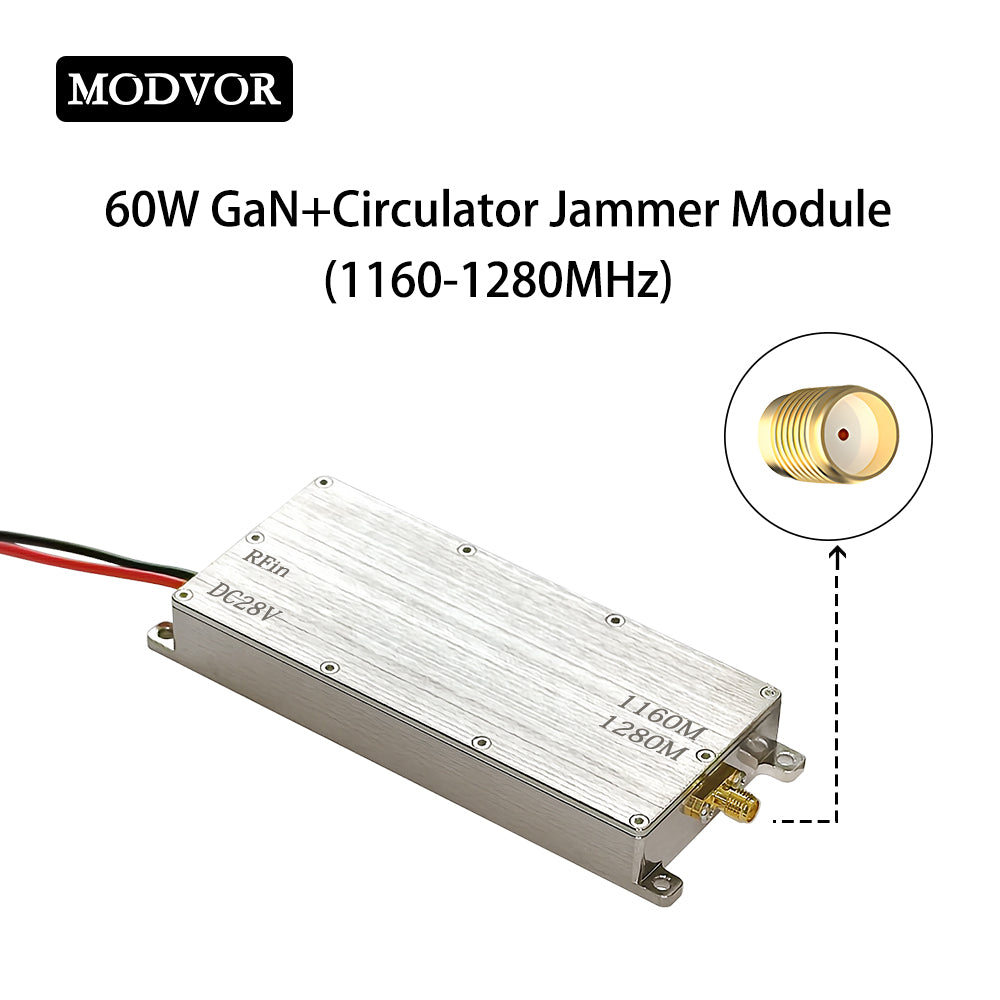

- SMA female RF connector

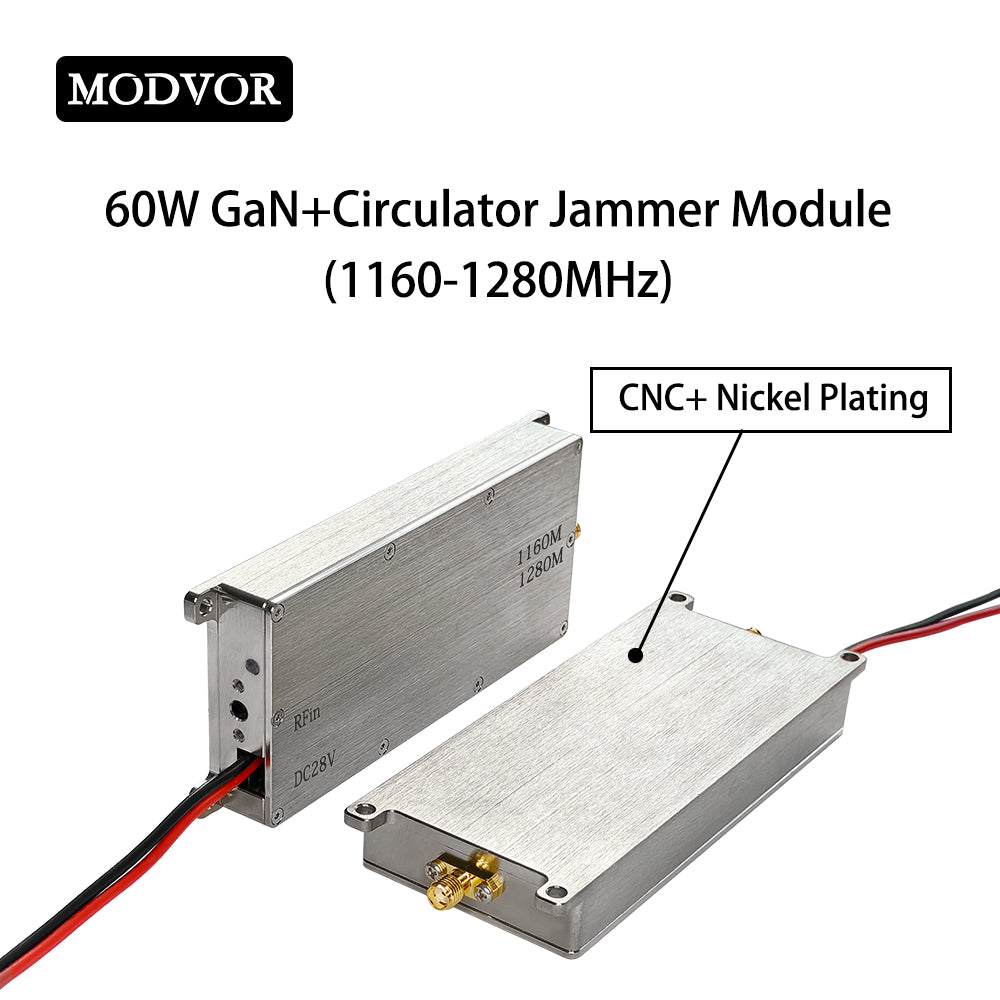

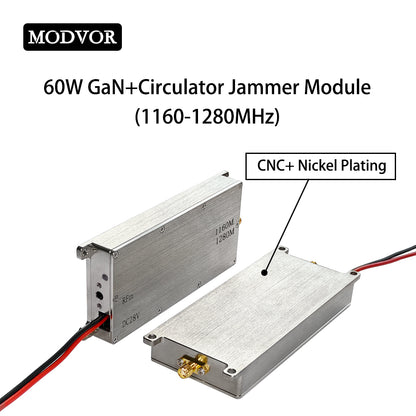

- Compact aluminum alloy housing
Custom frequency bands & power are available, feel free to contact us for your requirements.
Product Specifications
| Frequency Range | 1160-1280MHz |
| Operating Voltage | 28 V DC |
| Flatness | ±0.5 dB |
| Output Power | 60 W/48 dBm |
| Current Consumption | 4.2 A@28 V |
| Efficiency | 45%@48 dBm |
| LED State | Red |
| Operating Temperature | -30℃ ~ +85℃ |
| Storage Temperature | -40℃ ~ +150℃ |
| Operating Humidity | <95%RH |
| RF Connector | Output: SMA-Female |

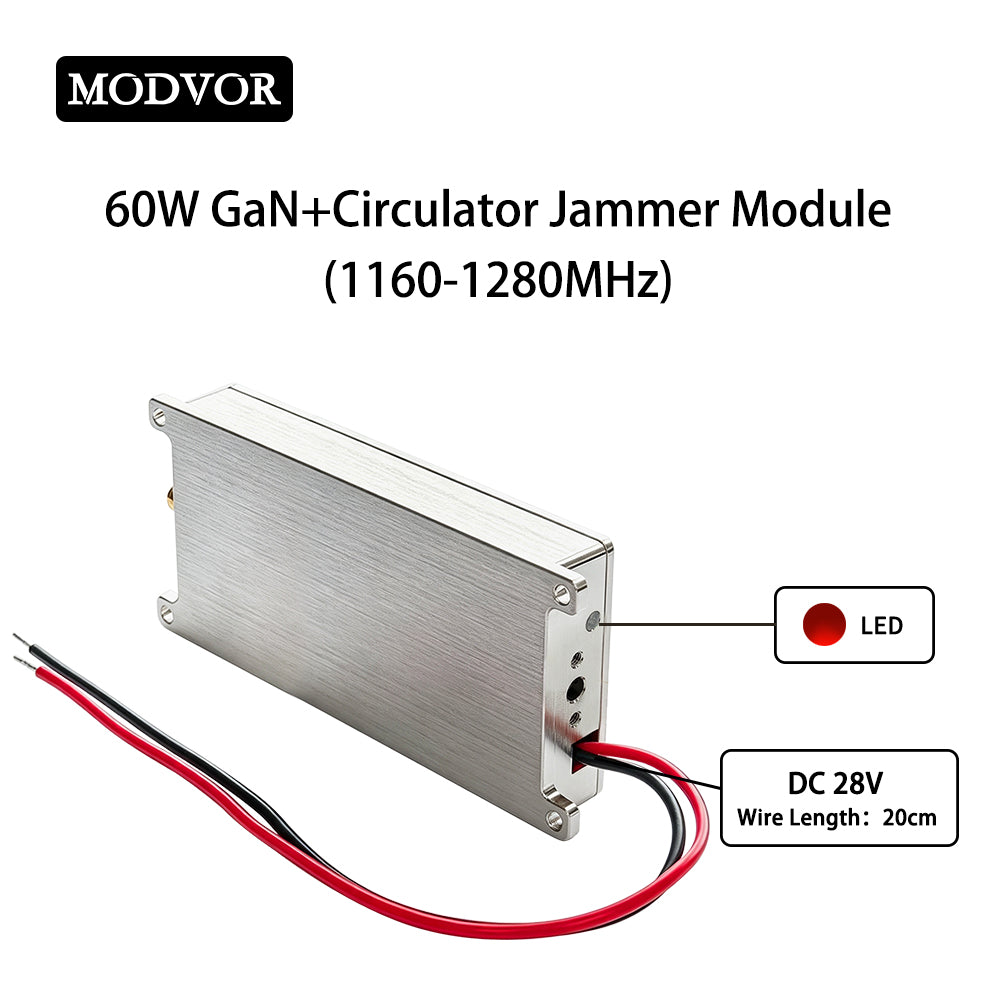

| Power Socket | 20 cm red/black wire |
| Shell Material | Aluminum |

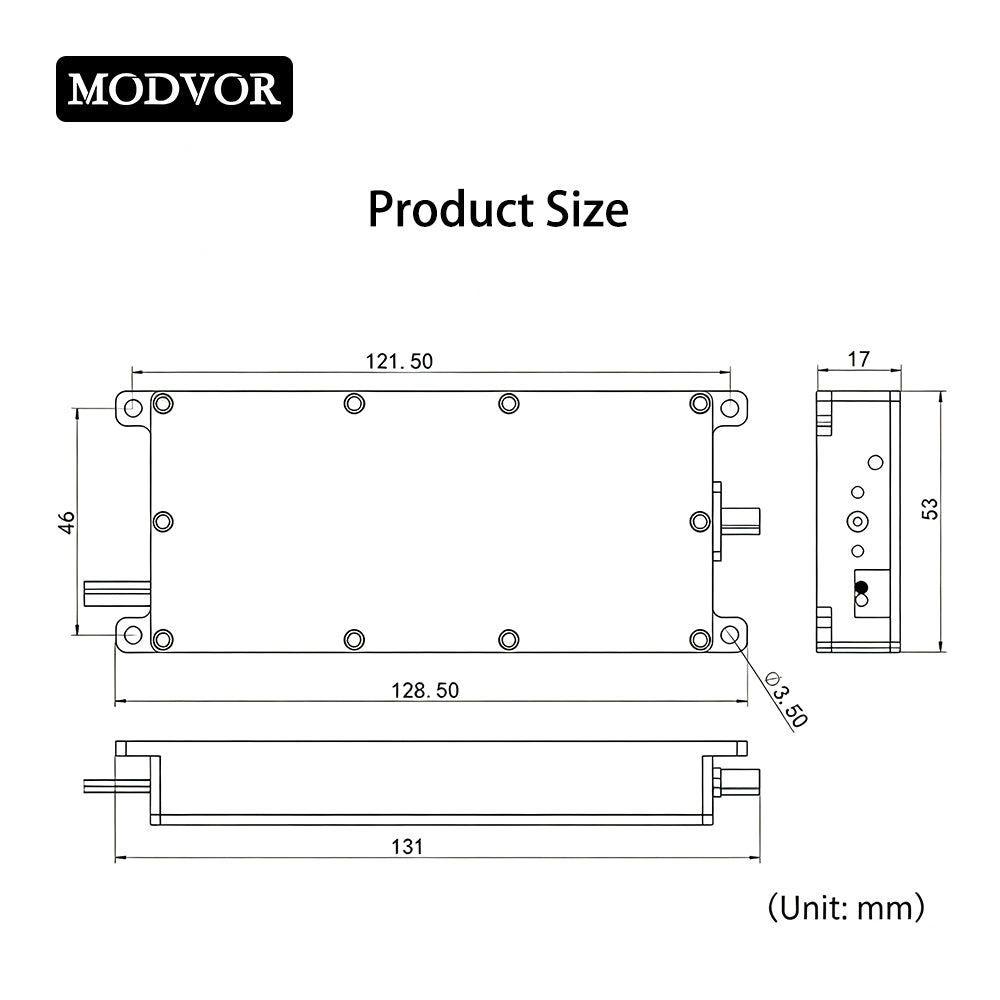

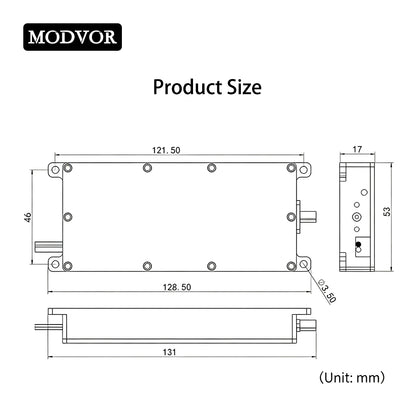

| Shell Size | 128.5*53*17 mm |
| Net Weight | 0.26 kg |
Package List
1 x GaN+Circulator Jammer Module
