Product Descriptions

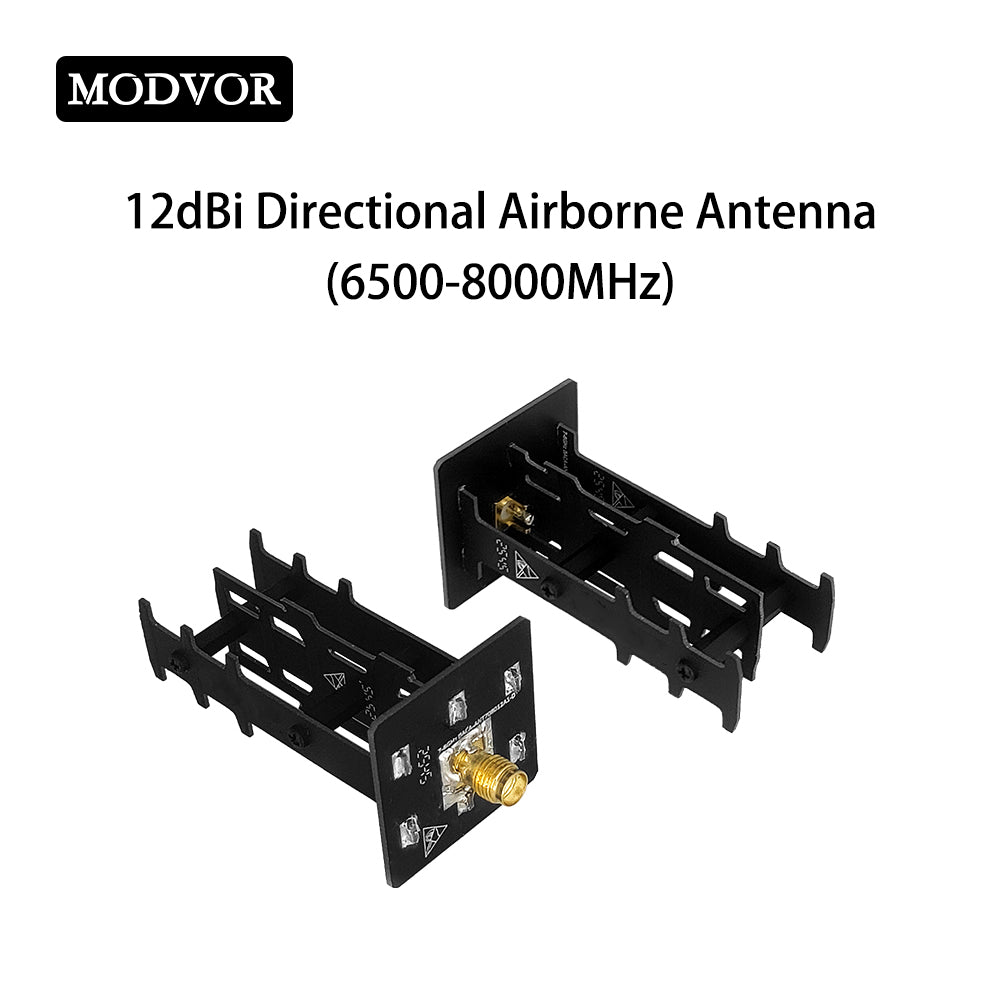

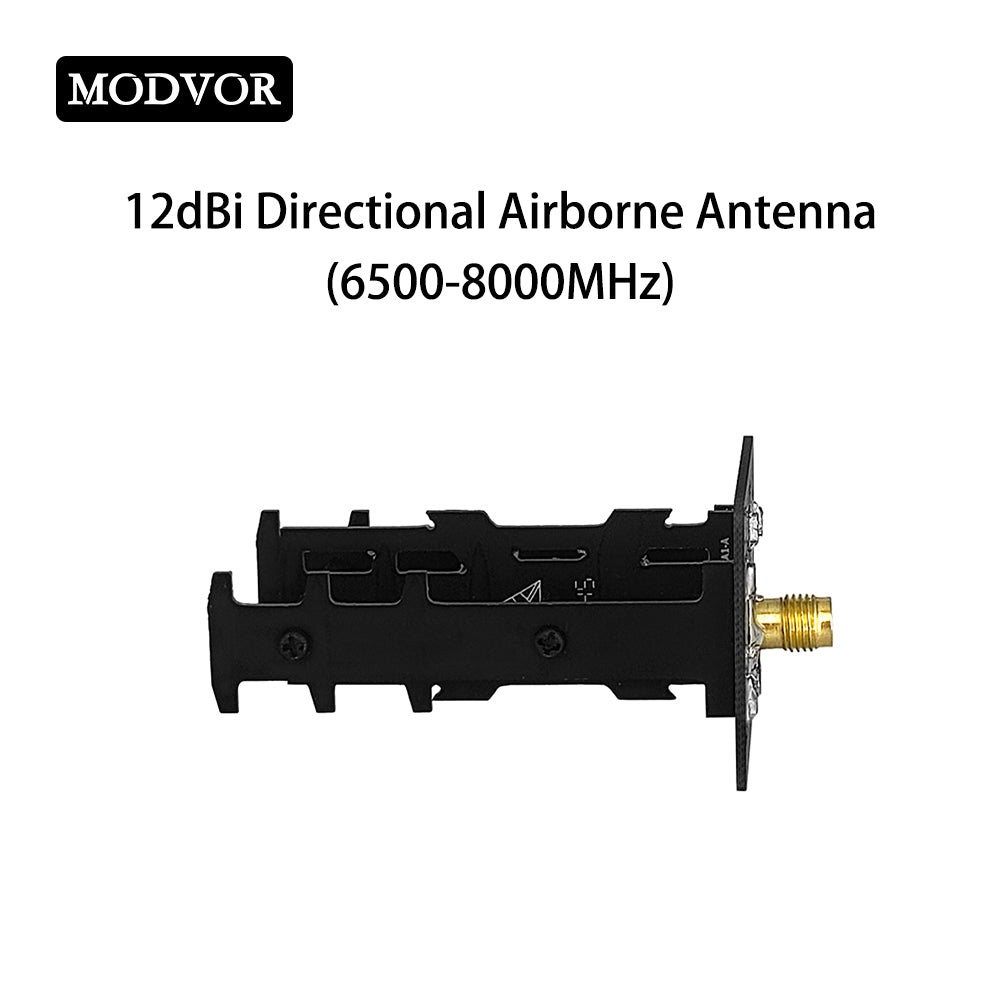

This 6500-8000MHz 12dBi Directional Airborne Antenna comes with SMA-Female connector, designed for UAV Video Transmission and 6.5-8GHz Point-to-Point Communication.
It is a lightweight directional microstrip antenna operating covering 6.5~8GHz frequency band. With compact dimensions of 73×40×30mm and an ultra-light weight of only 7.8g, it is ideally suited for space-constrained and weight-sensitive airborne platforms.
The antenna achieves a stable gain of 12dBi and maintains a VSWR of less than 1.6 across the entire operating bandwidth, ensuring efficient signal transmission and excellent impedance matching. Its directional radiation pattern focuses signal energy, effectively extending communication range and suppressing interference from non-target directions in airborne applications.
Product Applications
- FPV Drones (Racing Drones)
- Back-haul Links
- High-Definition Video Downlink
- UAV Telemetry Module
- Point-to-Point
Product Features
- 1G Ultra wideband, relative bandwidth 18%
- 12dBi High Gain

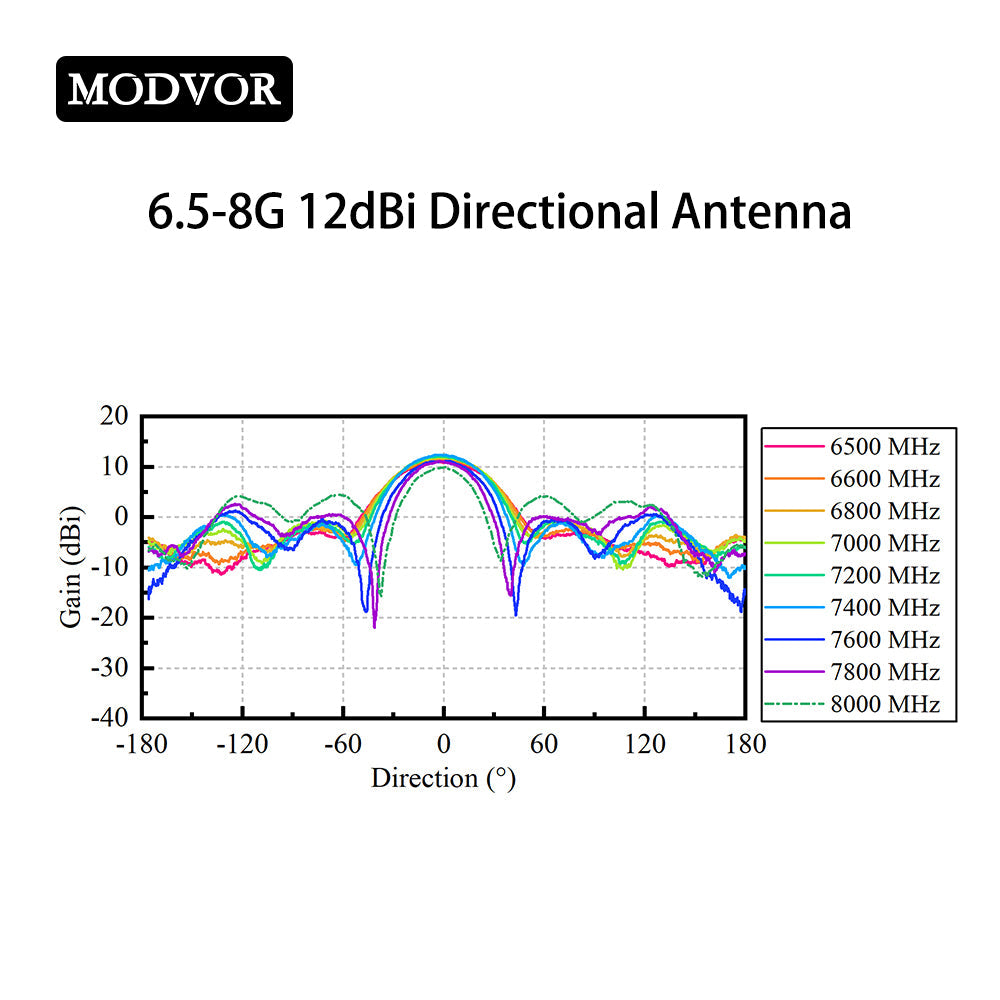

- 50°EL HPBW
- 54°AZ HPBW
Product Specifications
| Working band | 6500-8000MHz |
| Gain | 12dBi |
| VSWR | ＜1.5 |
| Efficiency | ≥86% |
| Polarization | Vertical polarization |
| EL HPBW | 50° |
| AZ HPBW | 54° |
| Front-to-back ratio | 15dB |
| Input Impedance | 50Ω |
| Power Handing | 30W |
| RF Connector | SMA-Female |

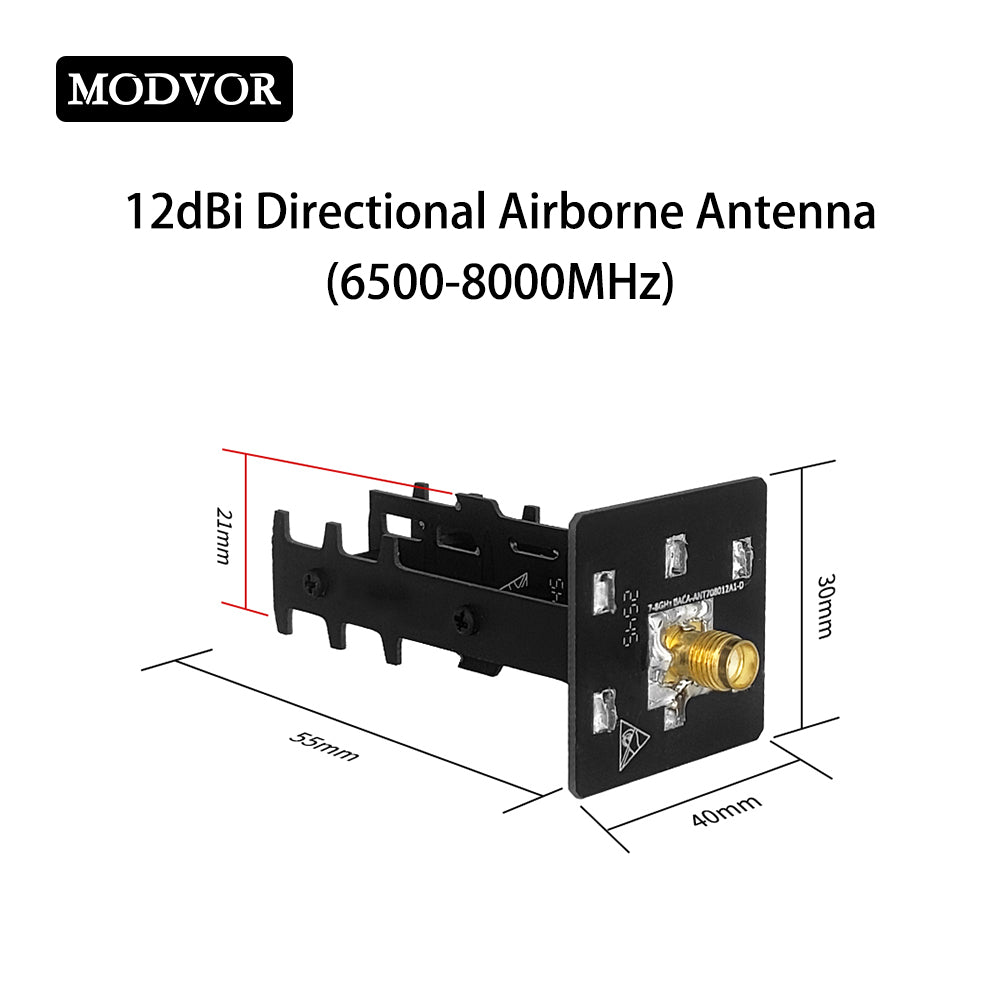

| Size | 55*40*30mm |
| Weight | 7.8g |

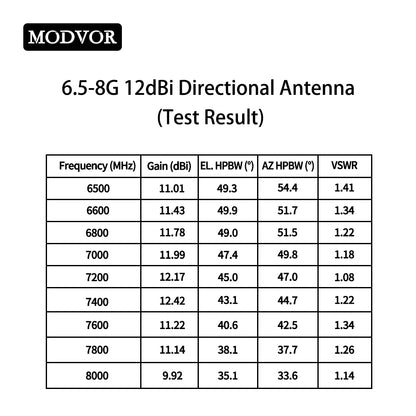

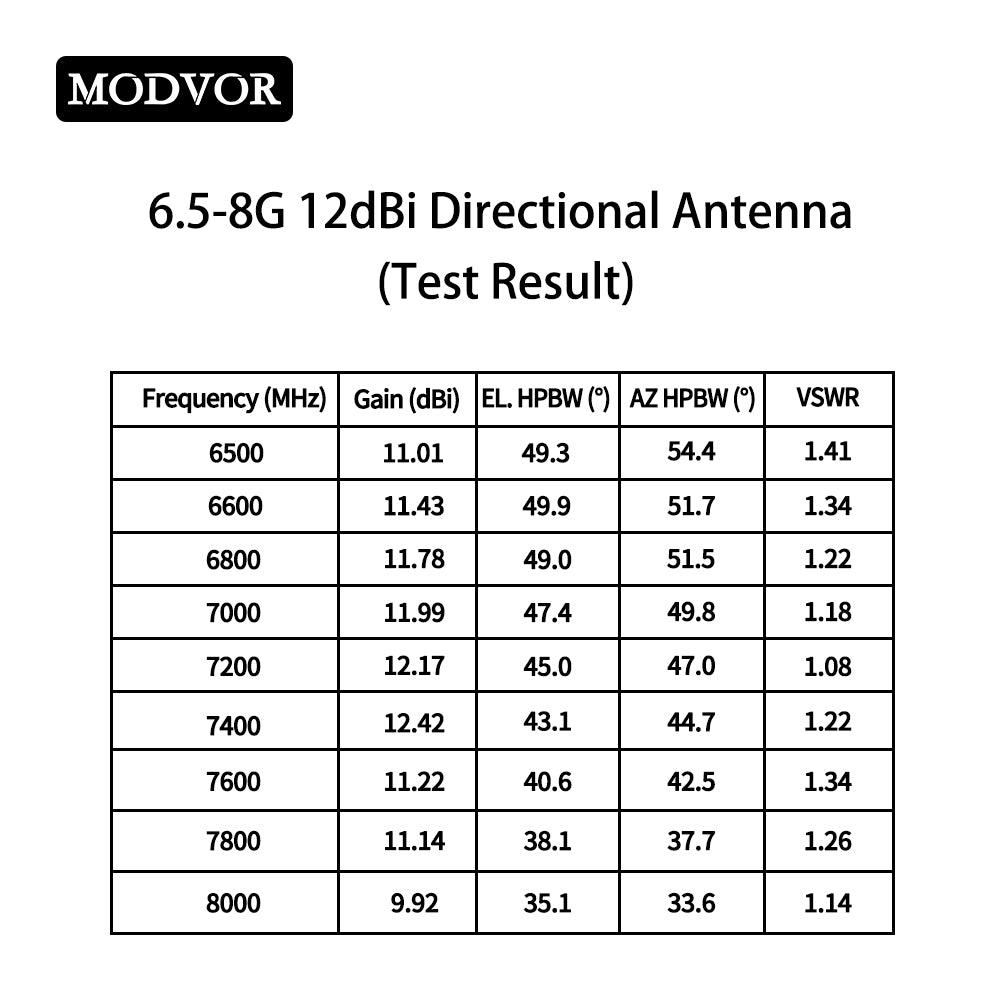

Test Results
| Frequency(MHz) | Gain(dBi) | EL HPBW(°) | AZ HPBW(°) | VSWR |
| 6500 | 11.01 | 49.3 | 54.4 | 1.41 |
| 6600 | 11.43 | 49.9 | 51.7 | 1.34 |
| 6800 | 11.78 | 49 | 51.5 | 1.22 |
| 7000 | 11.99 | 47.4 | 49.8 | 1.18 |
| 7200 | 12.17 | 45 | 47 | 1.08 |
| 7400 | 12.42 | 43.1 | 44.7 | 1.22 |
| 7600 | 11.22 | 40.6 | 42.5 | 1.34 |
| 7800 | 11.14 | 38.1 | 37.7 | 1.26 |
| 8000 | 9.92 | 35.1 | 33.6 | 1.14 |
Package List
1 X 6.5-8GHz Directional Antenna
