Product Descriptions

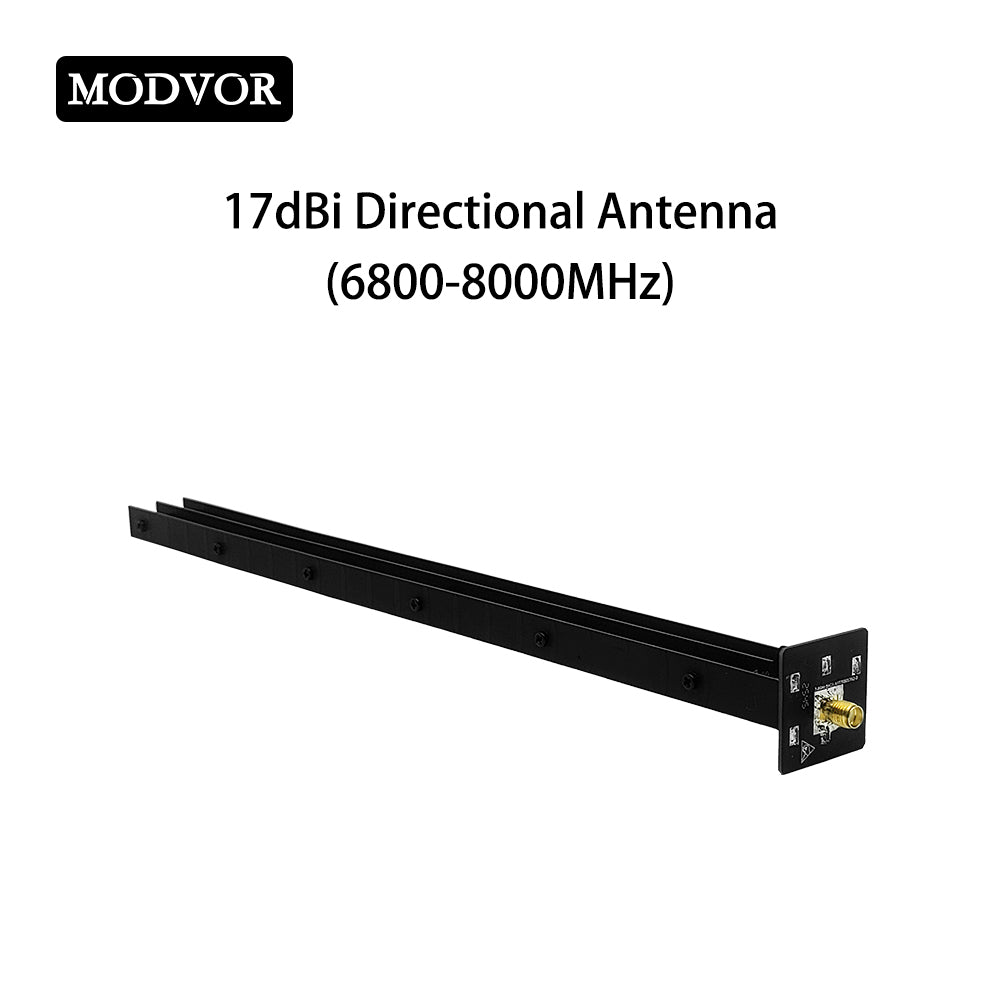

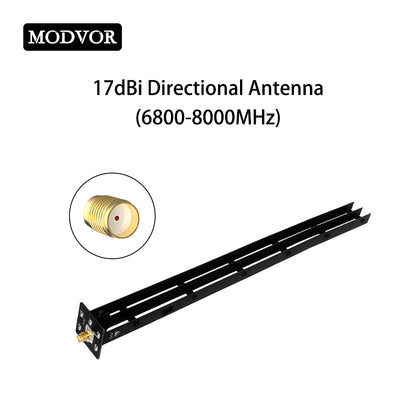

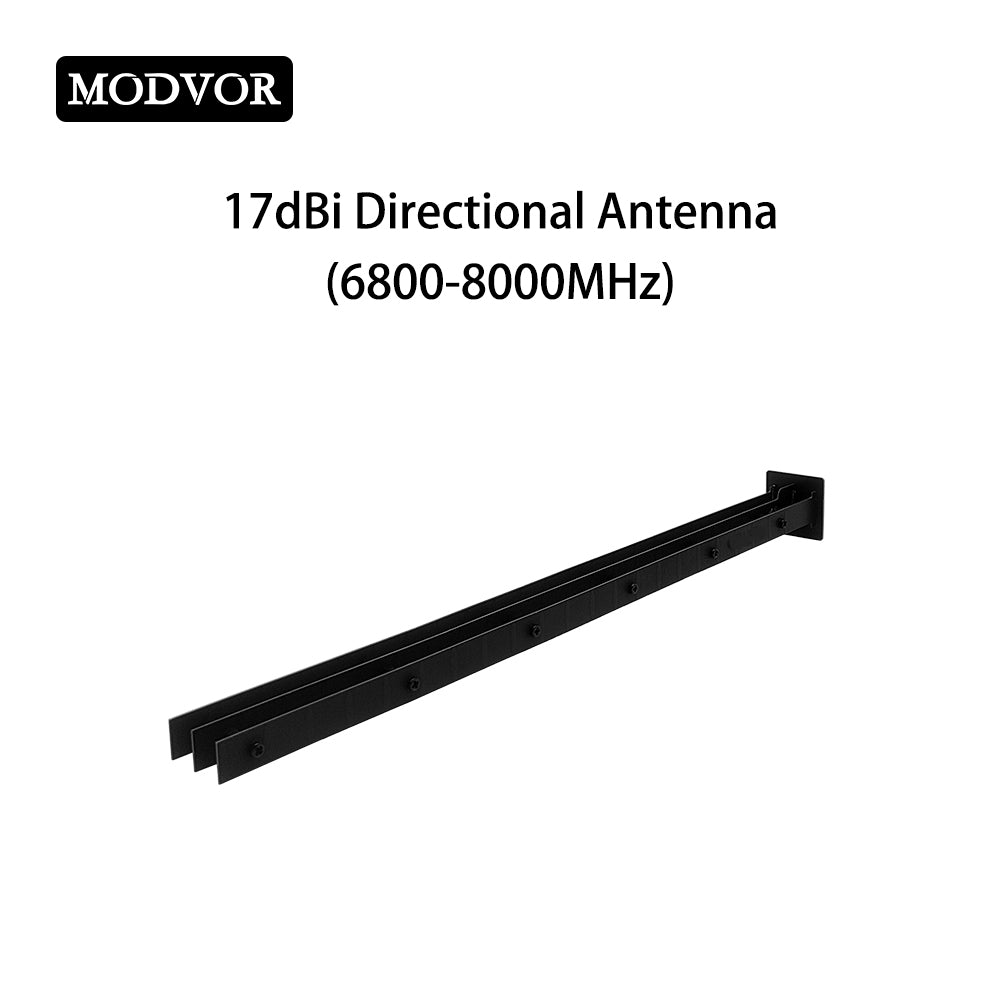

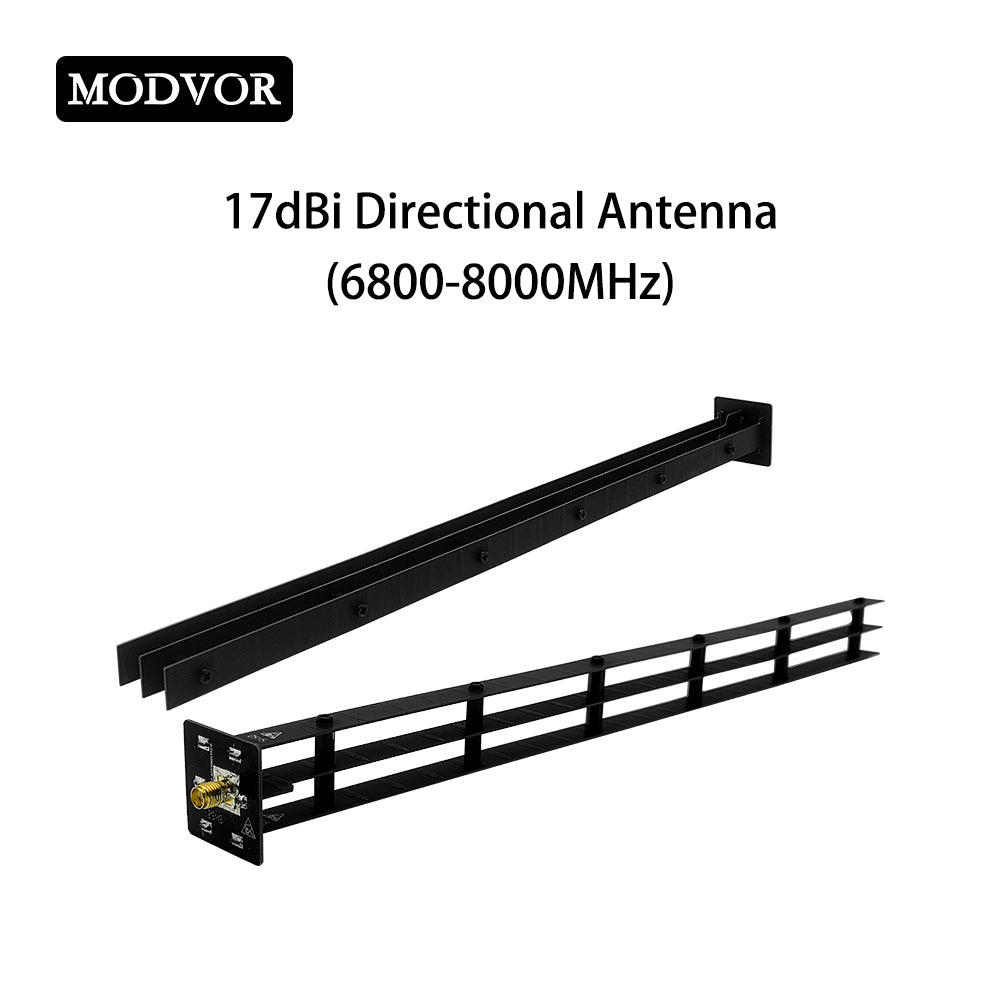

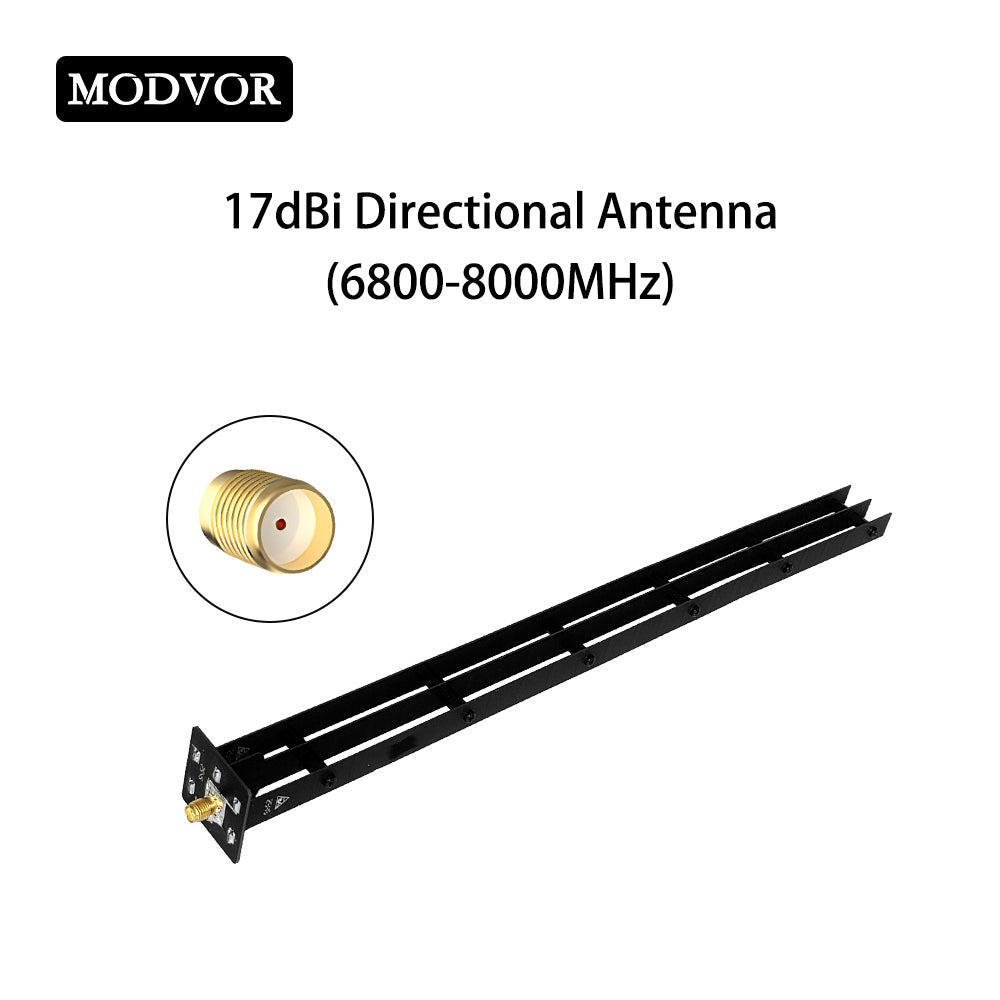

This 6800-8000MHz 17dBi directional antenna comes with line SMA-Female connector. It is a lightweight directional microstrip antenna operating in the 6.8–8GHz frequency band. Featuring compact dimensions of 320×40×30mm and ultra-light weight of only 29g, this antenna is ideally suited for space-constrained and weight-sensitive airborne platforms.
It delivers a peak gain of 17dBi and maintains VSWR less than 1.6 across the entire operating bandwidth, ensuring efficient signal transmission and excellent impedance matching. Its directional radiation pattern concentrates signal energy, effectively extending communication distance and suppressing interference from off-target directions for airborne applications.
Perfect for FPV Racing Drones, HD Video Downlink, UAV Telemetry Module, and Point to Point Backhaul Links.
Product Applications
- FPV Drones (Racing Drones)
- Back-haul Links
- High-Definition Video Downlink
- UAV Telemetry Module
- Point-to-Point
Product Features
- 1G Ultra wideband, relative bandwidth 18%
- 17dBi High Gain
- 24°EL HPBW
- 24°AZ HPBW
Product Specifications
| Working band | 6800-8000MHz |
| Gain | 17dBi |
| VSWR | ＜1.5 |
| Efficiency | ≥90% |
| Polarization | Vertical polarization |
| EL HPBW | 24° |
| AZ HPBW | 24° |
| Front-to-back ratio | 20dB |
| Input Impedance | 50Ω |
| Power Handing | 30W |
| RF Connector | SMA-Female |

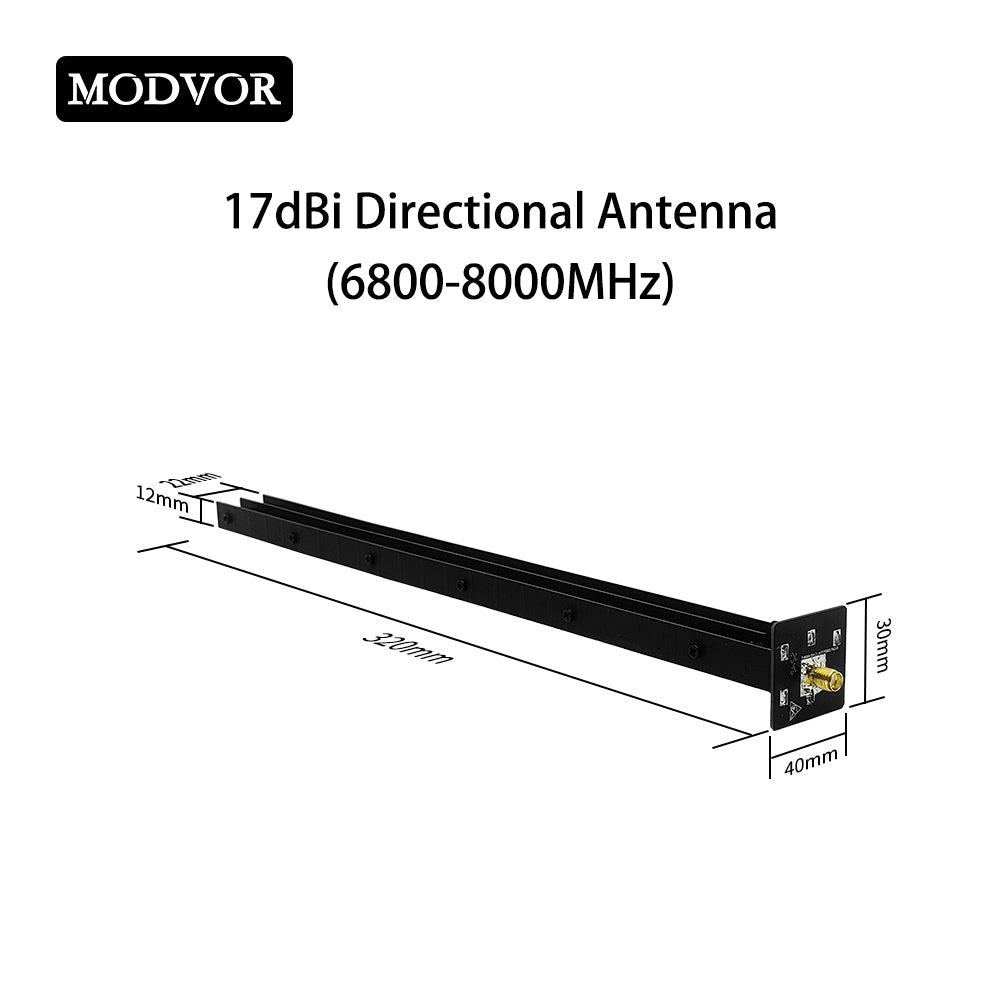

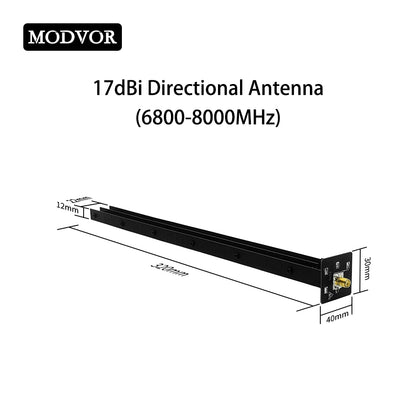

| Size | 320*40*30mm |
| Weight | 29g |

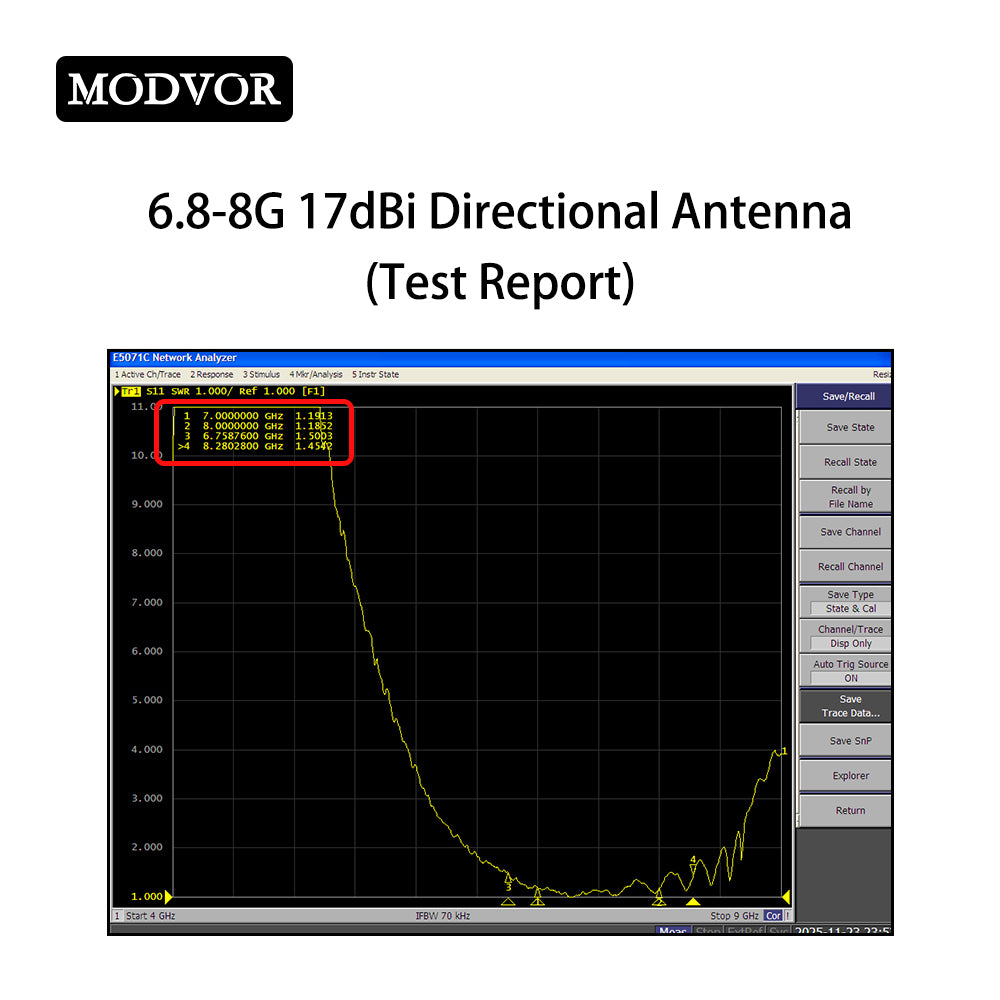

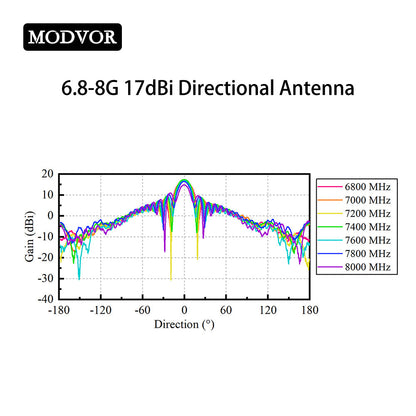

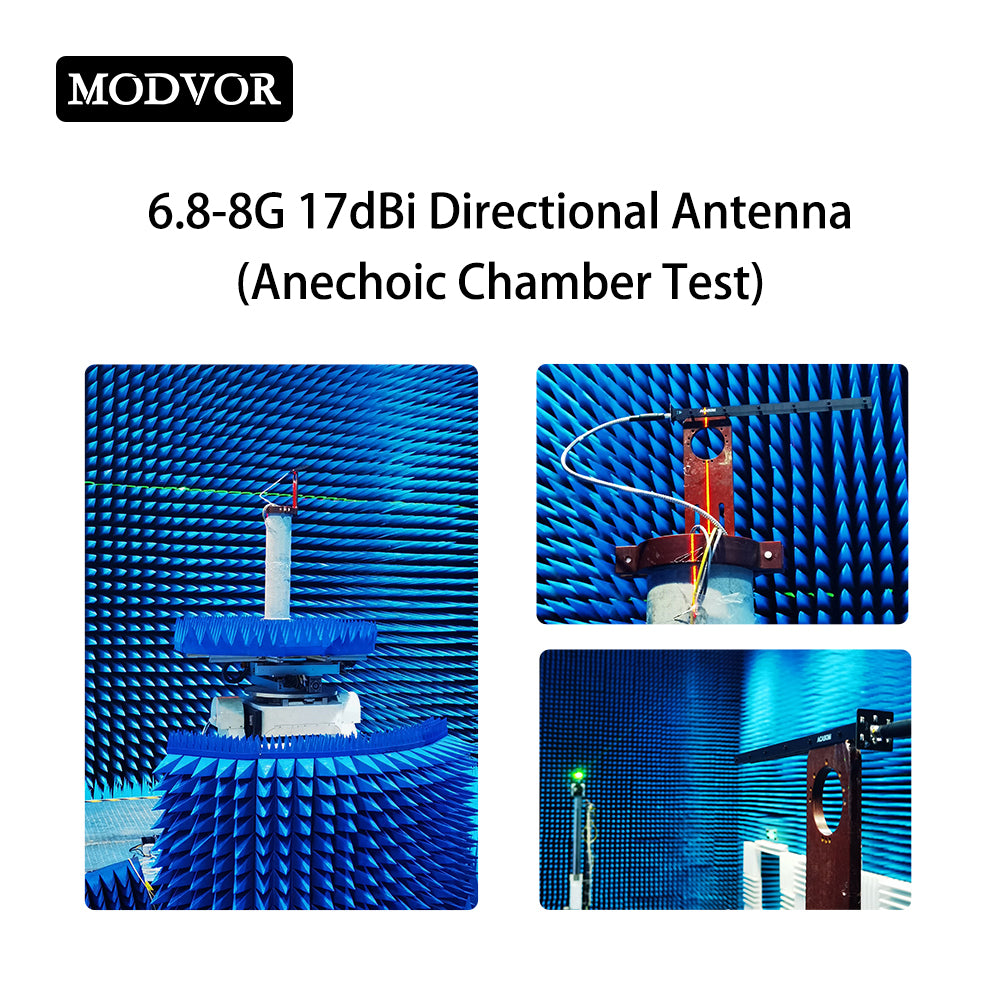

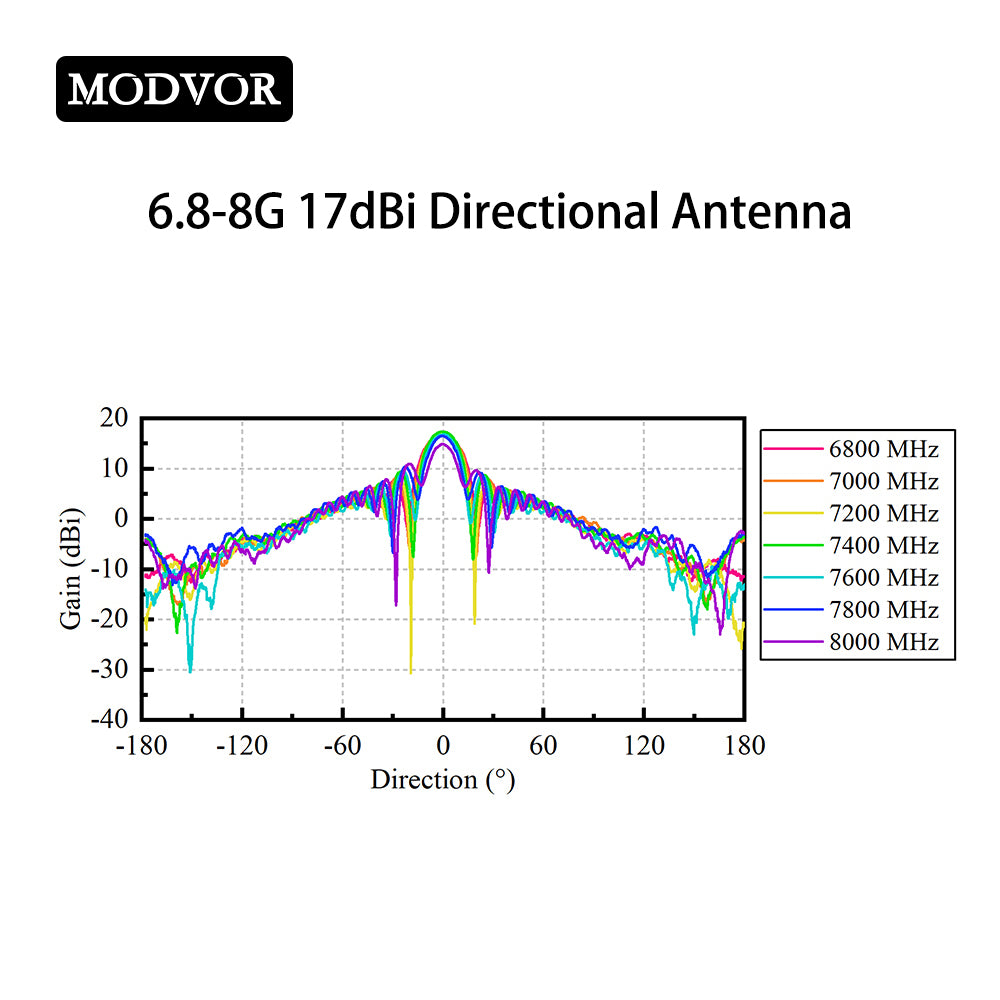

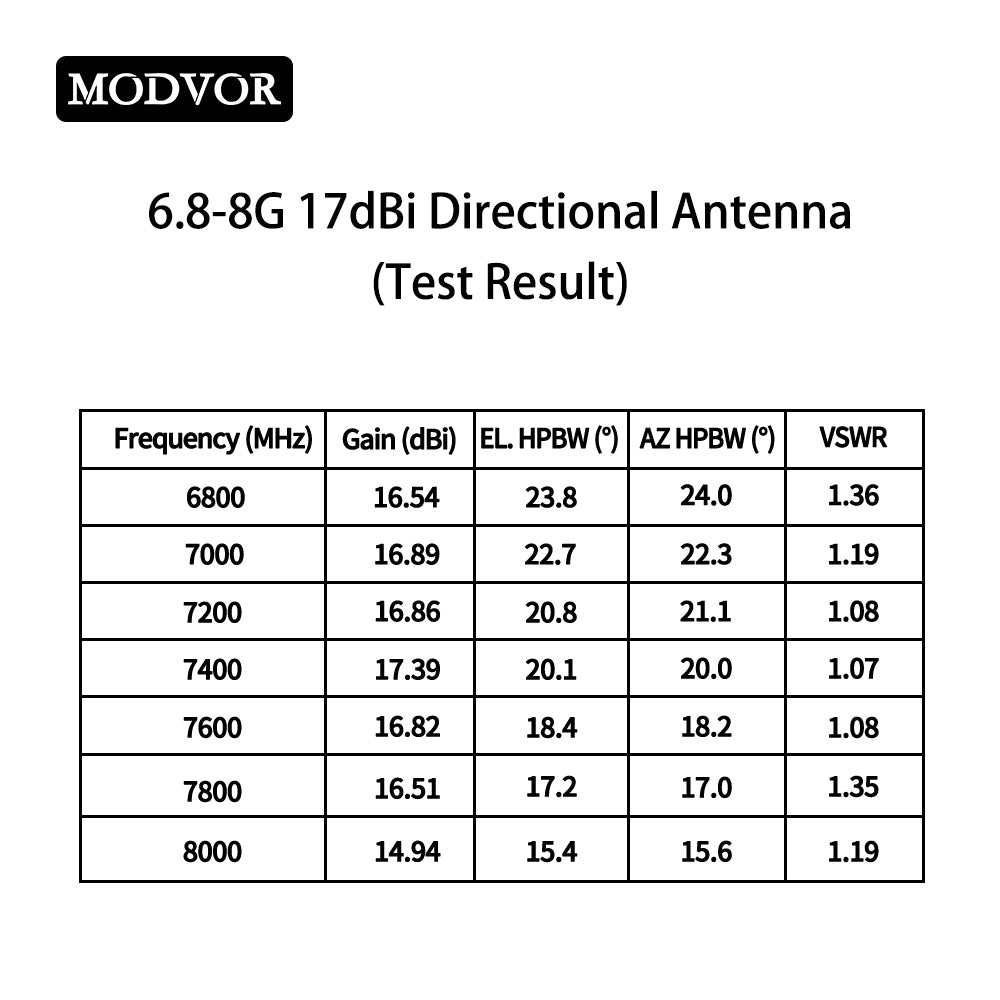

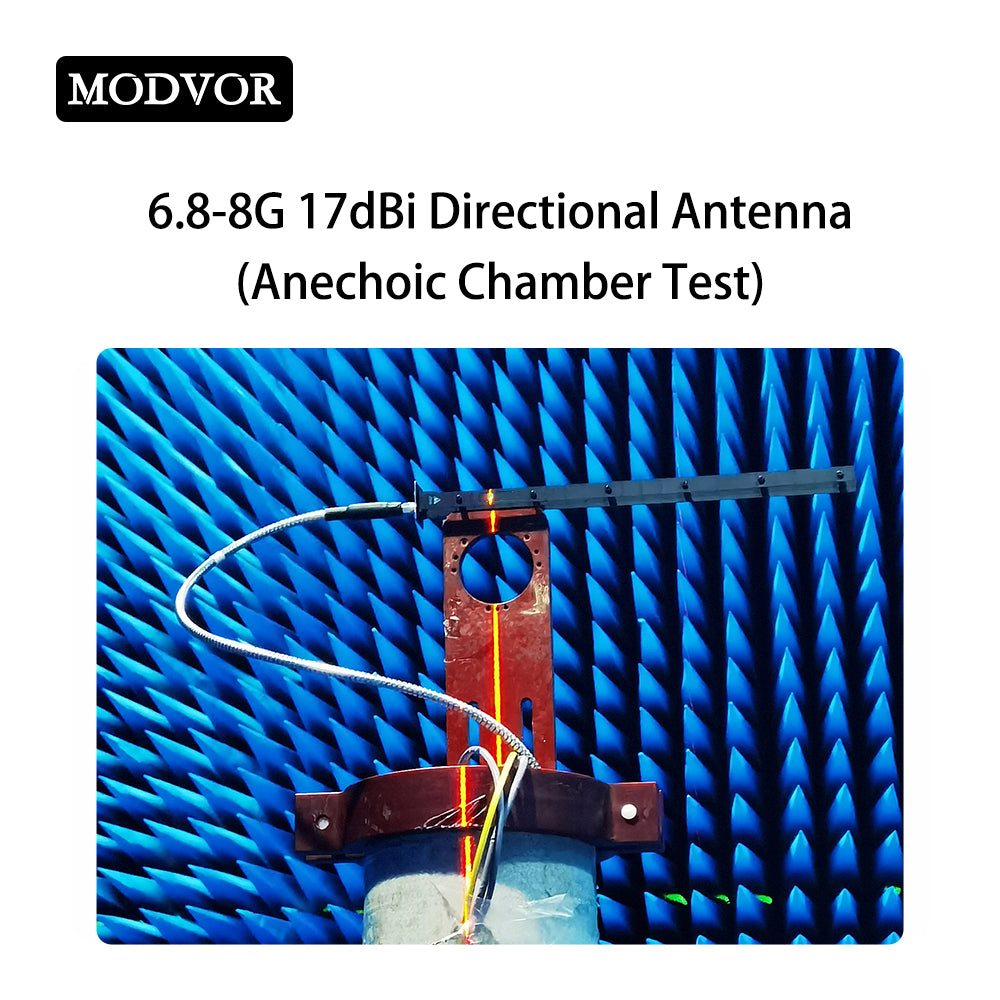

Test Results
| Frequency(MHz) | Gain(dBi) | EL HPBW(°) | AZ HPBW(°) | VSWR |
| 6800 | 16.54 | 23.8 | 24 | 1.36 |
| 7000 | 16.89 | 22.7 | 22.3 | 1.19 |
| 7200 | 16.86 | 20.8 | 21.1 | 1.08 |
| 7400 | 17.39 | 20.1 | 20 | 1.07 |
| 7600 | 16.82 | 18.4 | 18.2 | 1.08 |
| 7800 | 16.51 | 17.2 | 17 | 1.35 |
| 8000 | 14.94 | 15.4 | 15.6 | 1.19 |
Package List
1 X 6.8-8GHz Directional Antenna
