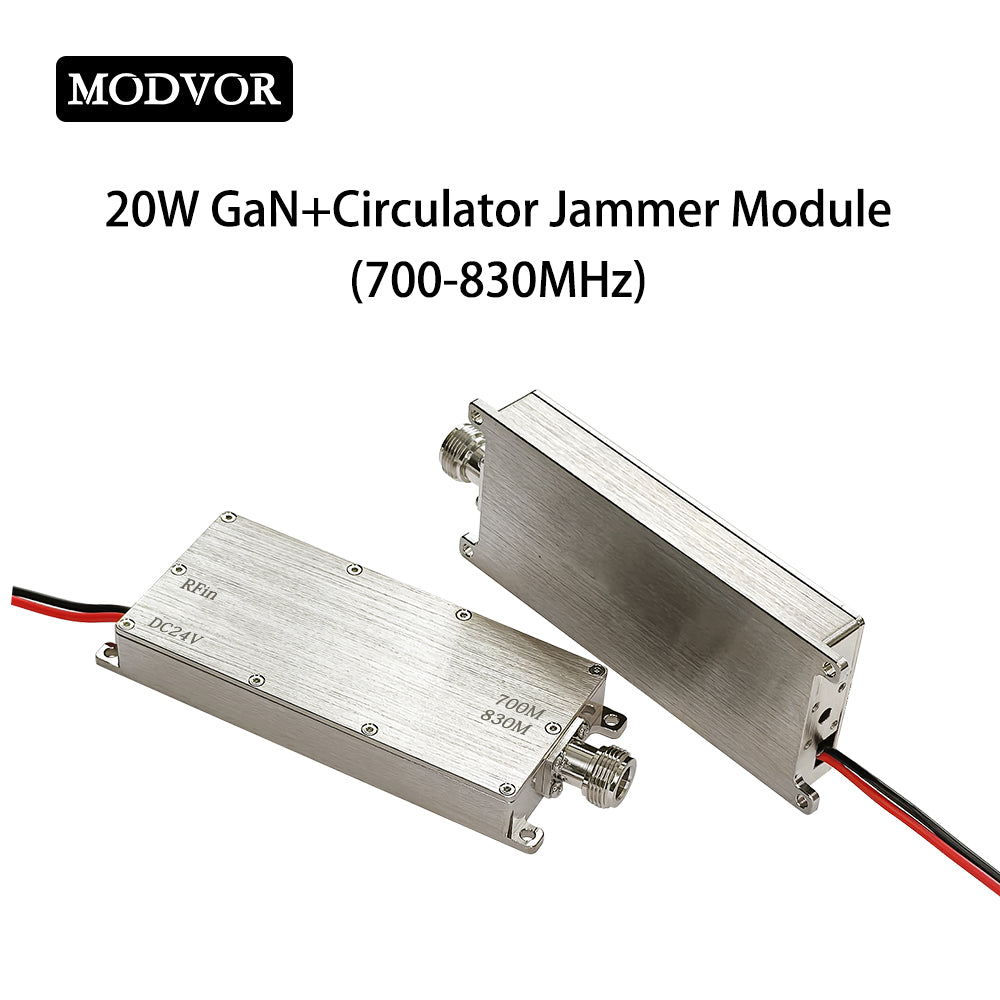

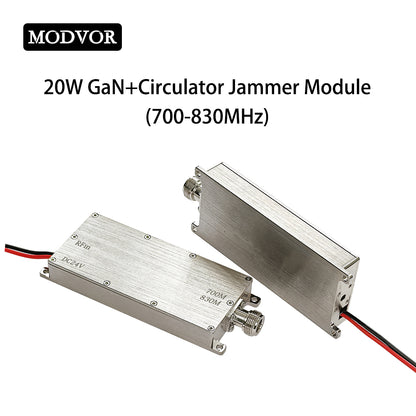

Product Description
This 700–830MHz 20W GaN anti-drone module is engineered for effective remote control and FPV signal jamming. Built with advanced Gallium Nitride (GaN) technology, it delivers high output power, excellent efficiency, and stable thermal performance for continuous-duty counter-UAV operations.

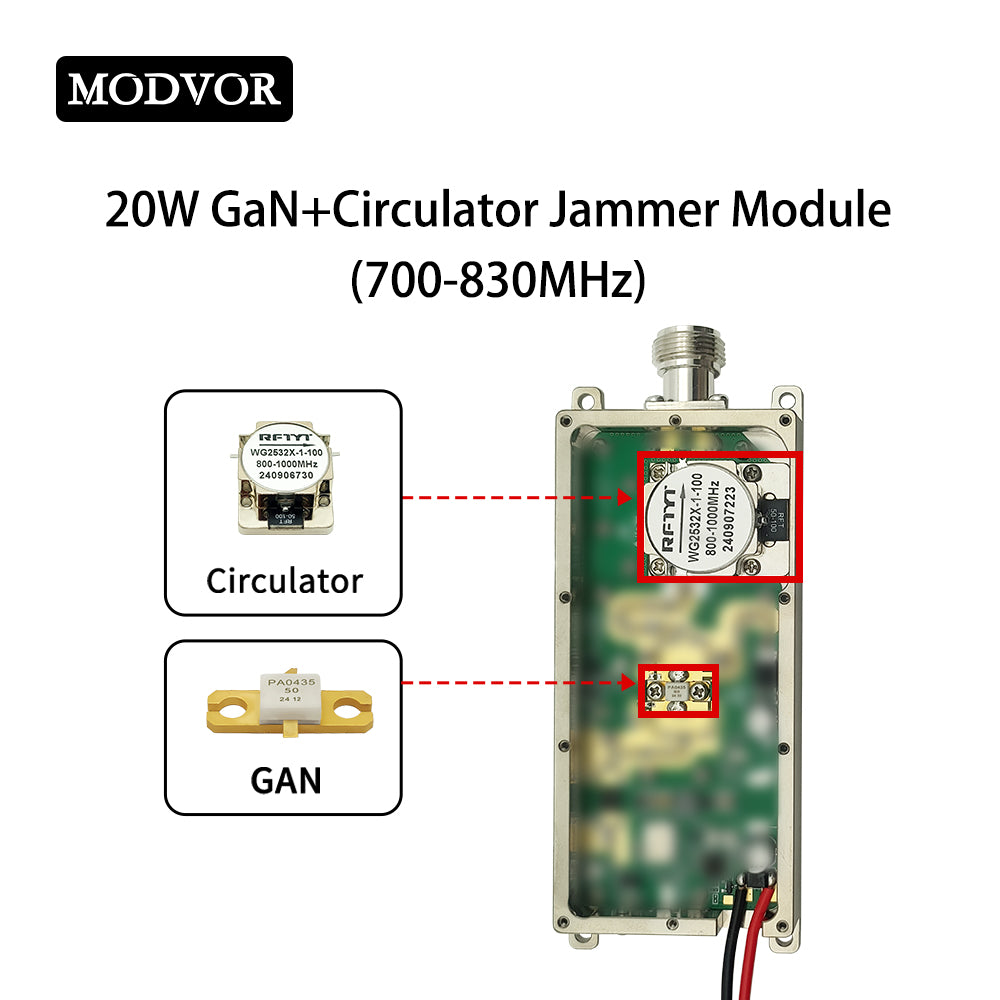

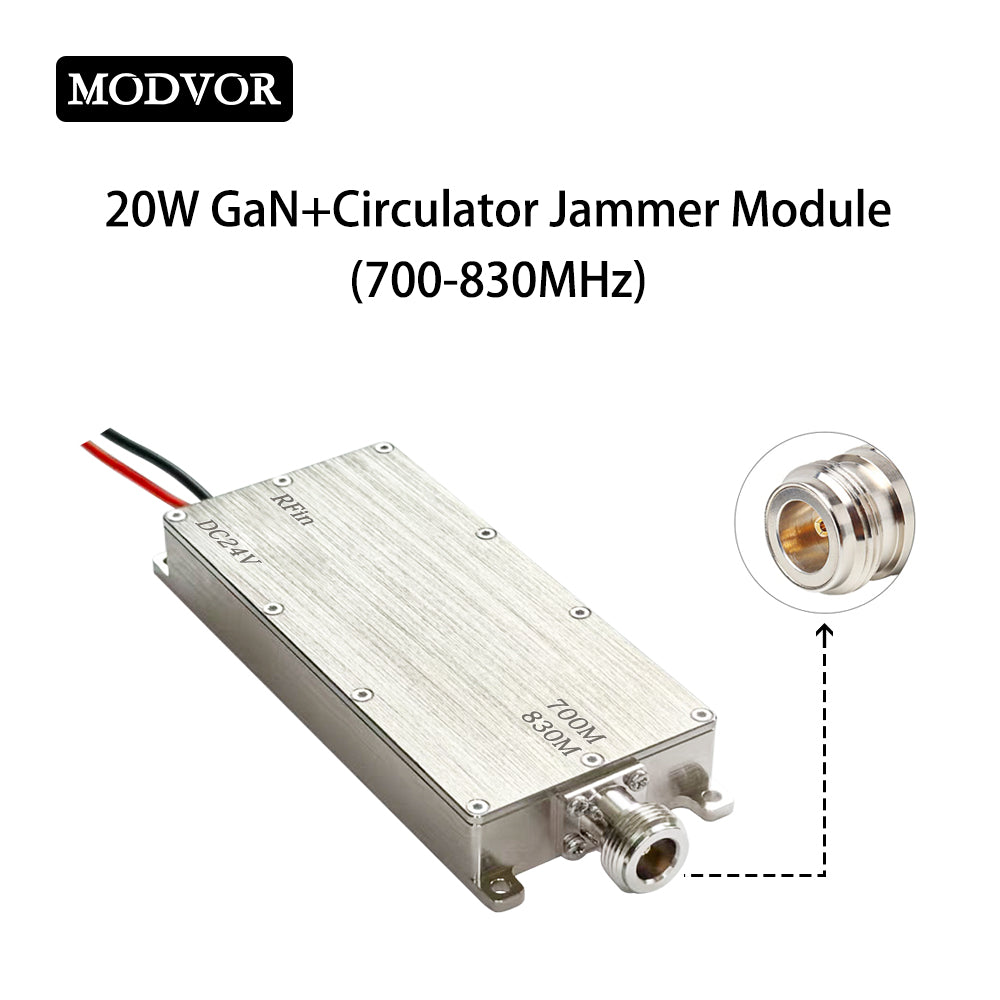

The integrated circulator provides high isolation and VSWR protection, safeguarding the power amplifier from reflected power and ensuring long-term reliability. Standard N-Female ports offer secure, low-loss connections, making the module ideal for outdoor antennas and professional jamming systems.
With 20W of output power, this module effectively disrupts drone remote control and FPV video signals in the 700–830MHz range. It is a dependable RF solution for remote control and FPV signal jamming, prison security, airport protection, border control, and critical infrastructure defense.
Product Features
- Frequency band: 700-830MHz
- Advanced GaN technology, 20W high output power
- Integrated circulator for better isolation
- N-female RF connector for easy assembly

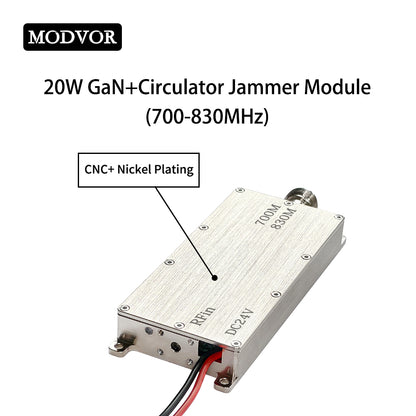

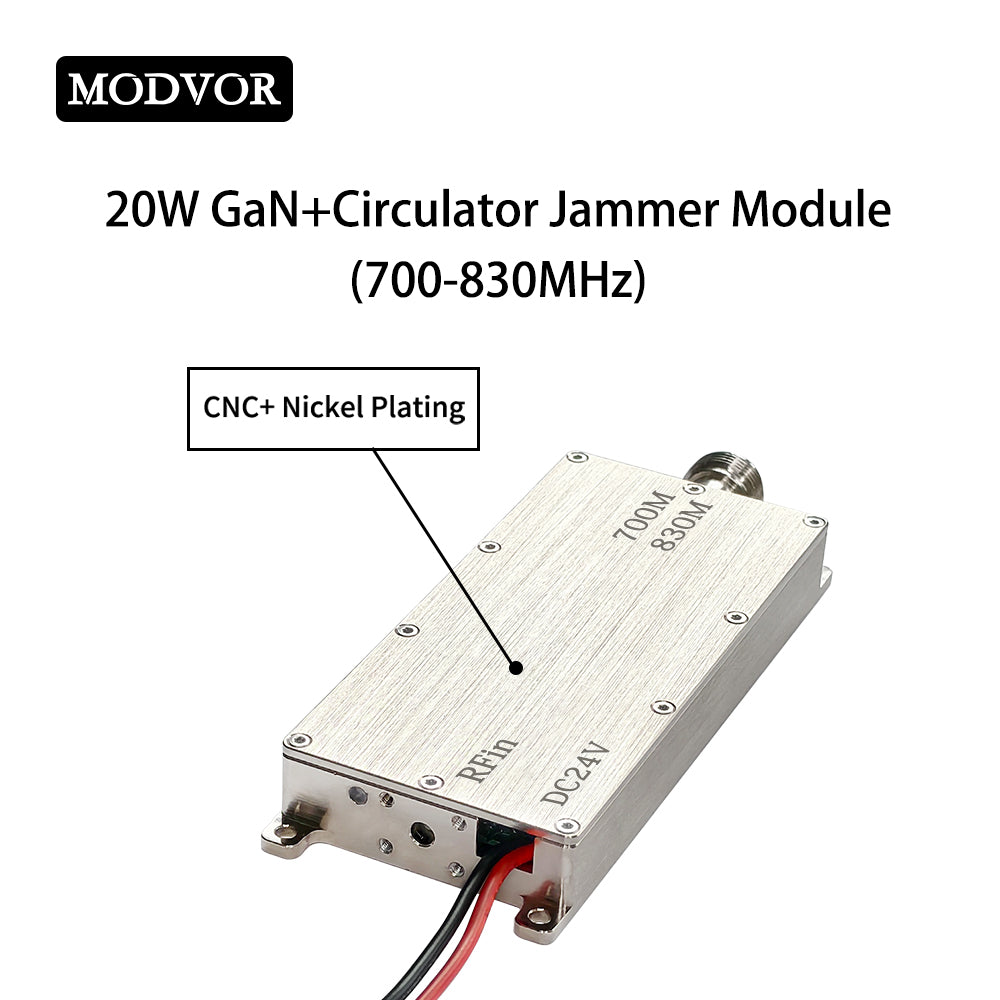

- Compact aluminum alloy housing with good heat dissipation
- Customizable frequency band and output power as requested
Product Specifications
| Frequency Range | 700-830MHz |
| Operating Voltage | 24 V DC |
| Flatness | ±0.5 dB |
| Output Power | 20 W/43 dBm |
| Current Consumption | 2.5 A@24 V |
| Efficiency | 45%@43 dBm |

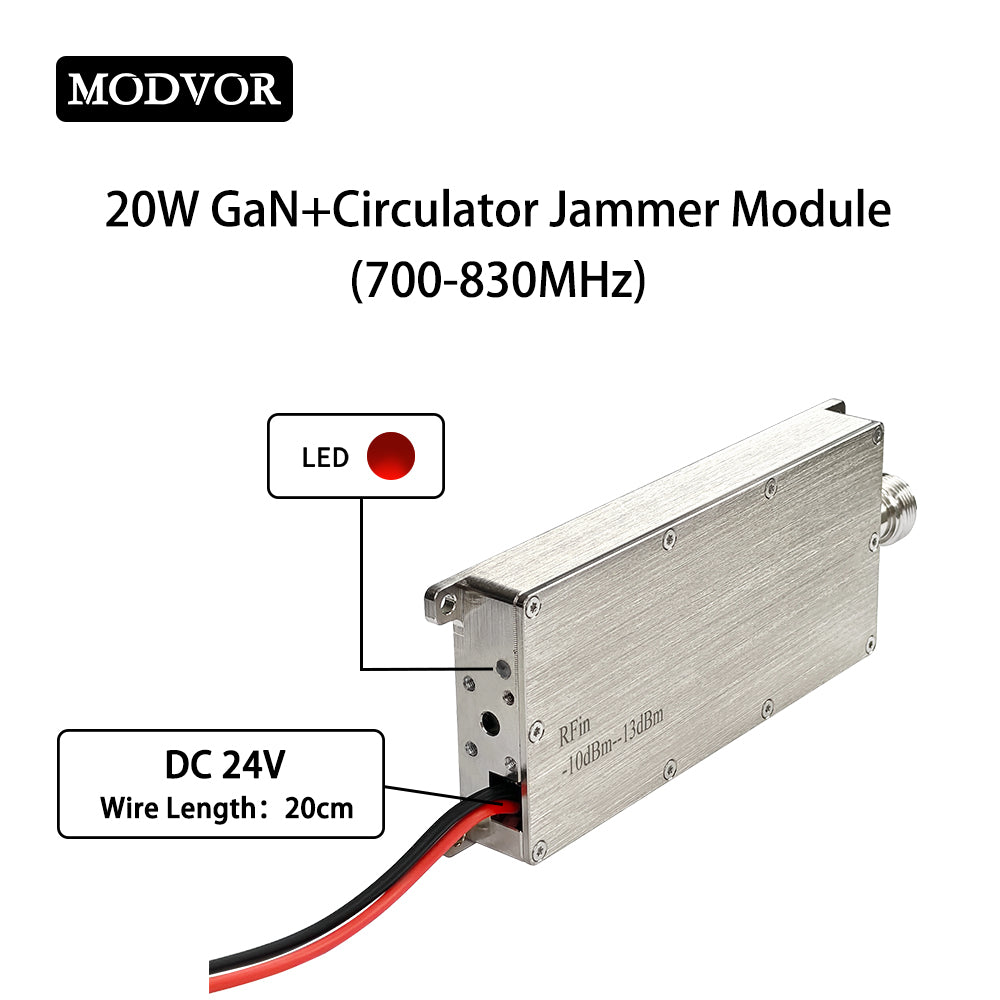

| LED State | Red |
| Operating Temperature | -30℃ ~ +85℃ |
| Storage Temperature | -40℃ ~ +150℃ |
| Operating Humidity | <95%RH |
| RF Connector | Output: N-Female |
| Power Socket | 20 cm red/black wire |
| Shell Material | Aluminum |

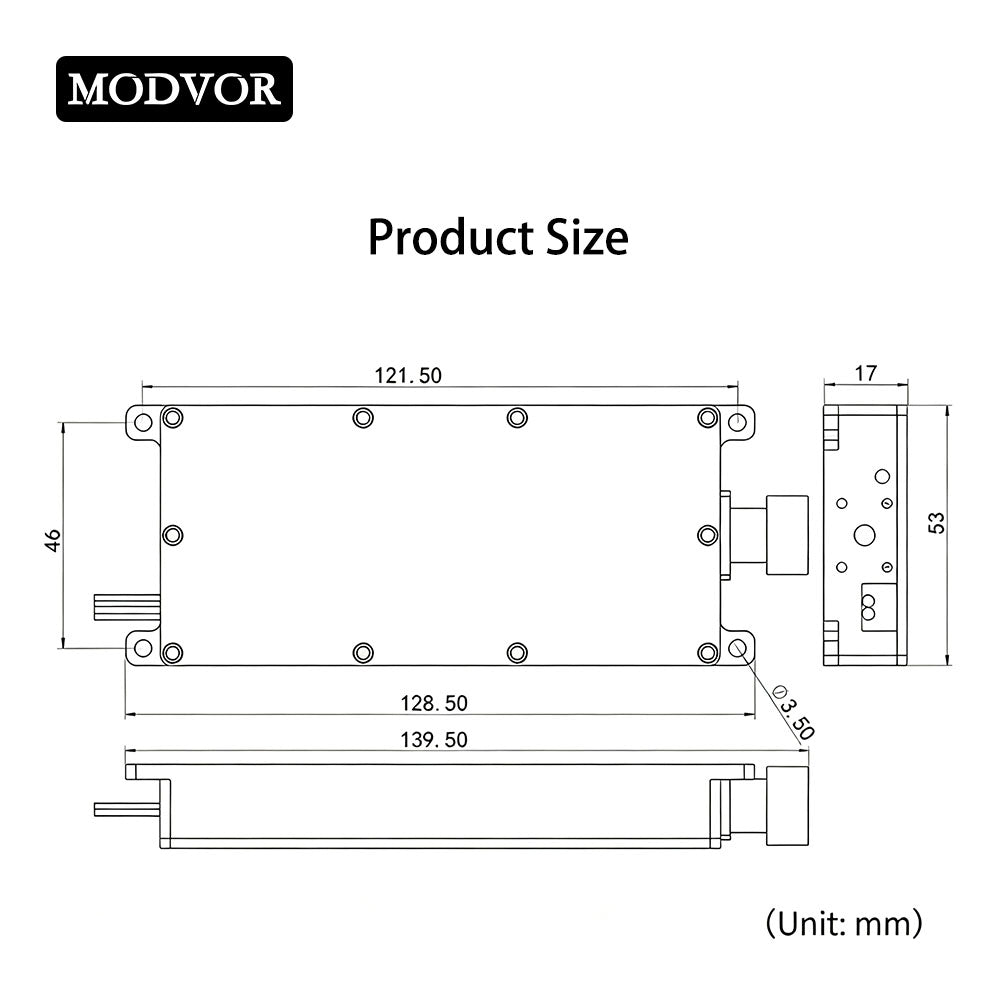

| Shell Size | 128.5*53*17 mm |
| Net Weight | 0.26 kg |
Package List
1 x N-type GaN+Circulator Jammer Module
