Product Description

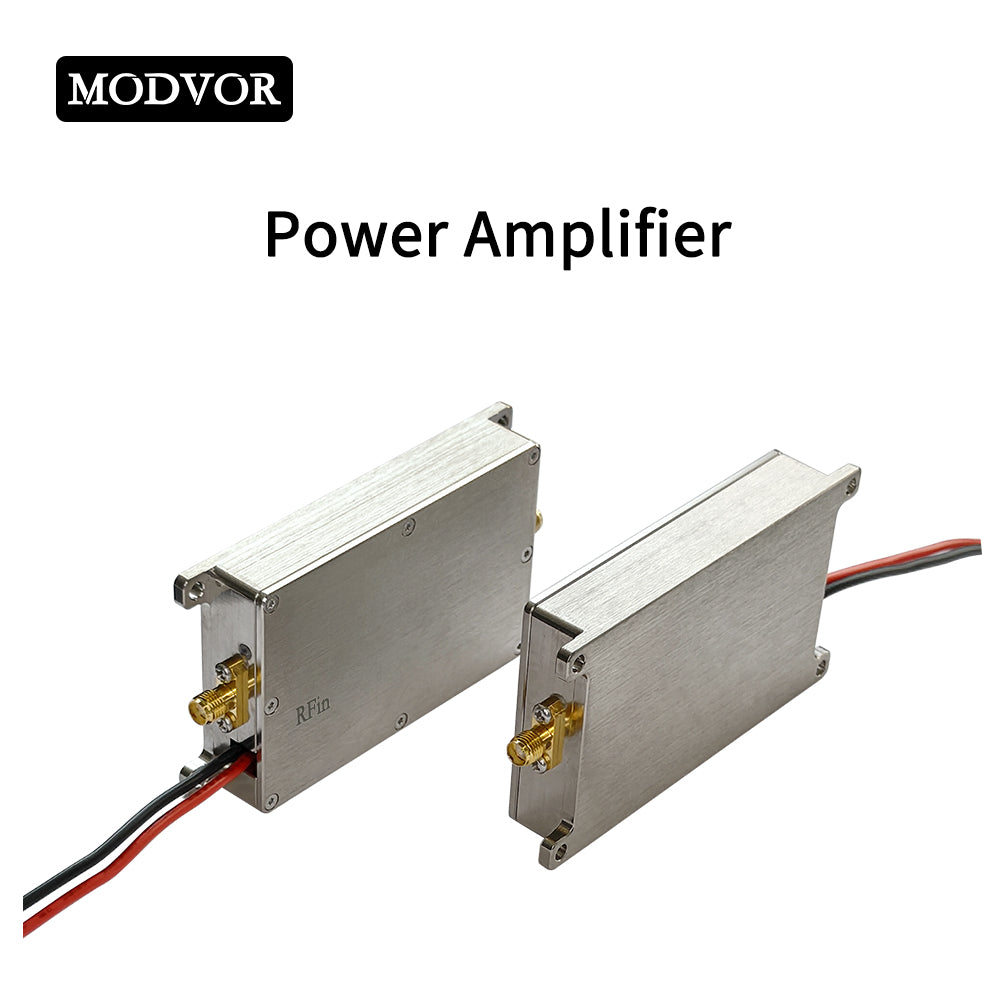

When your mission demands the absolute highest level of performance in the 700-830MHz band—whether for public safety networks, military tactical communications, utility SCADA systems, or private LTE infrastructure—every watt of transmit power counts, and 30W delivers the ultimate margin of reliability. This 700-830MHz 30W RF Power Amplifier delivers a commanding 45dBm (30W) of clean output power with 40dB gain across the full 700-830MHz range, covering critical UHF bands including 700MHz public safety (Band 13/14/28), 800MHz trunked radio systems, and private LTE networks. Operating on a 24V DC supply with just 2.8A current draw at full output, it features a rugged aluminum housing and SMA female connectors—engineered for the most demanding field operations where communication failures are simply not an option.
Typical Applications
- Public Safety & Emergency Communications: Maximum signal range for police, fire, and EMS radio networks in 700/800MHz bands
- Military & Tactical Communications: Ultimate high-power amplification for field-deployed communication equipment
- Utility SCADA & Smart Grid: Extreme range for telemetry and control systems in remote infrastructure monitoring
- Private LTE & Trunked Radio Systems: High-power base station or repeater links for critical communications
- Land Mobile Radio (LMR): Maximum coverage enhancement for commercial and government two-way radio networks
- Disaster Recovery & Emergency Response: Rapidly deploy high-power comms in areas with damaged infrastructure
Technical Specifications
|
Parameter |
Value |
|
Frequency Range |
700 – 830 MHz |
|
Output Power |
45 dBm (30W) |
|
Gain (S21) |
40 dB ± 1 dB |
|
Operating Voltage |
24 V DC |
|
Current Consumption |
2.8 A @ 24V |
|
RF Connectors |
Input: SMA Female; Output: SMA Female |
|
Dimensions |
96 × 53 × 17 mm |
|
Net Weight |
0.15 kg (150g) |
|
DC Wiring |
15cm Red/Black wire leads |
|
Shell Material |
Aluminum |
Key Advantages
Why 30W for 700-830MHz critical communications? The 700-830MHz UHF band already offers superior building penetration and non-line-of-sight propagation compared to higher microwave frequencies. When you pair that inherent advantage with 30W (45dBm) of clean output power, you achieve the ultimate communication system—capable of reaching far beyond the limits of standard 1-10W radios and delivering the extra margin that ensures crystal-clear comms even in the most challenging environments. For public safety and military operations where lives depend on reliable connectivity, 30W provides the confidence that your signal will always get through.
The 40dB gain transforms even low-power portable radios or base station exciters into full 30W output with consistent, predictable performance. Despite the extreme power output, current draw remains efficient at just 2.8A—giving you massive output without overloading your power source in mobile, vehicle-mounted, or battery-backed field deployments.
Thermal performance is engineered for 24/7 reliability at maximum power. The rugged aluminum housing provides efficient passive cooling capable of dissipating the significant thermal load from 30W continuous operation, while the compact 96×53×17mm form factor and 150g weight make it easy to integrate into base stations, repeaters, or portable field kits.
Wide voltage tolerance ensures compatibility with vehicle electrical systems, battery banks, and regulated power supplies. With SMA female connectors on both input and output, integration with existing RF chains is completely straightforward.
Specifically tuned for 700-830MHz, this amplifier covers critical UHF bands including 700MHz public safety (Band 13/14/28), 800MHz trunked radio, and commercial LMR systems—delivering the ultimate performance when standard power simply isn't enough.
What's in the Box
- 1 × 700-830MHz 30W RF Power Amplifier
