Product Description

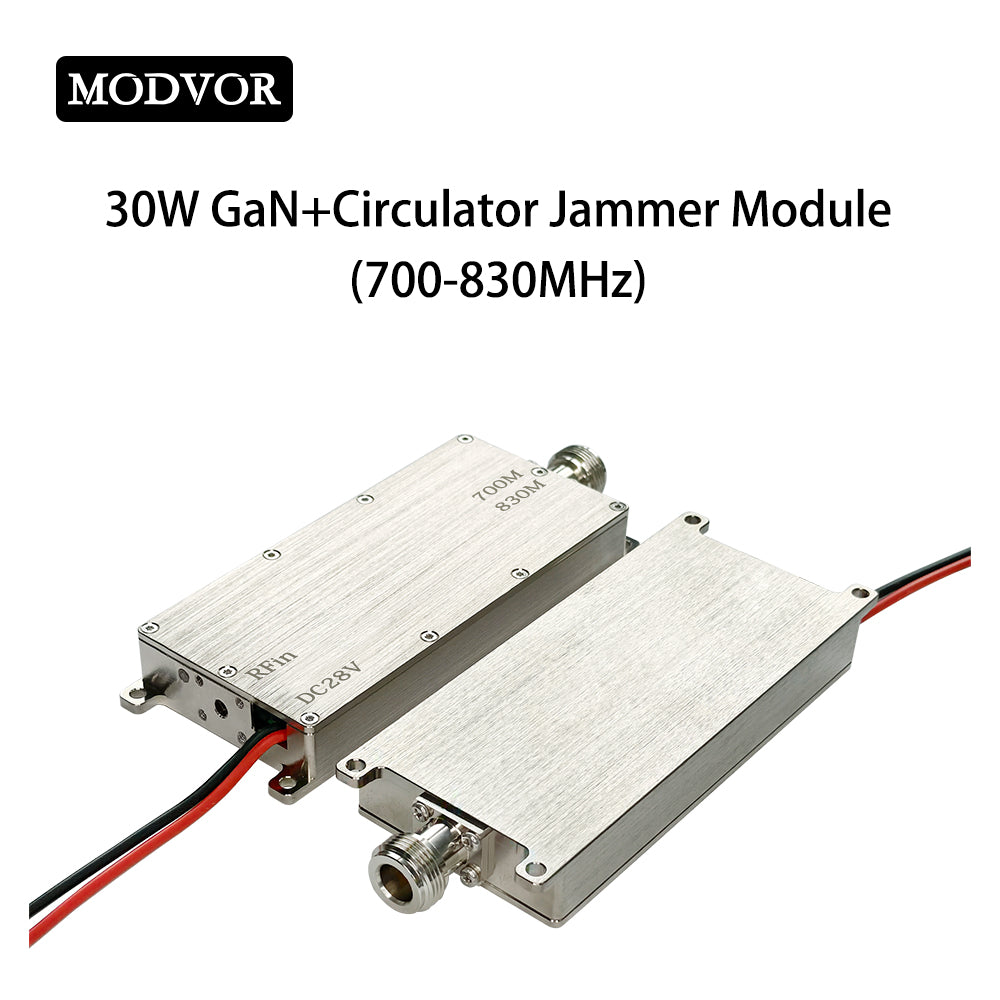

This 700–830MHz 30W GaN RF signal jammer module is engineered for professional counter-UAV operations in both portable and fixed configurations. Built with advanced Gallium Nitride (GaN) technology, it delivers high output power, excellent efficiency, and stable thermal performance for continuous-duty jamming.
The integrated circulator provides high isolation and VSWR protection, safeguarding the power amplifier from reflected power and ensuring long-term reliability. Standard N-Female ports offer secure, low-loss connections, making the module ideal for portable anti-drone guns, outdoor antennas, and fixed jamming systems.
With 30W of output power, this module effectively disrupts drone control, telemetry, and video signals in the 700–830MHz range. It is a dependable RF solution for portable anti-drone guns, fixed systems, prison security, airport protection, border control, and critical infrastructure defense.
Product Features
- Frequency band: 700-830MHz
- Advanced GaN technology, 30W high output power
- Integrated circulator for better isolation
- N-female RF connector for easy assembly
- Compact aluminum alloy housing with good heat dissipation
- Customizable frequency band and output power as requested
Product Specifications
| Frequency Range | 700-830MHz |
| Operating Voltage | 28 V DC |
| Flatness | ±0.5 dB |
| Output Power | 30 W/45 dBm |
| Current Consumption | 2.8 A@28 V |
| Efficiency | 45%@45 dBm |

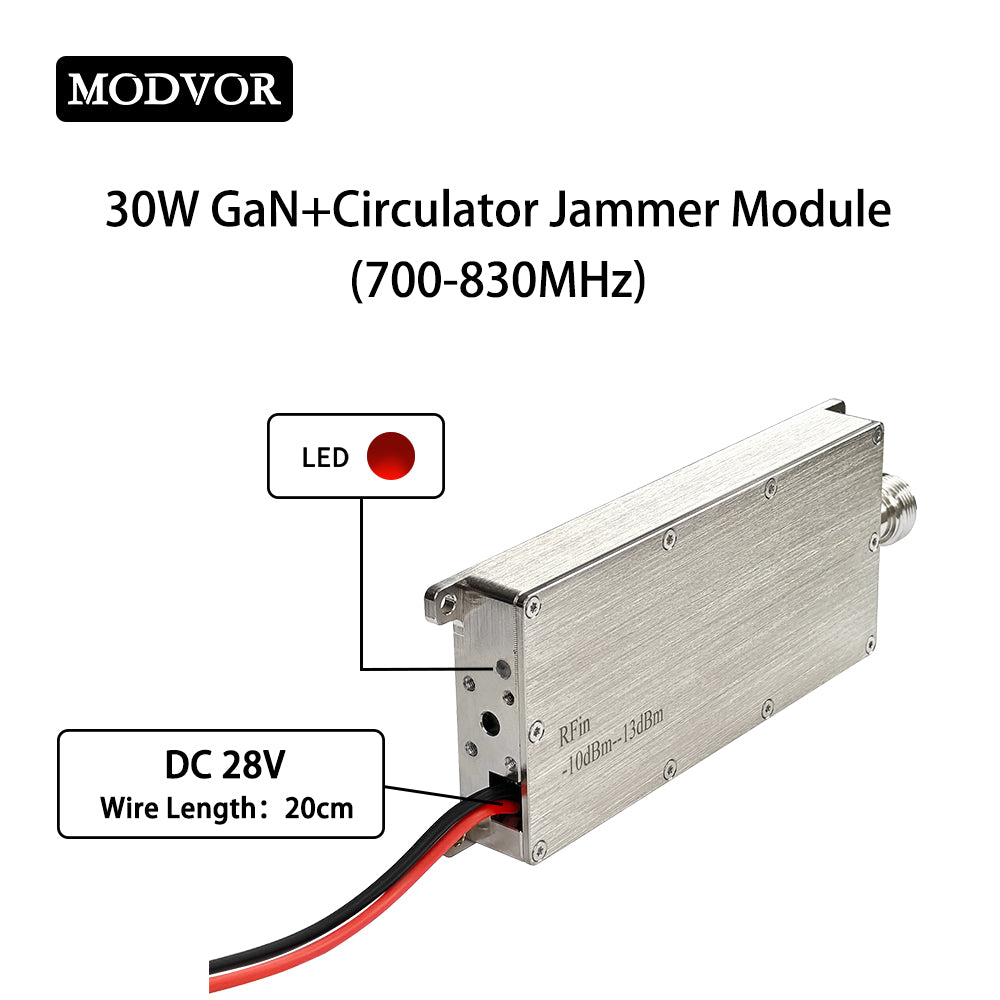

| LED State | Red |
| Operating Temperature | -30℃ ~ +85℃ |
| Storage Temperature | -40℃ ~ +150℃ |
| Operating Humidity | <95%RH |

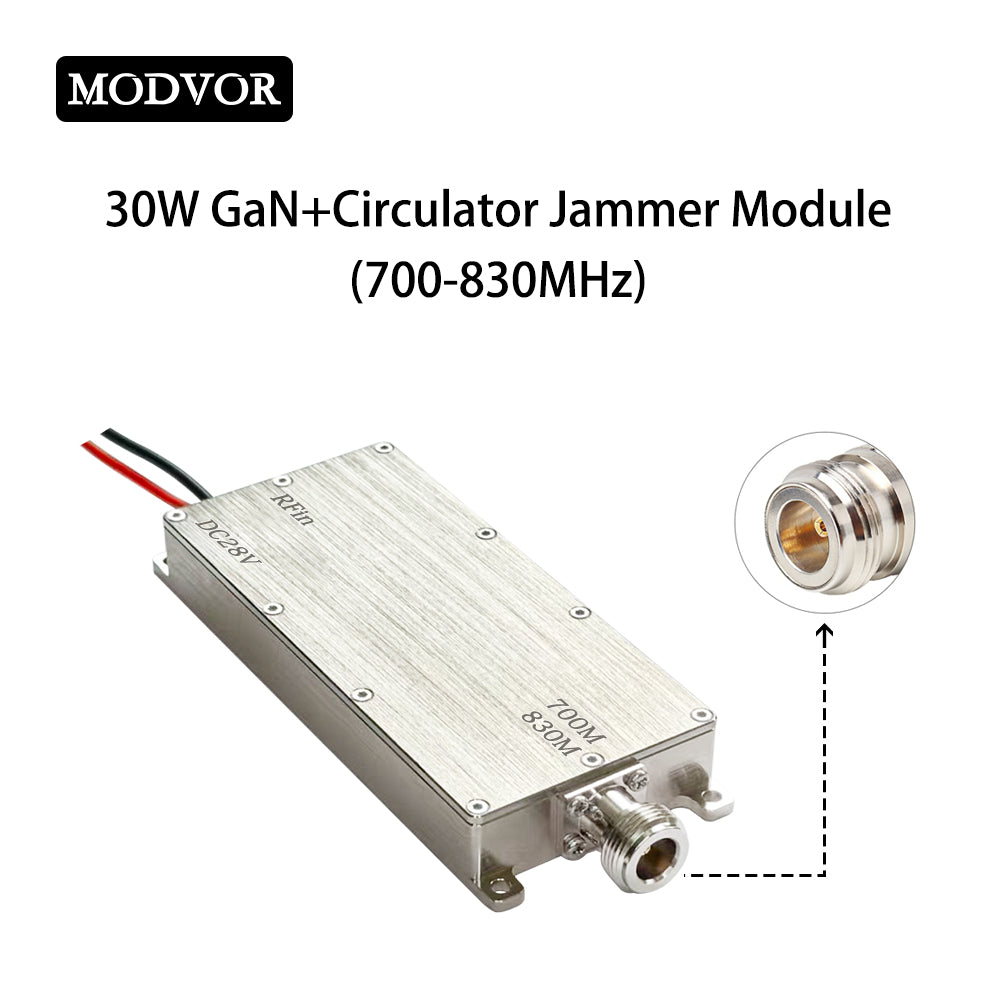

| RF Connector | Output: N-Female |
| Power Socket | 20 cm red/black wire |

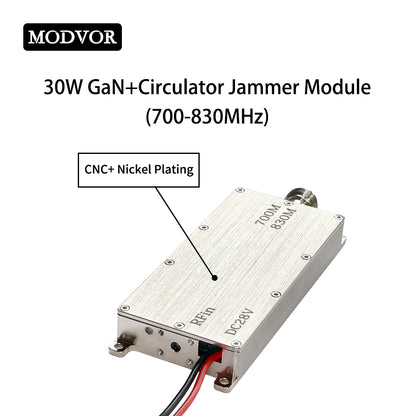

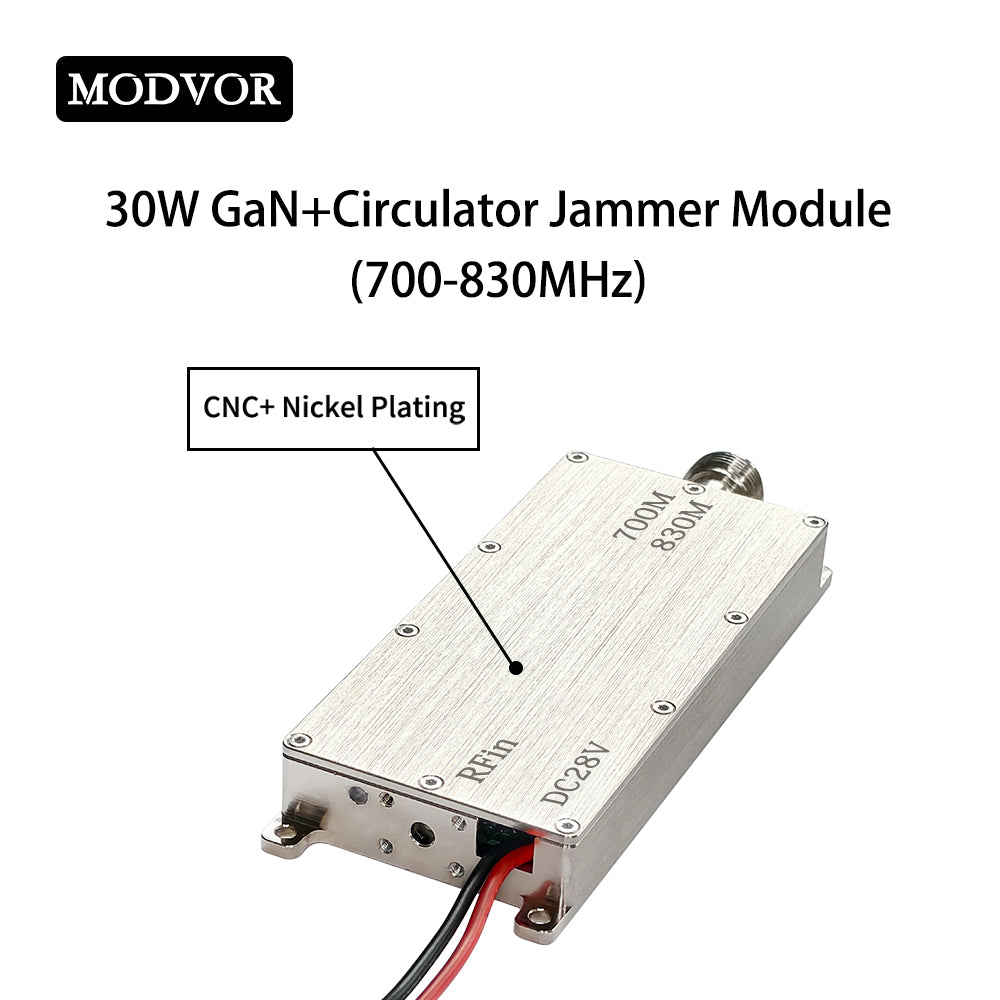

| Shell Material | Aluminum |

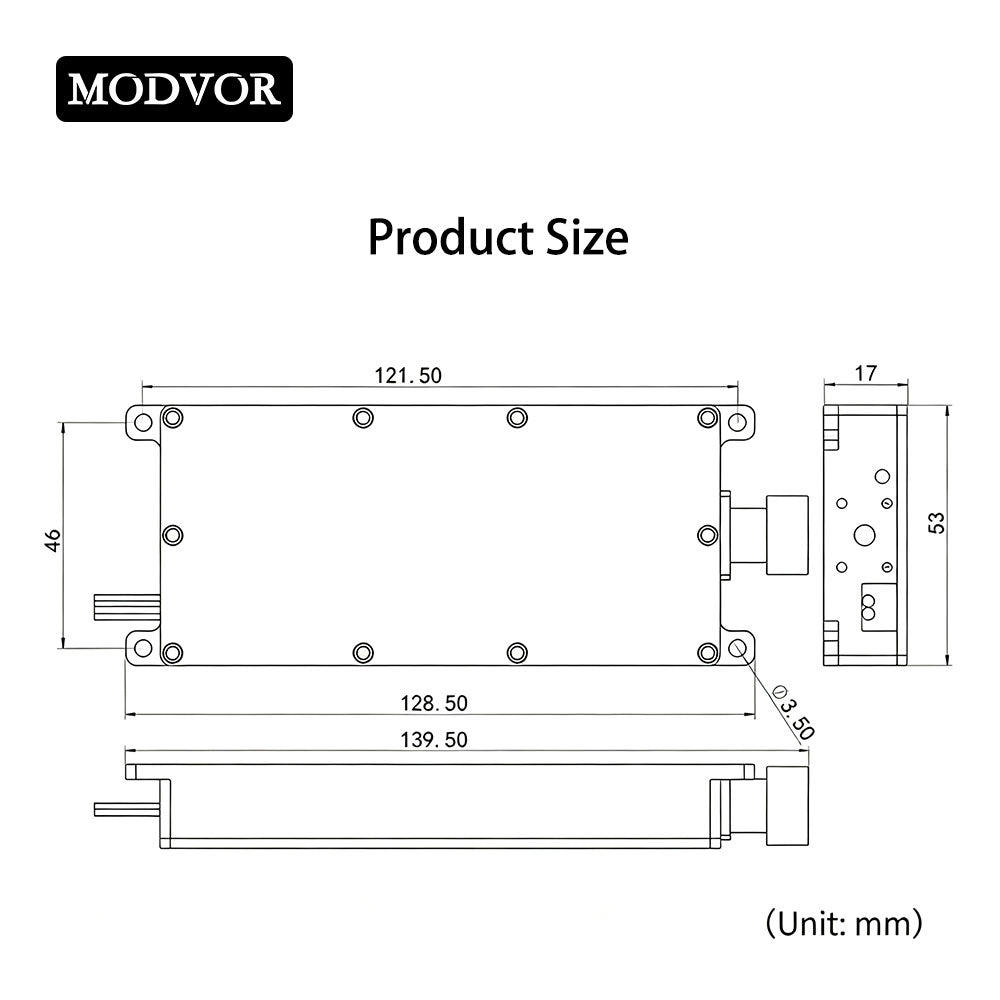

| Shell Size | 128.5*53*17 mm |
| Net Weight | 0.26 kg |
Package List
1 x N-type GaN+Circulator Jammer Module
