Product Description
This 50W GaN RF jammer module is engineered for factory IoT signal suppression solutions, delivering reliable performance across the 700-830MHz band. Leveraging advanced Gallium Nitride (GaN) technology, it offers high power density, superior efficiency, and excellent thermal stability compared to conventional designs.
The jammer module features a standard SMA-Female connector for easy and secure integration into existing RF jamming systems. It operates with a wide input voltage range and includes built-in protection circuits against over-temperature, over-current, and high VSWR, ensuring long-term reliability even under harsh operating conditions.
The rugged aluminum housing enables efficient heat dissipation for continuous operation. Ideal for factory IoT signal control, ensuring dependable high-power suppression in demanding industrial environments.
Product Features
- Frequency band: 700-830MHz
- Advanced GaN technology, 50W high output power

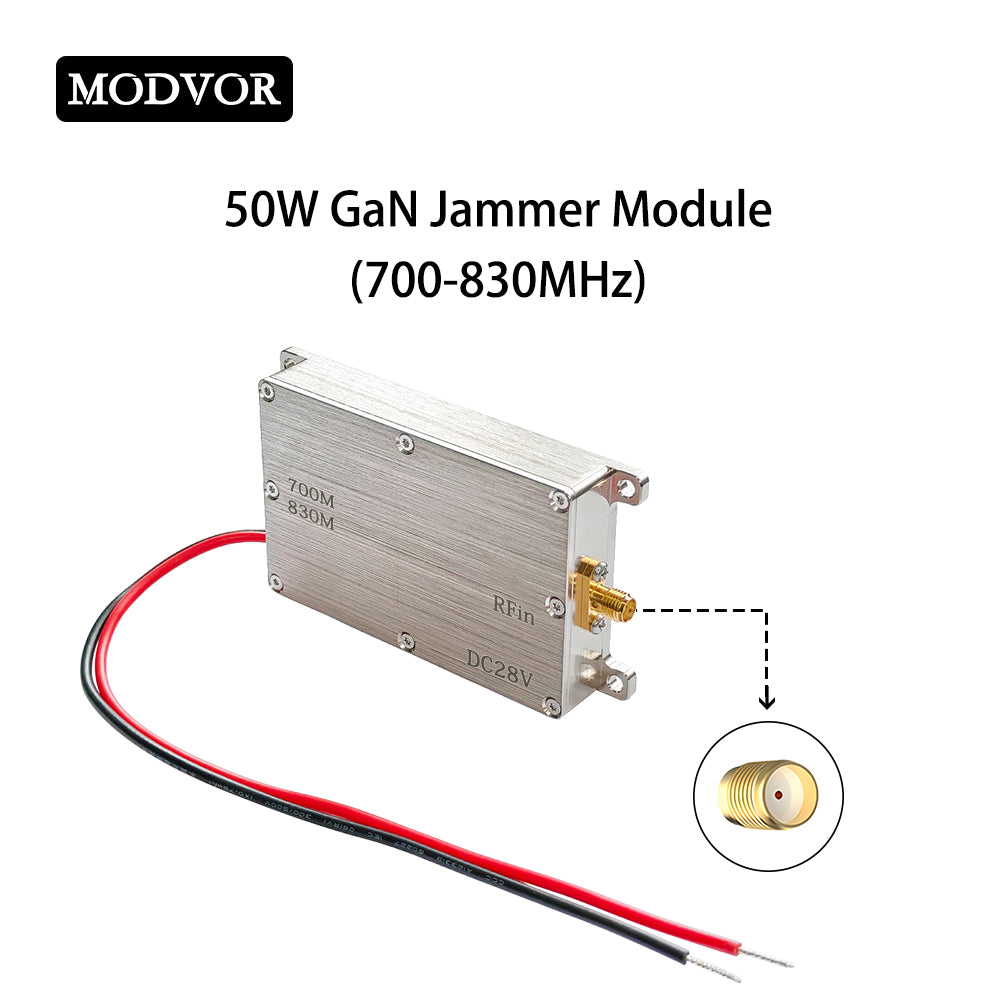

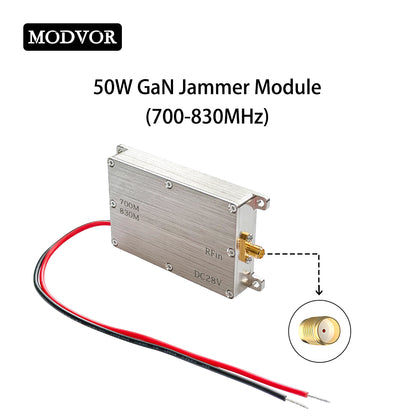

- SMA female RF connector for easy assembly
- Compact aluminum alloy housing with good heat dissipation
Custom frequency bands & power are available, feel free to contact us for your requirements.
Product Specifications
| Frequency Range | 700-830MHz |
| Operating Voltage | 28 V DC |
| Flatness | ±0.5 dB |
| Output Power | 50 W/47 dBm |
| Current Consumption | 3.8 A@28 V |
| Efficiency | 45%@47 dBm |

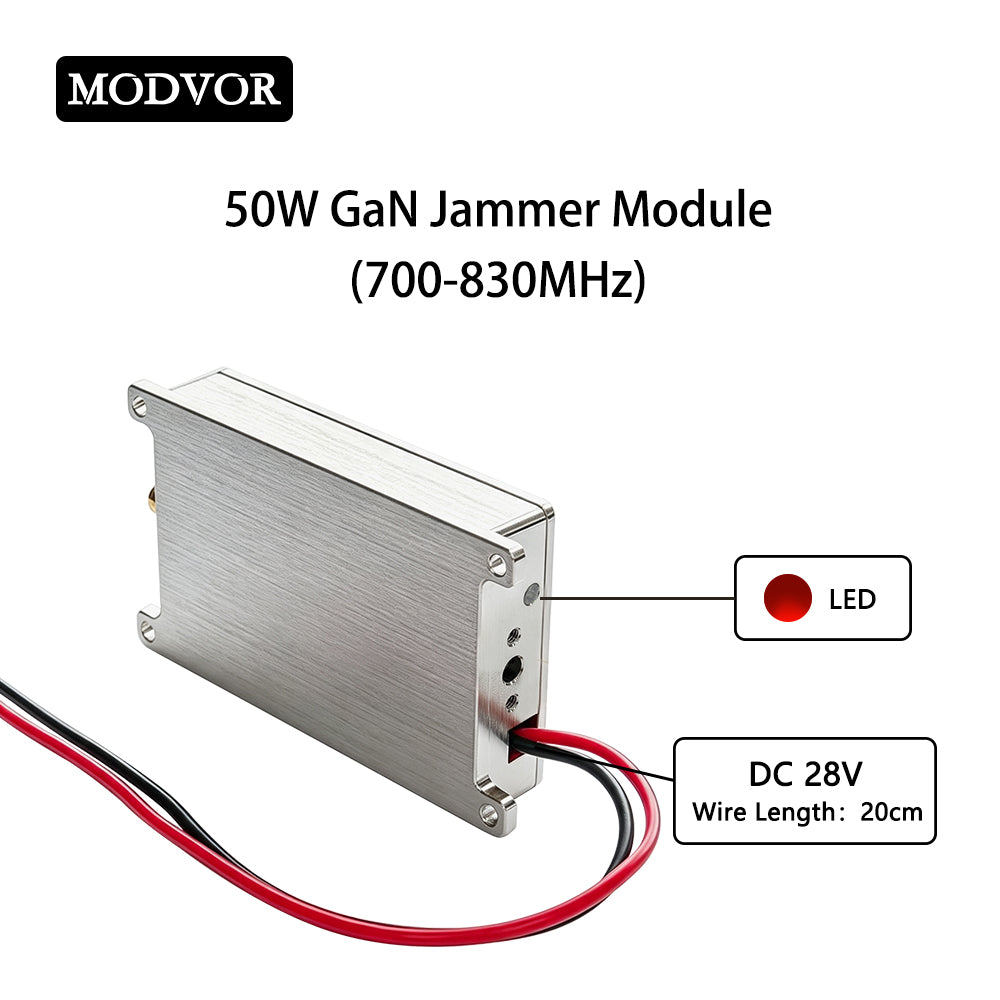

| LED State | Red |
| Operating Temperature | -30℃ ~ +85℃ |
| Storage Temperature | -40℃ ~ +150℃ |
| Operating Humidity | <95%RH |
| RF Connector | Output: SMA-Female |
| Power Socket | 20 cm red/black wire |
| Shell Material | Aluminum |

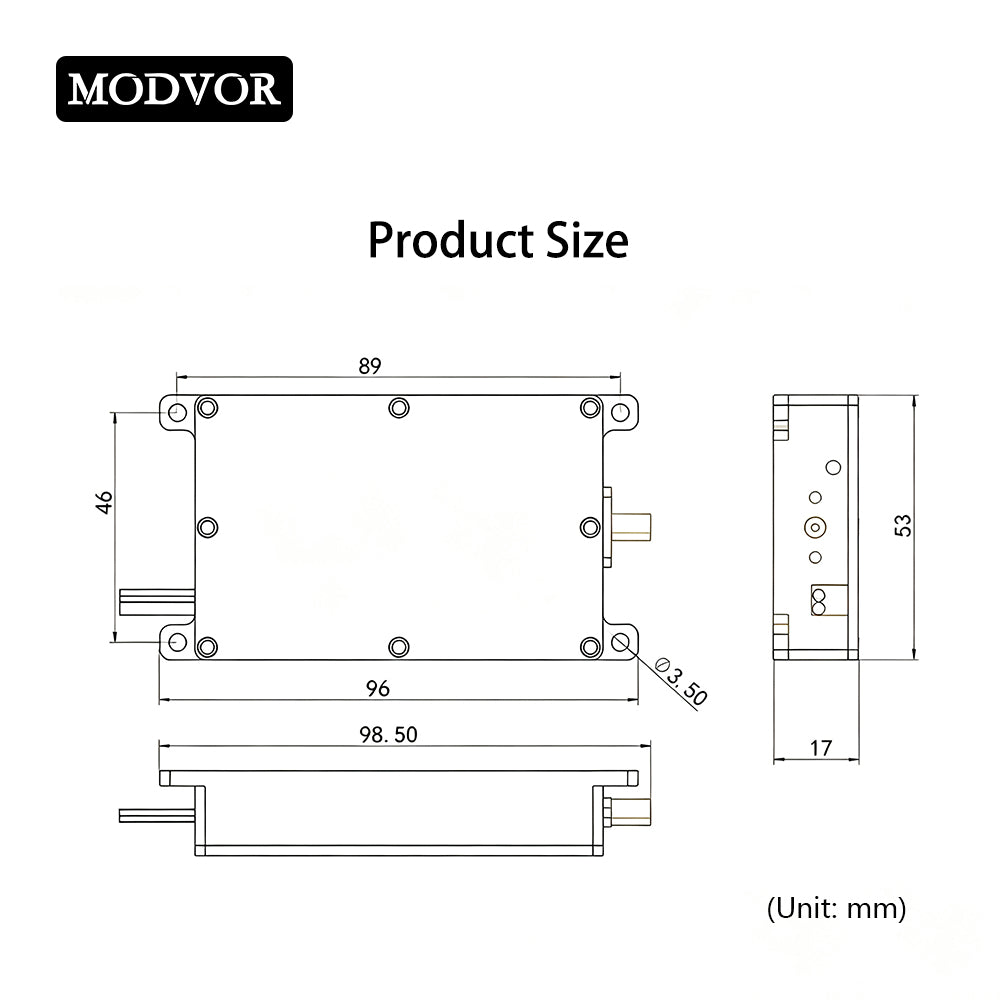

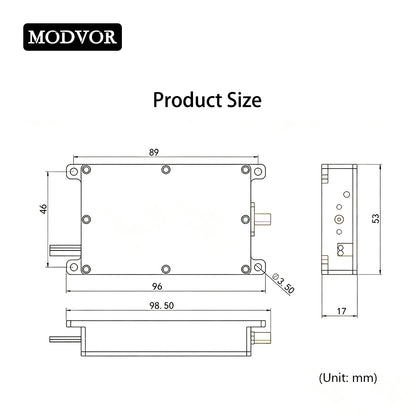

| Shell Size | 96*53*17 mm |
| Net Weight | 0.21 kg |
Package List
1 x GaN Jammer Module
