Product Description

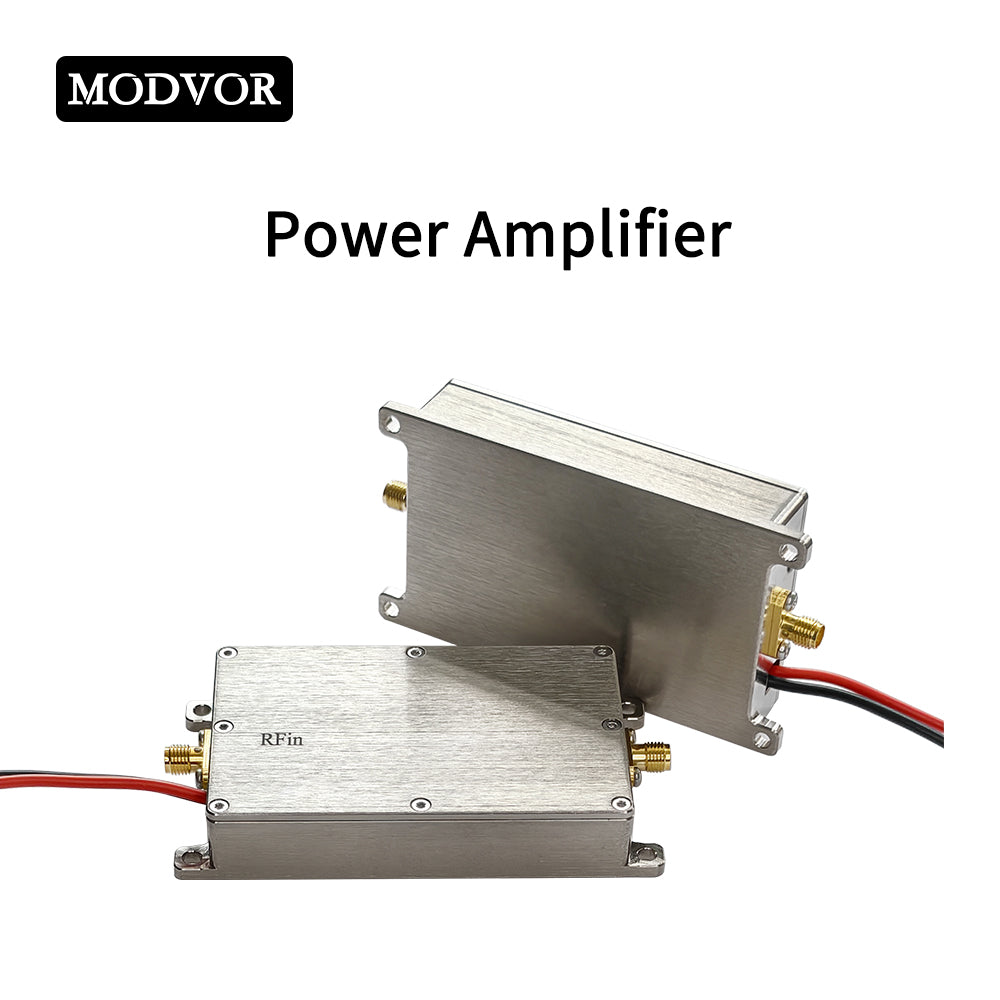

When your wireless system operates in the globally recognized 830-960MHz ISM band—whether for LoRaWAN gateways, industrial IoT networks, UAV telemetry, RFID systems, or smart agriculture—and you need the ultimate in range and reliability, 30W of brute-force power delivers the decisive edge. This 830-960MHz 30W RF Power Amplifier delivers a commanding 45dBm (30W) of clean output power with 40dB gain across the full 830-960MHz range, covering popular frequencies including 868MHz (Europe), 915MHz (US/Australia), and 923MHz (Asia). Operating on a 24V DC supply with just 2.8A current draw at full output, it features a rugged aluminum housing and SMA female connectors—built to deliver the ultimate performance for large-scale IoT deployments, drone operations, and remote monitoring networks.
Typical Applications
- LoRaWAN Gateways: Maximum gateway transmission power for city-wide and rural IoT network coverage
- Industrial IoT & SCADA: Ultra-long-range telemetry for remote monitoring in utilities, oil & gas, and critical infrastructure
- UAV Telemetry & Control: Extreme command and data link range for long-range drones and BVLOS operations
- RFID & Asset Tracking: Maximum read range for UHF RFID systems in logistics, warehousing, and inventory management
- Smart Agriculture & Environmental Monitoring: Extend sensor network range across vast farmlands, forests, and remote sites
- Amateur Radio (HAM) 33cm Band: High-power amplification for licensed 900MHz experimental operations
Technical Specifications
|
Parameter |
Value |
|
Frequency Range |
830 – 960 MHz |
|
Output Power |
45 dBm (30W) |
|
Gain (S21) |
40 dB ± 1 dB |
|
Operating Voltage |
24 V DC |
|
Current Consumption |
2.8 A @ 24V |
|
RF Connectors |
Input: SMA Female; Output: SMA Female |
|
Dimensions |
96 × 53 × 17 mm |
|
Net Weight |
0.15 kg (150g) |
|
DC Wiring |
15cm Red/Black wire leads |
|
Shell Material |
Aluminum |
Key Advantages
Why 30W for 830-960MHz ISM band applications? This frequency range offers an ideal balance between range and data throughput—lower frequencies penetrate obstacles and travel farther than 2.4GHz or 5.8GHz, while still offering ample bandwidth for telemetry and IoT data. Pair this inherent propagation advantage with 30W (45dBm) of clean output power, and you get a communication link capable of reaching 5-8x further than standard 1W radios—a transformative advantage for large-scale IoT deployments, drone operations, and remote monitoring networks where standard power simply isn't enough.
The 40dB gain transforms even low-power transceivers (like LoRa modules, drone telemetry radios, or RFID readers) into full 30W transmitters with consistent, predictable performance. Despite the extreme power output, current draw remains efficient at just 2.8A—ensuring your power source stays within limits for long-duration field deployments.
Thermal performance is engineered for continuous high-power operation. The rugged aluminum housing provides efficient passive cooling, capable of dissipating the significant thermal load from 30W operation, while the compact 96×53×17mm form factor and 150g weight make it easy to mount on drones, gateway enclosures, utility poles, or portable field kits.
Wide voltage tolerance ensures compatibility with drone batteries, solar-powered gateways, vehicle electrical systems, and regulated power supplies. With SMA female connectors on both input and output, integration with existing RF chains is completely straightforward.
Globally compatible frequency coverage – spanning 830-960MHz, this amplifier covers the 868MHz EU band, 915MHz US/AU band, and 923MHz Asian band, making it a single solution for worldwide IoT, telemetry, and UAV deployments. When you need the absolute maximum range and reliability, 30W delivers the ultimate performance.
What's in the Box
- 1 × 830-960MHz 30W RF Power Amplifier
