Product Description
This high-power RF jamming device is a professional-grade counter drone solution built with advanced GaN (Gallium Nitride) semiconductor technology and integrated high-performance circulator, delivering stable and efficient UAV signal suppression for commercial, industrial and security defense scenarios. Featuring a max output power of 40W (46dBm) and an ultra-wide 100-2700MHz frequency tuning range, the device covers all mainstream civilian and commercial drone communication bands, including 433MHz, 900MHz, 1.2GHz, 2.4GHz and other common UAV remote control and image transmission frequencies, realizing full-spectrum drone signal jamming.
Integrated with a high-performance RF circulator, this device isolates internal signal interference, enhances operational stability and service life. Adopting advanced GaN technology instead of traditional LDMOS modules, it delivers higher power density, lower heat generation and faster response, ensuring stable long-term high-power jamming output without power attenuation or functional failure.
Featuring a compact modular structure and premium heat dissipation, this GaN RF jamming module supports flexible integration with fixed, vehicle-mounted and portable drone jamming device. It serves as a stable, efficient and cost-effective core component for professional anti drone solutions.
We are original manufacturer, flexible OEM & ODM customization is available for frequency, power, connector type and other hardware requirements.
Core Advantages: 40W high power, 46dBm high gain, full-band 100-2700MHz tuning, GaN semiconductor technology, built-in RF circulator.
Application Scenarios: Counter drone system, UAV signal blocking, security defense, critical infrastructure protection.
Product Features: Low heat generation, strong anti-interference, stable output, easy integration, full-frequency coverage.
Product Specifications
| Frequency Range | Sub‑band: 100‑2700MHz, Bandwidth: 80‑200MHz |
| Operating Voltage | 28 V DC |
| Flatness | ±0.5 dB |
| Output Power | 40 W/46 dBm |
| Current Consumption | 2.8 A@28 V |
| Efficiency | 45%@46 dBm |
| LED State | Red |
| Operating Temperature | -30℃ ~ +85℃ |
| Storage Temperature | -40℃ ~ +150℃ |
| Operating Humidity | <95%RH |

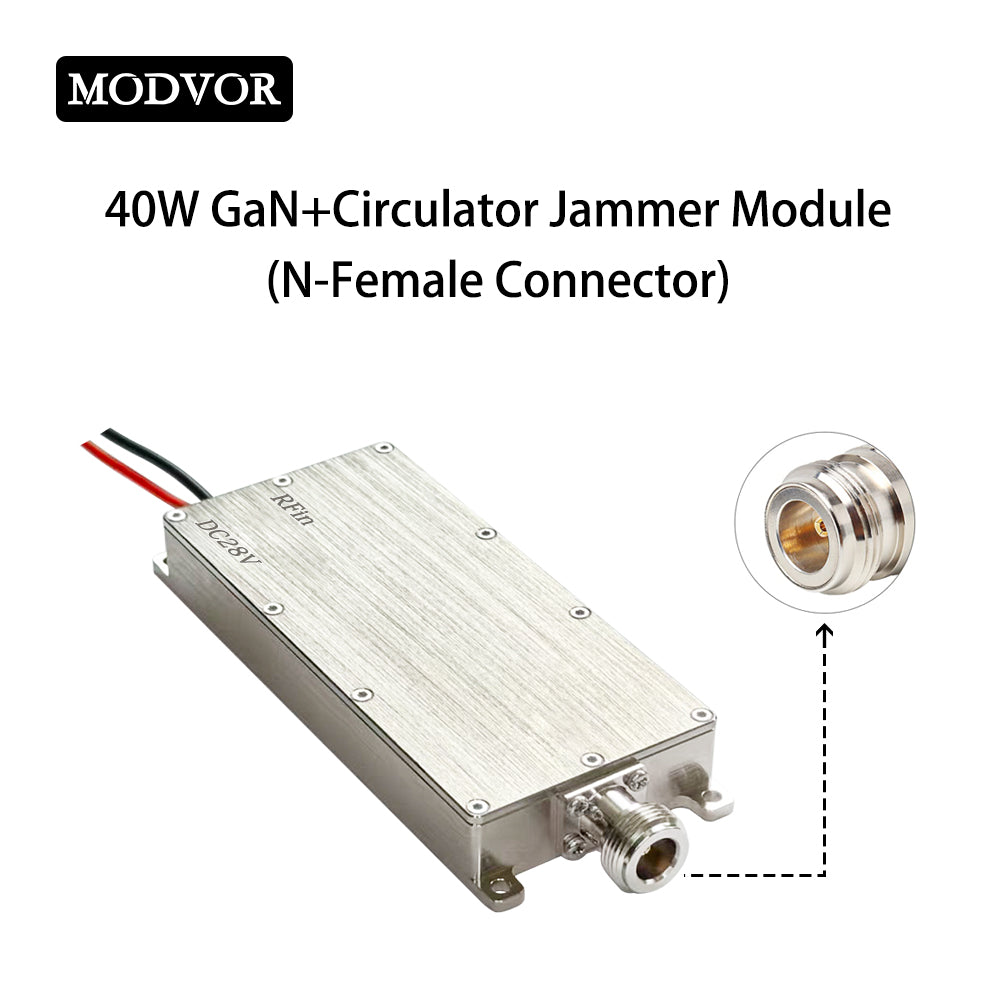

| RF Connector | Output: N-Female |
| Power Socket | 20 cm red/black wire |

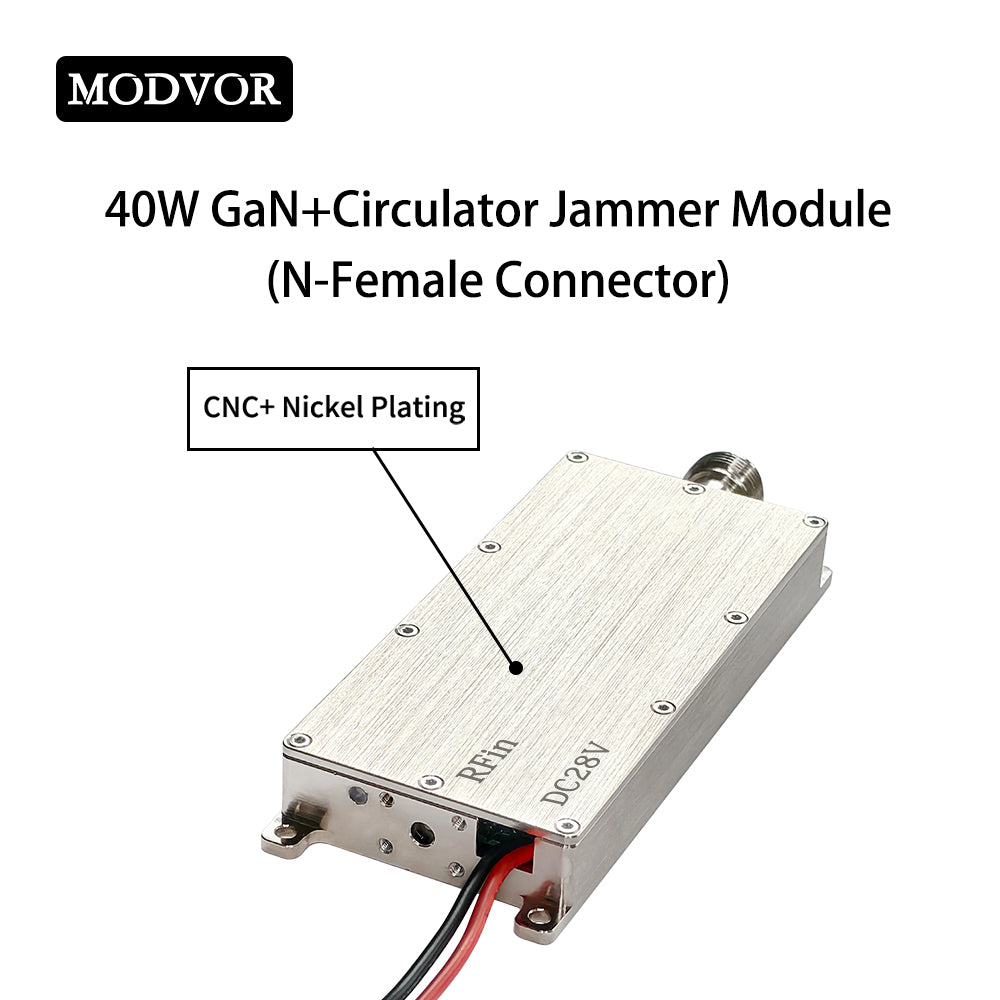

| Shell Material | Aluminum |

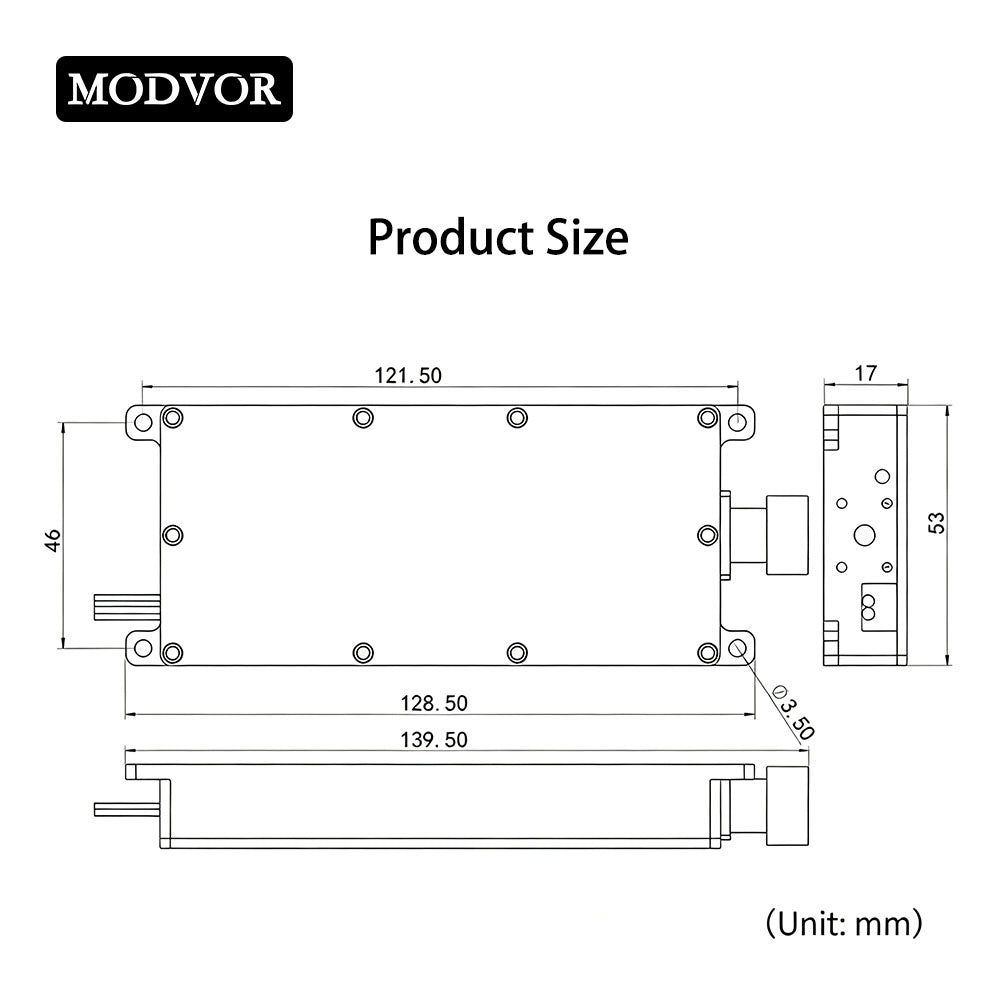

| Shell Size | 128.5*53*17 mm |
| Net Weight | 0.26 kg |
Package List

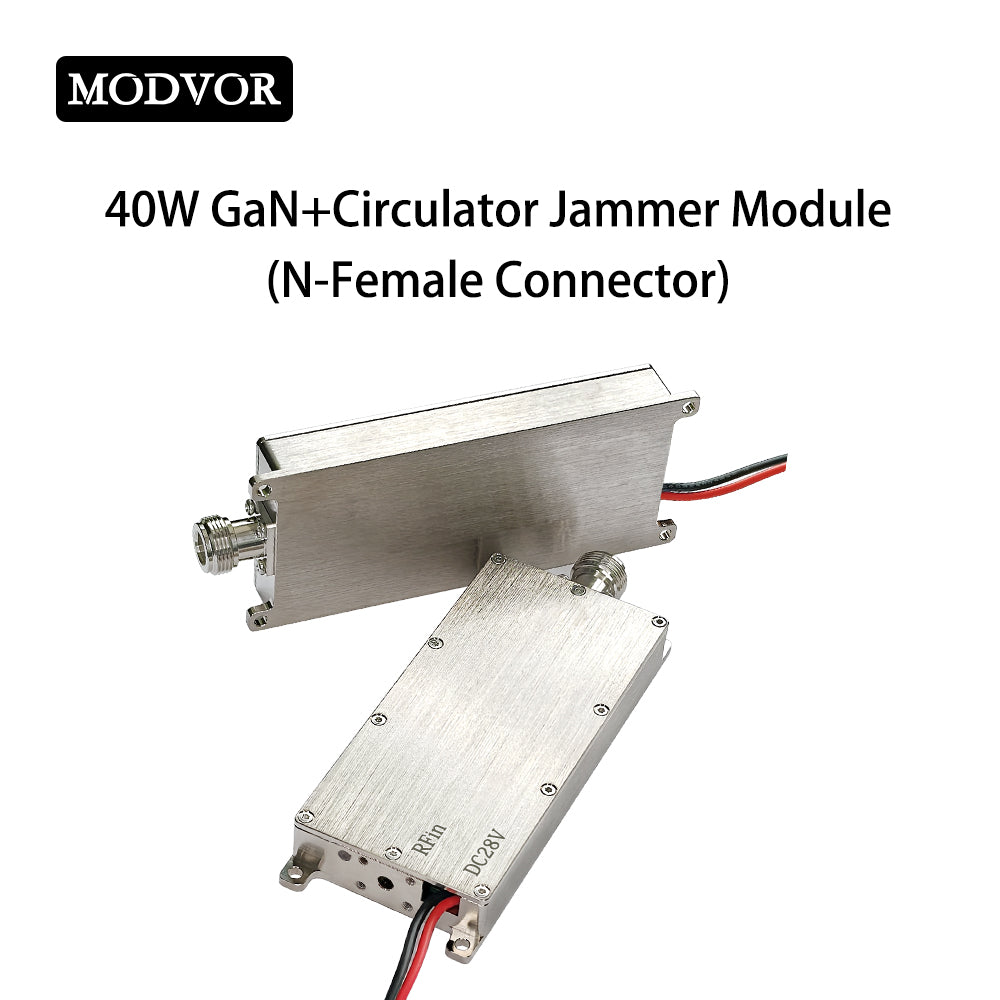

1 x 40W N-type GaN+Circulator Jammer Module
