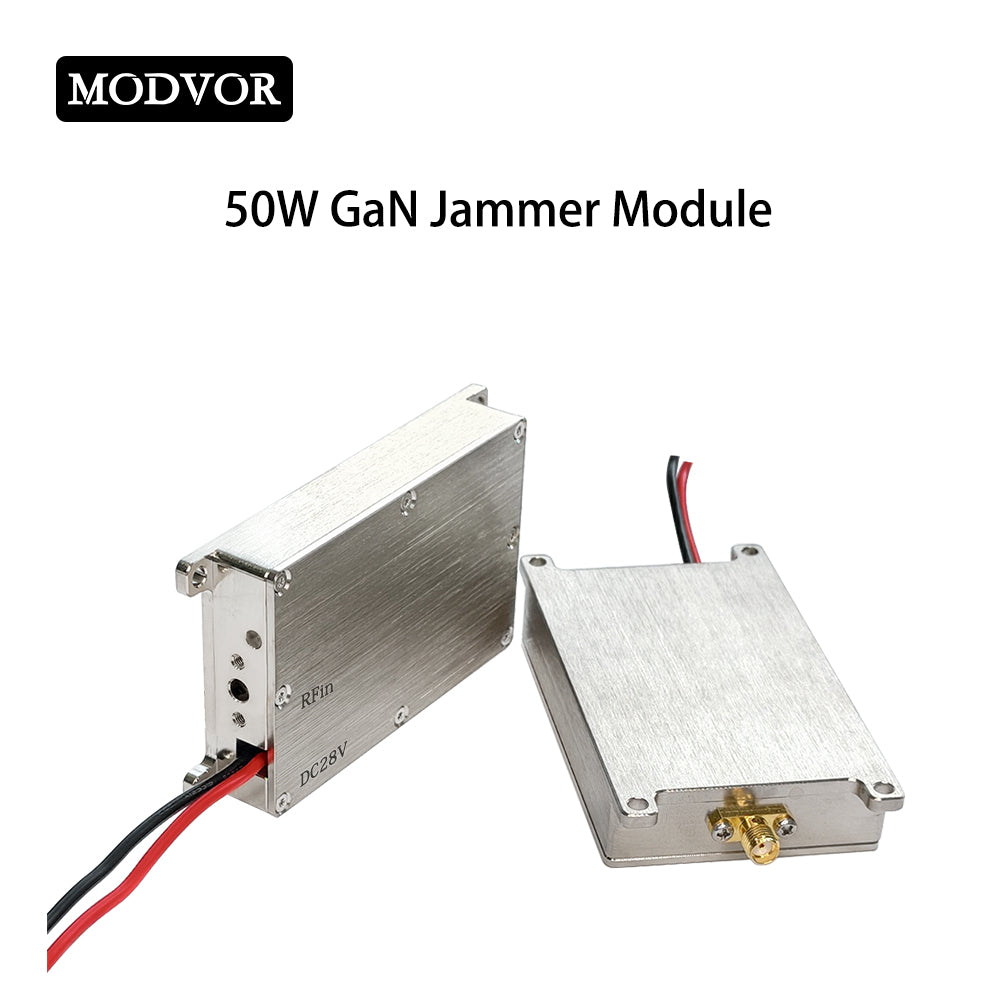

Product Description
This 50W 47dBm high-power GaN radio frequency jammer for drones boasts high-output power performance, covering a 100–7200 MHz frequency range with adjustable bandwidth from 80 MHz to 200 MHz. Designed for professional low-altitude drone countermeasure and signal shielding, it adapts to various practical jamming scenarios efficiently.
The jamming drone signals fully covers mainstream UAV remote control and data link frequencies as well as common civilian wireless bands. It delivers comprehensive spectrum interference to block signal transmission of most commercial and civilian drones, achieving reliable drone suppression and defense effects.
Powered by advanced GaN semiconductor technology, the device features high working efficiency, outstanding heat dissipation and compact structure. It maintains stable high-power operation without power attenuation in long-time working conditions, ensuring excellent working stability and long service life.
Custom bandwidth and frequency parameter tuning is available to meet customized project needs. It is widely applied in low-altitude defense, UAV countermeasure, wireless signal shielding and RF jamming projects.
Product Features
- Advanced GaN Core Technology: Utilizes high-performance GaN RF chips to deliver higher power density, lower heat generation and better efficiency than traditional LDMOS solutions. It enables stable long-duration high-power jamming and enhances overall equipment reliability and service life.
- Full-band Coverage: Features a 100MHz–7200MHz wide tuning range, covering nearly all mainstream civilian and commercial UAV communication and positioning bands. It supports full-spectrum jamming to meet diverse drone countermeasure requirements for multiple scenarios.
- High-power: Delivers 50W output power and 47dBm high gain with powerful signal suppression capability. It effectively builds a reliable jamming barrier to block UAV remote control and positioning signals for accurate and fast anti-drone defense.
- Stable & Durable Operation: Integrated over-current, over-temperature and VSWR protection circuits prevent module damage from abnormal operating conditions. The robust structure adapts to complex outdoor and mobile environments, supporting stable long-term continuous operation
-
Easy Integration & Strong Compatibility: Adopts a standardized modular design for simple installation and debugging. It can be flexibly integrated into fixed and mobile anti-drone systems, enabling rapid deployment and customized defense solutions for various scenarios.
Product Specifications
| Frequency Range | Sub‑band: 100‑2700MHz, Bandwidth: 80‑200MHz |
| Operating Voltage | 28 V DC |
| Flatness | ±0.5 dB |
| Output Power | 50 W/47 dBm |
| Current Consumption | 3.6 A@28 V |
| Efficiency | 45%@47 dBm |

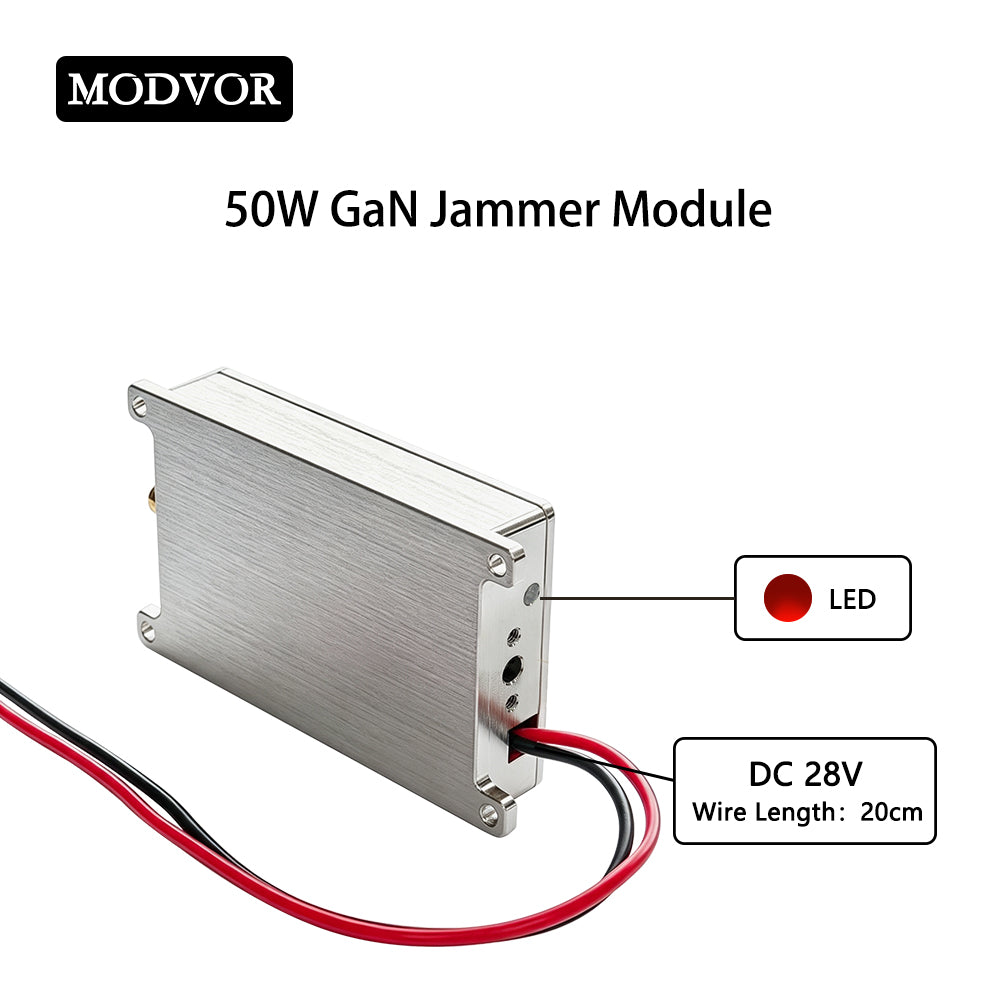

| LED State | Red |
| Operating Temperature | -30℃ ~ +85℃ |
| Storage Temperature | -40℃ ~ +150℃ |
| Operating Humidity | <95%RH |

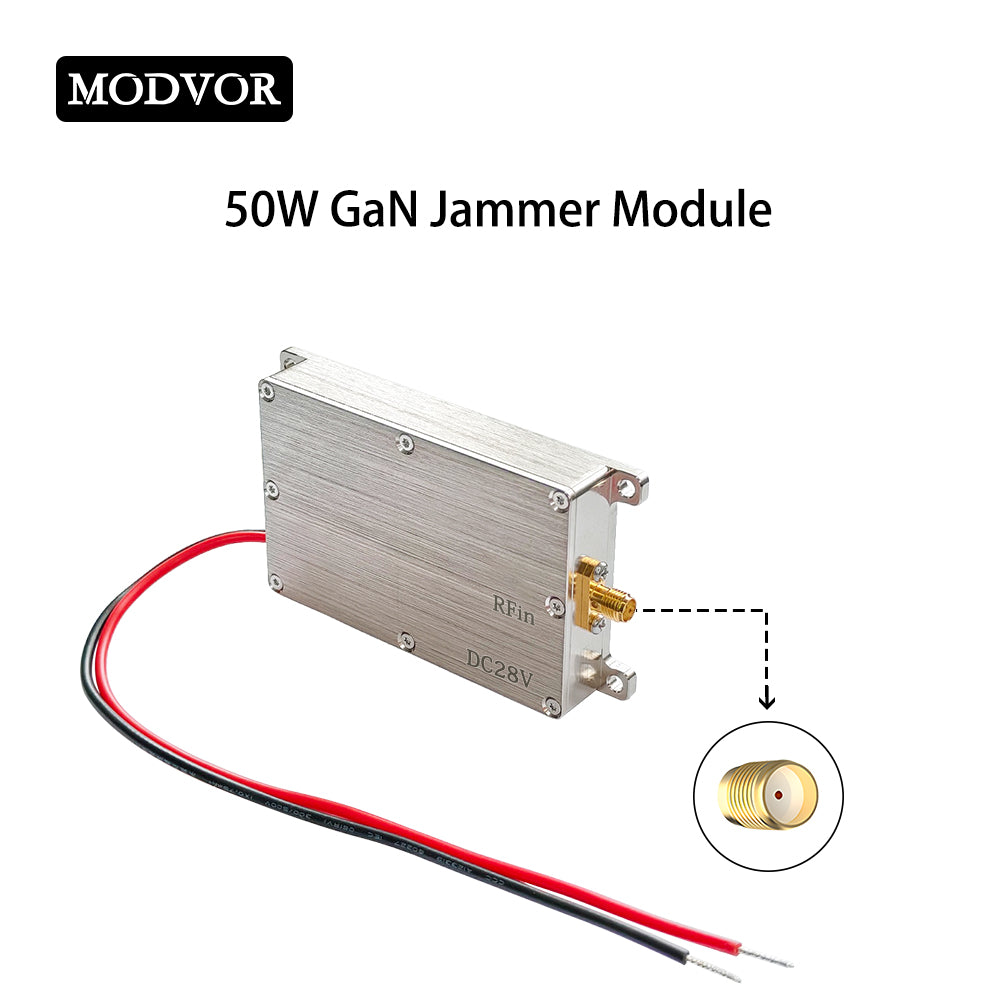

| RF Connector | Output: SMA-Female |
| Power Socket | 20 cm red/black wire |

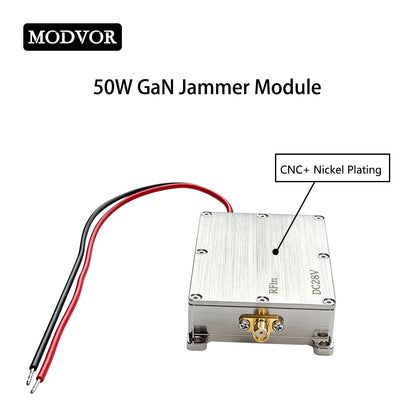

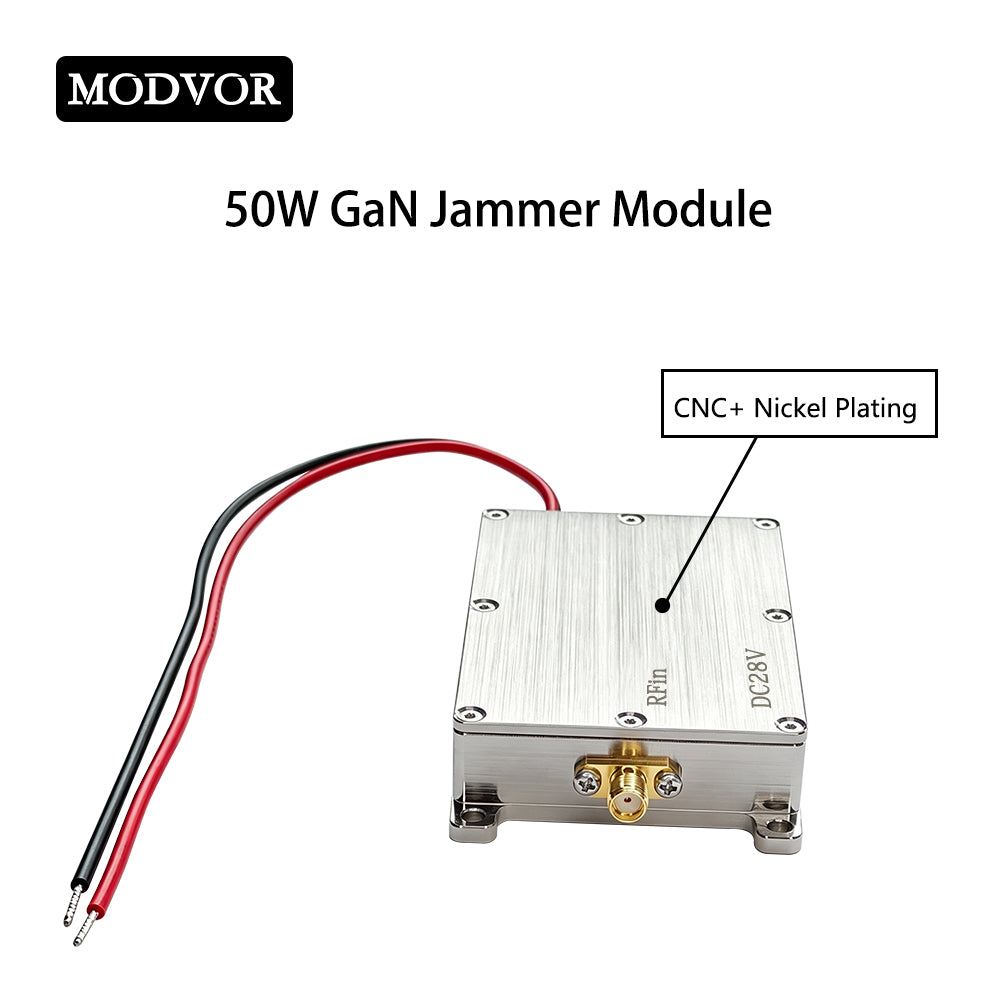

| Shell Material | Aluminum |

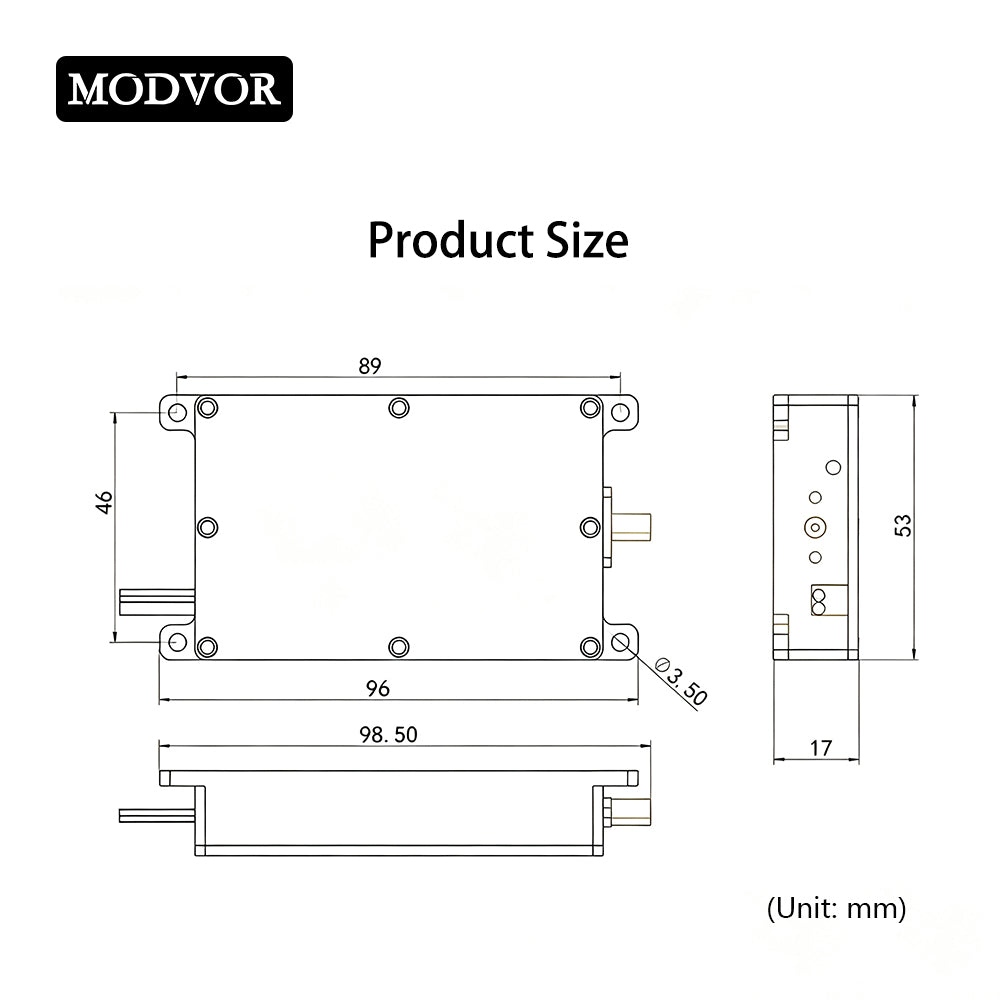

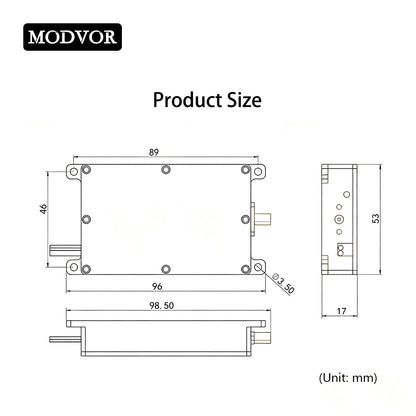

| Shell Size | 96*53*17 mm |
| Net Weight | 0.15 kg |
Important Note for Frequency Band Selection
Our GaN drone jammer module supports a total frequency tuning range of 100‑7200 MHz. Due to hardware structural differences, we have split this full‑range product into two separate listings for your better shopping experience.
- Frequency tuning range 100‑2700 MHz：dimension 96*53*17 mm
- Frequency tuning range 2700‑7200 MHz：dimension 132*53*17 mm
Please select the correct band according to your project requirements. If you need the frequency tuning range 100-2700 MHz GaN drone jammer block module, please click here. Thank you for your understanding.
Package List
1 x 50W GaN Jammer Module
