Product Description

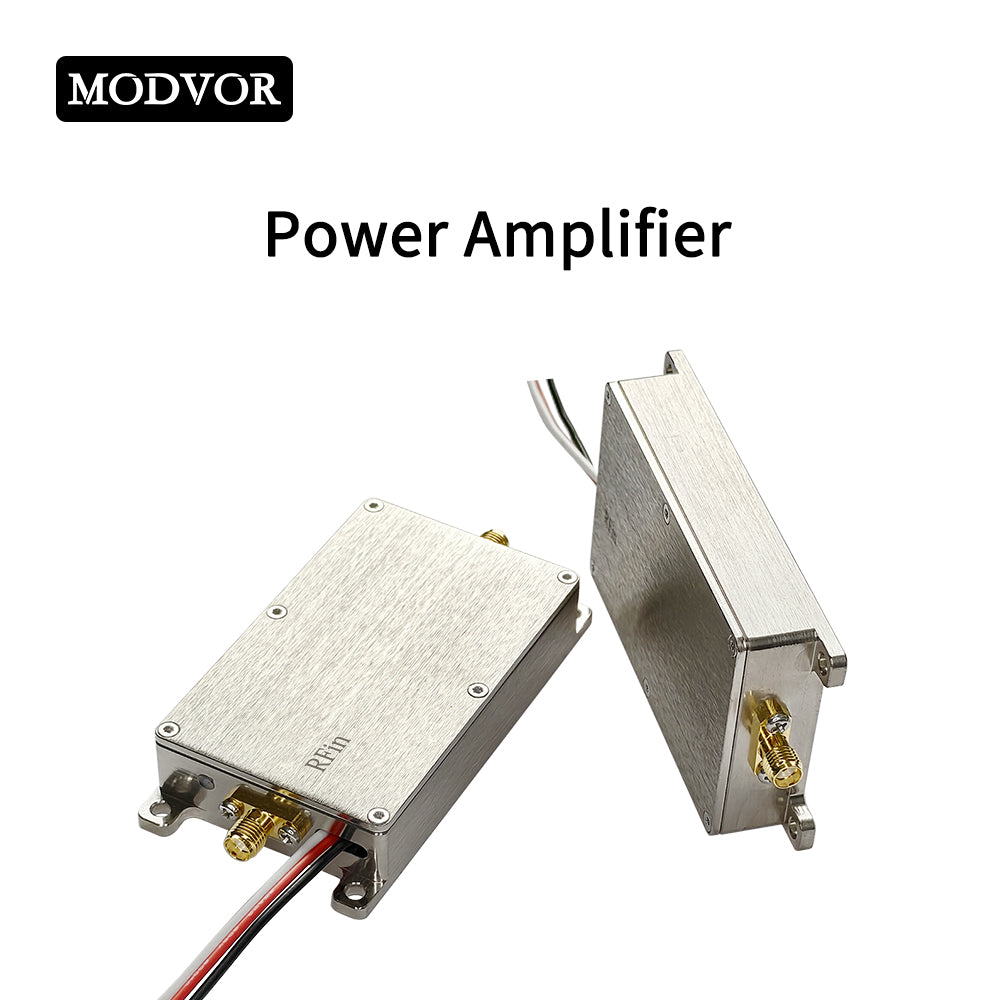

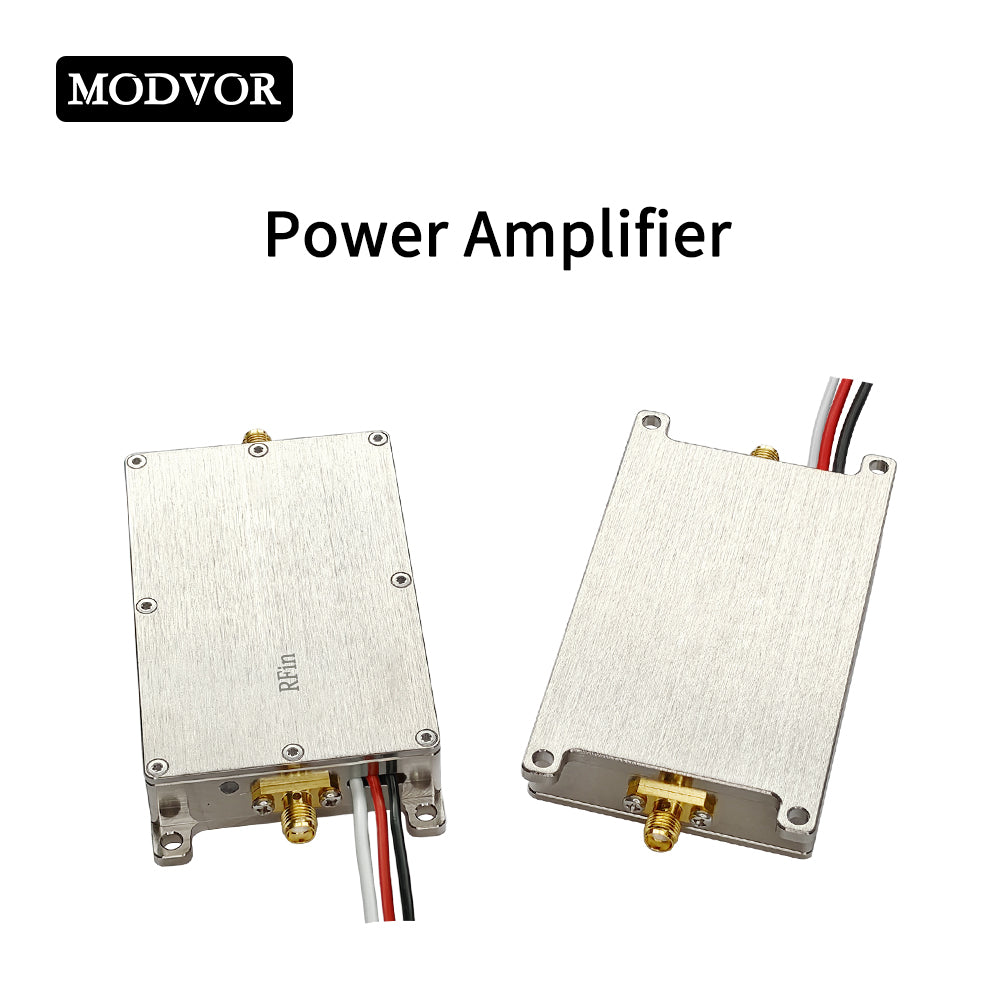

In the 2.4GHz band, UAV video, telemetry, and ISM wireless links often face crowded spectrum and shrinking link margin. This 2.4GHz 5W RF Power Amplifier is designed to strengthen the transmit path in drone video downlinks, telemetry radios, remote control systems, industrial wireless equipment, and field communication platforms. Its compact aluminum housing, SMA-K input/output connectors, and wide DC operating range allow direct integration into airborne, ground-station, and pole-mounted installations. When additional RF headroom is needed to stabilize a marginal link or extend practical coverage, this amplifier delivers focused transmit-path enhancement in a rugged, field-ready form factor.
Typical Applications
- UAV Video & Telemetry Links: Improve transmit performance for long-range drone video and telemetry systems.
- Remote Control Uplinks: Reinforce command signal strength in extended-range UAV operations.
- 2.4GHz ISM Wireless Systems: Enhance RF links for industrial, commercial, and embedded radio equipment.
- Industrial Wireless & SCADA: Boost transmit signals for remote sensors and controllers.
- Public Safety Field Communications: Extend coverage in remote or obstructed environments.
- Licensed RF Testing & Development: Support 2.4-2.485GHz experimentation with higher output.
Technical Specifications
|
Parameter |
Value |
|
Working Frequency |
2.4-2.485GHz |
|
Operating Voltage |
22-28V |
|
Gain (S21) |
35±1dB |
|
Input Return Loss (S11) |
≤-15dB |
|
RF in Power |
-13~10dBm |
|
Output Power |
37dBm |
|
Current |
0.45A @24V, 37dBm |
|
Efficiency |
45%@37dBm |
|

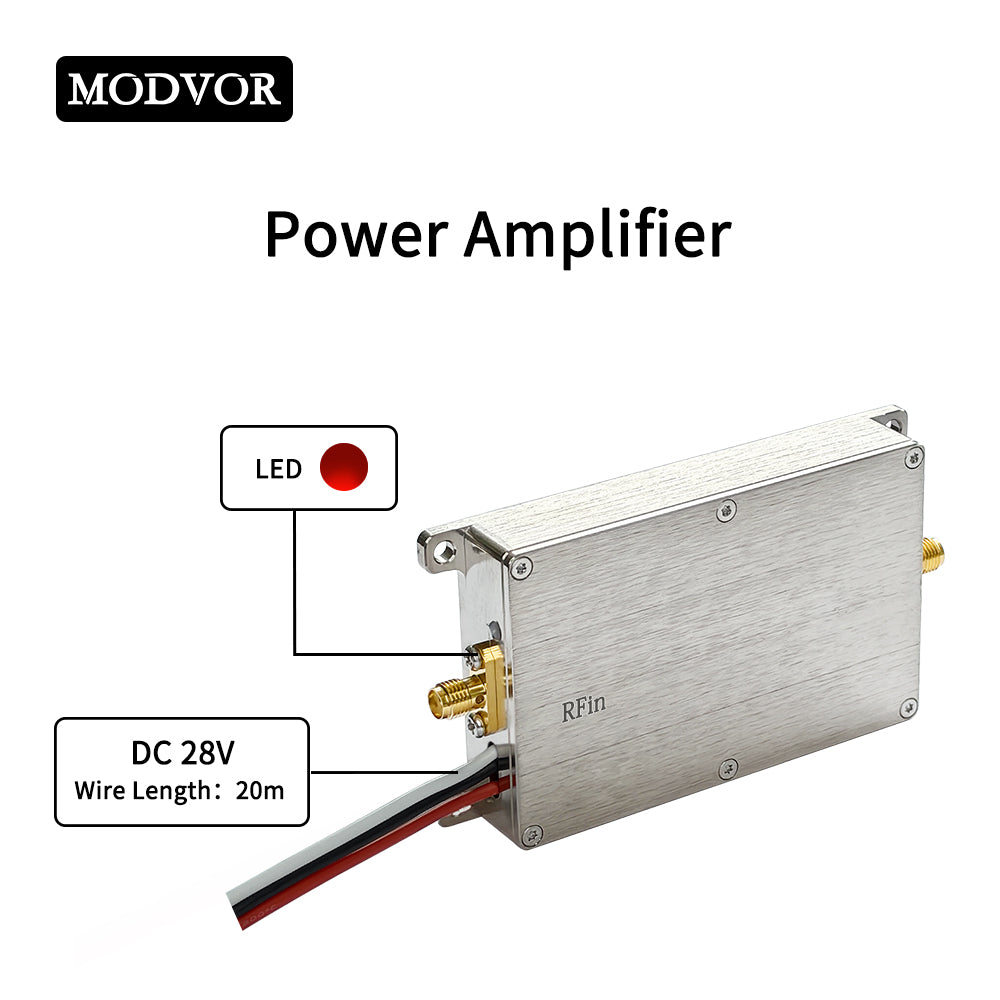

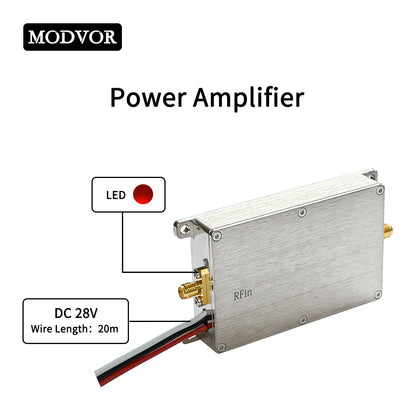

LED State |
Red |
|
Operating Temperature |
-30℃~85℃ |
|
Storage Temperature |
-40℃~150℃ |
|
Operating Humidity |
≤95%RH |
|

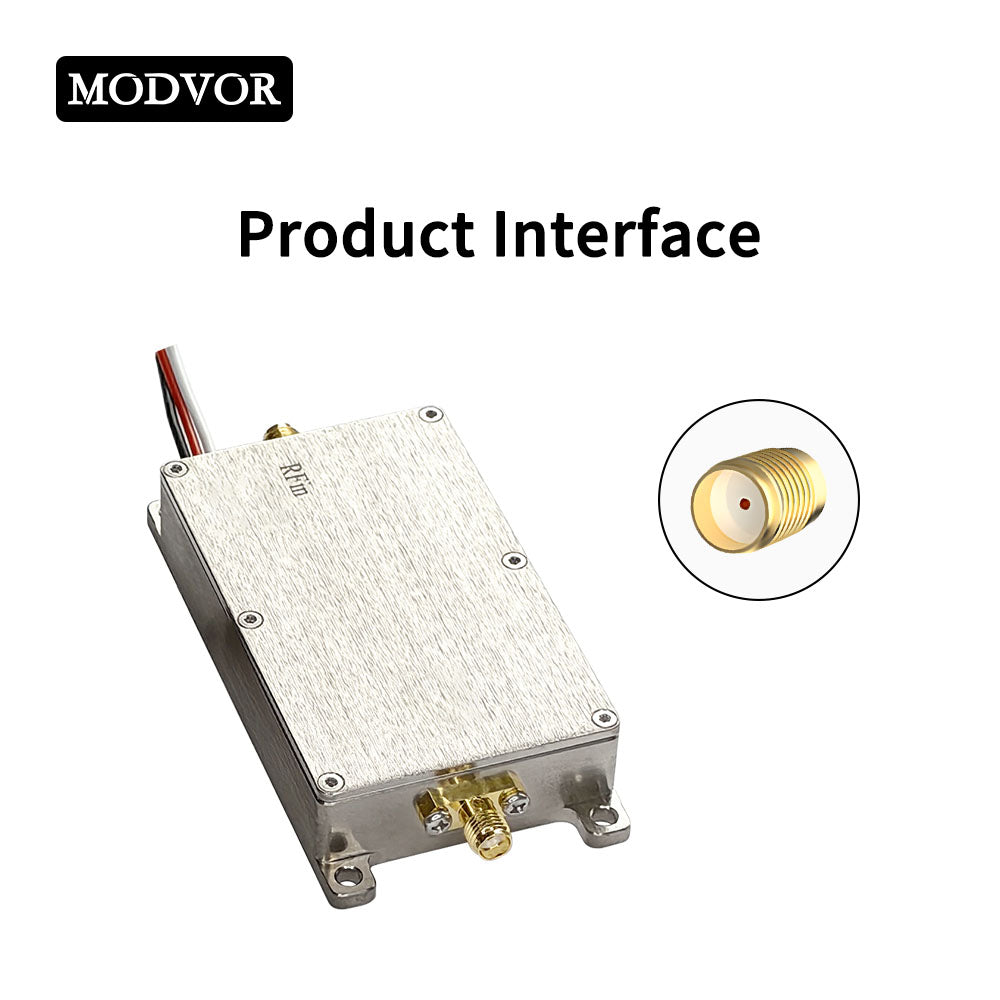

RF Connector |
Input: SMA-K; Output: SMA-K |
|

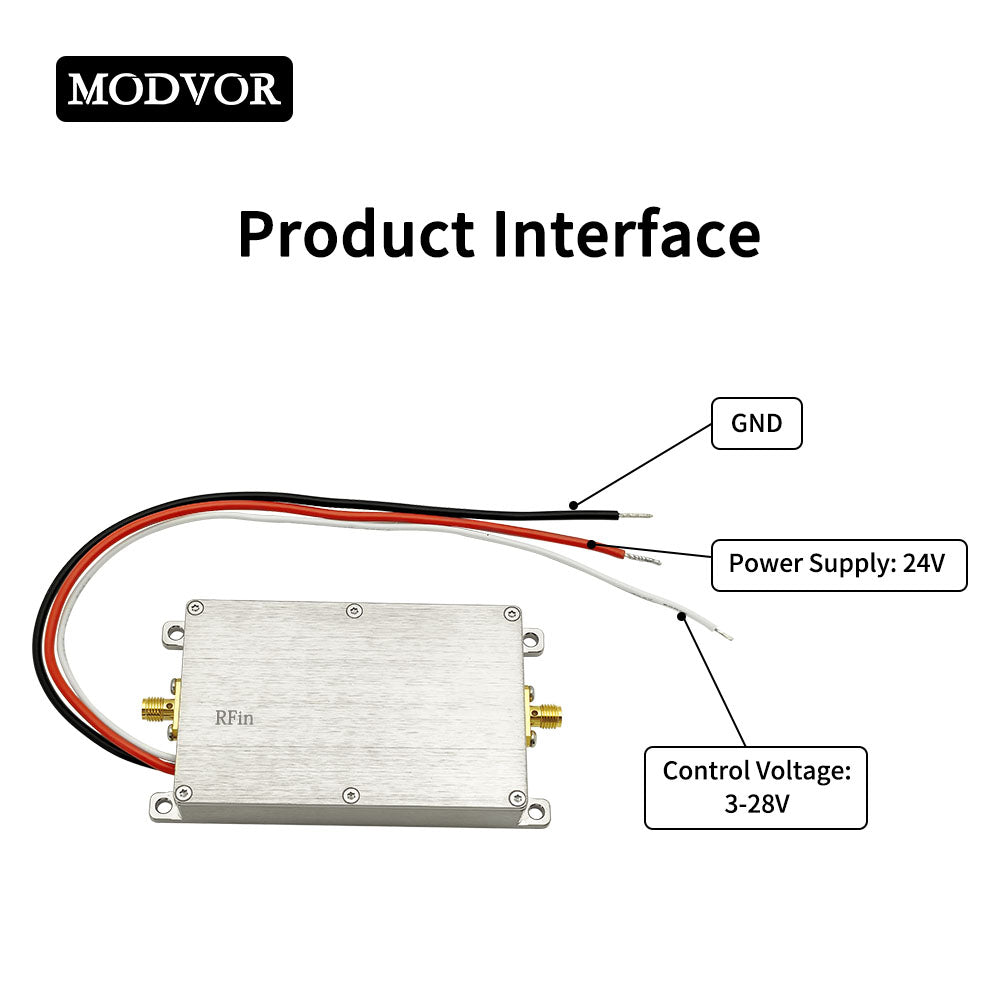

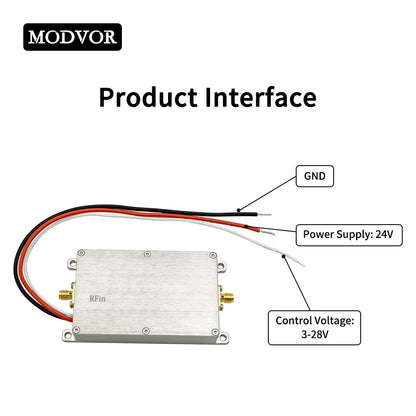

DC Connector |
AWG18 20cm red/black wire |
|
Power Control |
3-28V 20cm red wire |
|

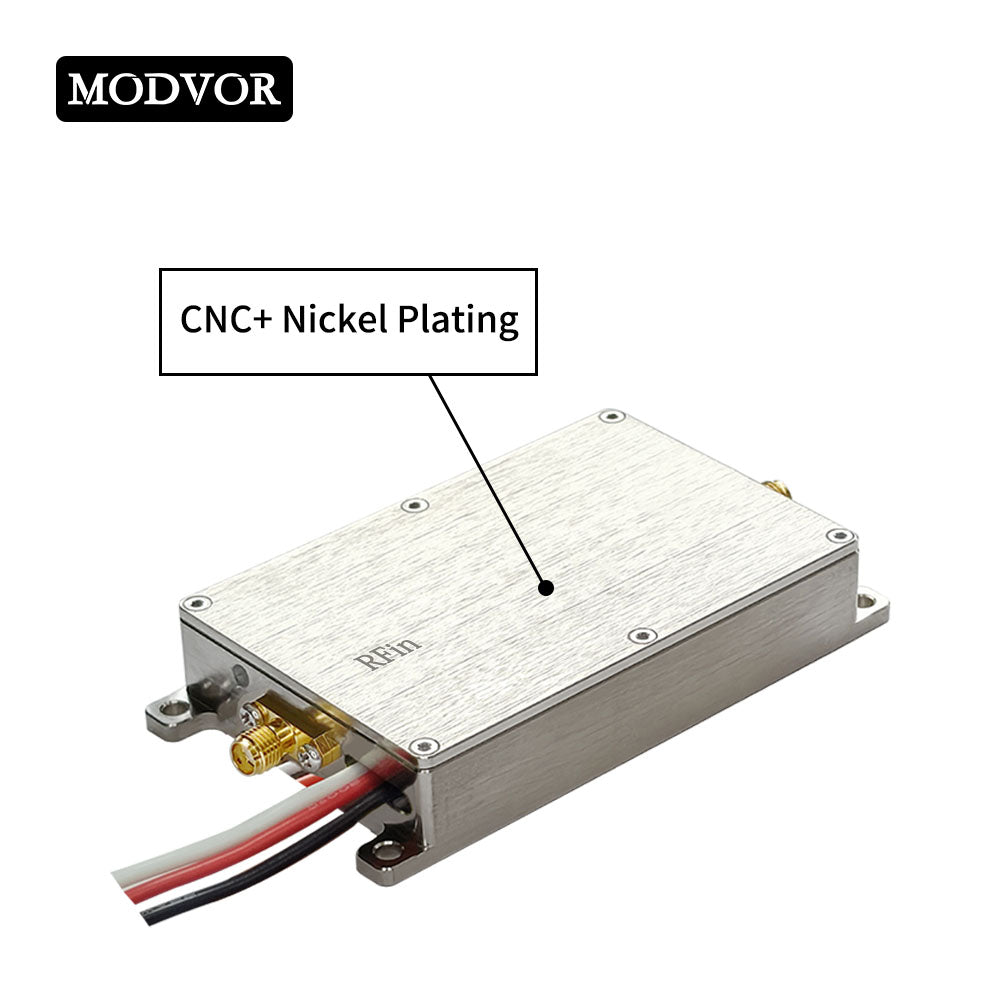

Shell Material |
Aluminum |
|

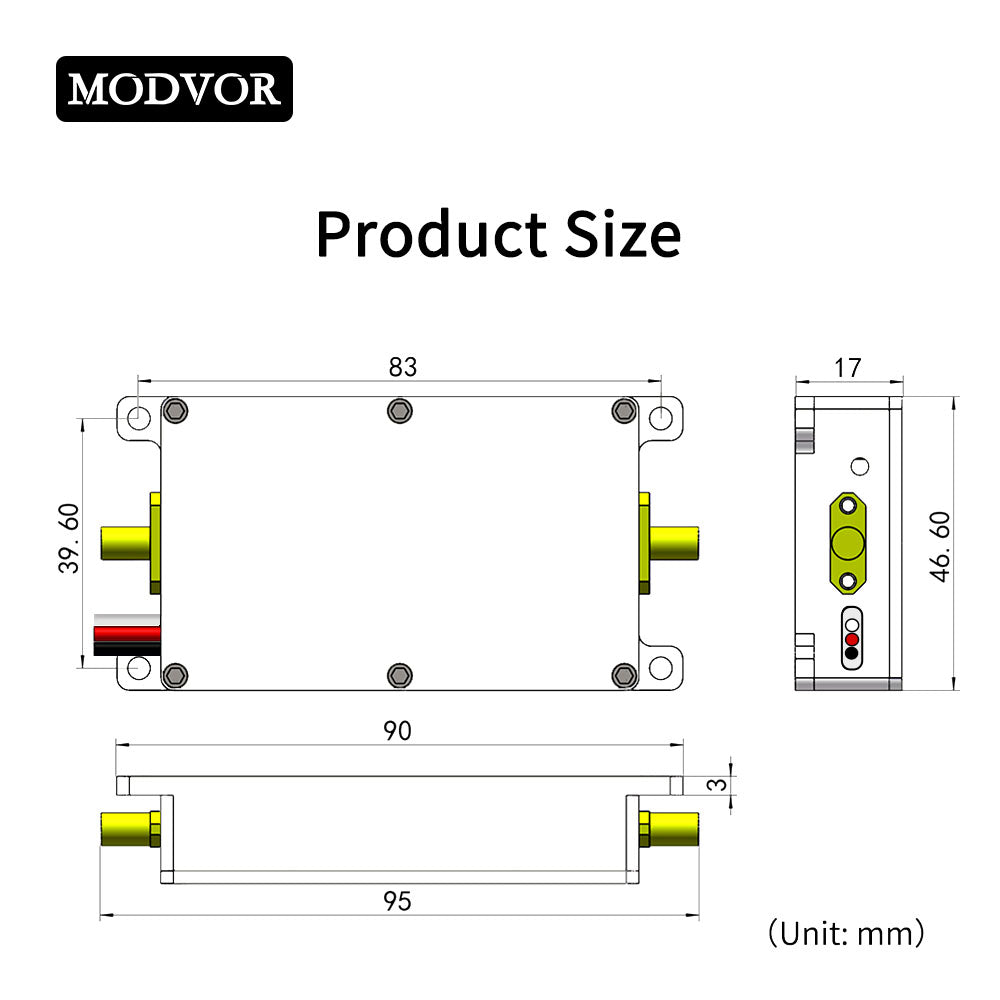

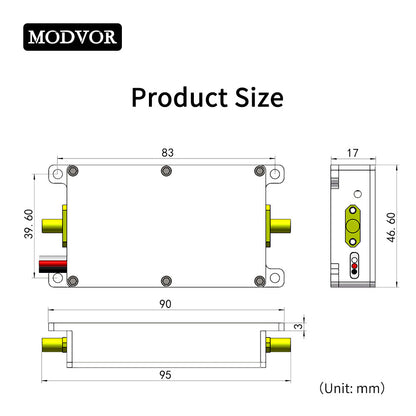

Shell Size |
90×46×17mm |
|
Net Weight |
120g |
Key Advantages
2.4GHz Transmit-Path Amplification. This RF Power Amplifier provides 35±1dB gain and 37dBm output, making it suitable for 2.4-2.485GHz links that require additional RF margin in the transmit chain.
Flexible Integration for UAV and Industrial Systems. The 22-28V DC input, SMA-K connectors, and dedicated 3-28V power control wire simplify installation in drone, ground-station, and remote industrial equipment.
Compact Passive-Cooled Aluminum Housing. The 90×46×17mm enclosure weighs only 120g, offering passive cooling and mechanical protection for space-constrained, mobile, and airborne deployments.
What's in the Box
- 1 × 2.4GHz 5W RF Power Amplifier
